DM76 Inductance Tester Precision Quick Fault Location Diagnosis

Discover the DM76 Inductance Tester Precision Quick Fault Location Diagnosis — a standout decor pick featuring professional design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Inductance Tester

Output Voltage: Inductance Tester

Semi-finishedproduct: No

Size: Inductance Tester

Style: Inductance Tester

Type: Inductance Tester

Features:

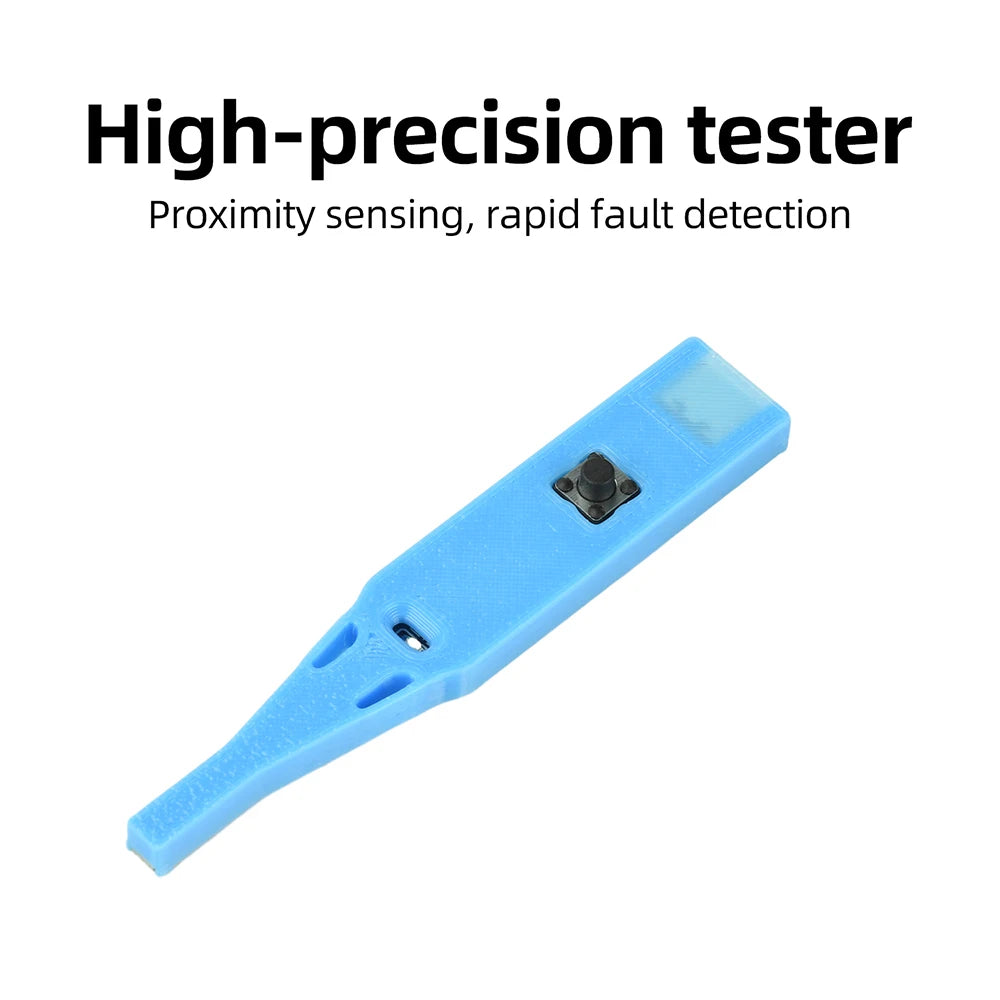

1. High-precision tester with proximity sensing for quick troubleshooting

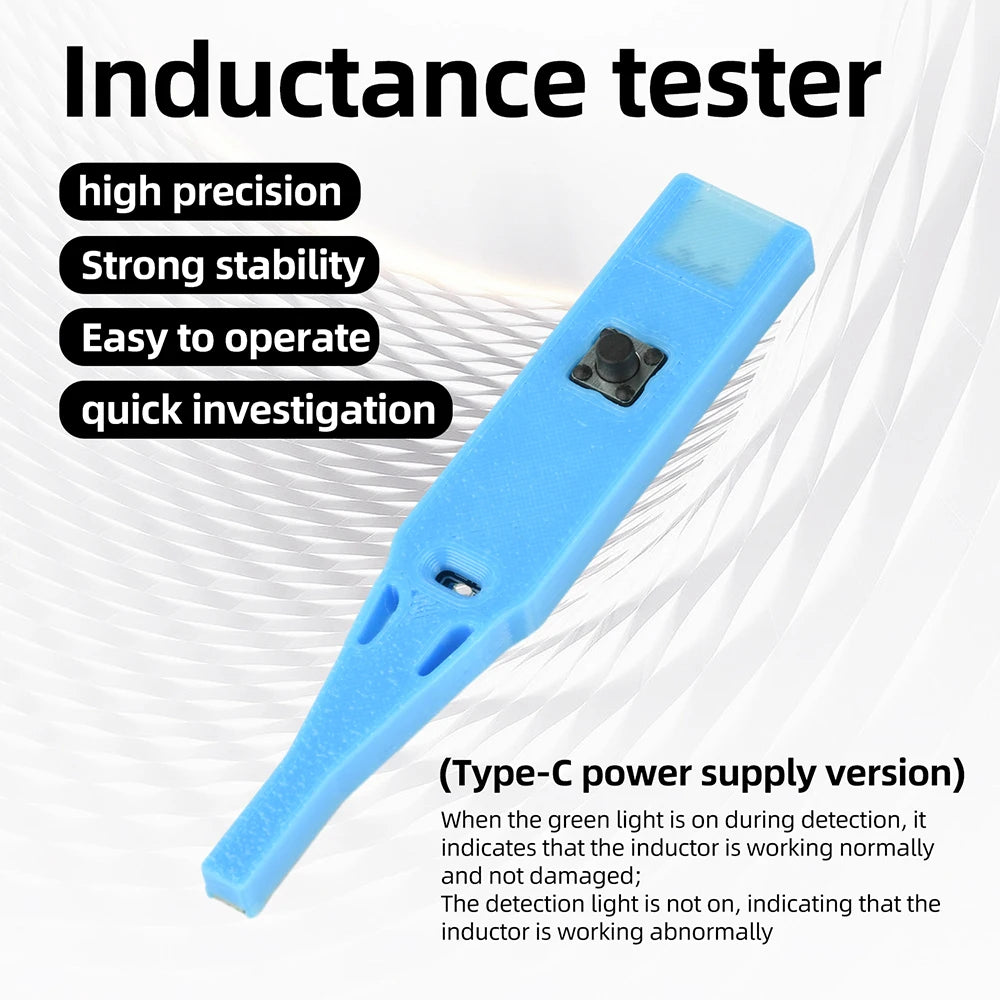

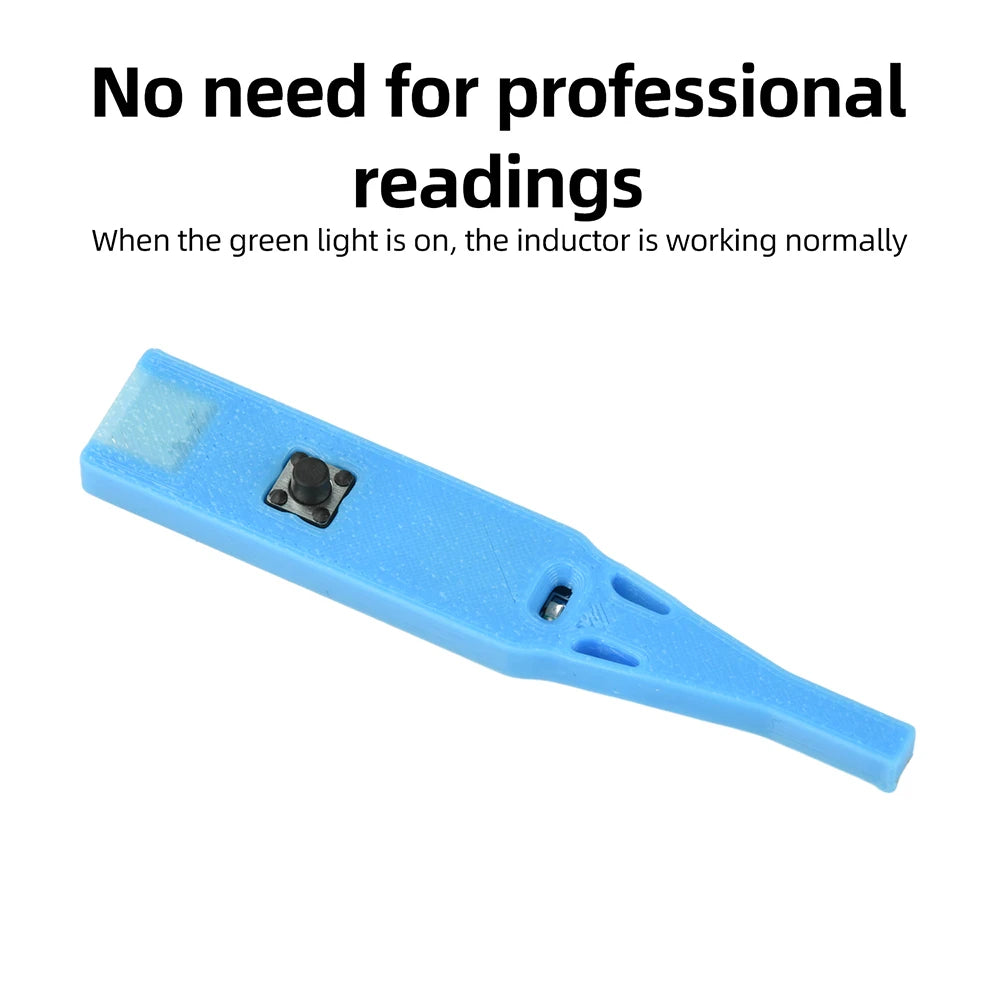

2. No need for professional readings; a green light indicates the inductor is functioning normally

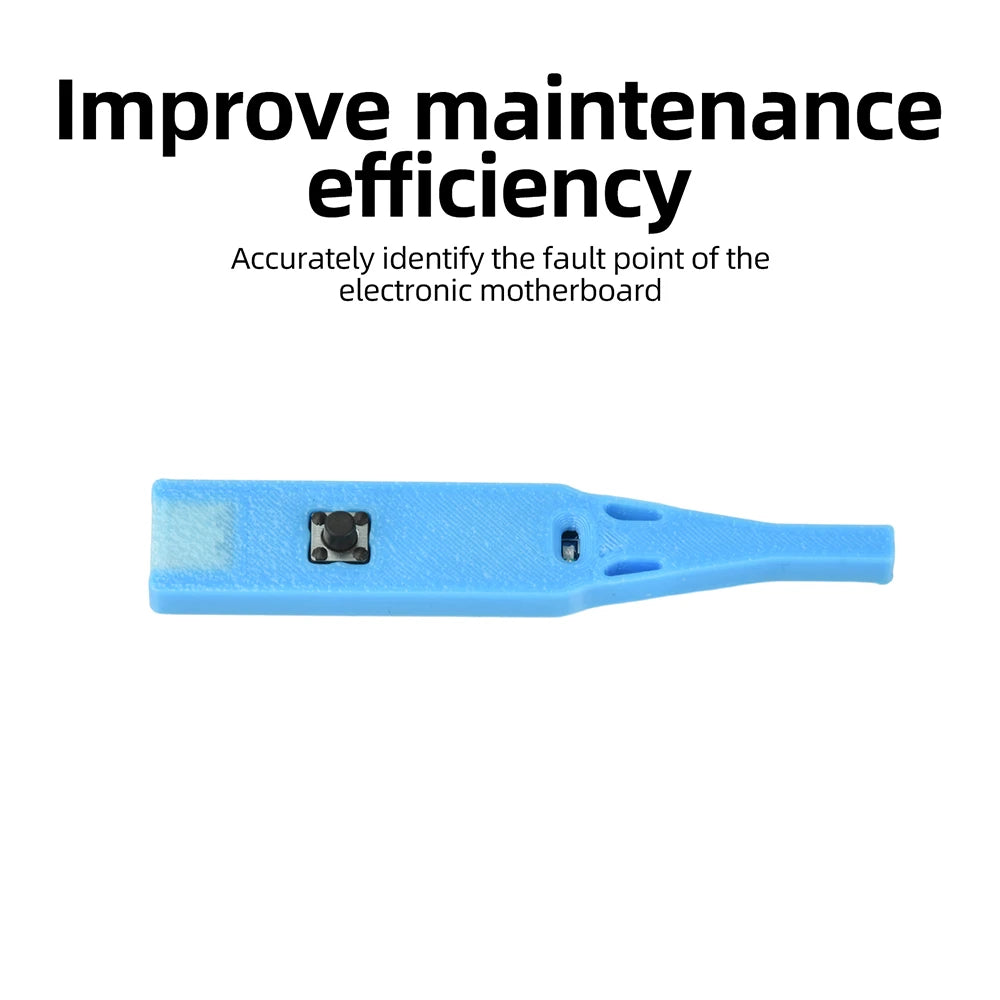

3. Accurately pinpoints faults on electronic motherboards to improve repair efficiency

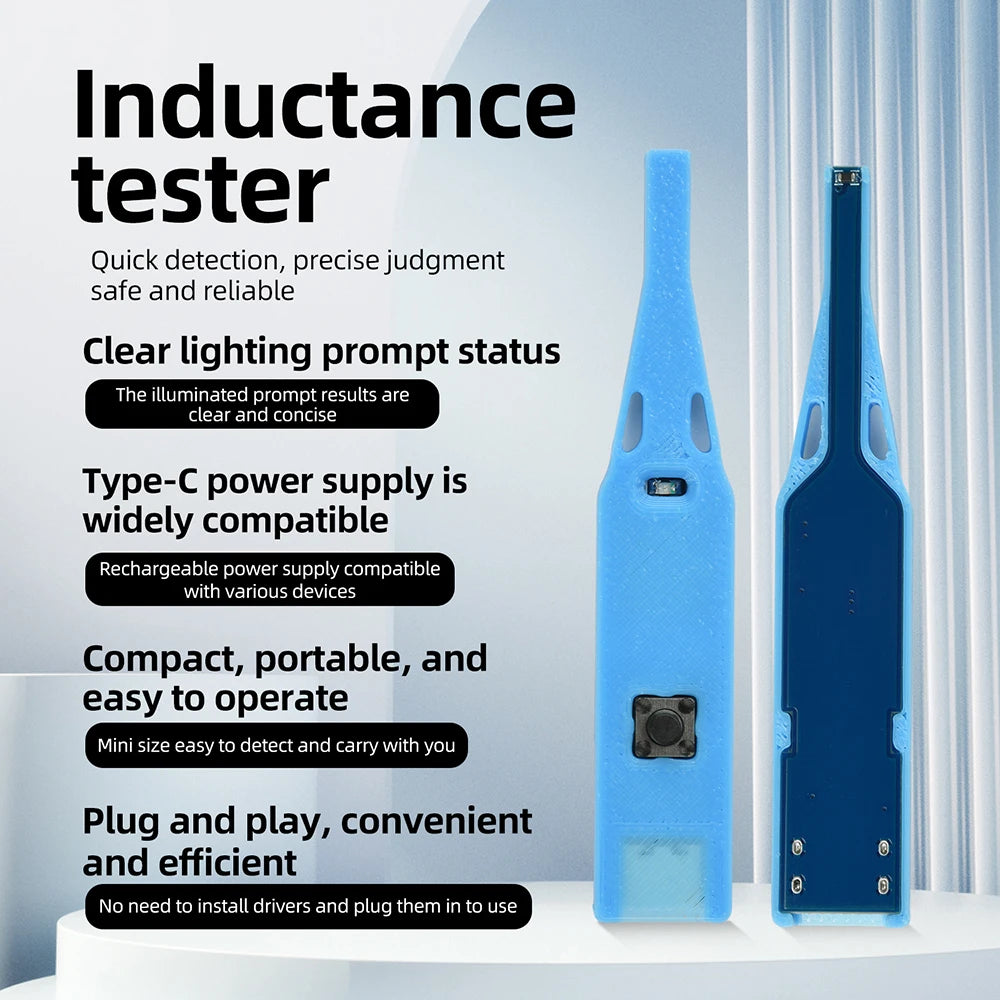

4. Powered by Type-C, ensuring reliable test results and preventing misdiagnosis

5. Simple button operation for testing the condition of inductors on electronic motherboards

Product Specifications:

Interface: Type-C port

Dimensions: 76 x 13 x 8 mm

Precautions:

1. The inductor circuit must be powered on during testing; the inductor must be in an active state to be monitored

2. Supports measurement of coil-type inductors only; does not support resistors, capacitors, diodes, transistors, or other components. The indicator may also light up if it comes into contact with metal heat sinks or shielded enclosures due to electromagnetic interference

Instructions for Use:

1. Plug in the power cable.

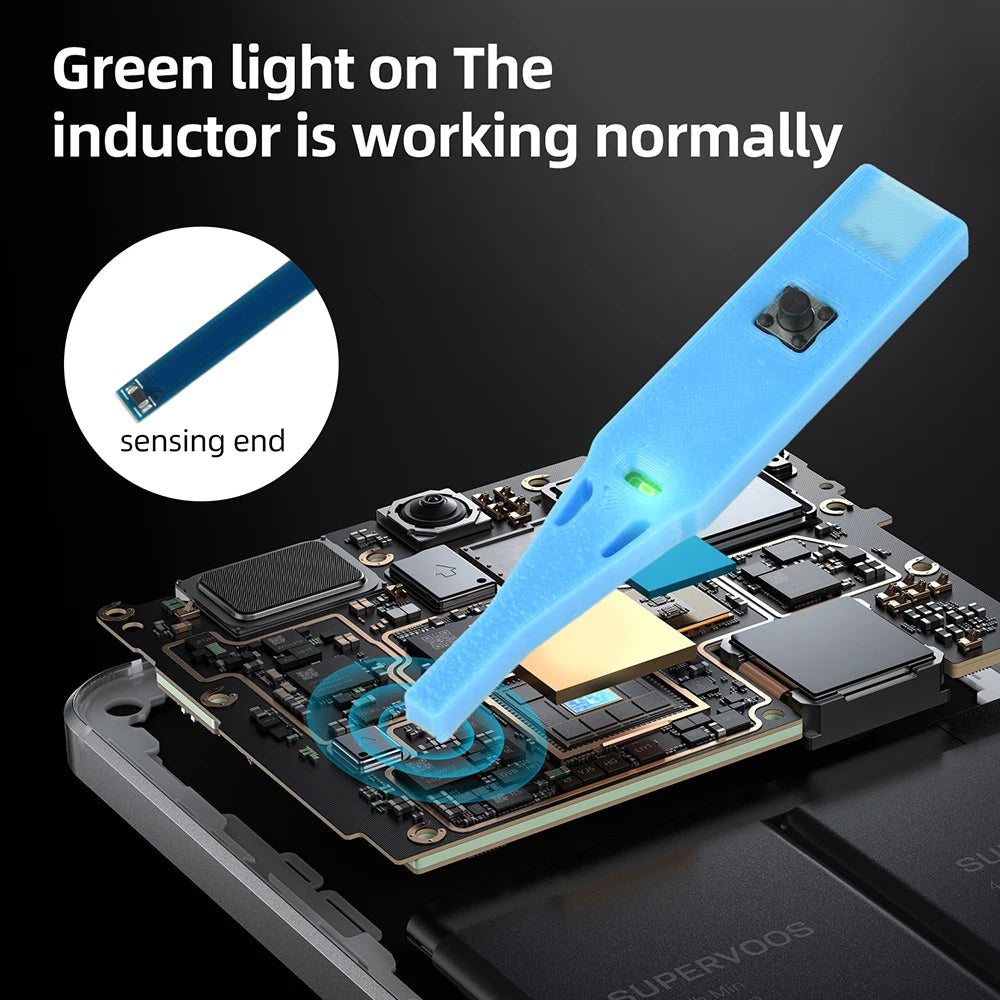

2. Press the button and bring the sensing end close to the inductor to be tested (the circuit must be powered on).

3. If the indicator light turns on, the inductor is functioning normally.

4. If the indicator light does not turn on, the inductor is malfunctioning.

This inductor tester is designed exclusively for testing inductors!!!

Operating Instructions: First, power on the tester. At this point, the circuit board will not respond. The circuit board under test must also be powered on to perform the test. To test an inductor, hold down the switch and bring the front end of the tester close to the inductor (do not place it directly on top of the inductor, as some inductors are not insulated). If the indicator light on the tester illuminates, the inductor is functioning normally. If the light does not illuminate when the front end is placed on the inductor, the inductor is faulty and requires repair.

Note: Since inductors are difficult to test during repairs, this specialized tool was developed to facilitate testing and repair.

Package Contents:

Tester *1
