Discover the DRV8871 H-bridge Brushed DC Motor Driver Breakout Board 6 5-45V PWM, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
Does it include a Battery?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Motor: DC Motor
Product Features:
1. PWM Control: Supports pulse width modulation interface for precise speed and power regulation

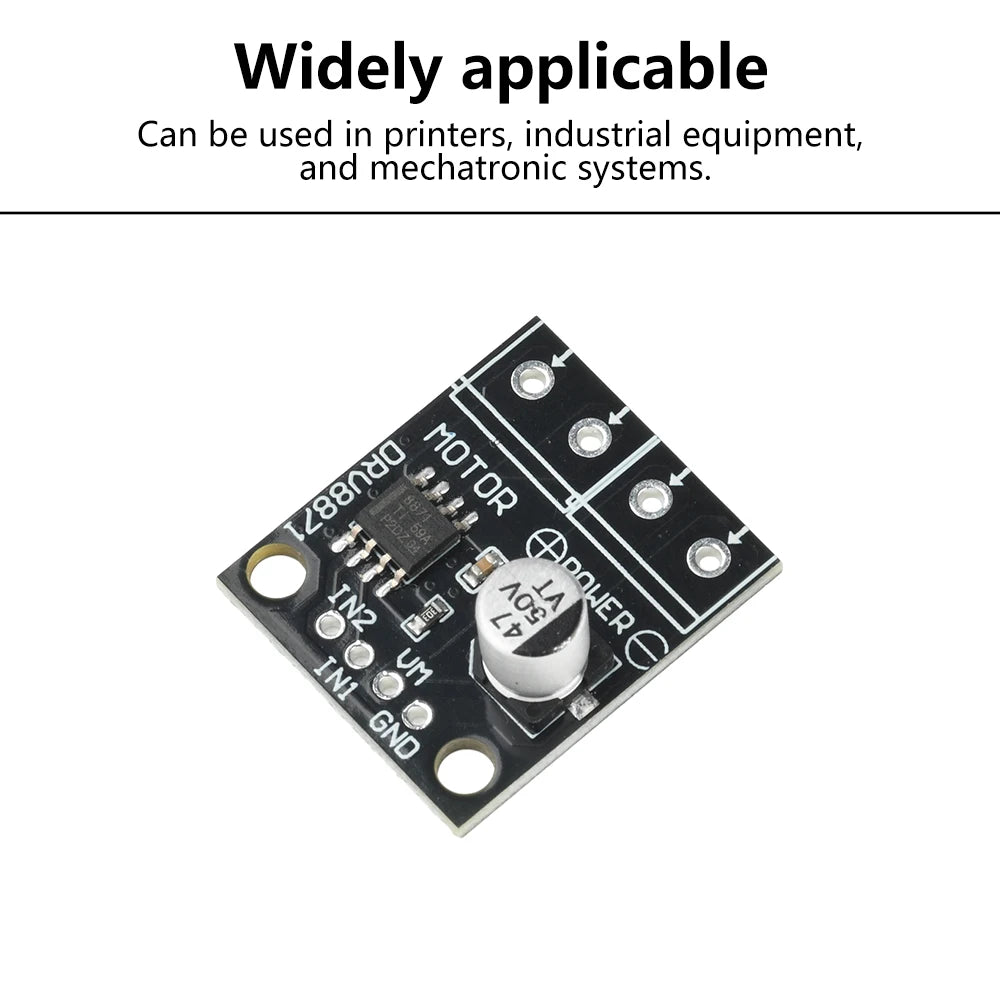

2. Wide Applicability: Suitable for printers, industrial equipment, and mechatronic systems

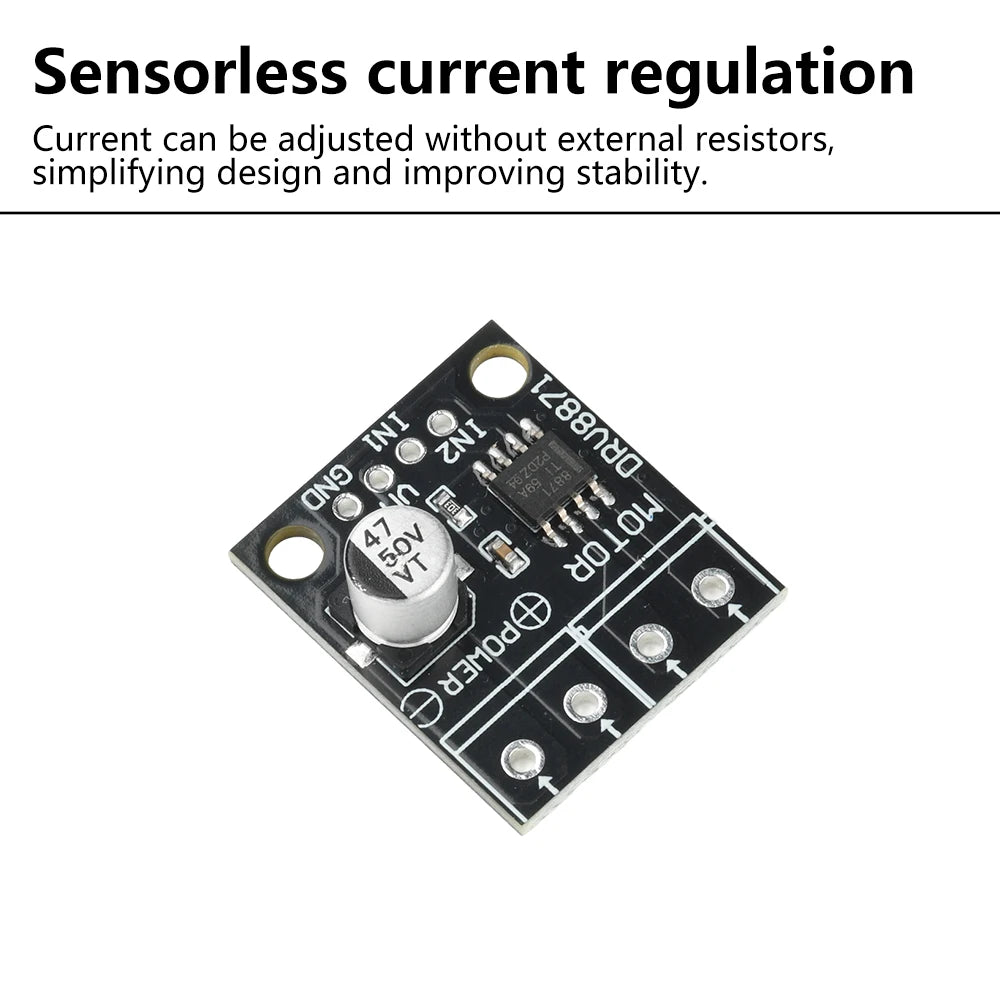

3. Sensorless Current Regulation: Adjusts current without external resistors, simplifying design and enhancing stability
4. Multiple Protections: Built-in overcurrent, short-circuit, undervoltage, and overheat protection ensure safe and stable operation
5. Multi-Functional Drive: Suitable for DC motors, stepper motor windings, and other loads to meet diverse application needs

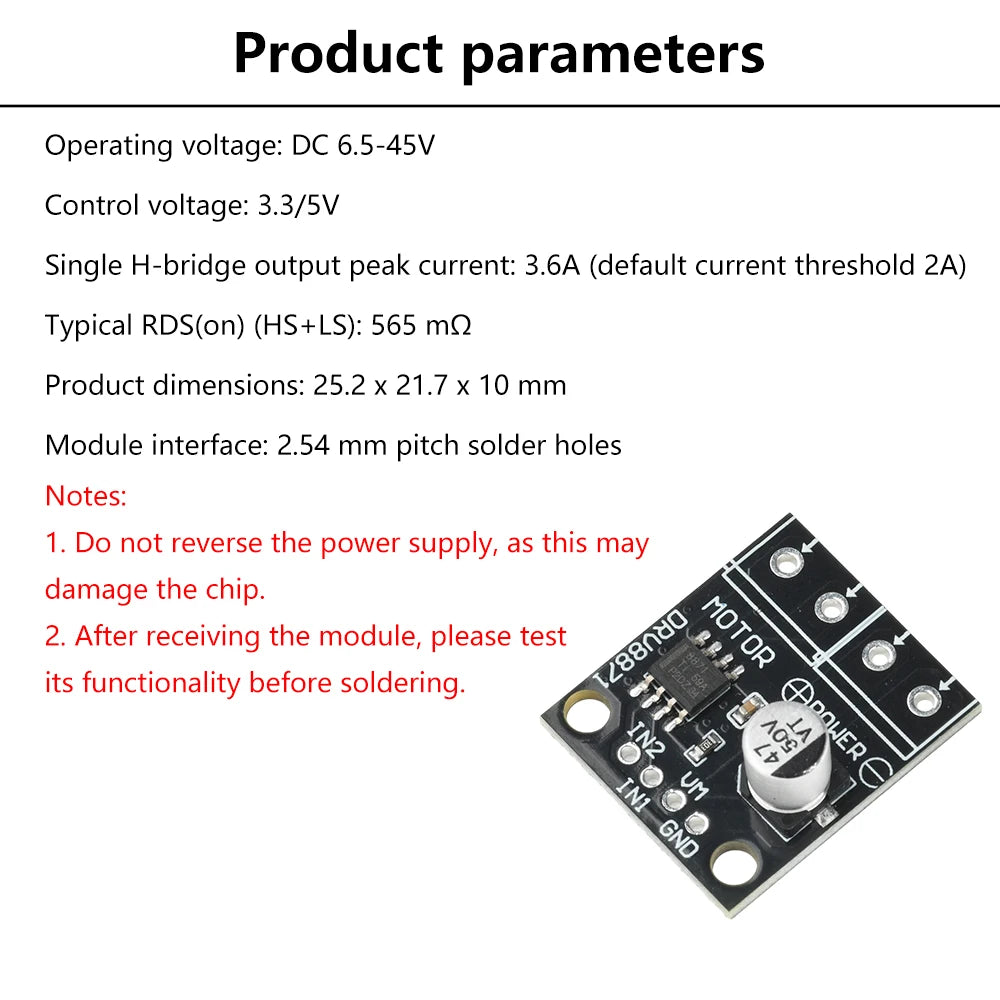

Product Parameters:
Operating Voltage: DC 6.5-45V
Control Level: 3.3/5V
Single H-Bridge Peak Output Current: 3.6A (Default Current Threshold 2A)
Typical RDS(on) (HS+LS): 565 mΩ

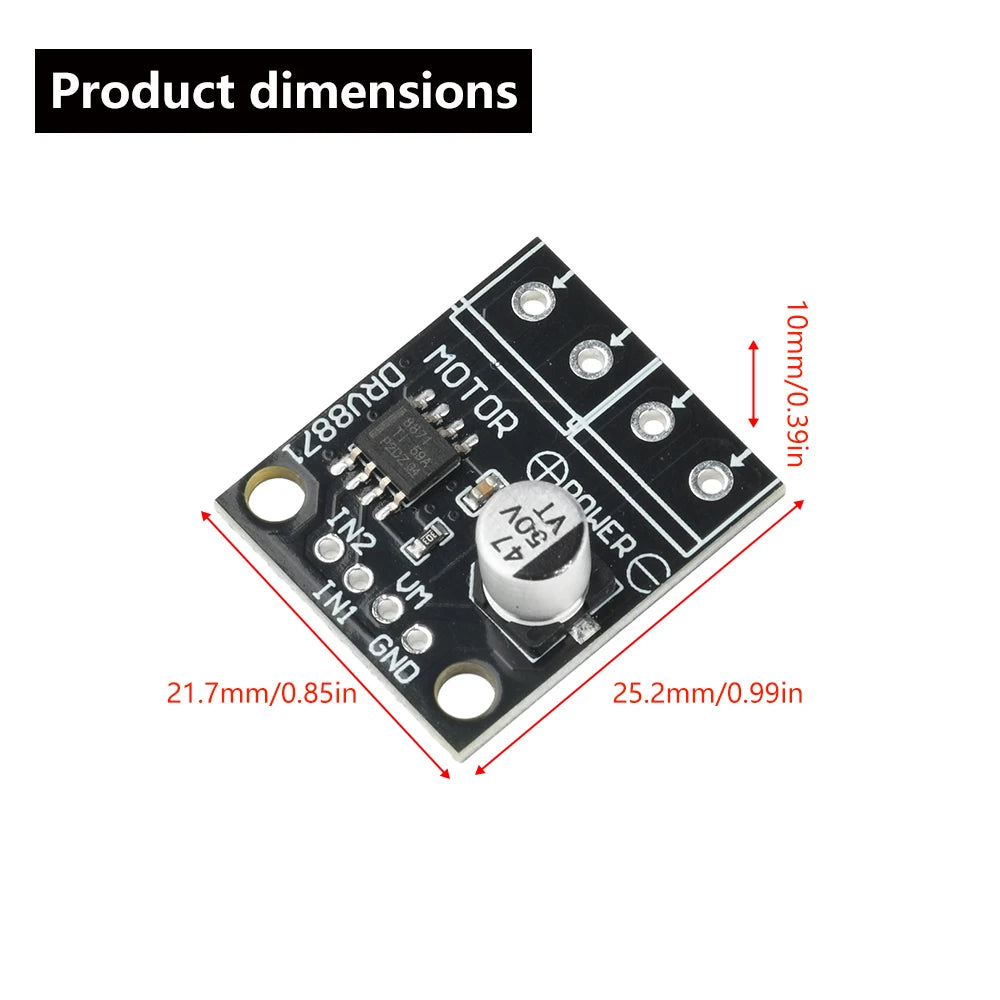

Product Dimensions: 25.2*21.7*10mm
Module Interface: 2.54mm pitch solder pads
Important Notes:
1. Never reverse power supply polarity, as this risks burning the chip.
2. Test module functionality before soldering upon receipt.

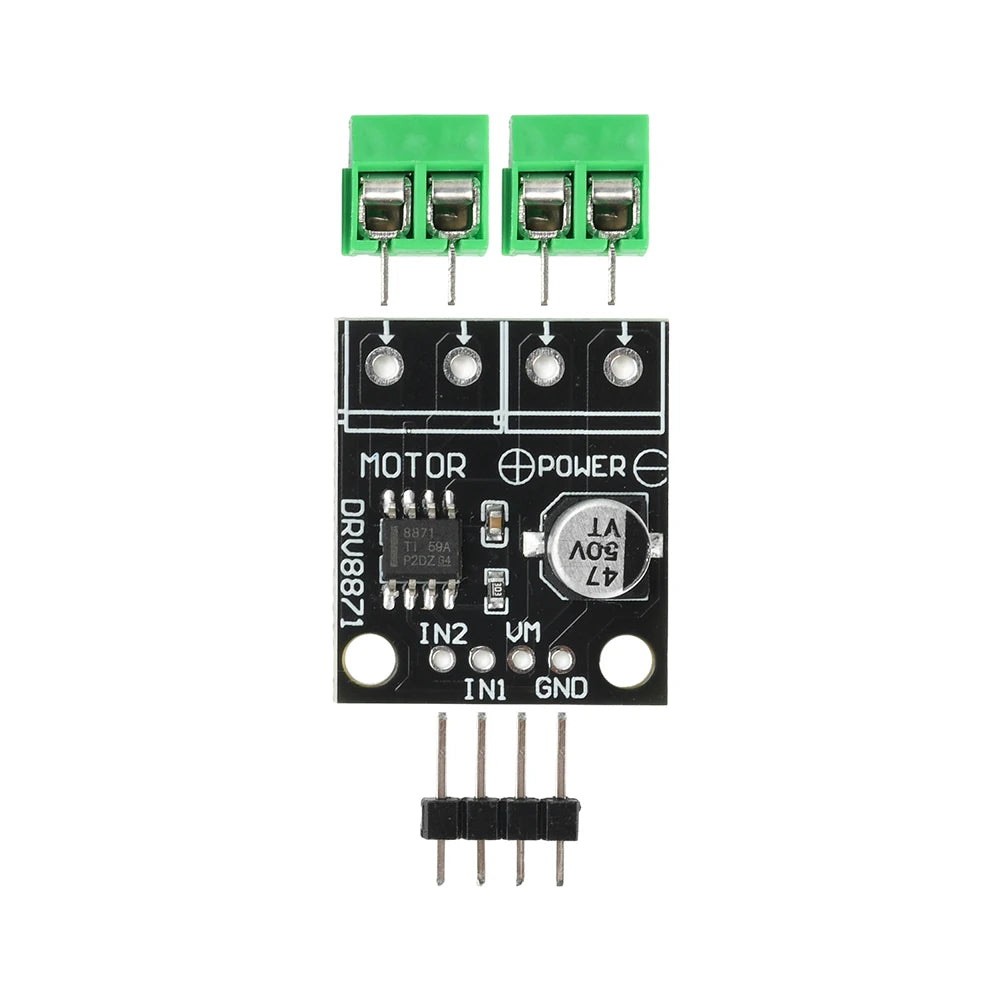

Package Contents:
Module*1
Header Pin*1
Terminal Block*2
