Dual Channel Bidirectional ESC Brushed Electric Speed Controller RC

Discover the Dual Channel Bidirectional ESC Brushed Electric Speed Controller RC — a standout decor pick featuring premium design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

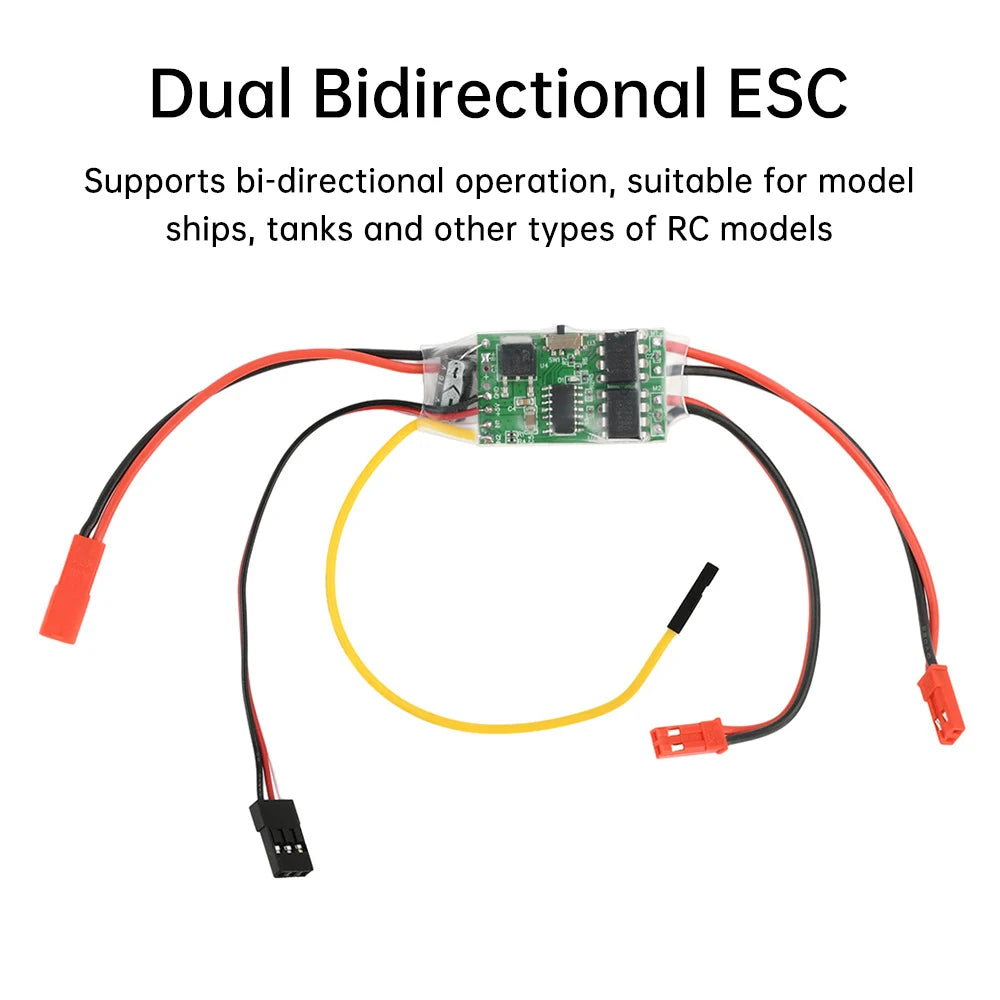

1. Supports bidirectional operation, suitable for various RC models including model boats and tanks

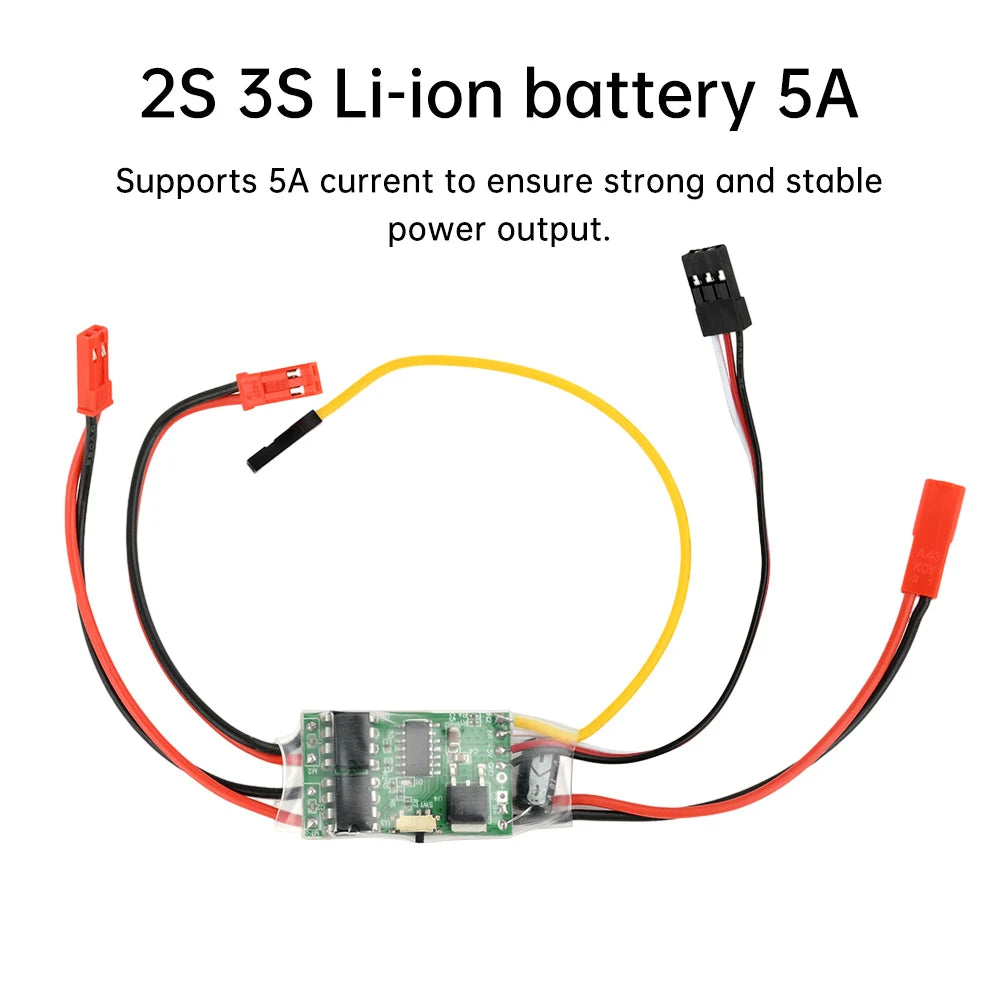

2. Supports 5A current for powerful and stable power output

3. Compatible with 2S/3S lithium batteries to meet diverse power requirements

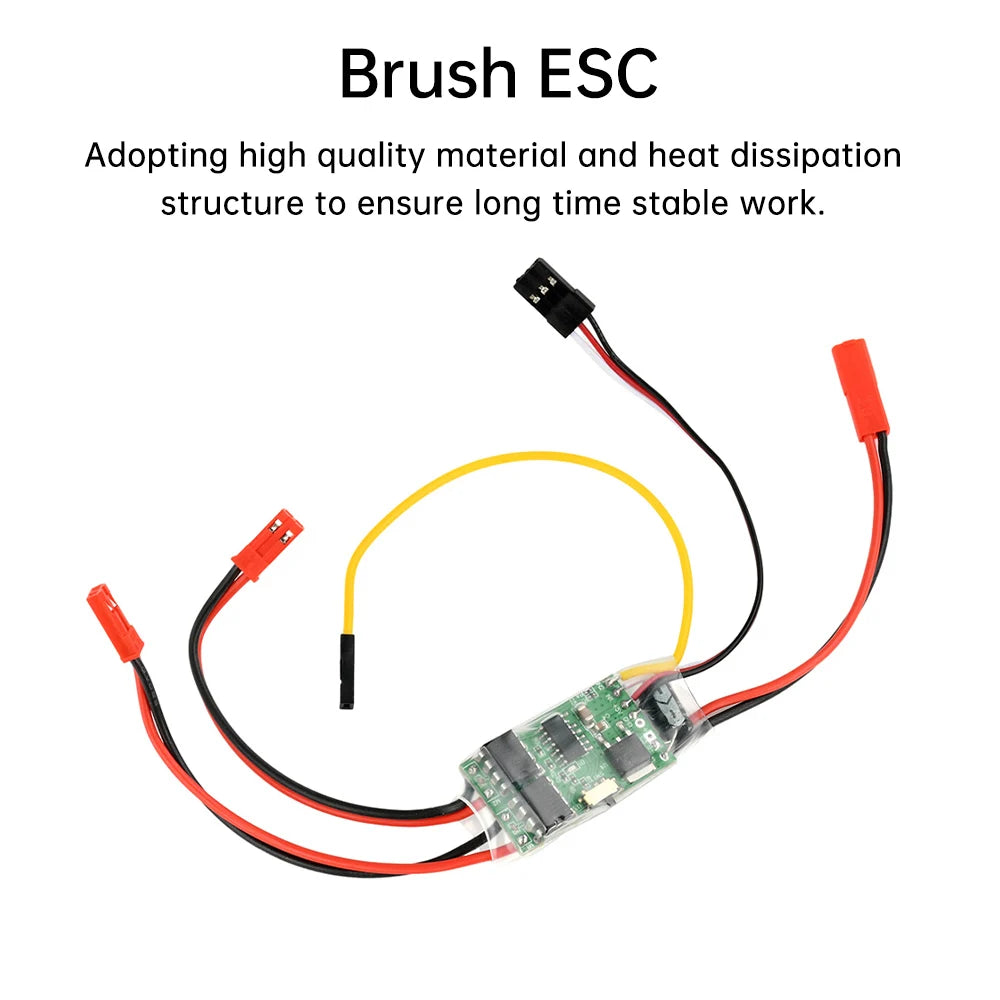

4. Constructed with premium materials and thermal design for sustained stable operation

5. Modular design enables quick installation, ideal for DIY enthusiasts

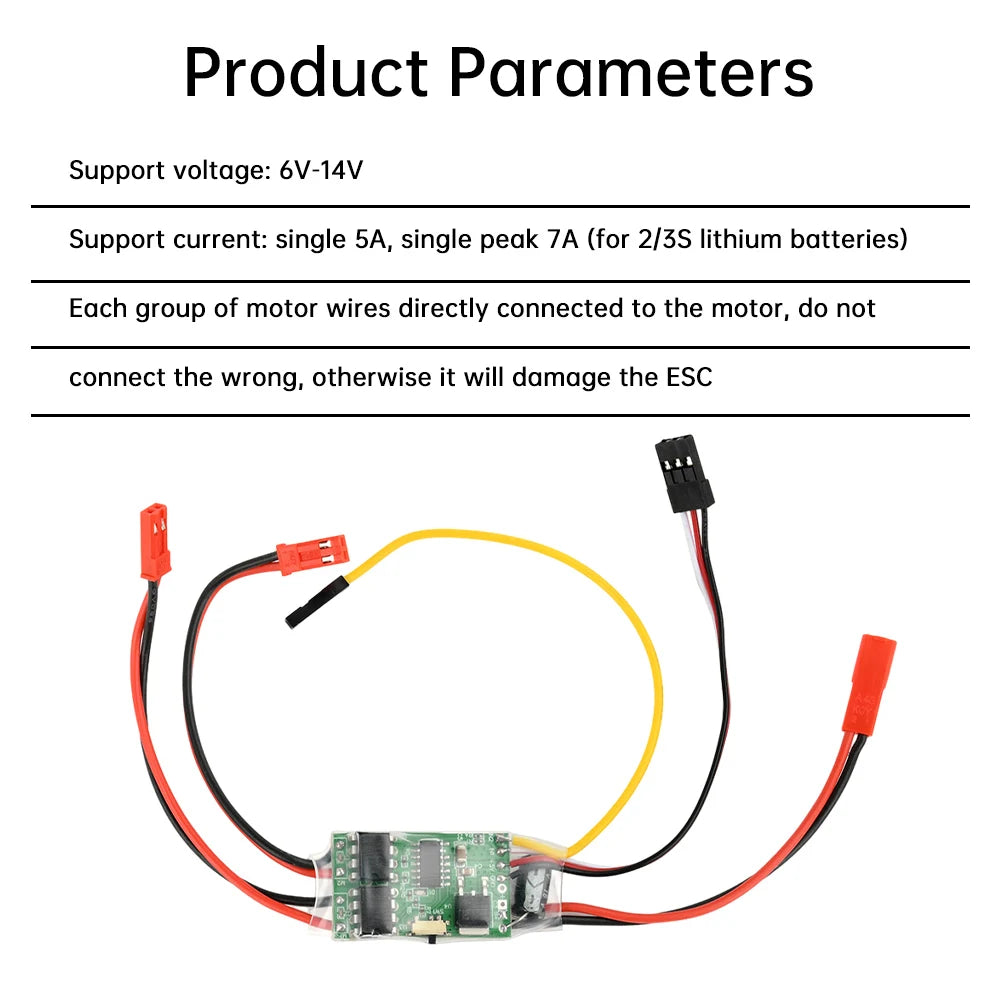

Product Specifications:

Supported Voltage: 6V-14V

Supported Current: 5A per channel, 7A peak per channel (for 2S/3S LiPo)

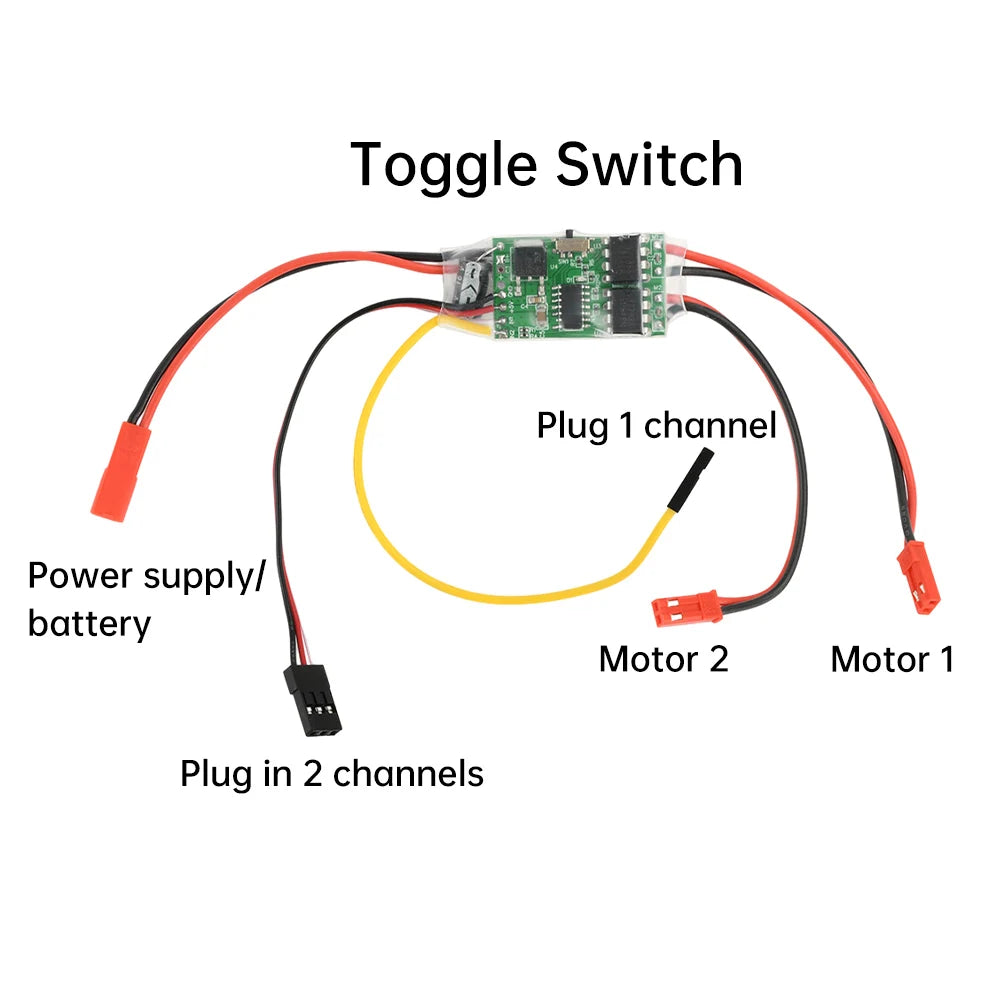

Connect motor wires directly to motors. Do not reverse connections, as this may damage the ESC.

Function Overview:

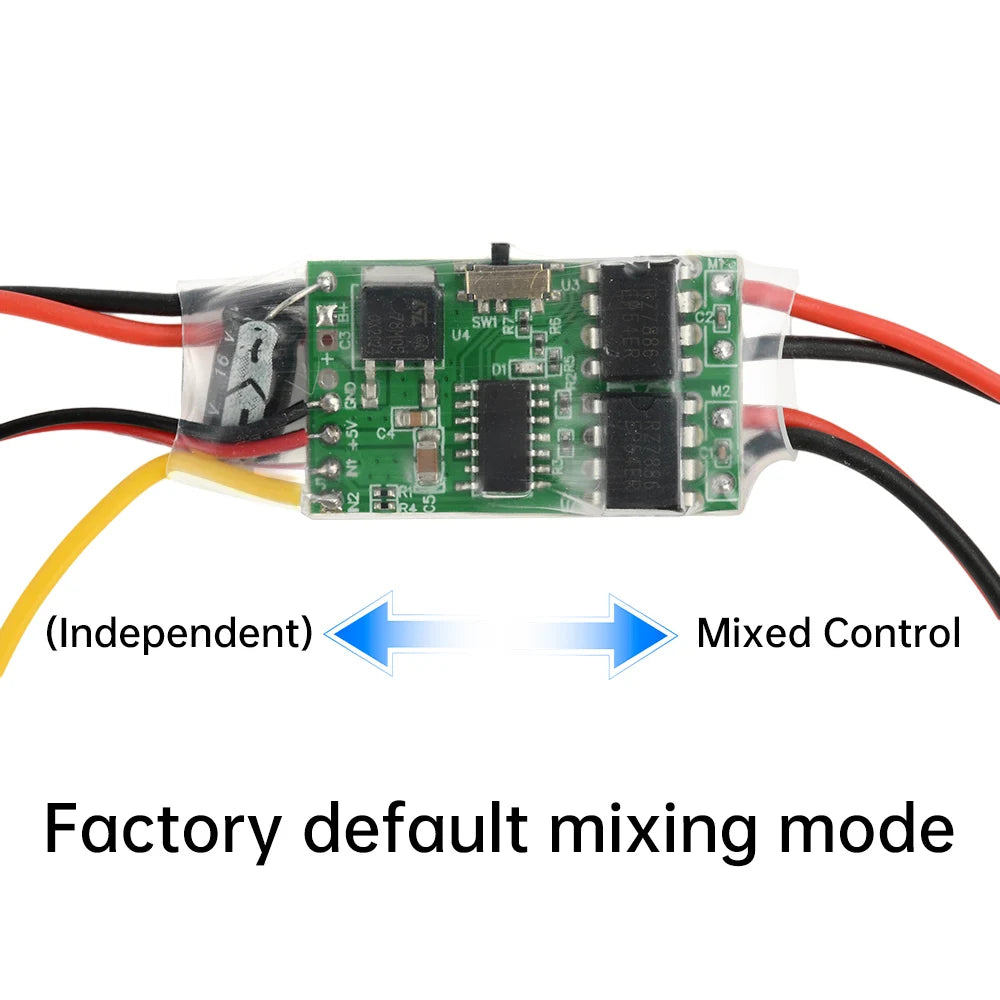

Mixed Control Mode (Default)

(Throttle/Steering Mode): 2 or 3 channels (2 channels recommended for auto-center function).

- Throttle channel 1 (or channel 4) controls speed differential steering.

- Throttle proportionality: 100%.

- Steering proportionality: 100%.

- Steering priority.

Suitable for: Tanks, 4WD cars

Dual Independent Mode: Equivalent to two independent ESCs.

Dual Synchronous Mode: In Mixed Control Mode, leave the single yellow wire unconnected or connect it to the receiver's “-”. Both motors will then be synchronously controlled by the throttle.

Features Loss-of-Control Protection: In case of signal loss (e.g., accident, signal wire breakage), the system automatically returns the throttle to center for motor protection. Manual unlocking is required.

Power-down Protection: When supply voltage drops below 4V, the ESC reboots for protection (e.g., during high-current discharge or when poor-quality batteries cause excessive voltage drop). After protection activates, the motor stops. Once the motor stops and the battery voltage recovers, it returns to the center position, and you will hear the motor unlocking sound.

Overcurrent Protection: (However, repeated overcurrent during use may cause burnout or short circuits.)

Overheat Protection: (Approximately 130°C)

BEC Output: 5V, max 1.5A, sufficient for powering receivers and flight controllers. (Note: The onboard microcontroller also operates at 5V. Connecting a 2S LiPo directly to the receiver will instantly burn the microcontroller (maximum voltage tolerance: 6.5V).)

Package Contents:

Brushed ESC Module*1
