Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit Board
Without shell
$22.21
Sale price
$22.21
Regular price
$27.52
Skip to product information
Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit Board
$22.21
Sale price
$22.21
Regular price
$27.52
Shipping calculated at checkout.
Discover the Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit Board, a standout hobbies & creative arts pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

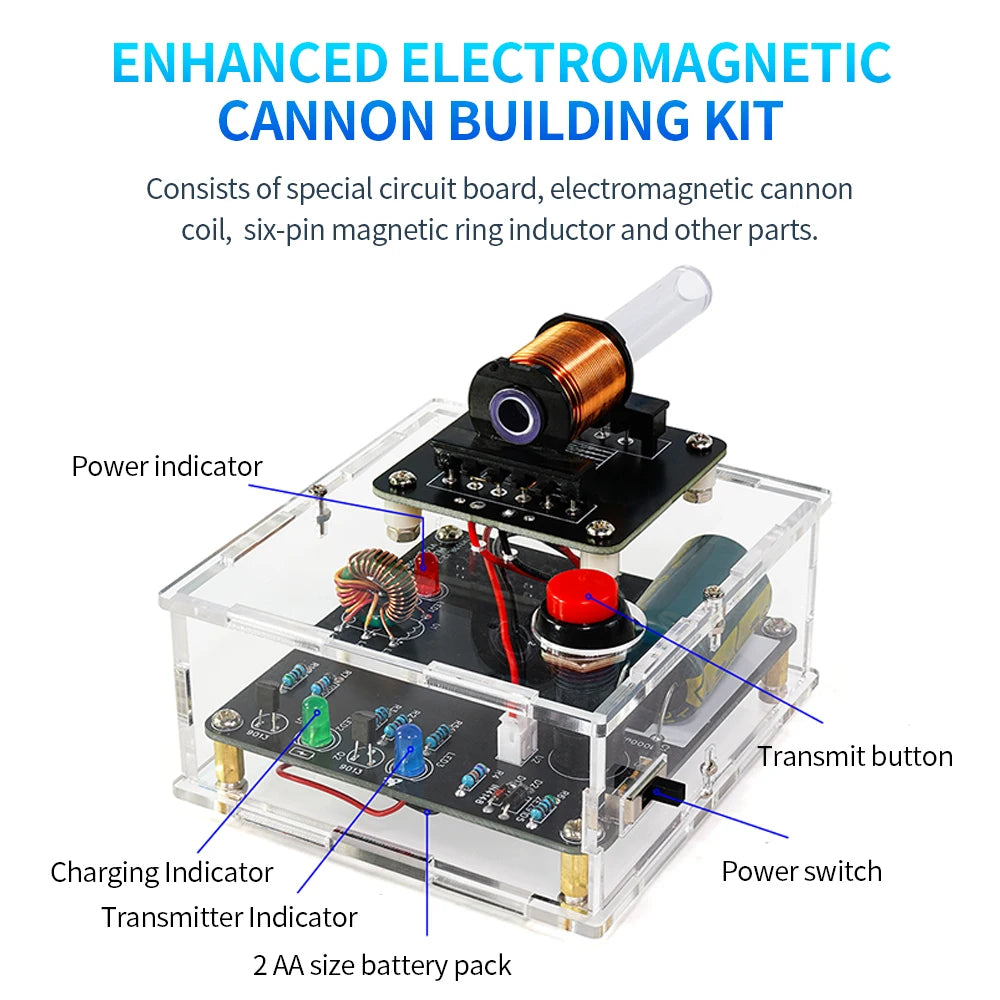

1. Constructed with dedicated circuit boards, electromagnetic cannon coils, six-pin ferrite ring inductors, and other components.

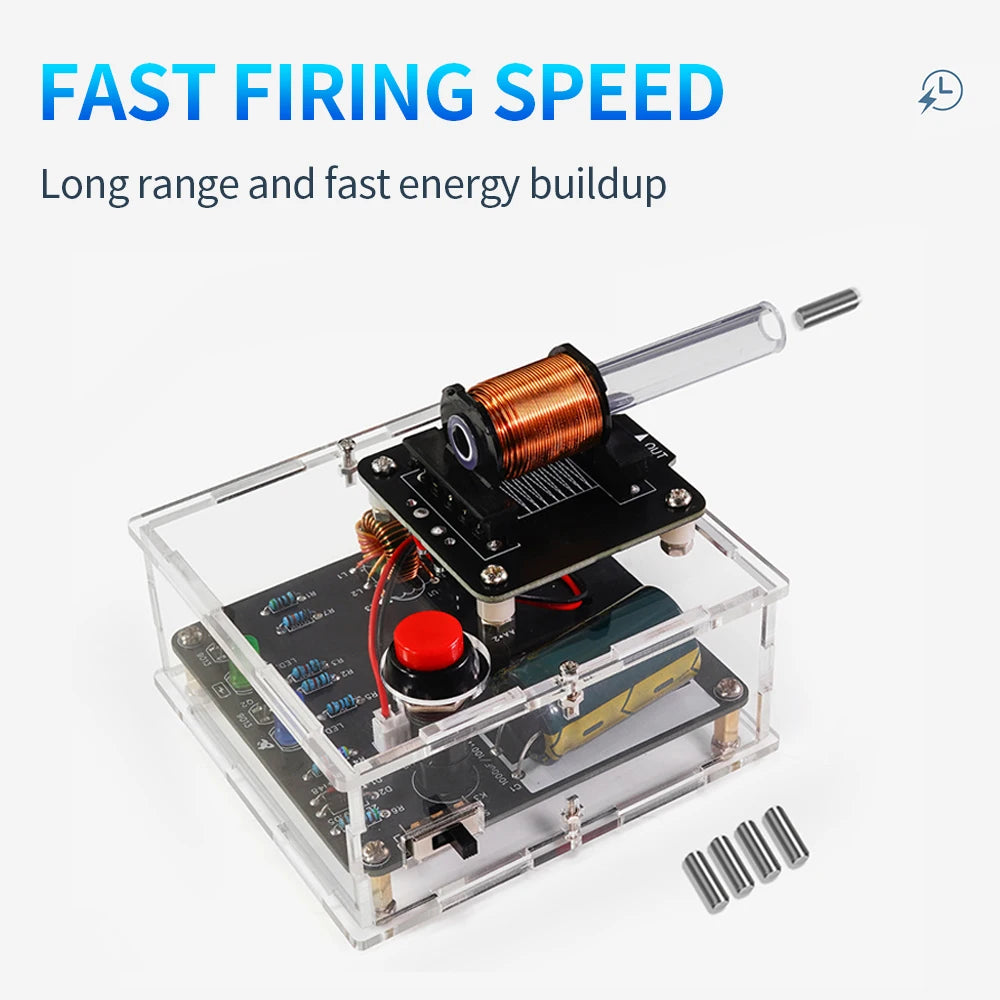

2. Rapid projectile launch speed.
3. Fast energy charging capability.
4. Extended projectile range.

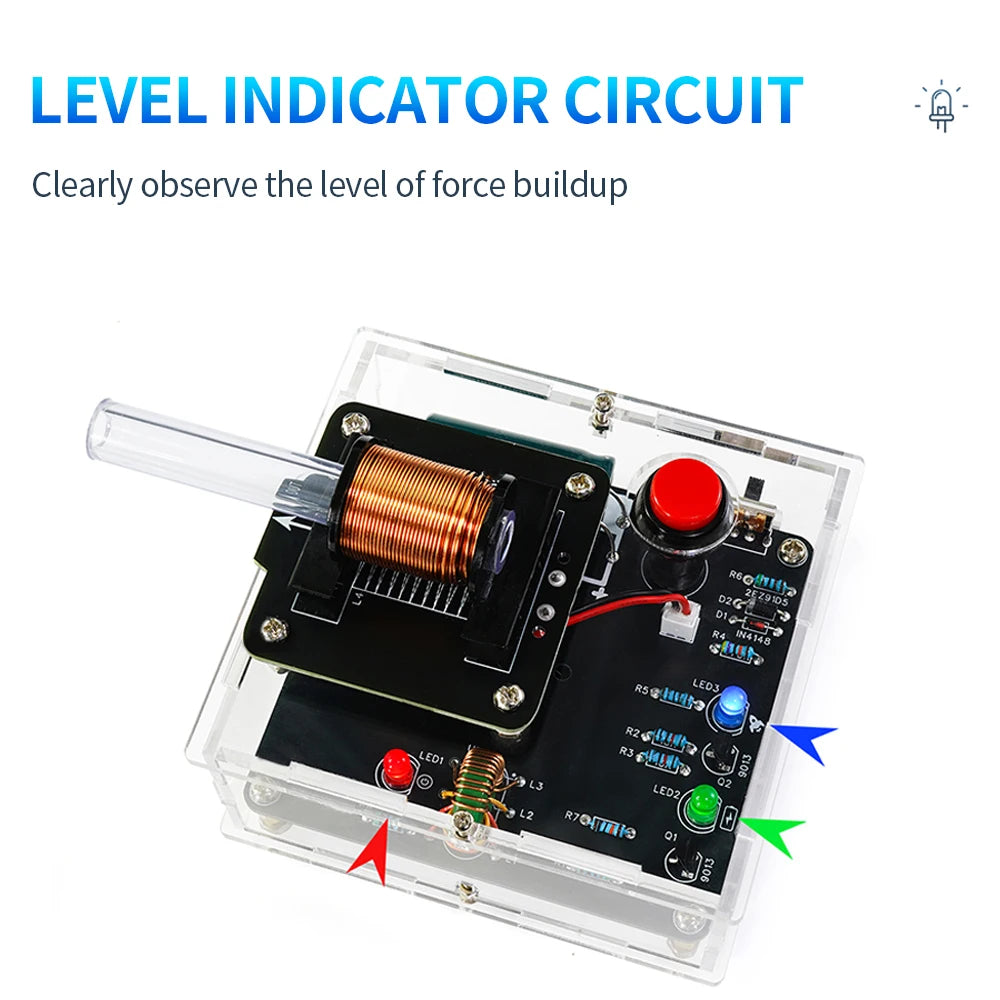

5. Level indicator circuit for convenient monitoring of charge status.

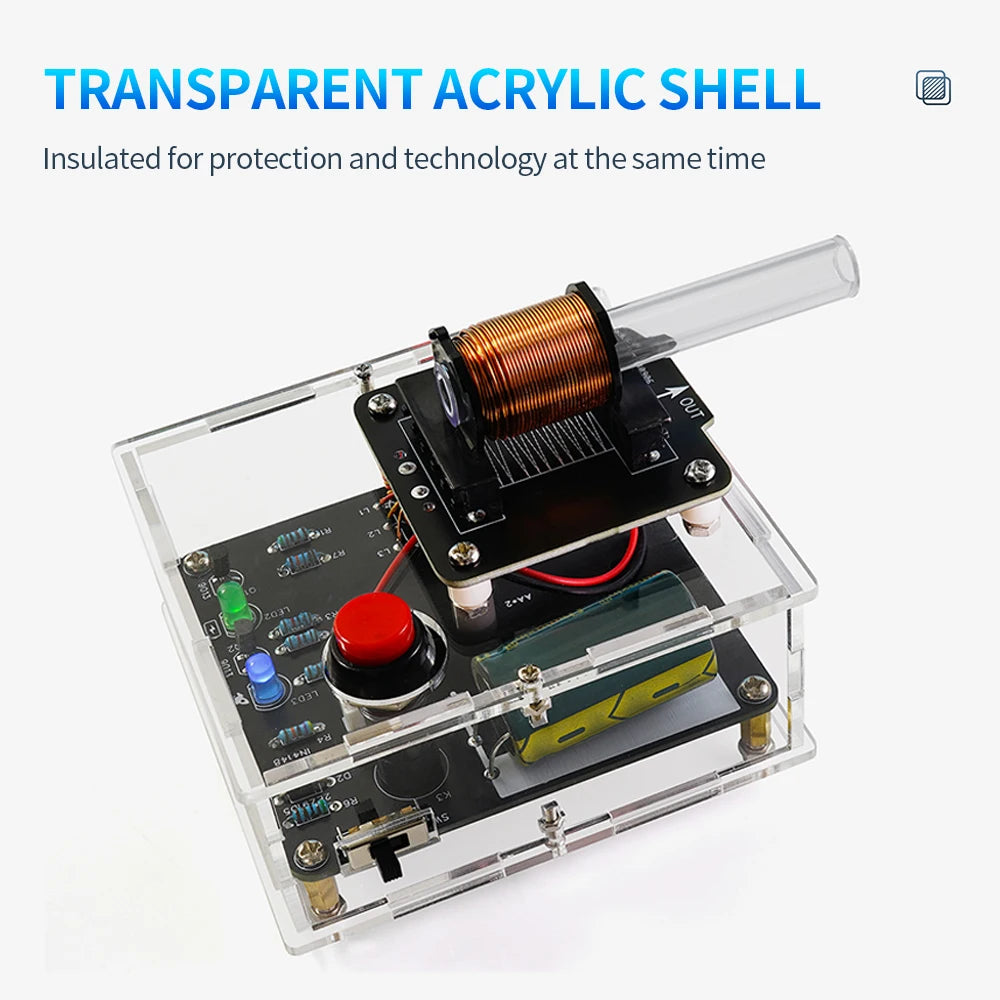

6. Optional acrylic casing for insulation protection.
7. Aesthetic and convenient bottom battery compartment allows easy battery replacement without opening the enclosure.
Product Description:
An electromagnetic cannon is a weapon technology that accelerates projectiles using electromagnetic force. It employs electromagnetic pulses to accelerate projectiles to high velocities before firing them at extreme speeds. Our Enhanced Electromagnetic Cannon Kit simplifies wiring complexity and significantly reduces soldering difficulty, making it ideal for beginners. It also includes power, charging, and firing indicator lights for clearer monitoring of operational status. Caution: Never aim at people or fragile objects during use to prevent dangerous projectile discharge!
Product Specifications:

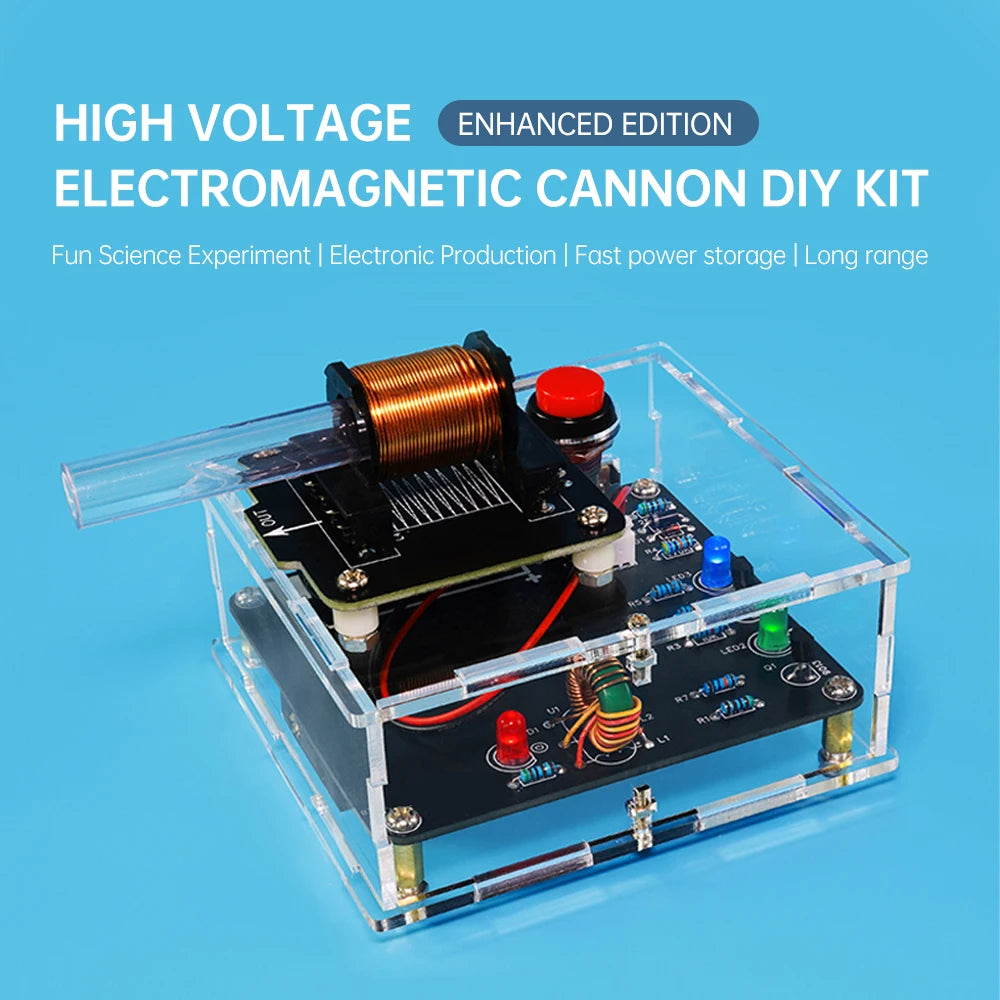

Kit Name: Enhanced Electromagnetic Cannon Construction Kit
Operating Voltage: DC 3V
Power Supply: 2 AA batteries, DC 3V (batteries not included)
Charging Current: 50~65mA
Firing Current: 70~80mA
PCB Dimensions: 85x78mm + 50x53mm (hand-measured, ±1~2mm tolerance)
Operating Instructions:
1. Flip the power switch (Toggle Switch SW1). Red and green LEDs illuminate.
2. Wait approximately 10–30 seconds. Blue LED illuminates; brighter blue indicates greater firing range.
3. Insert projectile into the rear of the barrel.
4. Press the firing button (Round Button K3). Projectile launches from the barrel, completing firing.
Key Electromagnetic Cannon Technologies:
Power System: Supplies high-voltage electricity to generate powerful electromagnetic force. Common power systems include capacitors or battery packs.
Electromagnetic Accelerator: An electromagnetic device accelerating projectiles, composed of coils and a support frame. When energized, the coils generate a strong magnetic field acting on the projectile to accelerate it.
Product Listing:

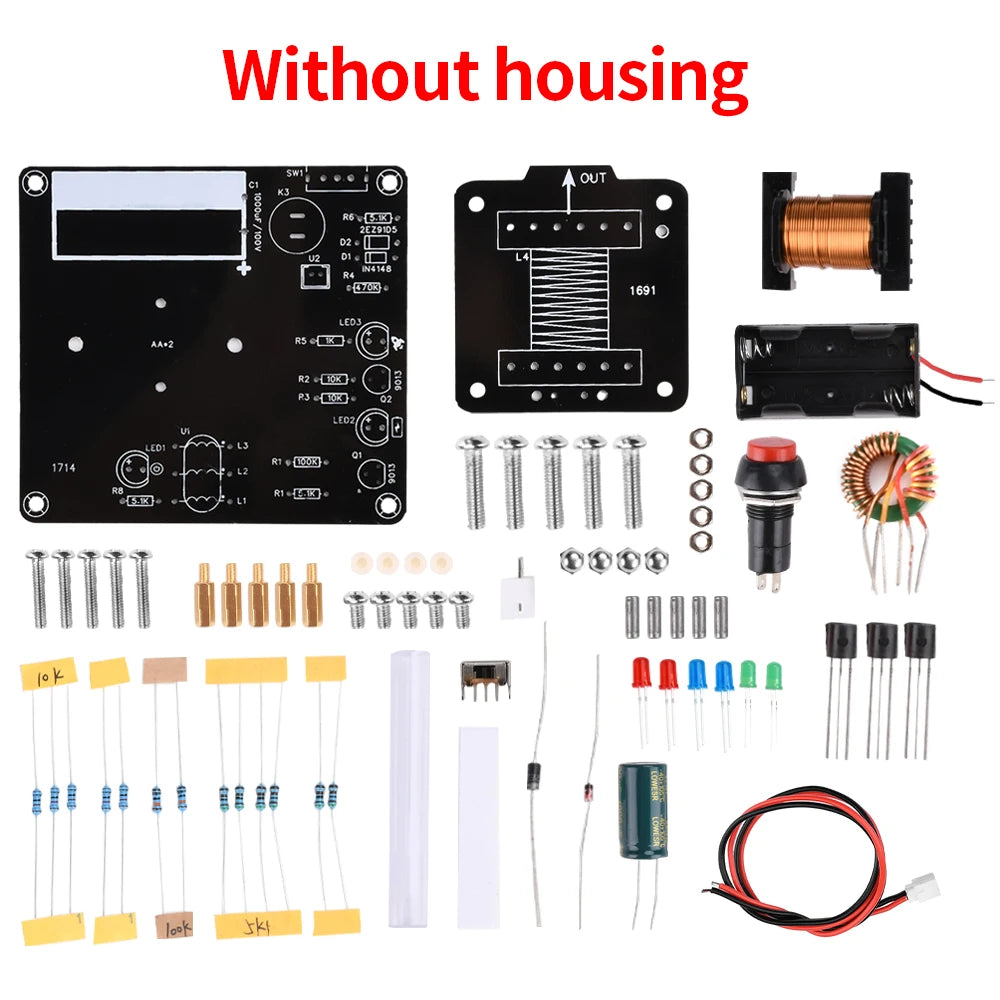

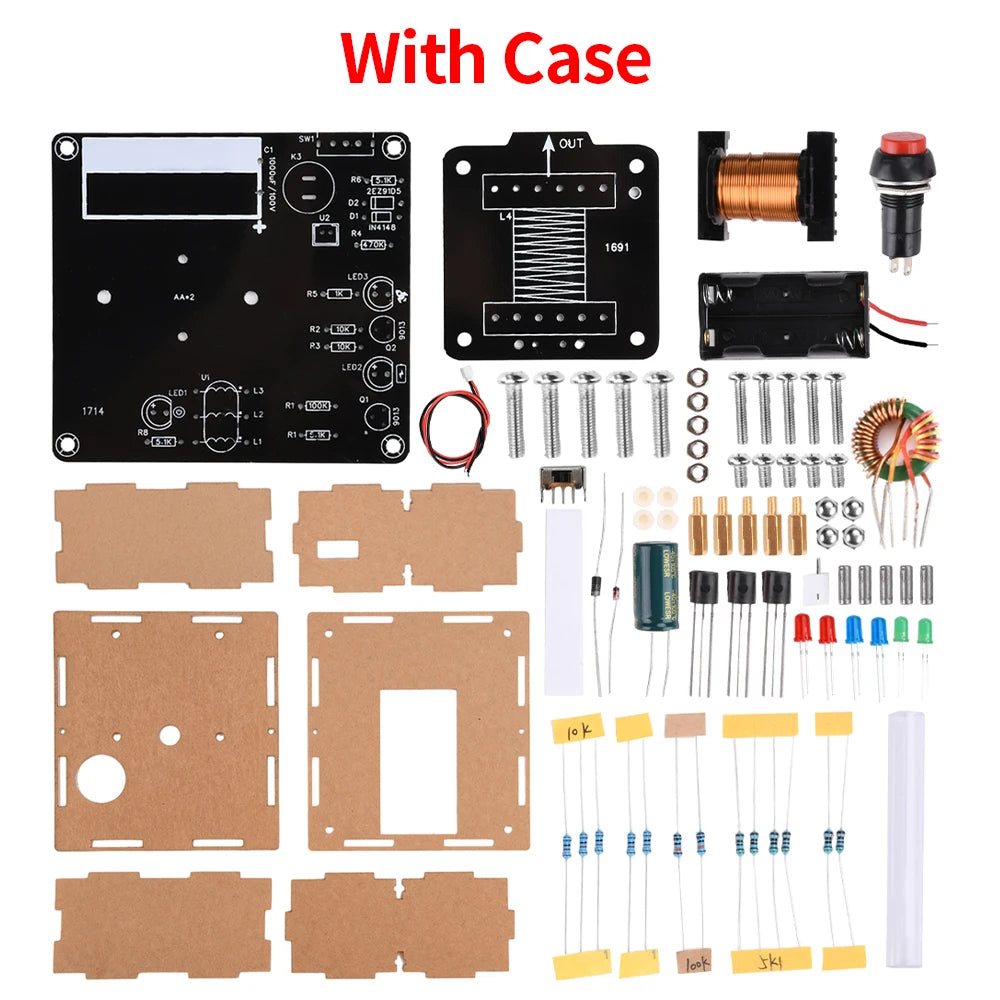

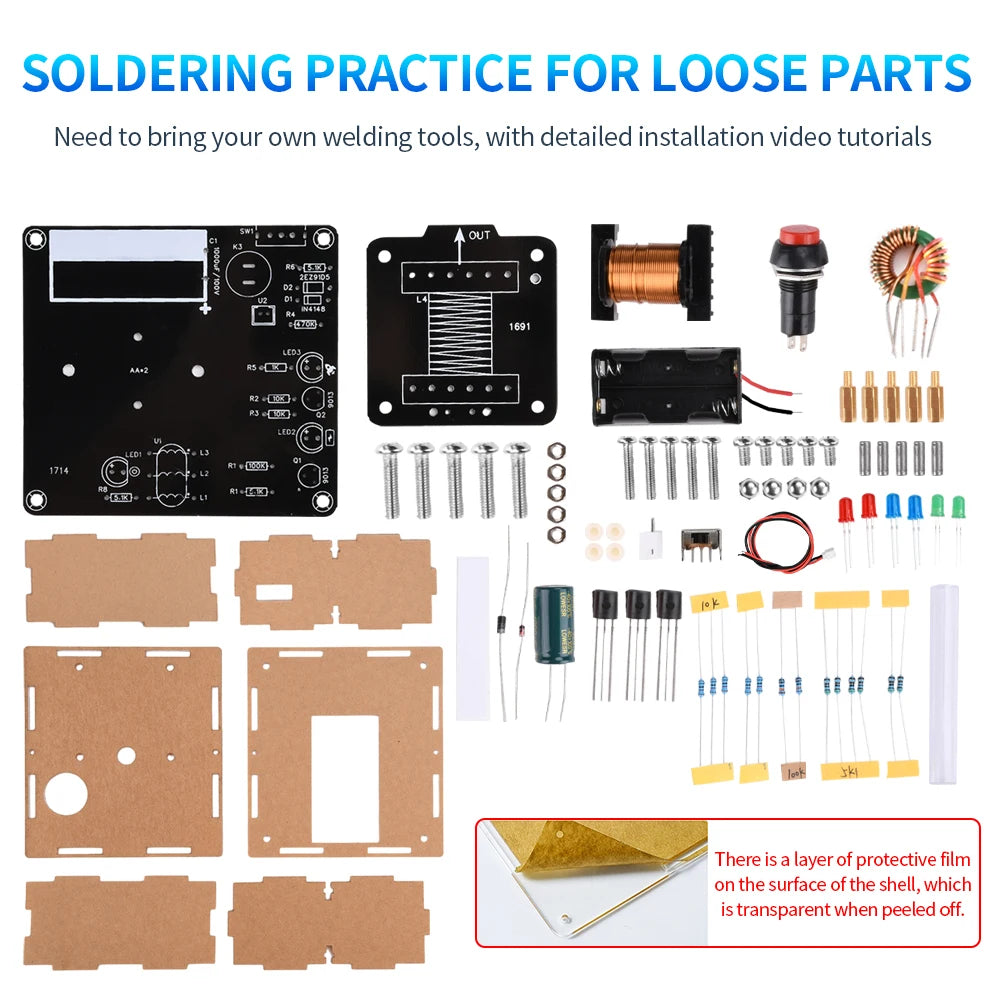

1* DIY Kit (Optional: Without Housing / With Housing)
***Safety Warning***
Never fire at people or fragile objects during operation to prevent projectile hazards!
This project operates under high voltage. Do not touch metal components when powered on!
Precautions:
1. Internal operating voltage may reach 90–100V, exceeding the international safety standard of 36V. Never touch internal electronic components while powered on to avoid electric shock.
2. External components like coils have thin insulation. Avoid abrasion that could cause damage and leakage. Switch areas are also vulnerable points. If exposed, the risk is higher for versions without a housing. Handle with care.
3. Self-assembled circuit boards may contain errors or faults. If the boost circuit section is functioning normally, the energy storage capacitor (1000uF/100V) may have been charged to a high voltage, creating an electric shock hazard. Therefore, before troubleshooting or handling the circuit, first measure the voltage across the capacitor terminals with a multimeter. Alternatively, discharge the capacitor by using a plastic-insulated wire (with both ends stripped to expose copper wires). Hold the plastic insulation and touch both capacitor terminals with the exposed copper wires to discharge it. Once the charge is fully released, the capacitor voltage will drop to 0V, allowing safe operation.
Options
- Color: Without shell, With shell
Frequently Asked Questions
Q: What is the Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit?
A: The Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit is a quality hobbies & creative arts pick. Constructed with dedicated circuit boards, electromagnetic cannon coils, six-pin ferrite ring inductors, and other components.
Q: How do I use the Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit?
A: The Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit is ready to use right out of the box and makes an easy addition to your hobbies & creative arts lineup.
Q: Why choose the Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit?
A: The Enhanced DC3V Voltage Electromagnetic Cannon DIY Circuit stands out in our hobbies & creative arts range — Rapid projectile launch speed.
