ESP32-S3 3 5-inch IPS 320 480 Touch LED Display Module Supports

Discover the ESP32-S3 3 5-inch IPS 320 480 Touch LED Display Module Supports — a standout decor pick featuring portable, lightweight design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Development Board

Output Voltage: Development Board

Semi-finishedproduct: No

Size: Development Board

Style: Development Board

Type: Development Board

Features:

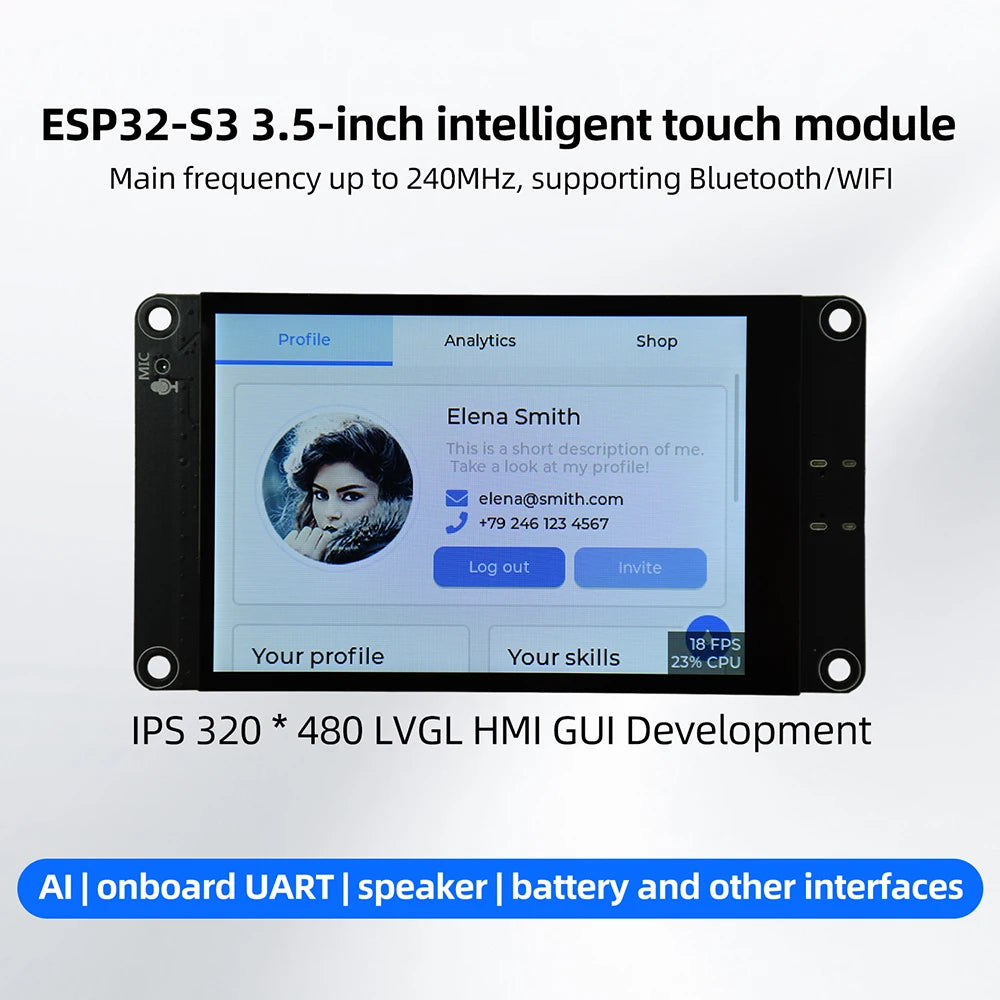

1. ESP32S3 dual-core processor with a clock speed of 240 MHz and extensive development resources

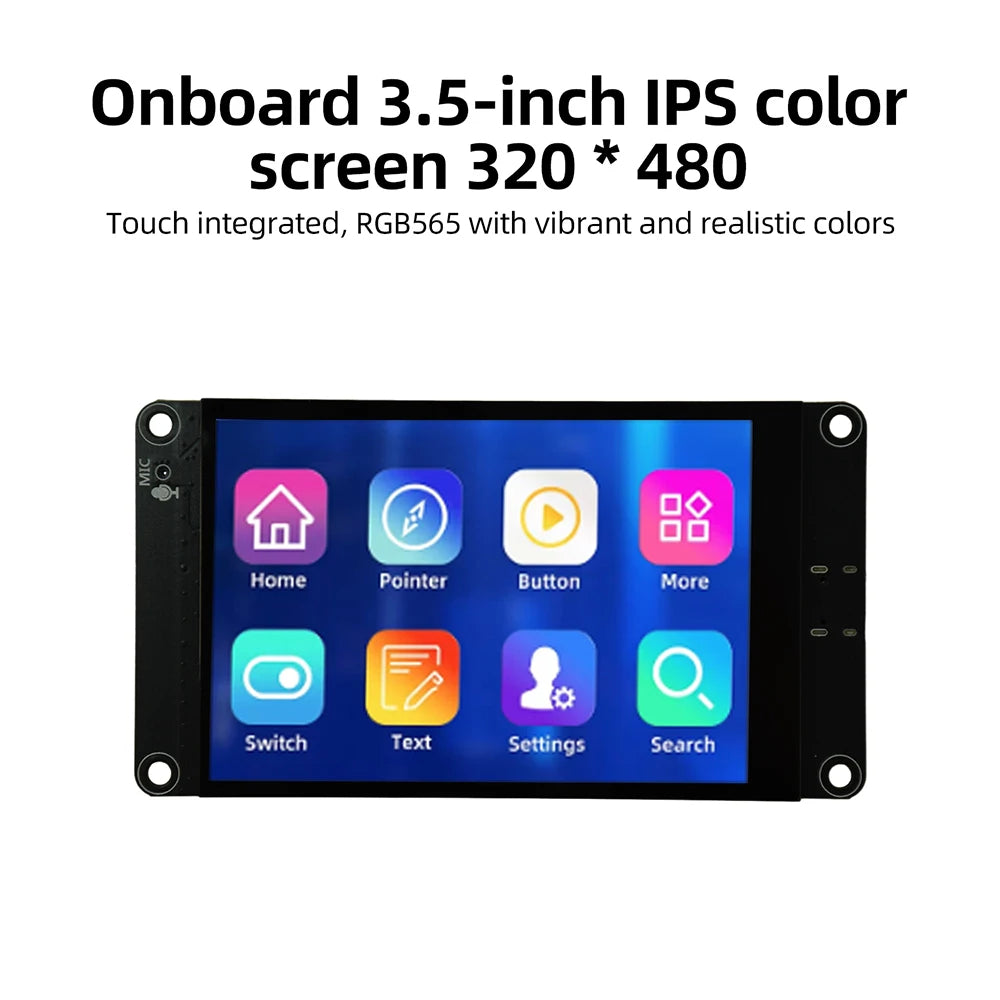

2. On-board 3.5-inch IPS color display (320×480), featuring integrated touchscreen and vibrant, lifelike RGB565 colors

3. Features a Type-C port for convenient firmware updates and power supply

4. On-board microphone and speaker ports support XiaoZhi AI voice chat for smarter interaction

5. Includes a TF card slot for expanded storage, RGB indicator lights, and a variety of I2C/UART interfaces for wide-ranging applications

Product Description:

Utilizes the ESP32-S3 chip for easy development and abundant development resources

3.5-inch color display with 320×480 resolution and RGB565 for rich color reproduction

Extensive interface options for easy connection to various peripherals (I2C, UART, etc.)

Supports external speakers and features a built-in microphone for audio playback and reception

Includes RGB indicator lights for comprehensive status feedback

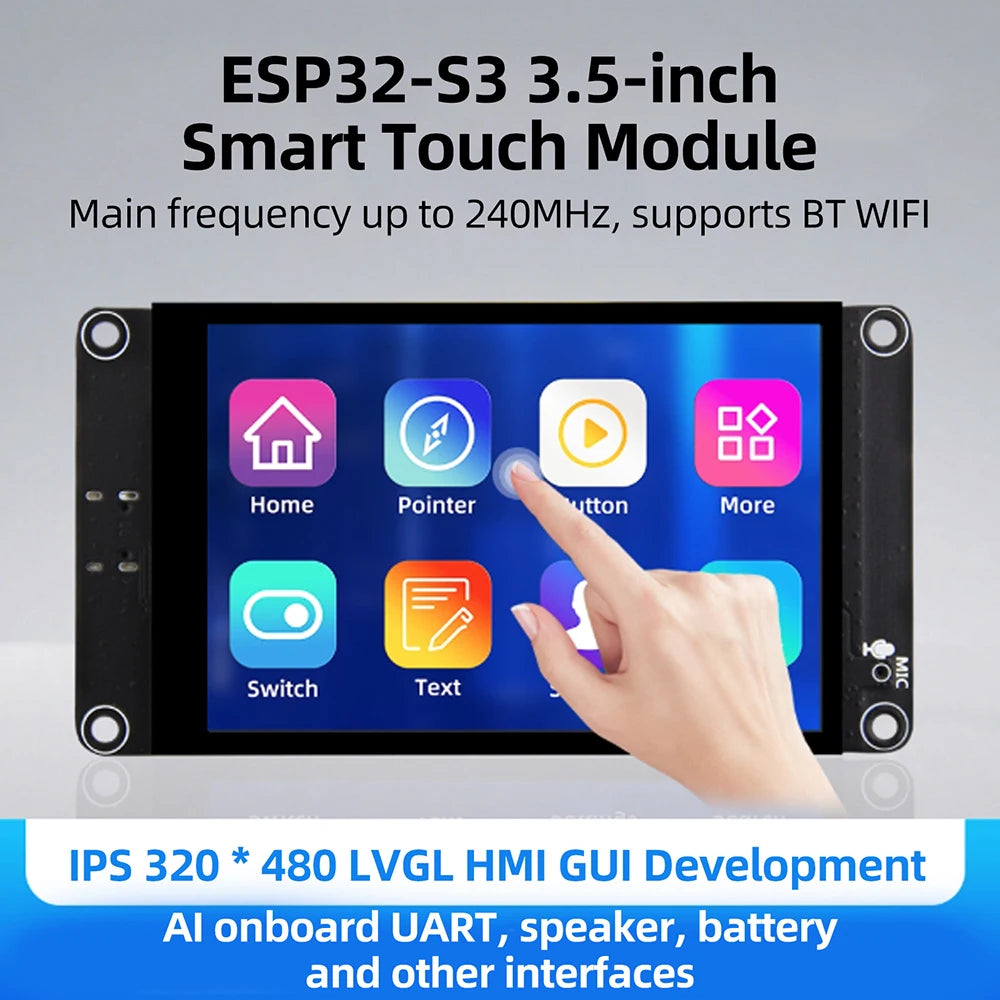

Integrated display and touchscreen with a built-in capacitive touchscreen for convenient human-machine interaction

Standard Type-C interface for convenient program downloading and power supply

Built-in TF card slot for easy storage expansion

Supports external lithium batteries, making it lightweight and portable

Includes a battery charging management circuit to ensure safe charging and discharging

Provides a wealth of example programs to facilitate learning

Offers low-level driver technical support with online updates to the wiki documentation

Module aging tests and multiple inspections meet military-grade standards, ensuring long-term stable operation

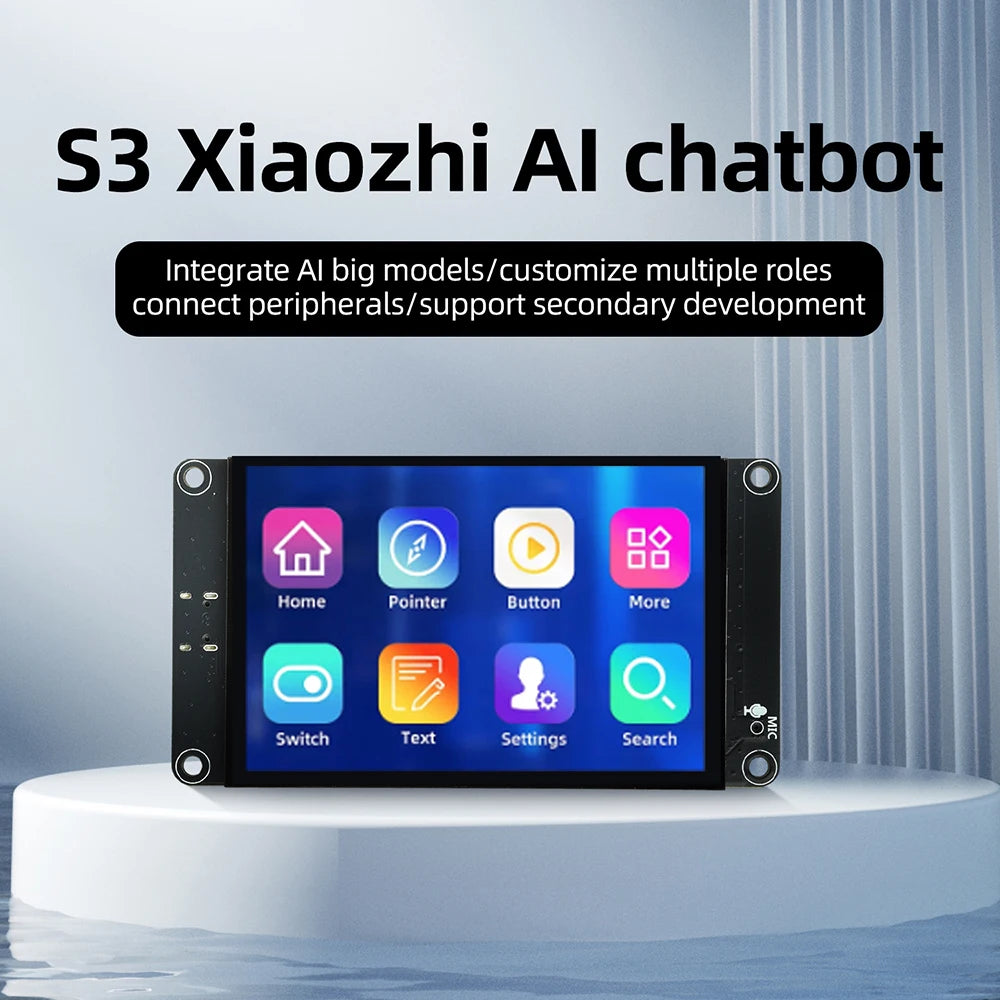

Supports XiaoZhi AI voice chat

Product Specifications:

Power Interface: USB (Type-C)

Module: ESP32-S3

CPU: Xtensa LX7 32-bit dual-core processor

Clock Speed: 240 MHz (Max)

Memory: 384 KB ROM + 512 KB SRAM + 16 KB RTC SRAM + 8 MB OPI PSRAM + 16 MB QSPI Flash (N16R8)

Wi-Fi: 2.4GHz, 802.11b/g/n mode

Bluetooth: Bluetooth V5.0 BR/EDR and Bluetooth LE standards

Operating Voltage: 3.0–3.6 V

Display Specifications

Screen Size: 3.5 inches

Screen Type: IPS TFT

Resolution: 320xRGBx480 (pixels)

Active Display Area: 48.96 (W) x 73.44 (H) (mm)

Color Depth: 65K (RGB565)

Driver IC: ST77922

Display Interface: QSPI (connected to ESP32)

Pixel Size: 0.153 (H) x 0.153 (mm)

Viewing Angle: ALL 0’CLOCK

Backlight Brightness (Typical): 300 cd/m²

Backlight Type: White LED*6

Touch Active Area Size: 54.50 (W) x 83.00 (H) (mm)

Touchscreen Type: Capacitive Touchscreen (Laminated Process)

Touchscreen Resolution: 320x480 (pixels)

Viewing Window Size: 45.20 (W) x 59.45 (H) (mm)

Touch Communication Interface: IIC

Structure Material: ITO Film + ITO Glass

Operating Temperature: -30 to 80 (°C)

Storage Temperature: -30 to 80 (°C)

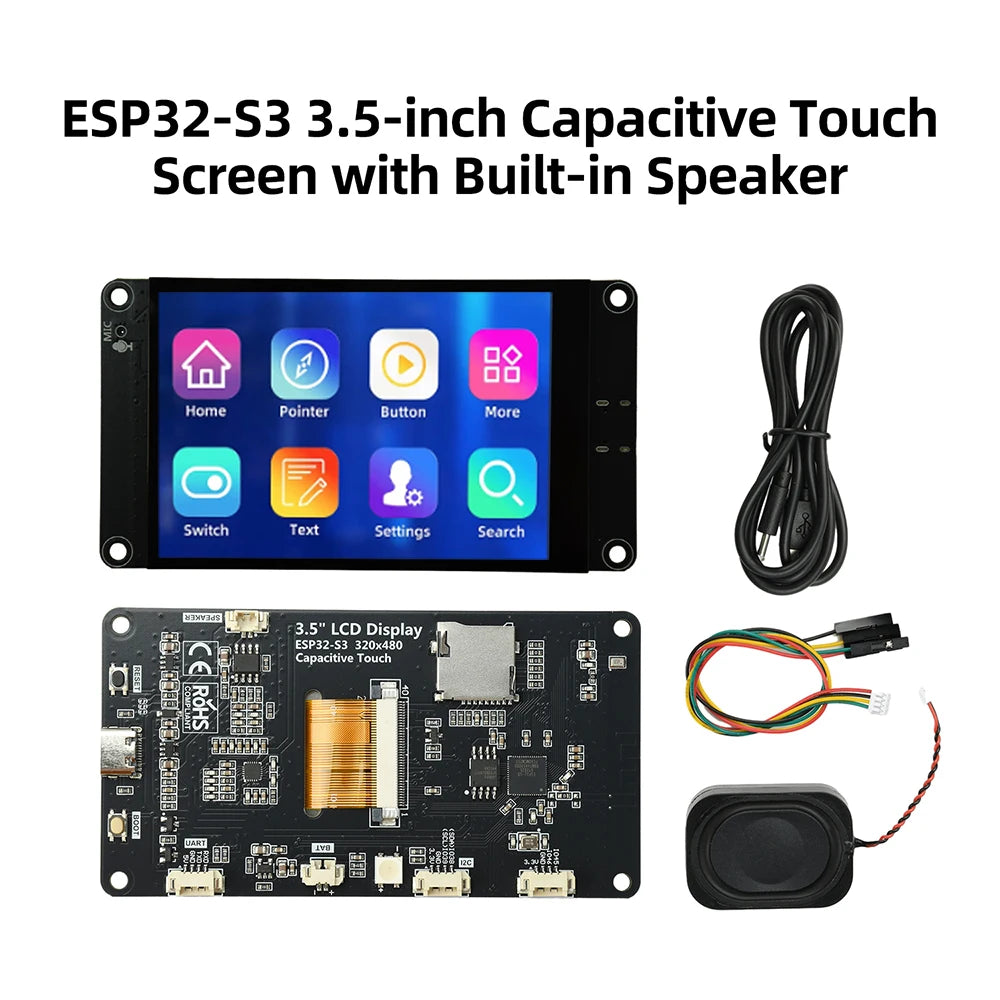

Product List:

1x Development Board

1x DuPont Cable

1x Speaker

1x Power Cable
