ESP32-S3 ESP32 S3 2 8-inch TFT Module Touch Screen Development Board

Discover the ESP32-S3 ESP32 S3 2 8-inch TFT Module Touch Screen Development Board — a standout decor pick featuring lightweight design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

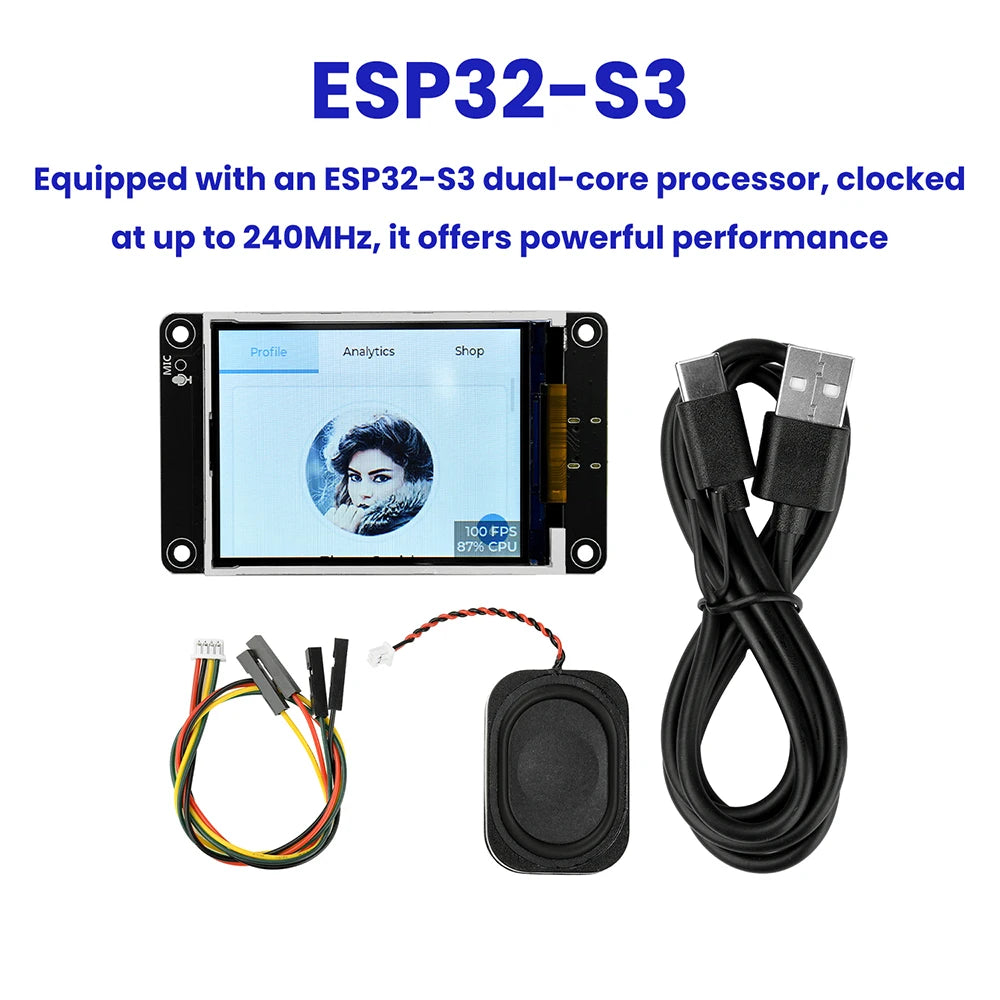

1. Powered by ESP32-S3 dual-core processor with up to 240MHz clock speed for robust performance.

2. Equipped with 2.8-inch color display featuring 240x320 resolution for vivid colors and wide viewing angles.

3. Supports capacitive touch and Type-C interface for convenient interaction and stable power supply.

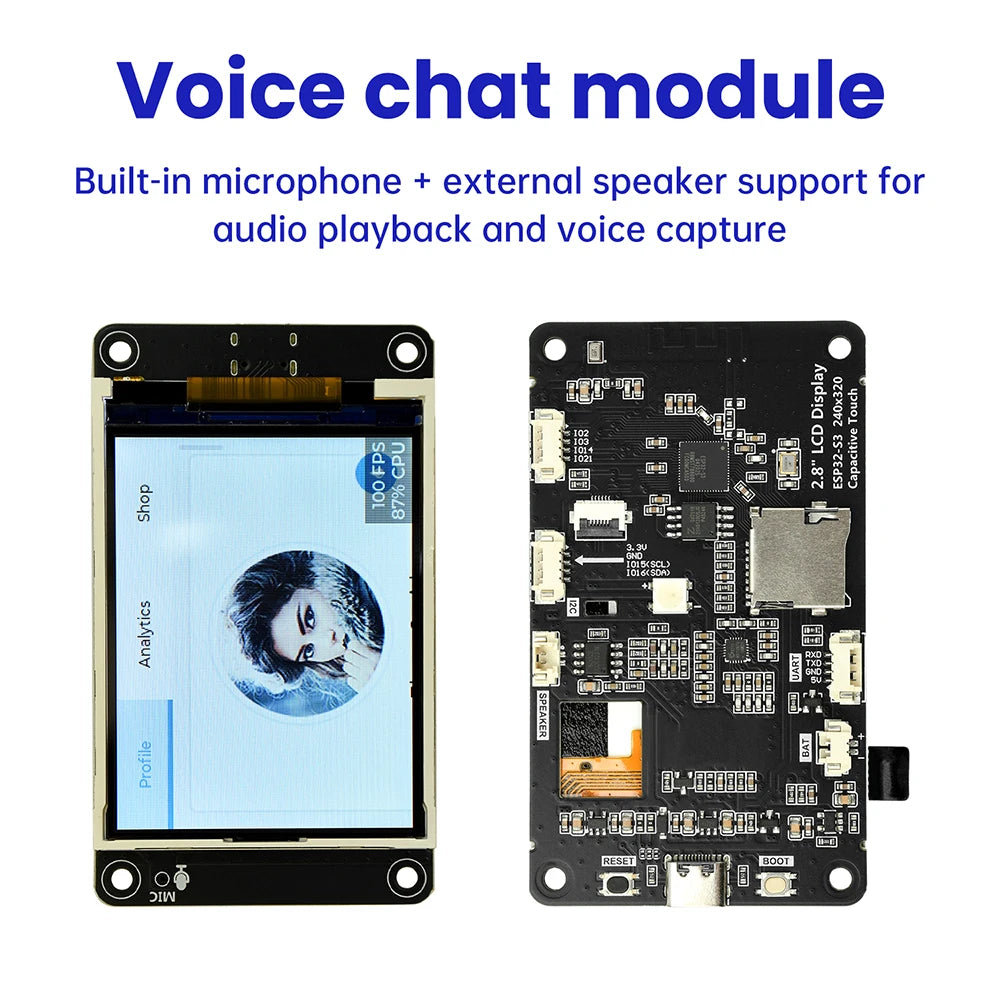

4. Built-in microphone + external speaker support enables audio playback and voice capture.

5. Multiple peripheral interfaces and TF card slot provide strong expandability and flexible development connectivity.

Product Introduction:

● Features ESP32-S3 for powerful performance, easy development, and abundant resources

● 2.8-inch color display with 240x320 resolution, supporting up to 262K colors (RGB666) for vivid visuals

● Extensive interfaces for connecting various peripherals (I²C, UART, etc.)

● Supports external speakers and built-in microphone for audio playback and capture

● Integrated RGB tri-color indicator lights for comprehensive status indication

● Integrated capacitive touchscreen for intuitive human-machine interaction

● Standard Type-C port for convenient program downloading and power supply

● Built-in Micro TF card slot for expandable storage

● Supports external lithium battery for lightweight portability

● Integrated battery charging management circuit ensures safe charging/discharging

● Rich sample programs provided for easy learning

● Low-level driver technical support with online WIKI documentation updates

● ● Module aging tests meet military-grade standards through multi-level verification, ensuring long-term stable operation

● Supports XiaoZhi AI voice chat

Basic Product Specifications:

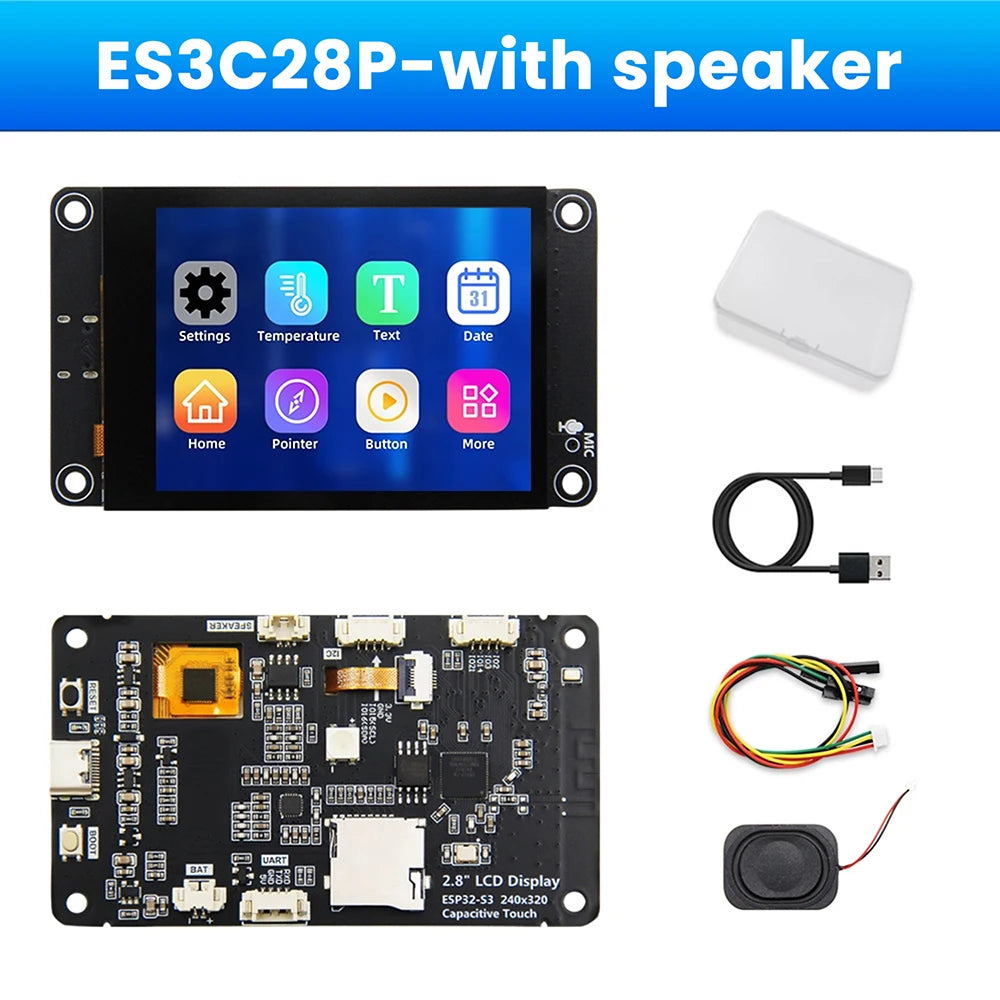

Touchscreen model: ES3C28P

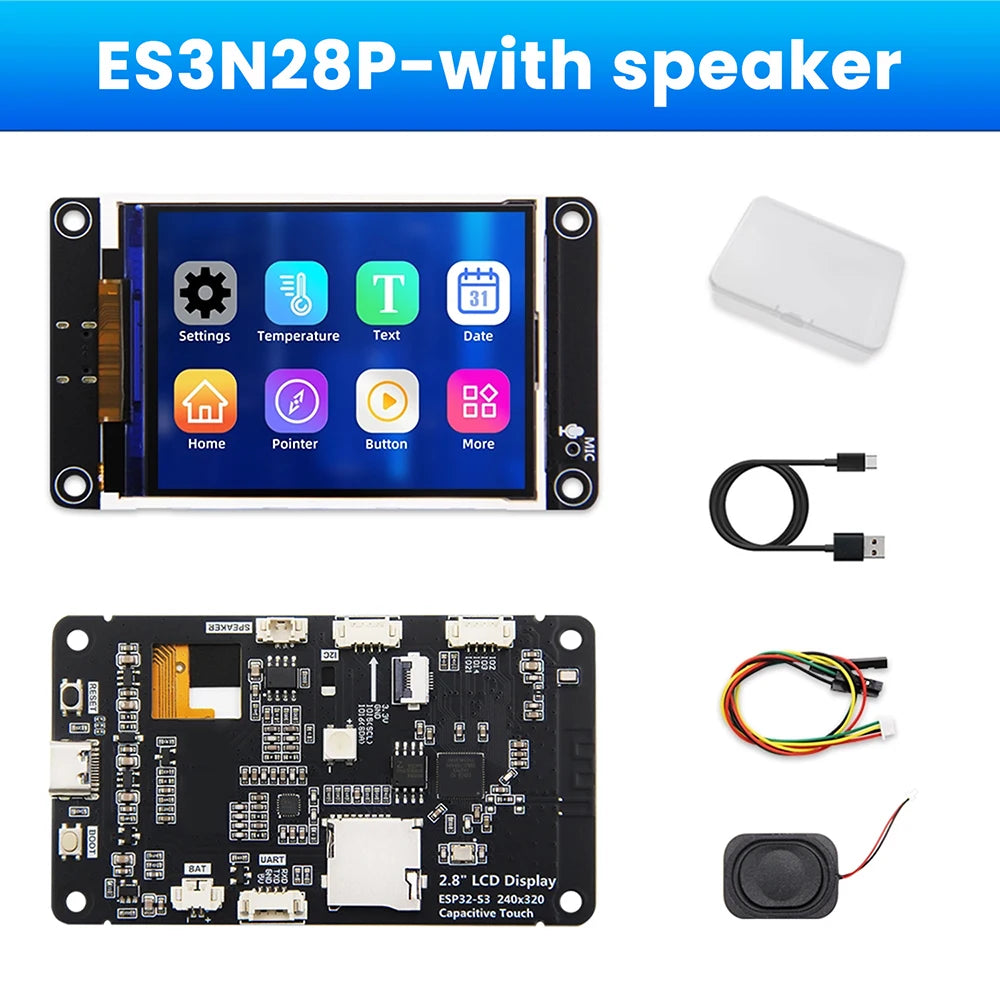

Non-touchscreen model: ES3N28P

Power interface: USB (Type-C)

Module: ESP32-S3

CPU: Xtensa LX7 32-bit dual-core processor

Clock speed: 240MHz (Maximum)

Storage: 384 KB ROM + 512 KB SRAM + 16 KB RTC SRAM + 16 MB external QSPI Flash

Wi-Fi: 2.4 GHz band supporting 20 MHz and 40 MHz bandwidths

Bluetooth: Bluetooth V4.2 BR/EDR and Bluetooth LE standards

Operating Voltage: 3.0–3.6 V

LCD Screen Specifications:

Screen Size: 2.8 inches

Screen Type: TFT

Resolution: 240xRGBx320 (pixels)

Effective Display Area: 43.20 (W) x 57.60 (H) (mm)

Color Depth: Maximum: 262K (RGB666); Common: 65K (RGB565)

Driver IC: ILI9341V

Display Interface: 4-Line SPI (connected to ESP32)

Pixel Pitch: 0.153(H) x 0.153(mm)

Viewing Angle: ALL 0’CLOCK

Backlight Brightness (Typical): 280 cd/m²

Backlight Type: White LED*4

Operating Temperature: -30~80(℃)

Storage Temperature: -30~80(℃)

Capacitive Touch Parameters:

Active Area Size: 2.8 inches

Touchscreen Type: Capacitive Touchscreen

Touchscreen Resolution: 240x320 (pixels)

Driver IC: D-FT6336G

Viewable Window Size: 45.20 (W) x 59.45 (H) (mm)

Communication Interface: IIC

Structure Material: ITO Film + ITO Glass

Operating Temperature: -30~80(℃)

Storage Temperature: -30~80(℃)

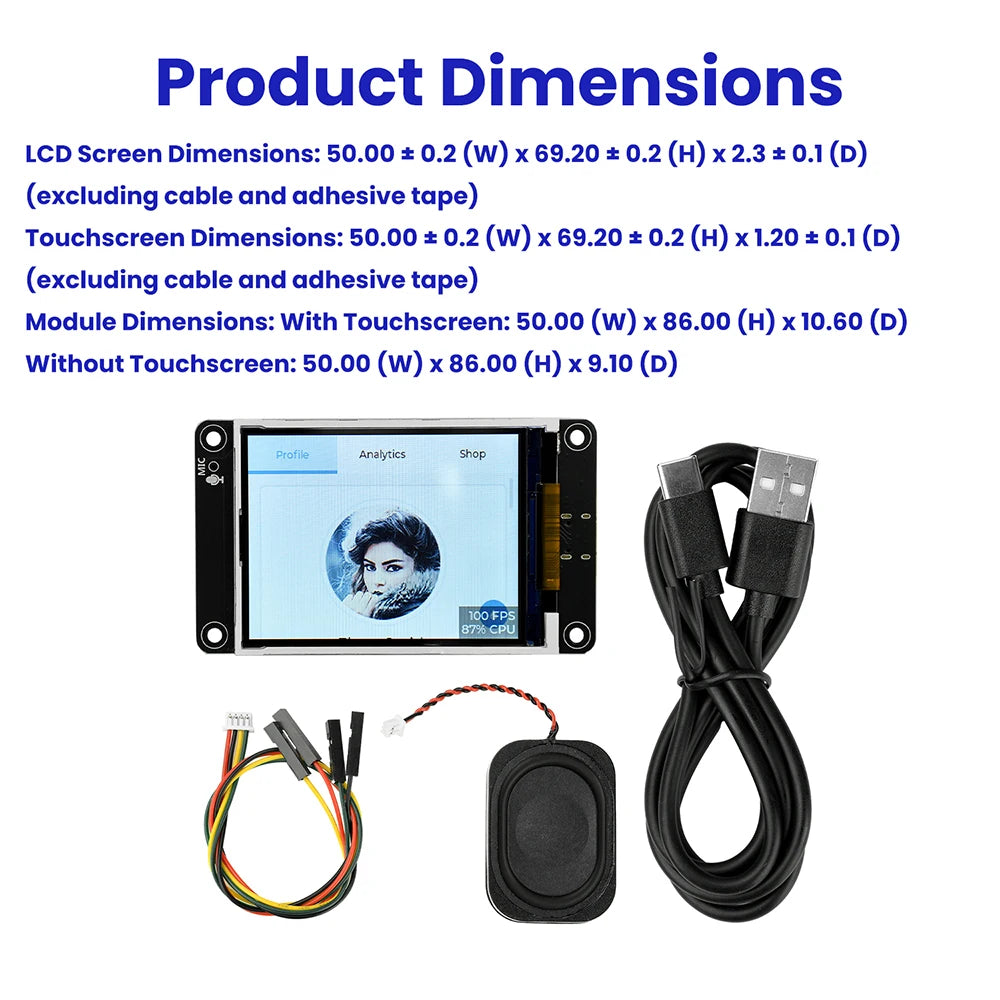

Product Dimension Parameters:

LCD Panel Dimensions: 50.00±0.2(W)x69.20±0.2(H)x2.3±0.1(D)(excluding flex cable and adhesive backing)

Touchscreen Dimensions: 50.00±0.2 (W) x 69.20±0.2 (H) x 1.20 ±0.1 (D) (excluding flex cable and adhesive backing)

Module Dimensions: With Touchscreen: 50.00 (W) x 86.00 (H) x 10.60 (D)

Without touchscreen: 50.00(W) x 86.00(H) x 9.10(D)

Battery Charge/Discharge Parameters:

Charge Voltage: Range: 4.2~6.5(V)

Typical Value: 5V

Maximum Charge Current: 500mA

Module Actual Value: 290mA

Charge Saturation Voltage: 4.24V

Charging Temperature: Module Actual Maximum: 62℃

Charging Battery Specification: 3.7V Lithium Polymer Battery

Electrical Parameters:

Operating Voltage: 5.0V

Backlight Current: 79mA

Backlight Brightness (Actual Value): With Touchscreen: 230cd/m²; Without Touchscreen: 270cd/m²

Total Current:

ESP32 Reset: 0

Display Only Operation: 140mA

Display, speaker, and battery charging active: 560mA

Power consumption:

0.7W (Display only)

2.8W (Display, speaker, and battery charging active)

Product list:

1X Development board

1X Terminal cable

1X Power cable

1X Speaker

Options

• Color: no touch, touch screen
