Fan Motor Speed Controller Board Three Stepless Regulation Charging

Discover the Fan Motor Speed Controller Board Three Stepless Regulation Charging — a standout skin care pick featuring portable, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Motor: Brushless Motor

Product Features:

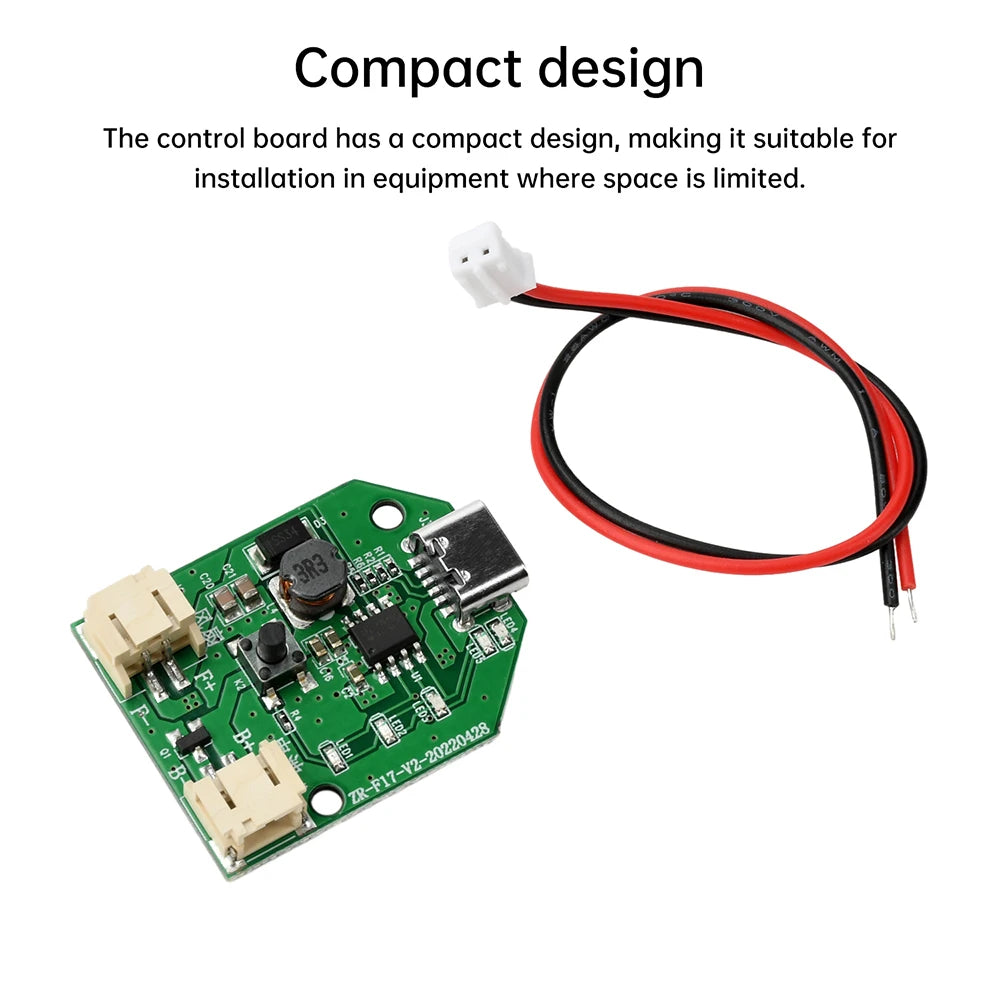

1. Compact Design: The control board features a miniaturized design, making it suitable for installation in equipment with limited space.

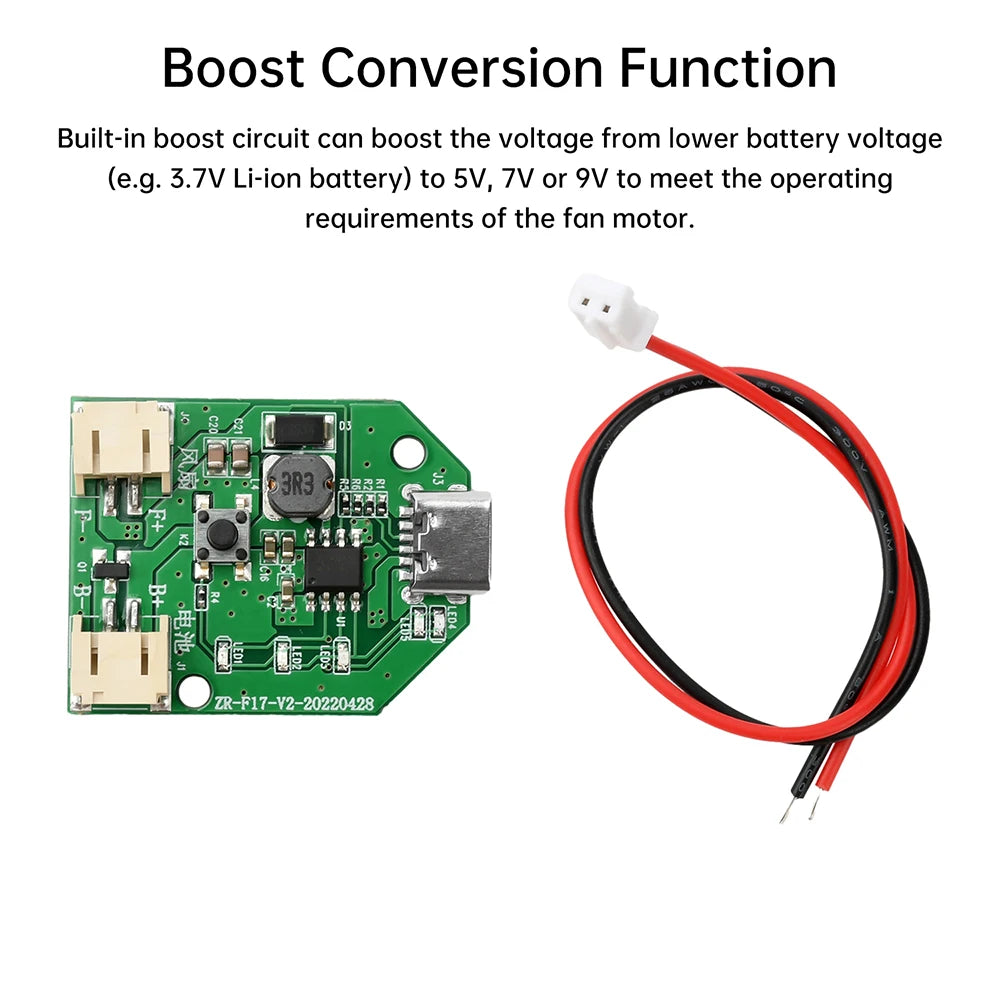

2. Boost Conversion Function: Built-in boost circuitry elevates voltage from lower battery sources (e.g., 3.7V lithium batteries) to 5V, 7V, or 9V, meeting the operational requirements of fan motors.

3. Low Standby Current: The control board consumes minimal current (e.g., 10uA) during standby, extending device runtime.

4. Multi-Voltage Output Support: This boost board can elevate battery voltage to multiple output levels (5V, 7V, 9V), accommodating fans with varying power requirements.

5. Wide Application Range: These control boards are extensively used in small handheld fans powered by lithium batteries. Their high integration and low cost make them ideal for portable device designs.

Product Specifications:

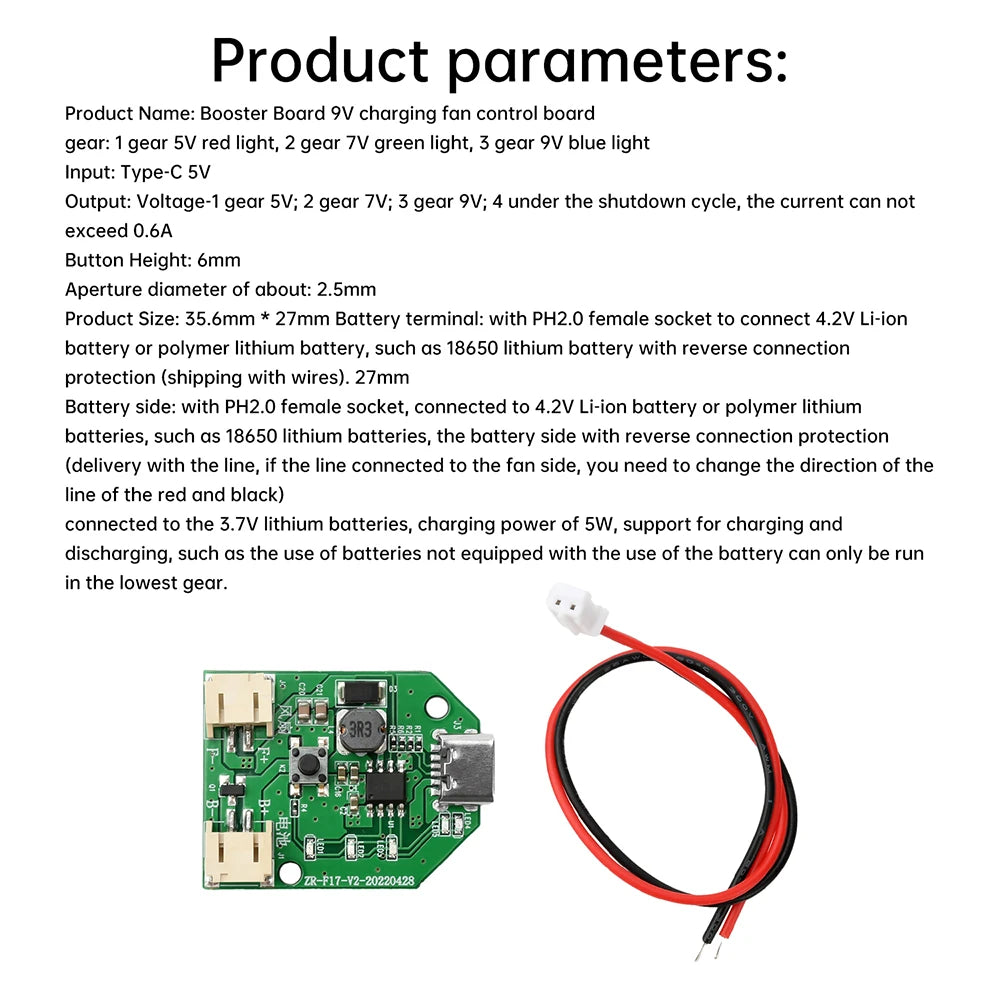

Product Name: Boost Board 9V Charging Fan Control Board

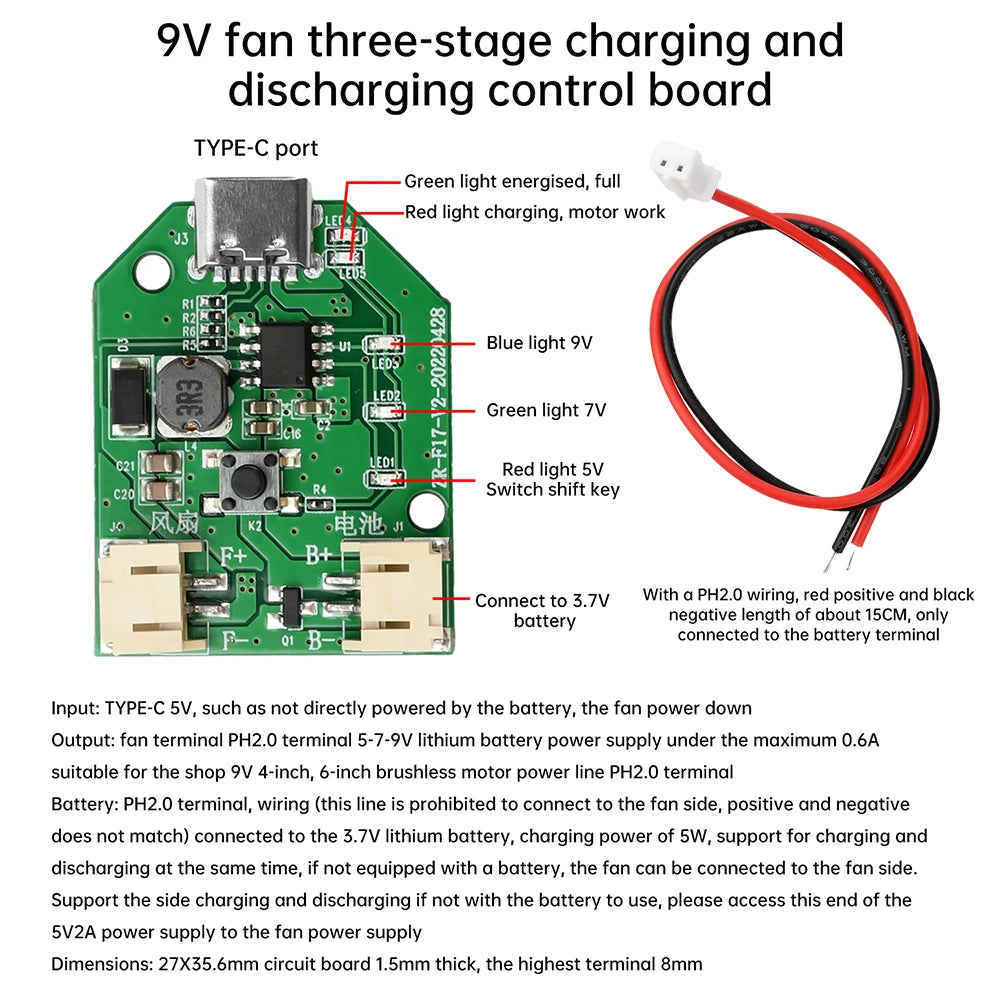

Speed Settings:

- Level 1: 5V (Red LED on)

- Level 2: 7V (Green LED on)

- Level 3: 9V (Blue LED on)

Input: Type-C 5V

Output: Voltage - Stage 1: 5V; Stage 2: 7V; Stage 3: 9V; Stage 4: Shutdown cycle. Current must not exceed 0.6A

Button Height: 6mm

Hole Diameter: Approx. 2.5mm

Product Dimensions: 35.6mm x 27mm

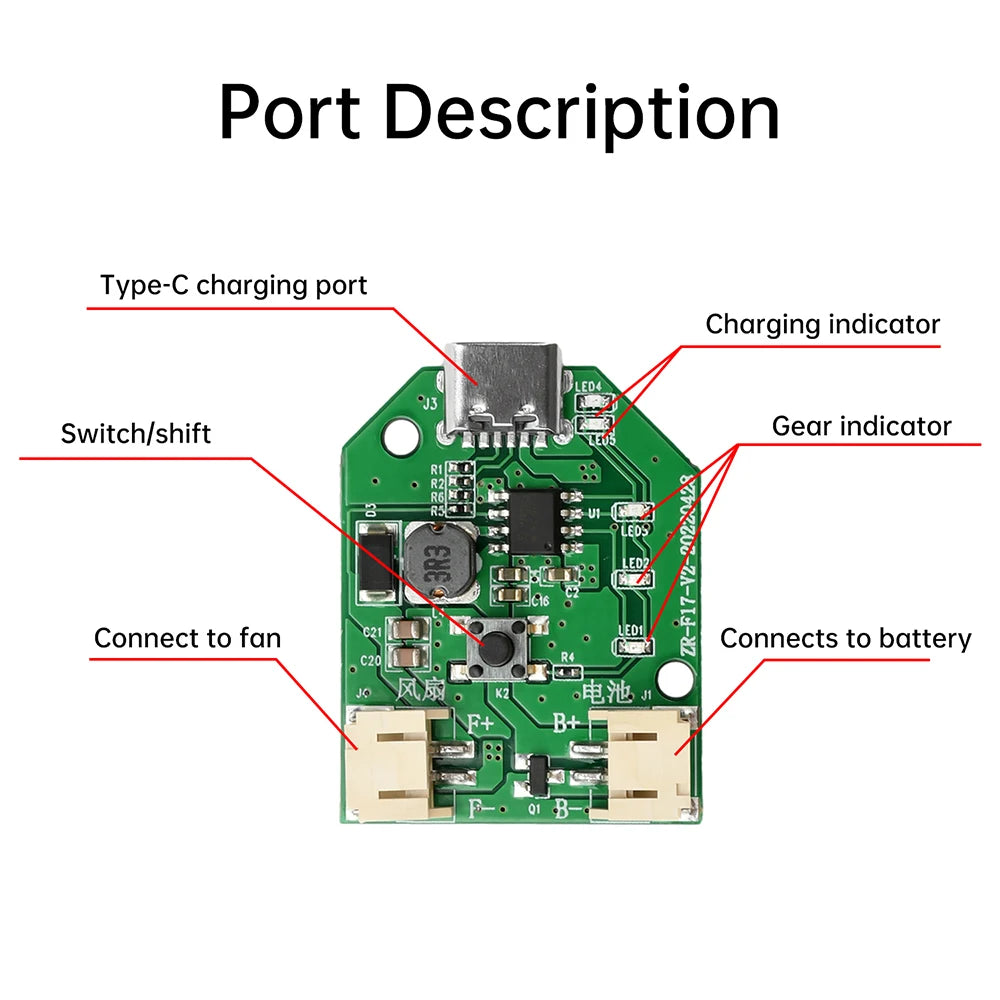

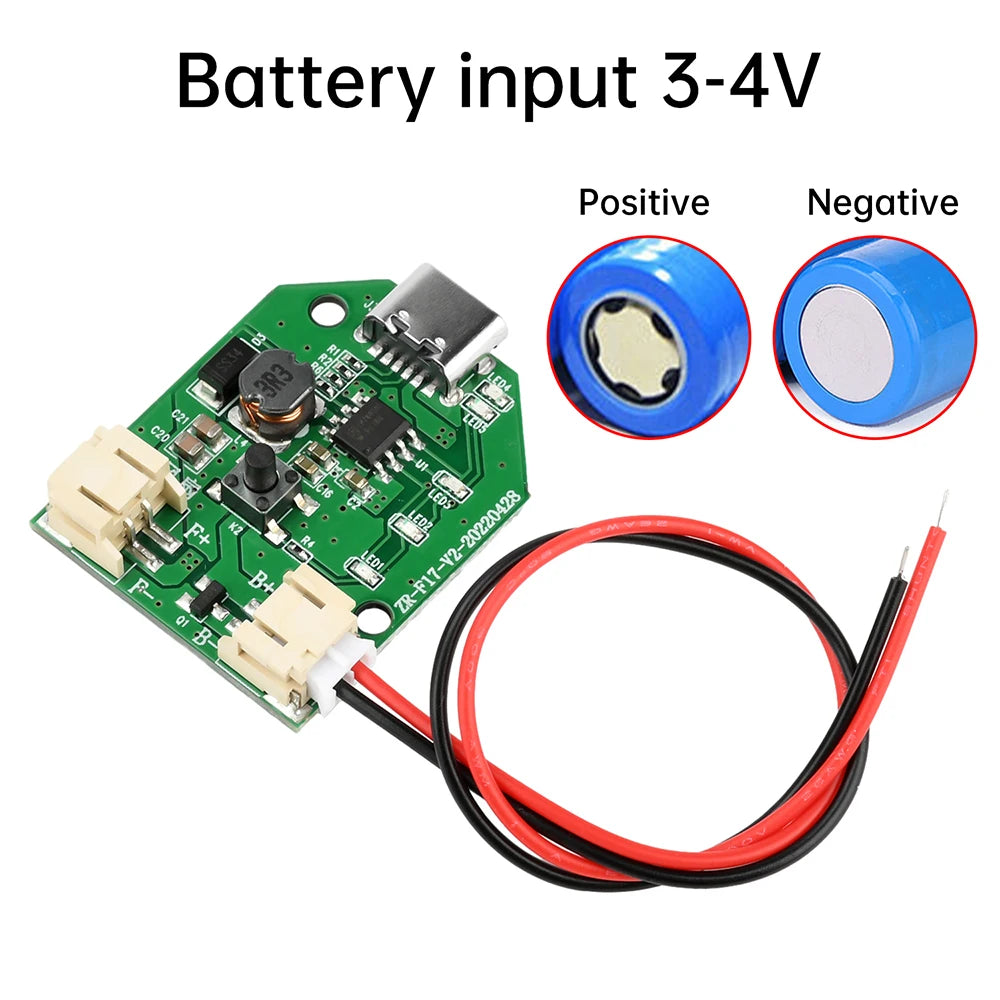

Battery Terminal: Features PH2.0 female connector for 4.2V ternary lithium or polymer lithium batteries (e.g., 18650 cells). Includes reverse polarity protection. (Shipped with pre-wired cable; if using this cable for fan connection, manually swap red/black wire orientation)

When connected to a 3.7V lithium battery, charging power is 5W, supporting simultaneous charging and discharging. Without a battery, operation is limited to the lowest speed setting.

Fan end: Features a PH2.0 female connector compatible with 5-8 inch brushless motors. Third speed setting outputs 9V 600mA. Fan end includes reverse polarity protection.

Shipping contents:

Control board*1

Cable*1
