FG-300 DDS Function Signal Generator 0 001Hz-200KHz Adjustable Module
$82.74
Sale price
$82.74
Regular price
$102.51
Shipping calculated at checkout.
Discover the FG-300 DDS Function Signal Generator 0 001Hz-200KHz Adjustable Module — a standout decor pick featuring portable, adjustable, multifunctional design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Description:
1. Utilizes low-temperature drift crystal oscillators and high-precision DDS frequency synthesis for exceptional frequency stability, with resolution down to 0.001Hz and accuracy reaching 0.001Hz at low frequencies.
2. Supports 13 waveform outputs to meet diverse requirements.
3. Features a 1.8-inch color TFT LCD display with direct frequency input via numeric keypad for intuitive operation.
4. Features automatic shutdown timer, adjustable signal LED brightness, and adjustable display backlight brightness.
5. All settings are automatically saved; no need to reconfigure upon next startup.
Product Overview:

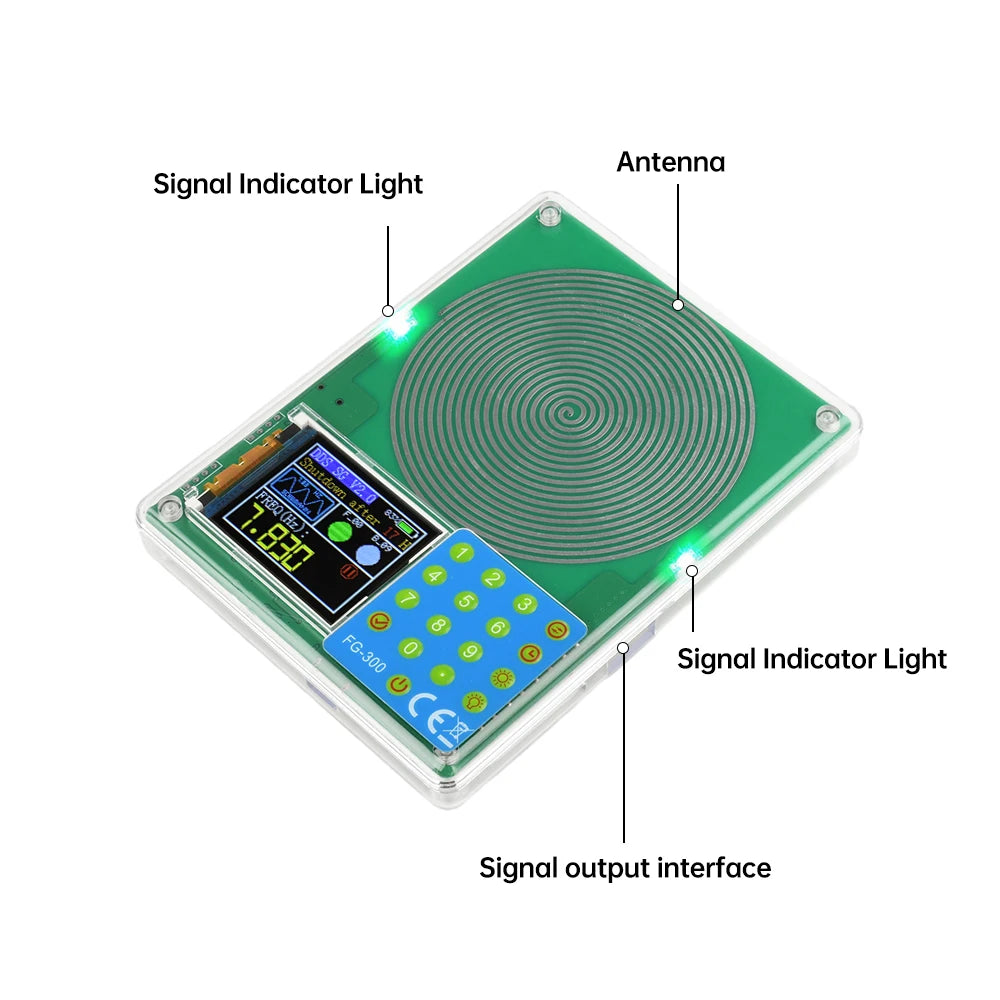

The FG-300 is a multifunctional, high-precision, portable signal generator capable of producing sine waves, square waves, triangle waves, forward sawtooth waves, reverse sawtooth waves, ECG, half-wave, Lorentzian, Gaussian, Sinusoidal, exponential rise, exponential fall, and 7.83Hz Schumann waves. Its onboard helical antenna functions as a high-precision Schumann wave generator. Widely applicable in electronic R&D, production testing, education, maintenance, and audio testing.
Product Specifications:
Frequency Range:
Sine wave: 0.001Hz–200kHz (output amplitude remains flat up to 100kHz; beyond this, amplitude decreases and distortion increases with frequency)
Other waveforms: 0.001Hz–20kHz (adjustable upper limit unrestricted; usable frequencies may extend further if distortion and jitter tolerance is low)
Waveform Types: Sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG waveform, half-sine wave, Lorentzian wave, Gaussian wave, Sinusoidal wave, exponential rise, exponential fall, and 7.83Hz Schumann wave
Output Amplitude: 2.5V VPP
Output Impedance: 330Ω
Display: 1.8-inch TFT screen
Power Supply Voltage: USB Type-C 5V

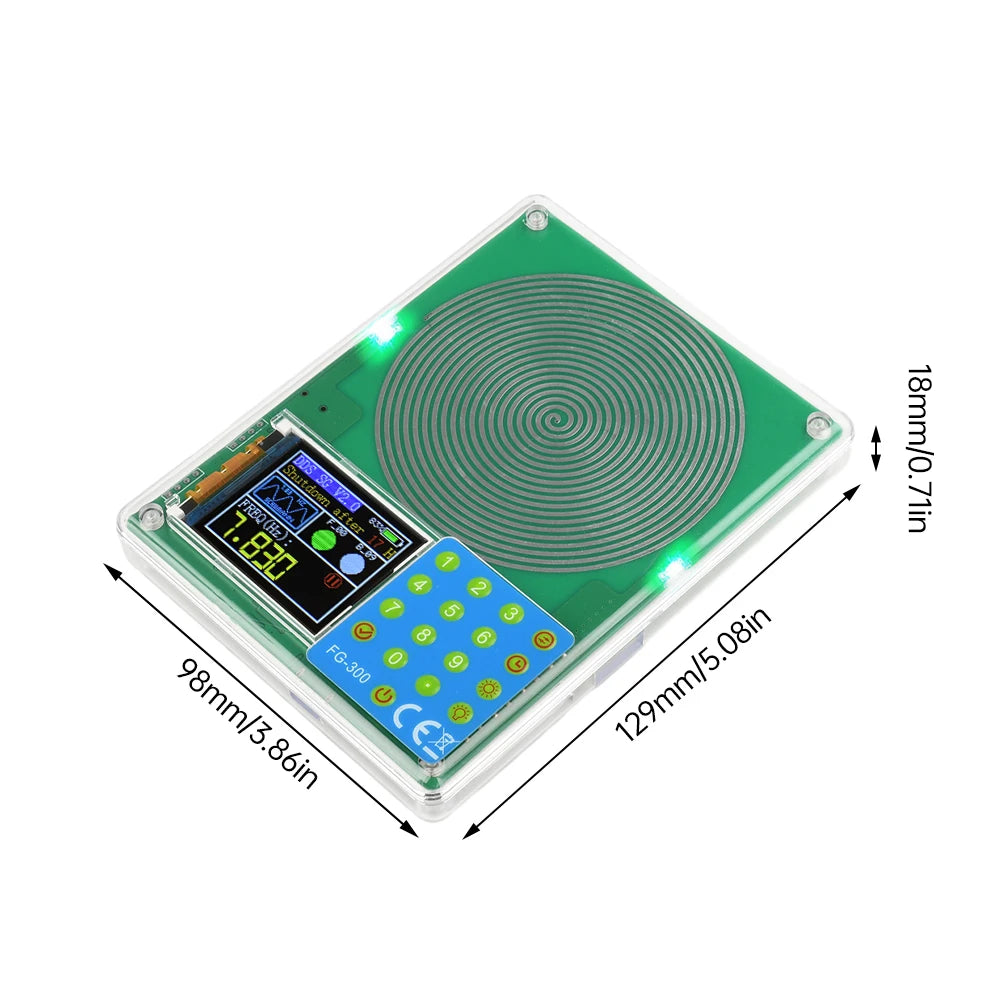

Dimensions: 127*98*18mm

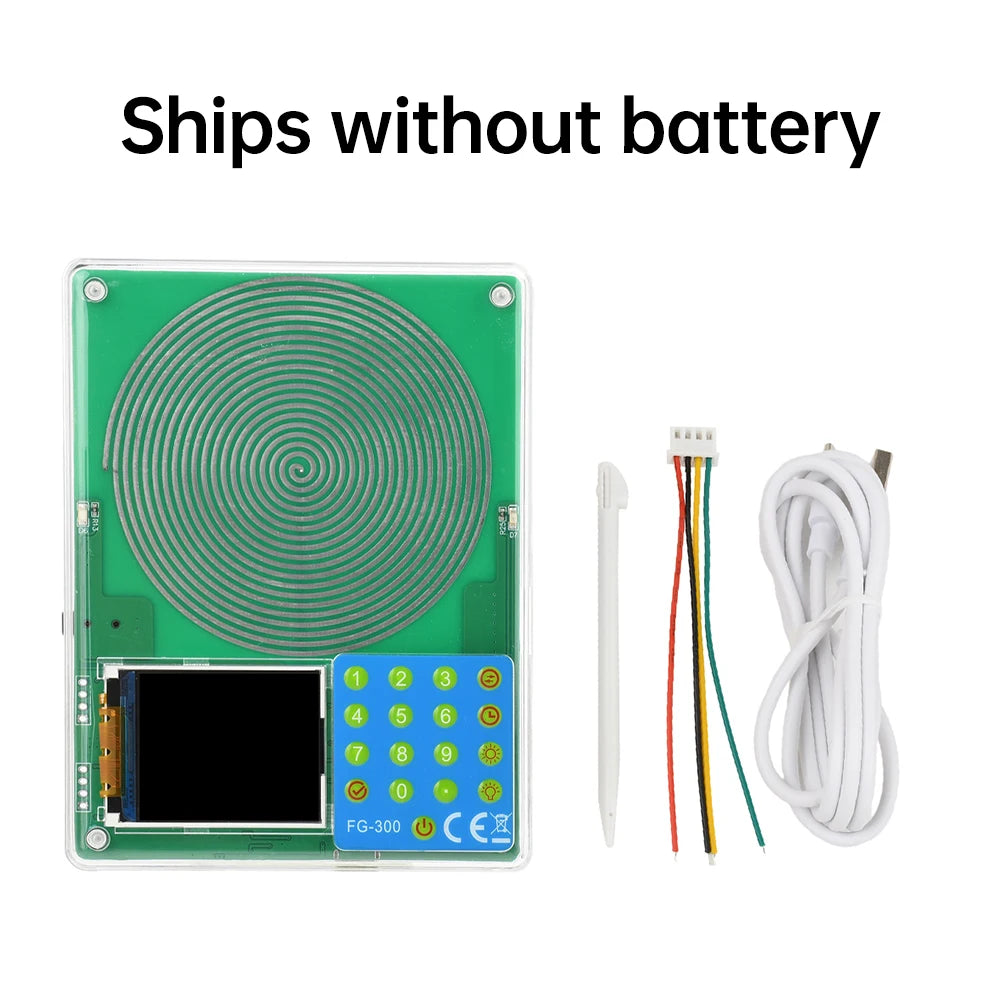

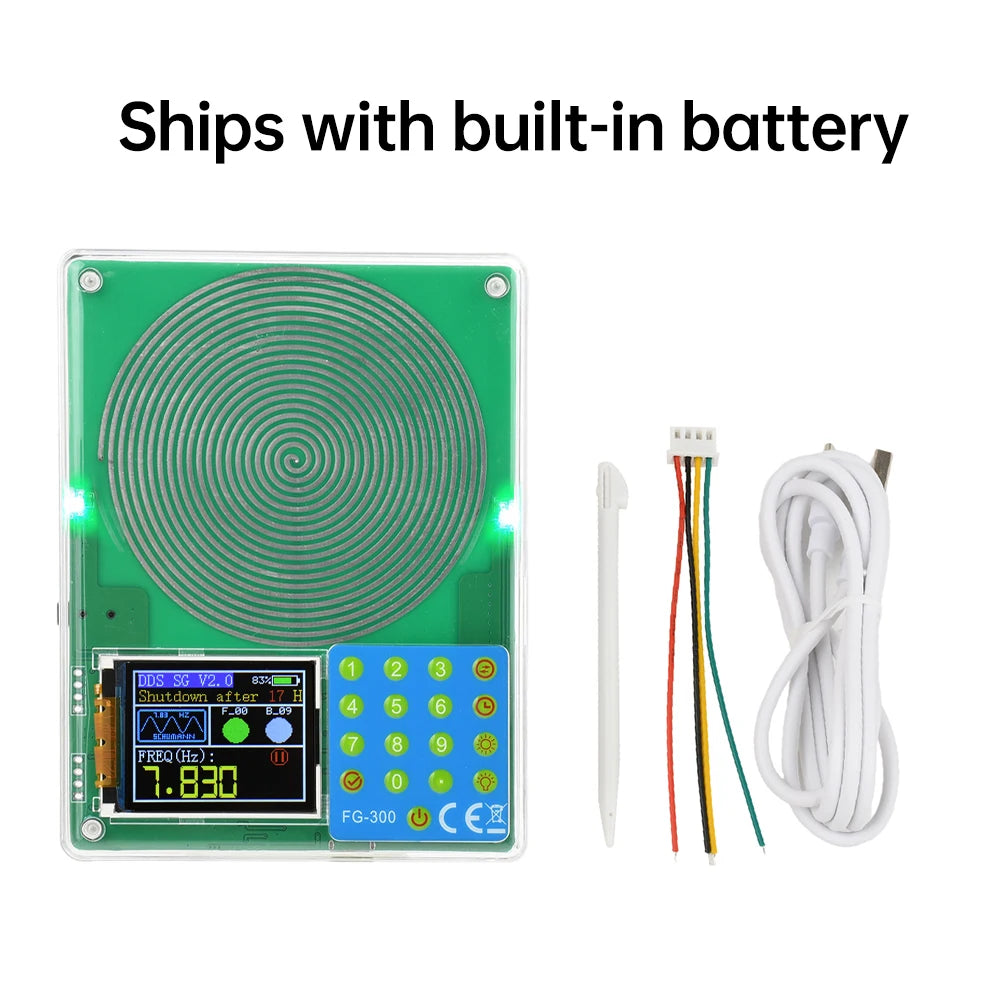

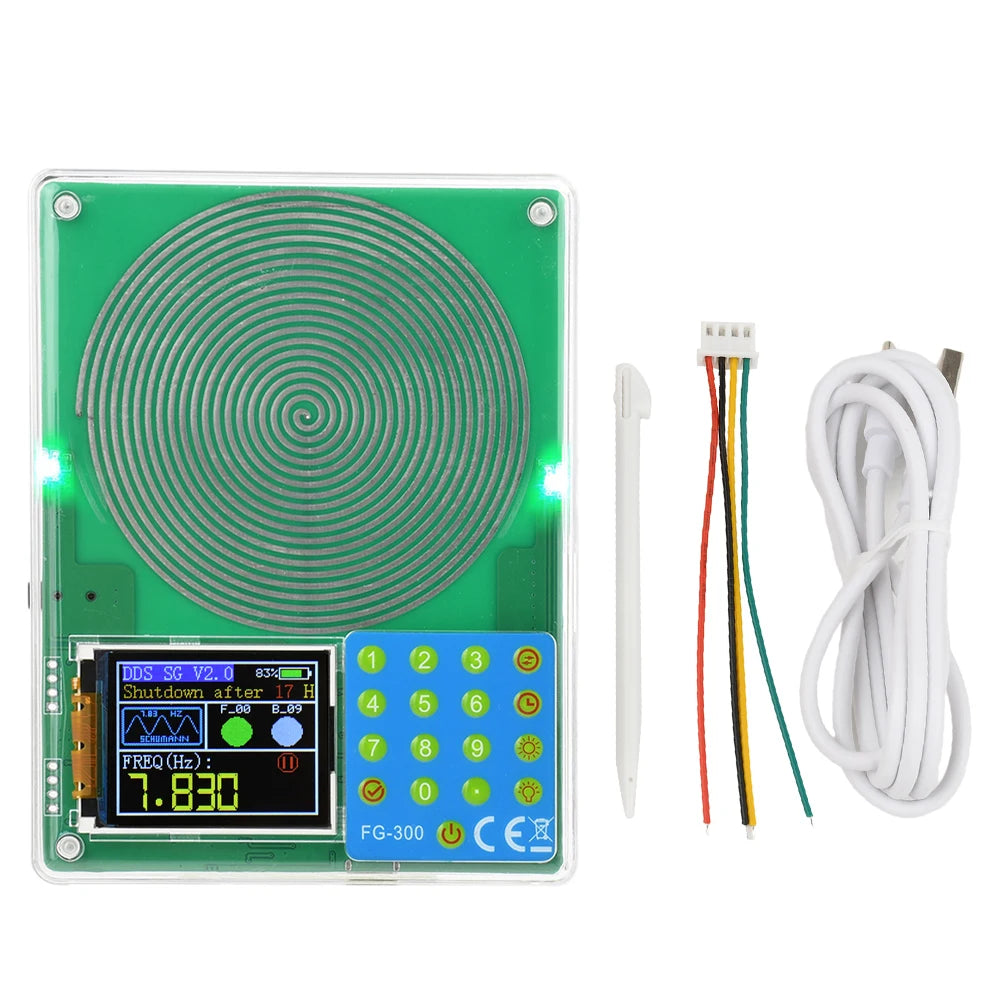

Package Contents:
Main Unit*1
Type-C Power Cable*1
4-Pin Signal Output Cable*1
Stylus Pen*1
Options

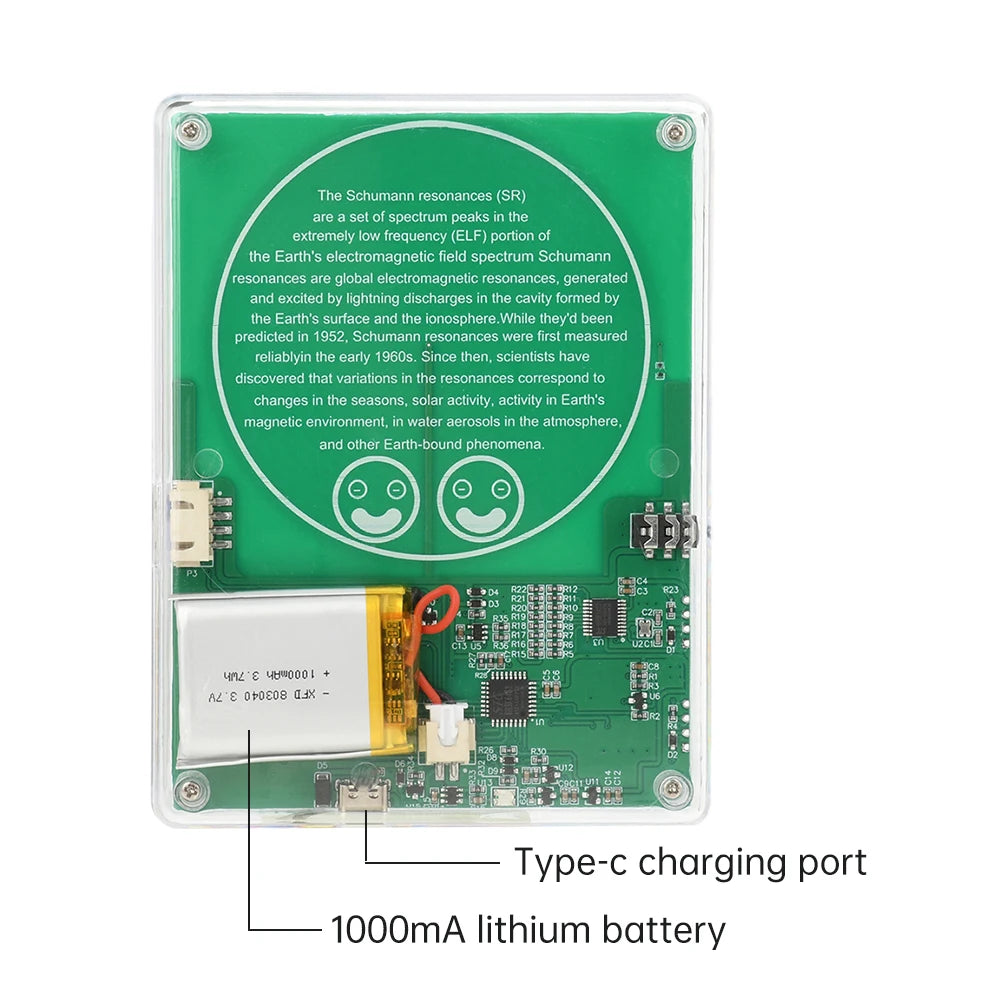

- Color: Plug in style, Style with battery
