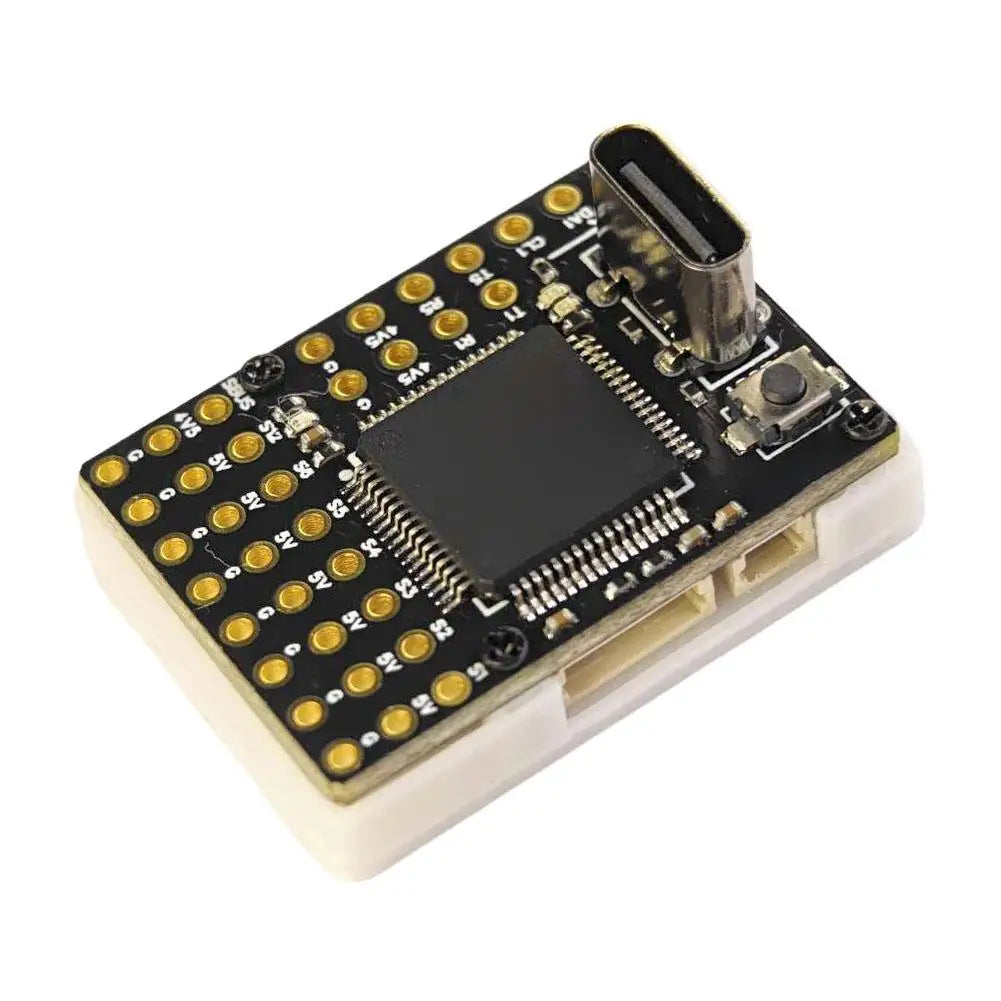

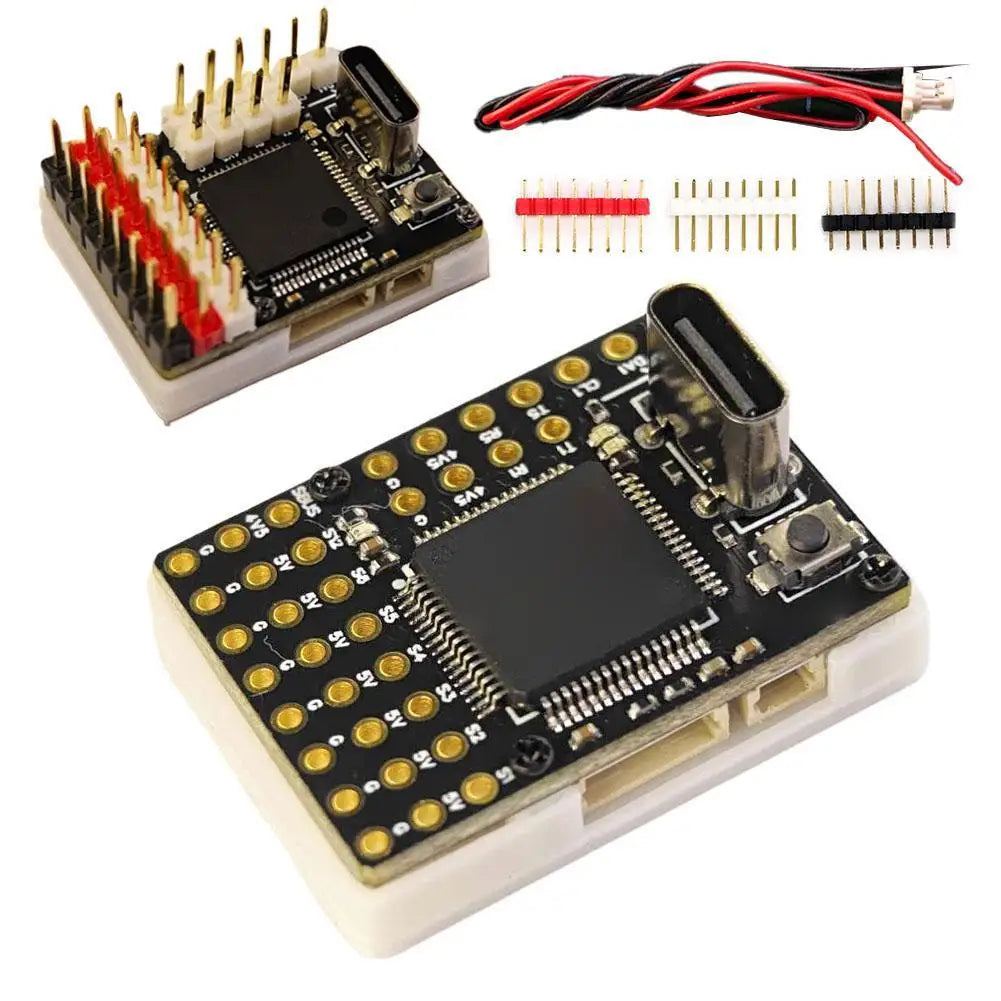

FlyingRC F4 Wing Mini Fixed Wing Flight Controller with Type-C Interface

Take your micro fixed-wing builds to the next level with the FlyingRC F4 Wing Mini Flight Controller. Engineered for small and ultra-compact fixed-wing aircraft, this featherweight board packs serious processing power into a 27.9 × 20.3 × 11.2 mm footprint — weighing just 2.8 g. Whether you're flying an F80, ArwingMini, micro claw, or a modified hand-throw glider, this flight controller delivers high-performance stability, precise sensor data, and flexible connectivity in one tidy package.

Made in Mainland China.

Key Features

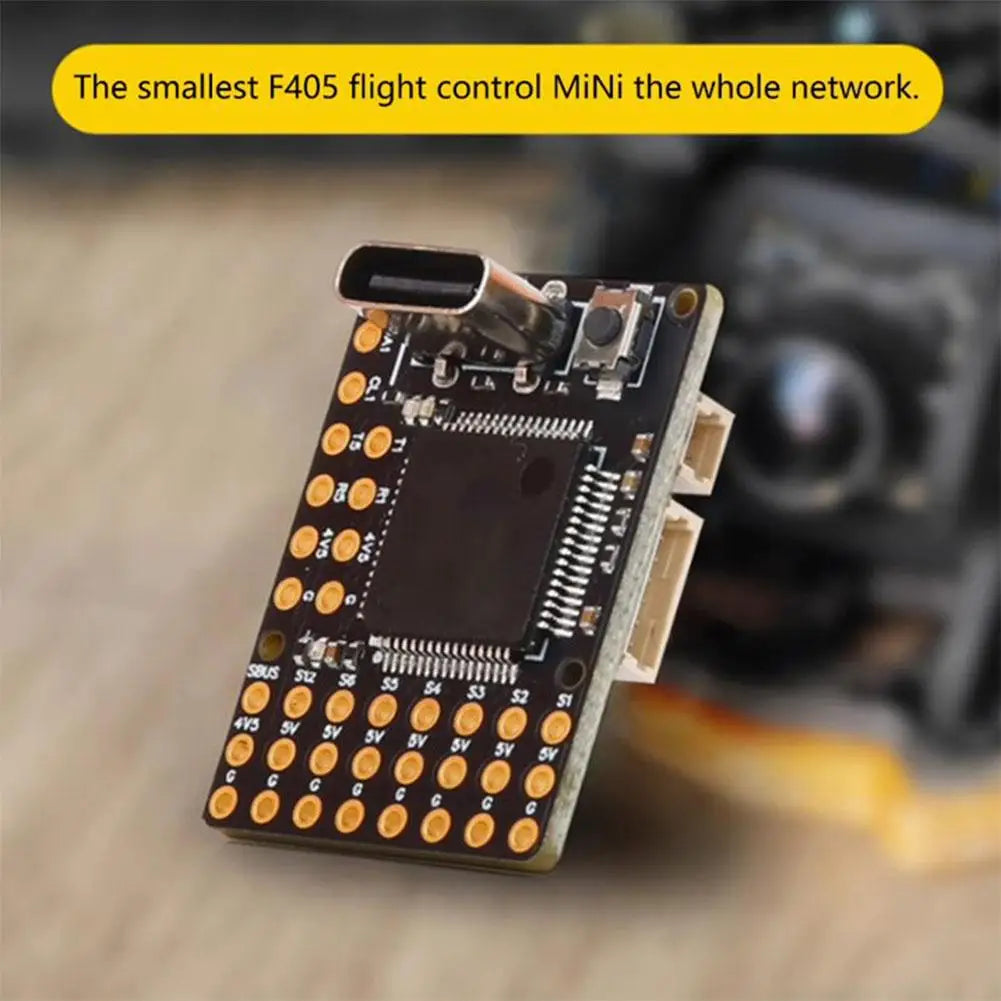

Powerful STM32F405RGT6 Processor: ARM Cortex-M4 core running at 168 MHz with 1 MB Flash — over 5× more capable than competing mini FCs that rely on STM32F0-series chips.
ICM42605 Gyroscope: 3rd-generation TDK sensor purpose-optimized for drone flight dynamics, delivering smooth and responsive attitude control.
SPL06 Barometer: High-precision domestic barometer for reliable altitude hold and smooth flight.
Dual Onboard LDO Regulators: Sensors are independently powered, reducing electrical noise for consistently stable flight.
7× PWM Outputs: Drive up to 7 servos or ESCs simultaneously, plus 3.5 serial ports (SBUS counts as half a serial port).

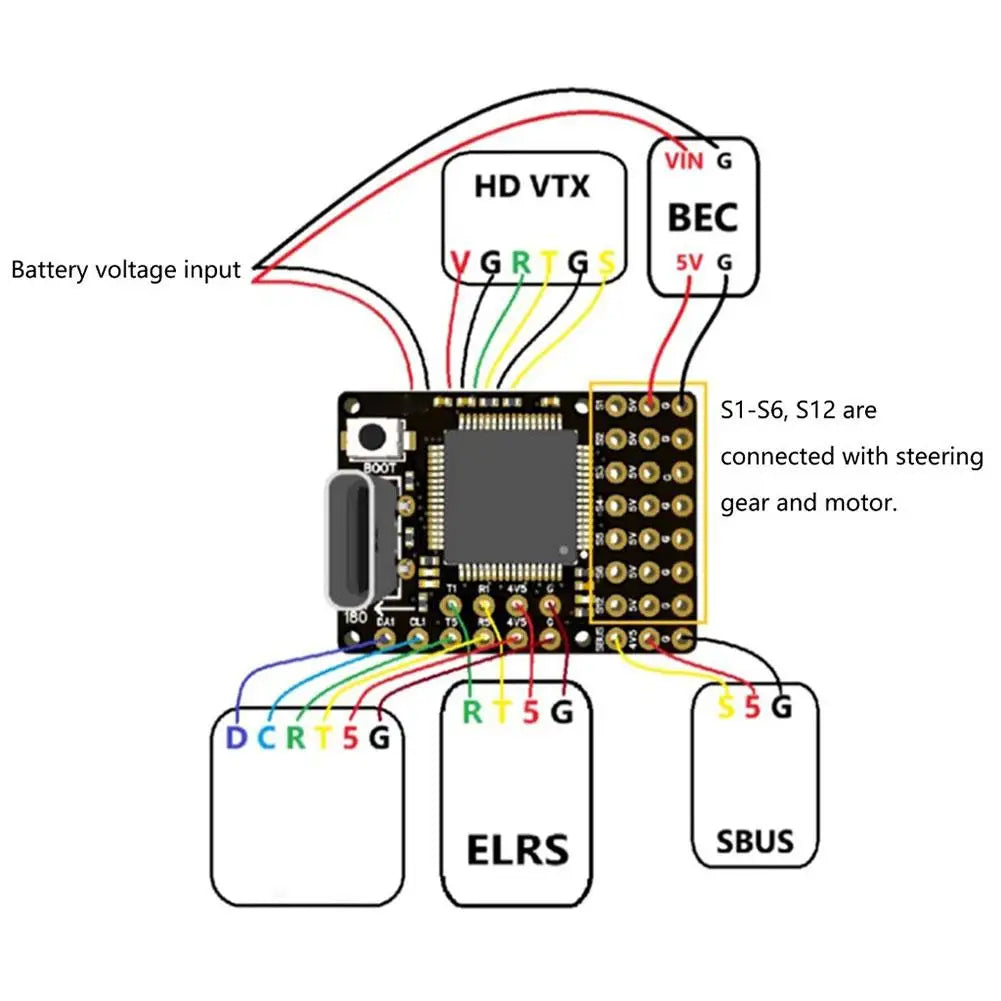

Type-C Interface: Direct plug-in connection with superior durability and longevity. Connect to your smartphone via dual USB-C cables and configure via QGroundControl mobile app (AP firmware).
Wide Voltage Input (2.5–30V / 1–6S LiPo): Supports up to 6S battery input via SH1.0 2-pin interface, with battery voltage also powering the HD image transmission port.
HD Direct Plug-In Support: SH1.0 6-pin interface for HD OSD (compatible with Snail HD, OpenIPC, etc.). Note: analog OSD is not supported.
ELRS Receiver Ready: Direct plug-in for ELRS receivers to keep your build as compact as possible.
External I²C Ammeter Support: No onboard analog ammeter; connects to an external I²C protocol ammeter for current monitoring.

Specifications

Processor	STM32F405RGT6 (ARM Cortex-M4, 168 MHz, 1 MB Flash)
Gyroscope	ICM42605 (TDK 3rd Gen)
Barometer	SPL06
Voltage Input	2.5–30V (1–6S LiPo)
Logic Power	5V
PWM Outputs	7
Serial Ports	3.5 (SBUS = 0.5)
Interface	USB Type-C

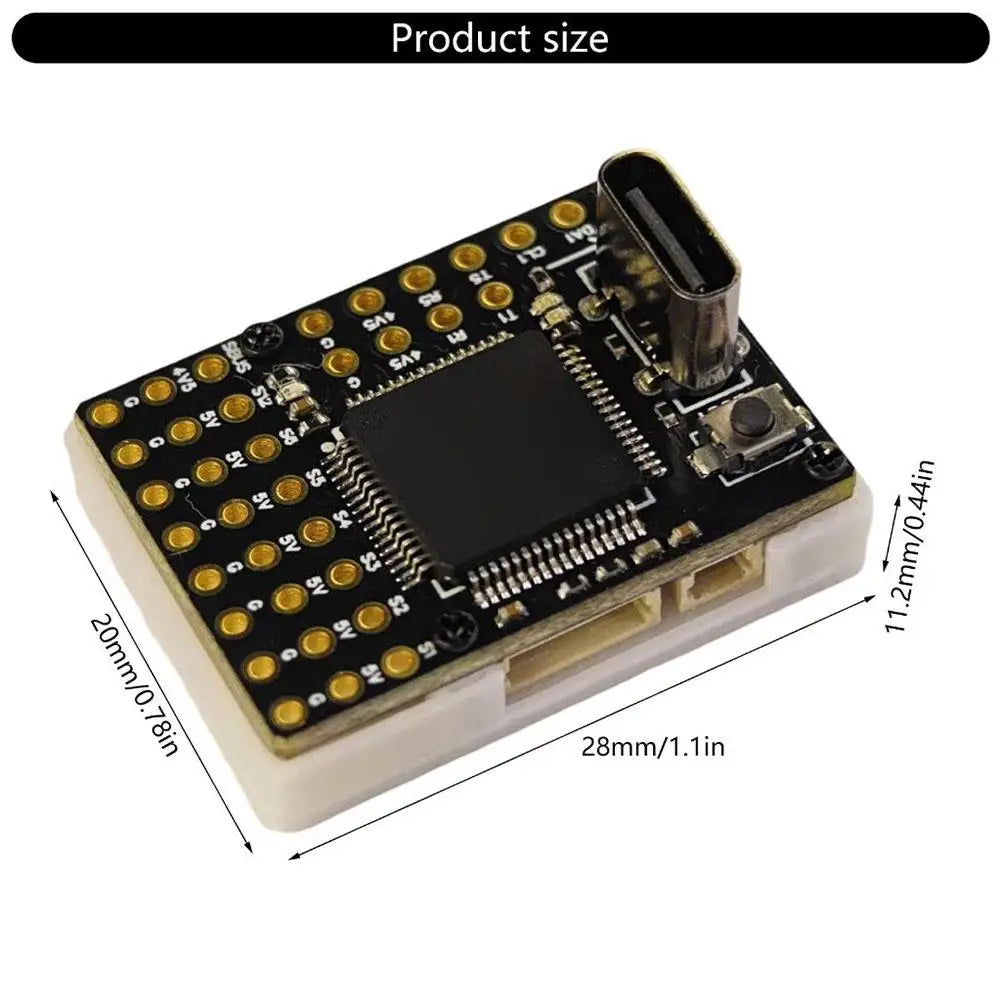

Dimensions	27.9 × 20.3 × 11.2 mm
Weight	2.8 g
Color	Black

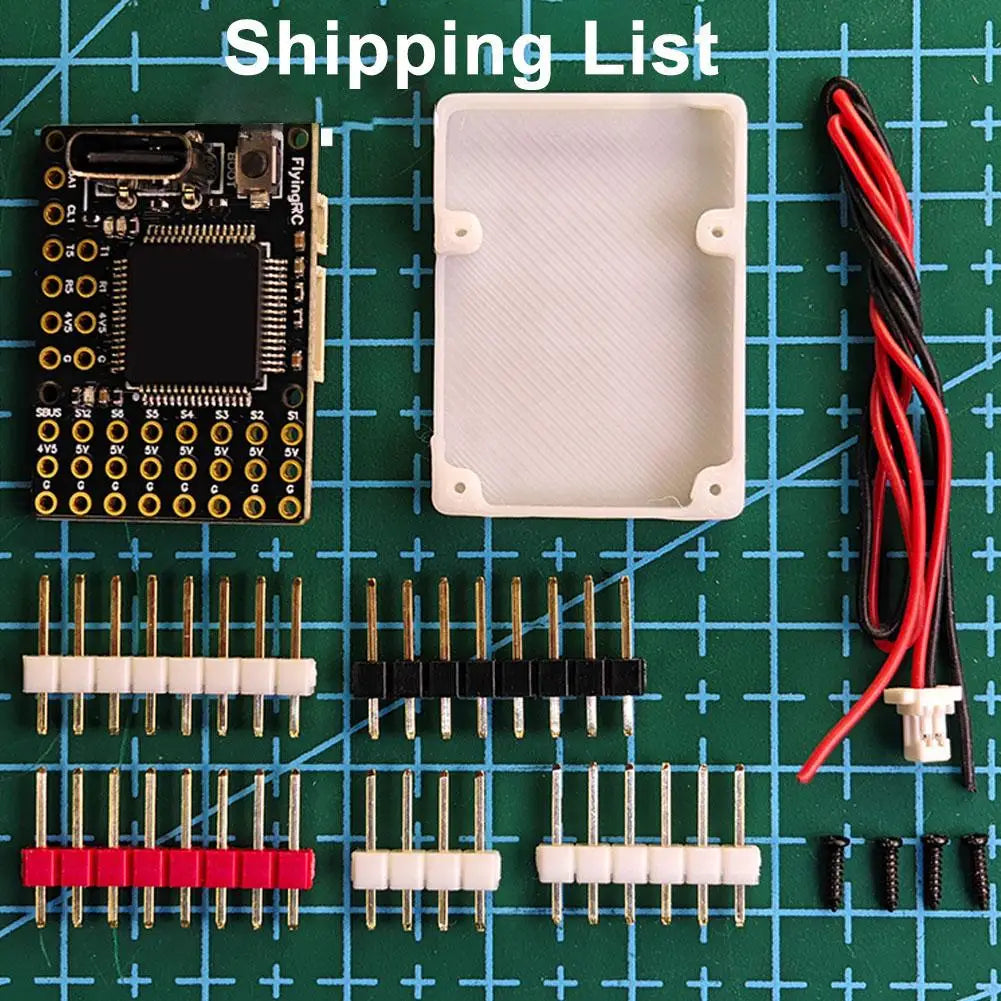

Package Contents	1 × Flight Controller

Compatible Platforms

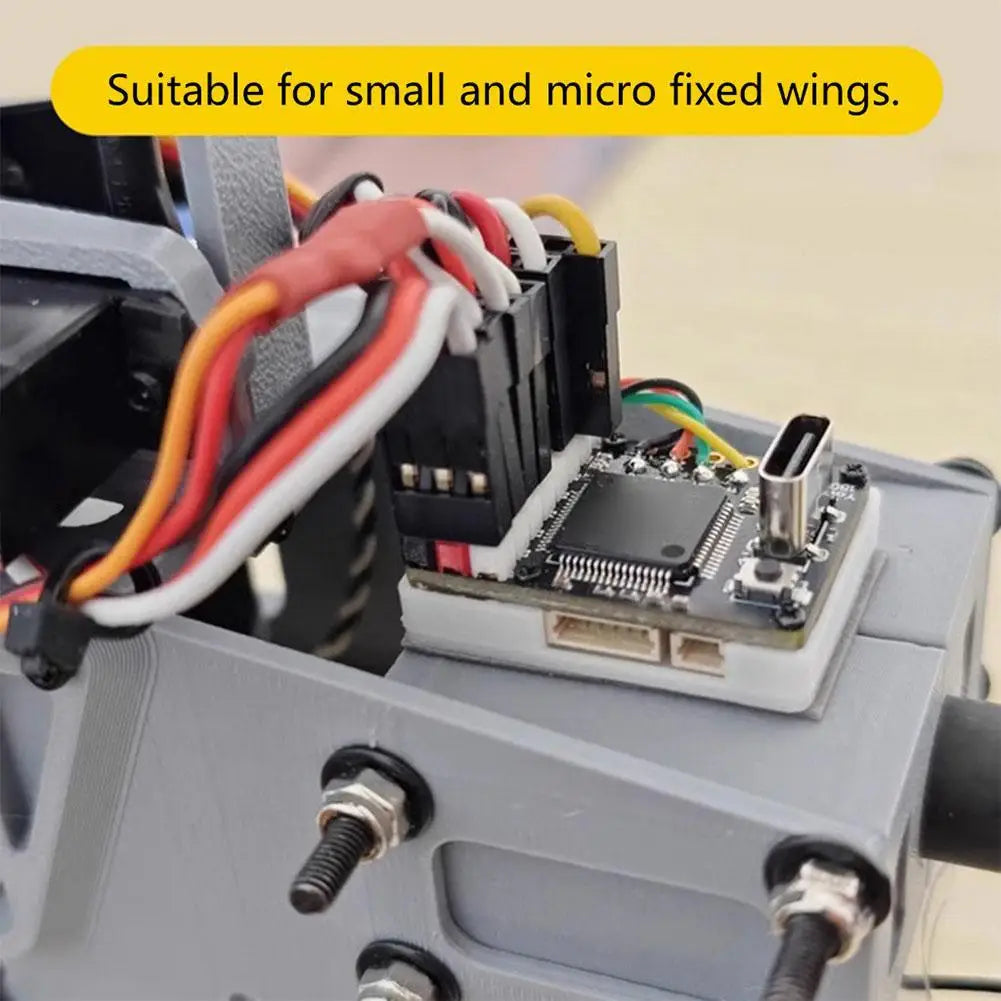

Designed for small and micro fixed-wing aircraft including F80, micro claw wings, ArwingMini, modified hand-throw gliders, and similar lightweight builds. Also compatible with ELRS receivers and HD video transmitters via direct plug-in connectors.

Related Products You May Like

For more information on safe operation of small unmanned aircraft systems, refer to guidance from the FAA Unmanned Aircraft Systems (UAS) resource center and electronics safety standards at CPSC.gov.

Frequently Asked Questions

Q: Which fixed-wing aircraft is the FlyingRC F4 Wing Mini Flight Controller compatible with?

A: The FlyingRC F4 Wing Mini Flight Controller is designed for small and micro fixed-wing models such as the F80, ArwingMini, micro claw wing, and modified hand-throw gliders. Its compact 2.8 g form factor makes it ideal for ultra-lightweight builds where space and weight are critical.

Q: Can I configure the FlyingRC F4 Wing Mini Flight Controller with a smartphone?

A: Yes! Thanks to the USB Type-C interface, you can connect the flight controller to your smartphone using a dual USB-C cable and configure it through the QGroundControl mobile app (recommended with AP firmware). This makes field adjustments quick and convenient without needing a laptop.

Q: Does this flight controller support HD video transmission and OSD?

A: Yes, the board features an SH1.0 6-pin HD direct plug-in port that supports HD OSD systems such as Snail HD and OpenIPC. Please note that analog OSD is not supported. Battery voltage from the SH1.0 2-pin connector also powers the HD image transmission port, supporting up to 6S input.

Q: What receiver types are compatible with this flight controller?

A: The FlyingRC F4 Wing Mini supports SBUS receivers via its serial ports and includes a direct plug-in connector for ELRS receivers, helping you keep your build as compact as possible. External I²C protocol ammeters can also be connected for current monitoring.
