Tuoying HD Video Encoder – Compact HDMI to IP Streaming Device

Take your live broadcasts to the next level with the Tuoying HD01-1 HD Video Encoder. This compact, professional-grade device converts any HDMI video source into a low-latency IP stream, supporting all major streaming protocols — RTMP, SRT, UDP, HLS, RTSP, and more. Whether you're broadcasting to YouTube, Twitch, or a private IPTV network, this encoder delivers crisp, stable 1080p video with minimal setup.

Made in Mainland China.

Why Choose This HD Video Encoder?

Dual Codec Support: H.265 (HEVC) and H.264 ensure maximum compatibility with all major platforms and players.
Universal Protocol Support: Stream via RTMP, SRT, UDP, HLS, RTSP, ONVIF, TS, and RTP — all from one device.
Wide Application Range: Ideal for IPTV, hotel TV systems, CCTV, drone/UAV transmission, digital signage, video conferencing, campus broadcast, telemedicine, NVR/recording systems, and online live streaming.
Flexible Bitrate Control: Choose between Constant Bitrate (CBR) or Variable Bitrate (VBR) from 64 kbps up to 12 Mbps to match your bandwidth needs.
Micro SD Card Recording: Supports up to 128 GB Micro SD card for local on-device recording at the press of a button.
Ultra-Compact Design: Measures just 109 × 74 × 25 mm and consumes as little as 3W of power — perfect for desktop, rack, or field use.
CE Certified: Meets international safety and electromagnetic compatibility standards.

Technical Specifications

Feature	Details
Model	HD01-1 / ON-DMI-16EW (Max. 50fps)
Video Encoding	H.265 / H.264
Audio Encoding	AAC / G.711A / G.711U; Sampling: 32K / 48K / 64K / 128K / 256K or 8000Hz (NVR)
Bitrate	CBR / VBR; 64 kbps – 12 Mbps (configurable)
Frame Rate	50Hz: 1–25 fps; 60Hz: 1–30 fps (configurable)
Main Stream Resolutions	1920×1080, 1600×900, 1440×1050, 1440×900, 1360×768, 1280×1024, 1280×720
Sub Stream Resolutions	704×576, 640×480, 640×352, 352×288, 320×240
Protocols	TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, RTP, RTSP, RTMP, SRT, TS, UDP, ONVIF

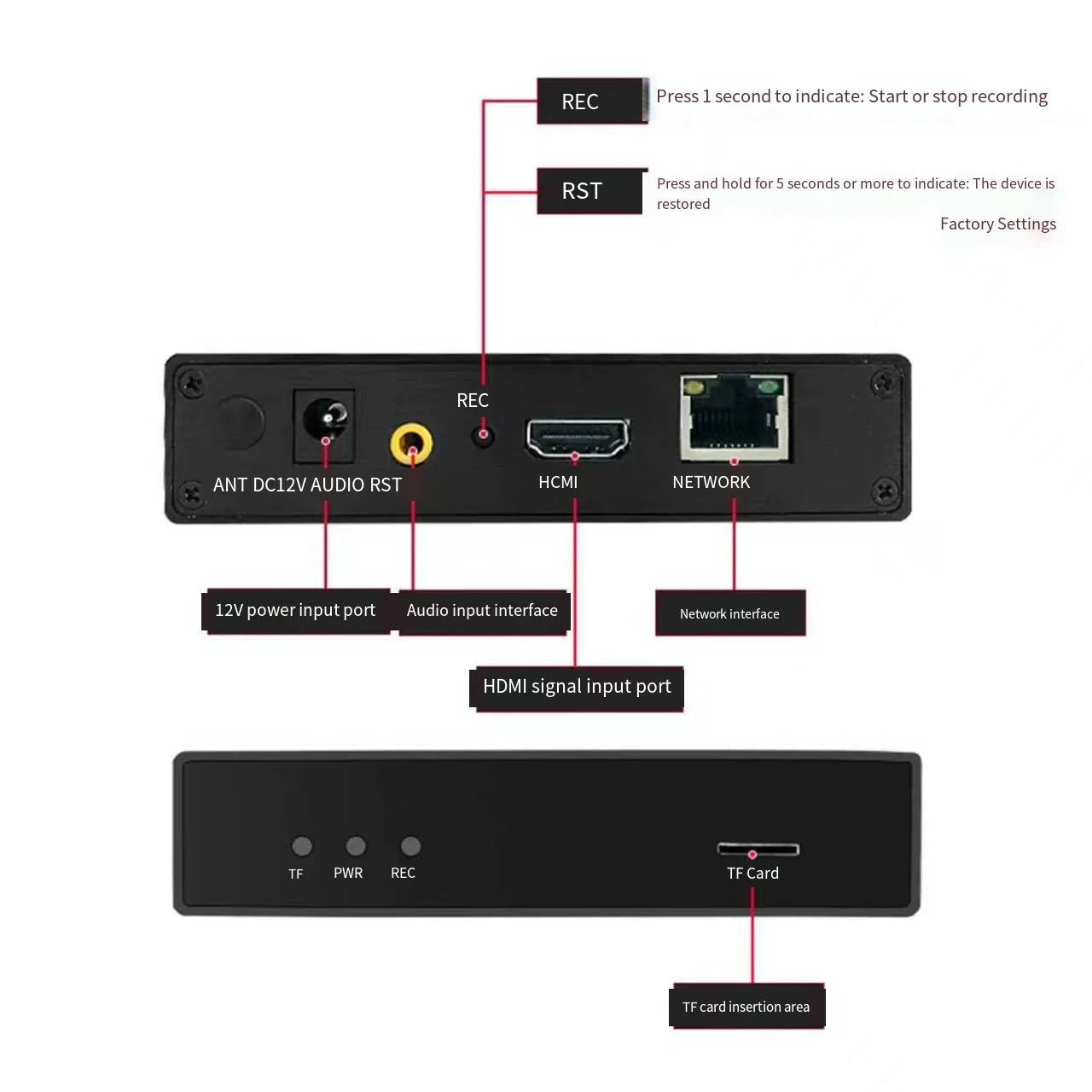

Network Port	RJ45 10M/100M Self-Adaptive Ethernet
HDMI Input	1× HDMI Input
Audio Input	1× 3.5mm Line-In Port
SD Card Slot	Micro SD (up to 128 GB)
Power Supply	DC 12V 1A or higher
Power Consumption	≤ 3W
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Operating Humidity	≤ 95% (Non-Condensing)
Dimensions	109 × 74 × 25 mm (4.29 × 2.90 × 0.98 in)
Net Weight	186 g (6.56 oz)
Certification	CE

Default Network Settings

User: admin | Password: 12345
Static IP: 192.168.1.120 (Default)
TS Main Stream: http://192.168.1.120:80/ts/0
HLS Main Stream: http://192.168.1.120/hls/0.m3u8
RTSP Main Stream: rtsp://192.168.1.120:554/live/0
UDP: udp://@224.1.2.3:10000

Note: WiFi will not be available when NDI is enabled.

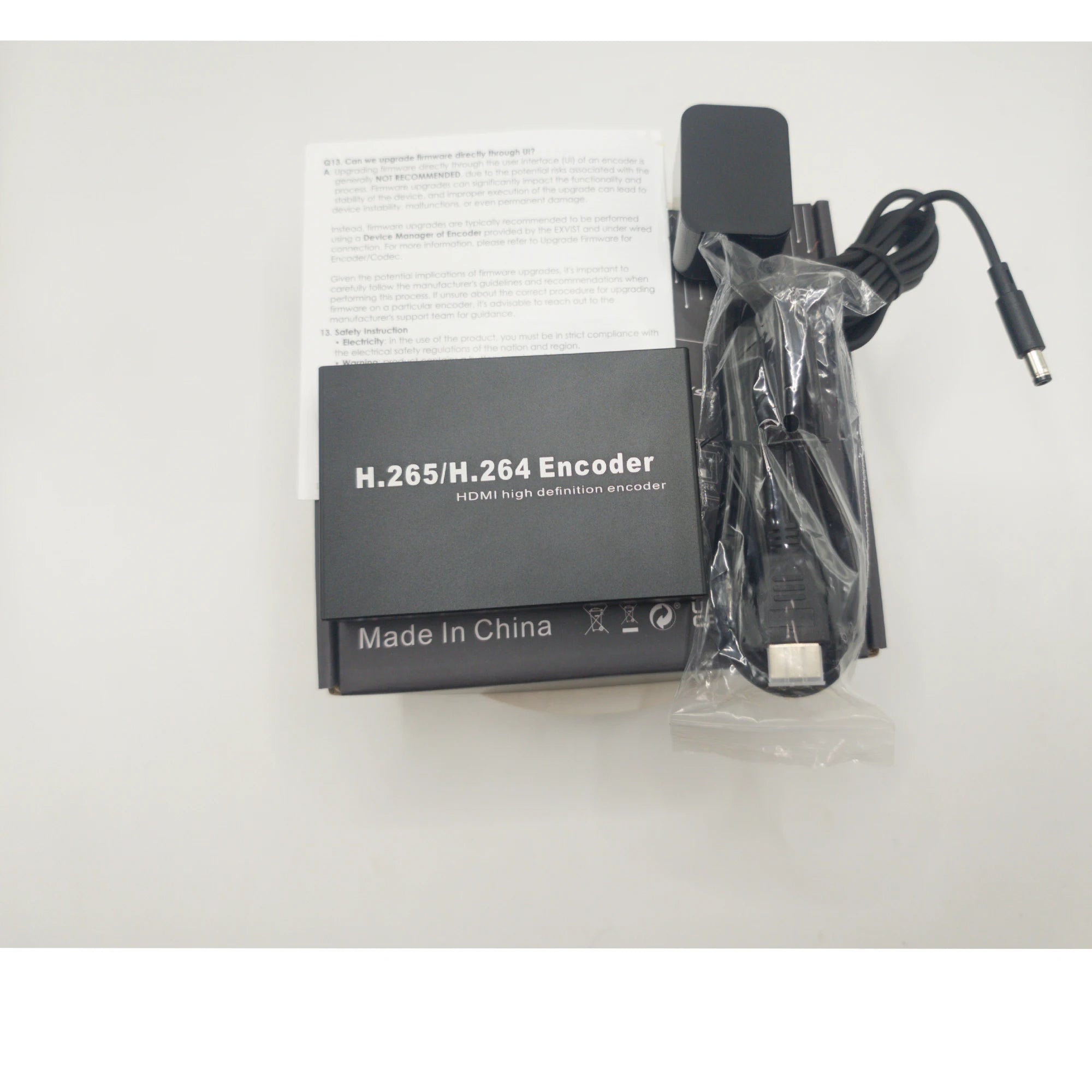

What's in the Box

1× HDMI Video Encoder (HD01-1)
1× DC 12V 1A Power Adapter
1× HDMI Cable (1M)
1× Ethernet Cable (1M)
1× Live Broadcasting Quick Start Guide

Related Products You May Like

For more information on video streaming standards and digital broadcasting, visit the NIST Communications Technology Laboratory.

Frequently Asked Questions

Q: What streaming platforms does this HD video encoder support?

A: This HDMI video encoder supports all major streaming platforms and protocols, including RTMP (YouTube, Facebook Live, Twitch), SRT, HLS, RTSP, UDP, and more. It is compatible with virtually any IPTV system, CDN, or media server that accepts these standard protocols.

Q: Can I use this encoder with a drone or DSLR camera?

A: Yes. The encoder accepts any HDMI video source, including DSLRs, camcorders, drones/UAVs with HDMI output, and FPV systems. Simply connect your camera's HDMI output to the encoder's HDMI input and configure your streaming destination via the web interface.

Q: Does this encoder support local recording?

A: Yes. The HD01-1 encoder features a Micro SD card slot that supports cards up to 128 GB. Press the Record button for one second to start or stop local recording — no computer required.

Q: What is the difference between H.264 and H.265 (HEVC) encoding?

A: H.265 (HEVC) offers up to 50% better compression efficiency compared to H.264 at the same video quality, meaning lower file sizes and bandwidth usage for the same resolution. H.264 remains more widely compatible with older players and platforms. This encoder lets you choose whichever codec best fits your workflow.
