HD HDMI to IP Video Encoder – H.265/H.264 HEVC with RTMP, HLS, UDP & NVR Recording

Meet the Tuoying HD Video Encoder — a compact, professional-grade HDMI-to-IP streaming encoder designed for live broadcasting, IPTV distribution, digital signage, video conferencing, campus broadcasting, and NVR recording systems. Supporting both H.265 (HEVC) and H.264 compression, it delivers crystal-clear video at up to 1080P @ 60FPS while keeping bandwidth usage low — ideal for professional AV setups and live streaming platforms.

Key Features

Dual Codec Support: H.265/HEVC & H.264 for maximum compatibility and efficiency
High-Resolution Output: Up to 1920×1080 @ 60FPS on the main stream
Multi-Protocol Streaming: RTMP, HLS, RTSP, UDP, TS, SRT, HTTP, ONVIF, DHCP, DNS, DDNS
Dual Stream: Configurable main stream and sub-stream simultaneously
Audio Encoding: AAC, G.711A, G.711U; sampling rates from 8000 Hz to 256K
Flexible Bitrate: Constant (CBR) and Variable (VBR) modes; 64 kbps – 12 Mbps configurable
Frame Rate: 1–60 fps fully configurable
Local Recording: TF card slot for on-device video storage

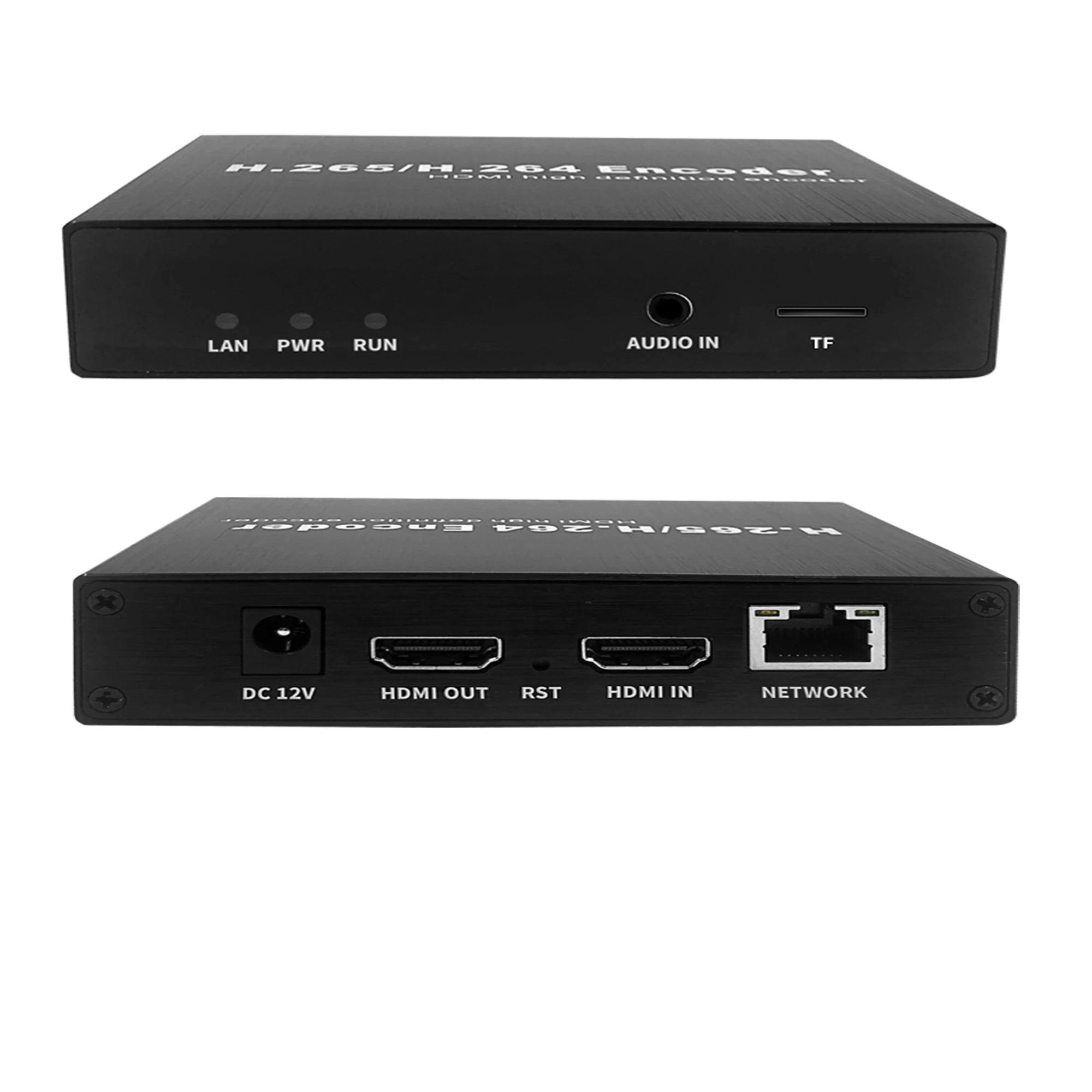

Network Interface: RJ45 10/100M self-adaptive Ethernet port
Audio Input: 1-channel MIC/Line-in port
Power: DC 12V 1A (≤1.86W consumption) — extremely energy efficient
CE Certified — no high-concern chemicals
Made in Mainland China

Supported Resolutions

Main Stream: 1920×1080, 1280×960, 1280×800, 1280×720, 1024×768, 720×576, 640×480, 640×352, 352×288, 320×240
Sub Stream: 1280×720, 1024×768, 720×576, 640×480, 640×352, 320×240

Default Stream URLs (Out of the Box)

TS Main: http://192.168.1.120/ts/1_0
HLS Main: http://192.168.1.120/hls/1_0.m3u8
RTSP Main: rtsp://192.168.1.120:554/live/1_0
UDP: udp://@224.1.2.3:10000

Technical Specifications

Model	ON-DM-16E (Encoder)

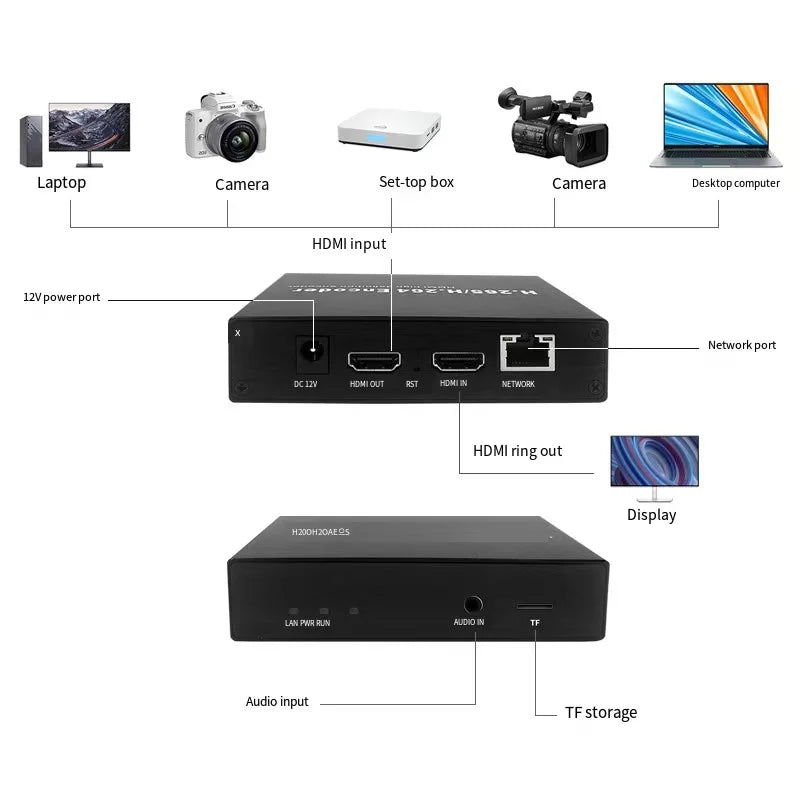

Video Input	1× HDMI, up to 1080P@60FPS
Video Encoding	H.265 / H.264
Audio Encoding	AAC / G.711A / G.711U
Bitrate	64 kbps – 12 Mbps (CBR/VBR)
Protocols	TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, RTSP, RTMP, SRT, TS, UDP, ONVIF
Network	RJ45 10/100M Ethernet
Storage	TF Card slot
Power Supply	DC 12V 1A or higher
Power Consumption	≤1.86W
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Operating Humidity	≤95% (Non-Condensing)
Default IP	192.168.1.120
Default Login	User: admin / Password: 12345
Certification	CE

Ideal Applications

IPTV & Hotel TV Systems
Online Live Streaming & Broadcast Platforms (YouTube, Facebook Live, Twitch, etc.)
NVR & Video Recording Systems
Digital Signage & Video Conferencing
Campus & School Broadcasting
UAV / Drone Image Transmission
DSLR, DV & FPV Camera Streaming
Remote & Teleconference Broadcasting

Related Products You May Like

Authoritative Reference

For information on broadcast and video transmission standards, visit the NIST Communications Technology Laboratory, which covers digital broadcasting protocols and networking standards relevant to professional AV equipment.

Frequently Asked Questions

Q: What streaming protocols does this HD HDMI video encoder support?

A: This encoder supports a wide range of streaming protocols including RTMP, HLS, RTSP, SRT, UDP, TS, HTTP, ONVIF, TCP/IP, DHCP, DNS, and DDNS — making it compatible with virtually all major live streaming platforms, IPTV systems, and NVR recording solutions.

Q: Can I record video locally while streaming at the same time?

A: Yes. The encoder features a built-in TF card interface that allows local video storage, so you can record footage directly to a memory card while simultaneously streaming to a remote server or platform.

Q: What is the maximum video resolution this encoder supports?

A: The encoder supports up to 1920×1080 (Full HD) at 60 frames per second on the main stream, with multiple sub-stream resolutions also available. Frame rate and bitrate are both fully configurable to suit your bandwidth requirements.

Q: Is this encoder compatible with YouTube Live, Facebook Live, or other streaming platforms?

A: Yes. With built-in RTMP push streaming support, this encoder can directly broadcast to YouTube Live, Facebook Live, Twitch, and any other platform that accepts an RTMP stream URL and stream key.
