HH62P JQX-13F DPDT Power Relay with Socket & DIN Rail Base

The HH62P JQX-13F Coil Power Relay with Socket Base is a versatile, heavy-duty DPDT (Double Pole Double Throw) relay designed for reliable switching in industrial automation, control panels, and DIY electrical projects. Compatible with a wide range of coil voltages — DC 12V, DC 24V, AC 110V, and AC 220V — this relay fits seamlessly into DIN rail-mounted control enclosures for a clean, professional installation.

With an 8-pin configuration featuring 2 normally open (NO) and 2 normally closed (NC) contacts, the HH62P offers flexible circuit control and fast response times. Its socket base design makes swapping or replacing the relay quick and tool-free, reducing downtime in critical applications.

Made in Mainland China.

Key Features

• Wide Voltage Compatibility: Works with DC 12V, DC 24V, AC 110V, and AC 220V coil inputs
• DPDT 8-Pin Design: 2 Normally Open + 2 Normally Closed contacts for versatile switching
• Socket Base Included: Plug-in socket for DIN rail installation — easy replacement, no rewiring
• Low Coil Power Consumption: DC ≤0.9W / AC ≤1.2VA for energy-efficient operation
• Fast Reset Time: ≤20ms for quick, responsive switching cycles
• High Operating Frequency: Up to 18,000 mechanical cycles/hour for demanding applications
• Low Contact Resistance: ≤50mΩ for minimal voltage drop across contacts

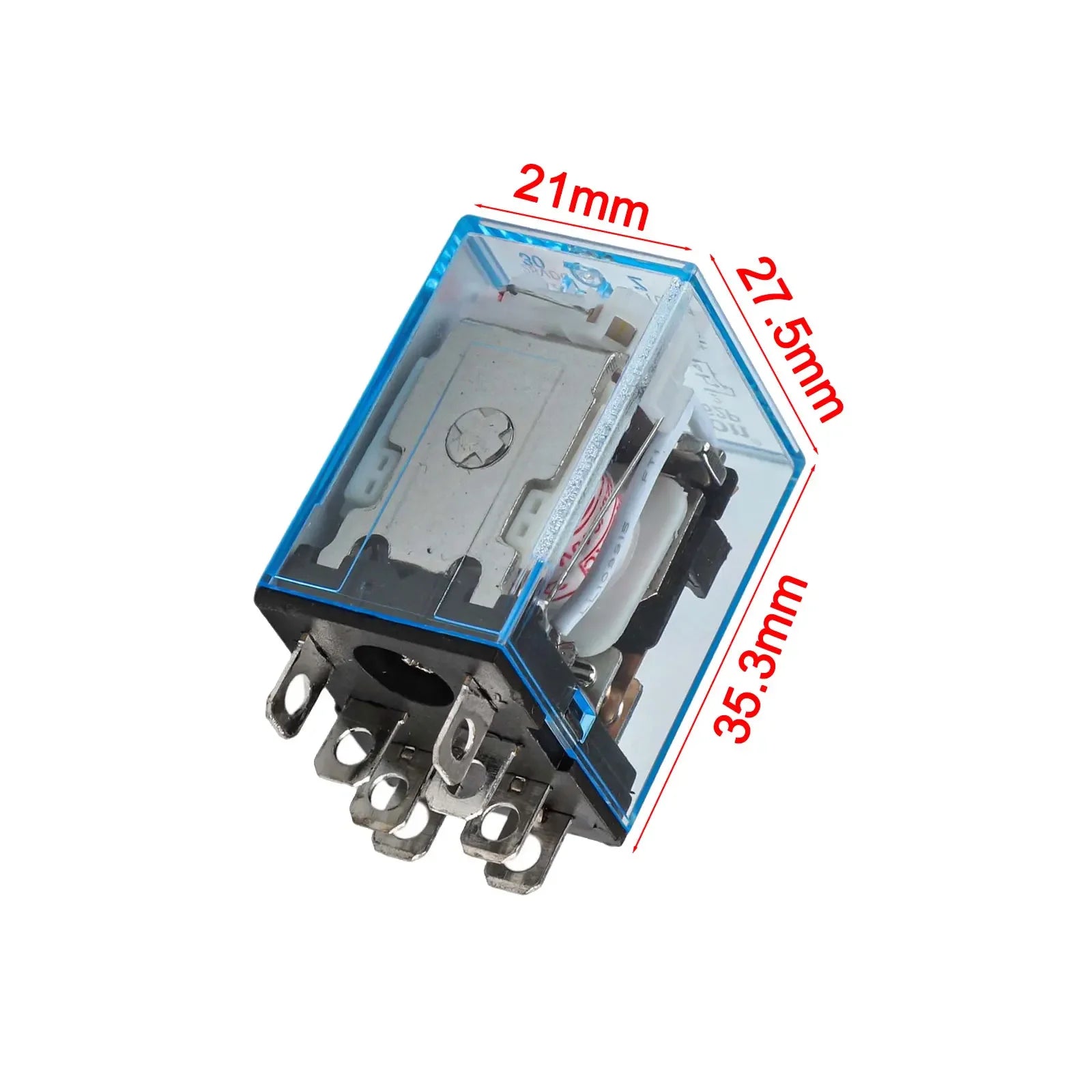

• Compact Form Factor: Dimensions approx. 27.5 × 21 × 35.3mm — space-saving for panel mounting

Technical Specifications

Package Contents

• 1 × HH62P JQX-13F Coil Power Relay (with Socket Base)

Common Applications

• Industrial automation and PLC control panels
• HVAC and electrical control circuits
• DIY electronics and home automation projects
• Motor control and timing circuits
• DIN rail-mounted switchgear enclosures
