2-Pack Hinge Drilling Locator – Cabinet Door Positioning Jig

Drill Perfect Hinge Holes Every Time

Say goodbye to misaligned cabinet doors and crooked hinges. This 2-Pack Hinge Hole Drilling Locator is the must-have woodworking jig for anyone installing or replacing door hinges on furniture cabinets. Made from durable ABS plastic, it's lightweight, precise, and incredibly easy to use — even for first-time DIYers.

Made in Mainland China.

Why You'll Love It

• Accurate Positioning Every Time – Built-in specification markings guide you to mark base screw holes with pinpoint accuracy, eliminating guesswork.

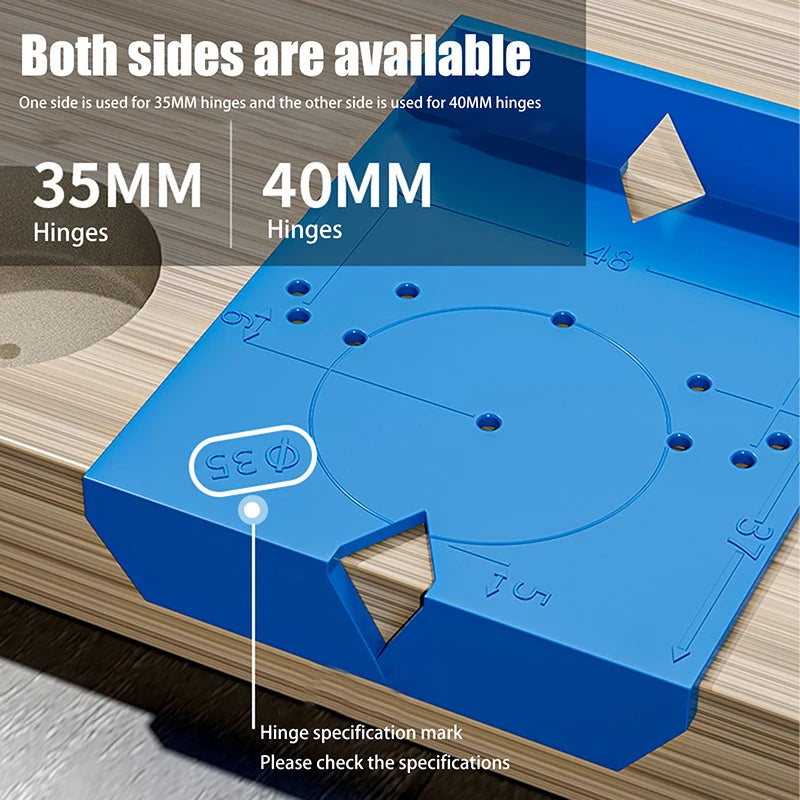

• Compatible with 35mm & 40mm Drill Bits – Works with standard cemented carbide Forstner or hinge-cup drill bits for clean, efficient holes.

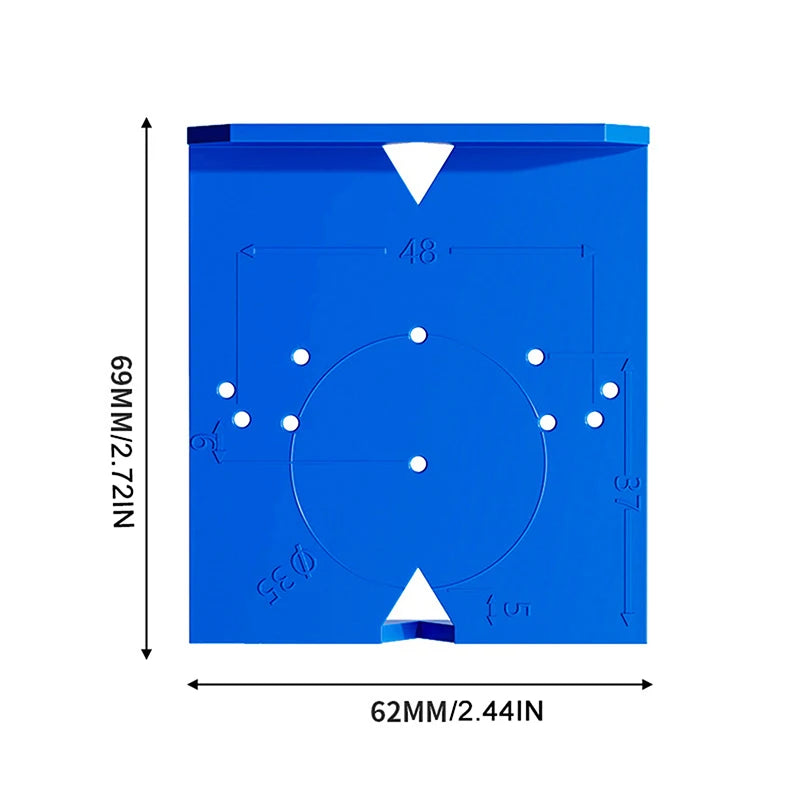

• Lightweight & Portable – Compact ABS construction (62 × 69mm / 2.44 × 2.72 in) fits easily in any toolbox or apron pocket.
• Home DIY Friendly – No special skills required. Simple step-by-step use makes hinge installation quick and professional-looking.
• Pack of 2 – Work on two doors simultaneously or keep a spare on hand.

How to Use

1. Determine the desired hinge position and draw the center connecting line between the two boards.

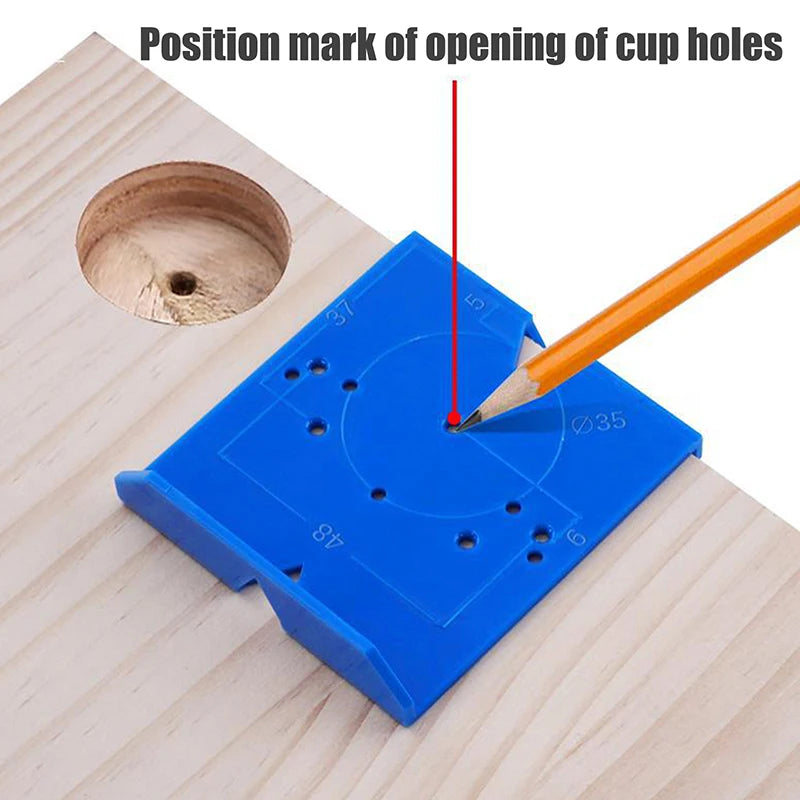

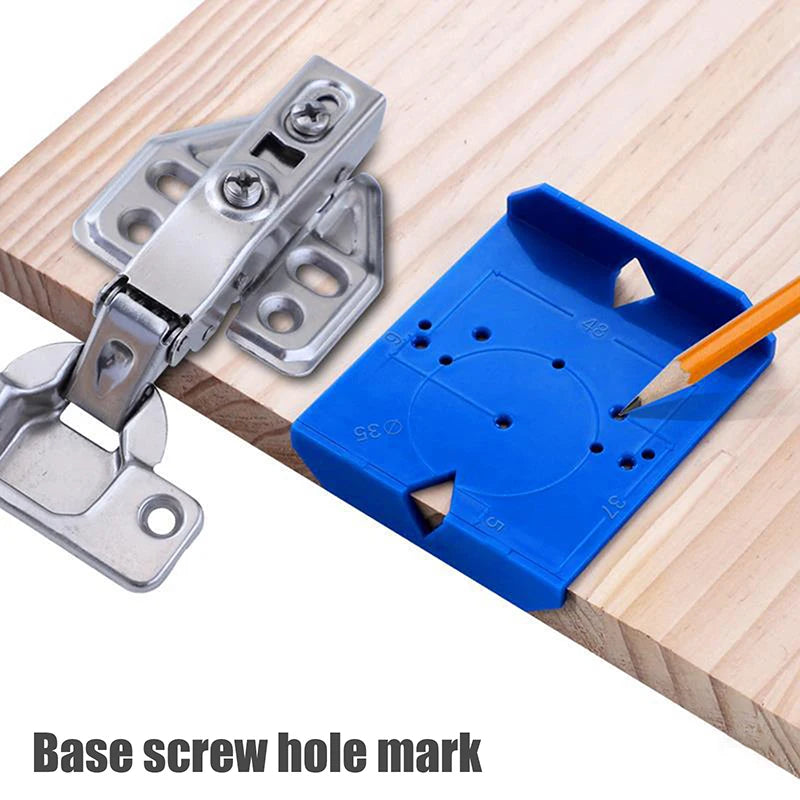

2. Align the locator to the specification markings and mark the base screw hole positions on the door.
3. Mark the corresponding hole positions on the cabinet frame board as well.
4. Drill both sets of holes following the marked positions.
5. Install the hinges — perfectly aligned, first try.

Specifications

Related Tools You May Like

• 1/4" Hex Wire Twister Drill Attachment – Rebar Tie Wire Tool
• 1/2" DN15 Adjustable Garden Sprinkler Head | Lawn Irrigation

For best practices on workshop safety when using drilling tools, visit the OSHA Tools & Equipment Safety resource.

Learn more: List of tools and equipment

Frequently Asked Questions

Q: What drill bit sizes does this hinge drilling locator support?

A: This hinge hole drilling locator is designed for use with standard 35mm and 40mm cemented carbide hinge-cup or Forstner drill bits, which are the most common sizes used for European-style concealed cabinet hinges.

Q: Is this hinge jig suitable for beginners?

A: Absolutely! The hinge drilling locator is designed with clear specification markings and a straightforward step-by-step process, making it ideal for home DIY enthusiasts and woodworking beginners who want professional-quality results without complicated setup.

Q: What types of doors or cabinets is this positioning jig compatible with?

A: This woodworking hinge jig template is suitable for furniture doors, kitchen cabinets, wardrobe panels, and most other wooden board applications where European-style cup hinges are used. It works on both the door panel and the cabinet frame.

Q: How many locators are included in the package?

A: The package includes 2 hinge hole drilling locators, allowing you to work more efficiently or keep a backup on hand for future projects.
