HLW8032 AC Voltage Current Acquisition Module Serial Port Output UART

Discover the HLW8032 AC Voltage Current Acquisition Module Serial Port Output UART, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Semi-finishedproduct: No

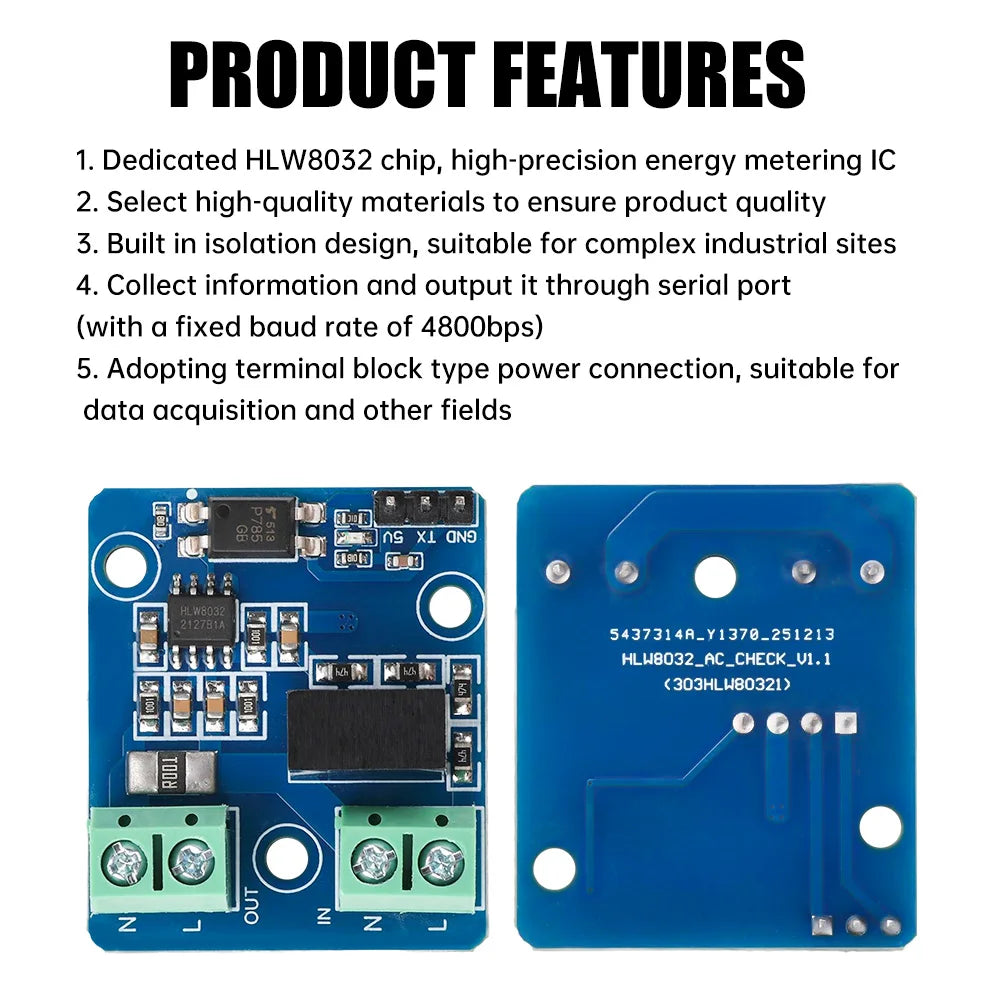

Features:

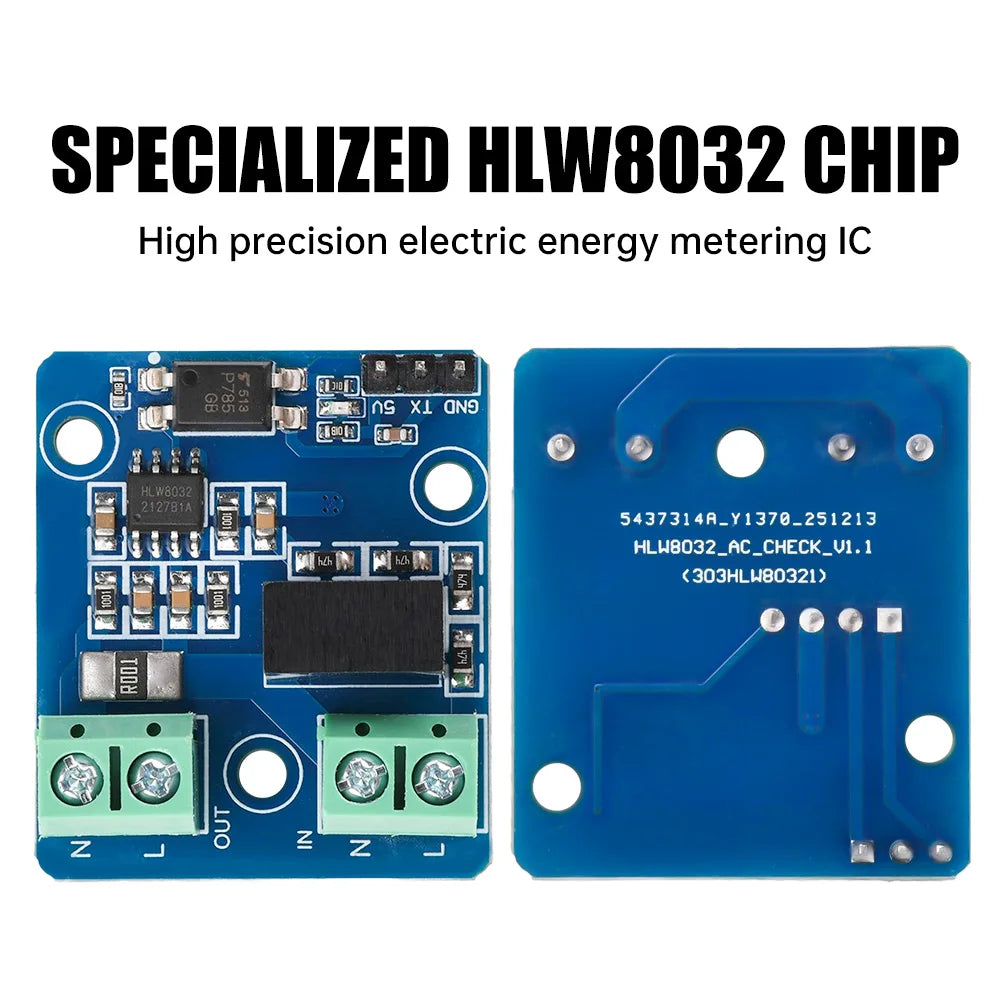

1. Dedicated HLW8032 chip, a high-precision energy metering IC

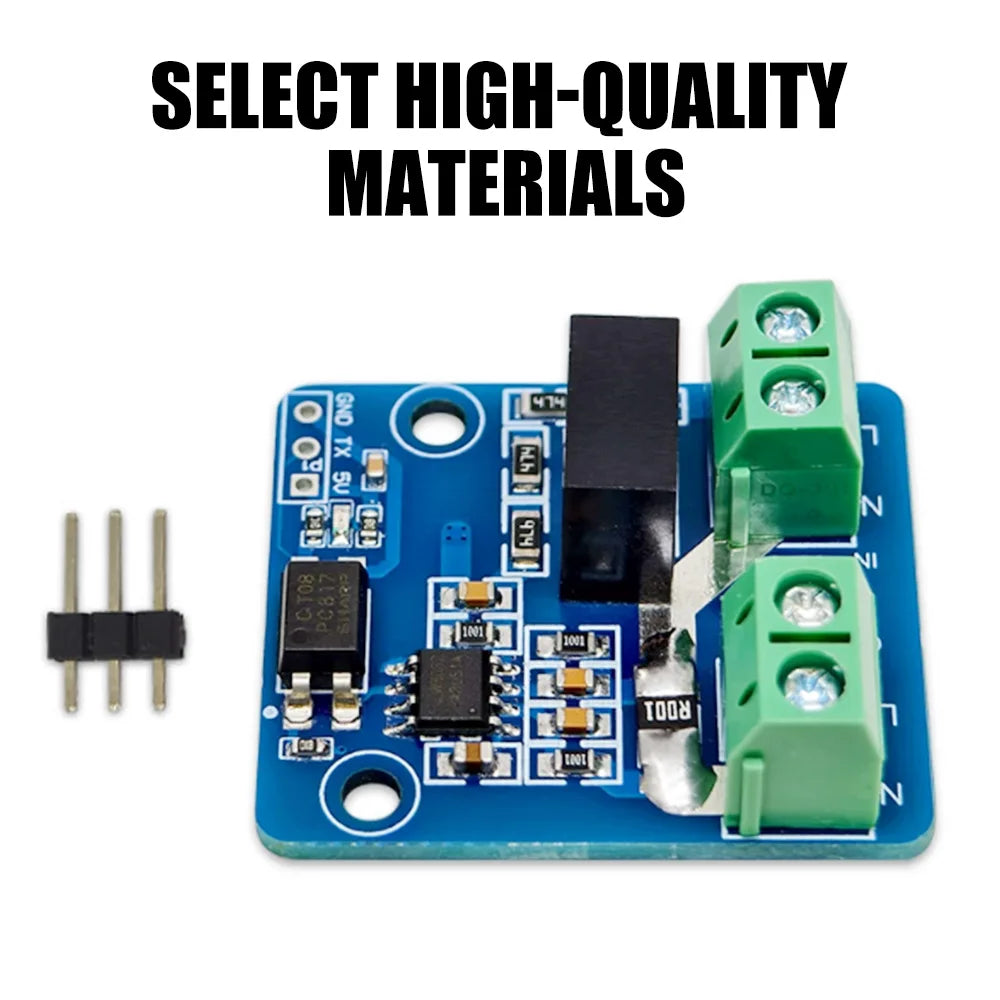

2. Made with high-quality materials to ensure product reliability

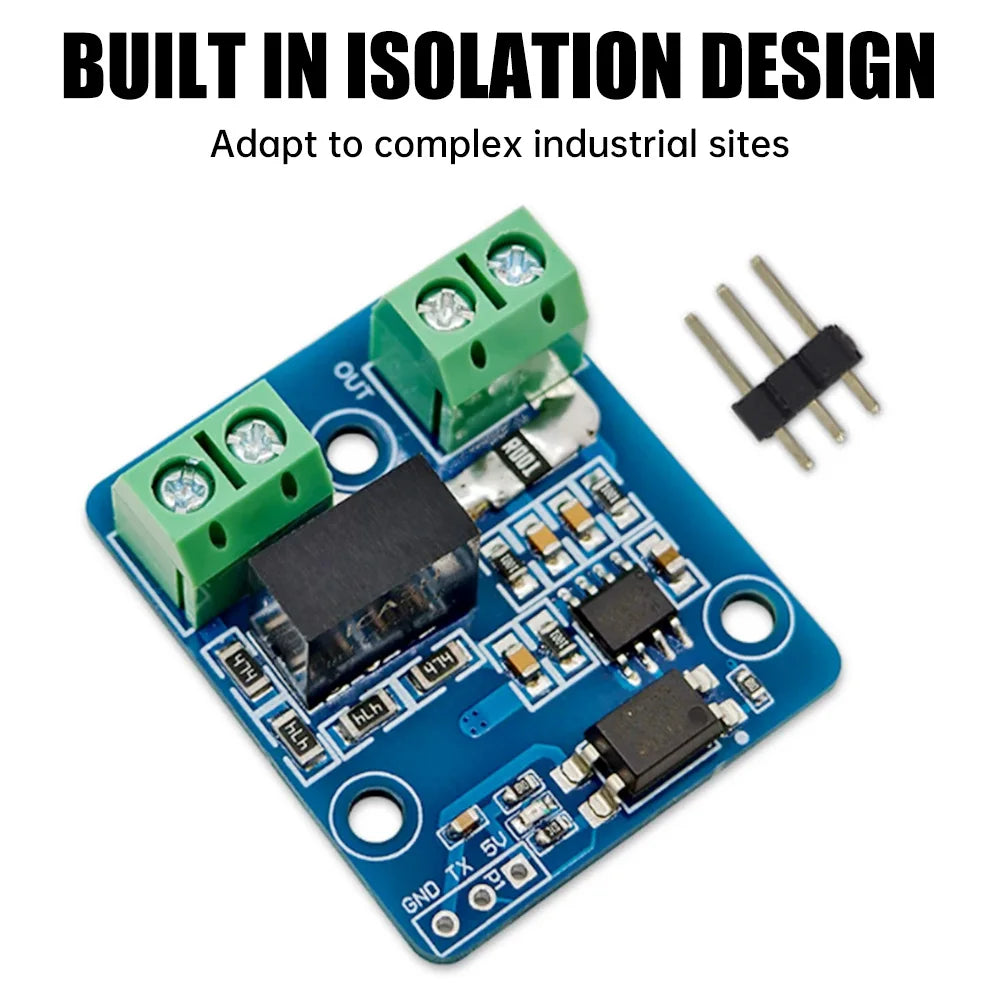

3. Built-in isolation design, suitable for complex industrial environments

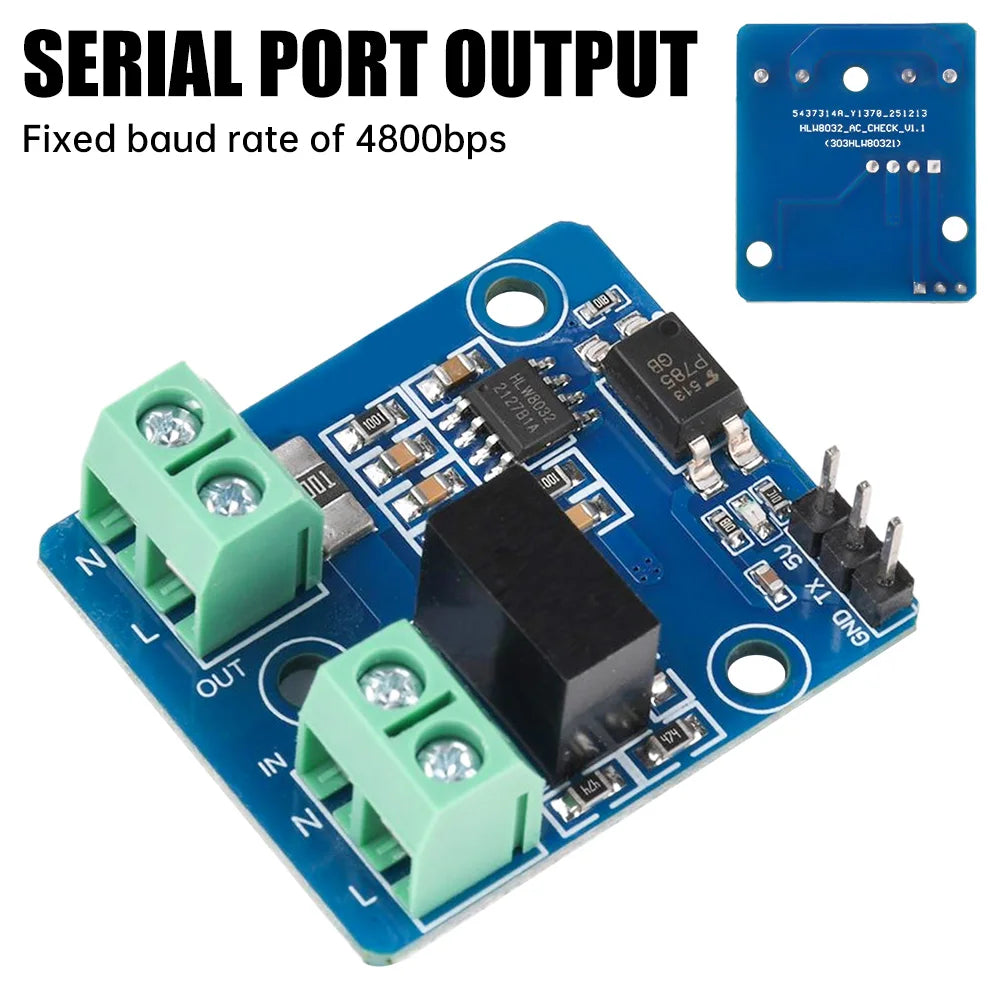

4. Data output via serial port (fixed baud rate of 4800 bps)

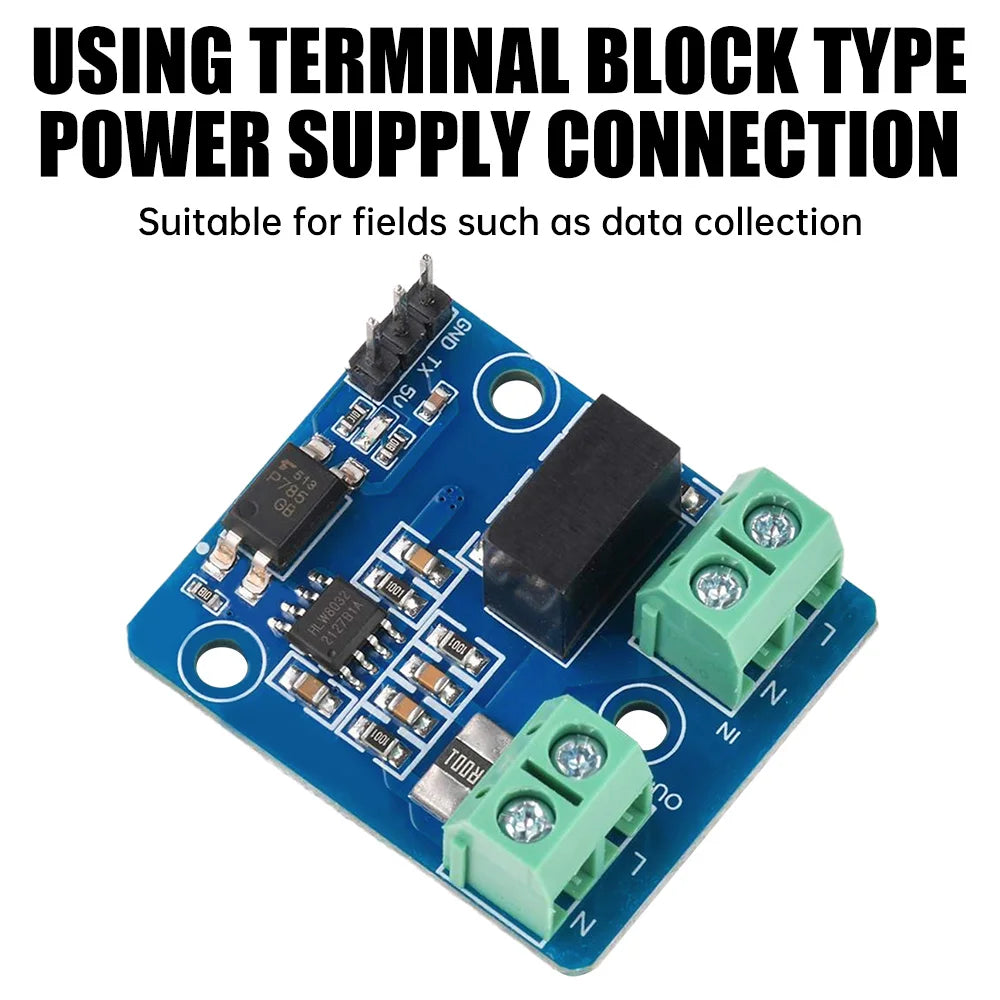

5. Terminal block power connection, suitable for data acquisition and other applications

Product Overview

The HLW8032 module utilizes a high-precision energy metering IC manufactured using CMOS technology. Primarily designed for single-phase applications, it measures line voltage and current and calculates active power, apparent power, and power factor. Collected data is output via a serial port (fixed baud rate of 4800 bps). AC 220V voltage input and output.

User Guide

Connect the serial port module to 5V-TX-GND (connect RX to the board’s TX). Connect the input to a 220V power source and the output to a 220V electrical load. Then plug the serial port module into the computer. You will notice the LED flashing rapidly, indicating that sampled data is being transmitted. At this point, open the host application “HLW8032_V1.2.exe”, select the correct port number (must be between COM1 and COM16), set the maximum current to the default 10A, and click “Open Port.” The host computer will then display the currently sampled data.

Package Contents

Module *1

3-pin header *1

Options

• Color: A
