Humidifier Module DIY Nebulizing Control Board Ultrasonic Nebulizer
B
$21.80
Sale price
$21.80
Regular price
$27.01
Skip to product information
Humidifier Module DIY Nebulizing Control Board Ultrasonic Nebulizer
$21.80
Sale price
$21.80
Regular price
$27.01
Shipping calculated at checkout.
Discover the Humidifier Module DIY Nebulizing Control Board Ultrasonic Nebulizer, a standout hobbies & creative arts pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
DIY Supplies: Electrical
Data Record: No
Electronic: No
Material: Plastic
Semi-finishedproduct: No
Features:
1. Constructed with 1.2mm-thick FR-4 board for a sturdy structure and significantly extended service life.
2. Powered via a Type-C port for plug-and-play convenience and enhanced safety.
3. Supports a precise atomization frequency of 108kHz ± 5kHz, producing a fine and uniform mist.
4. Features an eight-nozzle micro-hole atomization plate design, delivering high mist output and significantly improved humidification efficiency.
5. Suitable for small humidification devices such as desktop humidifiers, car air fresheners, and smart home humidification modules.
Product Specifications:

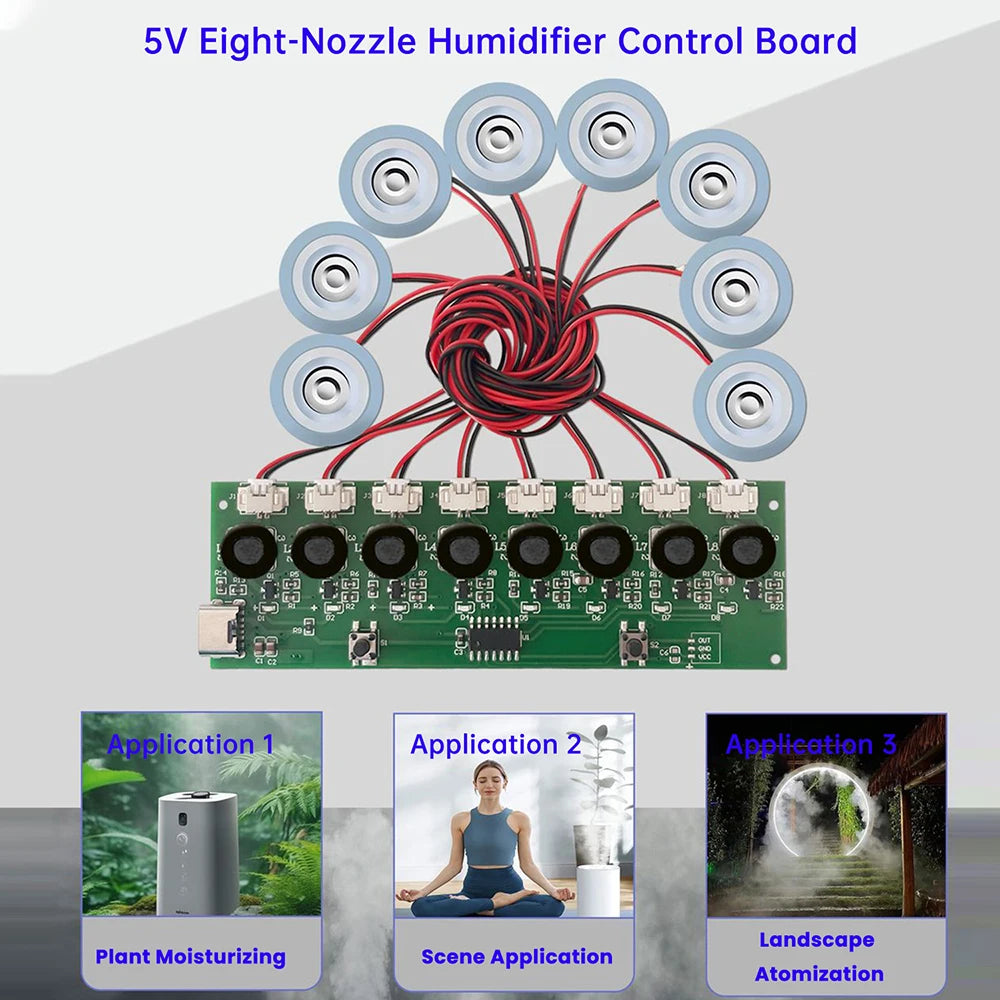

Name: 8-Nozzle Atomization Driver Board

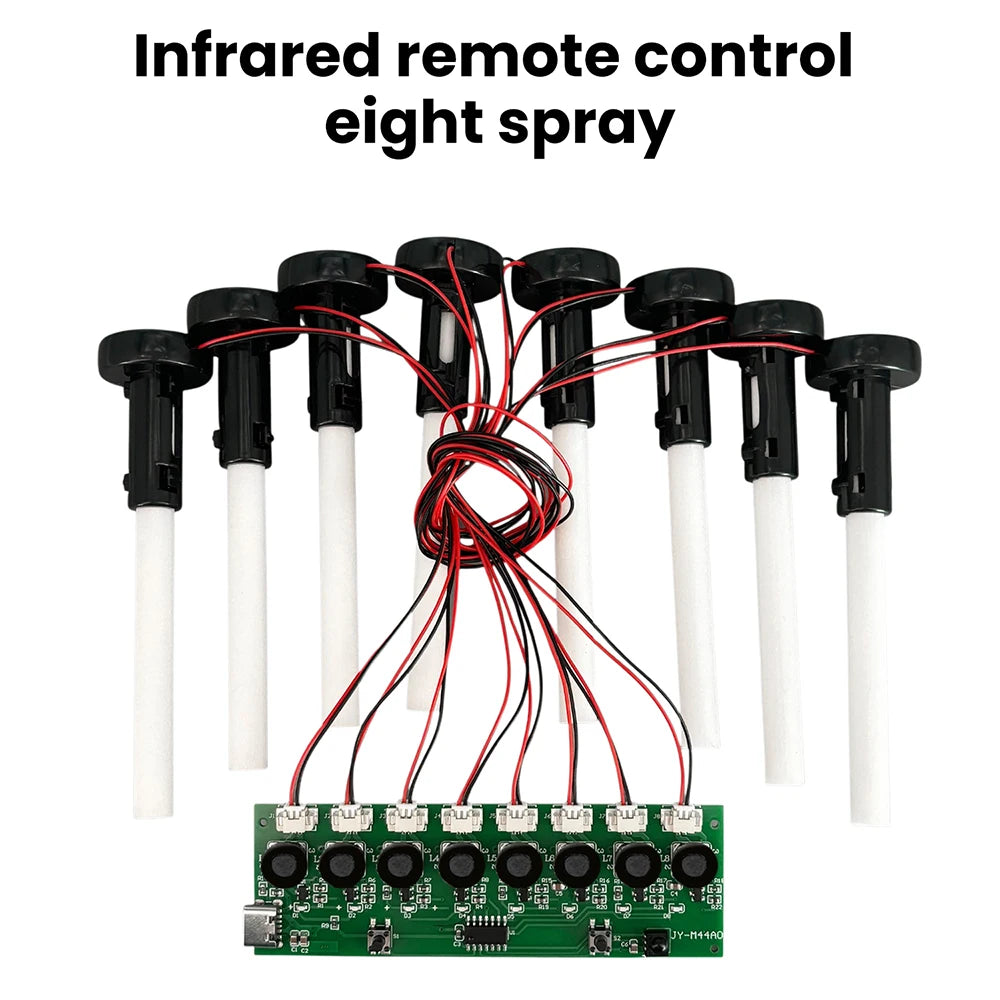

Model: 8-Nozzle Atomization Module; Infrared Remote-Controlled 8-Nozzle Module (Optional)
Material: FR-4
Power Connector: Type-C Port
Supply Voltage: DC 5V
Rated Current: 2.4A
Power: 12W
Atomization Frequency: 108 kHz ± 5 kHz
Module Dimensions: 98 x 32 mm; Board Thickness: 1.2 mm
Atomizer Plate Specifications:
Name: Micro-hole Atomizer Plate
Drive Voltage: 5V
Resonance Frequency: 108–110 kHz ±5
Rated Power: 2W
Number of Holes: 800
Hole Diameter: 4–5 µm
Silicone Sleeve Outer Diameter: 20 mm
O-Ring Thickness: 3 mm
Steel Plate Diameter: 16 mm
Cable Length: 25 cm
Terminal: PH1.25
Product List:

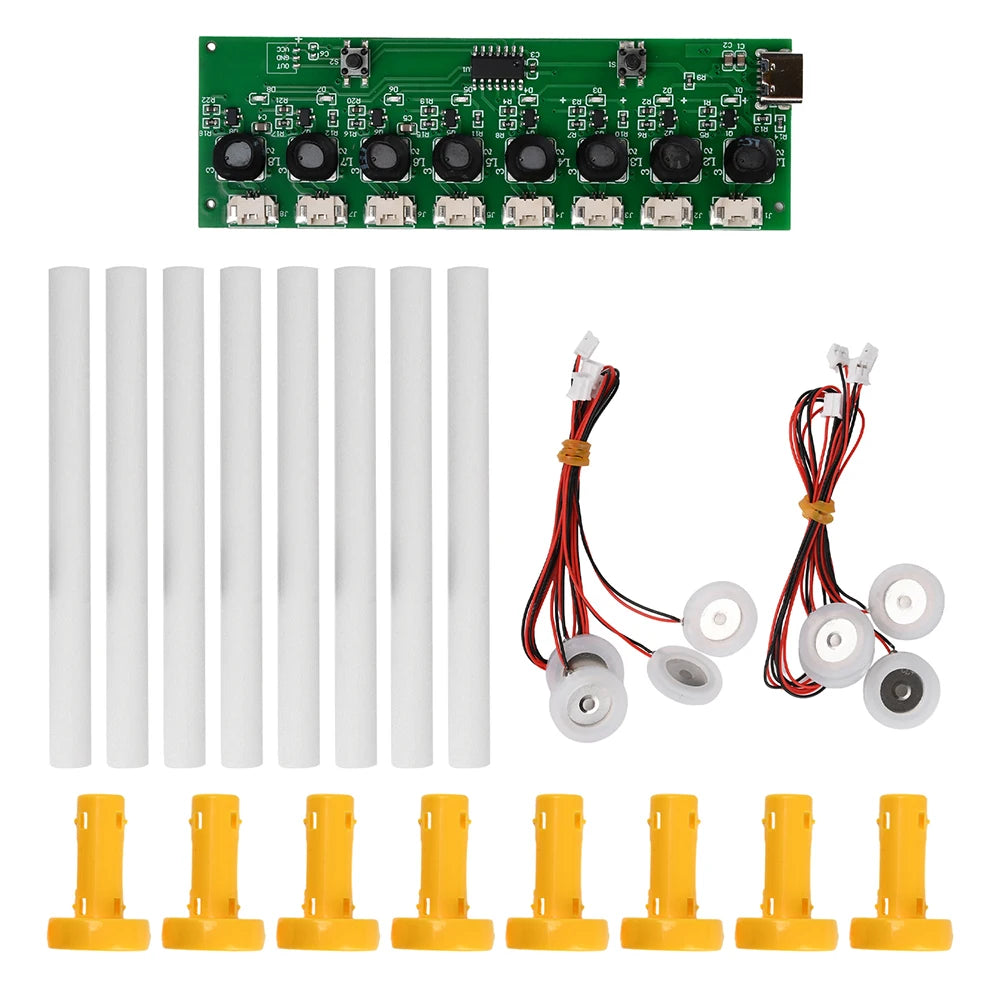

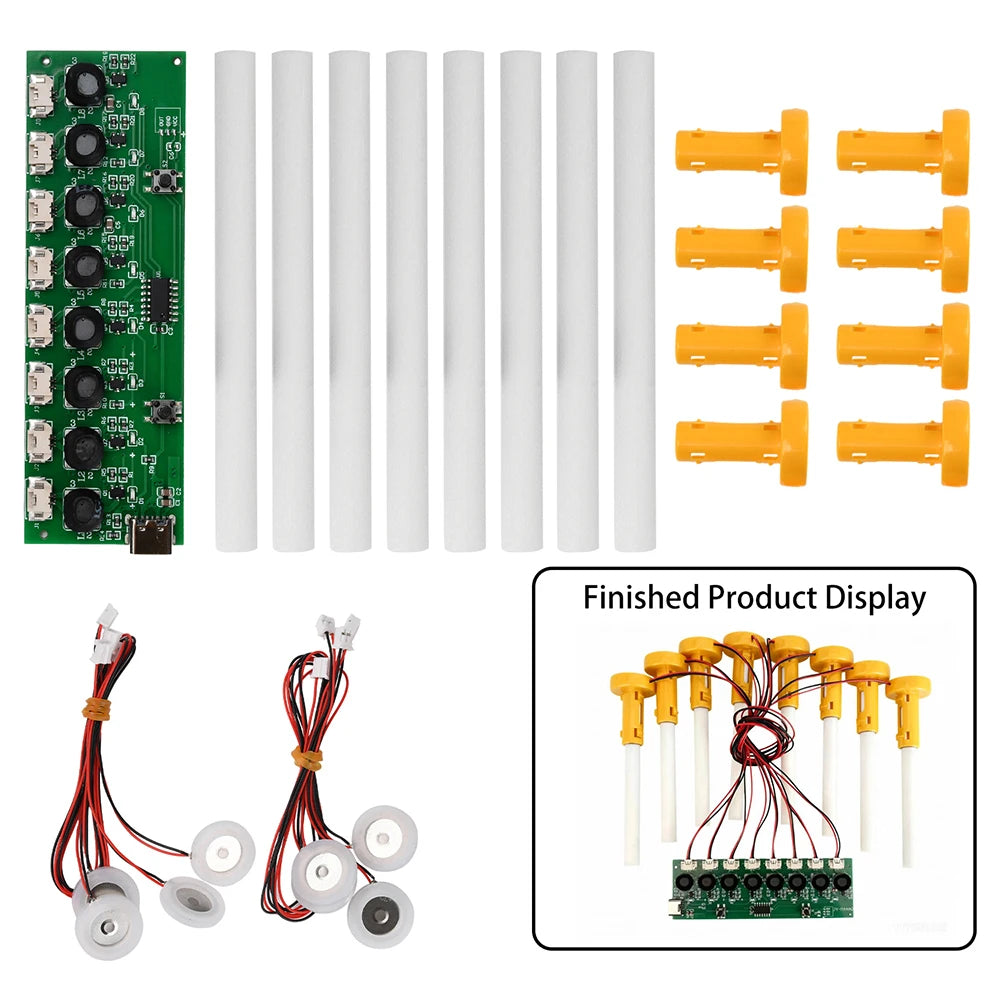

Set 1:
1x Module
8x Cotton Swabs
8x Mounts
8x Atomizer Plates

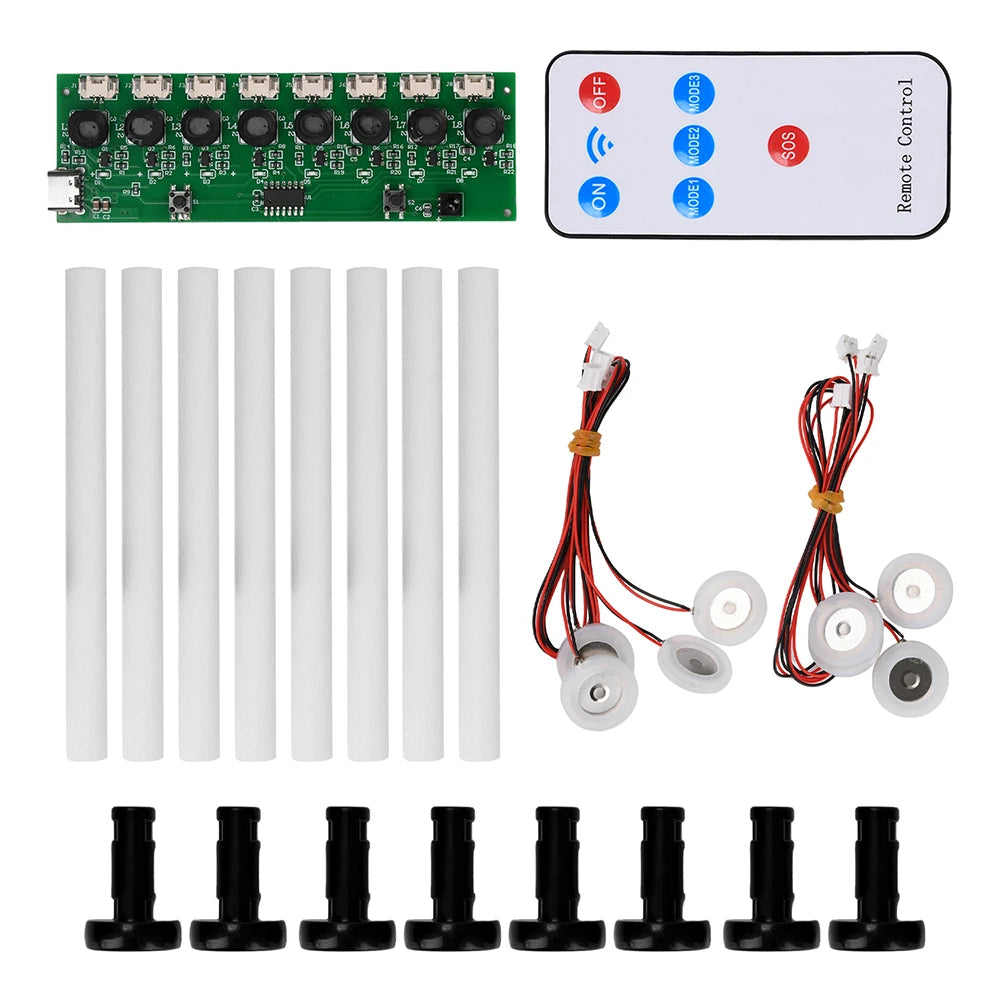

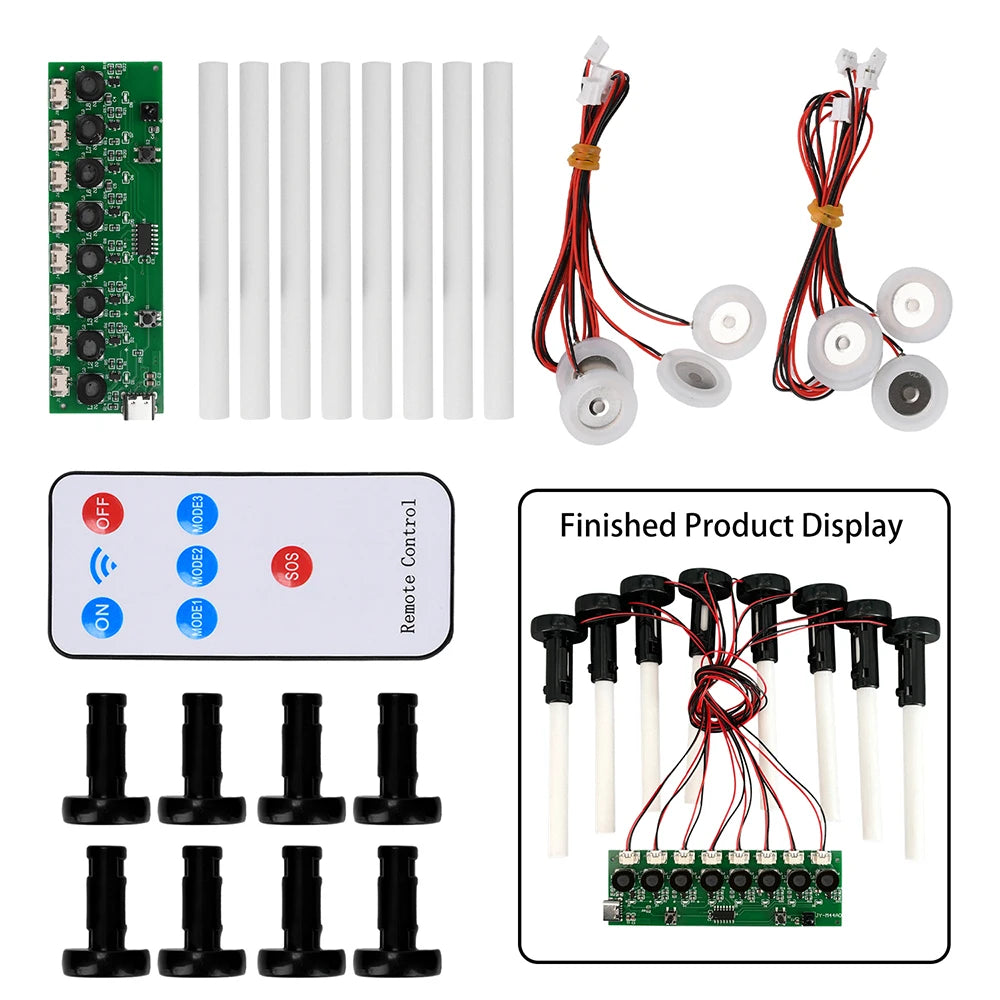

Set 2:
1x Module
8x Cotton Swabs
8x Mounts
8x Atomizer Plates
1x Remote Control
Options
- Color: B, A
