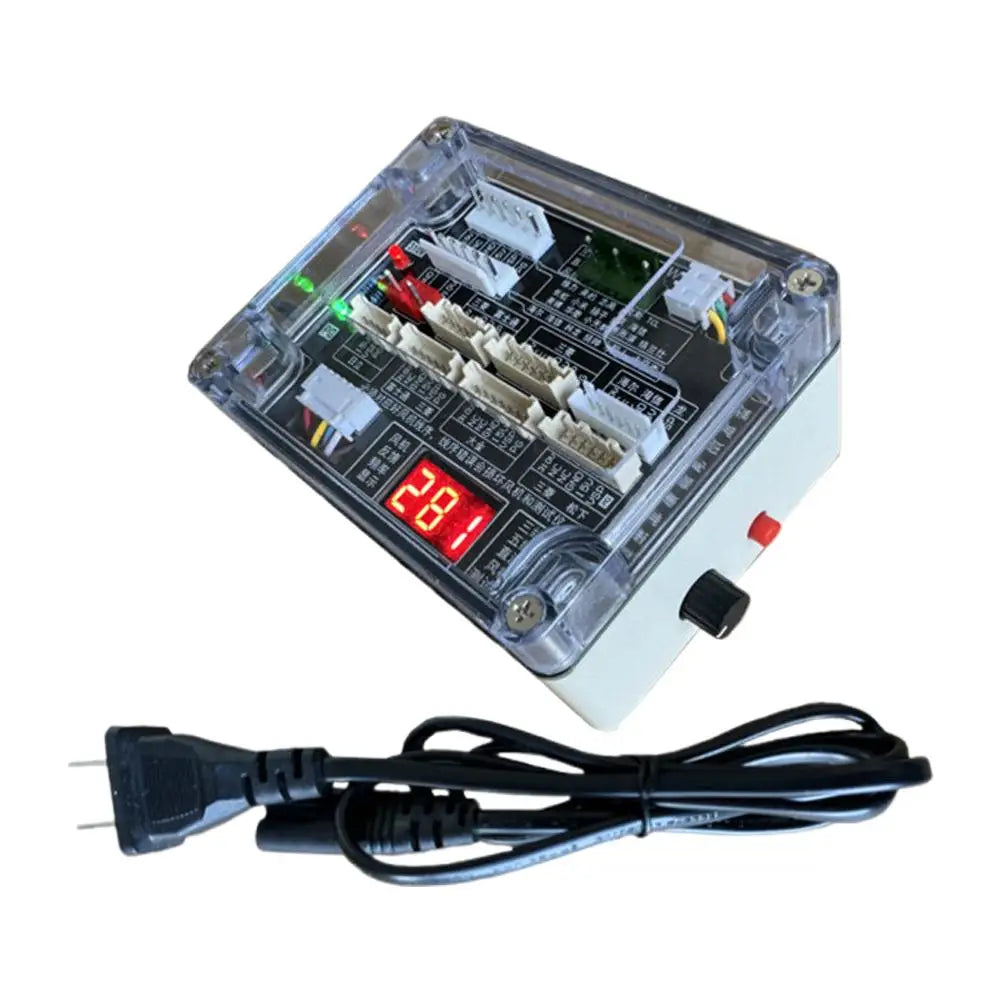

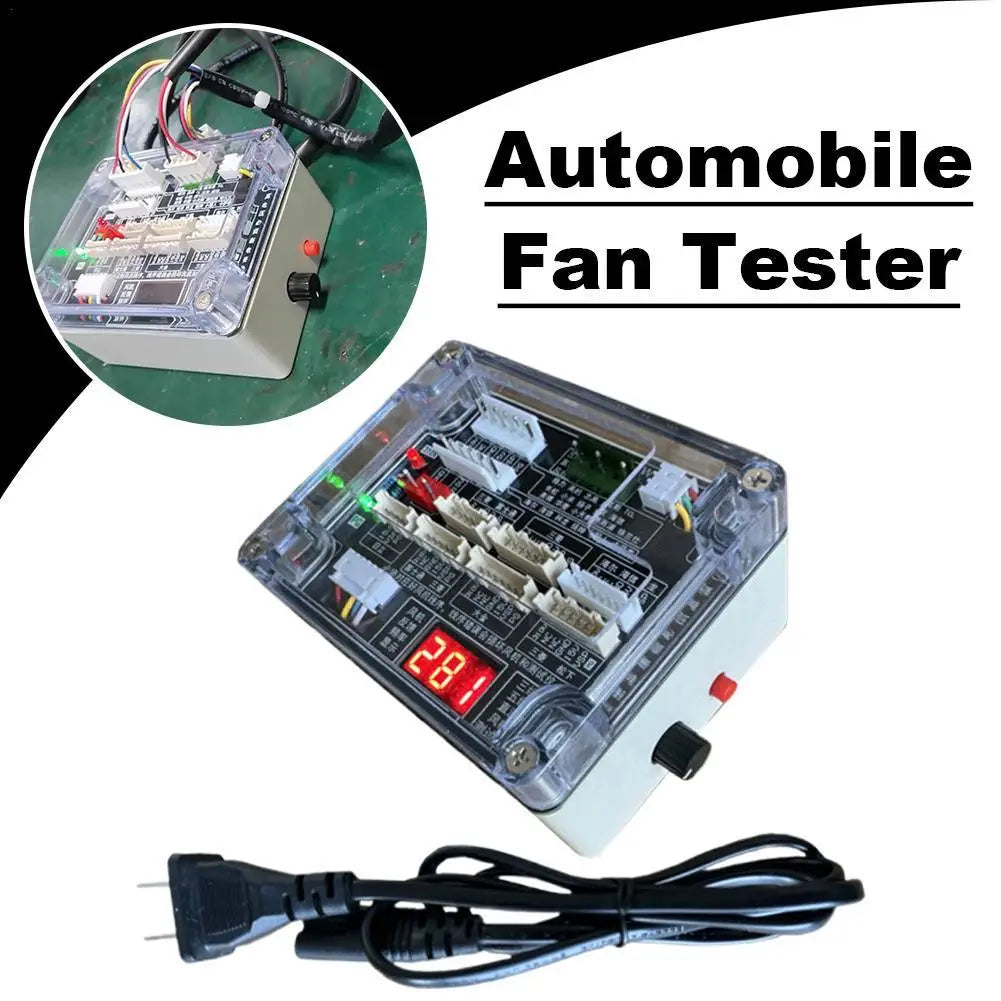

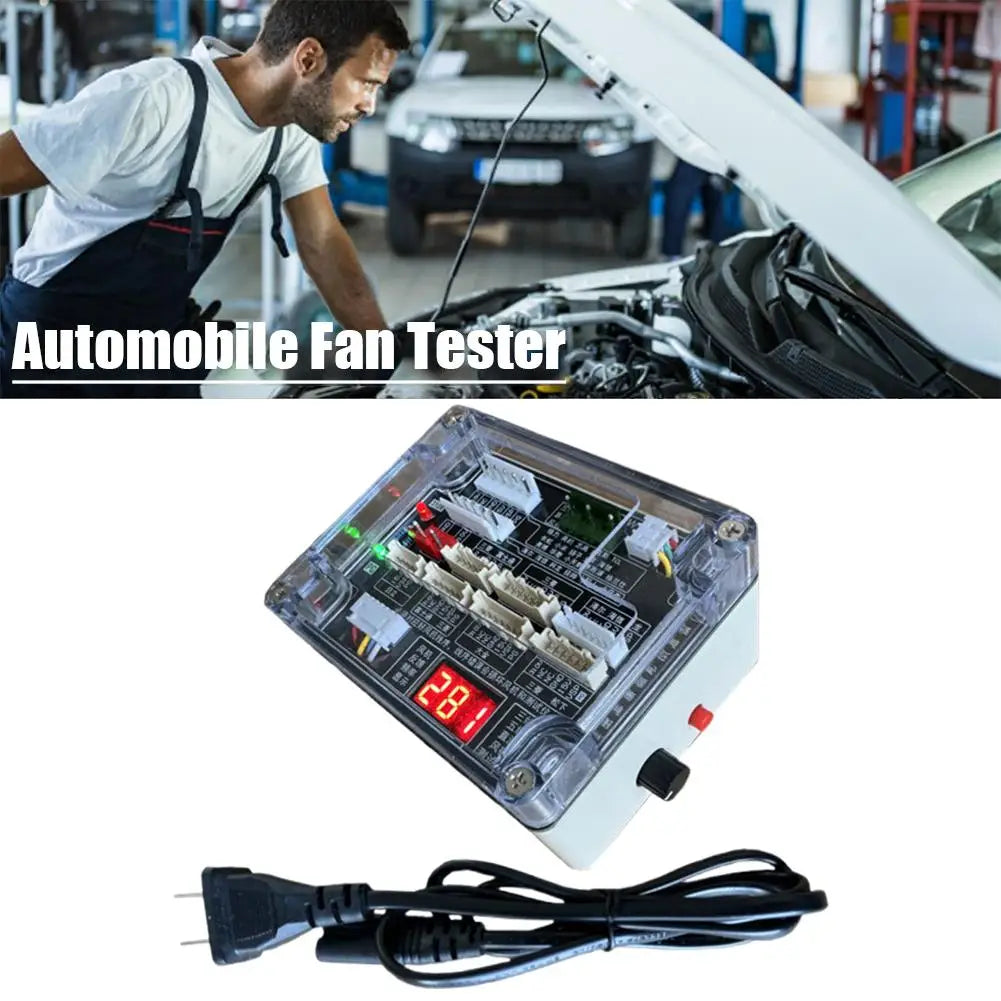

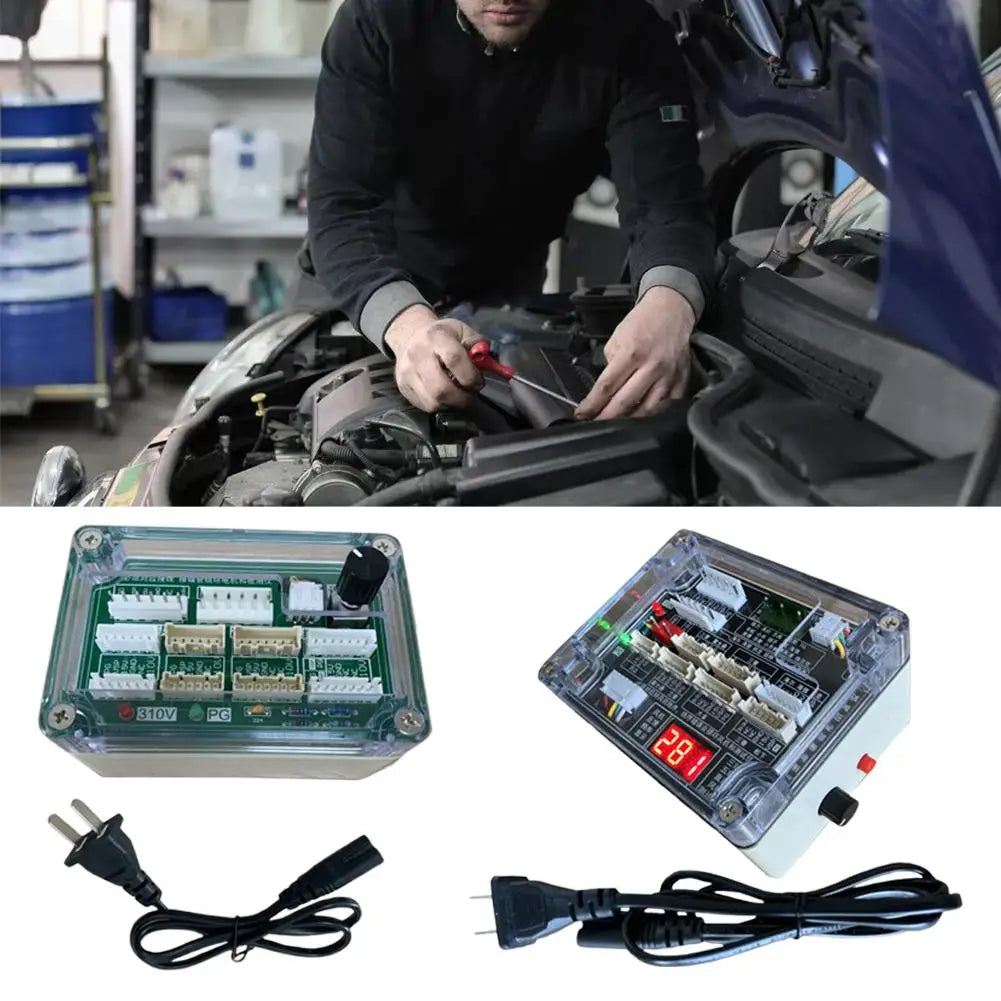

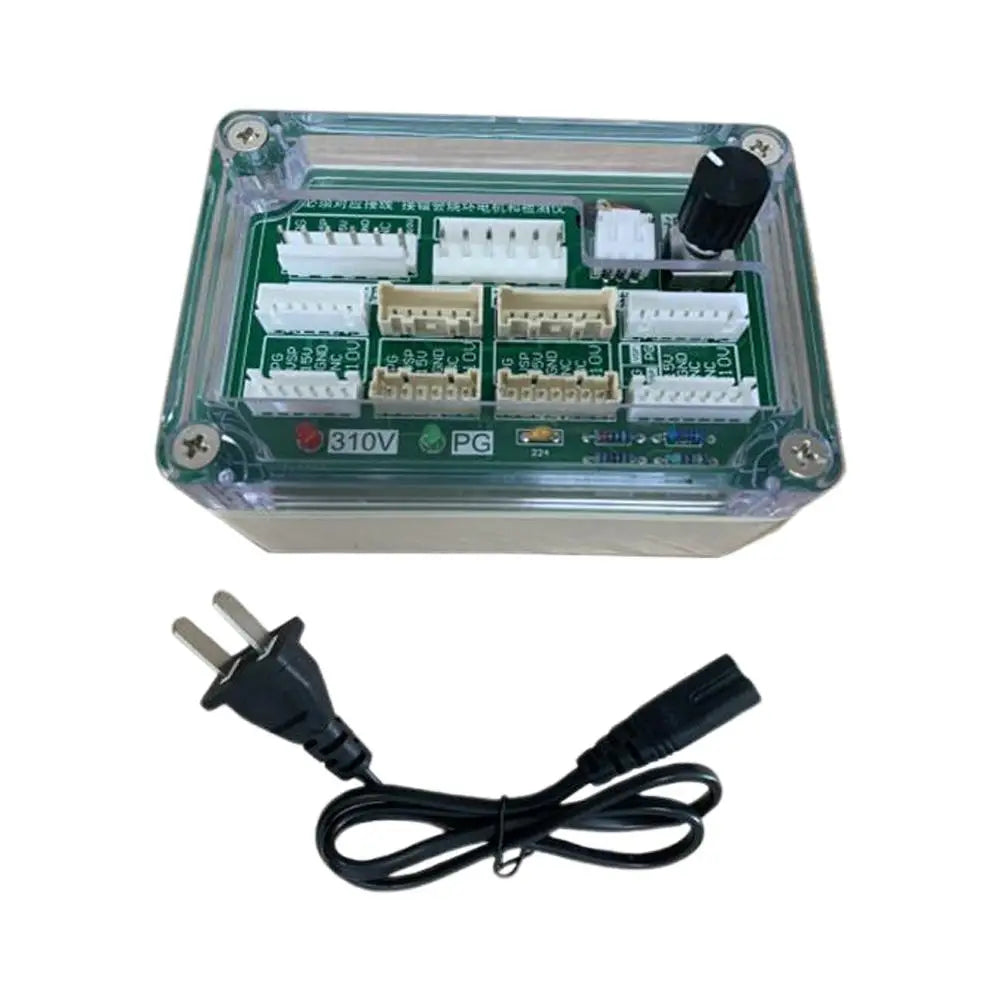

Professional HVAC DC Fan Motor Tester – Fast, Accurate Fault Diagnosis

Save time and money on HVAC repairs with this universal DC Fan Motor Tester. Built for both professional HVAC technicians and confident DIYers, this drive board tester supports 3-wire and 5-wire DC motors and instantly reveals motor health — no guesswork, no costly misdiagnosis. Whether you're dealing with a failed motor, erratic speed, or abnormal feedback signals, this tool gives you the answers you need on the spot.

Made in Mainland China. CE Certified.

Key Features

Universal Compatibility: Works with standard 3-wire and 5-wire DC fan motors used in air conditioners and HVAC systems.

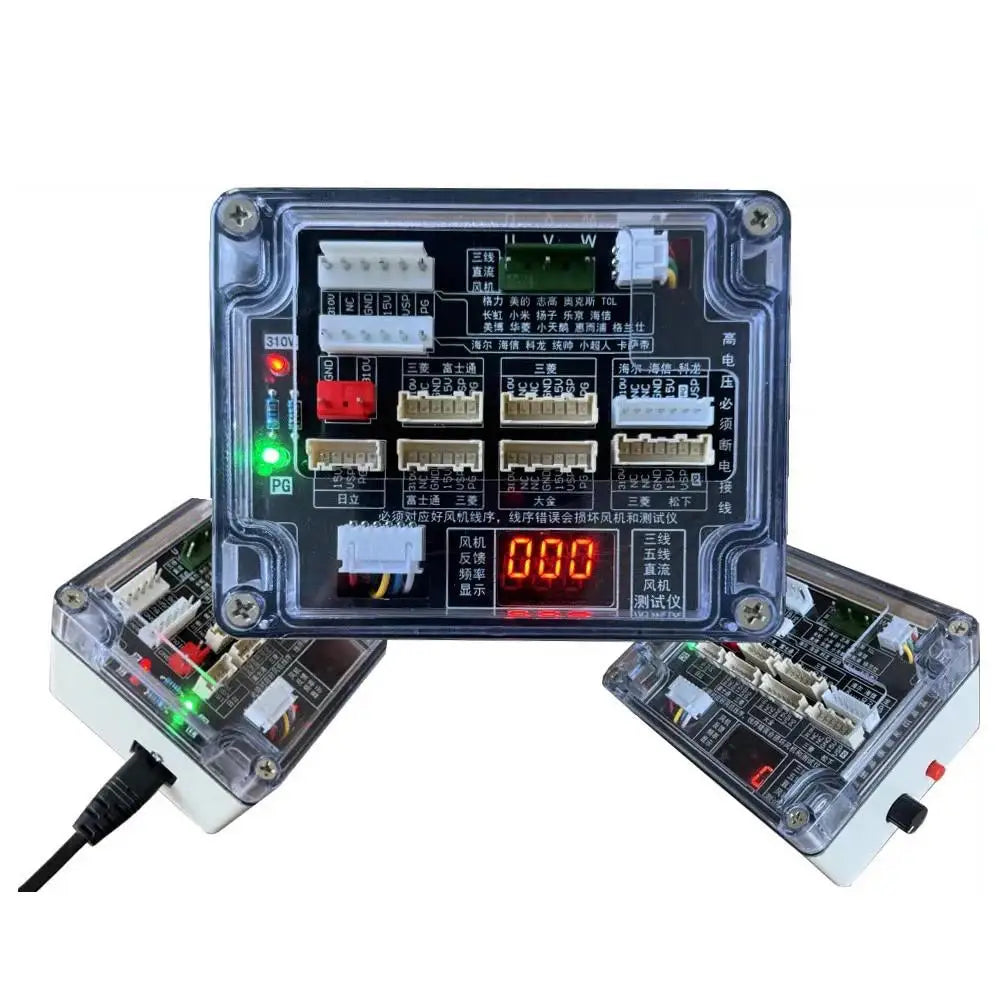

Digital RPM Frequency Display: Instantly reads motor speed frequency so you can confirm smooth, consistent operation.
310V Short-Circuit Protection: Automatically cuts power if an overload is detected — protecting both the tester and the motor under test.
Color-Coded Ports for Easy Wiring:
- Red → 310V Power
- Black → GND (Ground)
- Yellow → VSP (Speed Control Signal)
- Blue → FG (Speed Feedback Signal)
- White → 15V VCC
3-Wire / 5-Wire Toggle Switch: Instantly switch modes to match your motor type — no adapters needed.
Adjustable Speed Knob: Gradually ramp up motor speed to simulate real operating conditions during testing.
Durable Housing: Robust casing withstands accidental drops and the demands of job-site use.

How to Use

Connect Wires: Match each motor wire to the correctly labeled, color-coded port on the tester. Always refer to the motor nameplate to confirm wire functions before connecting.
Select Mode: Press or pull the 3-wire/5-wire toggle switch to match your motor's configuration.
Test & Diagnose: Slowly rotate the speed knob.
- ✅ Motor Healthy: Motor accelerates smoothly and the display shows rising RPM frequency.
- ❌ Fault Detected: No rotation, unstable speed, or abnormal frequency reading indicates a motor problem.

⚠️ Important Safety Warnings

Always double-check wire functions against the motor nameplate before connecting to avoid damage or burnout.
Do NOT connect any NC (empty/not connected) ports.
This tester operates at 310V DC. Handle with appropriate care and follow all standard electrical safety precautions.

Related Products You May Need

Electrical Safety Reference

For best practices when working with electrical motors and HVAC systems, refer to OSHA's Electrical Safety Guidelines.

Frequently Asked Questions

Q: What types of DC fan motors is this HVAC motor tester compatible with?

A: This tester is compatible with standard 3-wire and 5-wire DC fan motors commonly found in air conditioner indoor and outdoor units. The onboard toggle switch lets you switch between 3-wire and 5-wire modes instantly to suit your specific motor type.

Q: What does the short-circuit protection feature do?

A: The 310V short-circuit protection automatically cuts off power the moment an overload or short circuit is detected. This safeguards both the motor tester itself and the motor being tested, preventing costly damage during diagnostics.

Q: How do I know if the motor I'm testing is faulty?

A: After connecting the wires and slowly turning the speed knob, watch the digital display. If the motor spins up smoothly and the RPM frequency reading rises consistently, the motor is functioning correctly. If there is no rotation, the speed is erratic, or the frequency reading is abnormal, a motor fault has been detected and the motor likely needs replacement.

Q: Is this tester safe for a DIY homeowner to use?

A: This tester is designed for HVAC technicians and experienced DIY users who are comfortable working with DC electrical systems. Because it operates at 310V DC, it is essential to carefully follow all wiring instructions, always check the motor nameplate before connecting, and observe standard electrical safety precautions. If you are not confident working with high-voltage DC equipment, consult a qualified HVAC technician.
