IP2368 100W Bidirectional Buck-boost Charge Discharge Fast Charging

Discover the IP2368 100W Bidirectional Buck-boost Charge Discharge Fast Charging — a standout electronics accessories pick featuring fast-charging design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Charging Protection Module

Output Voltage: Charging Protection Module

Semi-finishedproduct: No

Size: Charging Protection Module

Style: Charging Protection Module

Type: Charging Protection Module

Features:

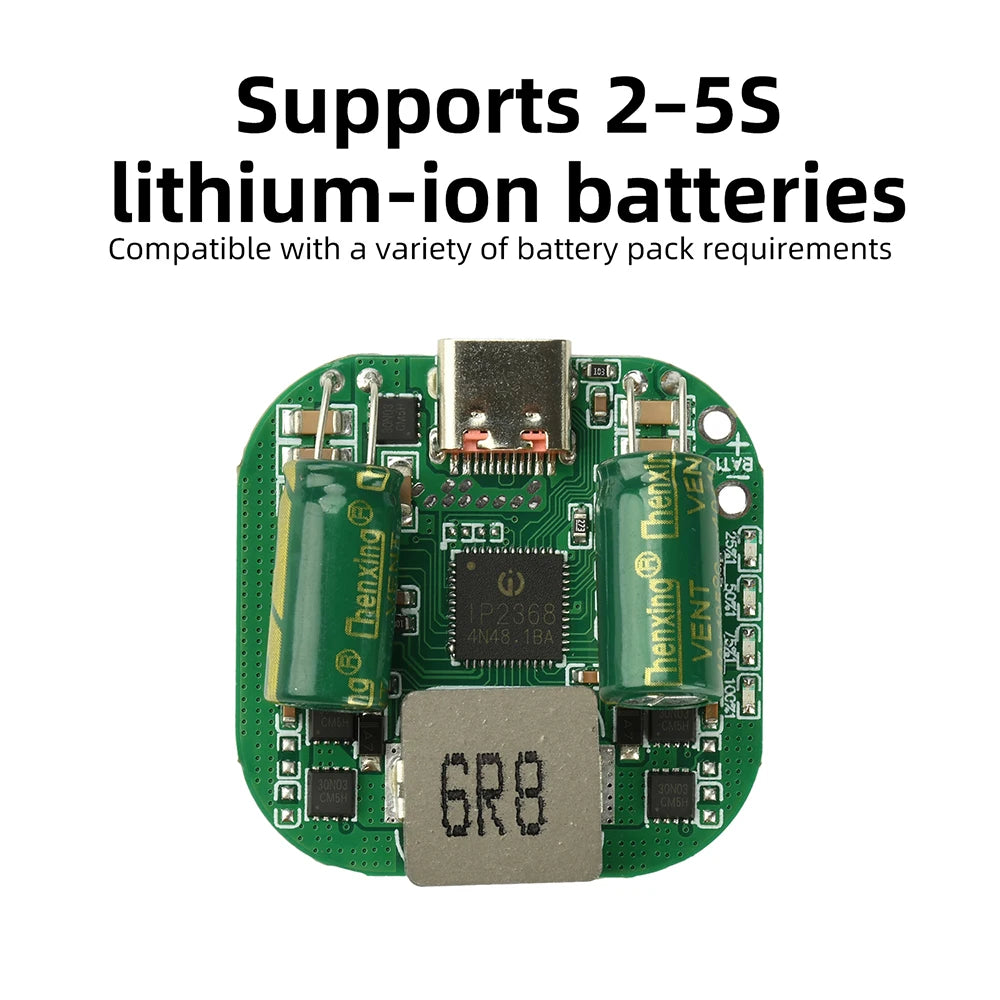

1. Supports 2–5S lithium batteries, compatible with a wide range of battery pack requirements

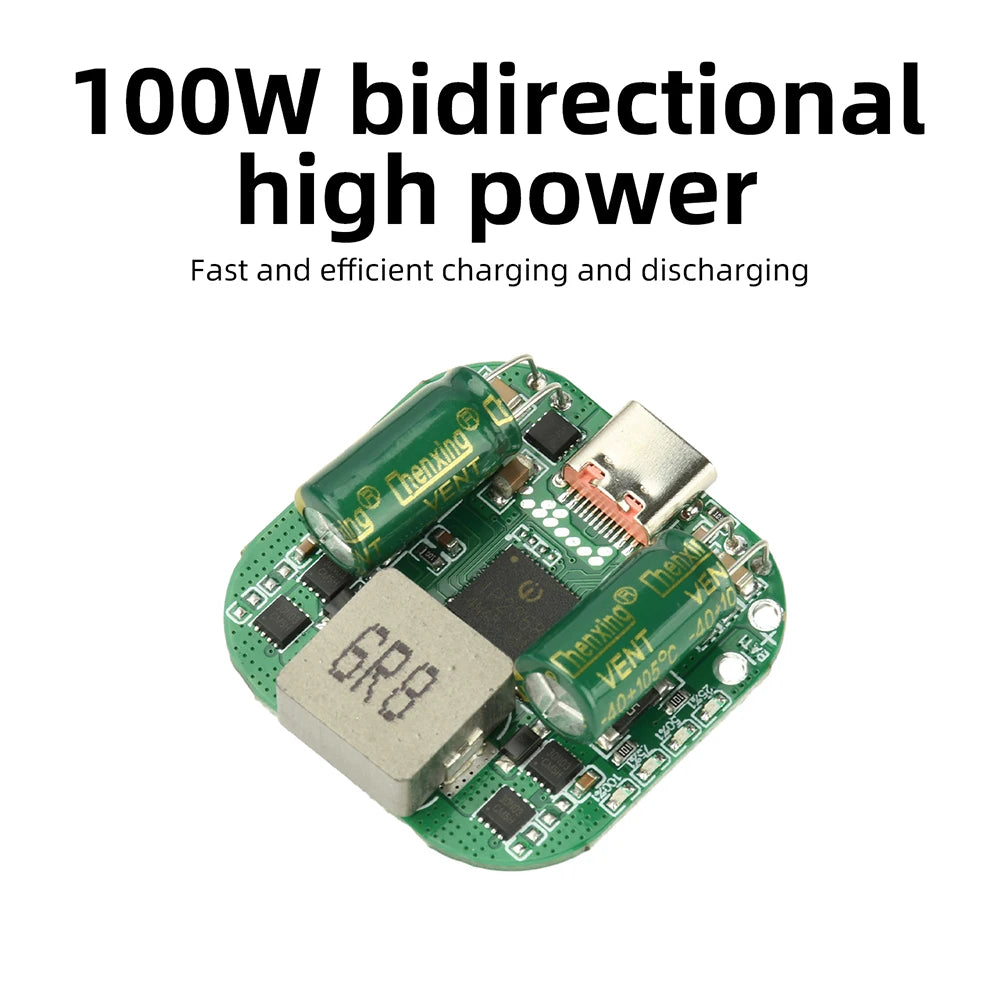

2. High-power bidirectional 100W output for efficient and fast charging and discharging

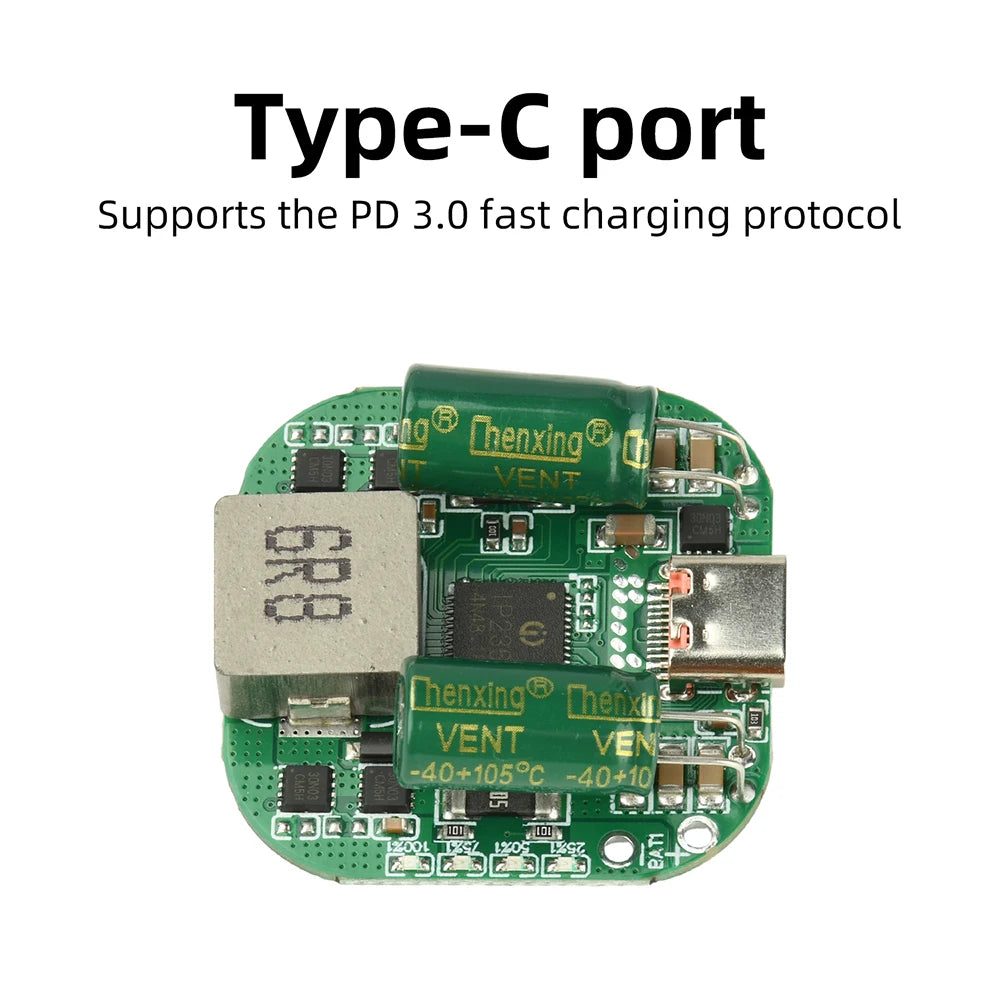

3. Type-C port supporting the PD 3.0 fast charging protocol

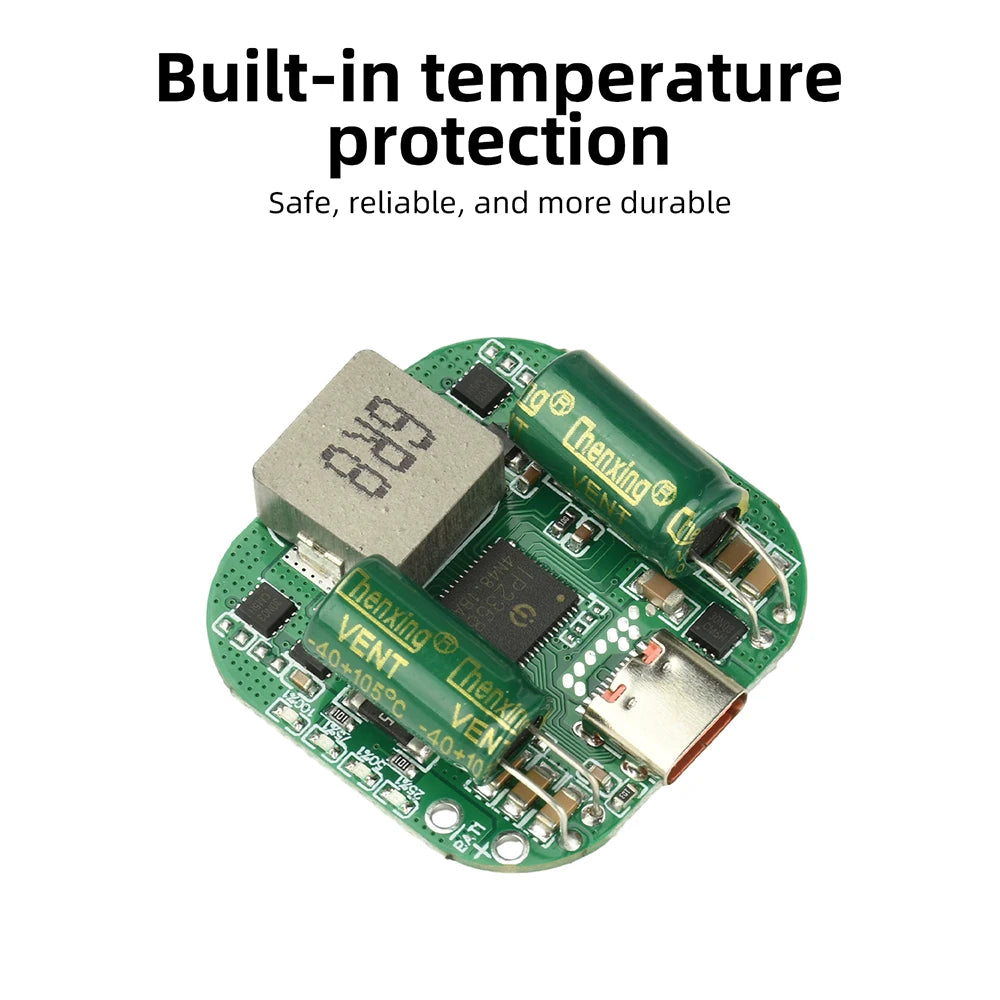

4. Built-in temperature protection for enhanced safety, reliability, and durability

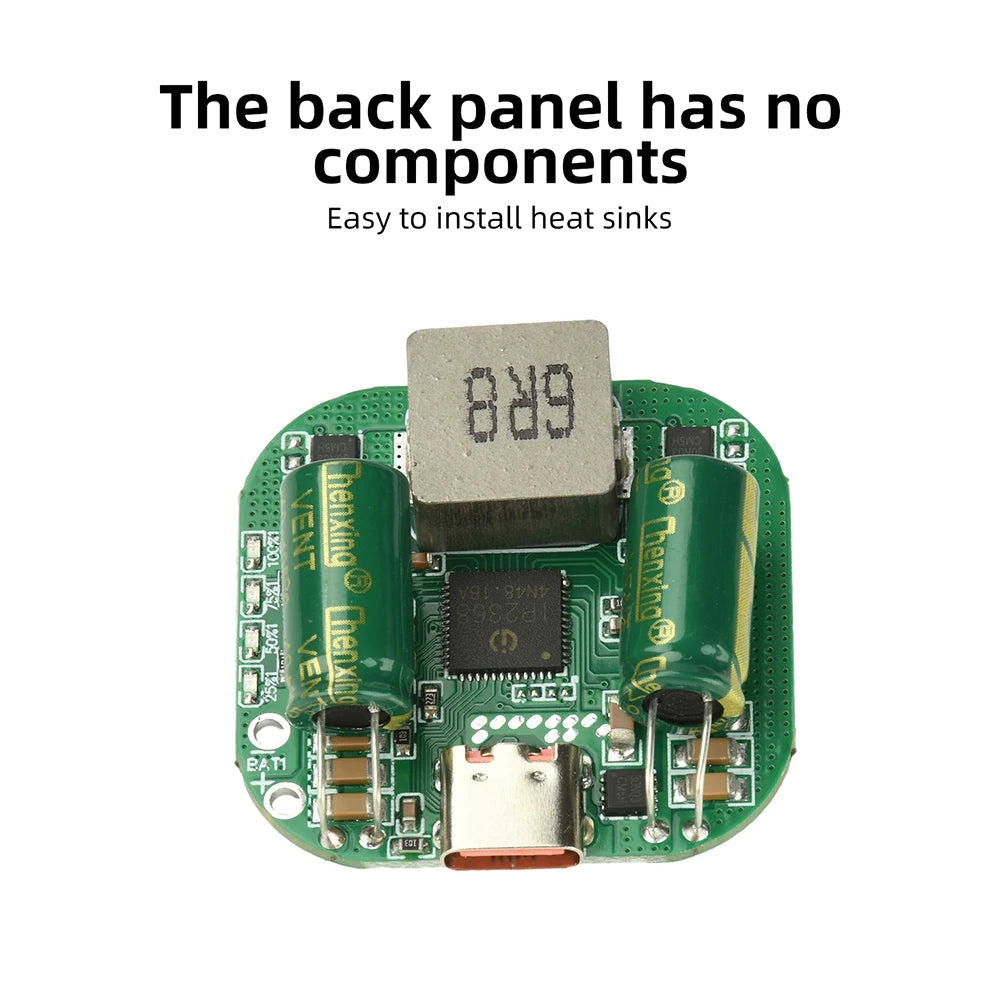

5. Component-free back panel for easy installation of heat sinks

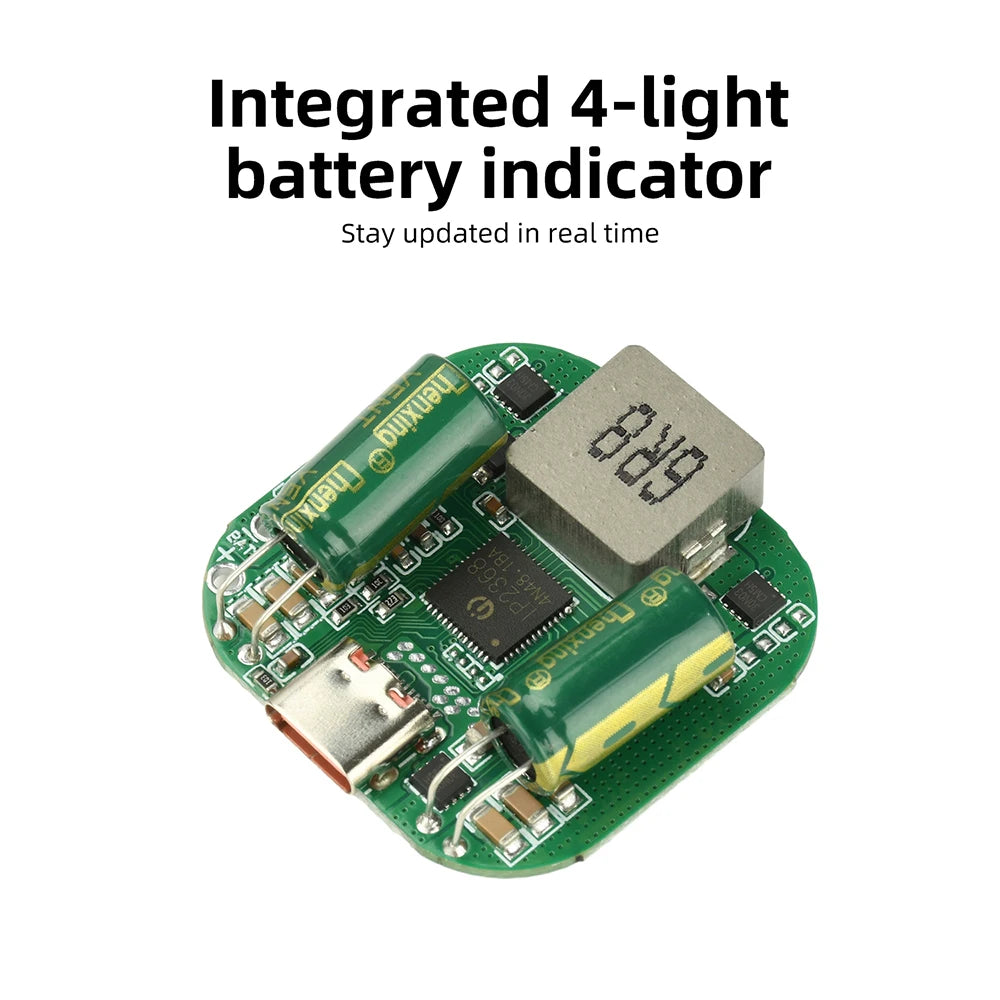

6. Integrated 4-LED battery level indicator for real-time status monitoring

Product Specifications:

Voltage: 2-5S lithium-ion or lithium iron phosphate batteries

Interface: Type-C port

Power: 100W

Supports multiple fast-charging protocols including FCP, AFC, SCP, DRP, SRC, and PD 3.0

Module ships with default settings for 4S 60W 4000mAh; the back panel is free of components, allowing for the addition of a heat sink

Comes with built-in temperature protection; supports 2S–5S battery configurations; dimensions perfectly match a 4S 18650 battery pack

4 battery level indicator lights display charging/discharging status and current battery level

Ideal for DIY high-performance fans, ultra-fast charging power banks, and fast charging of drone and RC model power batteries

Capacity vs. Corresponding Resistance Values:

5000mAh corresponds to 6.2kΩ

10,000 mAh corresponds to 12.4 kΩ

15,000 mAh corresponds to 18.7 kΩ

20,000 mAh corresponds to 24.9 kΩ

25,000 mAh corresponds to 30.9 kΩ

Calculation formula: RCAP = Qmax / 800

Example: 6.2 kΩ = 5000 mAh / 800

Relationship between power and corresponding resistance values:

20 W corresponds to 5 kΩ

30 W corresponds to 7.5 kΩ

45 W corresponds to 11.2 kΩ

60 W corresponds to 15 kΩ

100 W corresponds to 25 kΩ

Calculation formula: PCCIN = 4 × RISET

Example: 100W = 4 × 25kΩ

Relationship between the number of batteries in series and corresponding resistance values:

2 cells in series corresponds to 6.2kΩ

3 cells in series corresponds to 9.1kΩ

4 cells in series corresponds to 13kΩ

5 cells in series corresponds to 18kΩ

Product list:

Module × 1
