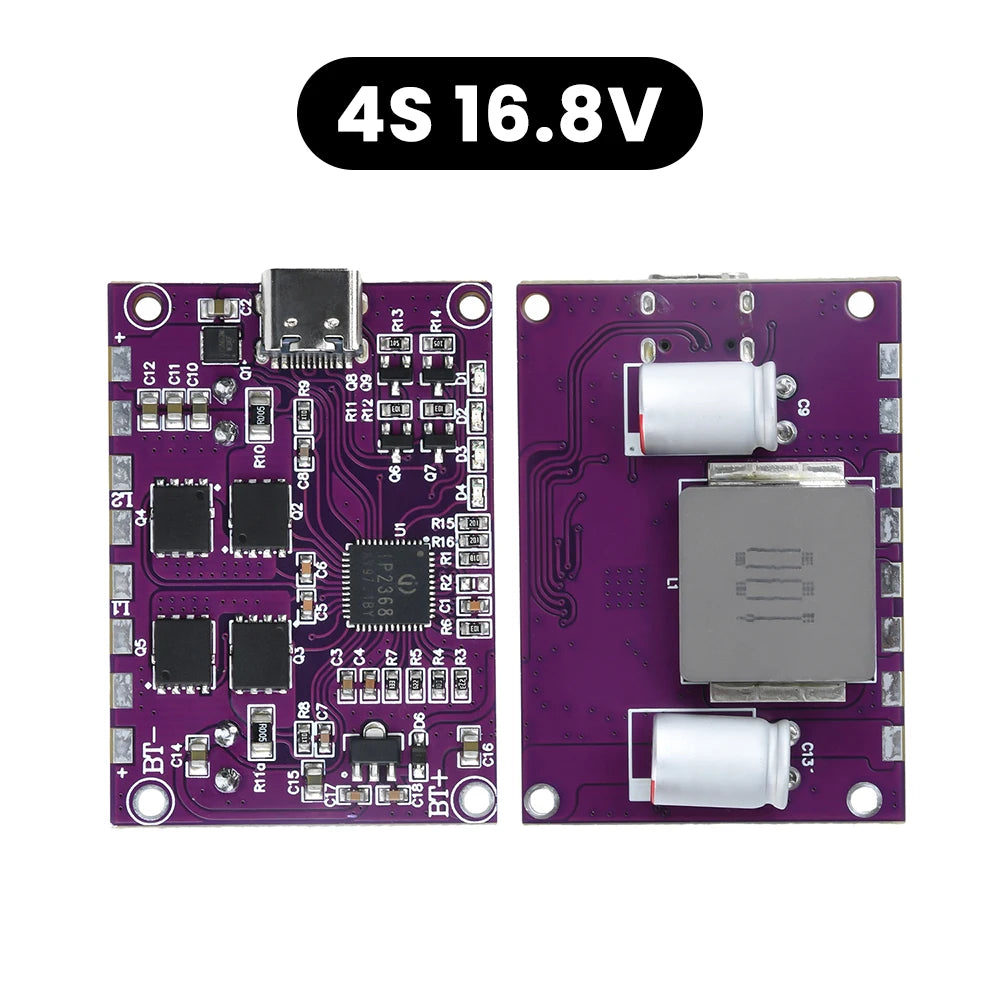

IP2368 Bidirectional 100W Fast Charging Module Buck-boost Type-c

Discover the IP2368 Bidirectional 100W Fast Charging Module Buck-boost Type-c — a standout electronics accessories pick featuring durable, premium, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

1. Supports 100W PD fast charging protocol, efficiently powering smartphones, tablets, laptops, and other devices

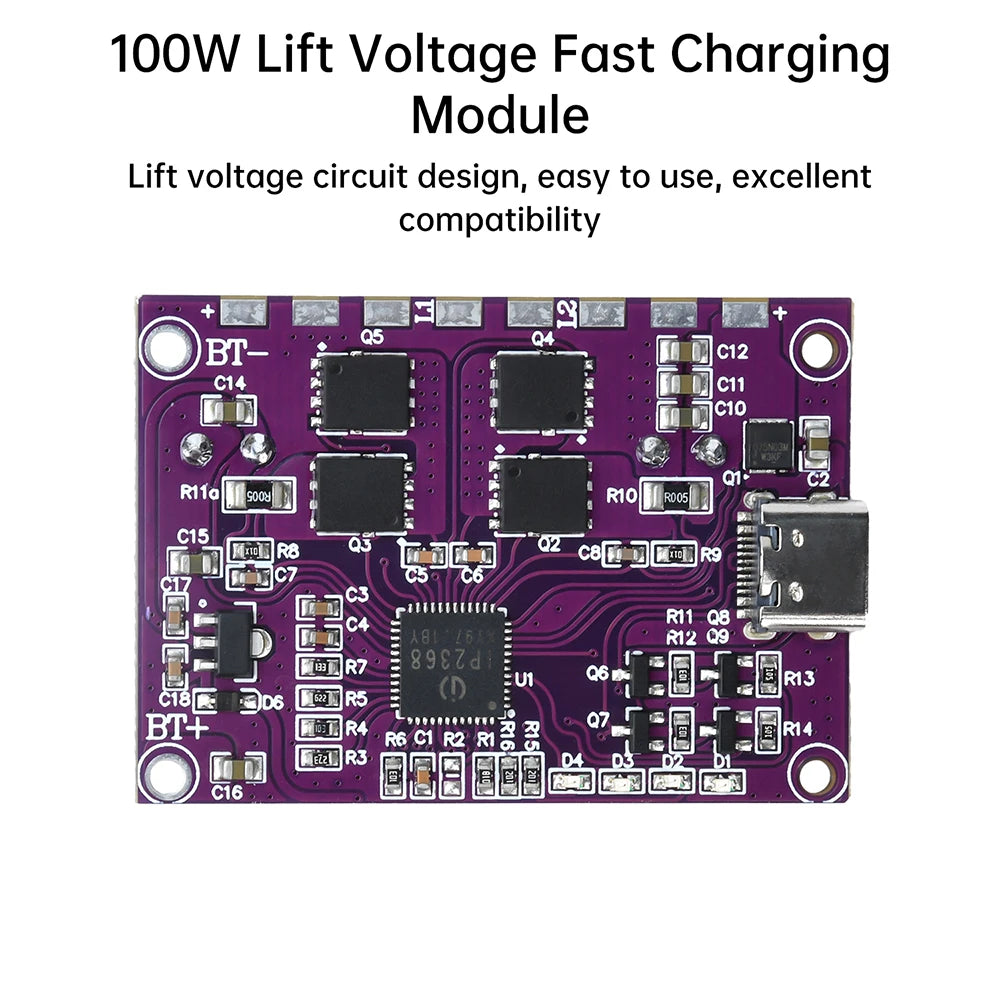

2. Buck-boost circuit design ensures user-friendly operation and exceptional compatibility

3. Bidirectional charging/discharging capability balances rapid charging and high-speed power delivery for diverse scenarios

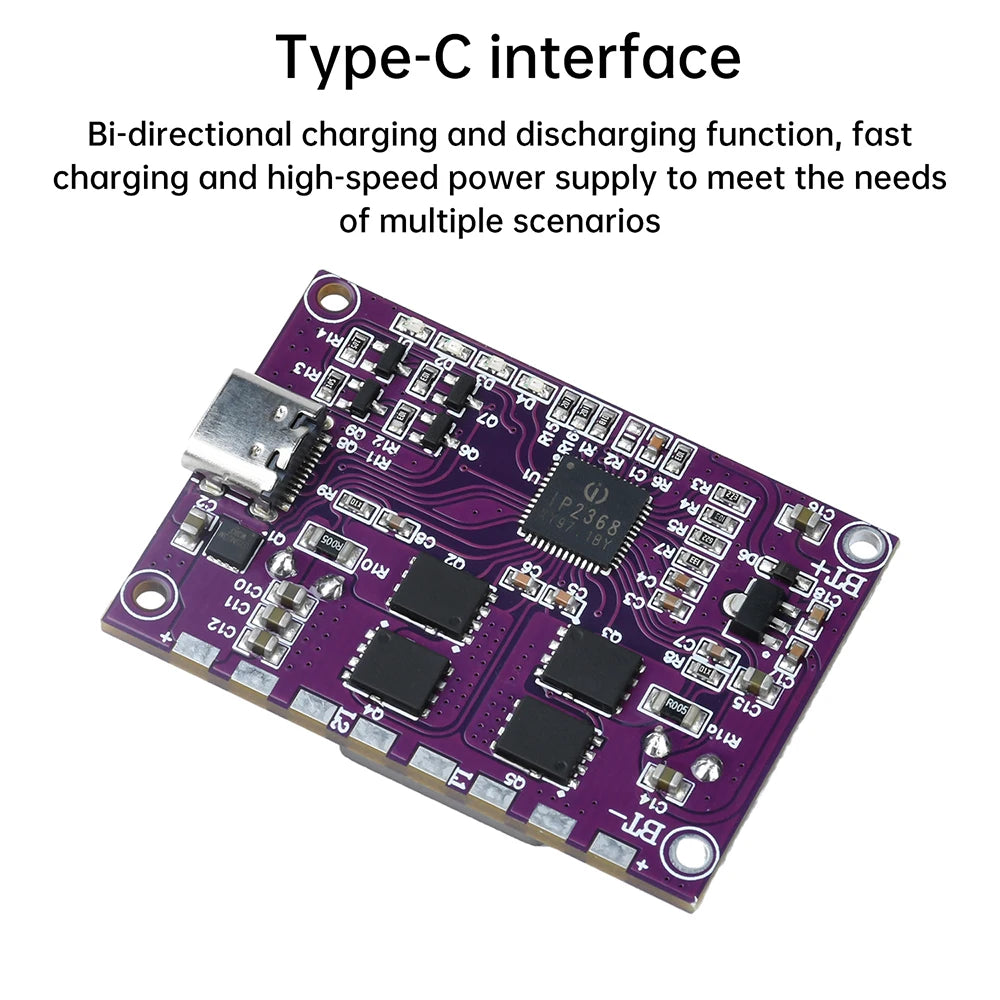

4. Premium Type-C port supports reversible plugging for convenient, durable use

5. DIY power bank kit design allows users to select battery cell capacity and build a customized device

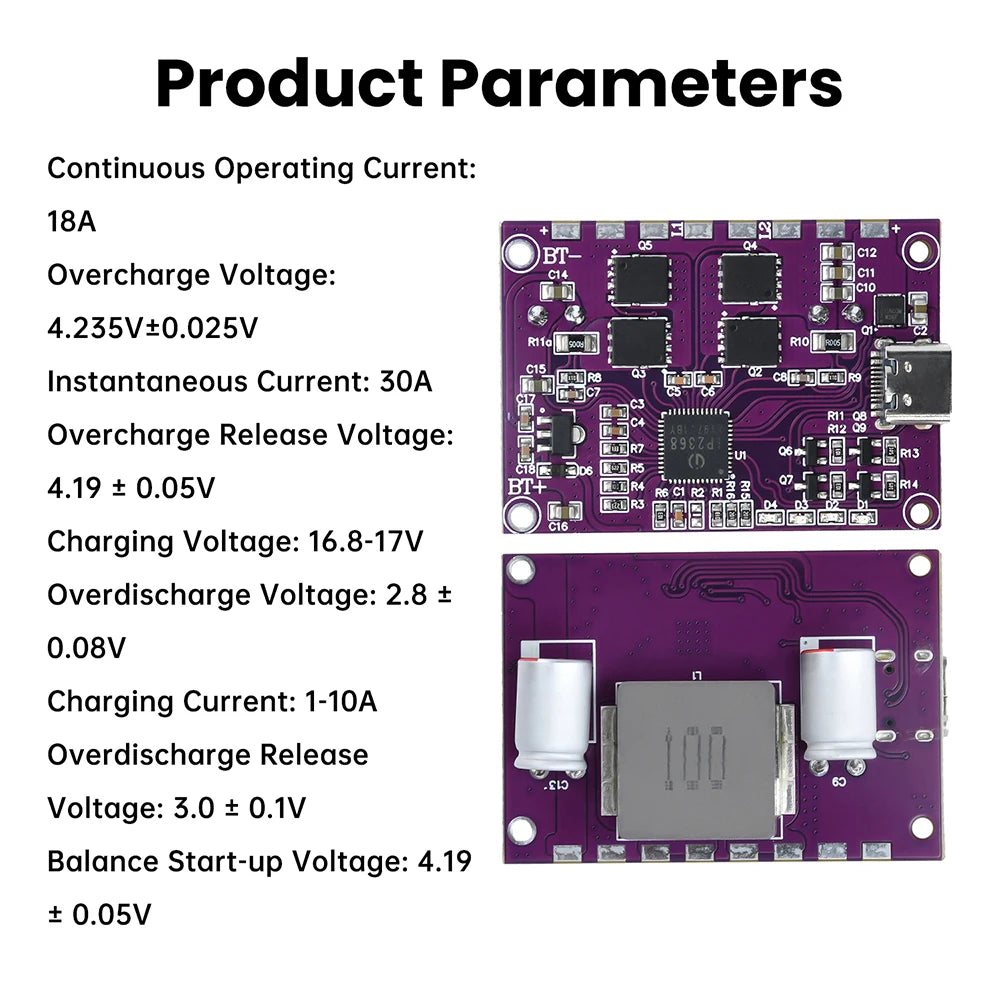

Product Specifications:

Continuous Operating Current: 18A

Overcharge Voltage: 4.235V ± 0.025V

Peak Current: 30A

Overcharge Disconnect Voltage: 4.19 ± 0.05V

Charging Voltage: 16.8-17V

Over-Discharge Voltage: 2.8±0.08V

Charging Current: 1-10A

Over-Discharge Release Voltage: 3.0±0.1V

Balance Start Voltage: 4.19±0.05V

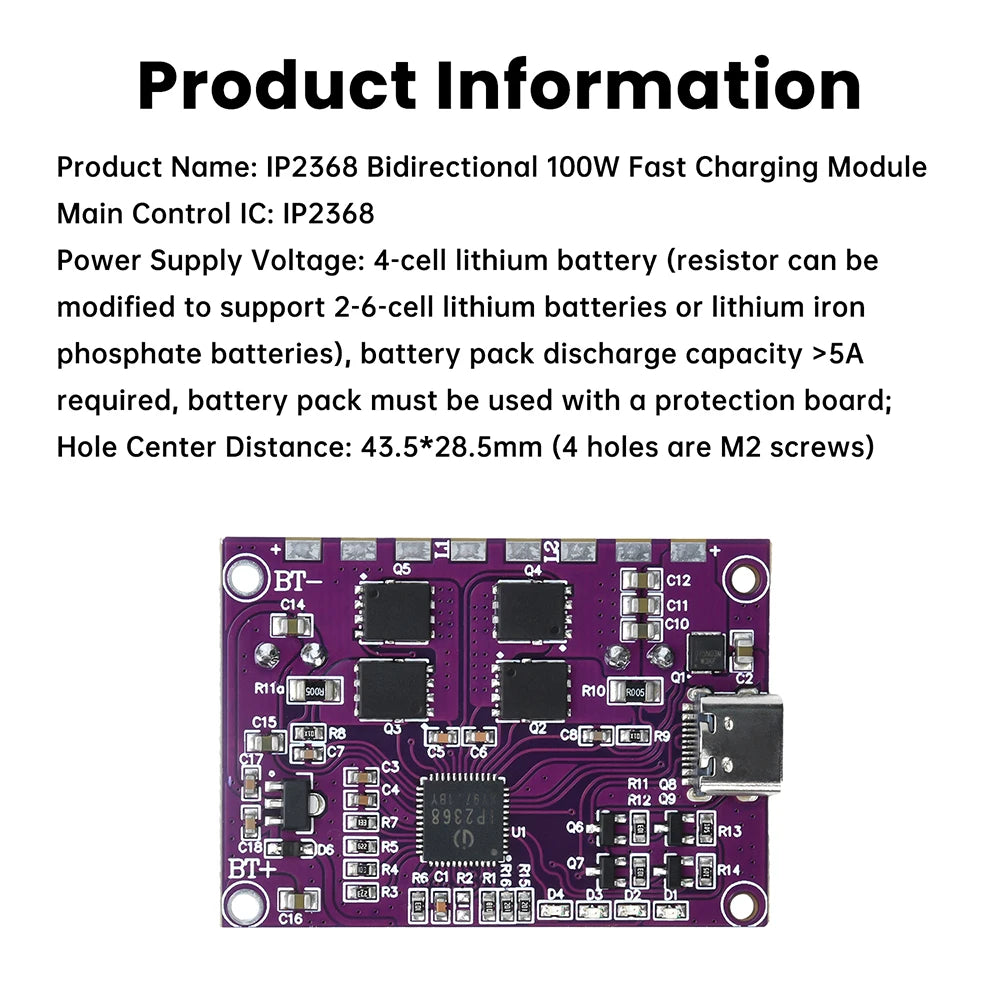

Product Information:

Product Name: IP2368 Bidirectional 100W Fast Charging Module

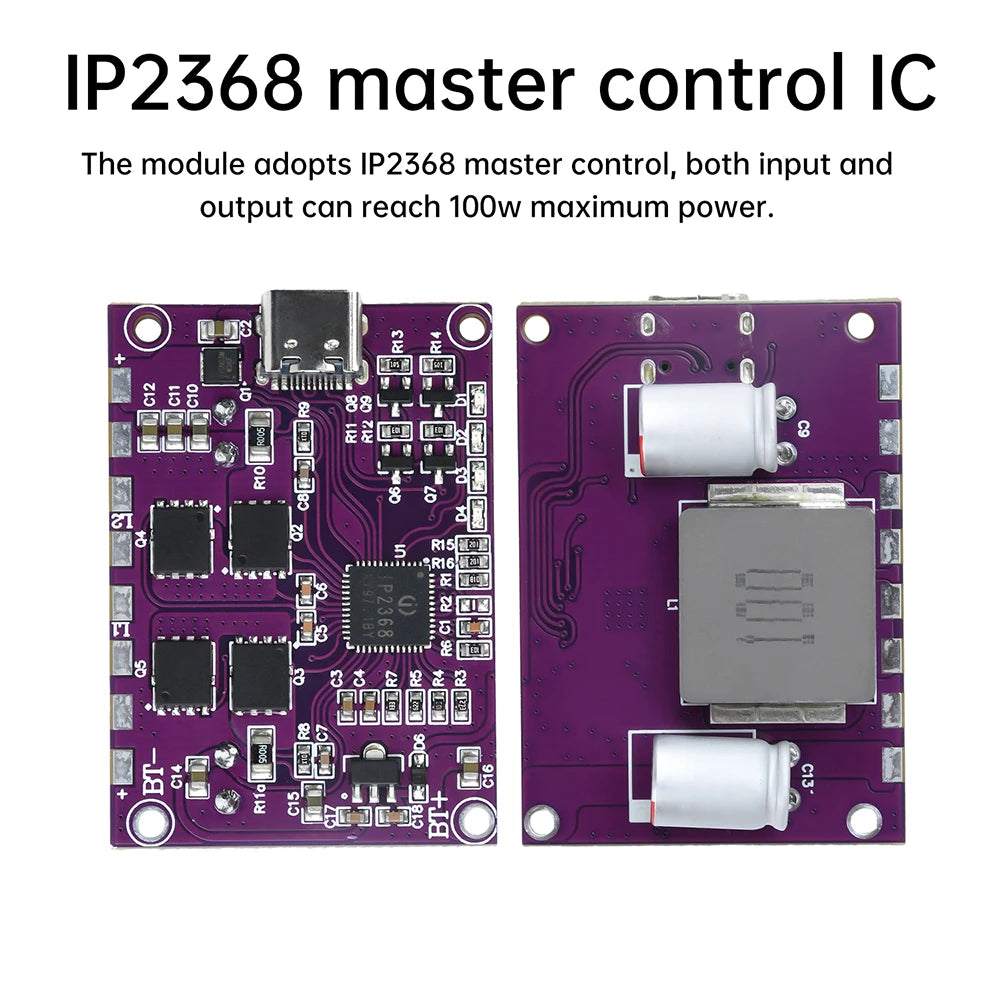

Main Control IC: IP2368

Supply Voltage: 4-series lithium battery (resistor modification supports 2-6 series lithium or LiFePO4 batteries), requires battery pack discharge capacity >5A; battery pack must be used with protection board;

Hole Center Distance: 43.5*28.5mm (4 holes for M2 screws)

Product Information:

Product Name: IP2368 Bidirectional 100W Fast Charging Module

Main Control IC: IP2368

Supply Voltage: 4-series lithium battery (resistor modification supports 2-6 series lithium or lithium iron phosphate batteries), requires battery pack discharge capacity >5A, battery pack must be used with protection board;

Hole Center Distance: 43.5*28.5mm (4 holes for M2 screws)

Compact design allows power supply via two rear screw holes without soldering, offering great convenience. Modules can be stacked using copper pillars. Multiple modules connected to a single battery pack enable multi-port output or can be configured as an uninterruptible power supply (UPS).

Important Notes:

The bidirectional Type-C port can only connect to unidirectional devices or chargers, such as charging heads, mobile phones, and other appliances. Do not connect a bidirectional Type-C port to another bidirectional Type-C port module. This may cause frequent switching between modules that cannot be recognized, and in severe cases, may result in damage.

The module features bidirectional buck-boost functionality, enabling a fixed 5V or 20V output regardless of battery voltage fluctuations. Note that the 100W model requires a 20V charge/discharge voltage. If operating at 12V output, the maximum current achievable is 3A, equating to 36W.

Package Contents

Fast Charging Module*1

Options

• Color: 5S, 3S, 6S, 4S 16.8V, 4S 16.8V 1
