IP2369 2-6S PD 45W Bidirectional Charge Discharge Module Boost-buck

Discover the IP2369 2-6S PD 45W Bidirectional Charge Discharge Module Boost-buck — a standout electronics accessories pick featuring fast-charging, high-speed design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

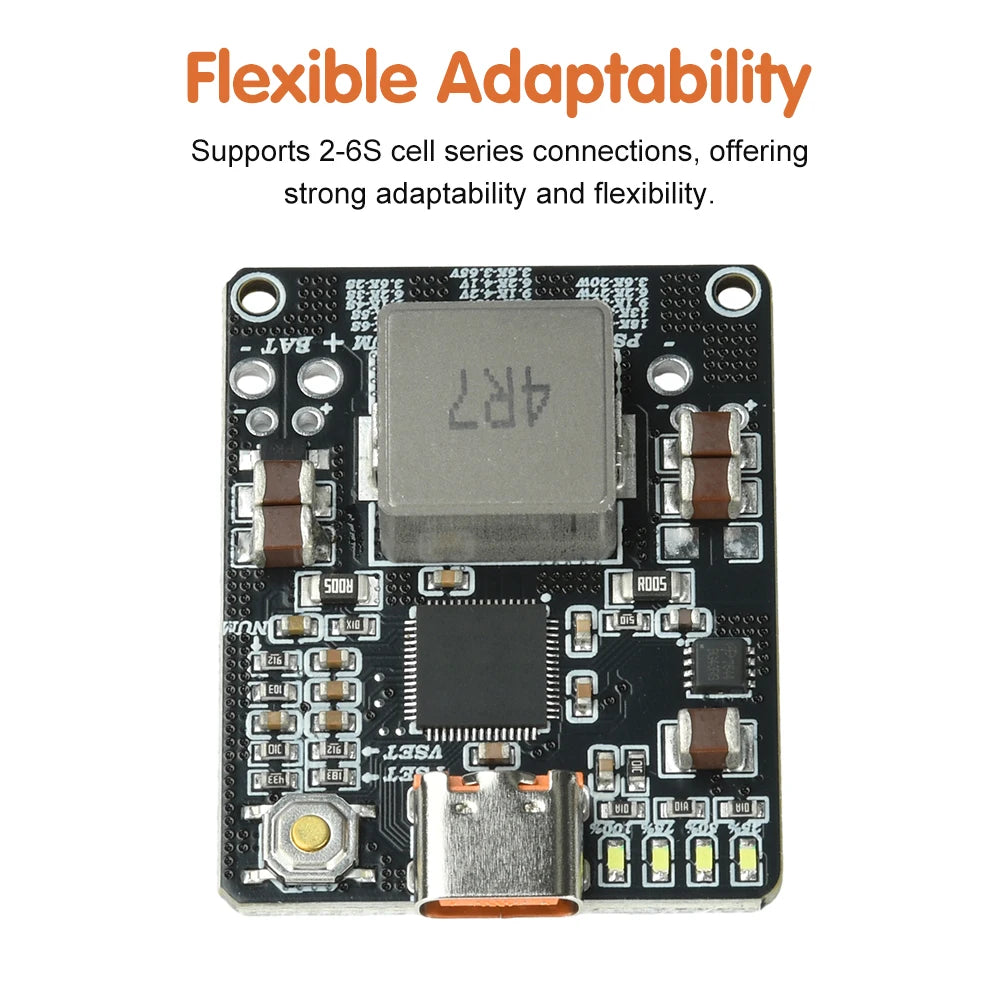

1. Supports 2-6S battery cell series connection for strong adaptability and flexibility

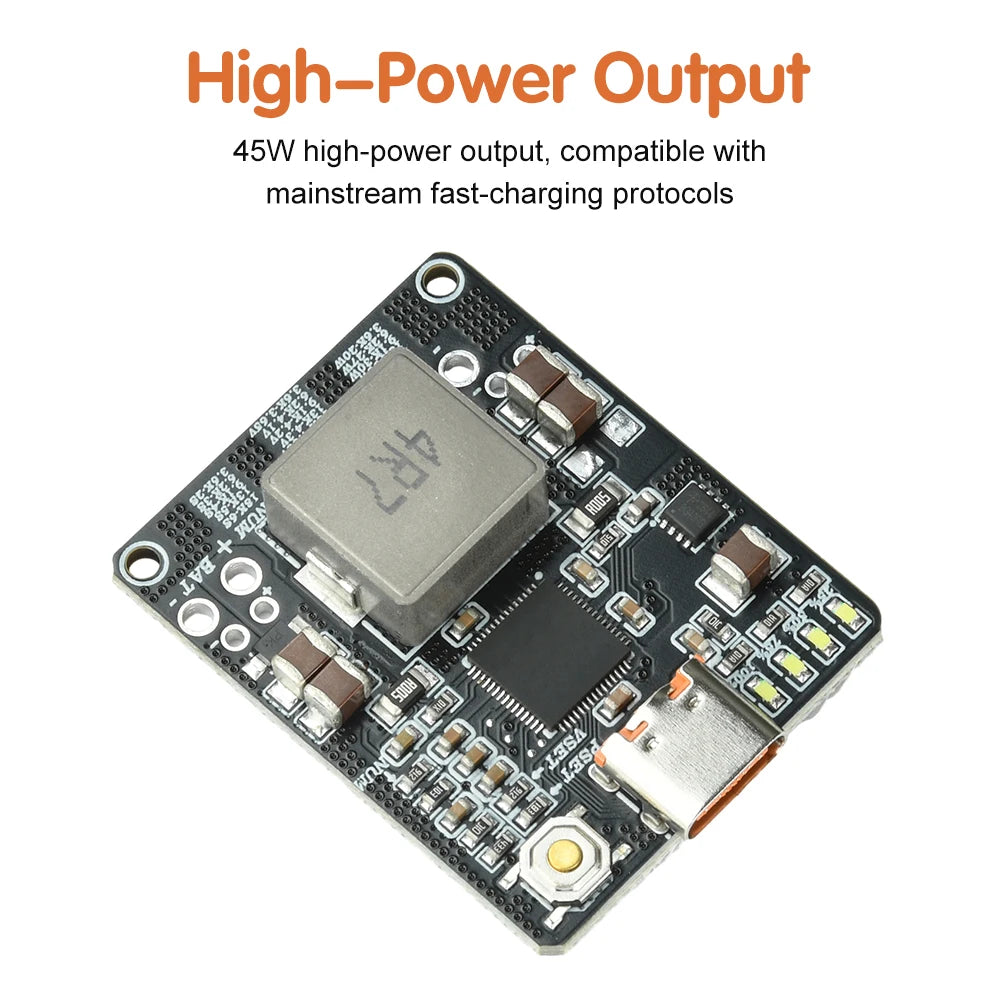

2. 45W high-power output compatible with mainstream fast-charging protocols

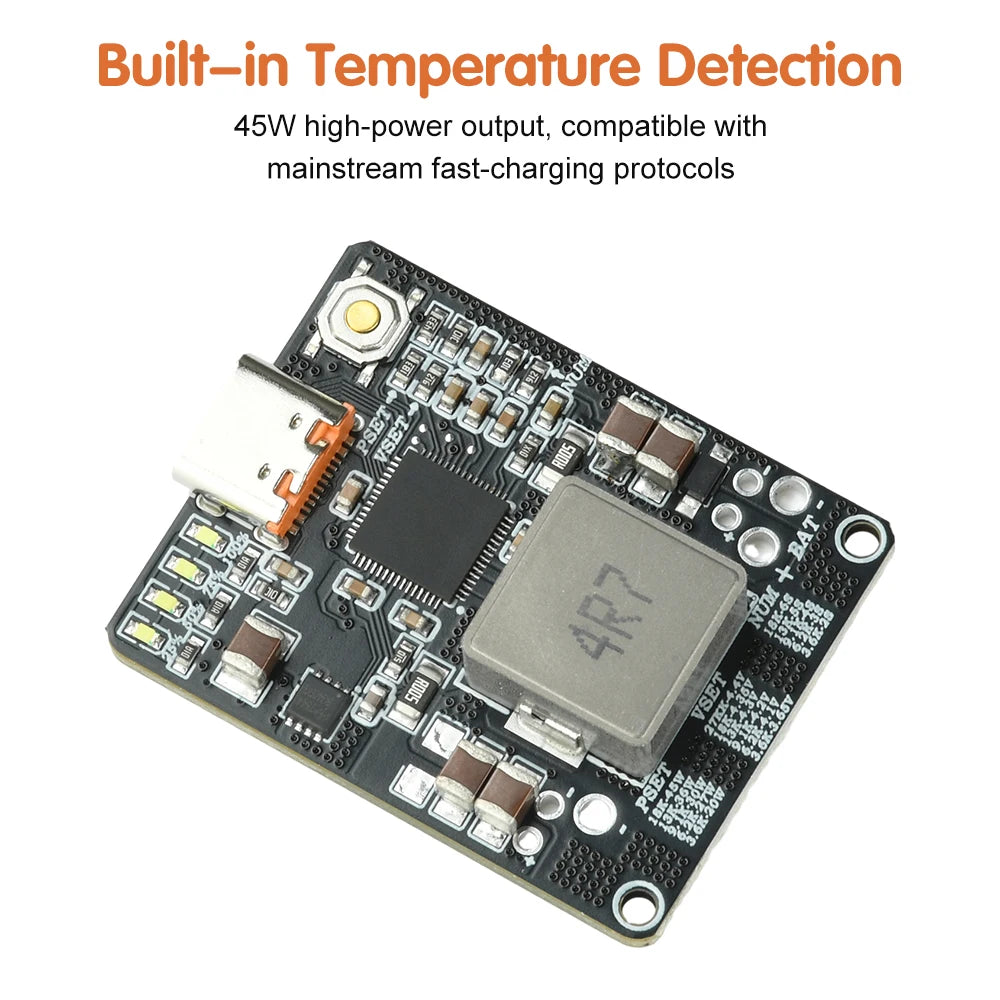

3. Built-in temperature detection ensures enhanced charging safety

4. Type-C port design enables more convenient and stable charging connections

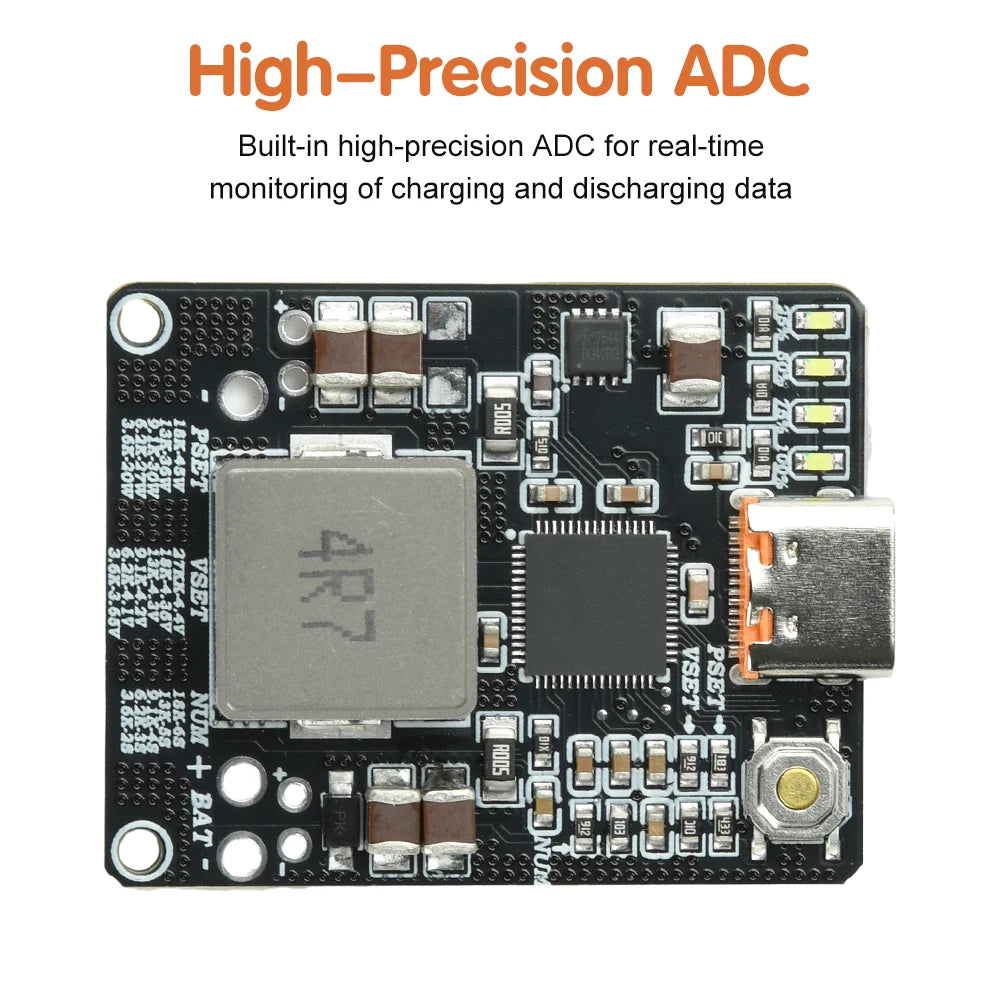

5. Integrated high-precision ADC for real-time monitoring of charge/discharge data

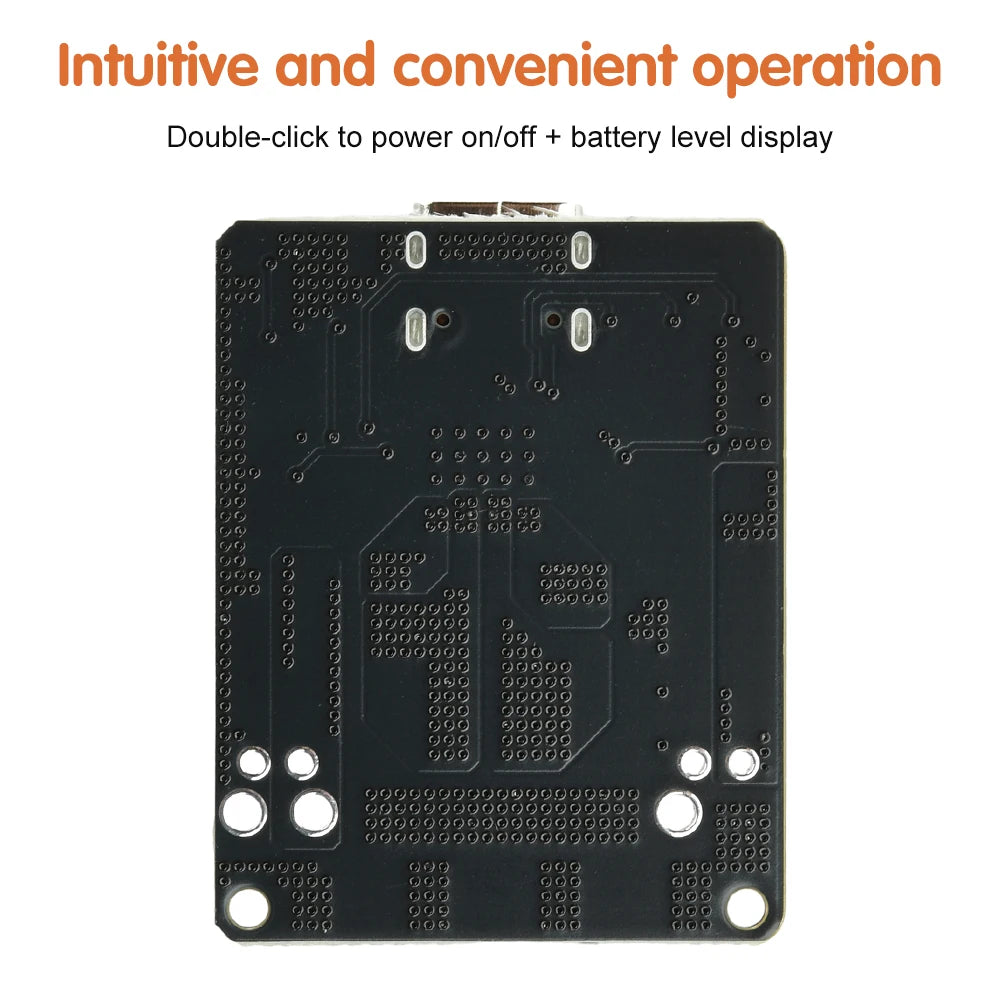

6. Double-tap power on/off + battery level display for intuitive and convenient operation

Product Specifications:

Voltage: 2-6S lithium battery

Interface: Type-C port

Power: 45W

Board Size: 38*30mm

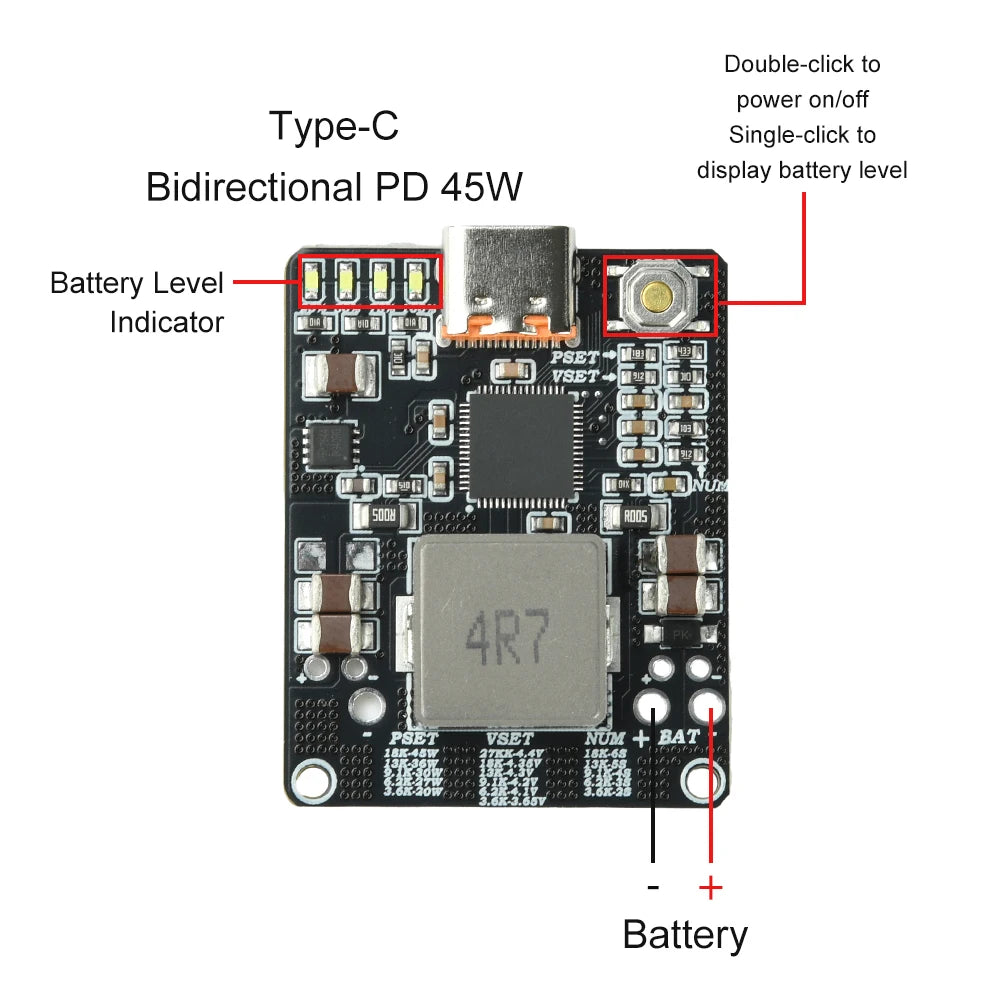

Button: Double-click to power on/off, single-click to display battery level

Supports multiple fast charging protocols including FCP, AFC, SCP, DRP, SRC, PD3.0

Factory default: 4S 45W 4000mAh. Supports 2/3/4/5/6 series-connected cells. External resistor allows selection of battery cell series count

External resistor configures battery type with selectable full-charge voltages: 3.65V/4.1V/4.2V/4.35V/4.4V

Integrated IC temperature, battery NTC temperature, and input voltage control loops intelligently adjust charging current based on detected charger power

Standby power consumption ≤ 100μA

Built-in 14-bit ADC enables precise measurement of input current/voltage, battery voltage/current, etc.

I²C interface provides charging/discharging voltage, charging current, and other data

Supports 4 LED indicators for charging/discharging status and current capacity display

Ideal for DIY high-speed fans, ultra-fast power banks, RC model battery fast charging, laptop fast charging modules, etc.

Product List:

Module*1
