IP5356 PD QC Fast Charging Module Digital Display 3 7V Lithium

Discover the IP5356 PD QC Fast Charging Module Digital Display 3 7V Lithium — a standout electronics accessories pick featuring fast-charging, easy to use design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Charging Protection Module

Output Voltage: Charging Protection Module

Semi-finishedproduct: No

Size: Charging Protection Module

Style: Charging Protection Module

Type: Charging Protection Module

Features:

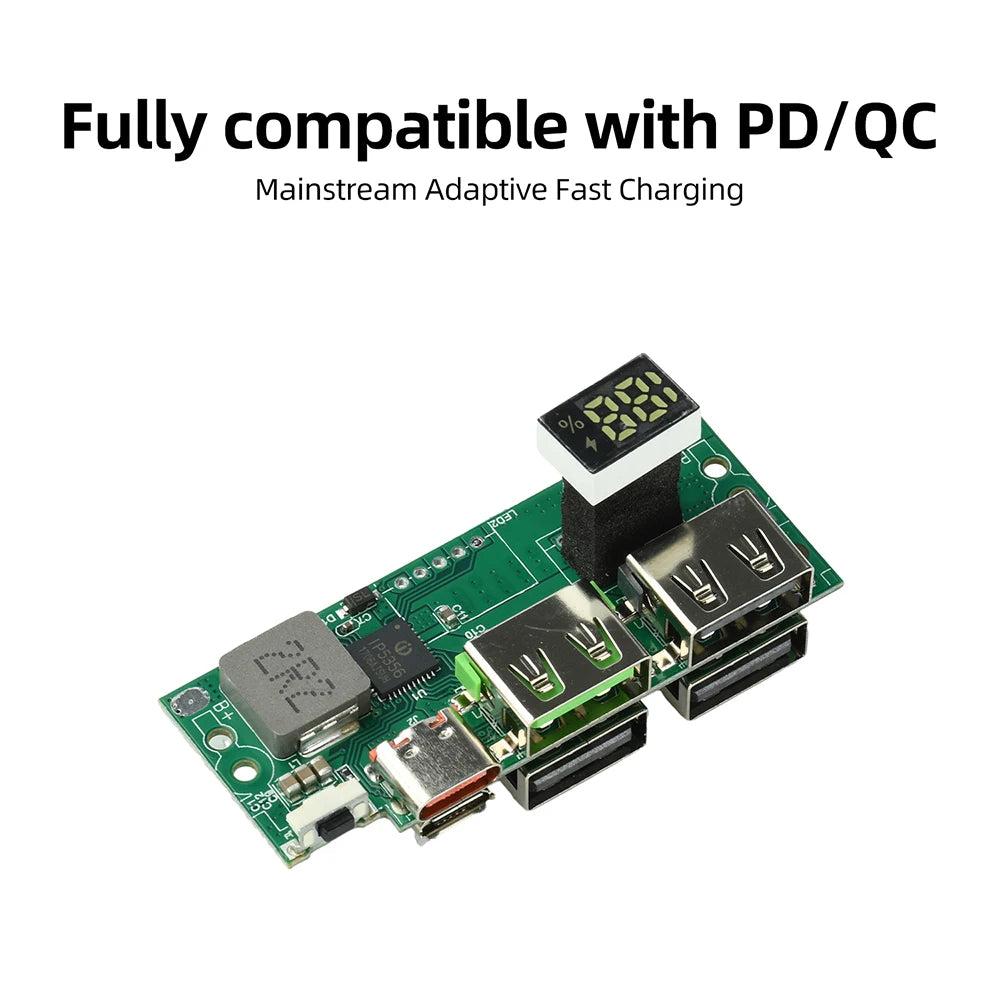

1. Fully compatible with PD/QC; automatically adapts to mainstream fast-charging standards

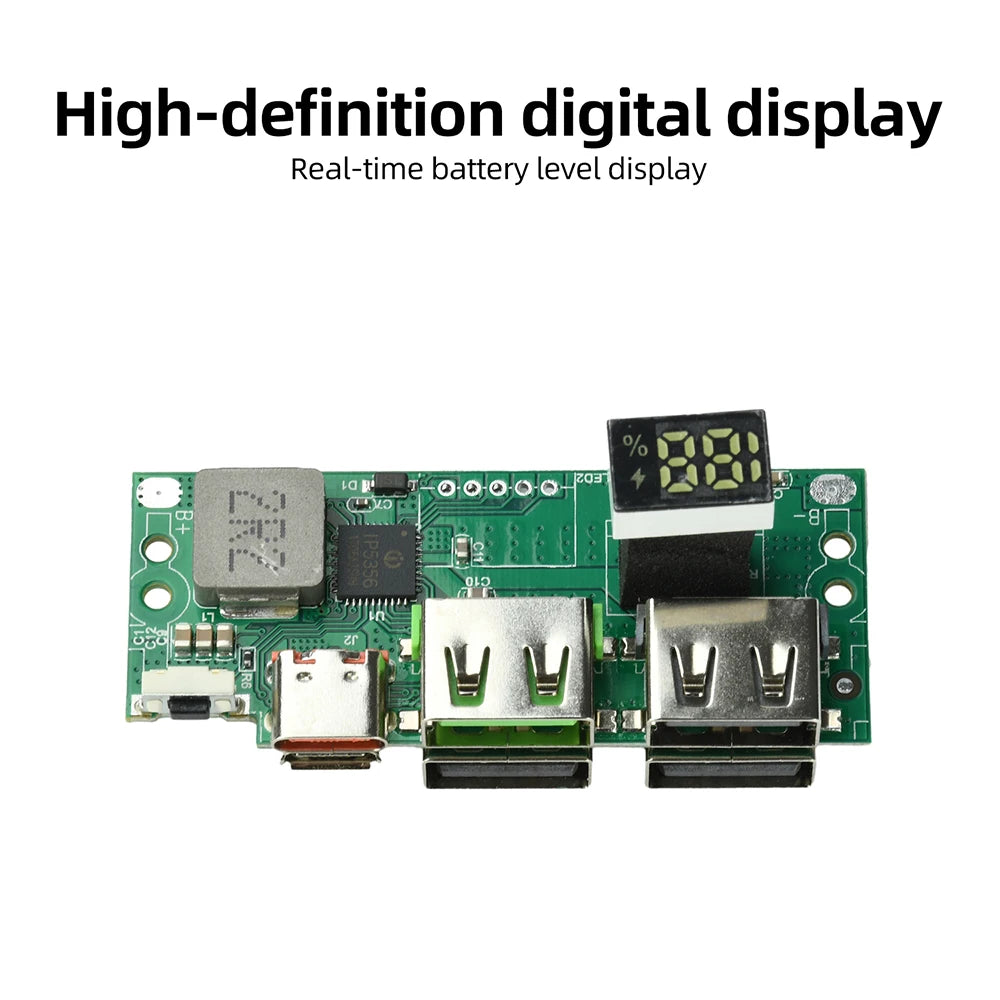

2. High-definition digital display shows remaining battery level in real time

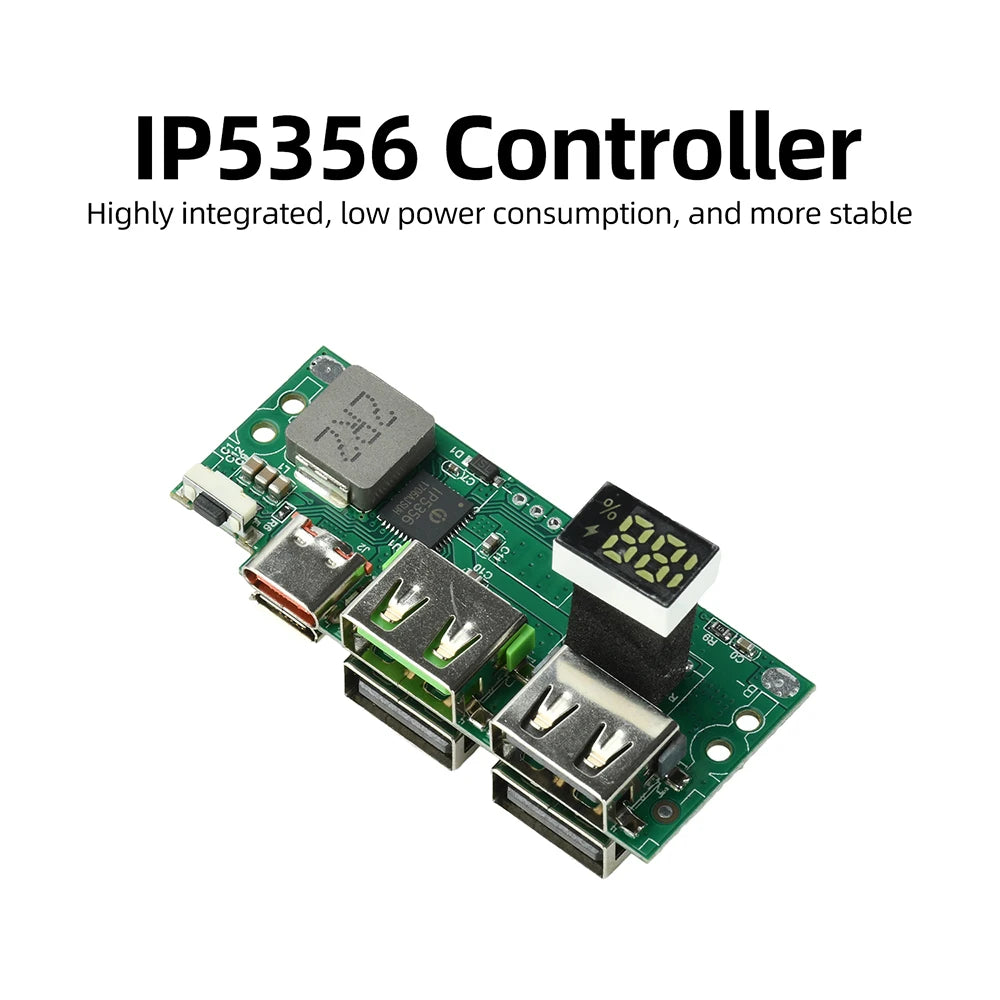

3. IP5356 controller: highly integrated, low power consumption, and more stable

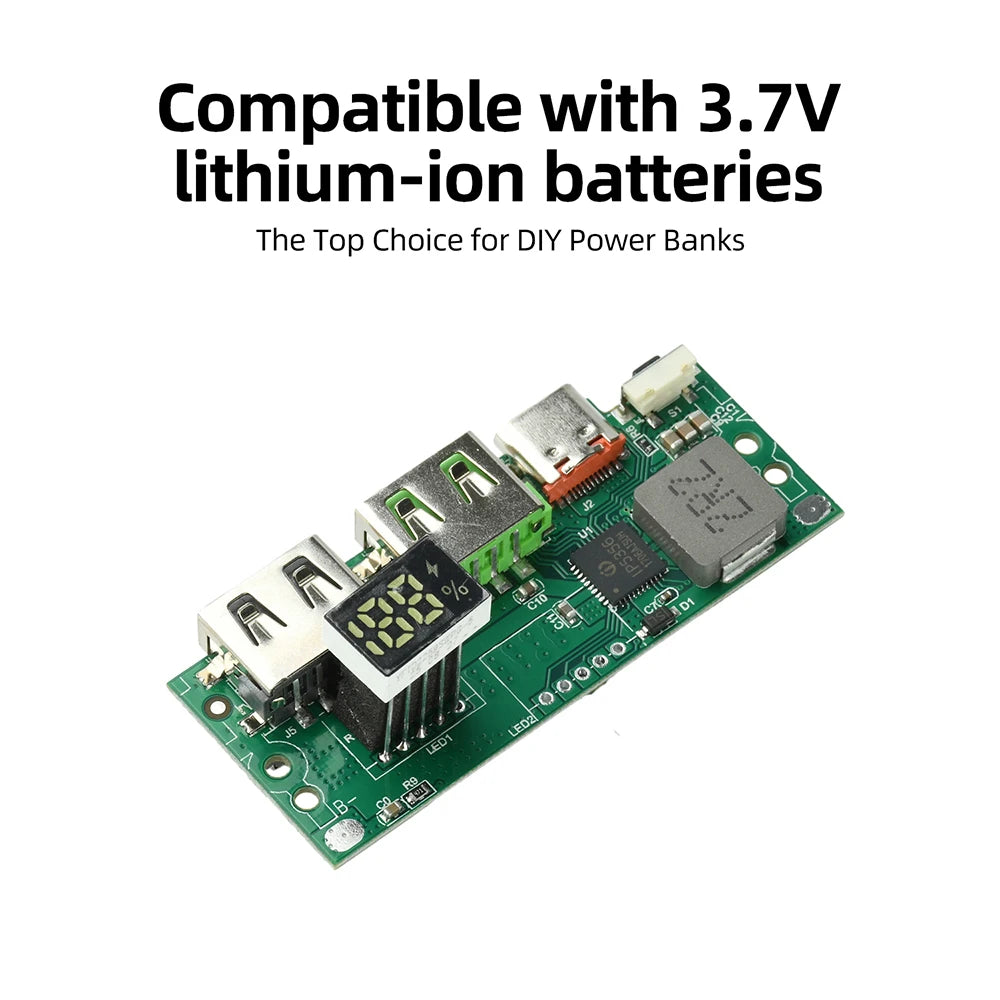

4. Compatible with 3.7V lithium batteries; the top choice for DIY power banks

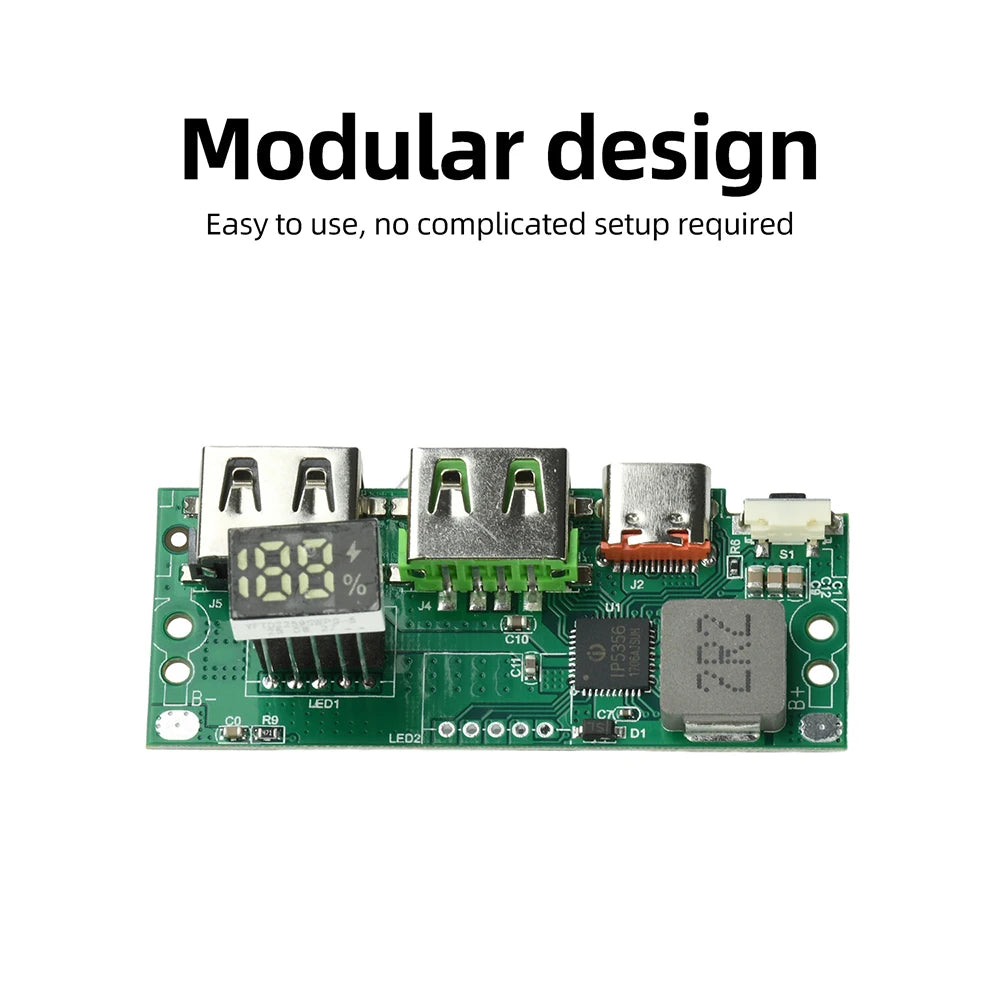

5. Modular design; easy to use with no complex setup required

Product Specifications

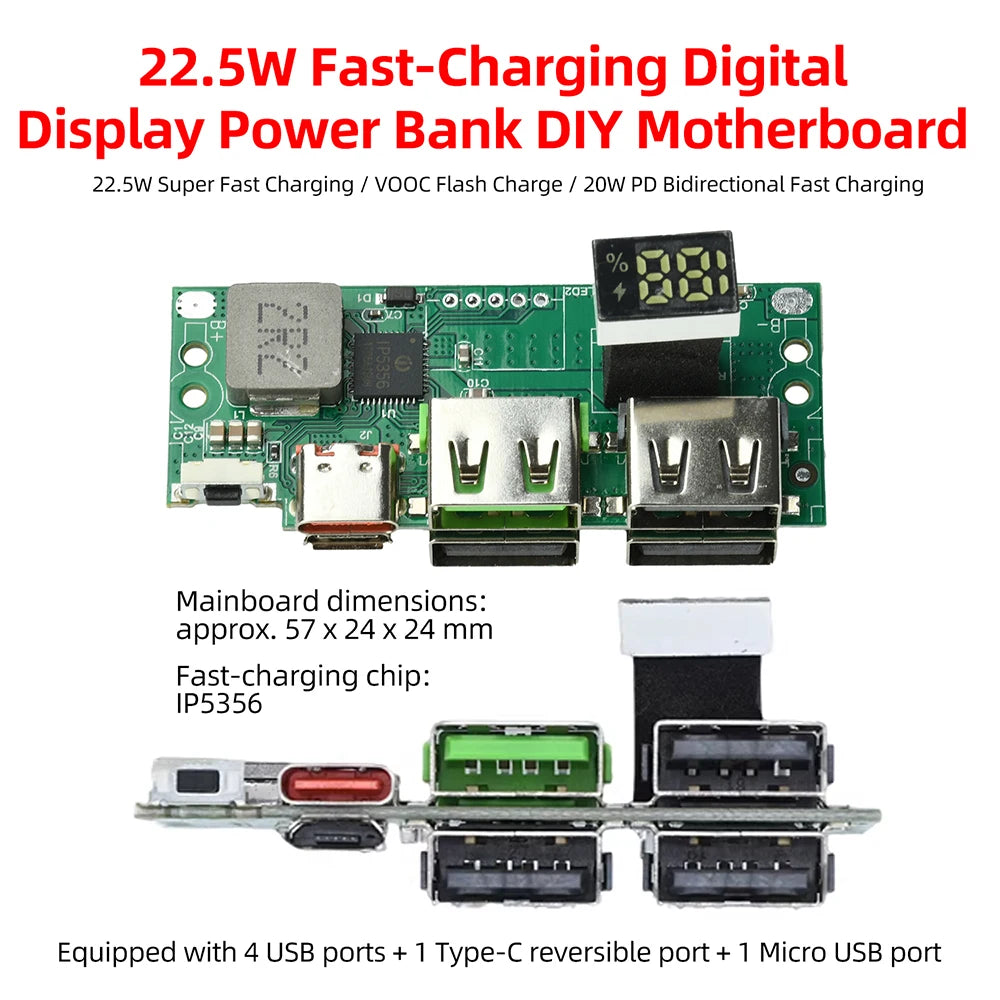

Fast Charging Chip: IP5356

Power: 22.5W Super Fast Charging / PD 20W Bidirectional Fast Charging

Ports: 4 USB output ports + 1 Type-C bidirectional fast charging port + 1 Micro input port

Input Specifications: 5V2A / 5V3A / 9V2.2A / 12V1.6A

Output Specifications: 5V 2A / 5V 3A / 9V 2.2A / 12V 1.6A / 10V 2.25A

Comprehensive Mainboard Protection: Includes overcharge, over-discharge, overvoltage, and overheat protection

High Conversion Efficiency with Stable Current and Voltage

Batteries are 3.7V lithium cells connected in parallel via soldering; no protection board is required. B+ is the positive terminal, and B- is the negative terminal

Instructions for Use

1. Regarding enabling fast charging for smartphones: Smartphone fast charging protocols are categorized as public or proprietary. This circuit board uses a smart fast-charging chip that is compatible with mainstream public fast-charging protocols on the market, meeting the fast-charging needs of various smartphone brands. Please confirm whether your phone supports public protocols before placing an order to avoid issues with fast charging not triggering!

2. Regarding heat generation from the mainboard during charging: When the power bank is in operation, current flows through the mainboard and chip, and energy conversion results in some loss. This loss is dissipated as heat. During fast charging, the high power output causes more noticeable heat generation, which is a normal physical phenomenon.

3. The digital display may show inaccurate battery levels immediately after connecting the batteries. The battery meter supports a self-learning function for battery capacity and will display accurate levels after a few charge-discharge cycles.

Package Contents

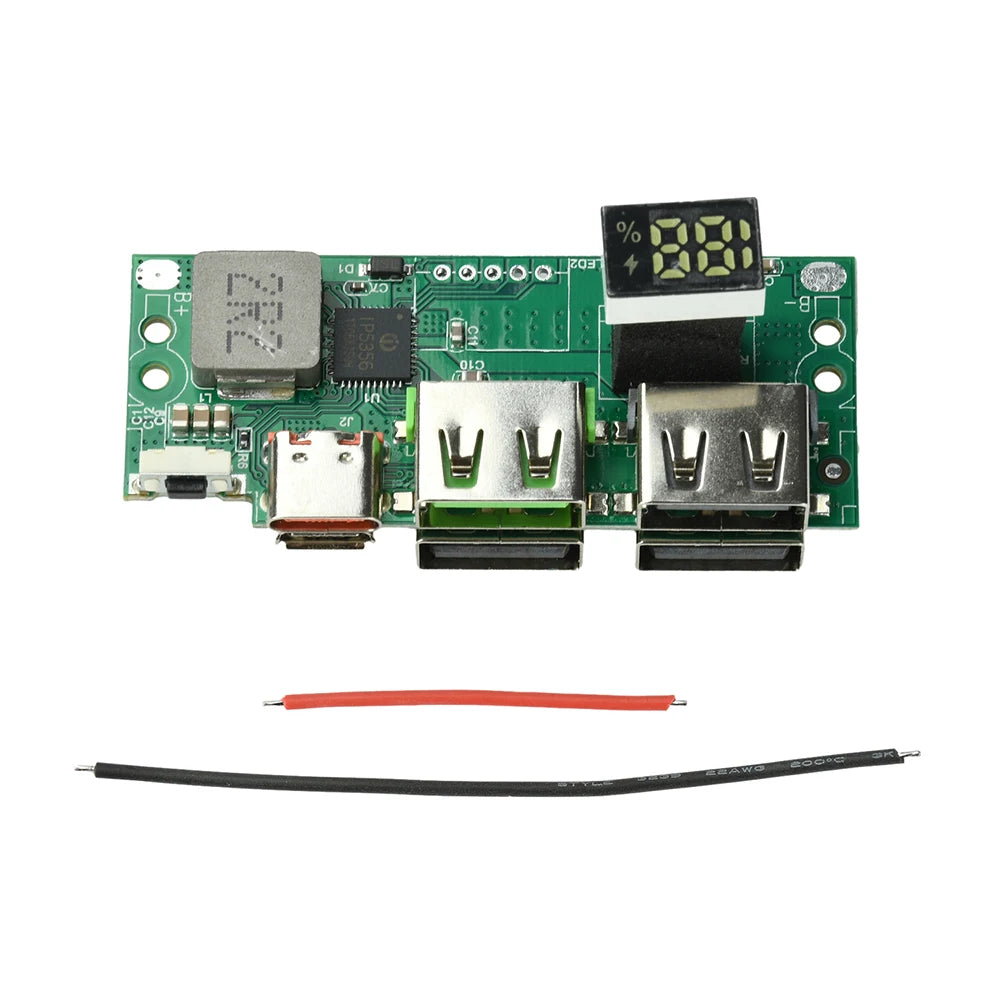

Fast Charging Module *1

Options

• Color: A

Frequently Asked Questions

Q: What is the IP5356 PD QC Fast Charging Module Digital Display 3 7V?

A: The IP5356 PD QC Fast Charging Module Digital Display 3 7V is a quality electronics accessories pick. Fully compatible with PD/QC; automatically adapts to mainstream fast-charging standards 2.

Q: What is the IP5356 PD QC Fast Charging Module Digital Display 3 7V made of?

A: The IP5356 PD QC Fast Charging Module Digital Display 3 7V is made from Plastic Model Number, measuring Charging Protection Module Style.

Q: Why choose the IP5356 PD QC Fast Charging Module Digital Display 3 7V?

A: The IP5356 PD QC Fast Charging Module Digital Display 3 7V stands out in our electronics accessories range — High-definition digital display shows remaining battery level in real time 3.
