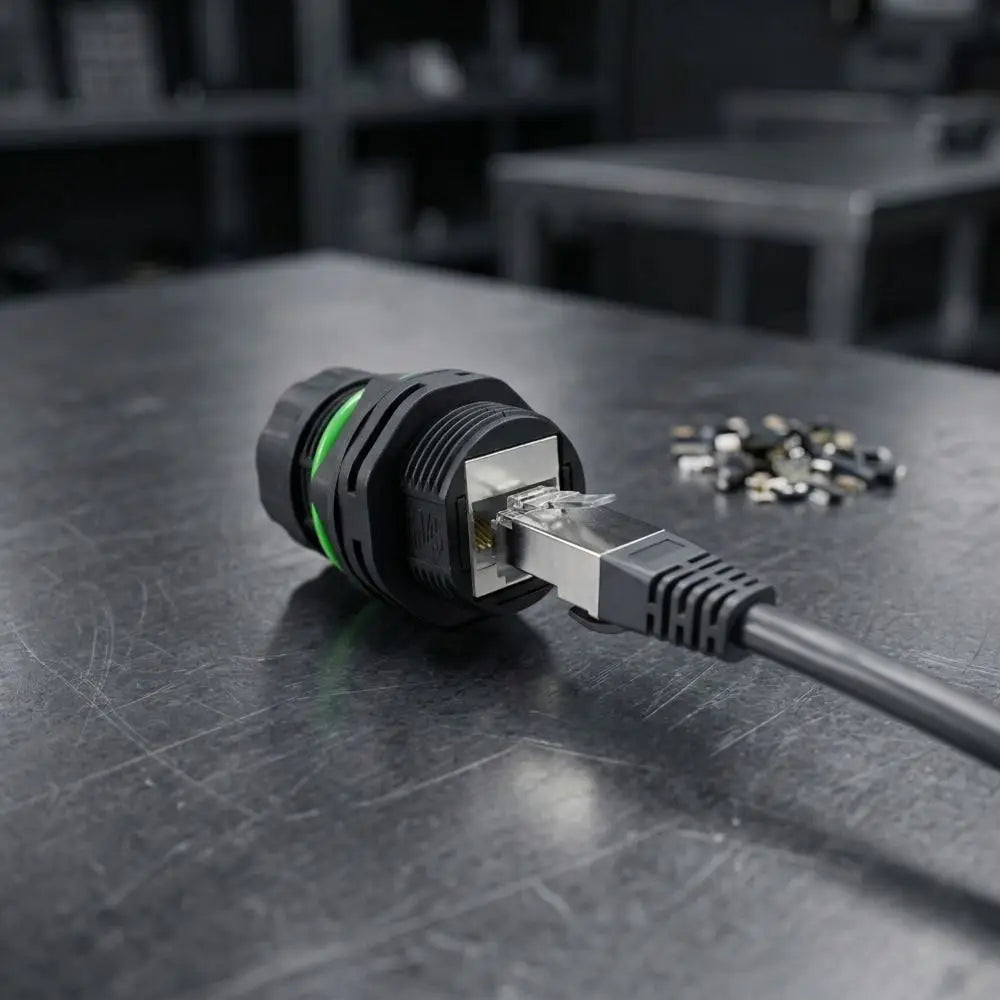

IP68 Waterproof RJ45 Female Panel Mount Connector – M20 / M23 Dual Size, 8-Core Shielded

Keep your network connections secure, stable, and fully protected from the elements with this IP68-rated waterproof RJ45 female socket connector. Designed for demanding indoor and outdoor installations, it features a dual M20/M23 panel-mount thread, an 8-core shielded design, and a rugged nylon body — making it the ideal solution for industrial control panels, outdoor surveillance systems, marine applications, and more.

Key Features

IP68 Waterproof Rating: Fully sealed against dust and continuous water submersion, protecting your Ethernet connections in harsh outdoor or wet environments.
Dual-Size Panel Mount (M20 / M23): Compatible with both M20 and M23 panel cutouts, offering flexible installation across different enclosures and equipment.
8-Core Shielded Design: Supports full Gigabit Ethernet (Cat5e / Cat6) signal transmission with effective EMI shielding for clean, reliable data transfer.
Fire-Resistant Nylon Shell: The outer housing is constructed from flame-retardant nylon — durable, lightweight, and built to last in demanding conditions.

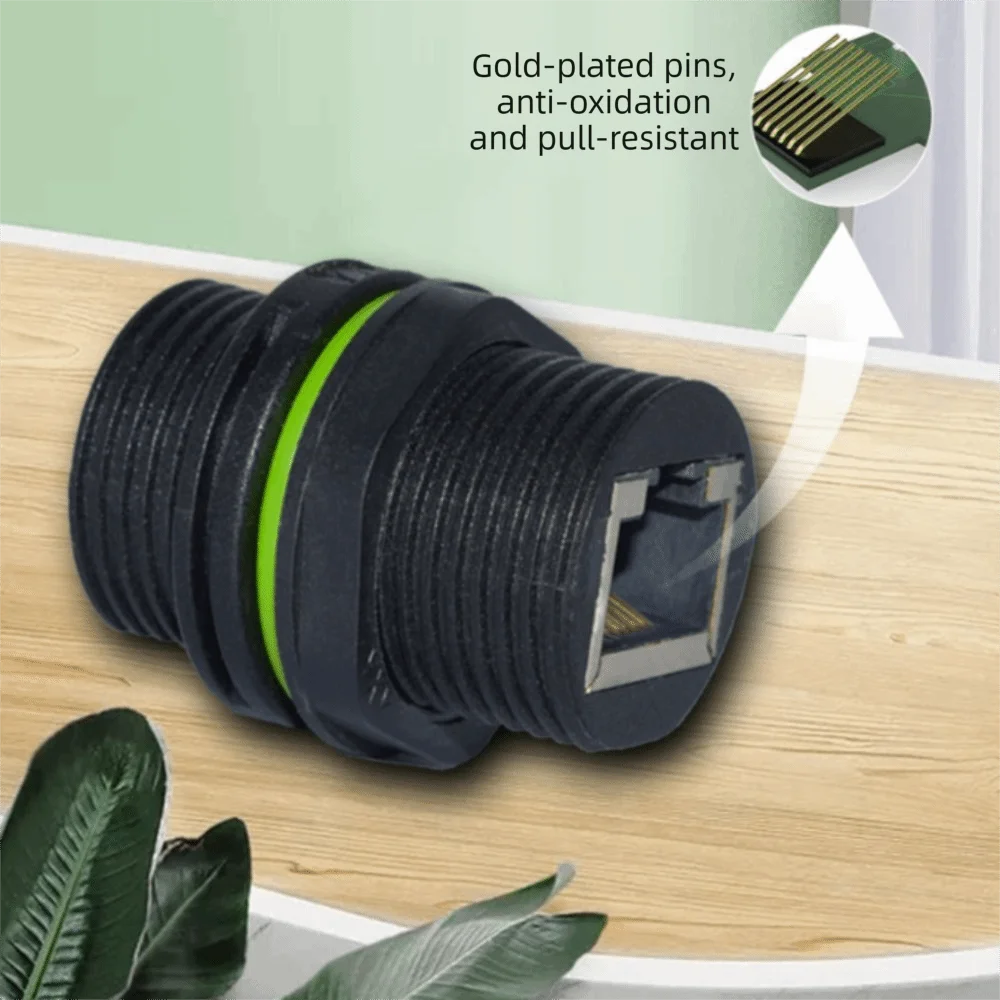

Gold-Plated Contacts: Internal pins are gold-plated (6µ) for superior conductivity, corrosion resistance, and long-term connection stability.

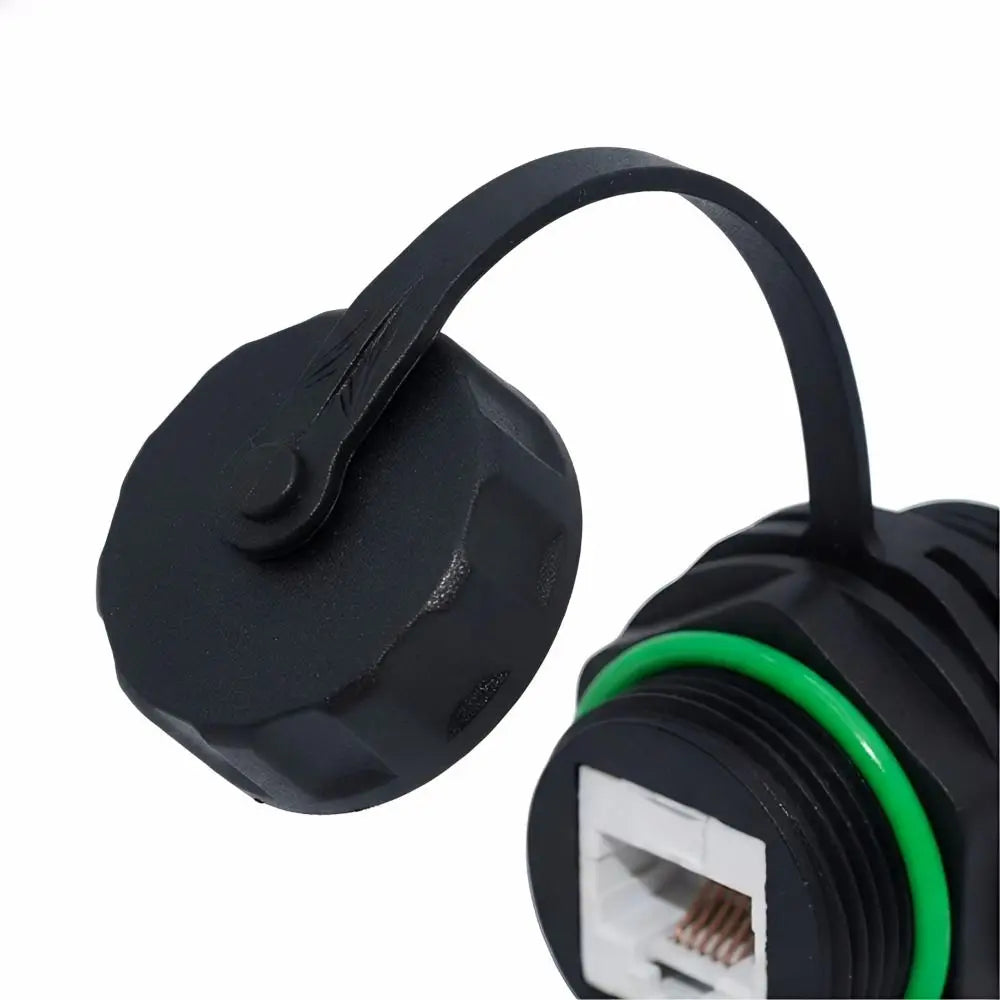

Protective Dust Cap: When not in use, the included waterproof dust cap seals the port to guard against moisture and debris, extending service life.

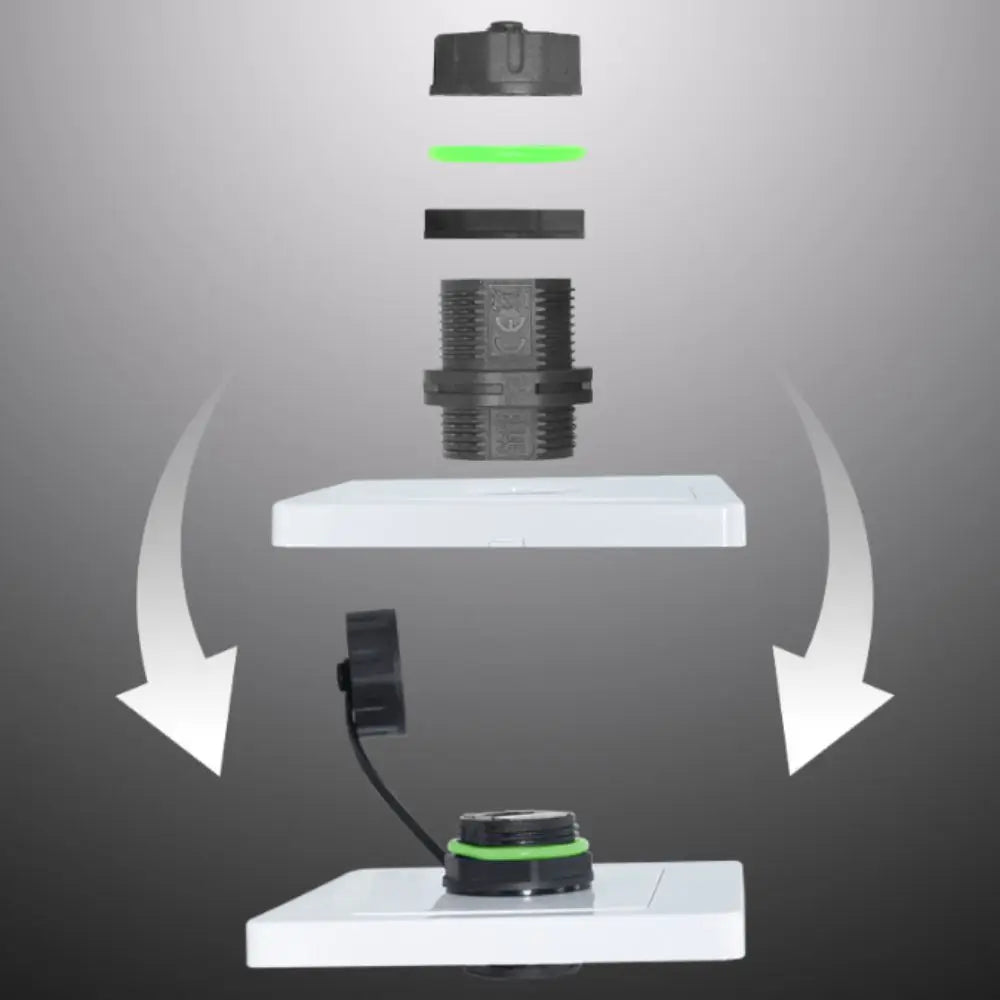

Tool-Free Installation: No soldering required — simply mount the connector to your panel, tighten the locking nut, and plug in your Ethernet cable. Plug and play.
Low-Voltage Rated: Rated for low voltage applications below 50Vac / 75Vdc (24V operating voltage), suitable for a wide range of network and industrial setups.

Specifications

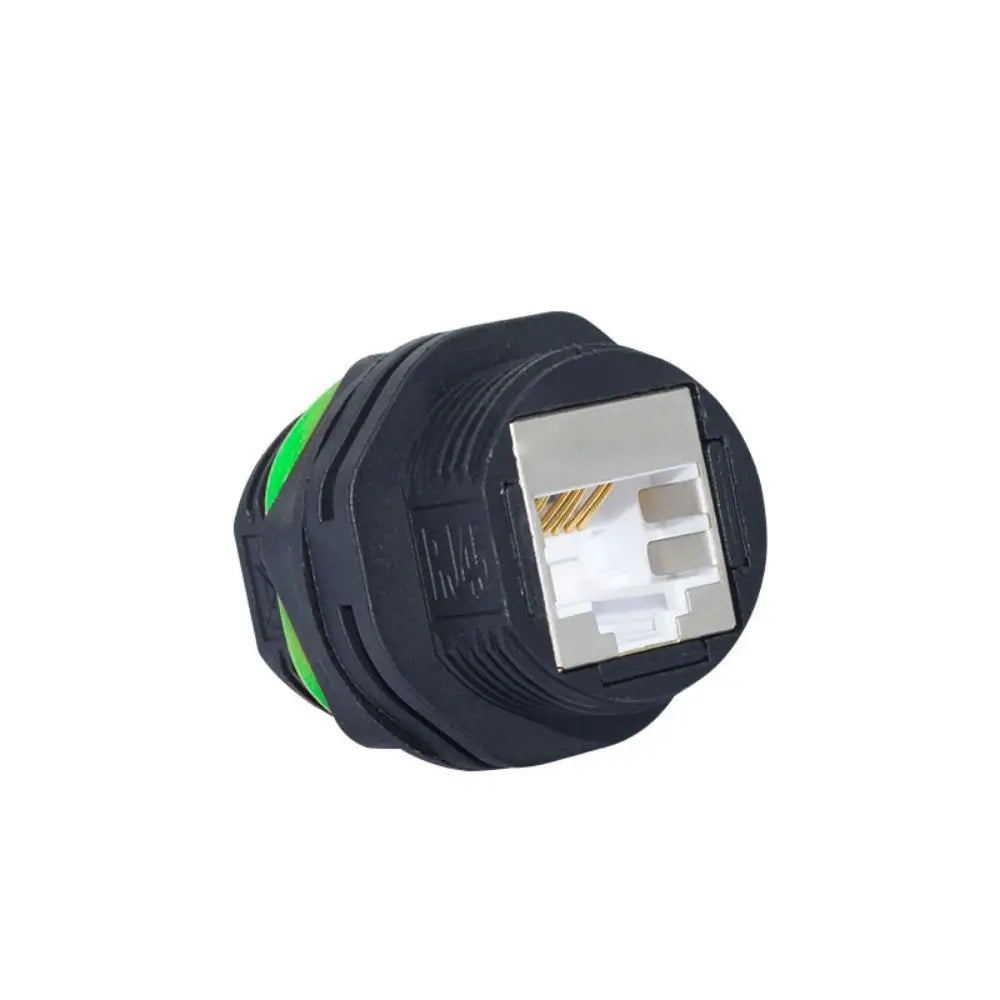

Connector Type: Female RJ45 Socket (Panel Mount)
Thread Size: M20 / M23 (Dual Compatible)
Core Count: 8-Core Shielded
IP Rating: IP68
Color: Black
Material: Flame-Retardant Nylon

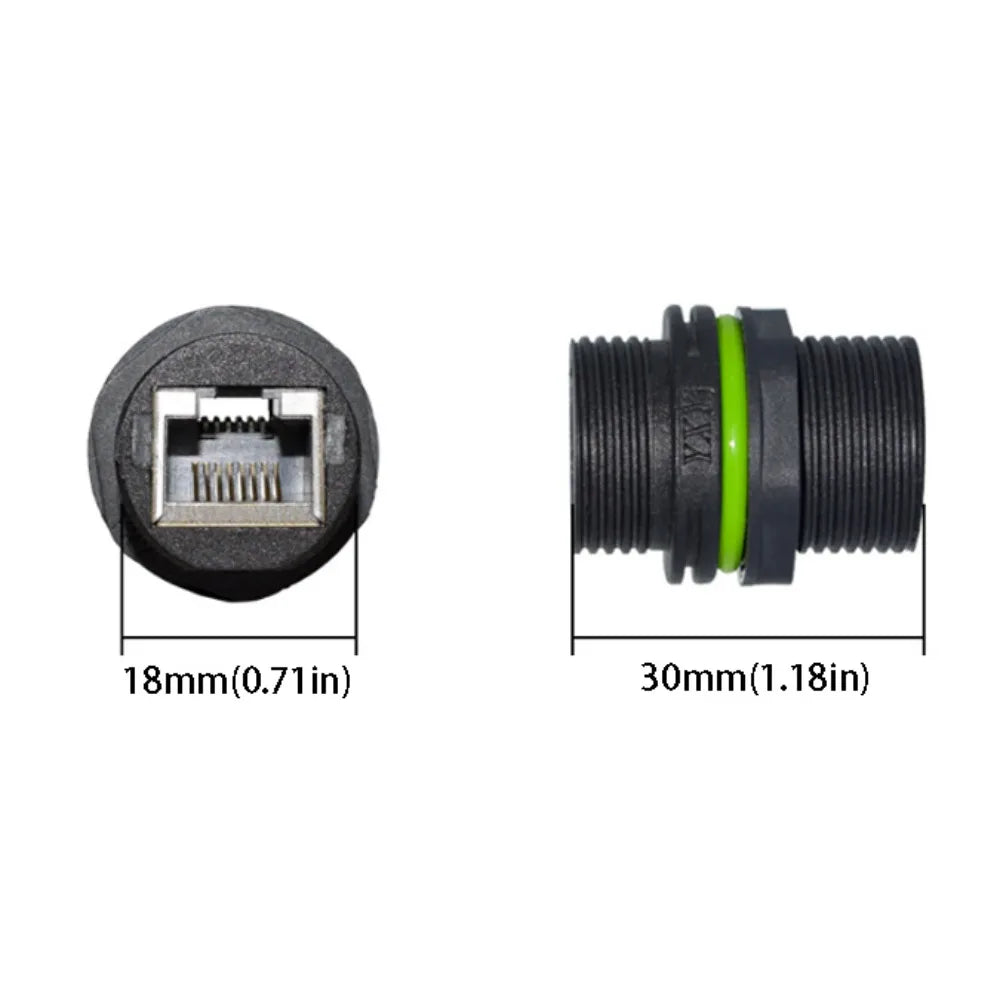

Size: 30 × 18 mm (1.18 × 0.71 in)
Weight: 23 g
Operating Voltage: 24V (Low Voltage: Below 50Vac / 75Vdc)
Package Contents: 1 × Waterproof RJ45 Panel Mount Connector
Made in: Mainland China

Common Applications

Outdoor IP cameras and surveillance systems
Industrial Ethernet control panels and automation equipment
Marine and watercraft networking installations
Outdoor Wi-Fi access points and network enclosures
Smart home and IoT outdoor installations
Telecommunications and signal distribution panels

Related Products You May Like

For guidance on electrical wiring safety and low-voltage connector standards, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the IP68 rating on this RJ45 waterproof connector?

A: IP68 is the highest standard ingress protection rating, meaning the connector is completely dust-tight and can withstand continuous immersion in water beyond 1 metre depth (per IEC 60529). This makes it ideal for outdoor Ethernet installations, marine environments, and any setting where the connector may be exposed to moisture or the elements.

Q: Is this RJ45 waterproof connector compatible with Cat5e and Cat6 cables?

A: Yes. The 8-core shielded design supports standard Cat5e and Cat6 Ethernet cables, enabling full Gigabit network speeds with EMI shielding to maintain signal integrity even in electrically noisy industrial environments.

Q: How do I install this panel mount RJ45 connector?

A: Installation is straightforward and requires no soldering or special tools. Drill or locate an M20 or M23 panel cutout, feed the connector through, and secure it firmly by tightening the locking nut from behind the panel. Then plug your Ethernet cable into the socket. When not in use, attach the included dust cap to protect the port.

Q: Can I use this connector outdoors permanently?

A: Absolutely. With its IP68 waterproof rating, flame-retardant nylon housing, and gold-plated internal contacts, this connector is designed for long-term outdoor use. It withstands rain, dust, humidity, and general environmental exposure when properly installed and sealed.
