KITPIPI Door Hinge Jig – 35mm Drill & Install Guide Tool

Install Cabinet Hinges Perfectly Every Time

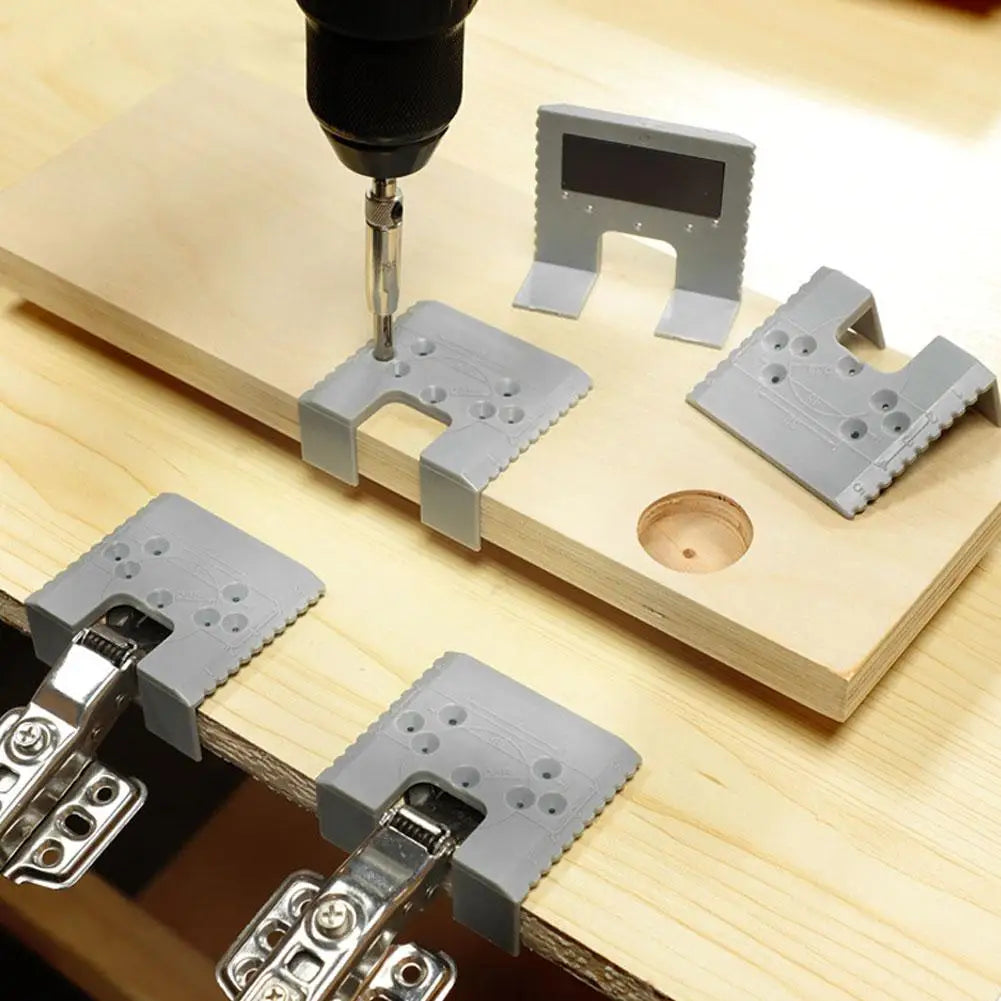

Tired of misaligned cabinet doors and frustrating hinge adjustments? The KITPIPI Door Hinge Installation Jig is the woodworker's secret weapon for fast, accurate, and professional-looking hinge placement — every single time. Whether you're a seasoned carpenter or a confident DIYer, this compact plastic jig takes the guesswork out of cabinet door installation.

Key Features

• Premium ABS Plastic Construction: Durable, lightweight, and built to last through countless projects. Compact dimensions of approximately 6.8 cm (W) × 6.0 cm (H) × 0.2 cm (D) make it easy to handle in tight spaces.

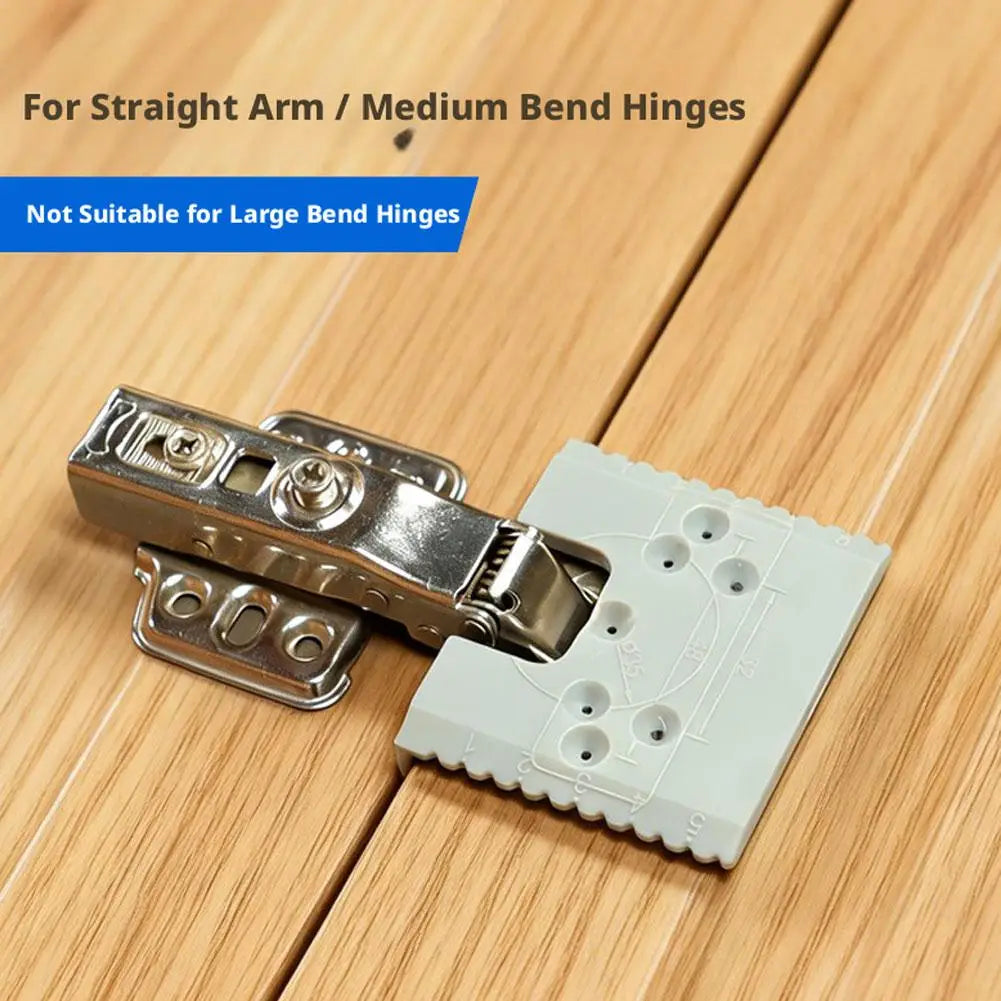

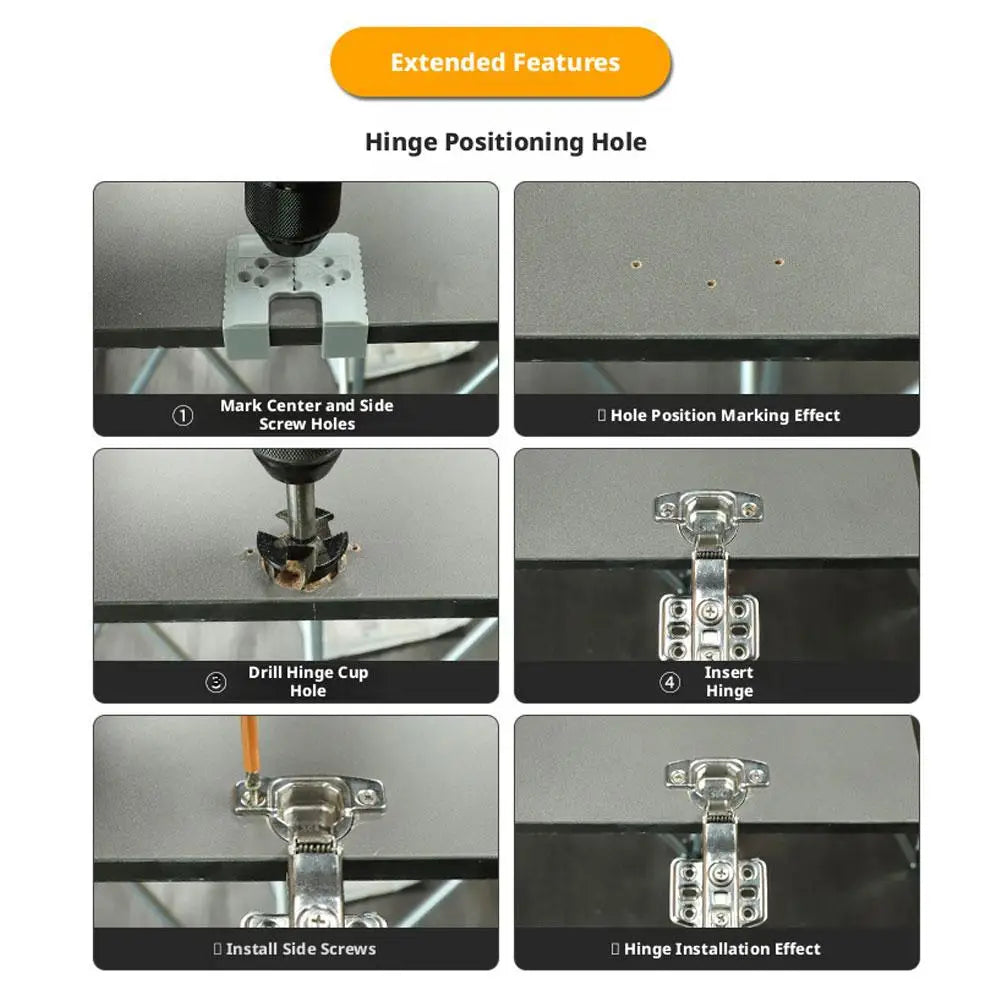

• Designed for 35mm Hinges: Compatible with standard 35mm straight or semi-overlay hinges, this jig accurately guides drilling of the hinge cup hole and adjacent screw holes for perfect cabinet door alignment.
• Magnetic Anti-Displacement Backing: The large-area magnetic base firmly holds the jig to your workpiece, eliminating slippage or shifting during drilling — no more wasted holes or do-overs.

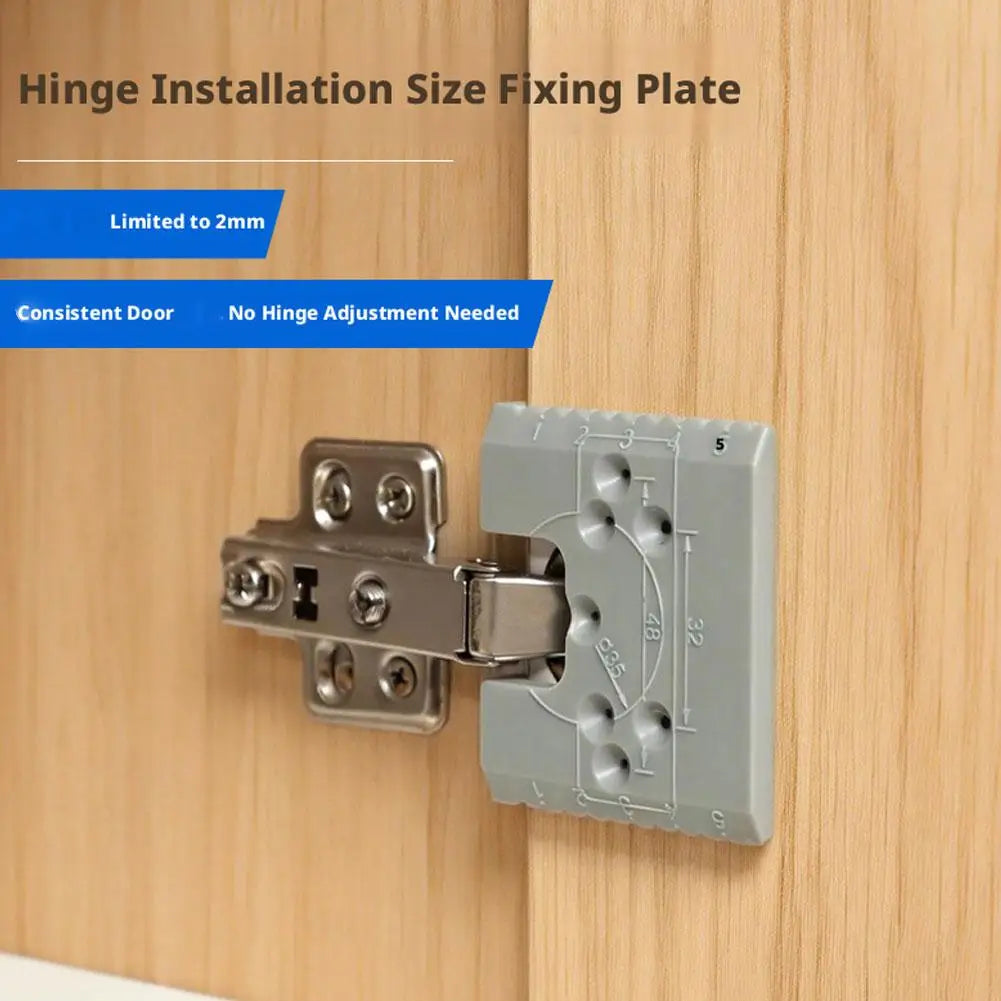

• Guaranteed 2mm Door Gap Consistency: Engineered to maintain a precise 2mm gap between the door panel and hinge, ensuring a uniform, clean, and professional finish across all your cabinet installations.

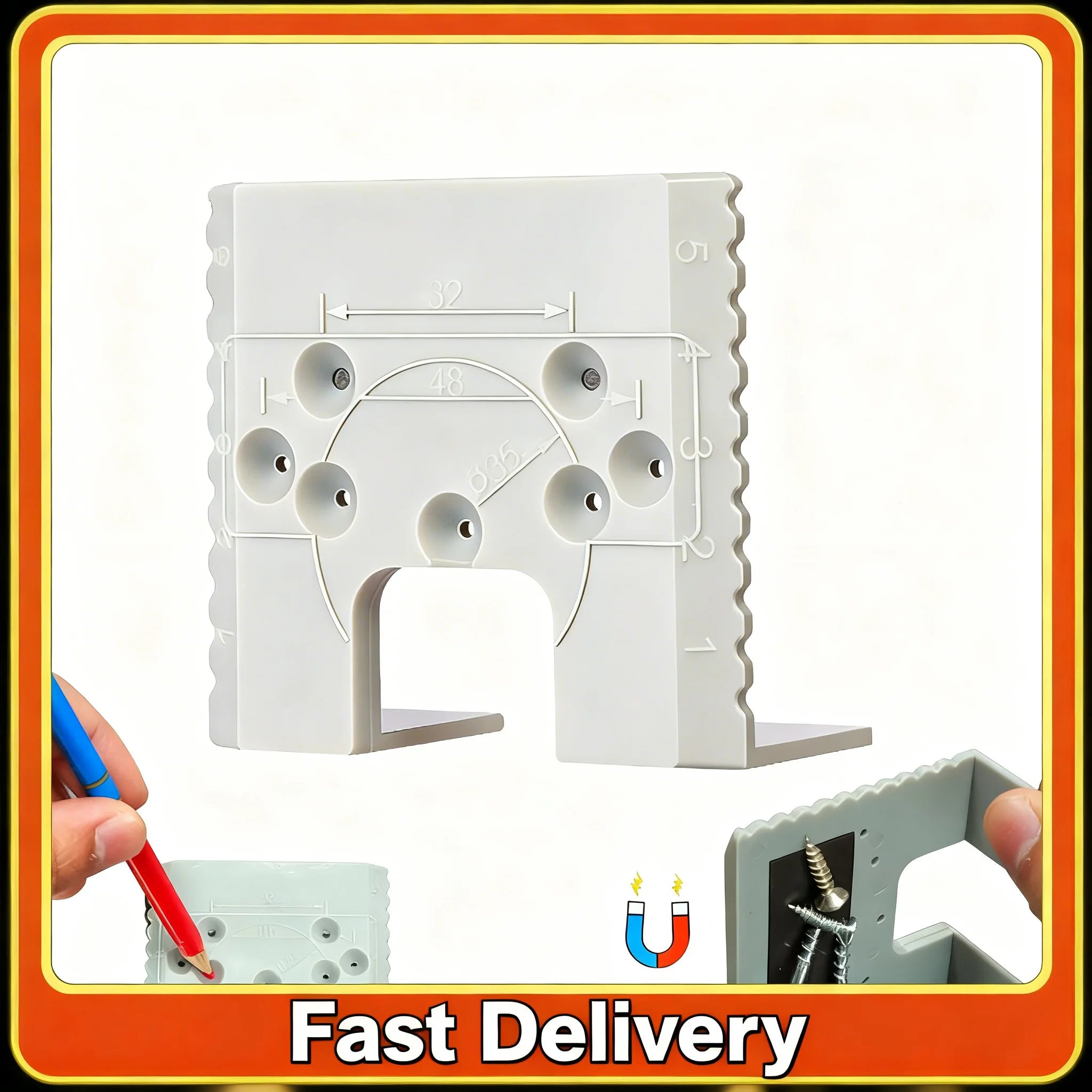

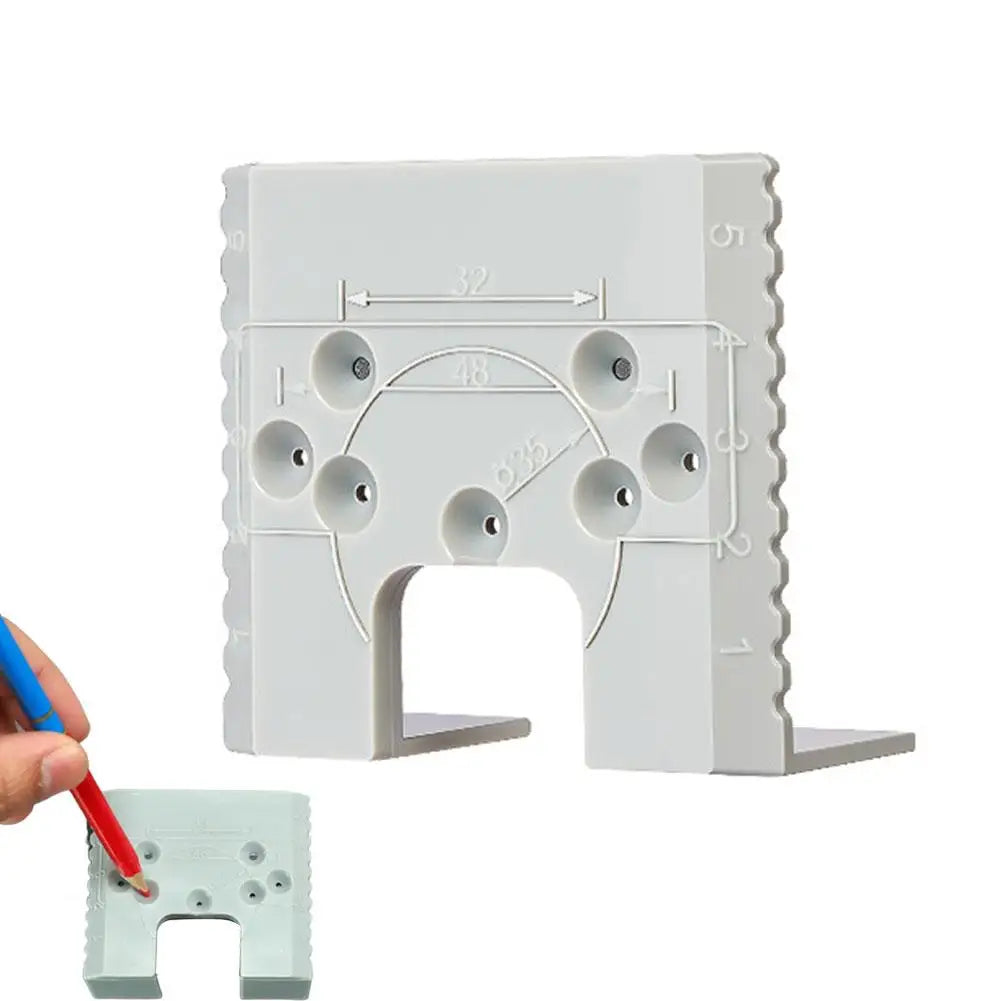

• Multi-Purpose Marking & Layout Tool: Integrated scales and reference points (32mm, 48mm, Ø35mm) let you draw accurate layout lines for other woodworking tasks, making this an all-around precision aid on the workbench.

Specifications

• Brand: KITPIPI
• Material: ABS Plastic
• Dimensions: ~6.8 cm × 6.0 cm × 0.2 cm (2.68" × 2.36" × 0.08")
• Compatible Hinge Size: 35mm (straight or semi-overlay)
• Door Gap Setting: 2mm consistent clearance
• Country of Origin: Made in Mainland China

What's in the Box?

• 1× Grey Hinge Mounting Jig

Perfect For

Kitchen cabinets, bathroom vanities, wardrobe doors, pocket drawers, garage storage units, and any carpentry project requiring consistent hinge placement. A must-have addition to any home workshop or professional toolbox.

Related Products You May Like

• 10 Dual-End Temporary Tattoo Markers – Body & Face Paint Pens
• 1/2" & 3/4" PPR Water Pipe Tap – Alloy Steel Anti-Corrosion
• 1/2" DN15 Adjustable Garden Sprinkler Head | Lawn Irrigation

For tips on safe power tool use during woodworking and home improvement projects, visit the U.S. Consumer Product Safety Commission – Tools Safety Resource.

Learn more: Keyboard layout

Frequently Asked Questions

Q: What hinge size is this door hinge jig compatible with?

A: The KITPIPI hinge installation jig is specifically designed for standard 35mm hinges, including both straight and semi-overlay hinge styles. The Ø35mm reference mark on the jig guides your drill bit to the exact correct position every time.

Q: Does the magnetic backing work on all door panel materials?

A: The integrated magnetic backing is optimized for use on metal door hardware surfaces and ferrous materials. For wooden panels, we recommend using the jig in conjunction with a clamp or by holding firmly in position to maintain accuracy during drilling.

Q: Can this jig be used for marking and layout beyond hinge installation?

A: Absolutely! The built-in scale references (32mm, 48mm, Ø35mm) make this jig a versatile woodworking layout and marking tool. Use it to draw precise lines, define spacing, and plan layouts for a wide variety of carpentry and cabinet-making tasks.

Q: Is this jig suitable for a beginner DIYer?

A: Yes — the KITPIPI door hinge jig is designed to make hinge installation simple and foolproof. Its intuitive design eliminates the need for measuring, marking by hand, or trial-and-error drilling, making it ideal for first-time cabinet builders and seasoned pros alike.
