KL-125 Feed Pellet Mill Machine 4KW 60–100KG/H | 220V/380V

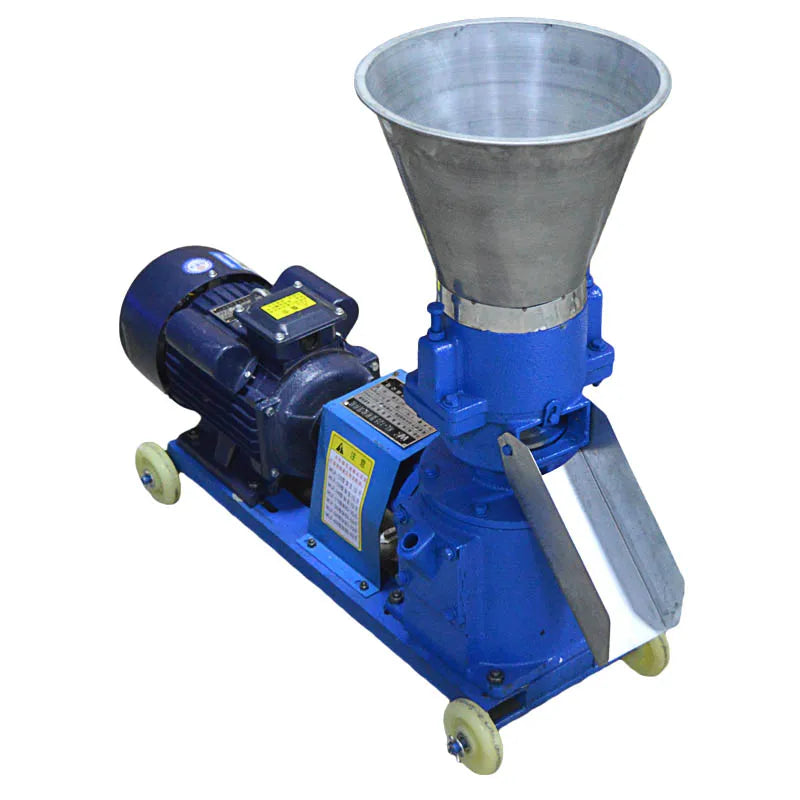

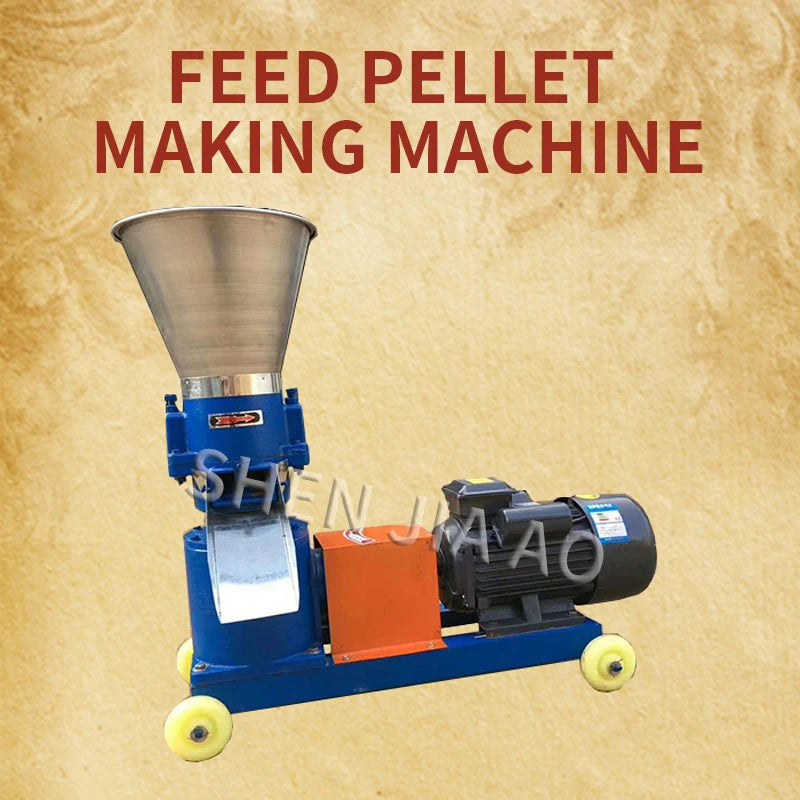

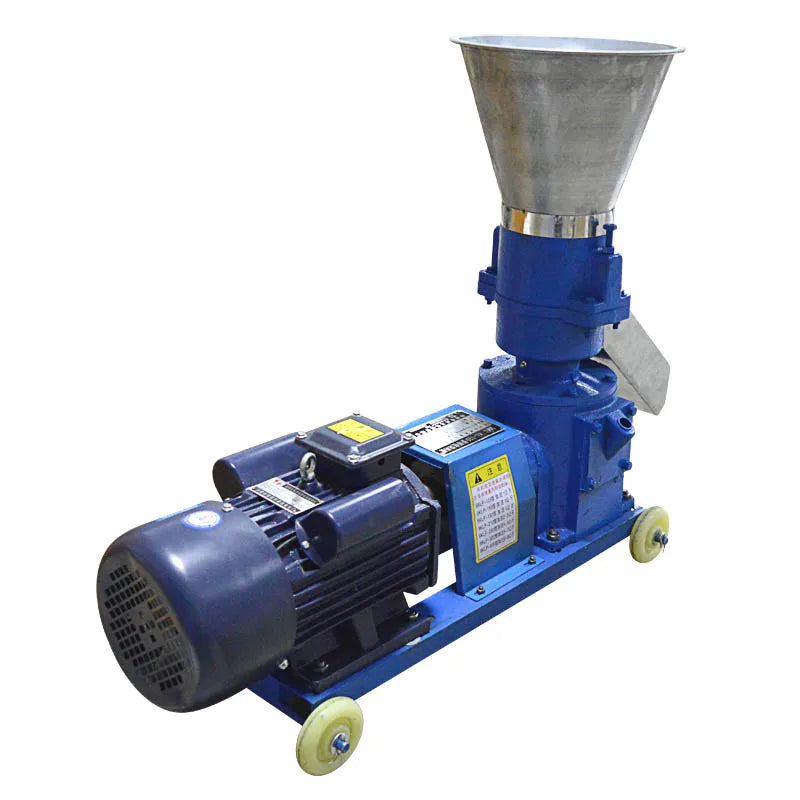

KL-125 Multi-Function Feed & Food Pellet Making Machine

Take full control of your animal feed production with the KL-125 Pellet Mill — a robust, household-grade granulator engineered for small farms, homesteads, and feed-processing operations. With a powerful 4KW motor and an impressive output of 60–100 kg/h, this machine turns raw powdered ingredients into uniform, dense pellets suitable for poultry, livestock, rabbits, fish, and more. Made in Mainland China.

Key Features

• High Output: Produces 60–100 kg of feed pellets per hour, keeping your operation running efficiently.

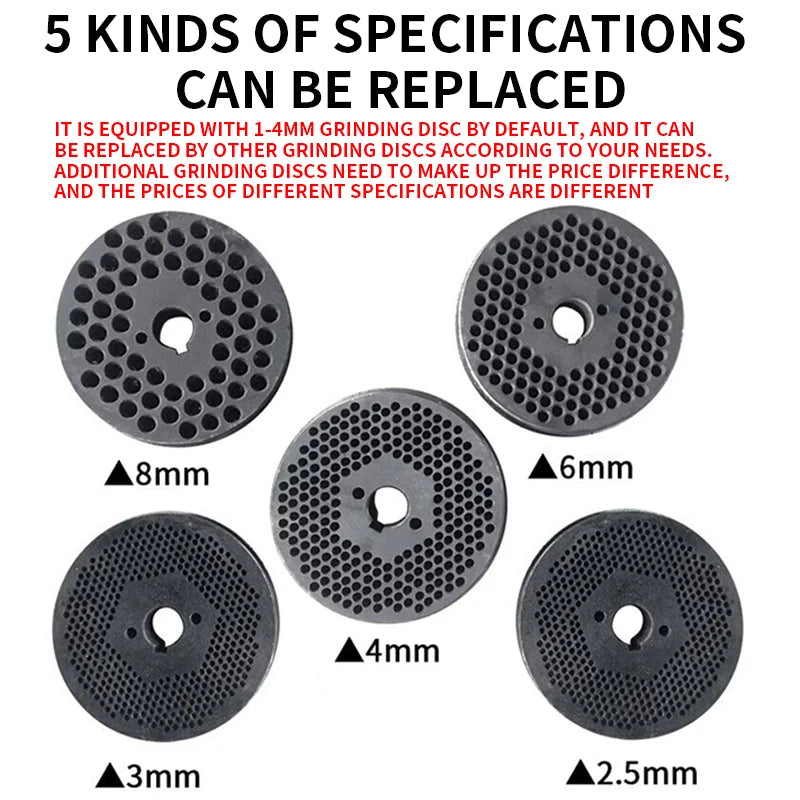

• Versatile Mold Sizes: Compatible with die plate hole diameters of 2.5 mm, 3 mm, 4 mm, 6 mm, and 8 mm — specify your preferred size at checkout (default: 4 mm).
• Shaft Drive Transmission: Durable shaft-driven mechanism ensures smooth, low-maintenance operation and consistent pellet quality.
• Dual Voltage Support: Operates on both 220V and 380V power supplies for flexible installation.
• Compact & Sturdy Build: Dimensions of 90 × 30 × 78 cm and a solid 75 kg frame deliver industrial-grade stability in a manageable footprint.
• Multi-Function Use: Suitable for processing corn, wheat bran, soybean meal, grass, straw, and other agricultural raw materials into pellets.

Technical Specifications

Setup & Operation Guide

1. Power Connection: Use a power cord no thinner than 6 mm² and no longer than 5 metres. Connect directly to the main supply — do NOT use a power strip or extension board.
2. Gear Oil: Before first use, add gear oil through all the front black screw holes as instructed in the setup video.

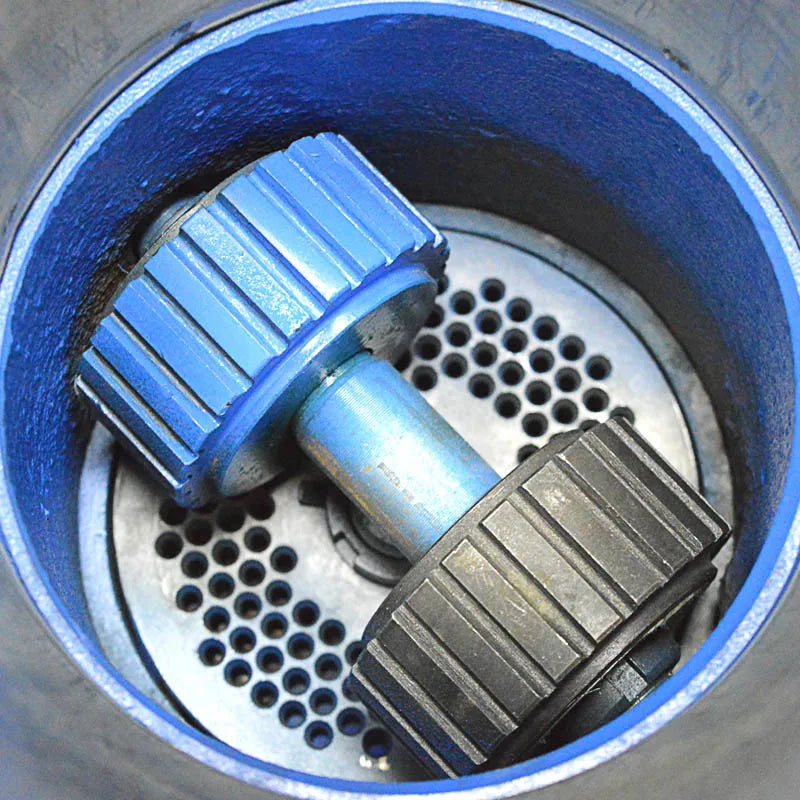

3. Break-In with Abrasive: Mix the included abrasive material with a small amount of water to a slightly moist powder consistency. Adjust the pressure roller, then load 4 small handfuls of the dampened abrasive into the machine. Run continuously for 30 minutes until all material is extruded as firm, smooth pellets — this breaks in the die plate for optimal performance.
4. Normal Operation: Once the break-in cycle confirms consistent pellet output with good hardness and surface finish, you are ready to process your actual feed materials.

Important Notes

• Each machine ships with one die plate (4 mm by default). Additional plates in other sizes can be purchased separately — please specify your required size in your order notes.
• This machine is large and heavy (75 kg). Please enquire about door-to-door delivery service before ordering.
• For EU customers, shipment is via EMS rail freight, with an estimated transit time of 35–65 days including customs clearance.
• Buyers are responsible for any applicable import duties or customs taxes upon arrival.
• Inspect your package thoroughly before signing for delivery. If damage is found, photograph it immediately and file a complaint with the carrier, then contact our support team within 24 hours.

Related Products You May Like

• 1.4W Solar Bird Bath Fountain Pump – 6 Nozzles & 4 Bars
• 1-Inch Impact Rocker Sprinkler – Adjustable Rotating Irrigation
• 1/2" DN15 Adjustable Garden Sprinkler Head | Lawn Irrigation

Further Reading

For guidance on animal nutrition and feed quality standards, visit the USDA Animal Production & Marketing Division. For information on safe use of agricultural machinery and workplace equipment, refer to OSHA Agricultural Operations Safety Guidelines.

Frequently Asked Questions

Q: What types of raw materials can the KL-125 pellet mill process?

A: The KL-125 feed pellet making machine can process a wide range of powdered or coarsely ground agricultural materials, including corn flour, wheat bran, soybean meal, rice husks, grass meal, hay, straw, and other biomass or grain-based ingredients. The material should have a moisture content of approximately 13–15% for optimal pellet formation.

Q: Which die plate size should I choose for my animals?

A: The ideal pellet diameter depends on the animal species: 2.5–3 mm is recommended for fish, shrimp, and small birds; 4 mm suits rabbits, chickens, and ducks; 6–8 mm is appropriate for larger livestock such as pigs, cattle, and sheep. If no size is specified at checkout, the machine ships with the standard 4 mm die plate included.

Q: Can the KL-125 run on a standard household power outlet?

A: The machine supports both 220V and 380V supply. For 220V operation, ensure your circuit can handle the 4 KW load. The power cord must be at least 6 mm² in cross-section and no longer than 5 metres, connected directly to the main supply — not through a power strip or multi-socket adapter. Always consult a qualified electrician if you are unsure about your local supply capacity.

Q: How long does the initial break-in process take, and is it necessary?

A: Yes, the break-in process is essential for new machines. Using the included abrasive material dampened with a small amount of water, run the machine for approximately 30 minutes before processing real feed. This conditions the die plate surface and pressure rollers, ensuring consistent pellet hardness and smooth extrusion from the very first batch.

Q: What is the expected delivery time, and are import duties included?

A: Shipping times vary by destination and chosen carrier. EU customers using EMS rail freight should expect approximately 35–65 days including customs clearance. Express courier services (DHL, FedEx, UPS, TNT) offer faster door-to-door delivery. Please note that import duties and customs taxes are the buyer's responsibility and are not included in the listed price.
