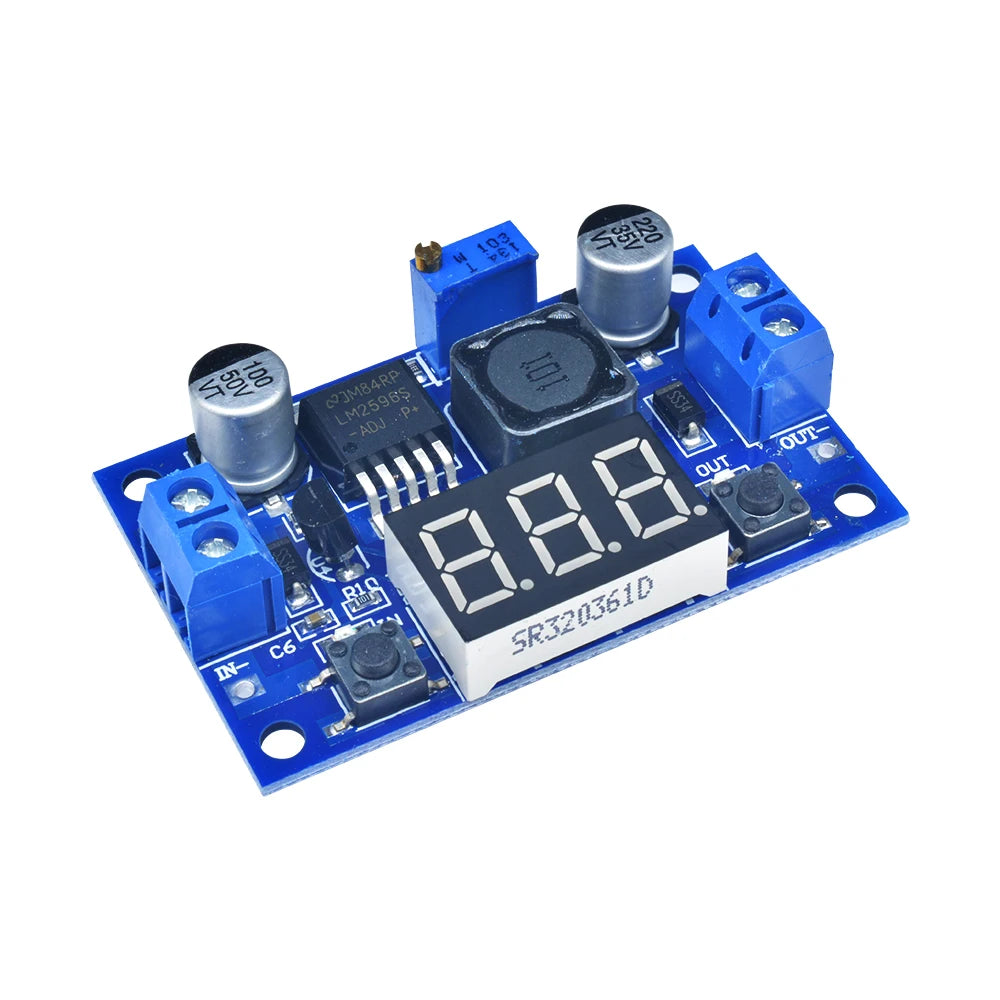

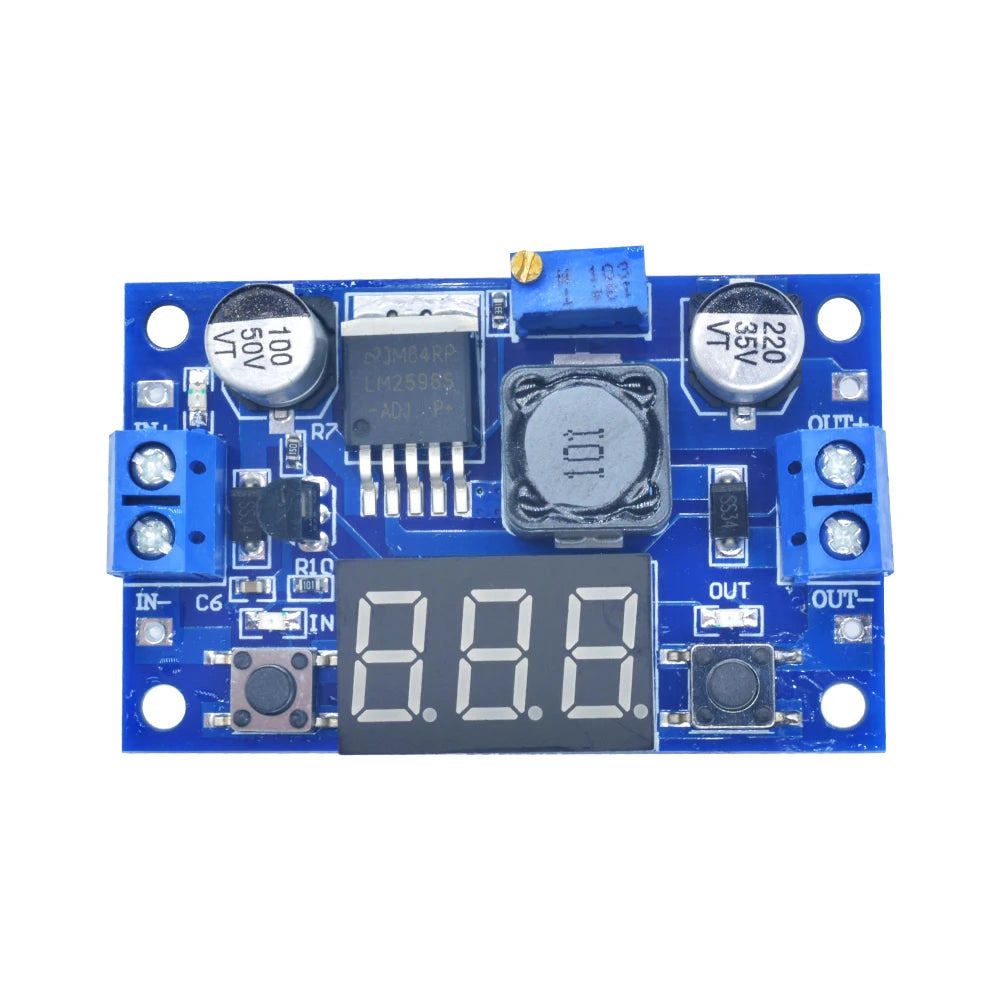

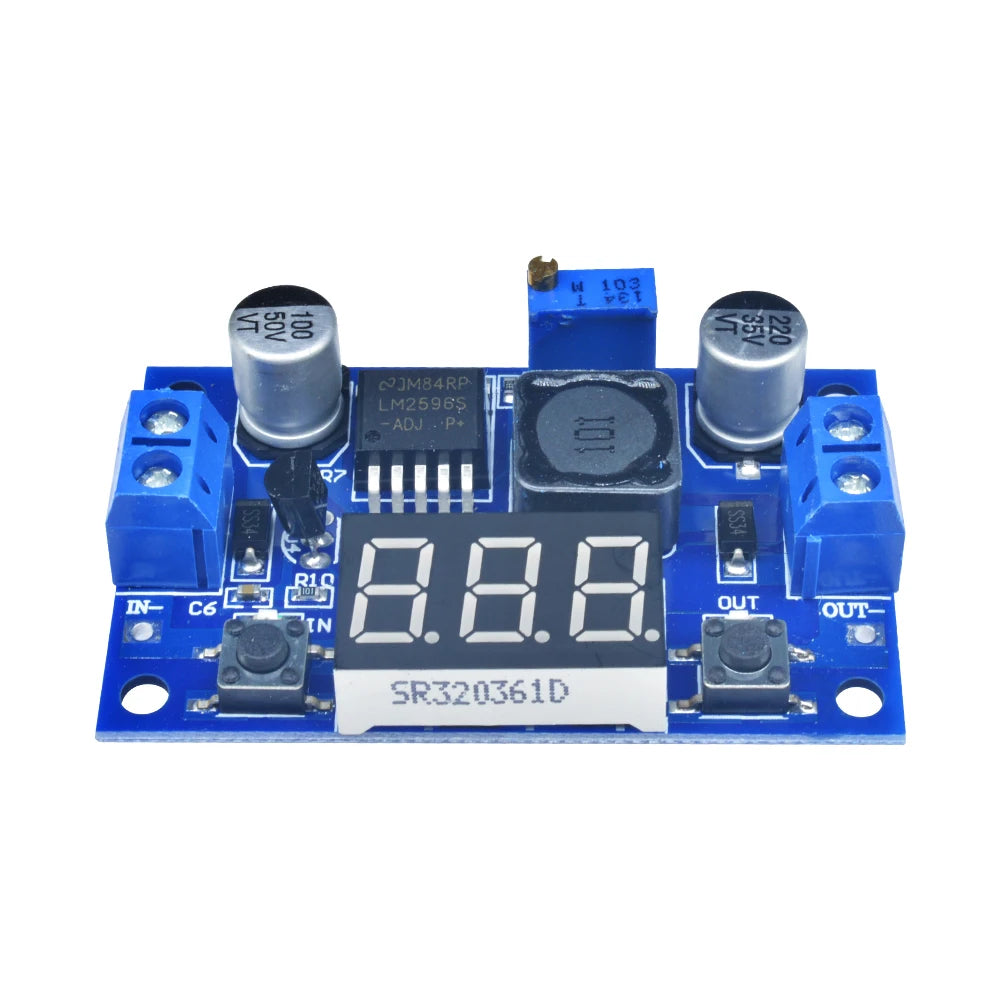

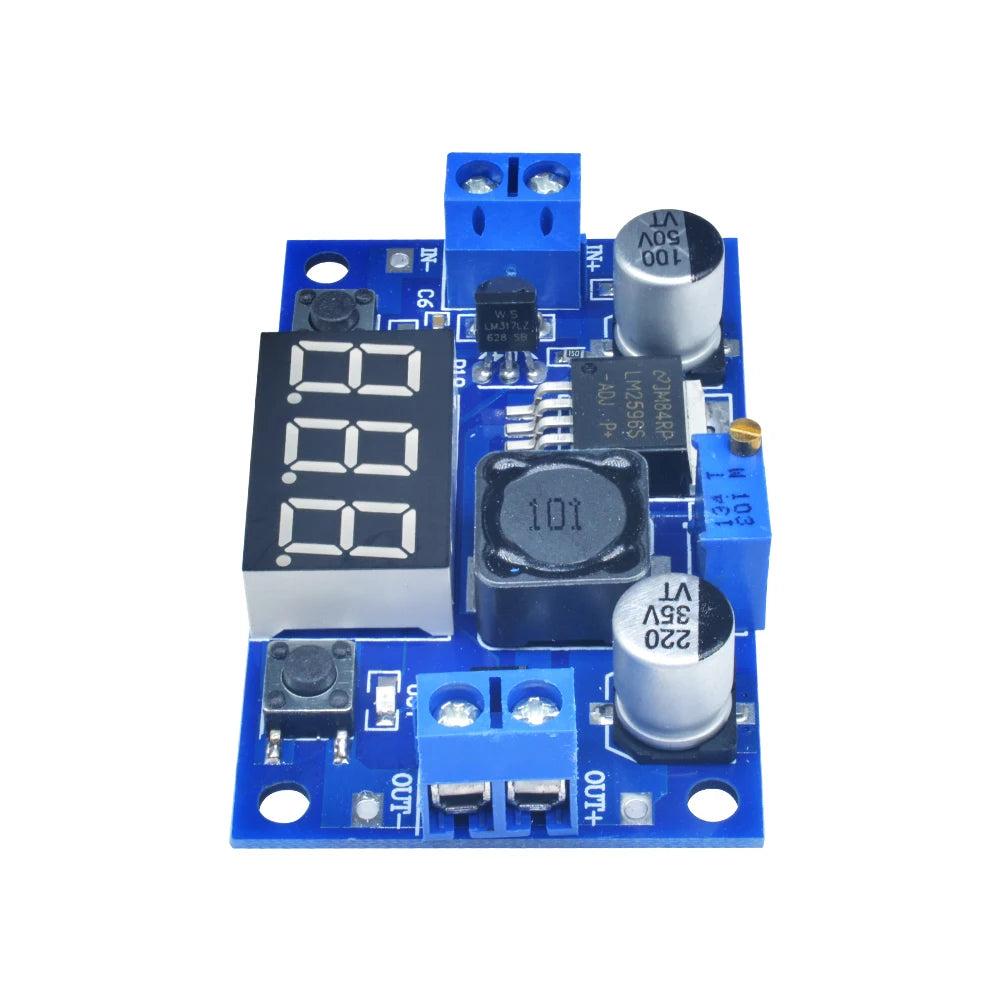

LM2596 DC Step Down Converter Voltage Regulator 4 0 40 1 25-37V Buck

Discover the LM2596 DC Step Down Converter Voltage Regulator 4 0 40 1 25-37V Buck — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Type: Other

is_customized: No

Product Features

Input Voltage Range: DC 4-40V

Output Voltage Range: 1.25-37VDC adjustable

Output Current: 2A

Voltmeter Range: 0-40V, accuracy ±0.1V

Input reverse polarity protection

Built-in output short-circuit protection

Integrated thermal shutdown function

Product Parameters:

Input Voltage Range: DC 4-40V

Output Voltage Range: 1.25-37VDC adjustable

Output Current: 2A

Voltmeter Range: 0～40V, accuracy ±0.1V

Input reverse polarity protection

Built-in output short-circuit protection

Integrated thermal shutdown function

Dimensions: LxWxH=6.1*3.4*1.2cm

LED Digital Voltmeter Tube, Adjustable Accuracy. You can calibrate it to match your adjustable multimeter's precision.

Press the right button to display input or output voltage. When the right “OUT” LED shows output, the left “IN” LED displays input. How to adjust accuracy?

(1) Output Voltage Calibration Procedure

Step 1: Press the right button to illuminate the “OUT” LED, displaying the output voltage value. Hold the right button for over 2 seconds, then release. The voltmeter and “OUT” LED will flash synchronously, entering output voltage calibration mode.

Step 2: Press the right button (at normal speed) to increment the voltage value by one unit; press the left button to decrement by one unit. Since one unit is less than 0.1V, the minimum voltage display is 0.1V. Therefore, press the button 1-5 times consecutively to observe a 0.1V change in the voltmeter. The number of button presses required for a 0.1V change depends on the current displayed voltage—higher voltages require fewer presses.

Step 3: Press and hold the right button for over 2 seconds, then release to exit output voltage calibration mode. All set parameters will automatically save upon release.

(2) Input Voltage Calibration Steps

Step 1: Adjust the right button until the “IN” LED illuminates and the voltmeter displays the input voltage value. Press and hold the right button for over 2 seconds, then release. The voltmeter and “IN” LED will flash synchronously, indicating entry into input voltage calibration mode.

Steps 2 and 3 follow the same procedure as the output voltage calibration method.

Some customers report: “The module cannot be adjusted; the output voltage always equals the input voltage.” If encountering this issue, rotate the potentiometer counterclockwise more than 10 turns to adjust the output voltage. The factory default output voltage is 20V.

Shipping List:

1 x LM2596 Buck Power Supply Module
