M.2 A+E Key to NVMe SSD Adapter PCIe 4.0 Riser Card | 2230–2280

M.2 A+E Key to NVMe SSD PCIe 4.0 Riser Adapter Card

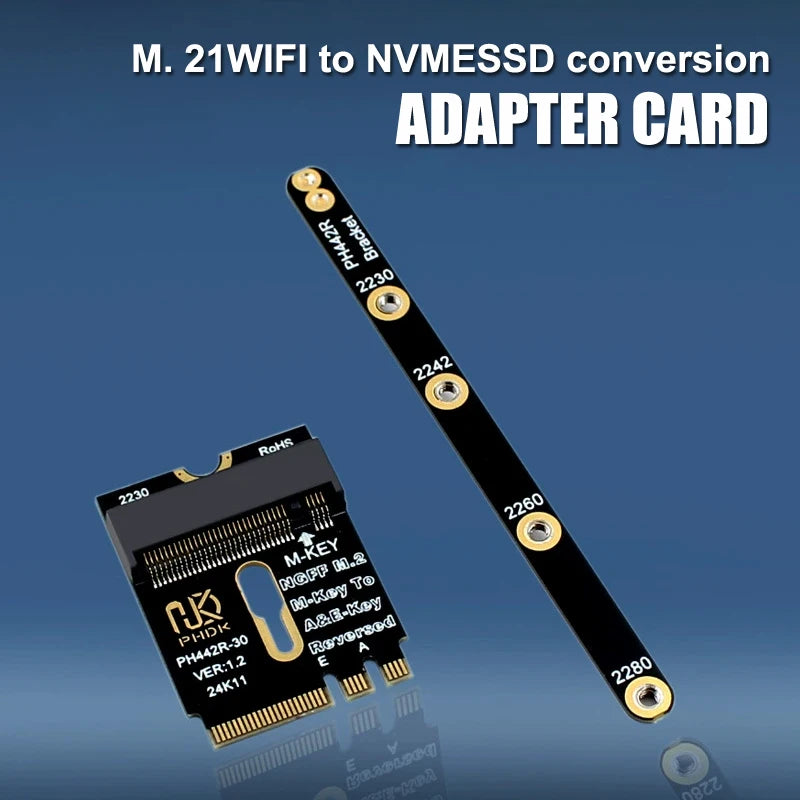

Unlock the full potential of your M.2 A/E Key (Wi-Fi) slot by converting it into a fully functional NVMe M Key SSD interface. This compact PCIe 4.0 riser adapter card lets you install a high-speed NVMe SSD into any motherboard that only has an A+E Key (Wi-Fi) slot — no drivers, no extra power, no hassle.

Key Features

• Universal NVMe Compatibility: Converts a standard M.2 A/E Key slot to an M Key NVMe SSD interface, supporting PCIe-based NVMe SSDs in 2230, 2242, 2260, and 2280 form factors.

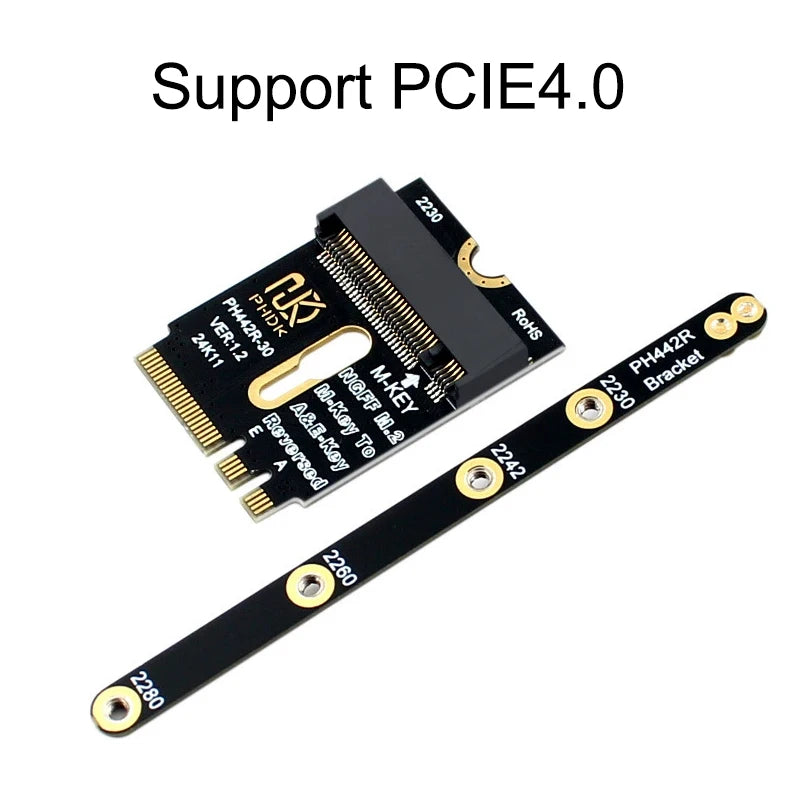

• PCIe 4.0 Ready: Designed to leverage PCIe 4.0 bandwidth for fast, reliable data transfer speeds.

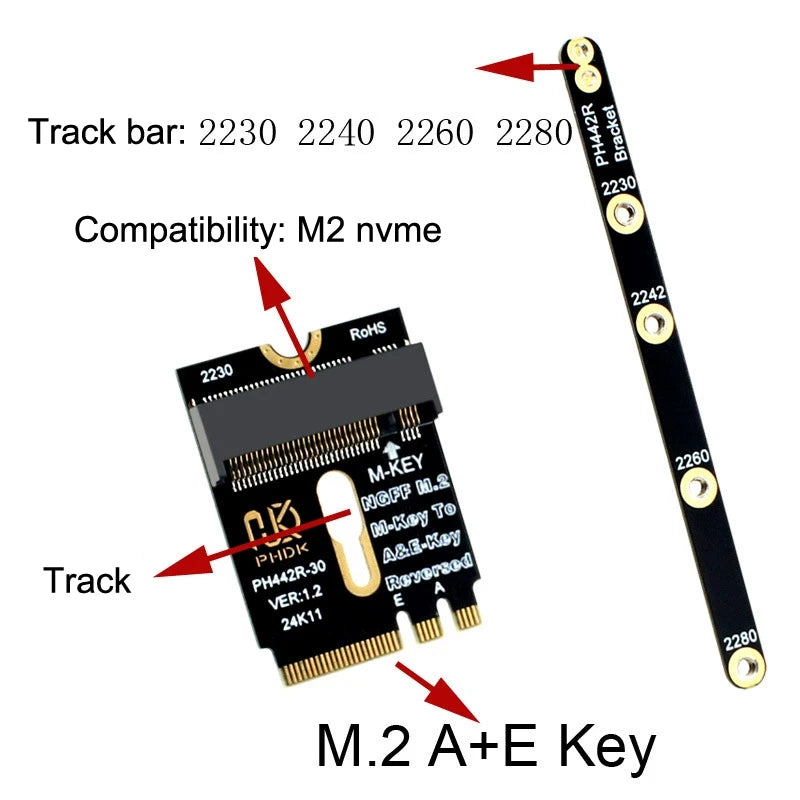

• Flexible SSD Sizing: Integrated mounting rail and bracket positions accommodate all four standard M.2 NVMe lengths — simply snap the bracket to the appropriate position for your drive.
• Plug-and-Play Installation: No drivers required. Compatible with Mac OS, Windows, and Linux operating systems right out of the box.
• No Additional Power Required: Draws all necessary power directly through the M.2 slot — no extra cables or connectors needed.
• One NGFF M.2 M Key Socket: Plus one M.2 A/E Key male connector for seamless interface bridging.

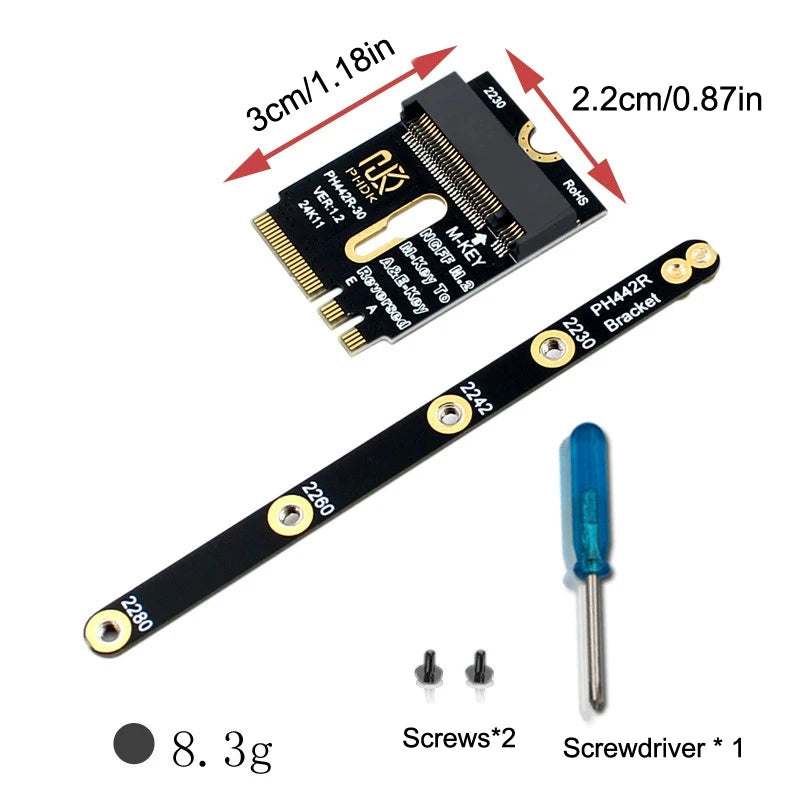

• Compact Board Size: 30mm × 22mm (approx. 1.18" × 0.87") — fits neatly within tight enclosures and mini-ITX builds.
• Complete Kit: Includes adapter card, bracket, and screwdriver — everything you need for a clean installation.

What's in the Box

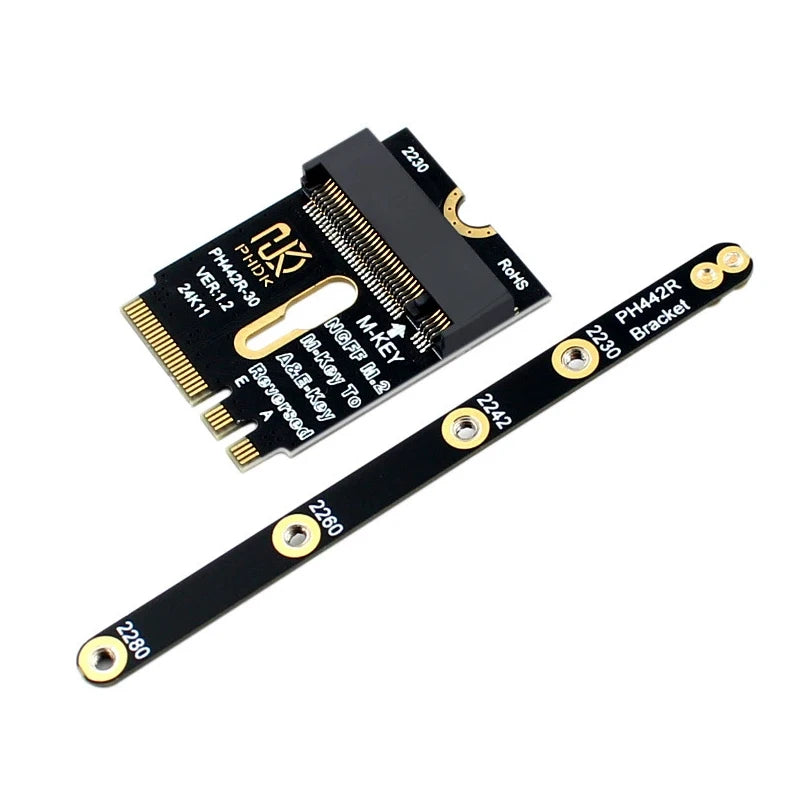

• 1 × M.2 A+E Key to NVMe Adapter Card
• 1 × Mounting Bracket
• 1 × Screwdriver

Important Compatibility Notes

⚠ Supports PCIe-based M Key NVMe SSDs ONLY. This adapter does not support SATA-based B Key SSDs or CNVI Wi-Fi card interfaces. Please verify your SSD type before purchasing.

Specifications

Related Products You May Like

• 0.25mm 1000-Turn Precision Copper Inductor Coil for DIY Circuits
• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 0.38" 1280x720P Micro Display DIY Kit with HDMI Driver Board

For more on M.2 storage standards and interface specifications, see the National Institute of Standards and Technology (NIST) for electronics measurement and standards information.

Frequently Asked Questions

Q: Will this M.2 A+E Key to NVMe adapter work with SATA SSDs?

A: No. This adapter supports PCIe-based NVMe M Key SSDs only. SATA-based B Key SSDs are not compatible. Always check your SSD's interface type (NVMe vs SATA) before purchasing.

Q: Which NVMe SSD form factors does this adapter support?

A: The adapter supports all four standard M.2 NVMe form factors: 2230, 2242, 2260, and 2280. The included mounting bracket can be repositioned to match your specific SSD length.

Q: Do I need to install drivers or connect extra power cables?

A: No drivers are required and no additional power is needed. This is a true plug-and-play adapter compatible with Mac OS, Windows, and Linux — simply insert the adapter into your M.2 A/E slot and install your NVMe SSD.

Q: Can I use this adapter with a CNVI Wi-Fi card slot?

A: No. This adapter is not compatible with CNVI (CNVi) interface slots. It is designed for standard M.2 A/E Key slots only. Please check your motherboard manual to confirm your slot type before ordering.
