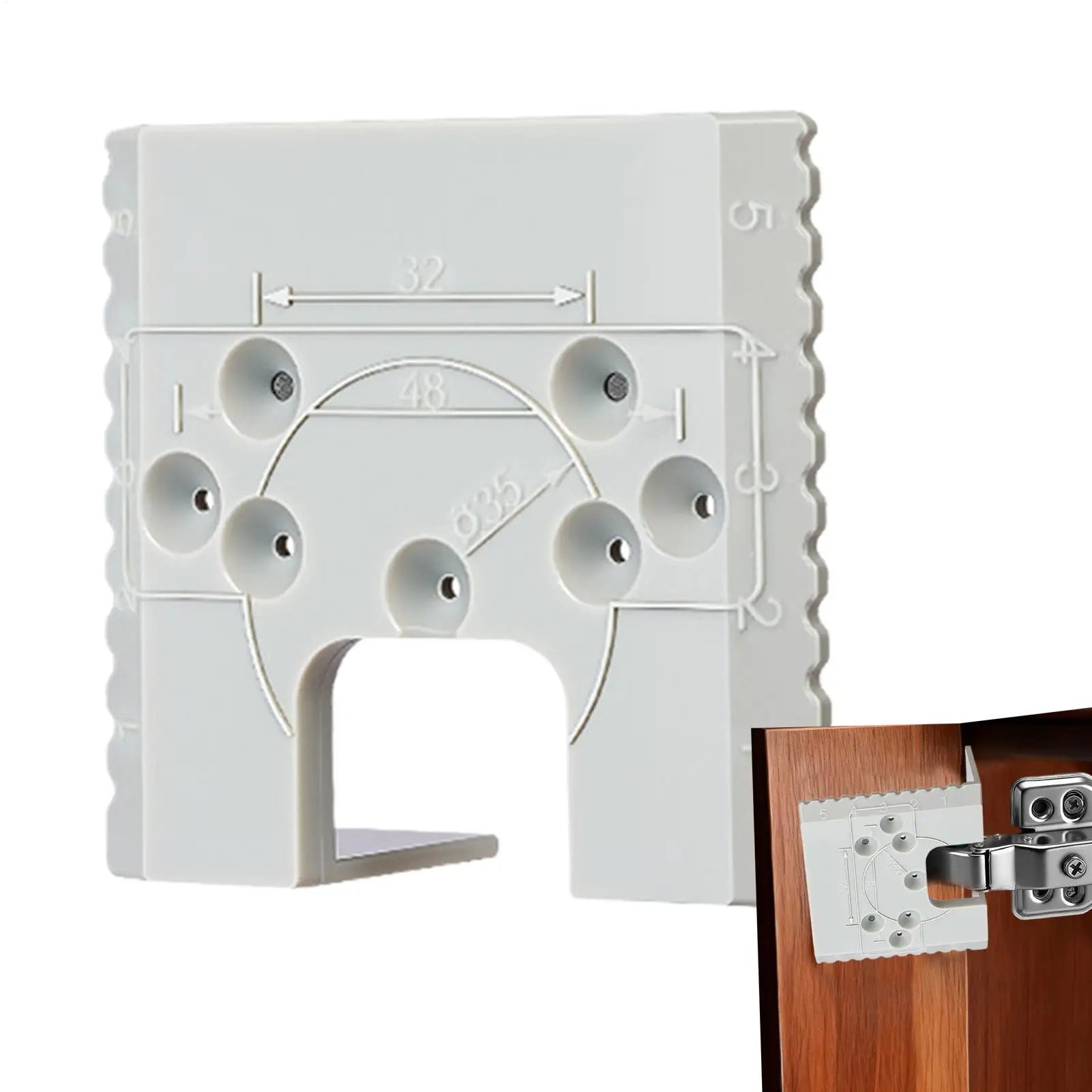

Magnetic Cabinet Door Hinge Jig – Precision Alignment Made Easy

Take the guesswork out of cabinet door installation with this Magnetic Door Hinge Jig. Whether you're a seasoned woodworker or a weekend DIY enthusiast, this compact alignment tool helps you drill perfectly positioned hinge holes every single time — no measuring tape fumbling, no misaligned doors.

Why You'll Love This Hinge Jig

• Strong Magnetic Hold: The built-in magnet grips your drill bit firmly, minimising slipping and keeping every hole precisely on target for fast, accurate hinge installations.

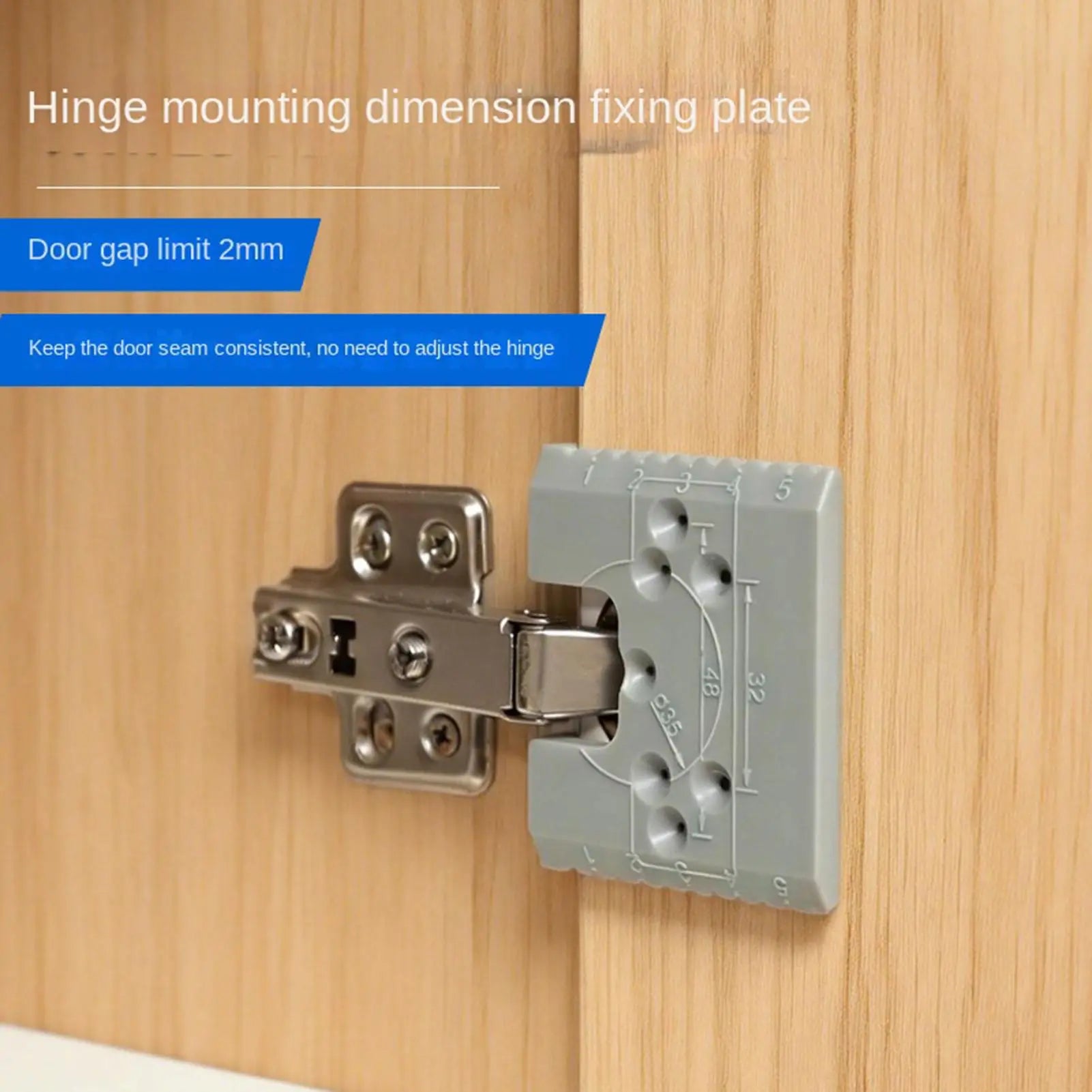

• 2mm Precision Groove Design: Standardises mechanical alignment so every cabinet door hinge sits flush and consistent — ideal for projects where a professional finish matters.
• Perfect Drill Guidance: Guides your drill bit into exactly the right position for hinge hole milling, eliminating the need for repeated measurements or recalibration.
• Impact-Resistant ABS Construction: Built from durable ABS plastic that handles repeated use without cracking or warping, making it a reliable addition to your toolkit for years to come.
• Versatile & Adaptable: Compatible with a range of hinge styles, making it equally handy for cabinet door fitting, home repairs, and craft woodworking projects.

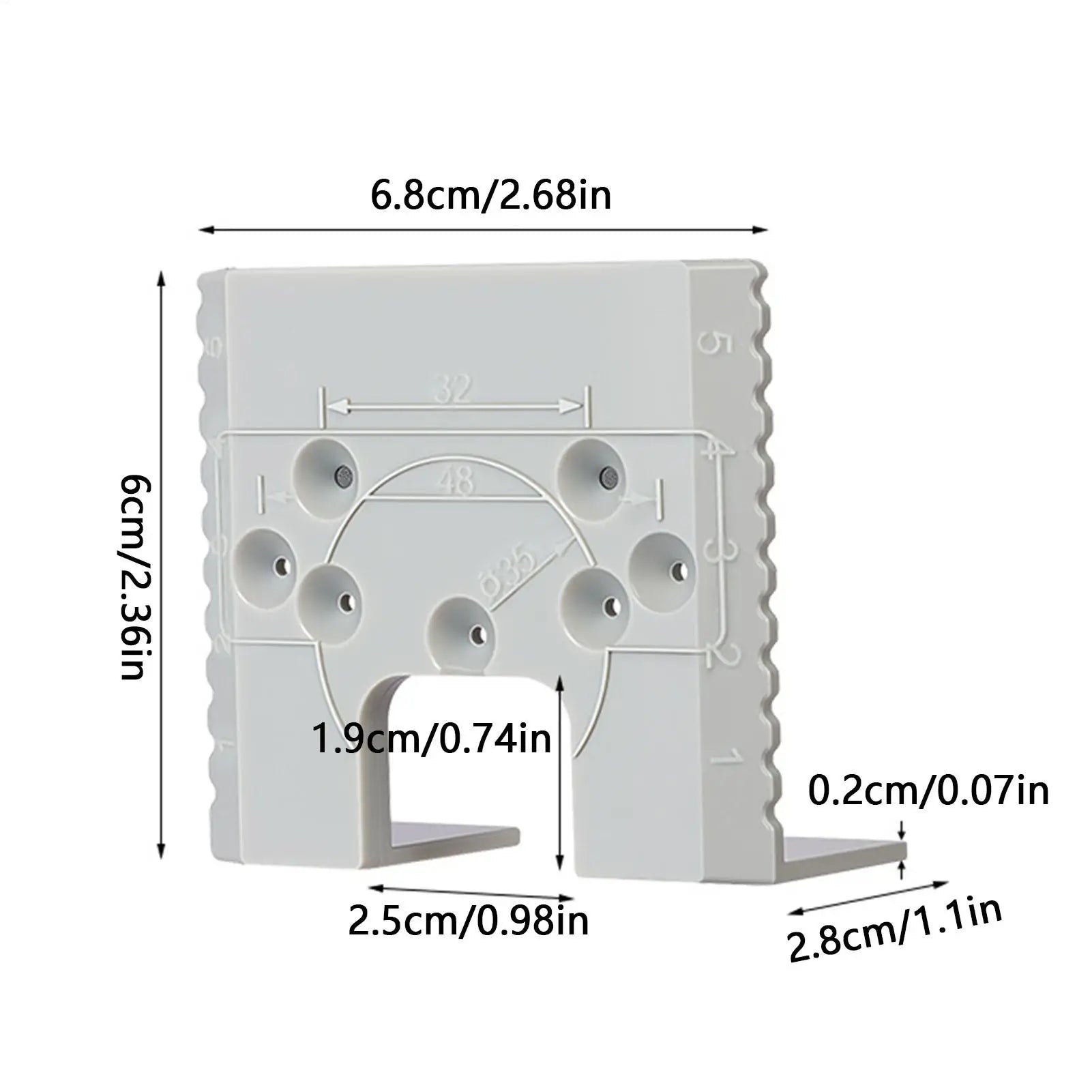

• Compact & Lightweight: At just 25g and roughly the size of your palm, it stows easily in any toolbox or apron pocket.

Specifications

Package Contents

• 1 × Magnetic Door Hinge Jig

Note: Slight colour variations may occur due to screen settings and lighting. Dimensions are approximate and may vary slightly due to manual measurement.

Related Products You May Like

• 0.5" Ultra Quiet Nylon Drawer Pulley Mini Cabinet Caster Wheel
• 1.25" Silent Furniture Caster Wheels Set of 4 – Tables & Shelves
• 0–300mm PCB Holder Stand | 360° Rotation Soldering Clamp

Further Reading

For safe tool-use practices and home workshop safety tips, visit the U.S. Consumer Product Safety Commission (CPSC).

Learn more: Hinge

Frequently Asked Questions

Q: What type of hinges is this magnetic hinge jig compatible with?

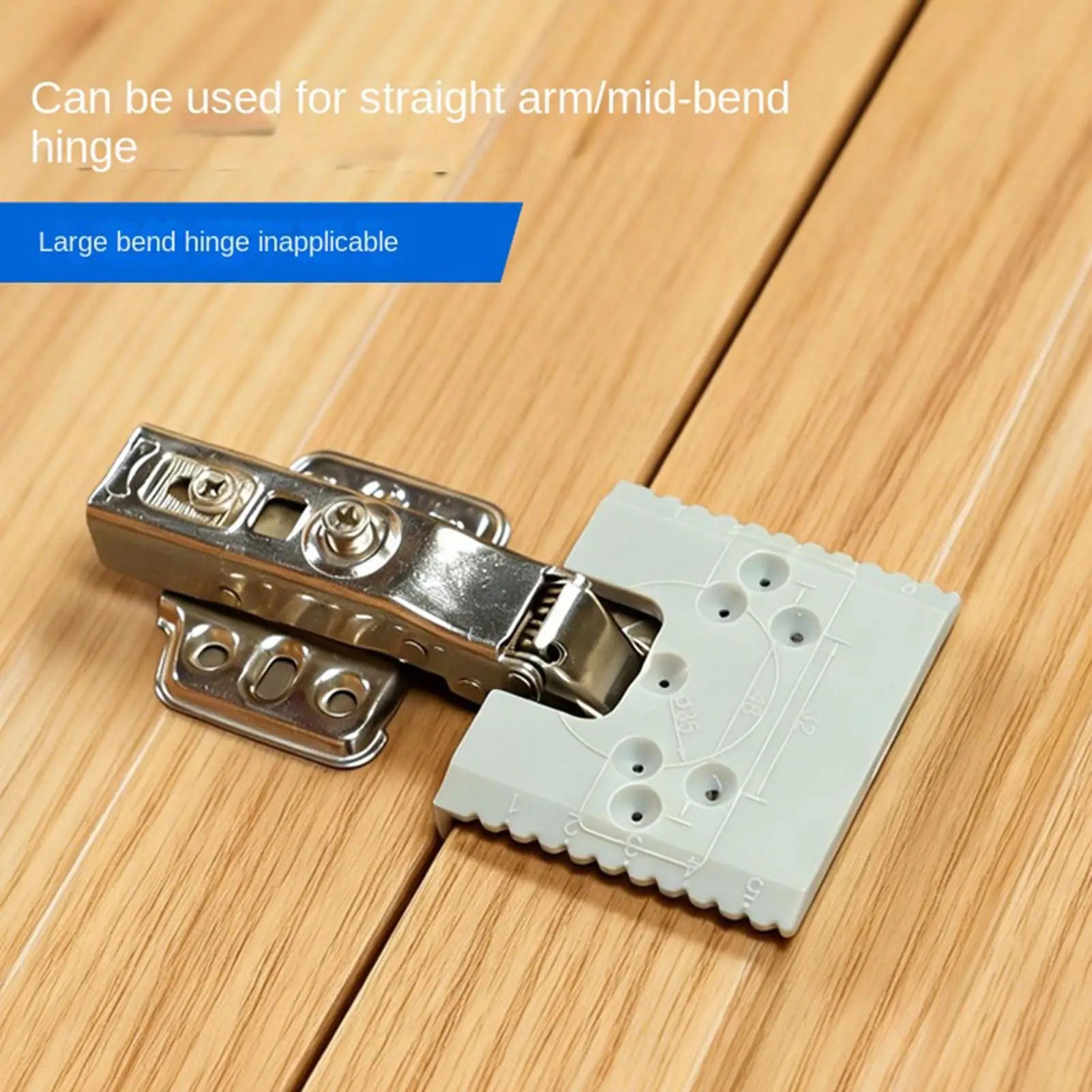

A: This door hinge jig is designed to accommodate a wide variety of standard cabinet door hinges. Its adaptable groove design supports common hinge styles used in kitchen cabinets, wardrobe doors, and furniture panels, making it a versatile tool for most home woodworking and cabinetry projects.

Q: Do I need any special drill bits to use this hinge drilling jig?

A: No special drill bits are required. The magnetic holding system is designed to secure standard drill bits in place during use. The jig works with typical wood drill bits suited for hinge hole milling, which are widely available at any hardware store.

Q: Is this hinge alignment tool suitable for beginners?

A: Absolutely. The magnetic door hinge jig is specifically designed to simplify cabinet door installation for users of all skill levels. The built-in scale and 2mm precision groove remove the need for complex measurements, helping beginners achieve professional-looking results with minimal effort.
