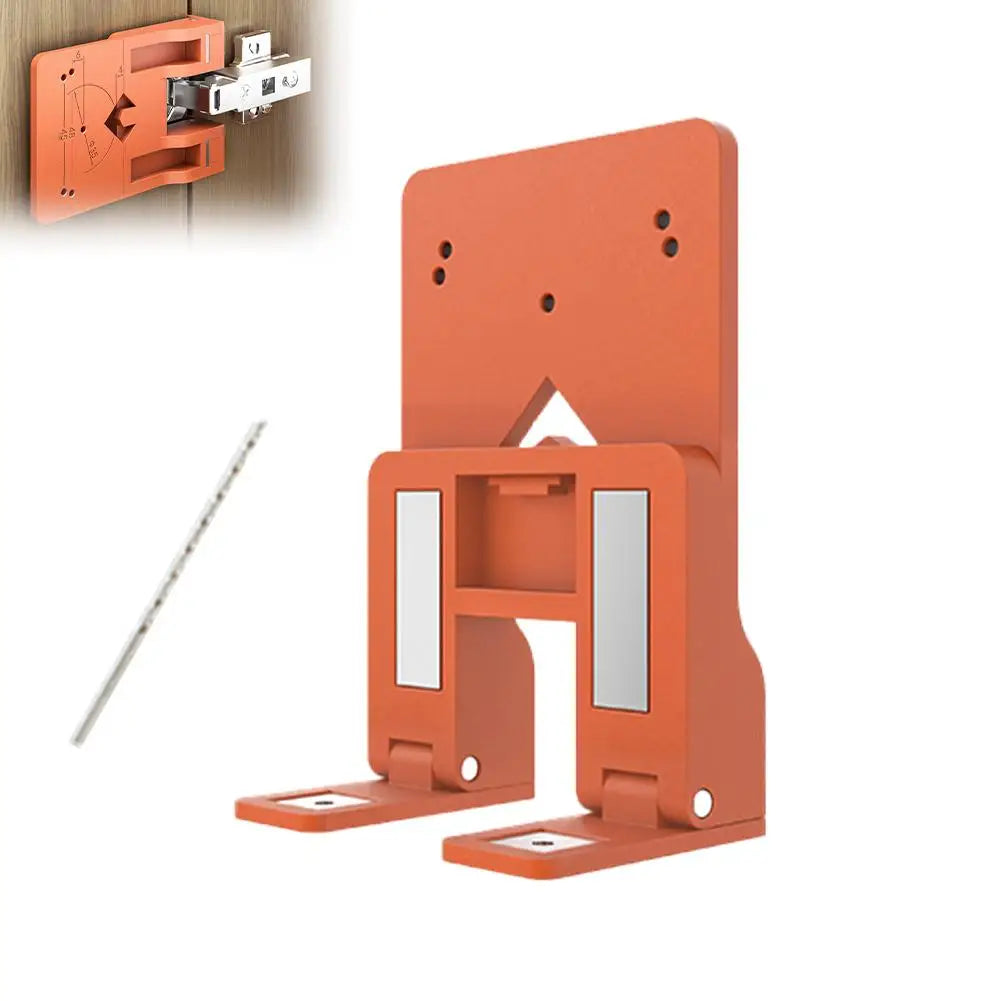

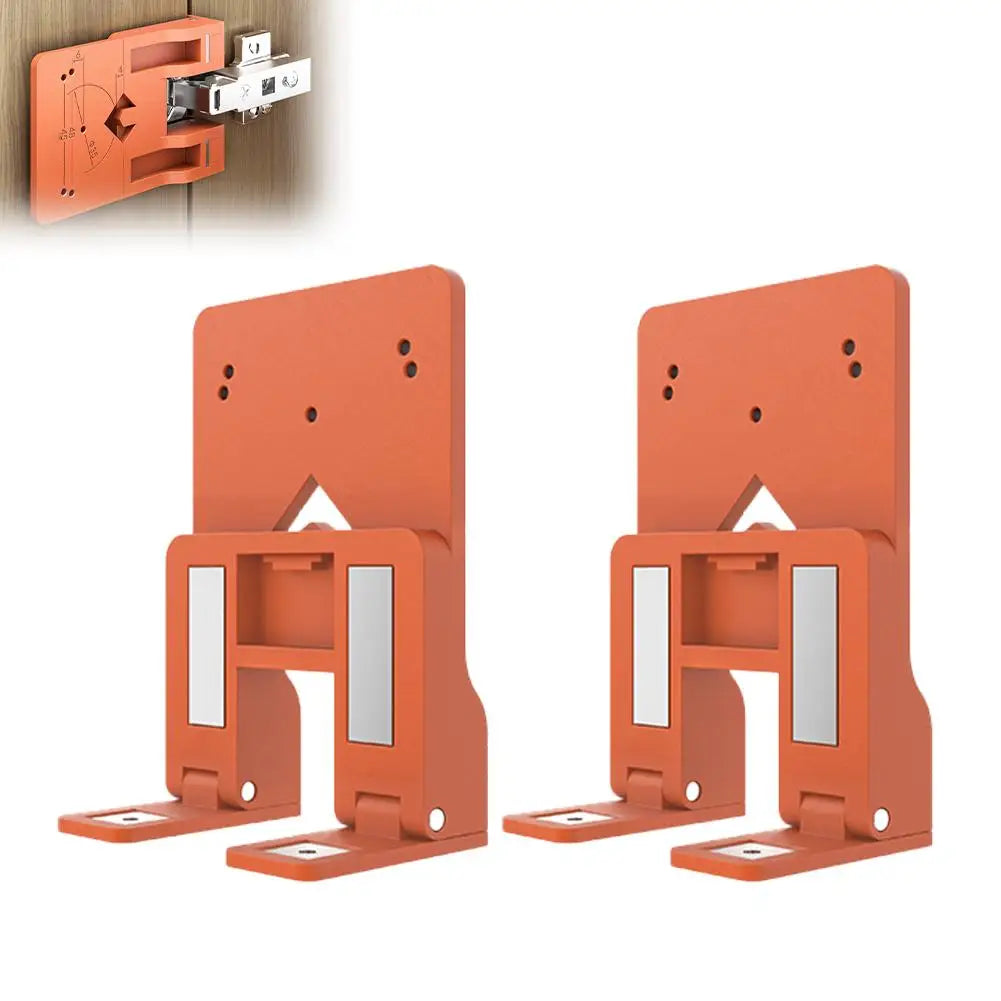

Magnetic Cabinet Hinge Jig – 35mm Woodworking Install Tool

Install Cabinet Hinges Perfectly — Every Single Time

Stop guessing and start drilling with confidence. The KITPIPI Magnetic Fixing Plate Hinge Jig is the compact woodworking auxiliary tool that takes the frustration out of cabinet door hinge installation. Whether you're a seasoned carpenter or a weekend DIY enthusiast, this clever magnetic fixator ensures consistent, professional-grade results with every use.

Made in Mainland China.

Why You'll Love This Hinge Jig

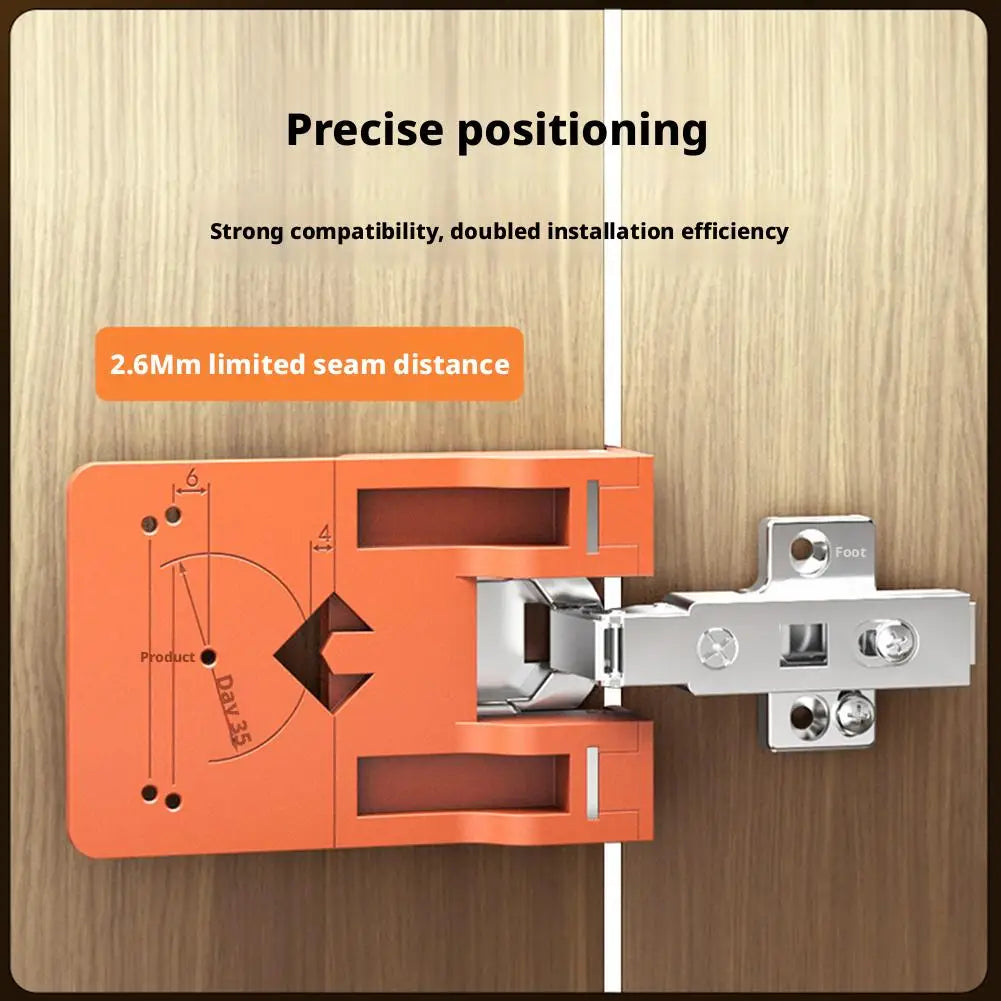

• Precision 2.6mm Gap Alignment: Engineered specifically to maintain a clean, consistent 2.6mm cabinet door gap — no measuring tape guesswork required.

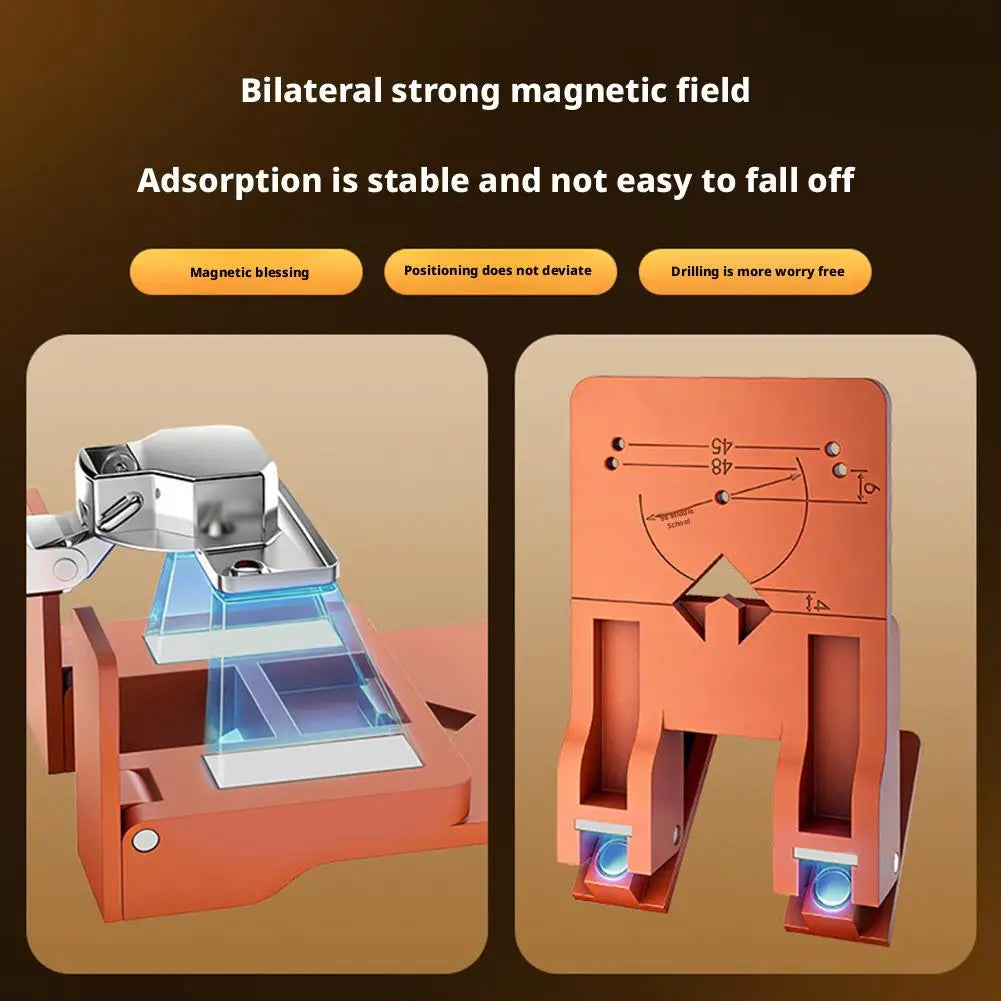

• Double-Sided Magnetic Hold: Powerful built-in magnets grip your workpiece firmly from both sides, preventing any shifting or slipping during drilling for spot-on hole positioning every time.
• Fits 35mm Standard Hinges: Compatible with the most common 35mm cup hinges, including full overlay (straight arm) and half overlay (mid-bend) styles — one jig, multiple applications.

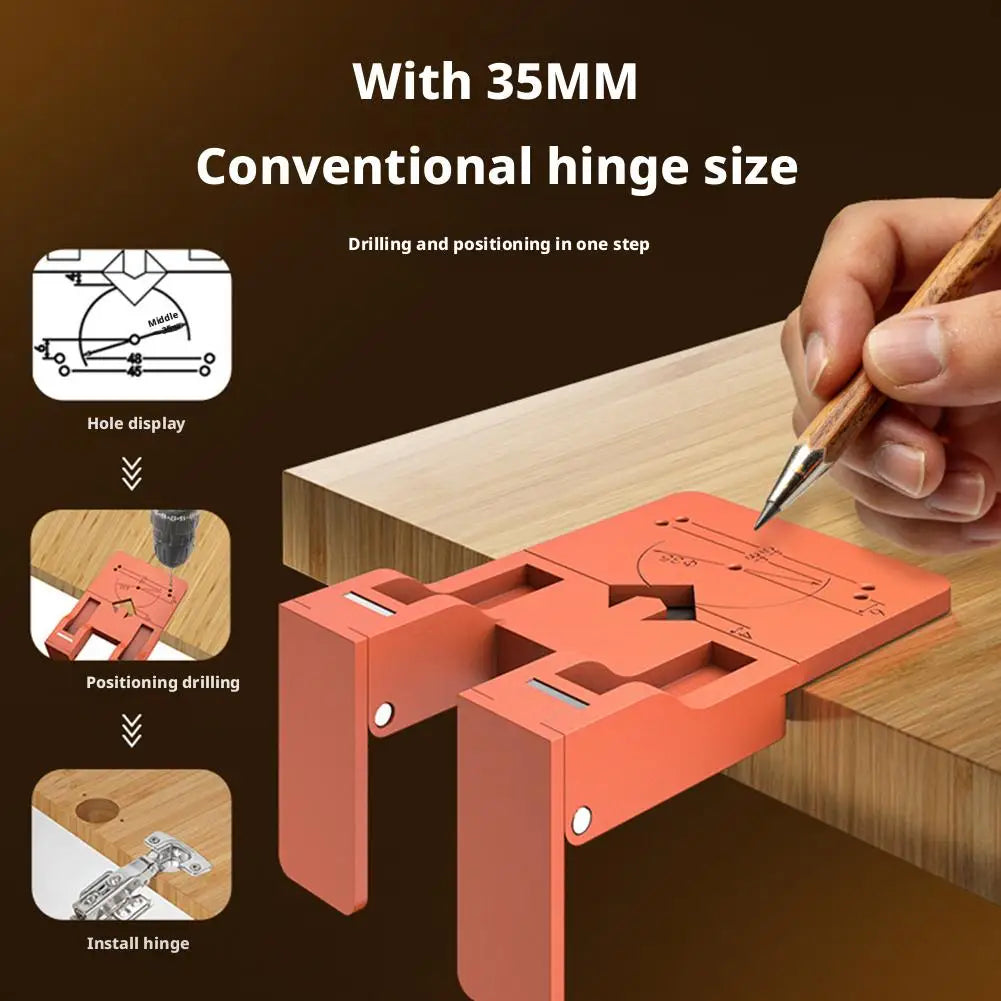

• One-Step Drilling & Positioning: Precise slotting combined with the magnetic hold lets you drill and position in a single step, cutting your installation time dramatically.
• Durable ABS Construction: Crafted from high-quality ABS plastic for a lightweight yet robust tool that holds its shape and accuracy job after job.
• Compact & Portable: At just 6.6 × 4.41 × 9.97 cm (2.6 × 1.73 × 3.92 in), it slips easily into any toolbox or apron pocket.

Specifications

What's in the Box

• 1× Magnetic Fixing Plate Hinge Jig

Perfect For

• Kitchen cabinet installations and refits
• Wardrobe and bedroom furniture projects
• Custom woodworking builds
• Furniture repair and hinge replacement
• DIY home improvement projects

Related Products You May Like

• 10 Dual-End Temporary Tattoo Markers – Body & Face Paint Pens
• 1/2" DN15 Adjustable Garden Sprinkler Head | Lawn Irrigation

For general woodworking safety tips and best practices, visit the OSHA Woodworking Safety Guidelines.

Frequently Asked Questions

Q: What size hinge cup does this magnetic hinge jig support?

A: This hinge installation jig is designed for the standard 35mm hinge cup size, which is the most common size used in kitchen cabinets, wardrobes, and furniture. It supports both full overlay (straight arm) and half overlay (mid-bend) hinge types.

Q: How do the double-sided magnets help with hinge installation?

A: The powerful double-sided magnets clamp the fixing plate securely to your workpiece from both sides, holding it firmly in place while you drill. This eliminates movement or slipping, ensuring your hinge holes are drilled in exactly the right position every time — no clamps needed.

Q: Is this hinge jig suitable for beginners?

A: Absolutely! The KITPIPI Magnetic Fixing Plate is specifically designed to simplify cabinet hinge installation for both professionals and DIY beginners. The intuitive one-step drilling and positioning system means you don't need advanced woodworking skills to achieve clean, professional results.

Q: What gap does this jig set between the cabinet door and the frame?

A: This hinge jig is engineered to maintain a precise and consistent 2.6mm gap between the cabinet door and the frame, giving your cabinets a clean, uniform, and aesthetically pleasing finish.
