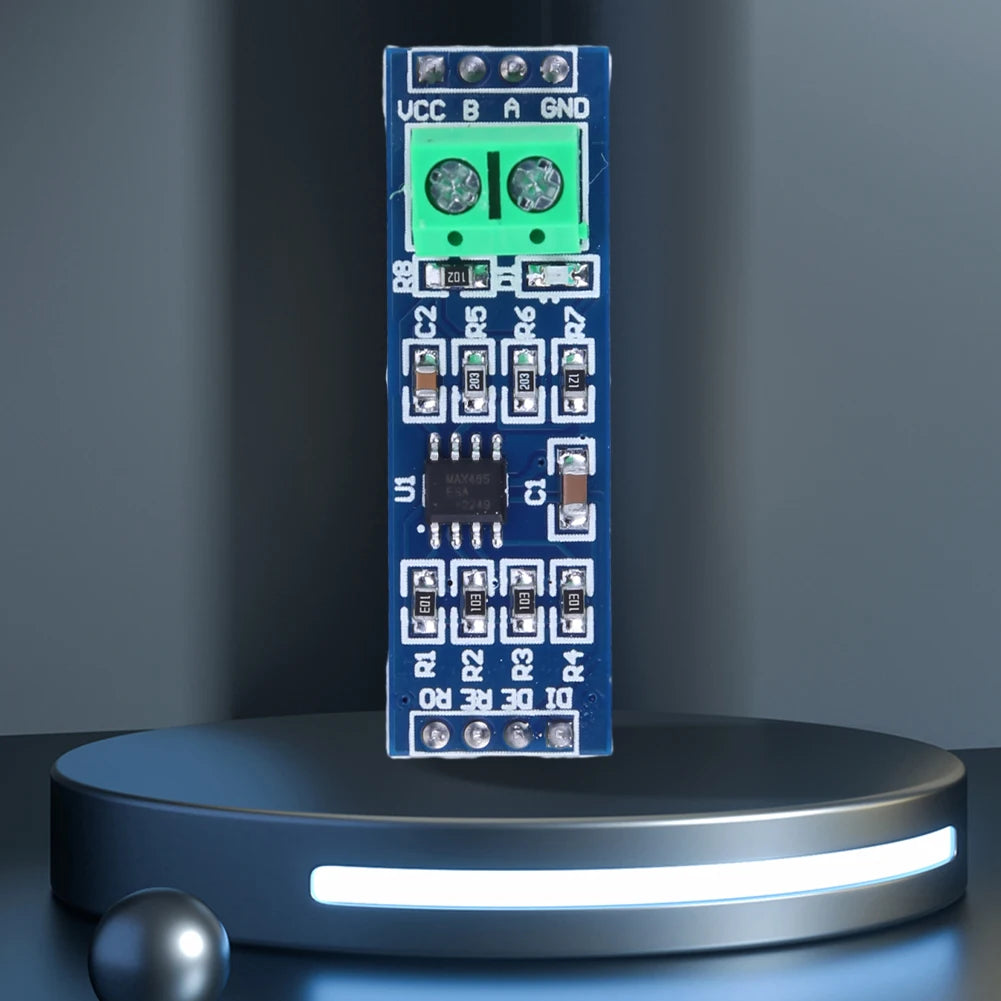

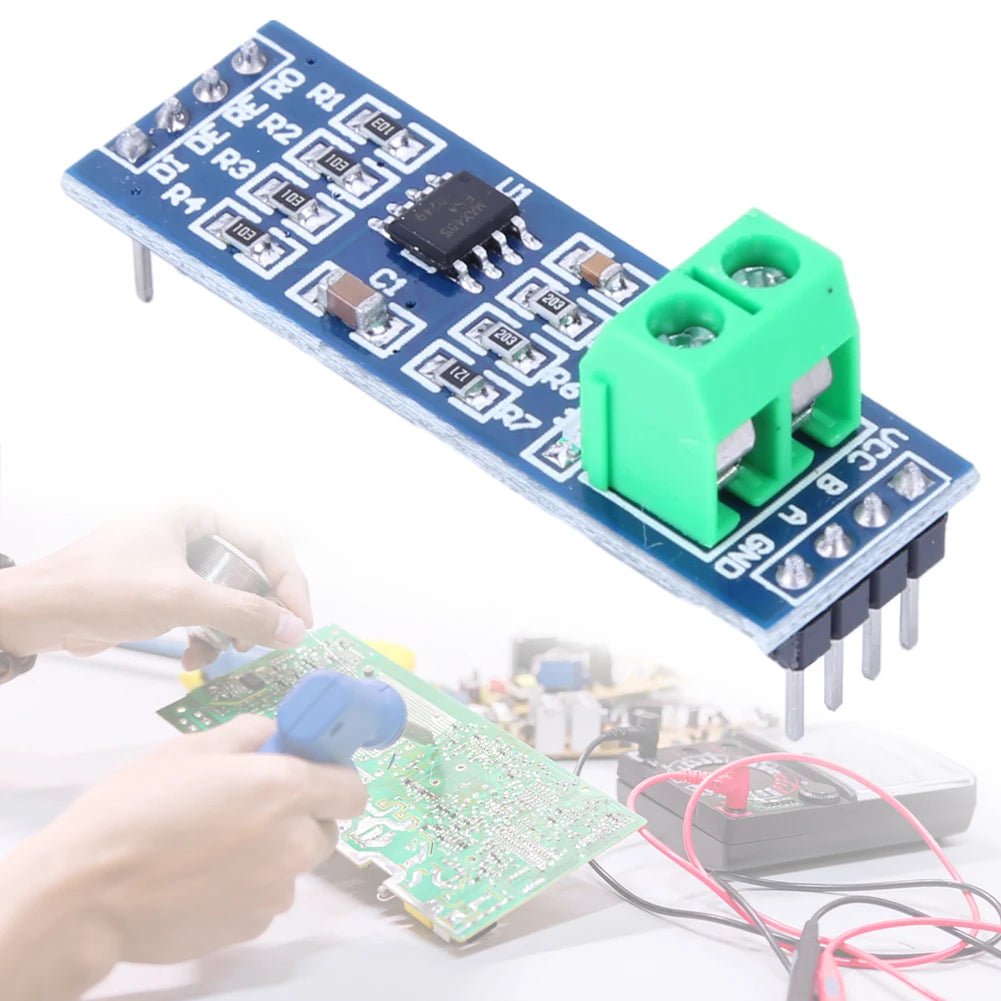

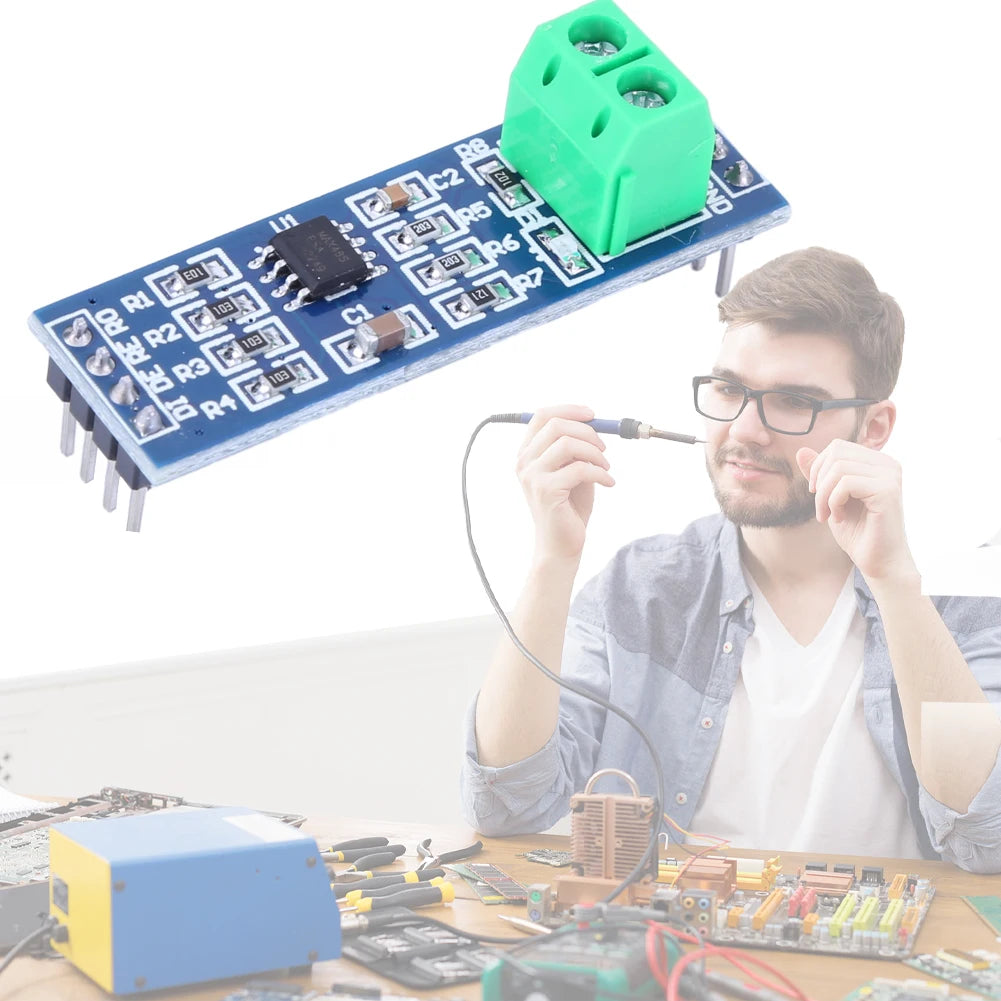

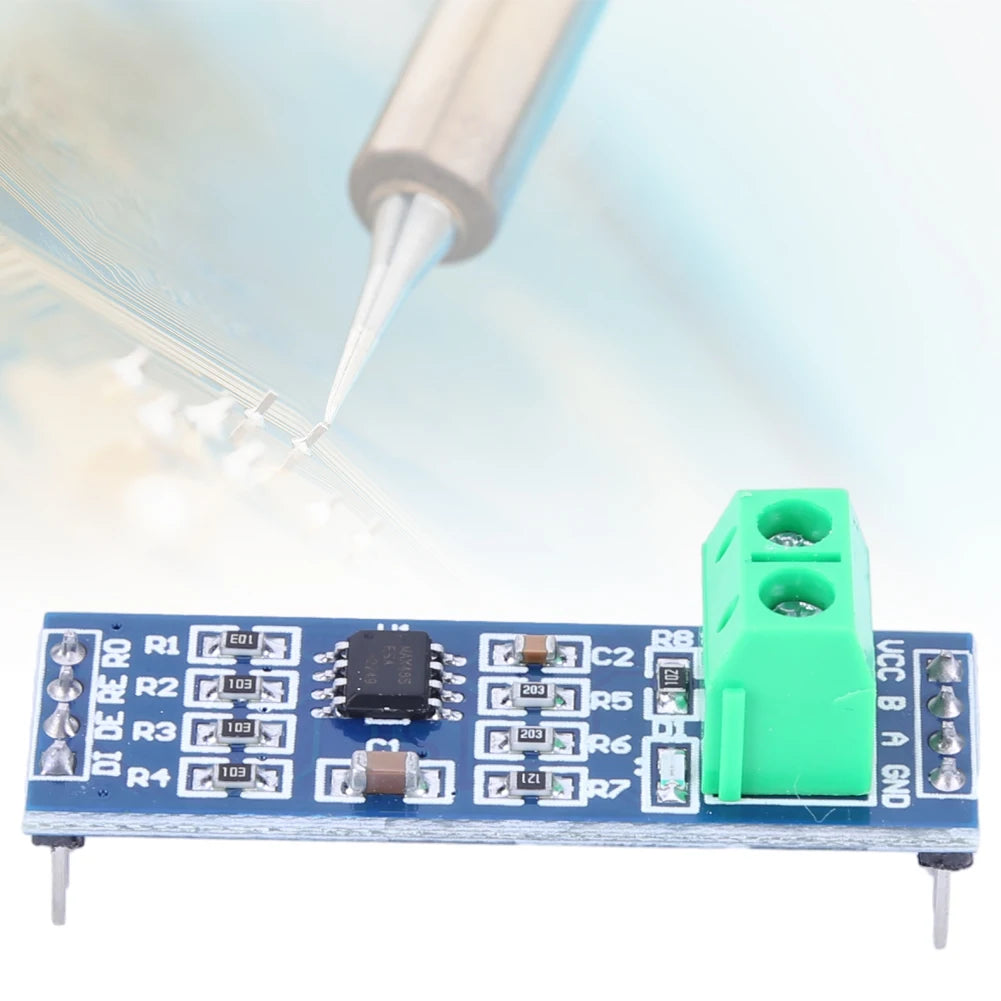

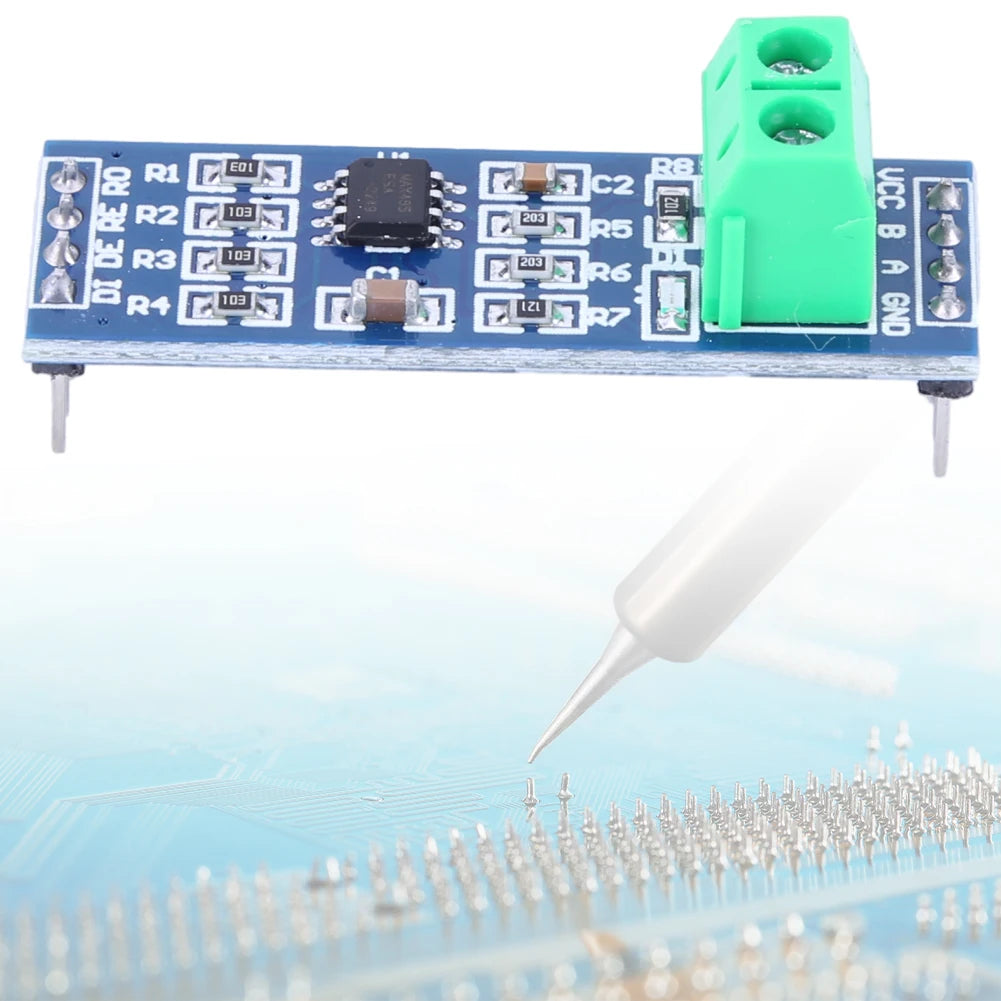

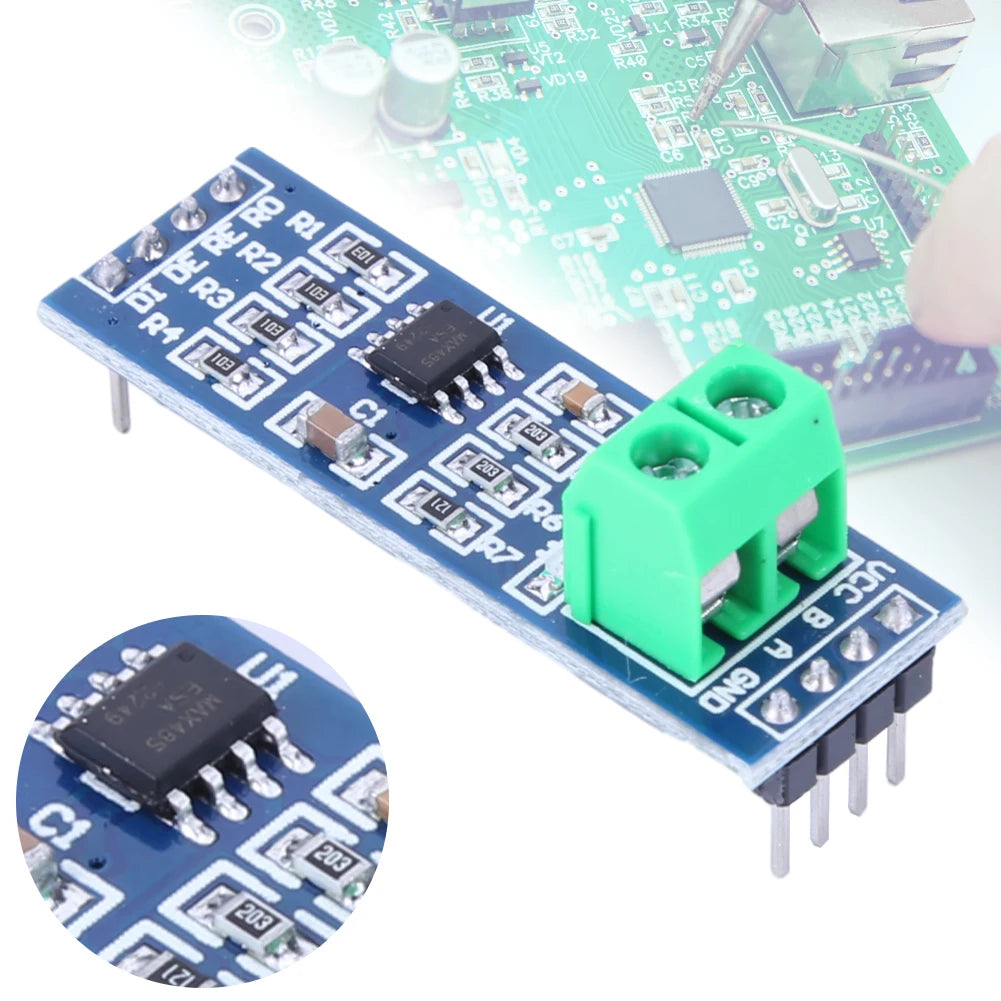

MAX485 TTL to RS485 Converter Module for Arduino & MCU

MAX485 RS-485 TTL to RS485 Converter Module – Reliable Long-Distance Communication for Arduino & MCU

Upgrade your microcontroller projects with the MAX485 RS-485 TTL to RS485 Converter Module. Built around the trusted MAX485CSA chip, this compact module delivers stable, noise-resistant serial communication over distances up to 1,200 meters. Whether you're building industrial automation systems, sensor networks, or Arduino-based projects, this module makes wiring and integration effortless.

Made in Mainland China.

Key Features

• High Interference Resistance: Built-in interference suppression circuitry and differential transmission lines protect your data from external noise, ensuring clean and accurate signal conversion.
• Long-Distance Communication: Supports multi-node RS-485 communication with a maximum transmission distance of over 1,200 meters — ideal for large-scale deployments.
• Fast Data Transfer Rates: Handles high-speed data transmission to meet the demands of time-sensitive applications and real-time monitoring systems.
• Low Power Consumption: Energy-efficient design reduces operating temperature and extends the lifespan of your system components.
• Easy to Use: Clear, straightforward pin layout with a 5.08mm / 0.2-inch pitch 2P terminal block for convenient RS-485 wiring. Simply connect the pins and you're ready to go.
• Full Pin Access: All MAX485 chip pins are exposed, giving you complete control via your microcontroller for flexible configuration.

Specifications

• Chip: MAX485CSA — Low-power, slew-rate-limited RS-485/RS-422 transceiver
• Operating Voltage: 5V TTL
• Max Transmission Distance: 1,200+ meters
• Terminal Block Pitch: 5.08mm / 0.2 in (2P)
• Module Dimensions: 44 × 14 × 20 mm (1.73 × 0.55 × 0.79 in)
• Condition: Brand New
• High-Concern Chemicals: None

What's in the Box

• 1 × MAX485 RS-485 TTL to RS485 Converter Module

Compatible With

Arduino UNO, Arduino Mega, Arduino Nano, Raspberry Pi, ESP32, ESP8266, STM32, and other 5V TTL microcontrollers and development boards.

Related Products You May Like

• 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection
• 140W Auto-Eject USB-C Cable – Anti-Overcharge Battery Guard

Learn More About RS-485 Communication Standards

For an overview of serial communication interfaces and standards, visit the National Institute of Standards and Technology (NIST).

Frequently Asked Questions

Q: What is the MAX485 module used for in Arduino projects?

A: The MAX485 TTL to RS485 converter module is used to enable RS-485 serial communication between an Arduino or other microcontroller (MCU) and RS-485-compatible devices. It converts the TTL-level signals from your MCU into differential RS-485 signals, allowing reliable data transmission over long distances (up to 1,200 meters) and in electrically noisy environments.

Q: What operating voltage does the MAX485 module require?

A: The MAX485 RS-485 converter module operates at 5V TTL, making it directly compatible with Arduino UNO, Arduino Mega, and most other standard microcontroller development boards.

Q: How many devices can be connected on an RS-485 network using this module?

A: The RS-485 protocol supported by this MAX485 module allows for multi-node communication, meaning multiple devices can be connected on the same bus. The MAX485CSA chip supports up to 32 nodes on a single RS-485 network, making it suitable for building distributed sensor systems or industrial communication networks.

Q: Is the MAX485 module compatible with 3.3V microcontrollers like ESP32 or Raspberry Pi?

A: This module is rated for 5V TTL operation. For use with 3.3V microcontrollers such as ESP32 or Raspberry Pi, a logic level converter is recommended to avoid potential damage to the lower-voltage GPIO pins.
