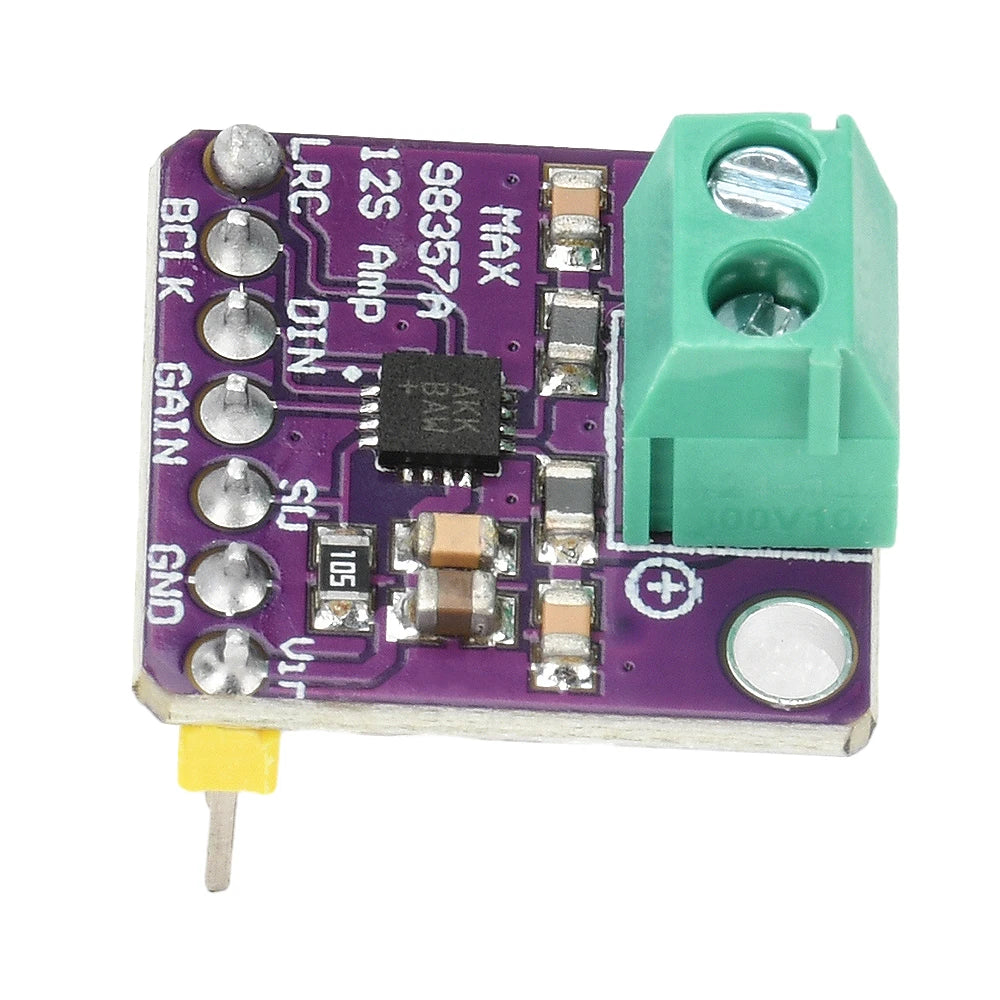

MAX98357 I2S BGA Audio Amplifier Module Amplifiers Filterless Class D

Discover the MAX98357 I2S BGA Audio Amplifier Module Amplifiers Filterless Class D — a standout vitamins & supplements pick featuring durable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Electronic: No

Semi-finishedproduct: No

Features:

1. Made from high-quality materials, durable and practical

2. To achieve superior sound quality, the device features a digital input with high noise immunity and a high jitter tolerance (at least 8 dB better than standard solutions)

3. Stable performance, delivering Class AB sound quality with the efficiency of a Class D amplifier

4. The product also offers excellent electromagnetic interference (EMI) suppression, allowing for long speaker cable connections without the need for external filtering

5. Exceptional high-fidelity sound quality, suitable for a wide range of product applications

Specifications:

01 Output Power:

3.2W at 4Ω, THD 10%

1.8W at 8Ω, THD 10%

I2S Sampling Rate: 8 kHz to 96 kHz

Class D Amplifier Gain Options: 3 dB, 6 dB, 9 dB, 12 dB, 15 dB

No Master Clock (MCLK) Required

Plug-and-Play: Supports 35 different clock types and 128 digital audio formats with automatic configuration using a single power supply

Compatible with Raspberry Pi, Arduino, ESP32, and other microcontrollers or development board systems with I2S audio output

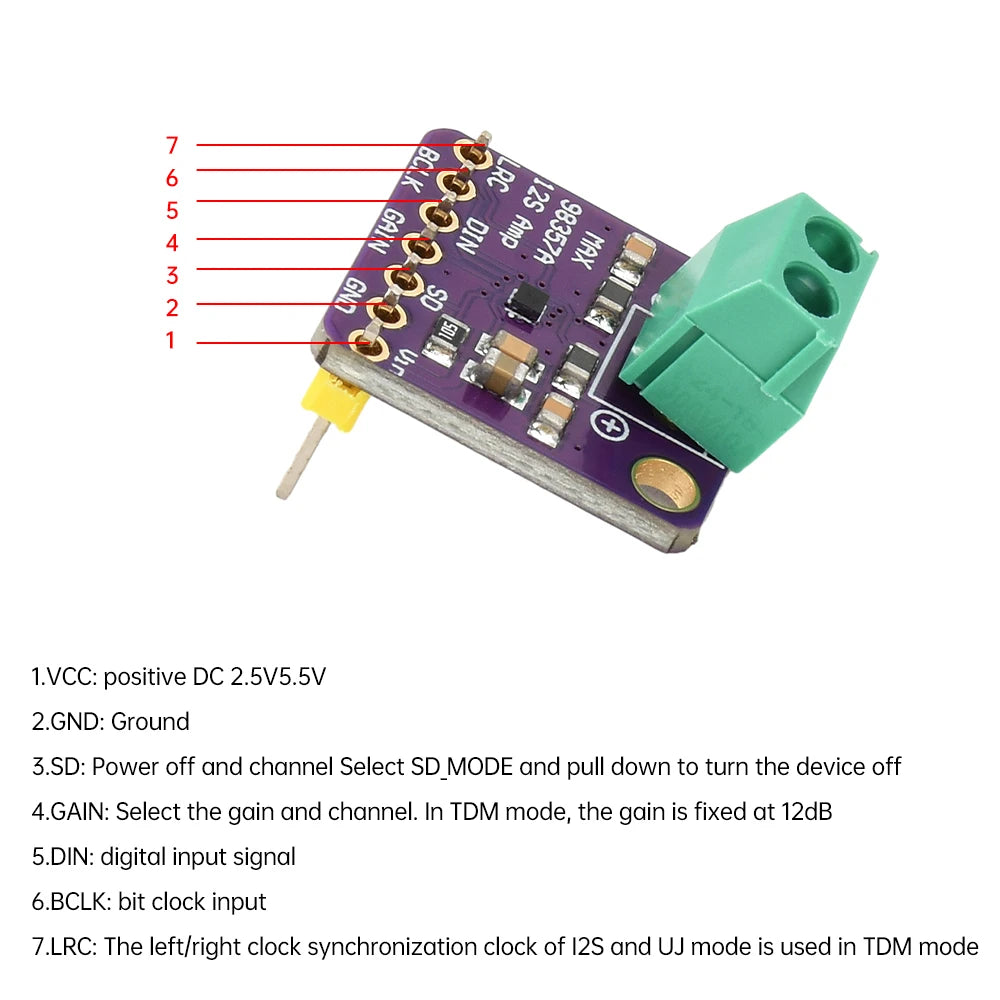

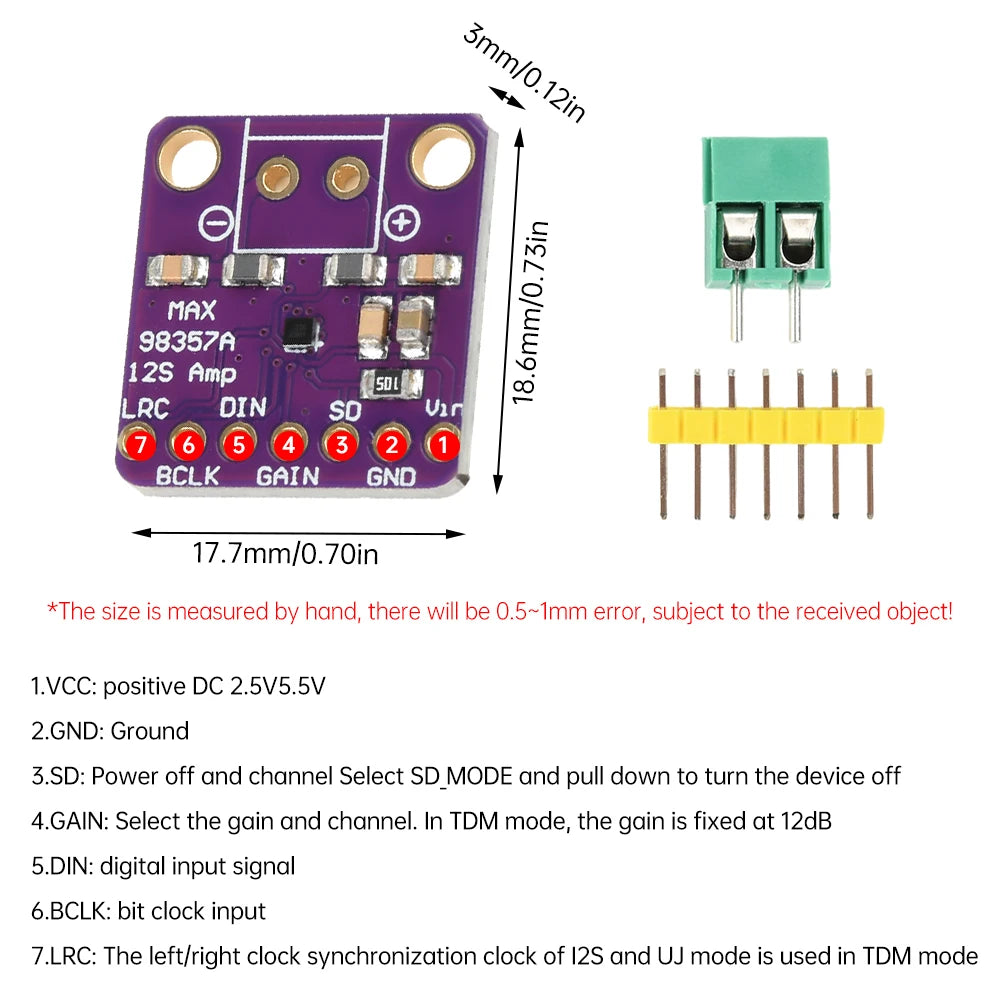

Pin Description:

VCC: Power supply positive terminal, DC 2.5V–5.5V

GND: Ground

SD: Power-off and channel selection. Pull SD_MODE low to put the device into shutdown mode

GAIN: Gain and channel selection. In TDM mode, gain is fixed at 12dB

DIN: Digital input signal

BCLK: Bit clock input

LRC: Left/right clock for 12S and UJ modes. Synchronization clock for TDM mode

Package Contents:

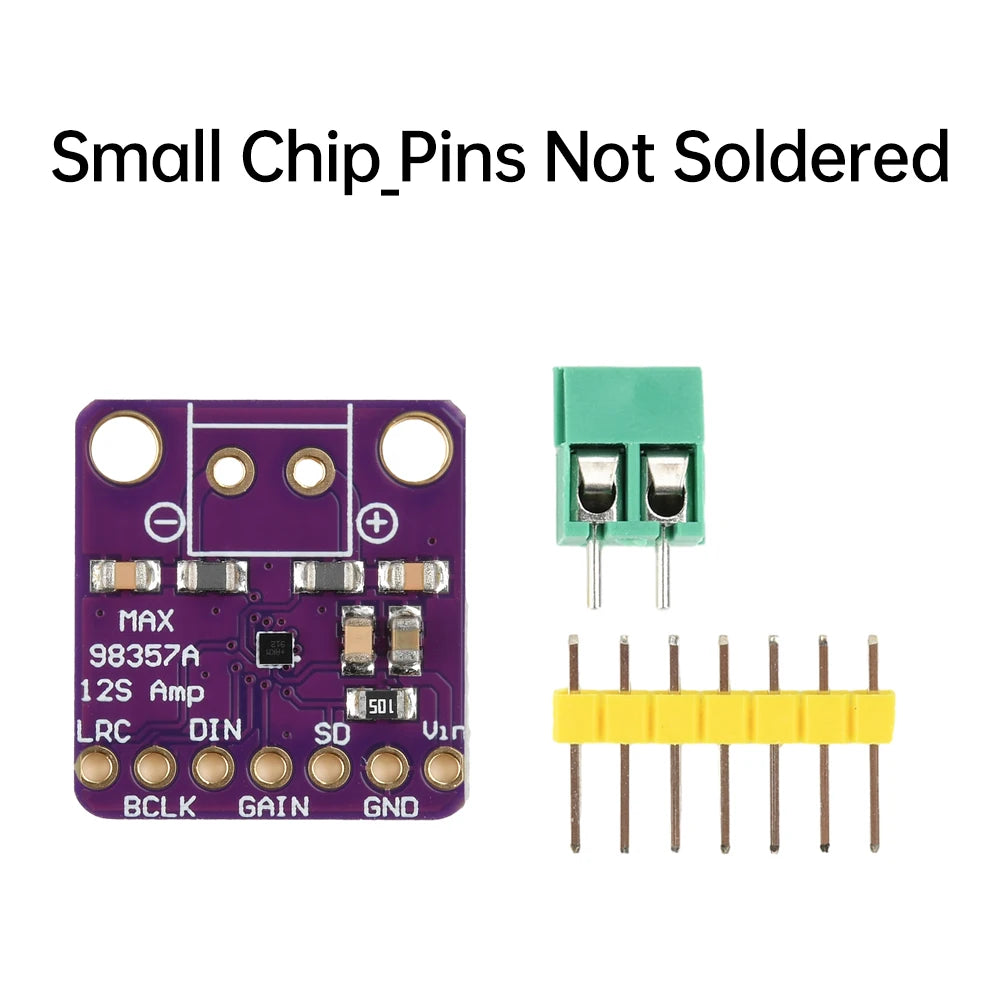

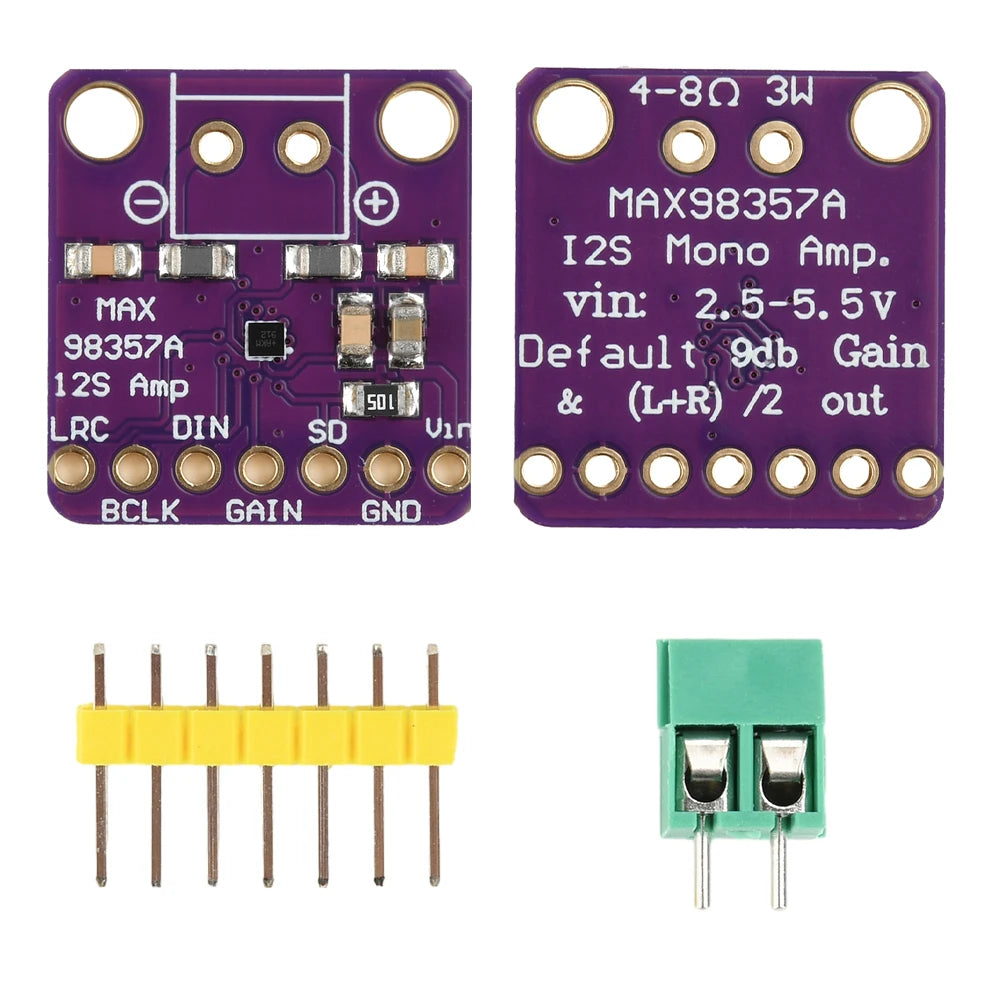

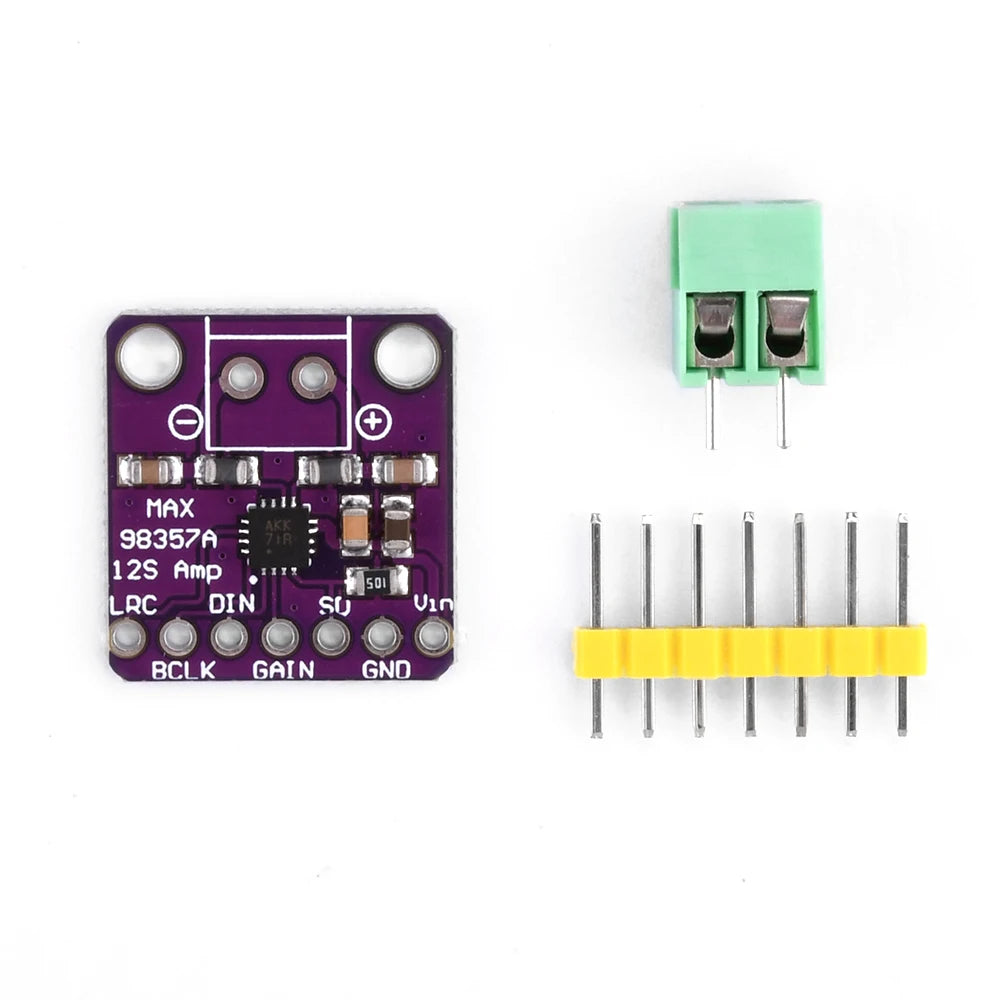

Module x 1 + Header x 1 + Terminal Block x 1

Options

• Color: BGA -B, I2S-B, I2S-A, BGA -A
