MC-38 Wired Door Window Sensor Detector Magnetic Switch NC NO

Normally Closed

$4.66

$4.66 $5.77

MC-38 Wired Door Window Sensor Detector Magnetic Switch NC NO

$4.66

$4.66 $5.77

Shipping calculated at checkout.

Discover the MC-38 Wired Door Window Sensor Detector Magnetic Switch NC NO — a standout decor pick featuring durable, compact design for dependable, everyday performance.

Specifications

Features:

1. Compact design with simple installation

2. Stable performance and extended service life

3. Durable construction featuring crush resistance, impact resistance, and corrosion resistance

4. Consists primarily of a switch and magnet assembly; compact door magnetic switch suitable for various door types

5. Wide application range: Ideal for urban security systems and extensively used in residential, hotel, retail, hospital, warehouse, and other door/window installations

Product Specifications:

Model: MC-38

Color: Coffee Brown

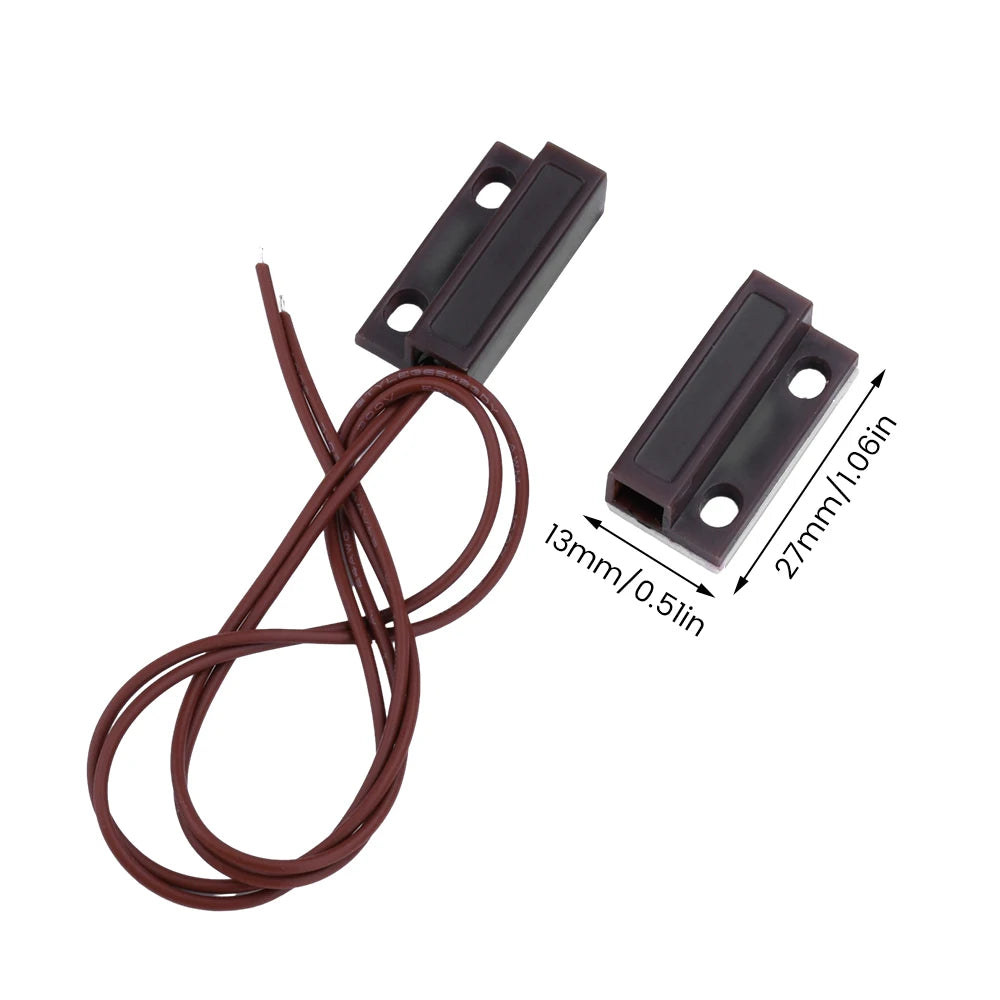

Dimensions: 27*14*8 mm

Actuation Distance: 16mm ± 8mm

Switch Withstand Voltage: 100VDC

Load Current: 100mA (Maximum, customizable)

Switch Output: Normally Closed

Wiring: 24 AWG, approx. 350mm length

Surface-mounted design, suitable for non-ferrous doors or windows

Model: MC-38A

Color: Coffee Brown

Switch Withstand Voltage: 60VDC

Load Current: 150mA

Dimensions: 27*14*8 mm

Actuation Distance: 18mm ± 10mm

Wiring: 24 AWG, approx. 350mm long

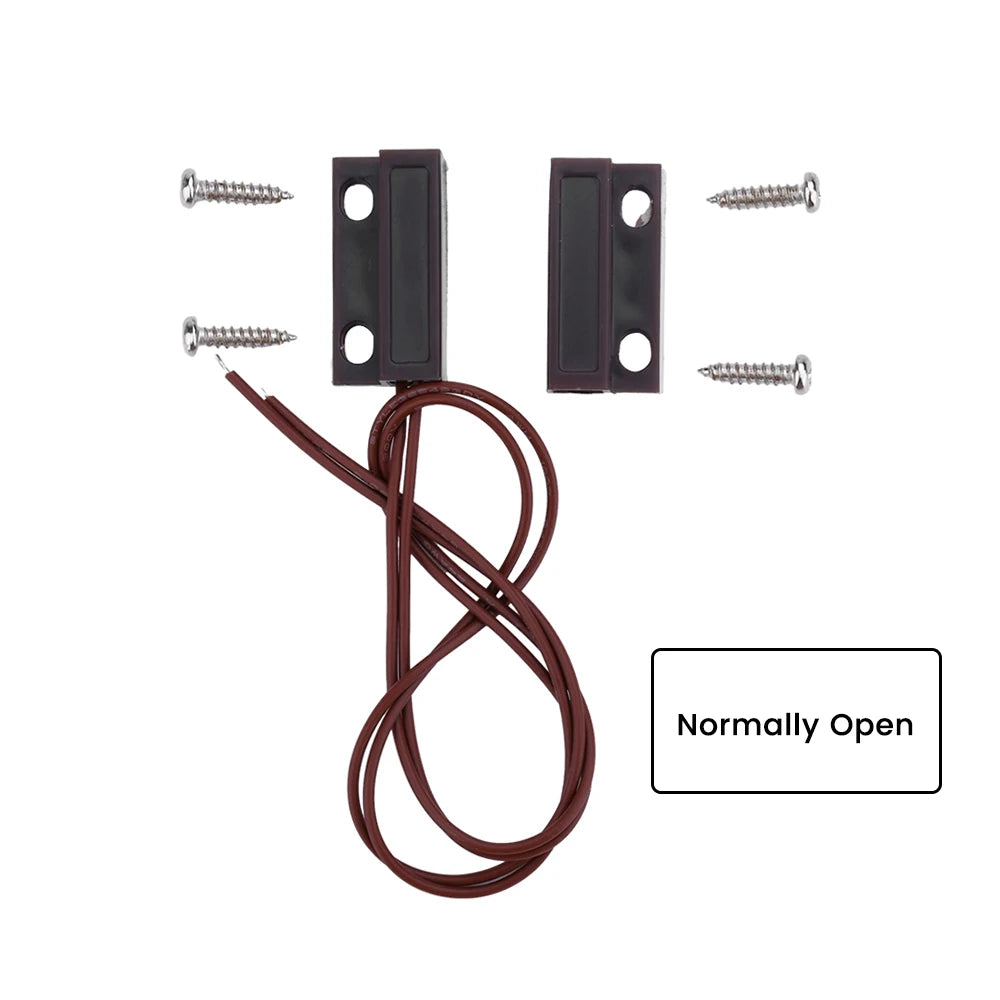

Switch Output: Normally Open (NO: closes when magnet approaches, breaks circuit)

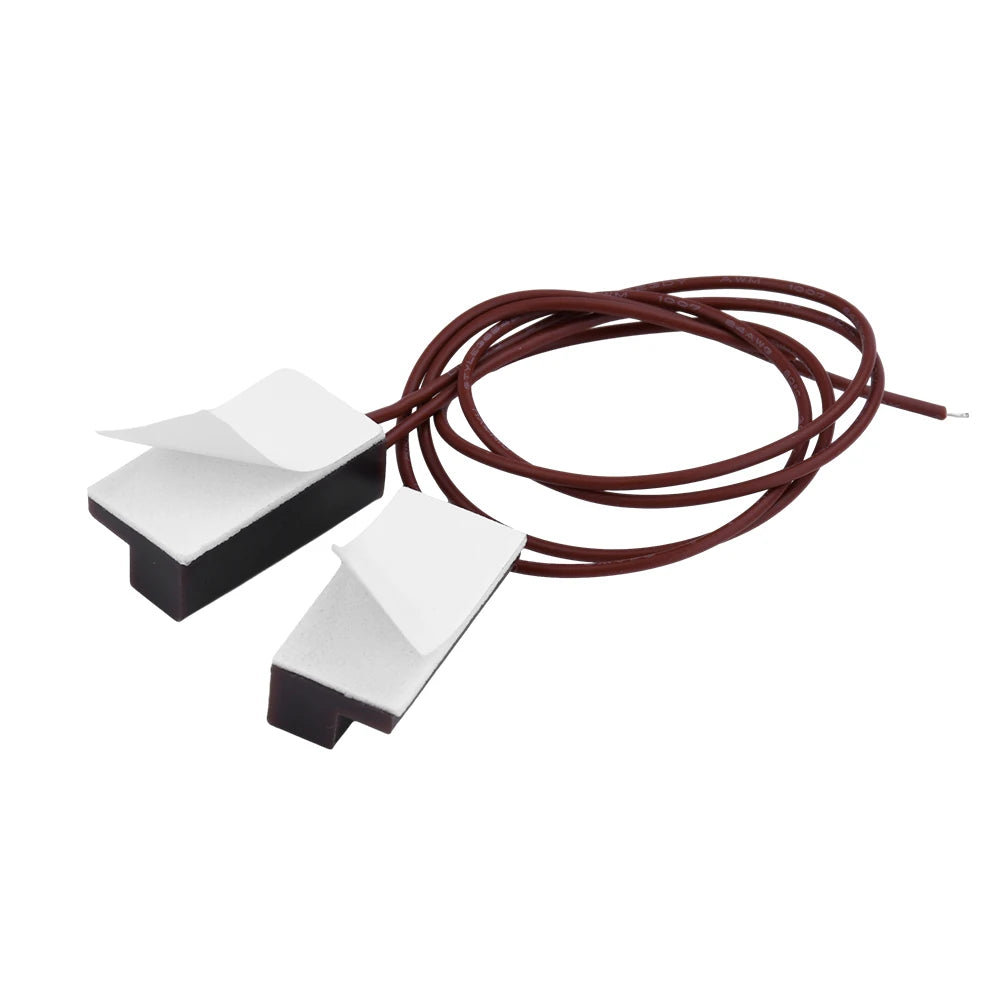

Installation Method: SMD (via screws or double-sided tape)

Recommended Applications: Wooden doors, windows

There are two types of reed switches: “Normally Open” (NO) and “Normally Closed” (NC). When no magnet is present near the switch, the metal reed on an NO switch remains open. In the presence of a magnetic field, the contacts of an NO reed switch will close. A normally closed reed switch remains closed when no magnet is present; it opens when a magnet approaches.

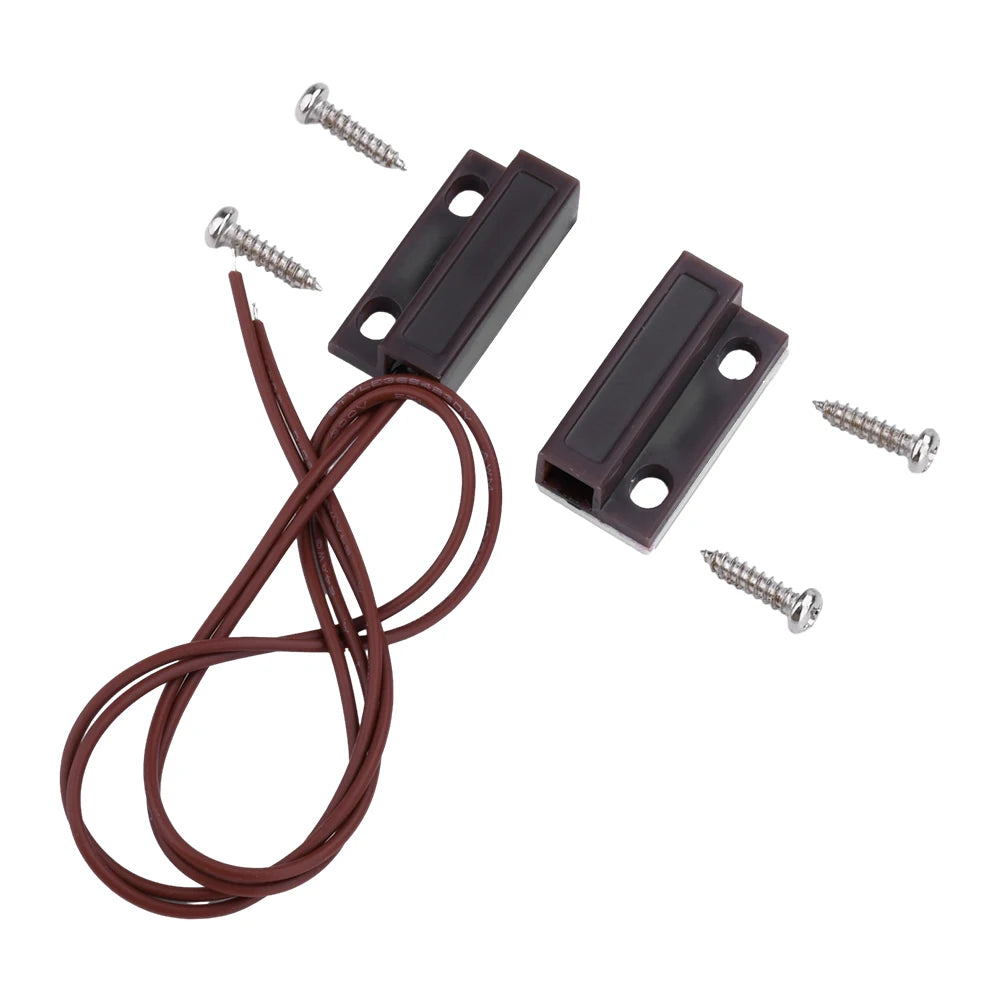

Shipping Contents:

Door Magnetic Switch*2

Screws*4

Options

Color: Normally Closed, Normally Open
