Mesh Node T096 Heltec Meshtastic Meshcore Development Board nRF52840

Discover the Mesh Node T096 Heltec Meshtastic Meshcore Development Board nRF52840 — a standout decor pick featuring durable, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Communication Module

Output Voltage: Communication Module

Semi-finishedproduct: No

Size: Communication Module

Style: Communication Module

Type: Communication Module

Features:

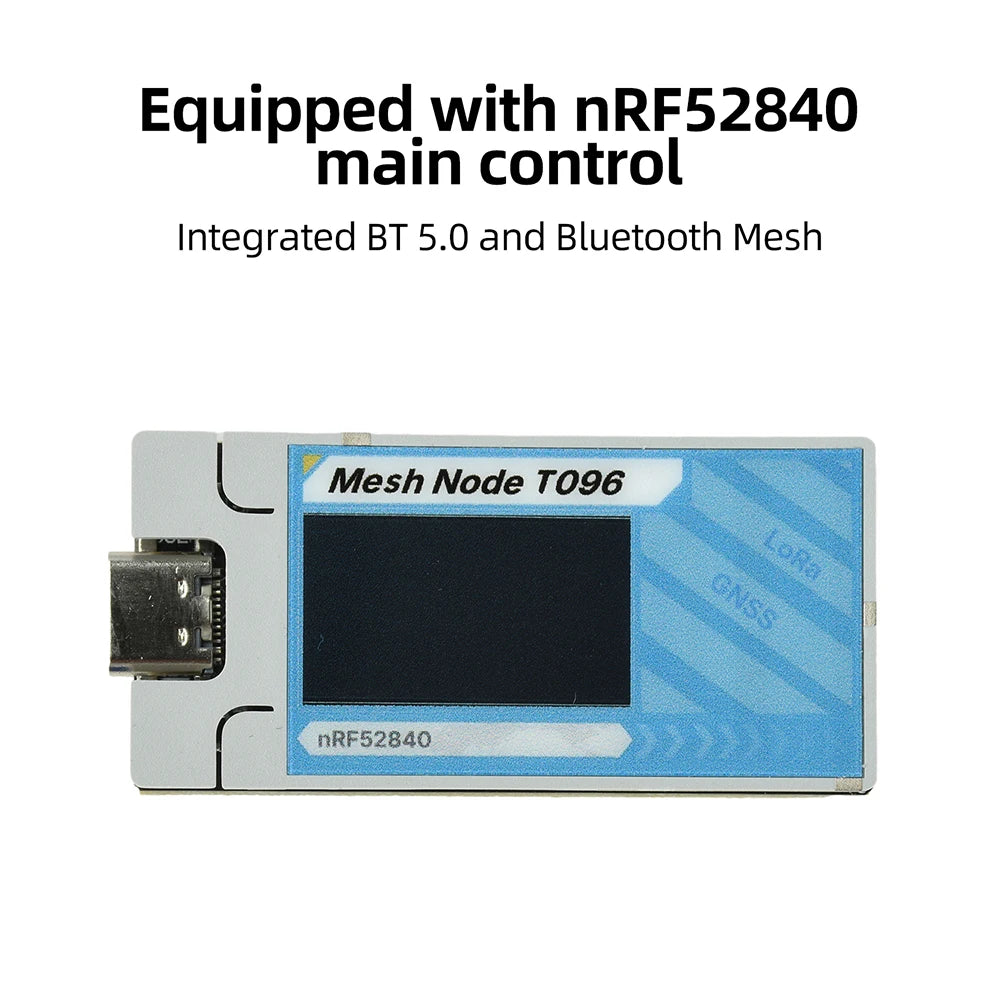

1. Equipped with an nRF52840 controller, integrating Bluetooth 5.0 and Bluetooth Mesh

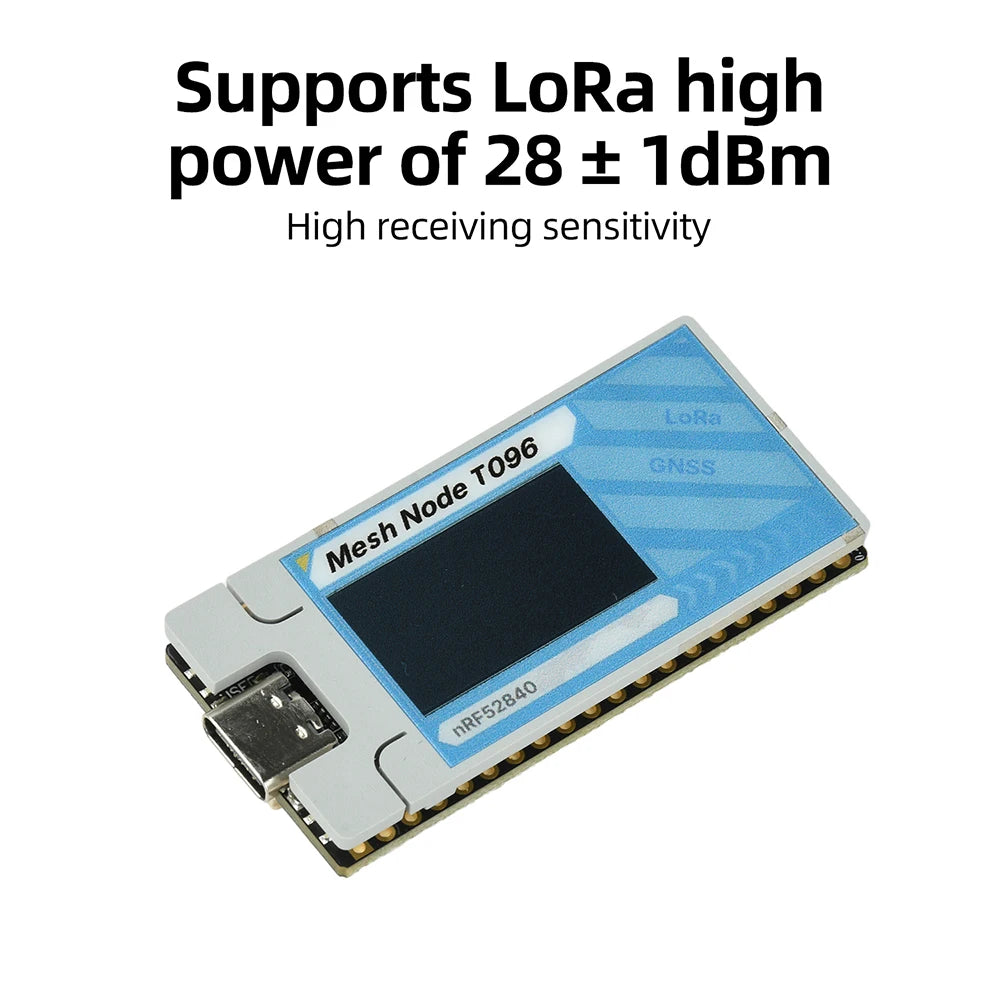

2. Supports high-power LoRa at 28±1 dBm with high receive sensitivity

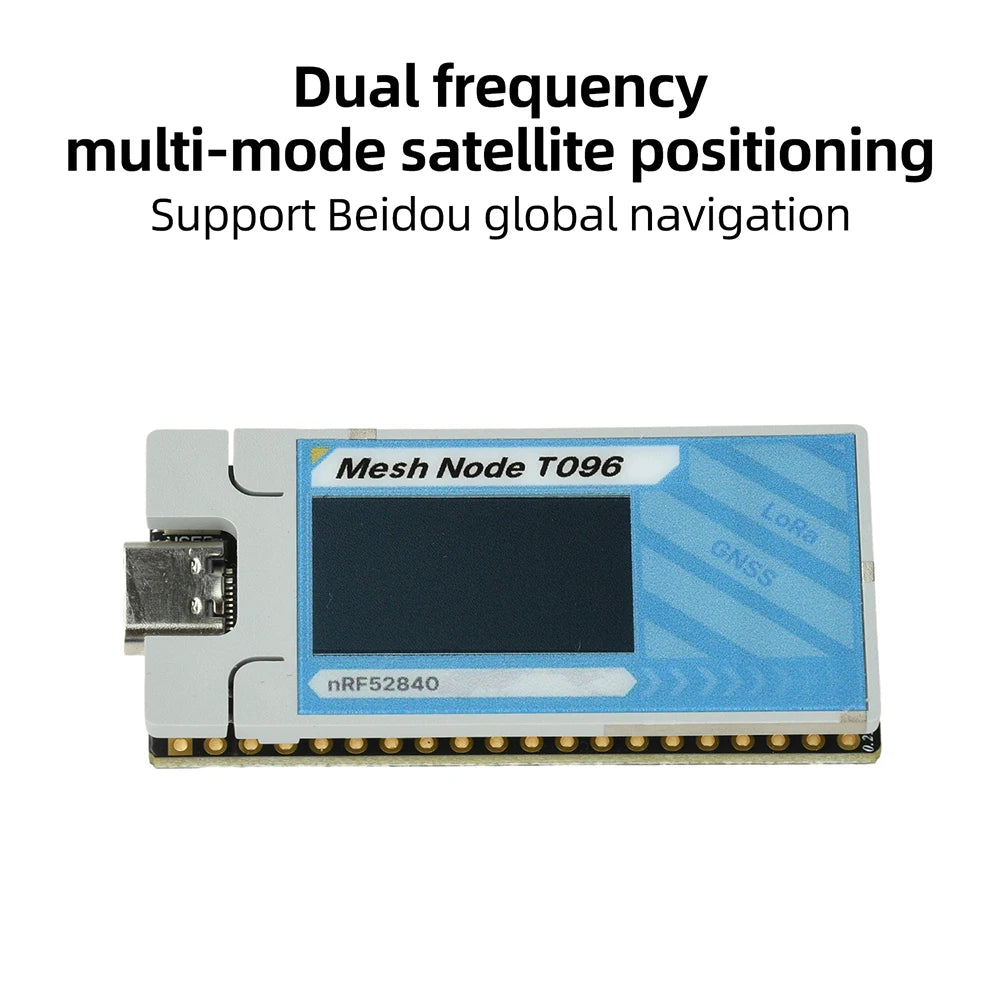

3. Dual-frequency, multi-mode satellite positioning with support for BeiDou global navigation

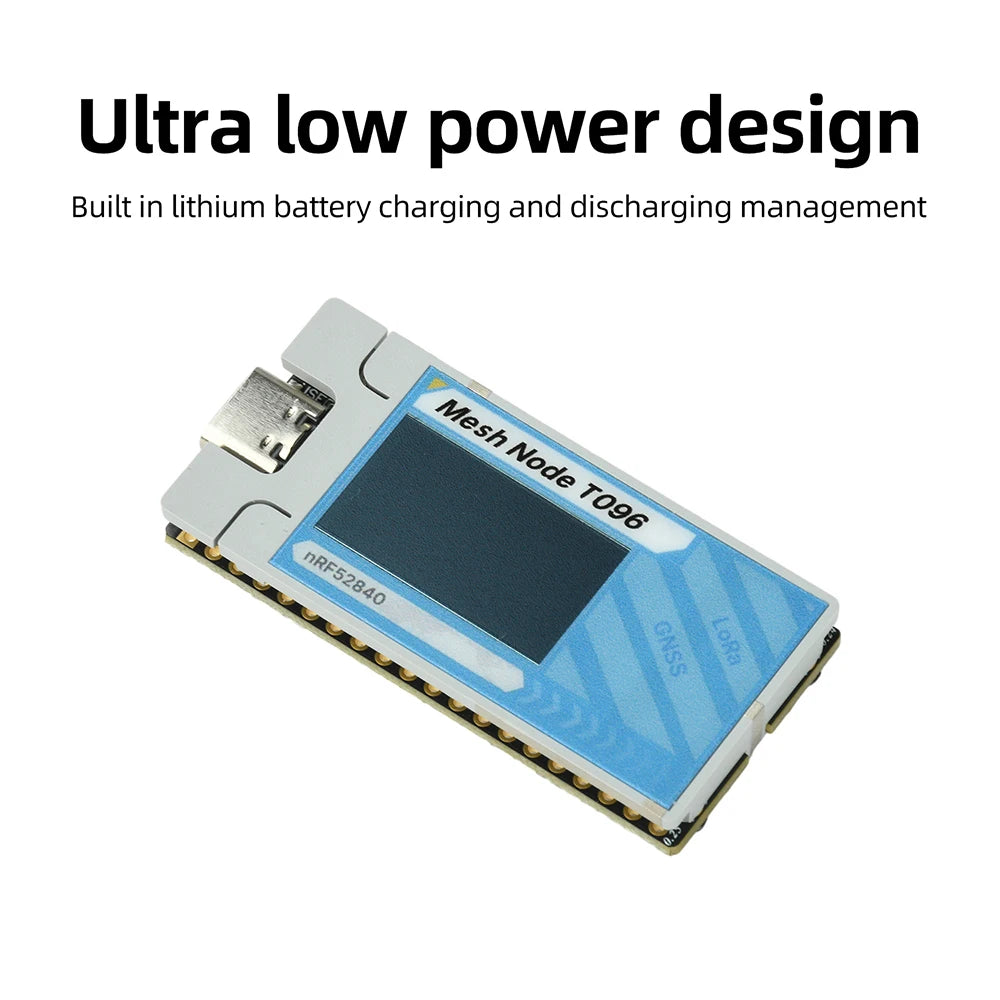

4. Ultra-low power design with built-in lithium battery charge/discharge management

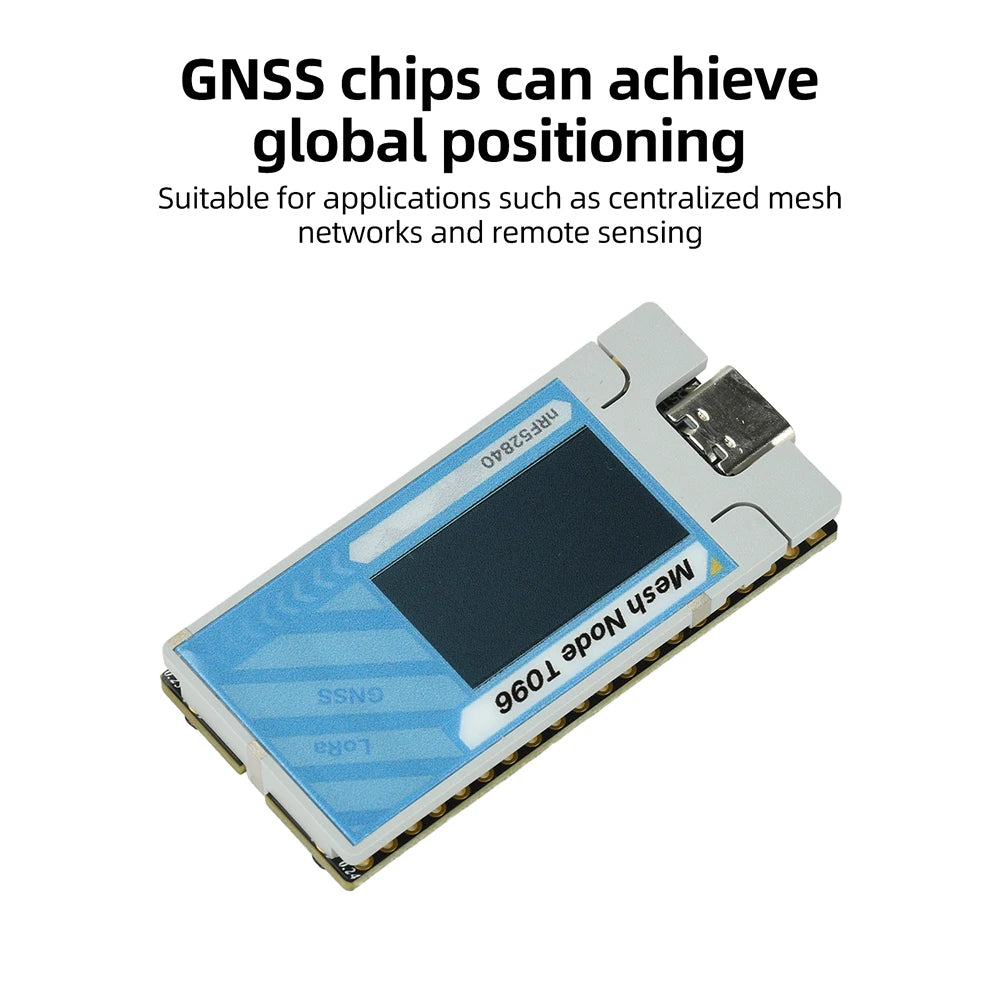

5. GNSS chip enables global positioning, suitable for centralized mesh networks, remote sensing, and other applications

Product Introduction:

The Mesh Node T096 is a low-power development board that integrates Bluetooth, LoRa, and GNSS. It features the nRF52840 MCU at its core, providing powerful processing capabilities and Bluetooth connectivity, while the SX1262 LoRa transceiver with integrated PA delivers 28±1 dBm transmit power, ensuring exceptional communication range and link reliability. The UC6580 GNSS chip enables precise global positioning, making this device ideal for applications such as decentralized mesh networks, asset tracking, and remote sensing.

The Mesh Node T096 utilizes Laser Direct Structuring (LDS) technology to design its GNSS and Bluetooth antennas, achieving a compact, durable, and efficient antenna solution. Designed for low-power operation, this device is well-suited for battery-powered deployment scenarios. The Mesh Node T096 fully supports the Ard development environment and is compatible with open-source mesh networking projects such as Meshtastic and MeshCore, providing developers and enthusiasts with a versatile, out-of-the-box platform for building resilient, scalable mesh networks.

Key Features:

Supports Bluetooth, LoRa, and GNSS communication

Ultra-low power consumption

Maximum output power of 28±1 dBm; low-noise amplifier (LNA) can be bypassed

Supports GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC, and QZSS

Integrated lithium battery management system (charge/discharge management, overcharge protection, battery level detection, automatic switching between USB and battery power)

USB-C interface with comprehensive voltage regulation, ESD protection, short-circuit protection, and RF shielding

Supports example development frameworks, providing LoRa/LoRaWAN sample programs

Compatible with Meshtastic and MeshCore

Product Specifications:

MCU (Microcontroller): nRF52840

LoRa Chip: SX1262

GNSS Chip: UC6580 (L1+L5 dual-band)

Frequency: 863–928 MHz

Maximum transmit power: 28±1 dBm

Bluetooth Low Energy: Bluetooth 5.0, supports Bluetooth Mesh

Hardware resources: USB 2.0, 2 LEDs, 2 buttons, 4 SPI, 2 TWI, 2 UART, 4 PWM, QSPI, I2S, PDM, QDEC, etc.

Interfaces: USB Type-C, 1.25-2P lithium battery connector, 1.25-2P solar panel connector, LoRa antenna (IPEX 1.0), GNSS antenna (IPEX 1.0), 2 rows of 13-pin 2.54mm pitch header pins

Power Supply: USB-C 5V

Lithium Battery: 3.7V (3.3–4.2V)

Operating Temperature: -20 to 70 °C

Dimensions: 52.00 × 25.40 × 10.26 mm

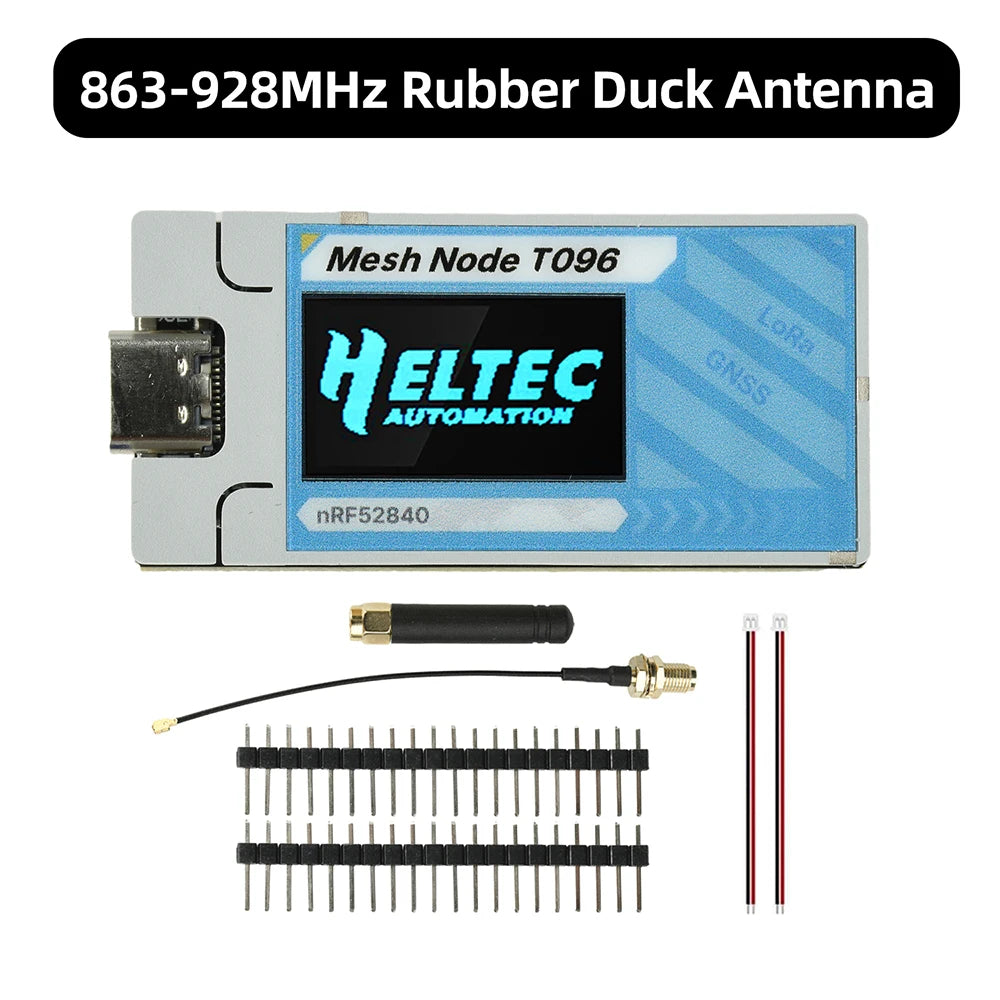

Package Contents:

1x Development Board

2x 18-pin Header Pins

2x 2-pin Terminal Cables

1x Antenna

Options

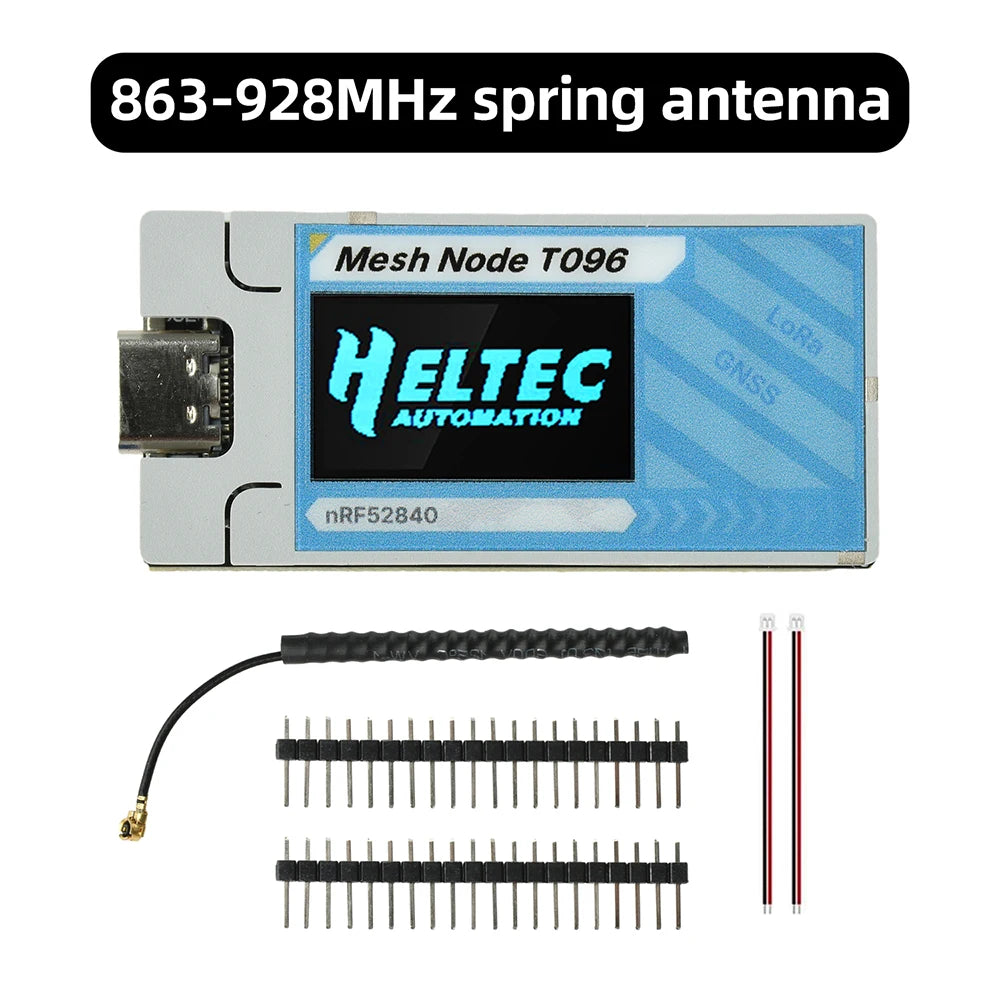

• Color: spring antenna, Whip Antenna
