Mini DC 5V 2 4A Charge Discharge Module 3 7V 4 2V 18650 Li-ion

Discover the Mini DC 5V 2 4A Charge Discharge Module 3 7V 4 2V 18650 Li-ion — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Electronic: No

Semi-finishedproduct: No

Features:

1. High-efficiency charging and discharging performance: Supports up to 5V/2.4A charging and discharging, with energy conversion efficiency as high as 96%

2. Compact design: The high-spec version measures just 17.5 x 10 x 6 mm, making it ideal for space-constrained devices

3. Intelligent buck-boost switching: The Type-C port automatically detects input and output, ensuring convenience and speed

4. Multiple safety protections: Features overcharge and over-discharge protection to ensure safe and reliable operation

5. Precise battery level indication: Intuitively displays remaining battery capacity via the number of LED flashes

Product Specifications:

Product Name: Lithium Battery Charging and Discharging Module

Charging/Discharging Voltage and Current: DC 5V/2.4A (max)

Applicable Lithium Battery Cut-off Voltage: 4.2V

Energy Conversion Efficiency: 96% (max)

Operating Temperature Range: -40°C to 85°C

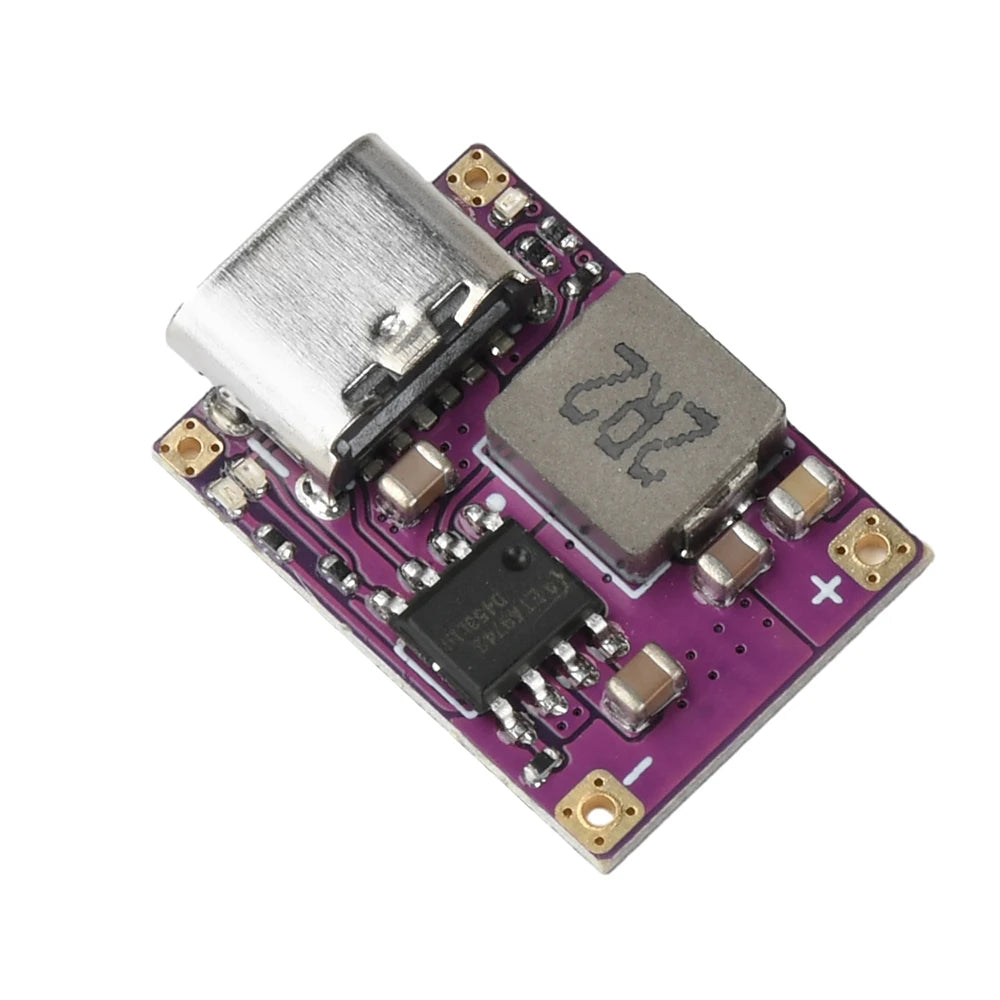

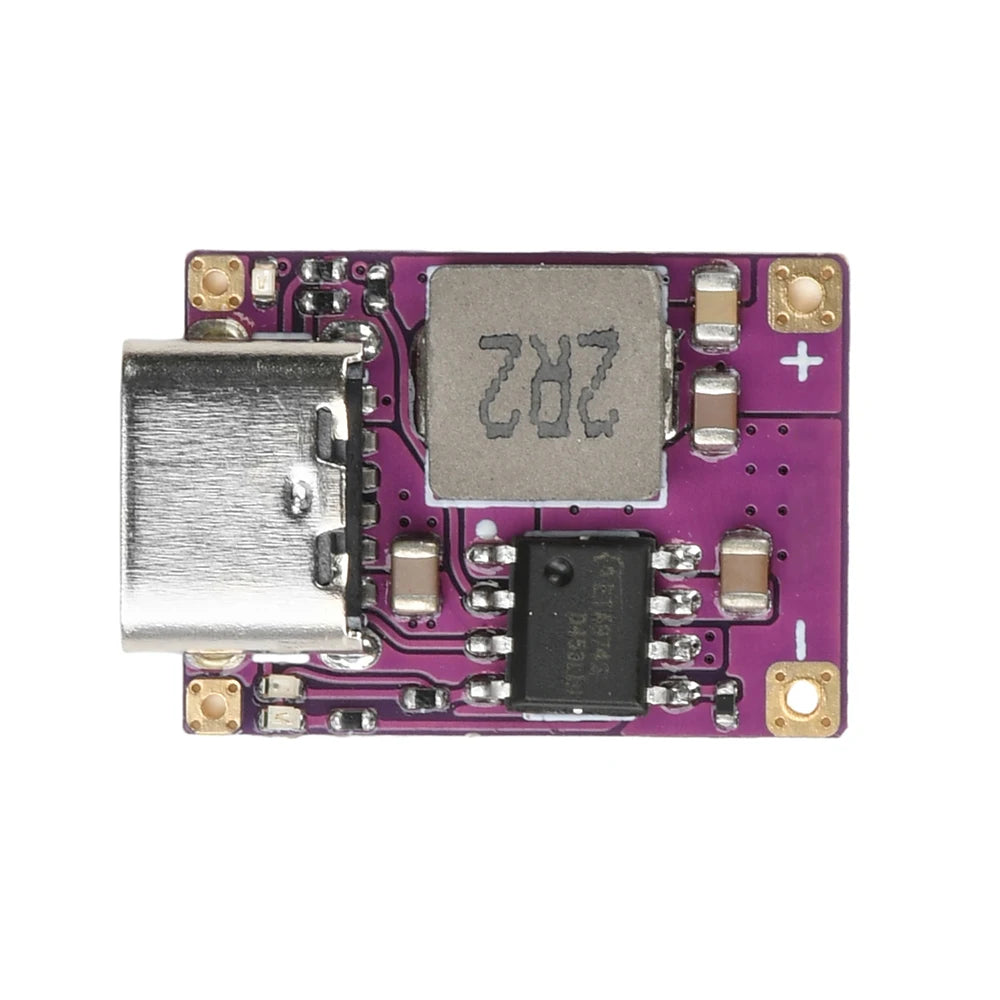

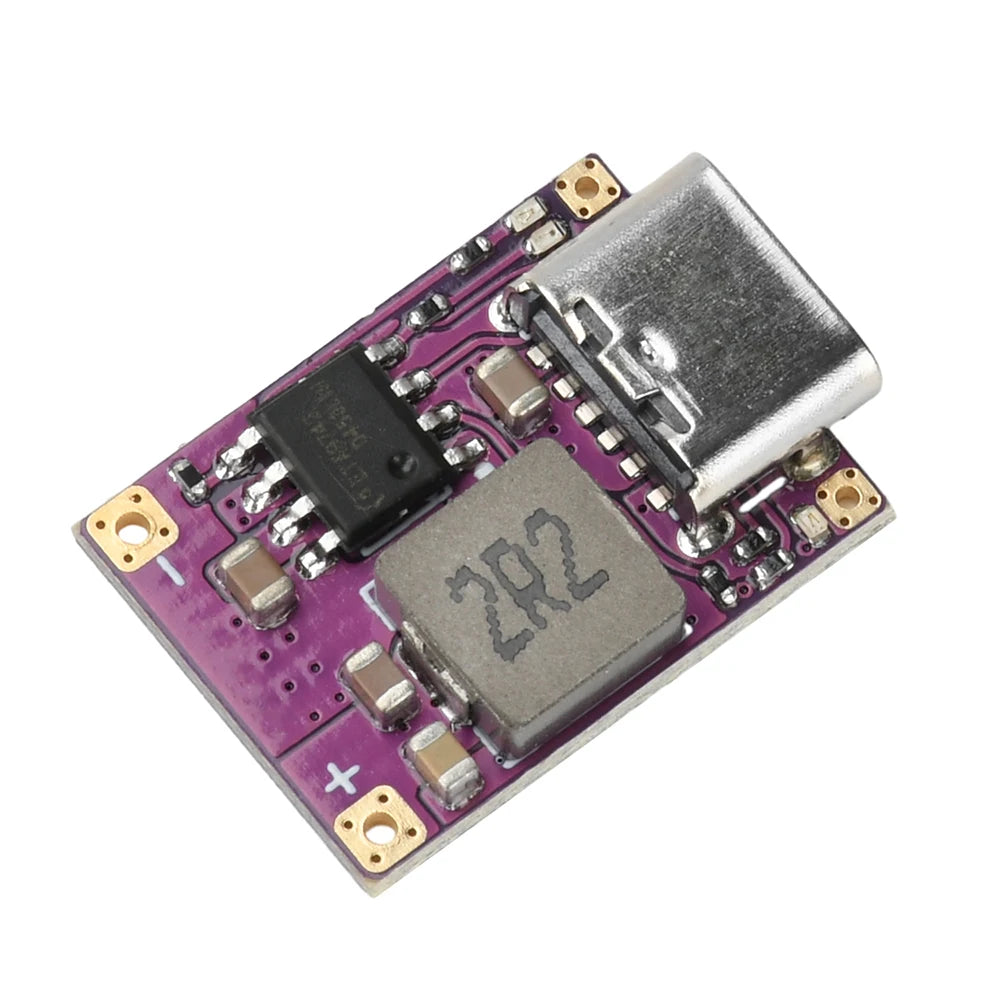

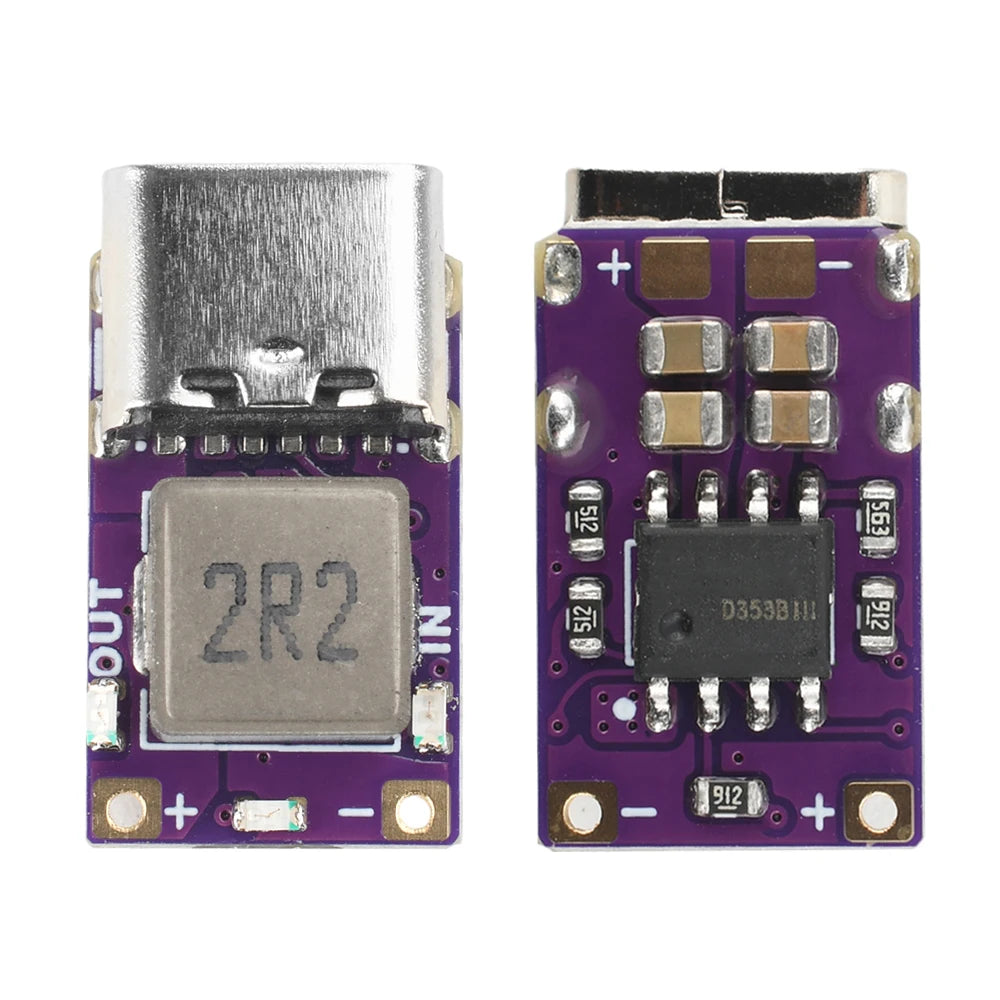

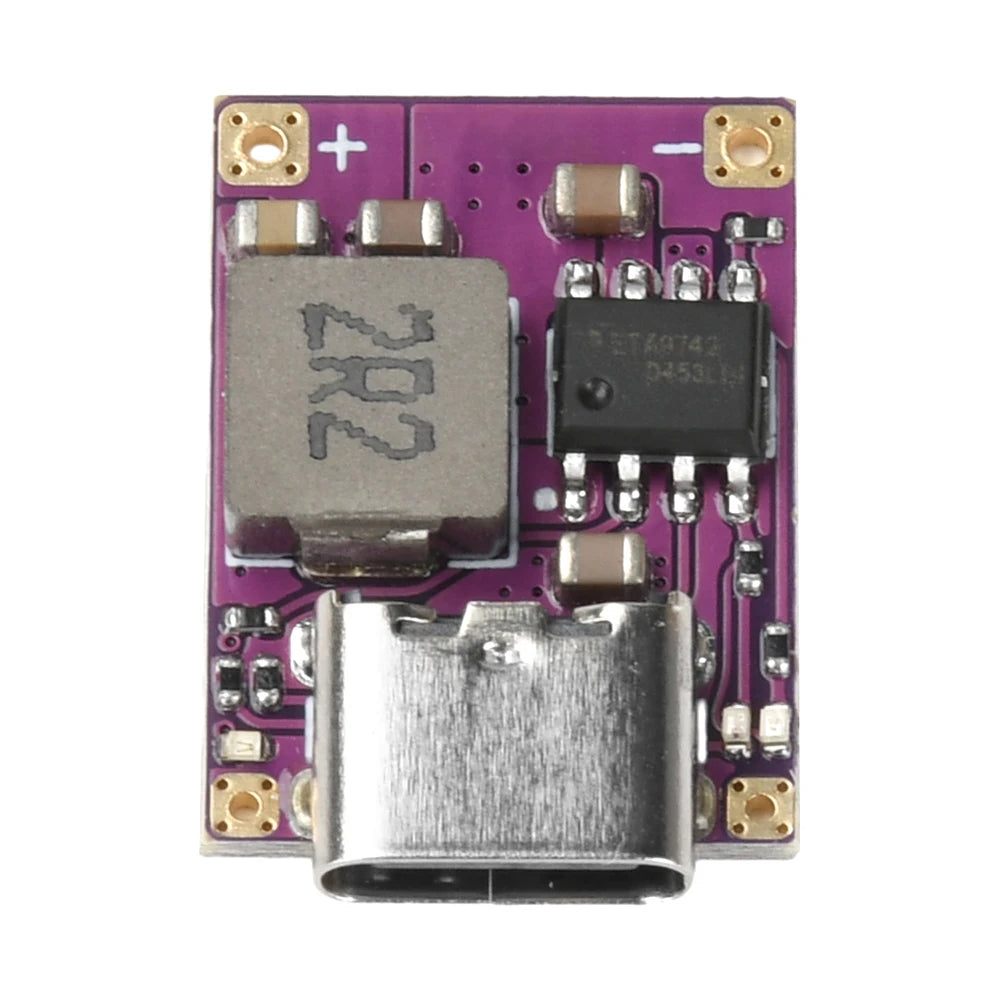

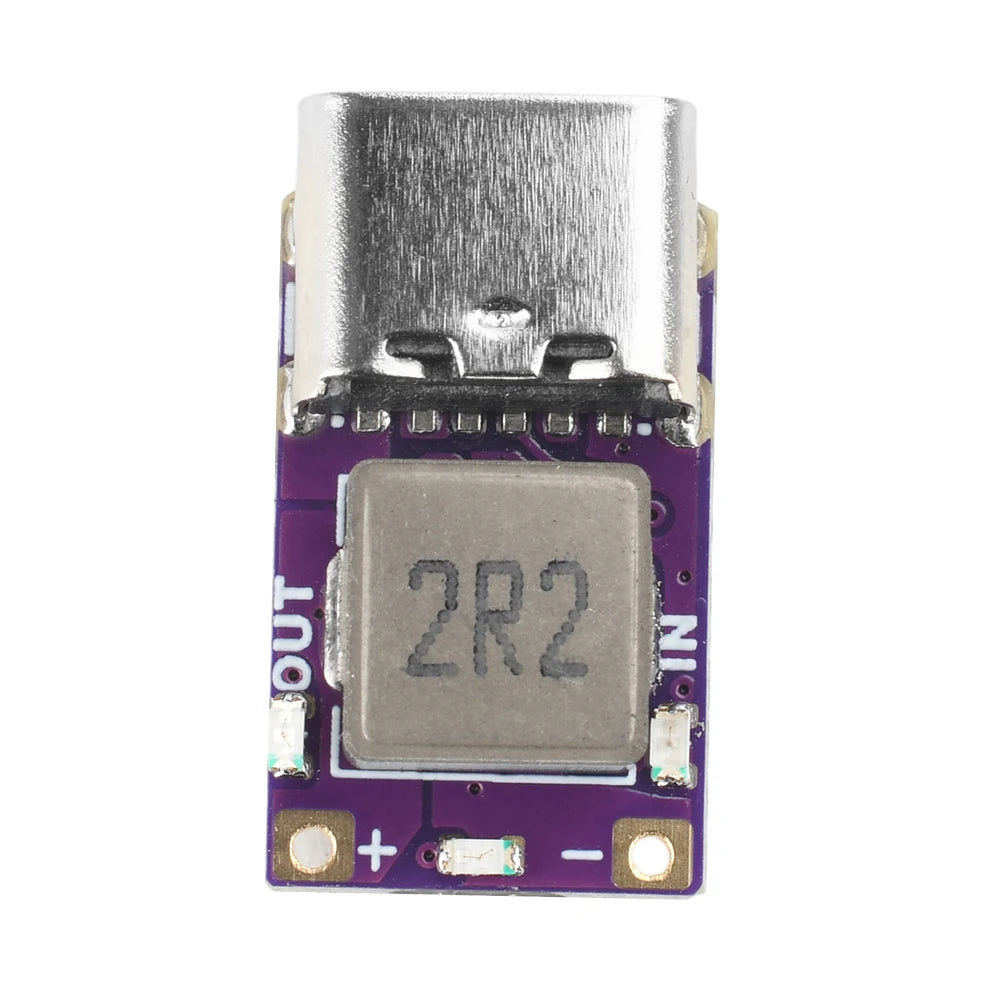

Module Dimensions: High-Spec Version: 17.5 x 10 x 6 mm; Low-Spec Version: 21 x 14 x 6 mm

Features: Compact size; automatic switching between input and output via the Type-C port

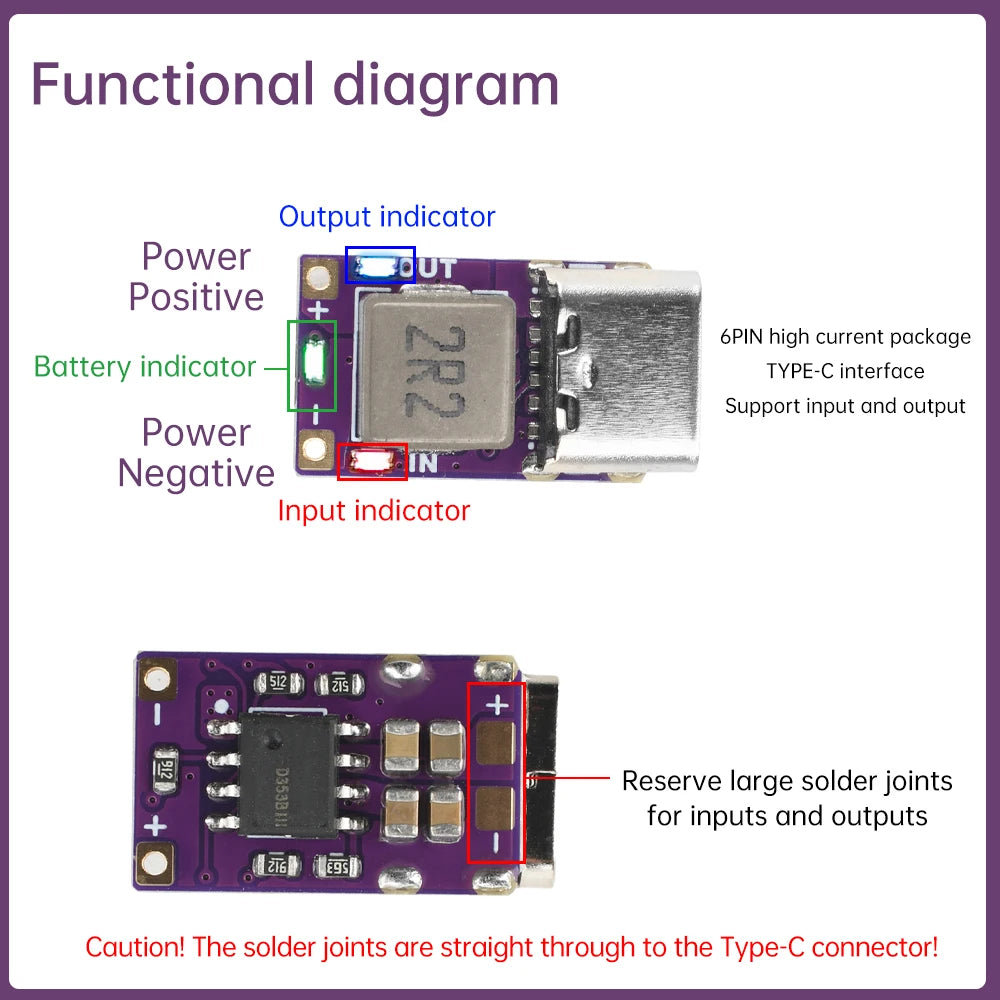

Output Indicator: On indicates the module is boosting voltage to discharge the battery; the battery is discharging. Off indicates the module has shut off output

Input Indicator: On indicates the module is step-down charging the battery; the battery is charging. Off indicates the module has disabled the input.

Battery Level Indicator:

1 flash: 0%–25% battery level

2 flashes: 25%–50% battery level

3 flashes: 50%–75% battery level

4 flashes: 75%–100% battery level

Description:

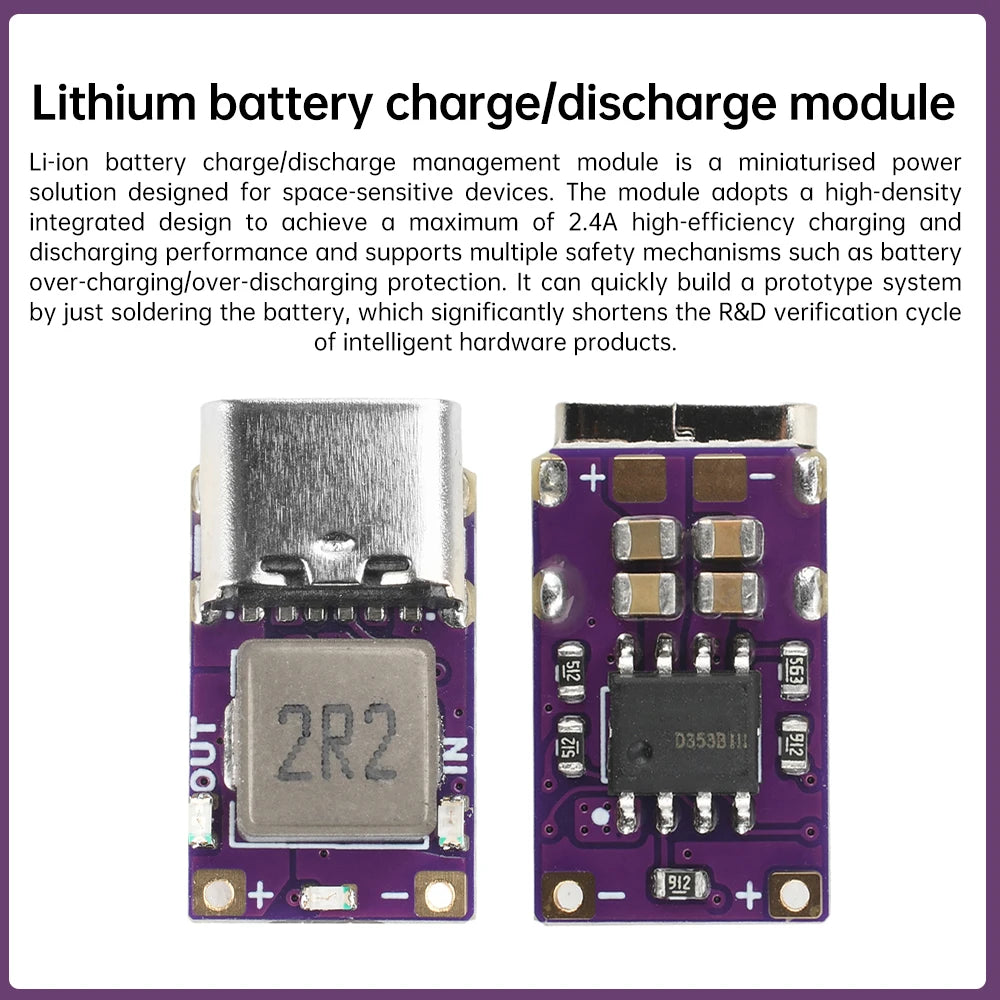

The lithium battery charge/discharge management module is a miniaturized power solution designed specifically for space-constrained devices. Featuring a high-density integrated design, this module delivers efficient charge/discharge performance of up to 2.4A and supports multiple safety mechanisms, including overcharge and over-discharge protection. Simply solder the battery to quickly build a prototype system, significantly shortening the R&D and validation cycle for smart hardware products.

Important Notes:

1. The output includes short-circuit protection, but the battery interface lacks reverse connection protection; connecting the battery in reverse will cause damage.

2. Due to the compact design, some heat dissipation capabilities have been sacrificed; noticeable heat generation occurs when the operating current exceeds 2A.

3. Does not support charging Apple devices via a Type-C adapter; Apple users should exercise caution when purchasing.

4. Charging current depends on battery capacity, discharge rate, current battery voltage, cable length and gauge, ambient temperature, and other factors.

5. Automatic switching between buck and boost modes has a 1–2 second delay. After the battery is fully discharged, the module will maintain input power to charge the battery. It will only automatically switch input/output modes after the charging state ends. When powering devices with reverse power supply capabilities, please disable this feature or exit charging mode promptly.

Package Contents:

Module x1

Options

• Color: A, B
