Mini Fast Charging Module PD QC Trigger 9V 12V 15V 20V Fixed Output

Discover the Mini Fast Charging Module PD QC Trigger 9V 12V 15V 20V Fixed Output — a standout electronics accessories pick featuring lightweight, wireless, professional design for dependable, everyday performance.

Specifications

Accessory Type: Charger Accessories

Charger included: N

Electronic: no

PCBincluded: No

Voltage range: USB (5-20V DC)

Features:

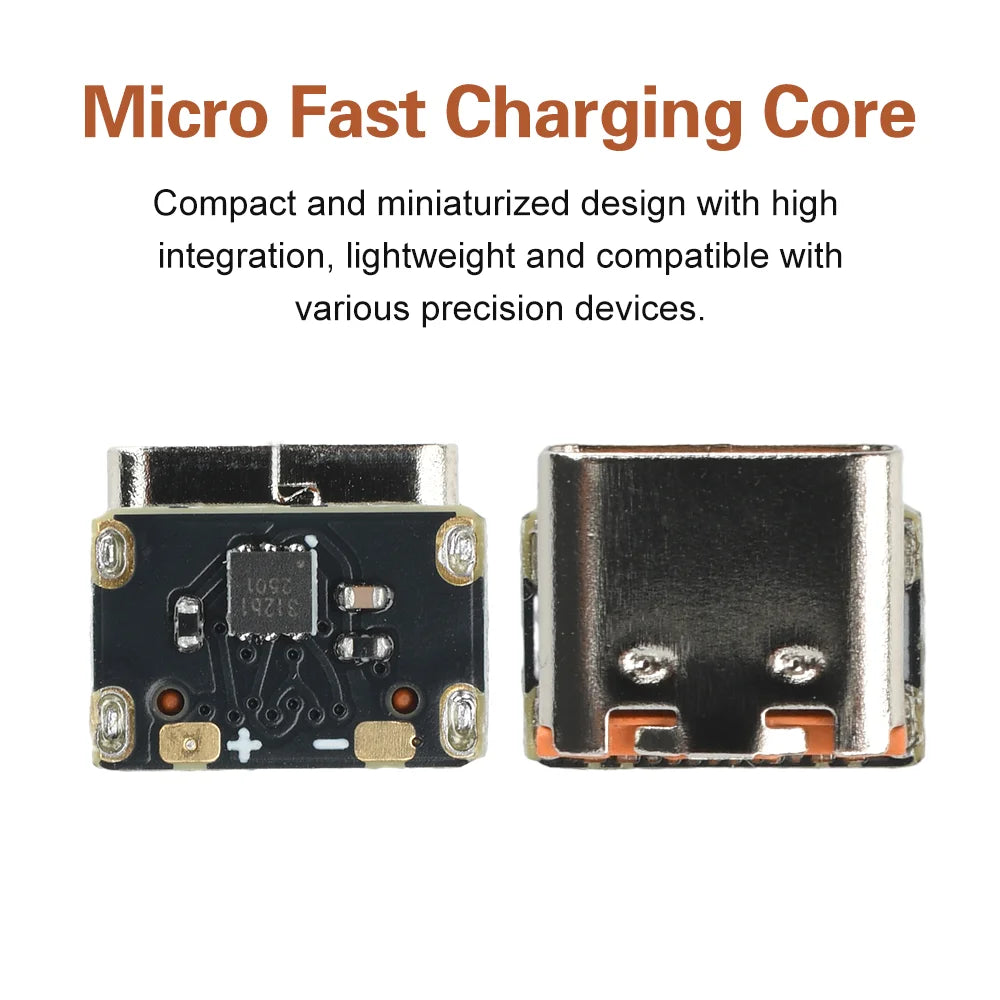

1. Ultra-Compact Fast Charging Core: Miniature design with high integration, lightweight and compatible with various precision devices

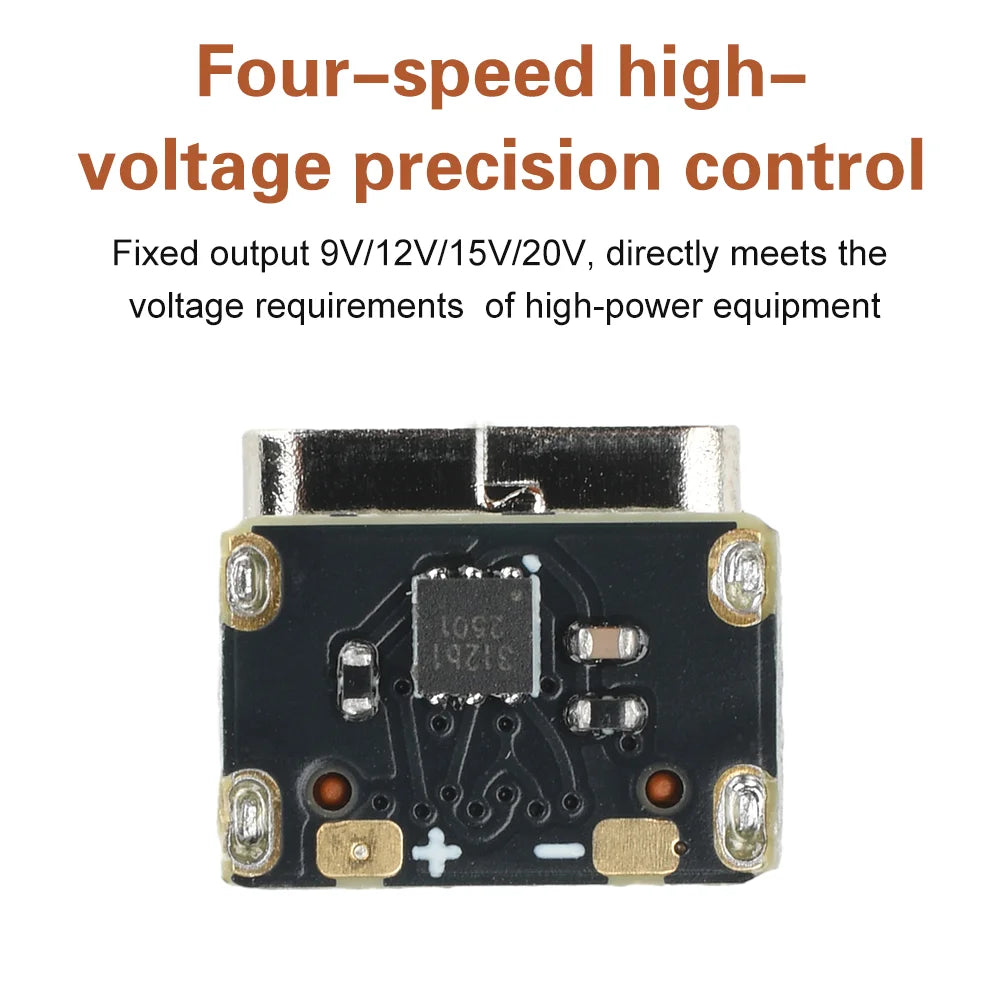

2. Four-Step High-Voltage Precision Control: Fixed outputs of 9V/12V/15V/20V precisely meet high-power device voltage demands

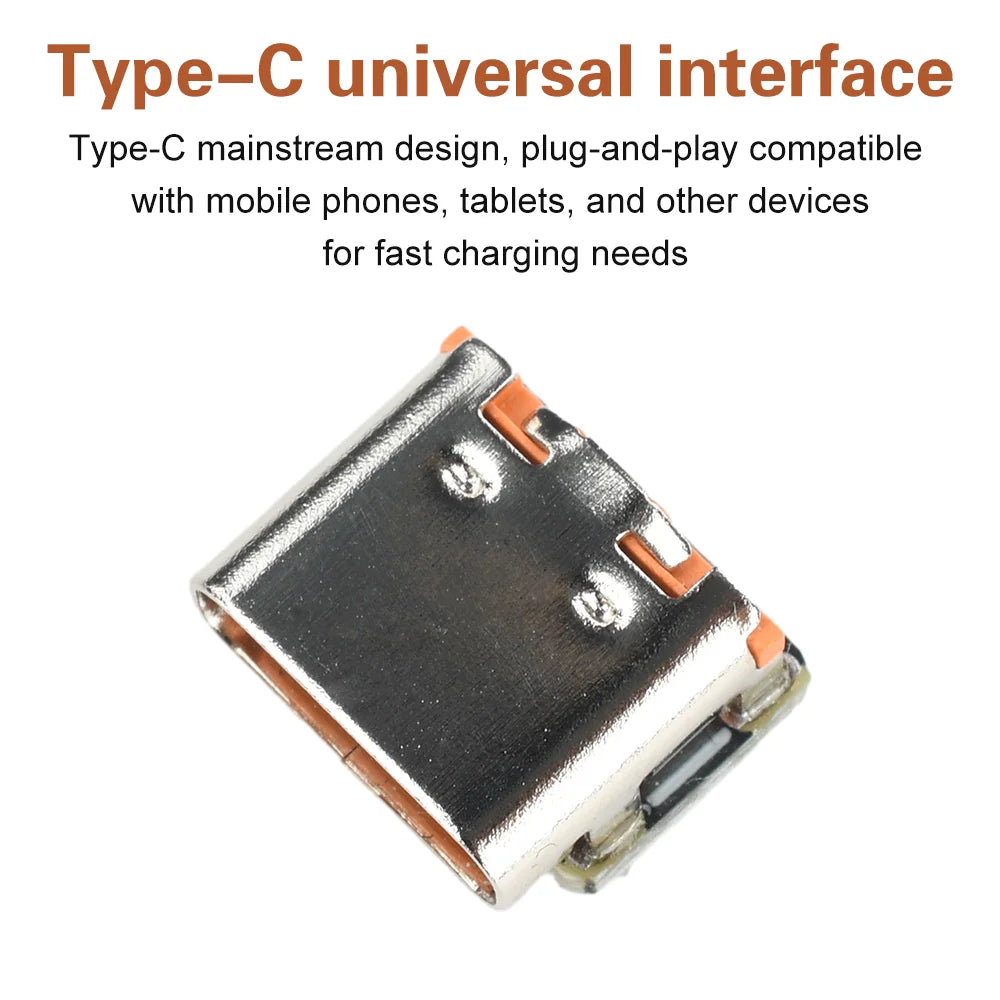

3. Universal Interface for All Scenarios: Mainstream Type-C design, plug-and-play compatibility for fast charging needs of phones, tablets, and more

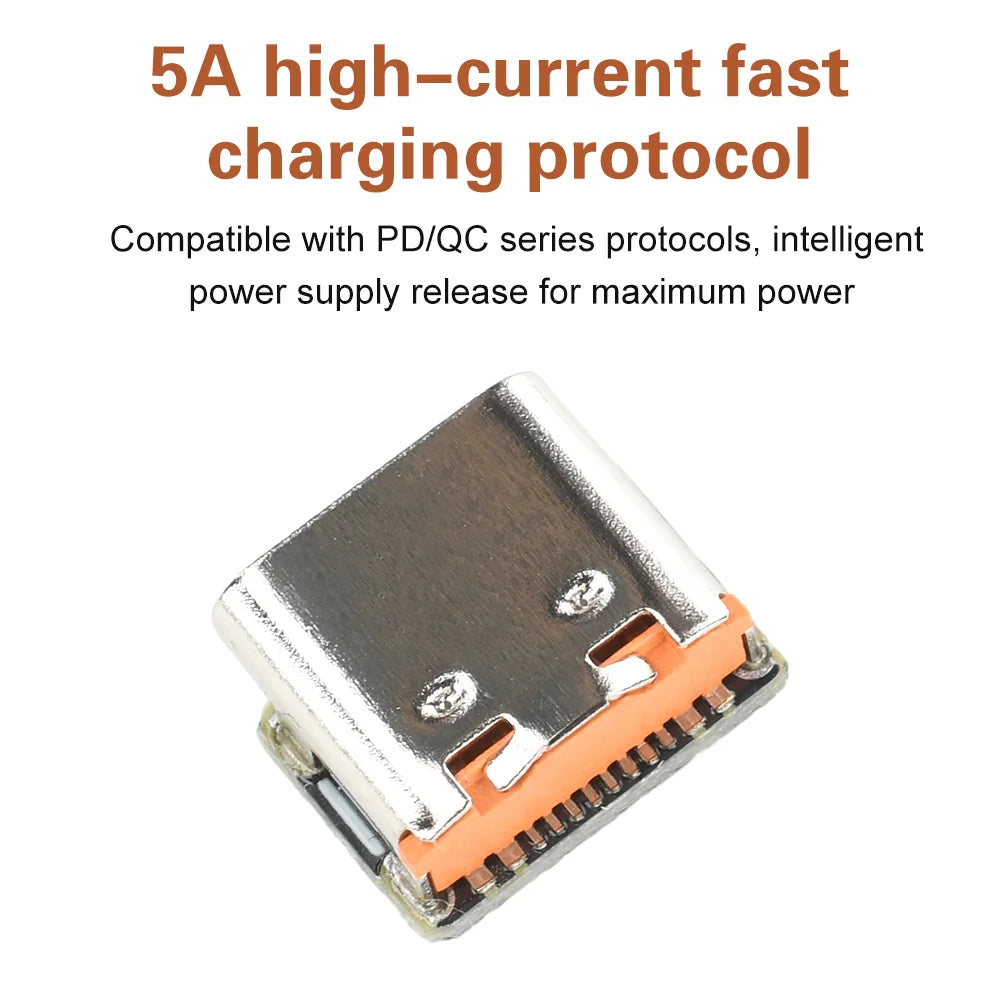

4. 5A High-Current Fast-Charging Protocol: Compatible with PD/QC series protocols, intelligently triggers power delivery to release maximum power

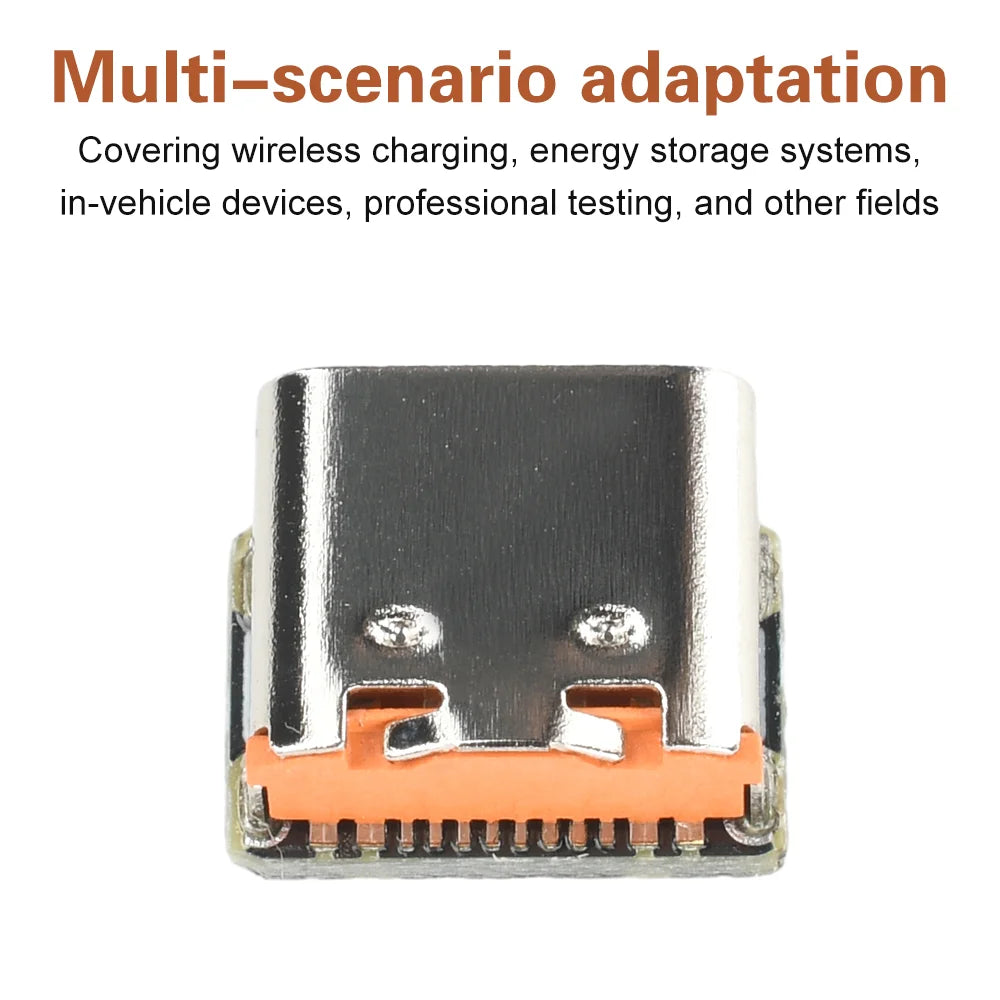

5. Industrial-Grade Universal Adaptability: Covers wireless charging, energy storage systems, automotive devices, professional testing, and more

Product Specifications:

Product Name: Mini Trigger Fast-Charging Module

Interface: Type-C port

Output Voltage: DC 9V/12V/15V/20V (Fixed Voltage Output)

Current: 5A (Maximum), Requires a compatible power adapter or power bank supporting the corresponding protocol

Supported Protocols: PD/QC Protocols

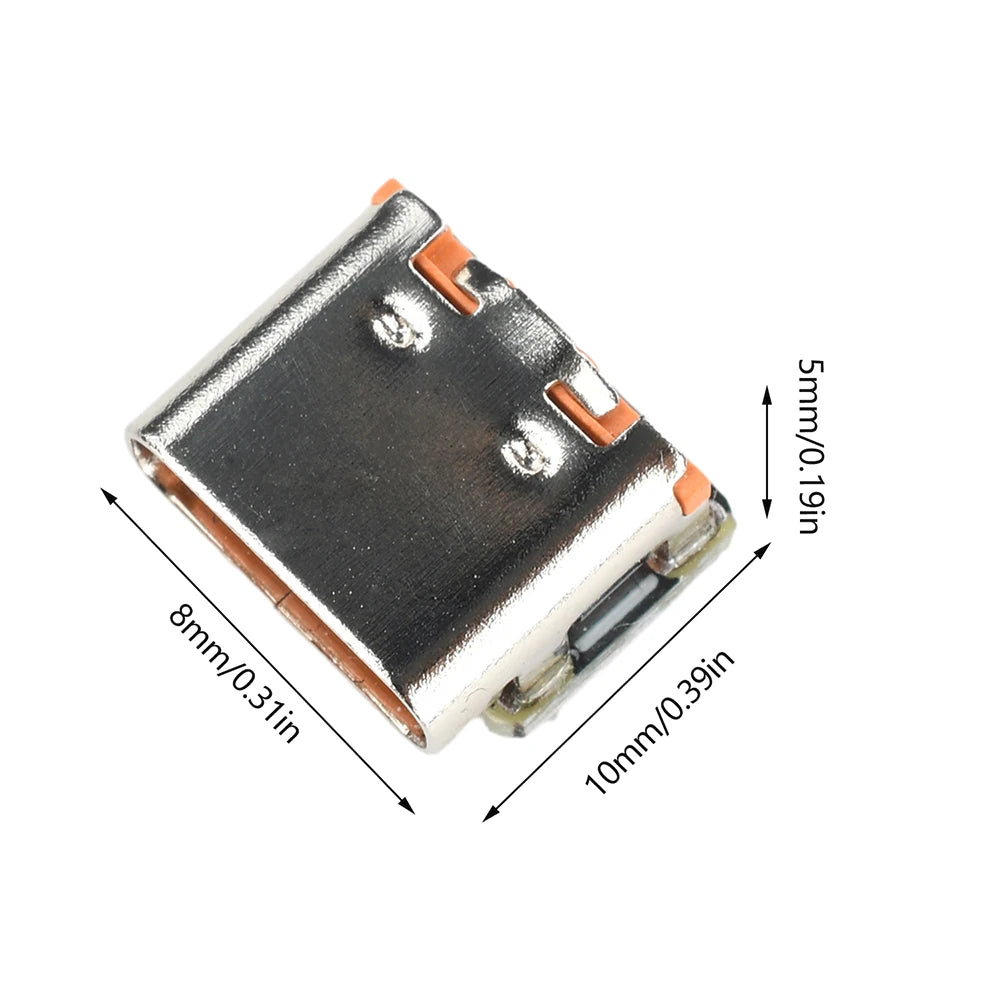

Product Dimensions: 10x8x5mm

Application Scope: Easy to use, widely applicable for wireless charging, Bluetooth speakers, automotive devices, energy storage, industrial testing, and more

Description:

This module features a high-current design capable of delivering up to 5A output current. It offers robust compatibility with fast-charging protocols like PD/QC, enabling seamless detection of the charger's output voltage. It provides fixed output voltages of 9V/12V/15V/20V. Note: The decoder output cannot directly charge mobile phones. Before charging, verify that the output voltage matches the device's charging requirements.

For example, when selecting 9V output, the upstream power source must comply with PD9V or QC9V protocols. When selecting 20V output, the upstream power source must comply with PD20V protocol.

1. The module lacks step-up/step-down capability; the power supply device must support the target voltage to emulate it.

2. Under the QC protocol, the module can only emulate a maximum voltage of 12V.

Shipping Contents:

Module x1

Options

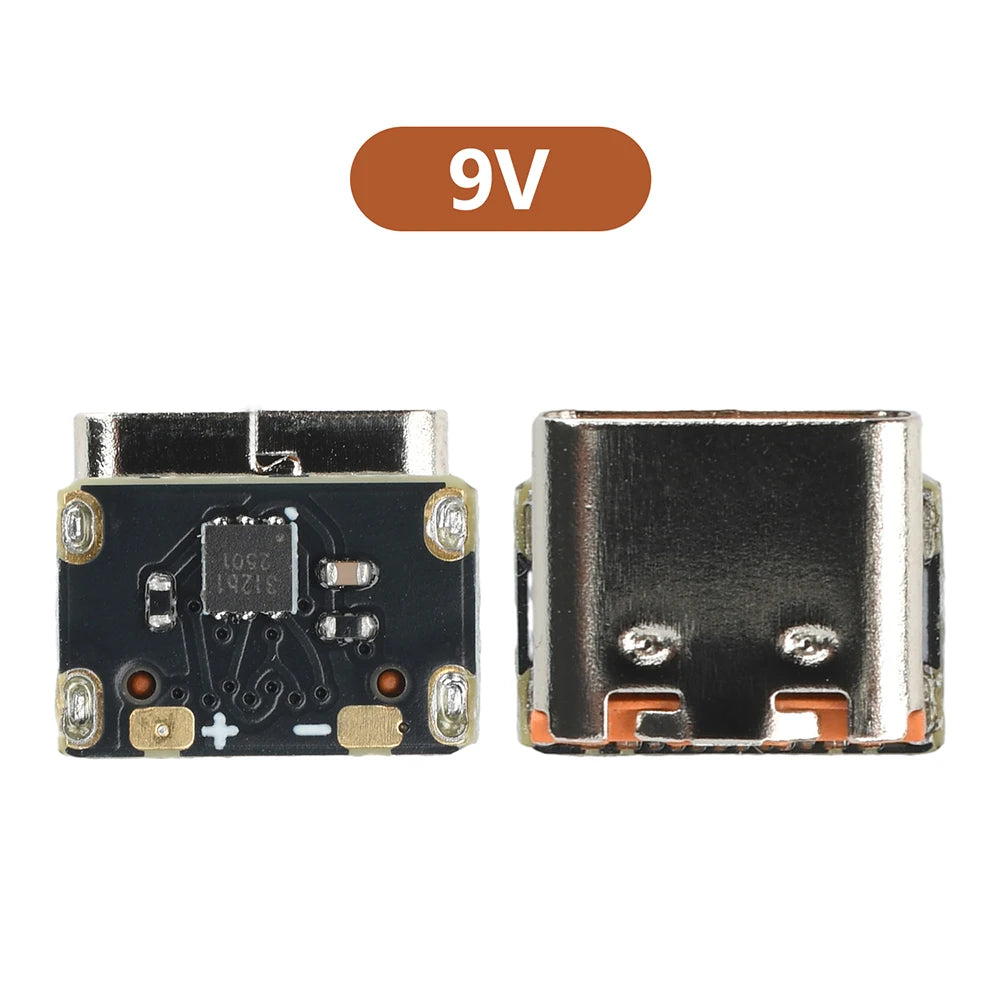

• Color: 15V, 20V, 9V, 12V
