Mini MPPT Solar Charging Control Module DC5-18V 2 5A Type-c DC

Discover the Mini MPPT Solar Charging Control Module DC5-18V 2 5A Type-c DC — a standout electronics accessories pick featuring portable, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Charging Protection Module

Output Voltage: Charging Protection Module

Semi-finishedproduct: No

Size: Charging Protection Module

Style: Charging Protection Module

Type: Charging Protection Module

Features:

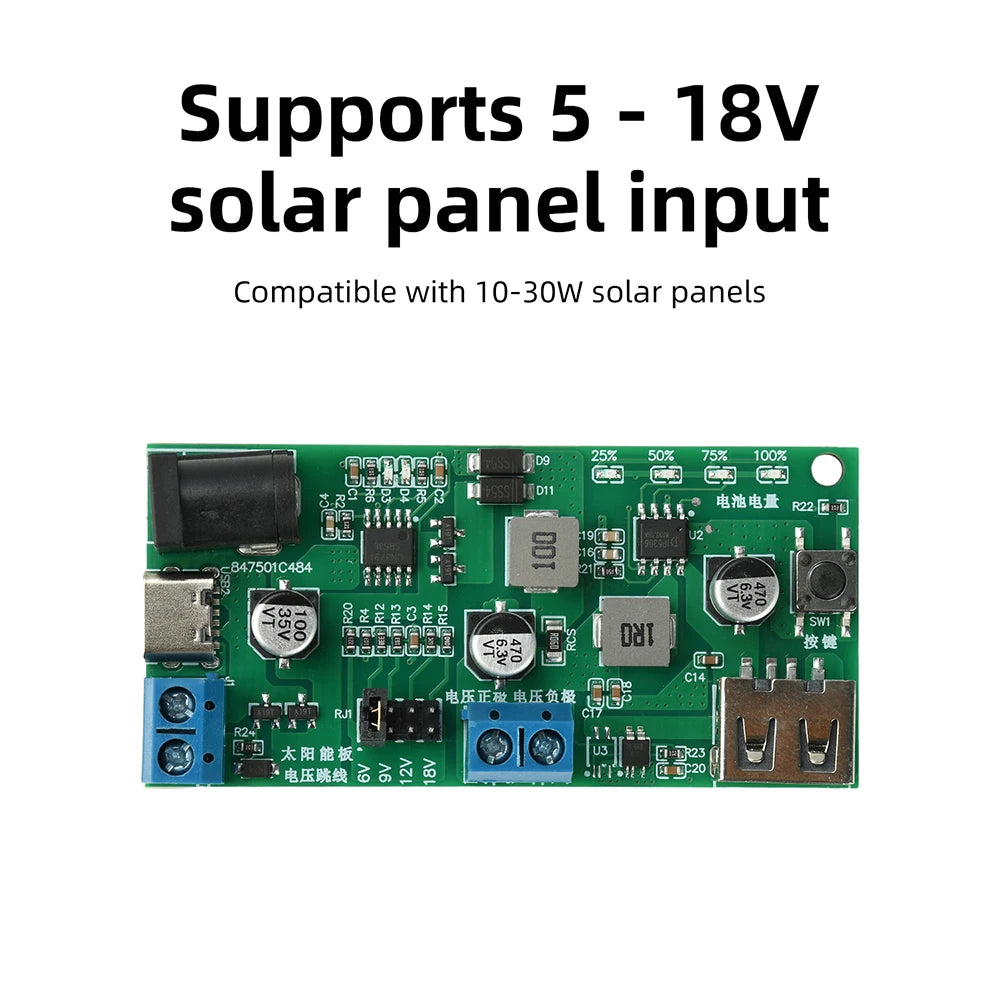

1. Supports 5–18V solar panel input, compatible with 10–30W solar panels

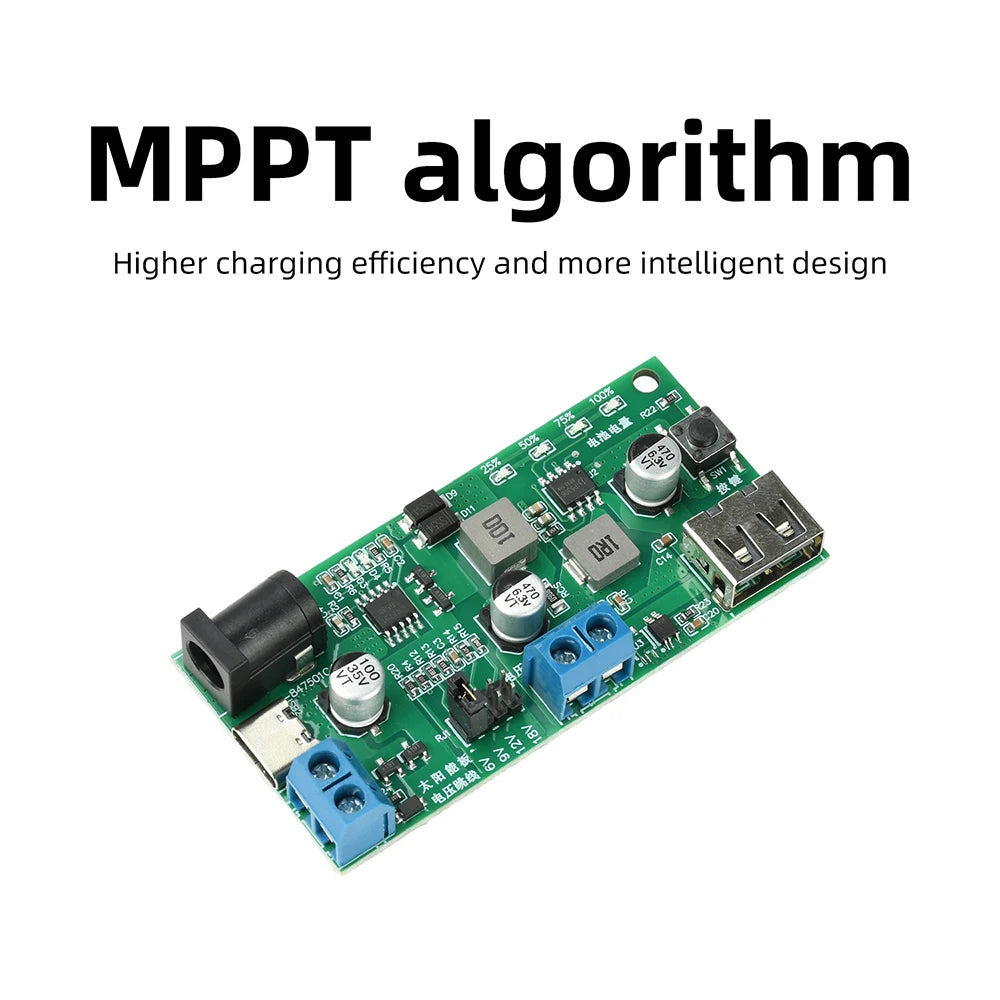

2. MPPT algorithm for higher and smarter charging efficiency

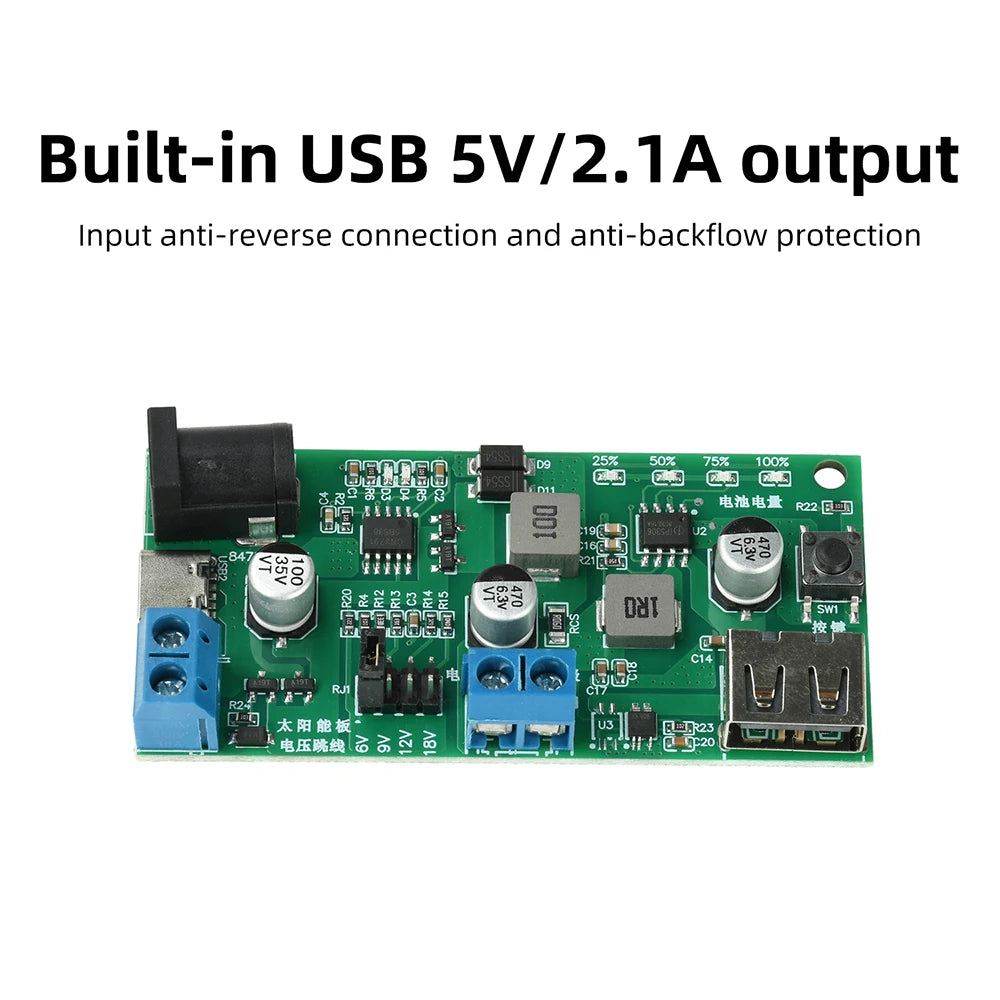

3. Onboard USB 5V/2.1A output with reverse connection and reverse current protection

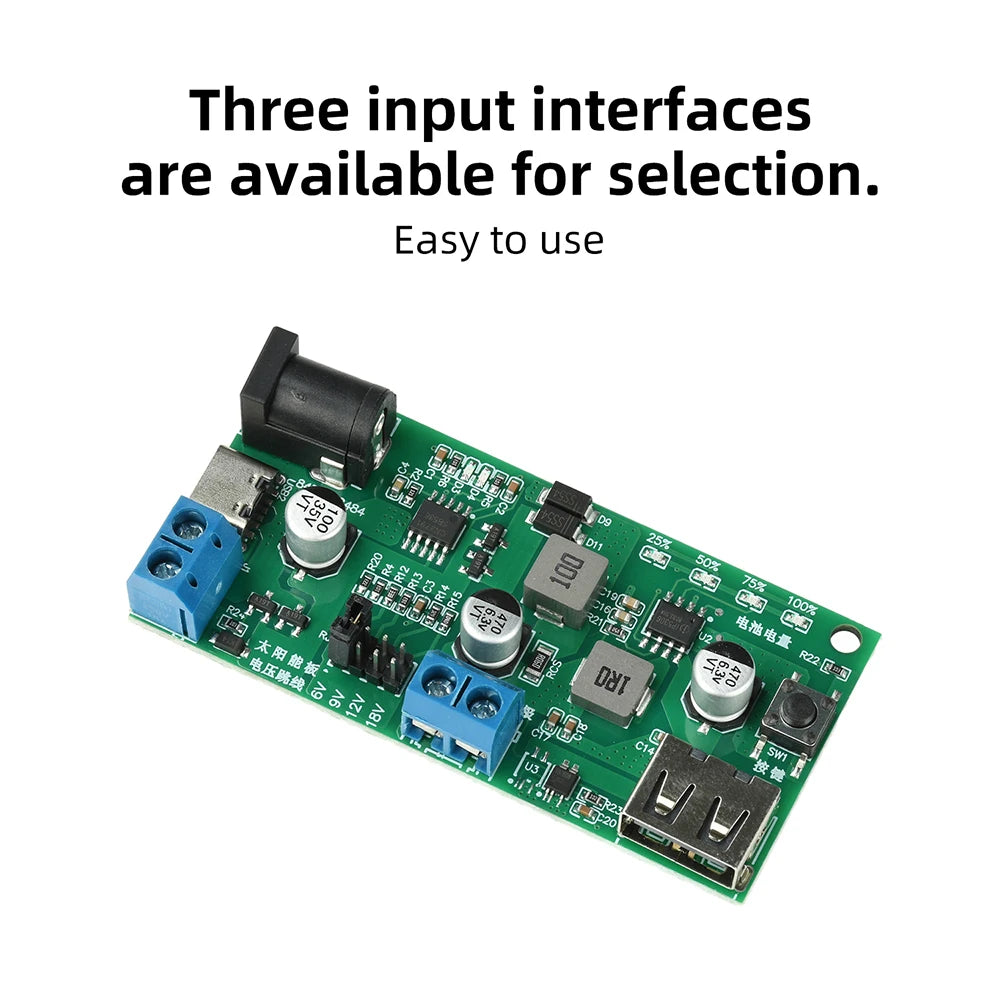

4. Three input interface options for convenient use

5. Compact and portable with a high-brightness LED indicator for easy use

Product Specifications:

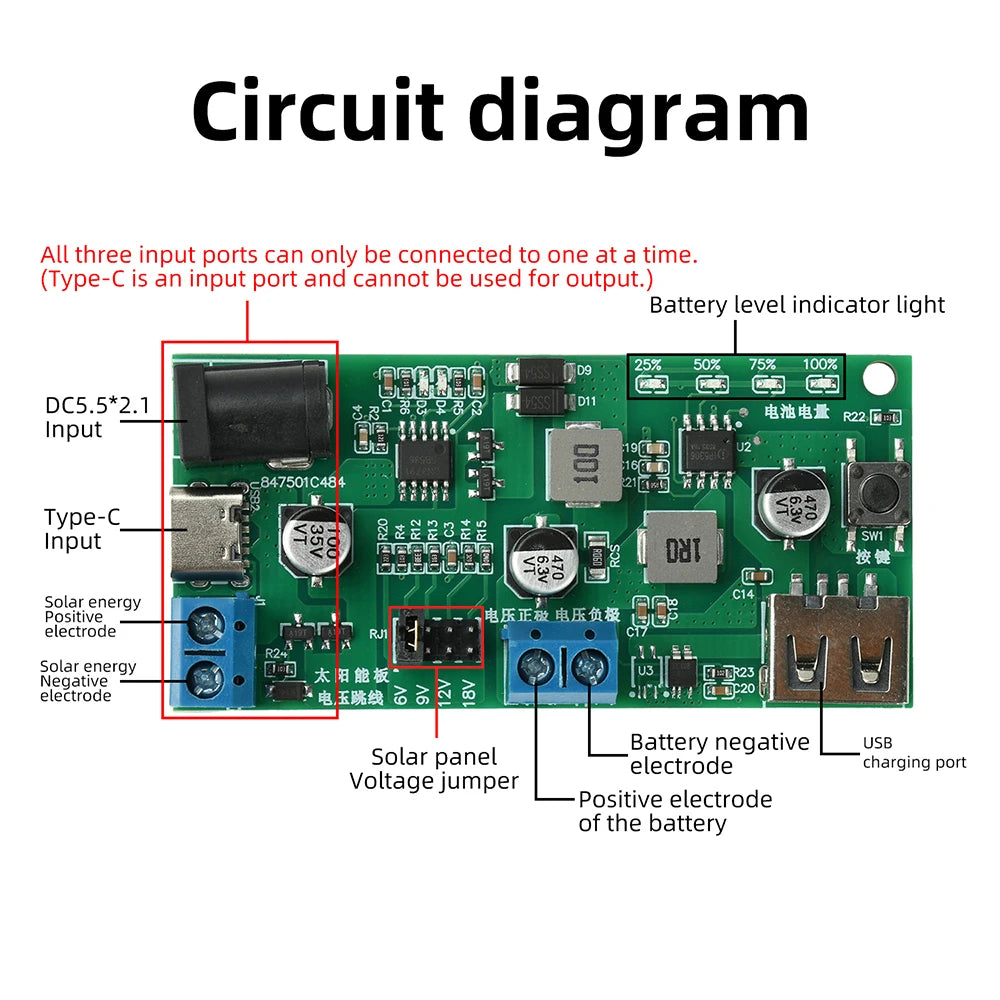

Input Interfaces: DC 5.5×2.1, Type-C, terminal blocks (Note: Only one input port can be used at a time; the Type-C port is for input only, not output)

Solar Panel Input: 5V–18V

USB Output: 5V/2.1A

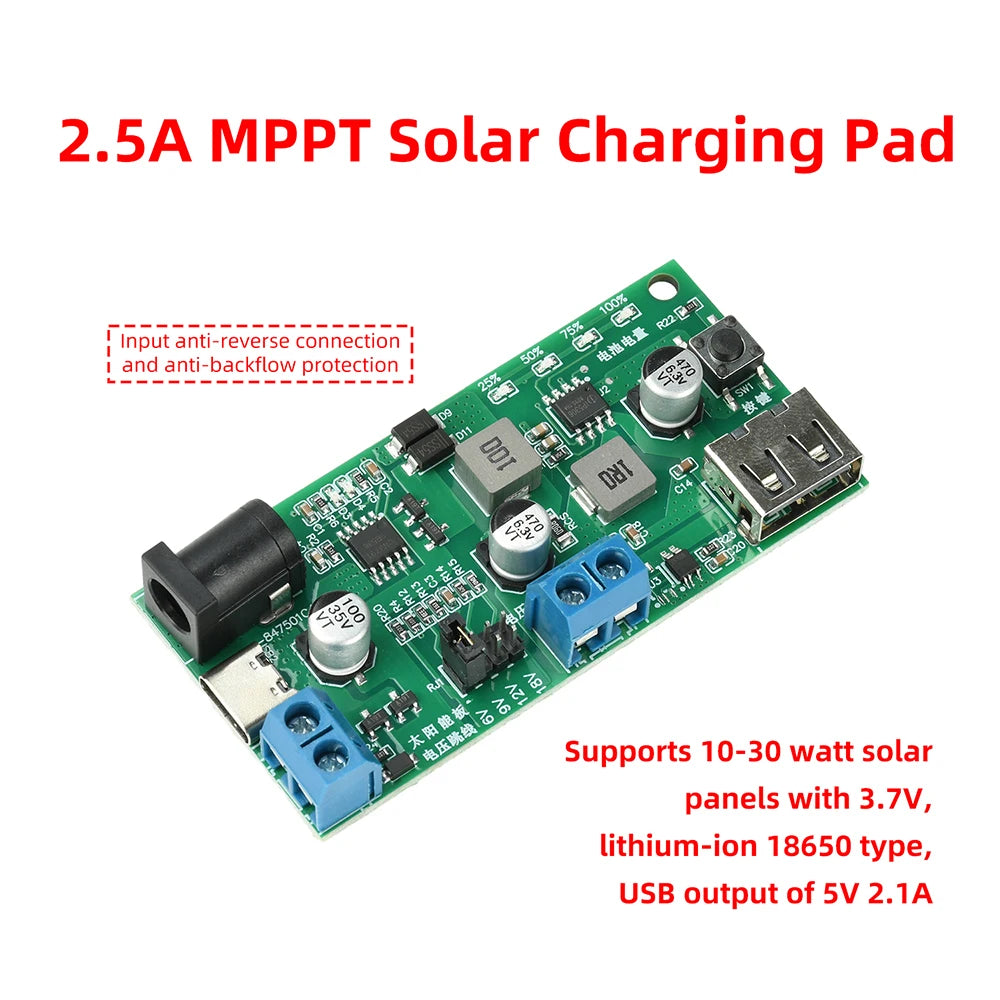

Supports 10–30W solar panels

Supports 3.7V ternary lithium 18650 batteries

Input reverse polarity and reverse current protection

Product Dimensions: 70mm x 34mm

Instructions:

Supports 5V–18V solar panel input

Before use, set the solar panel voltage jumper to the appropriate position

The battery terminal supports only 3.7V lithium batteries

When connecting the battery, ensure the positive and negative terminals are not reversed

A battery protection board is optional

Press the button to display the current battery level on the battery indicator light

The USB output features discharge protection; the USB will shut off when the battery is depleted.

The output will not turn on automatically when powered; the button must be pressed.

Do not use the USB output without a battery; the battery terminal must be connected to a battery for stable USB output.

The module will not function without the shorting cap installed; once inserted into the 6V position, USB charging becomes available.

Ensure proper heat dissipation during prolonged use.

Package Contents:

1x Module

Options

• Color: Green
