Mini Power Display Indicator 1S 2S 3S Ternary Lithium Battery

Discover the Mini Power Display Indicator 1S 2S 3S Ternary Lithium Battery — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

PCB included: No

Power Source: None

Semi-finishedproduct: No

Features:

1. Ultra-compact embedded design with mini dimensions for tight spaces

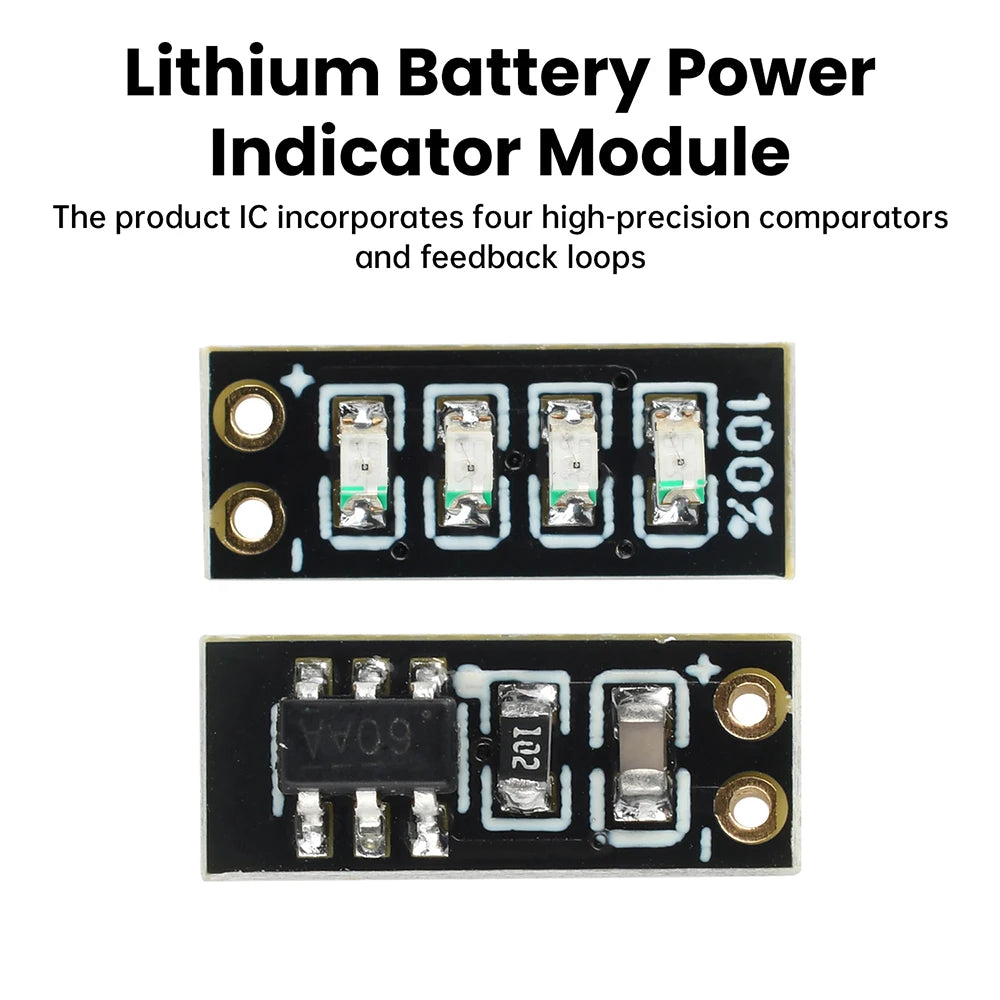

2. Built-in 4-channel high-precision comparators and feedback loops within the IC

3. Internal comparators feature optimized hysteresis for clear charge/discharge indication

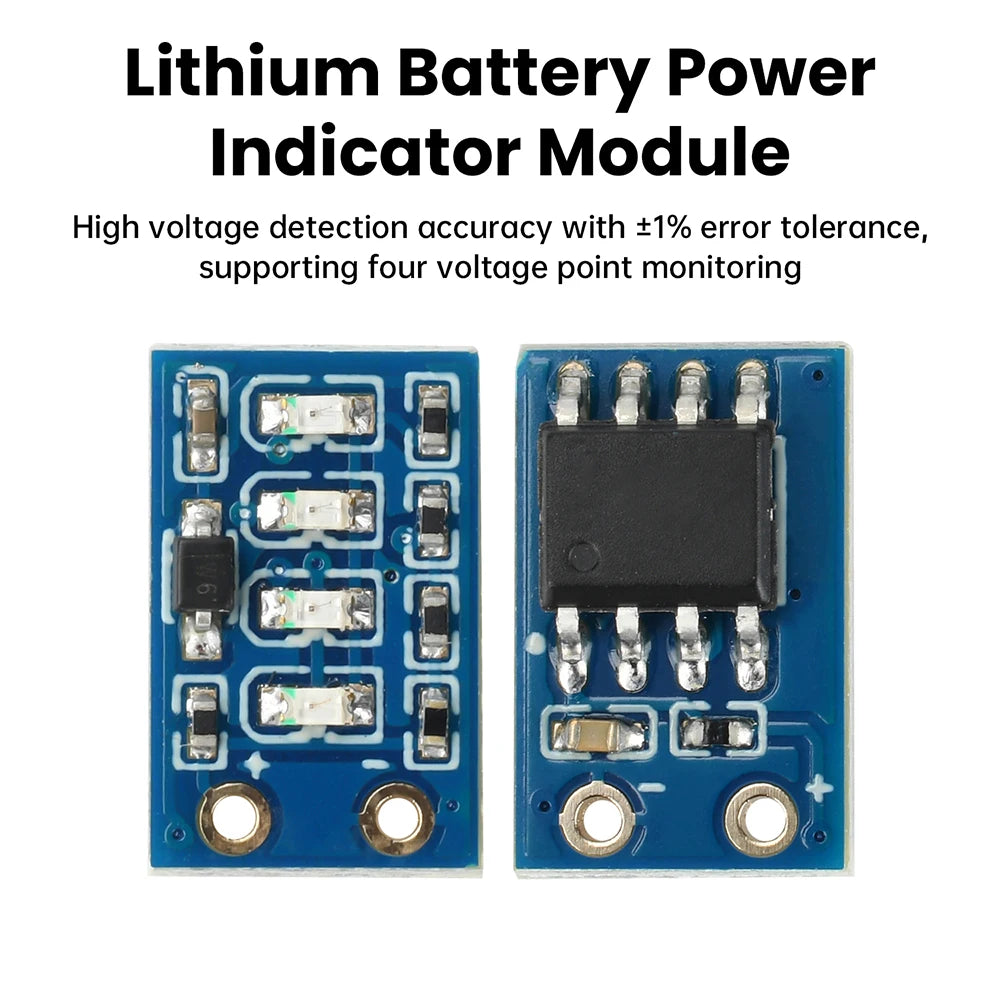

4. High voltage detection accuracy (±1% error) supporting 4 voltage points

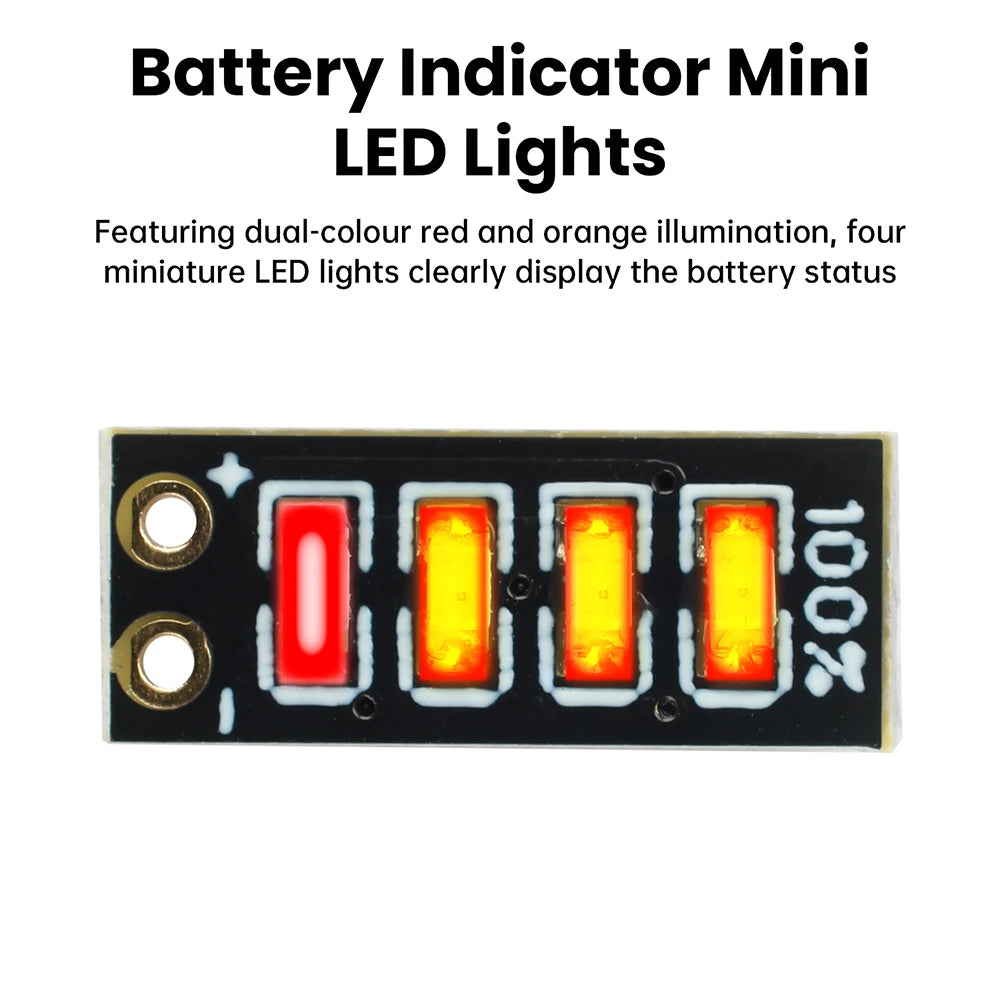

5. Dual red/orange LED display with 4 mini LEDs for prominent power status indication

Product Parameters:

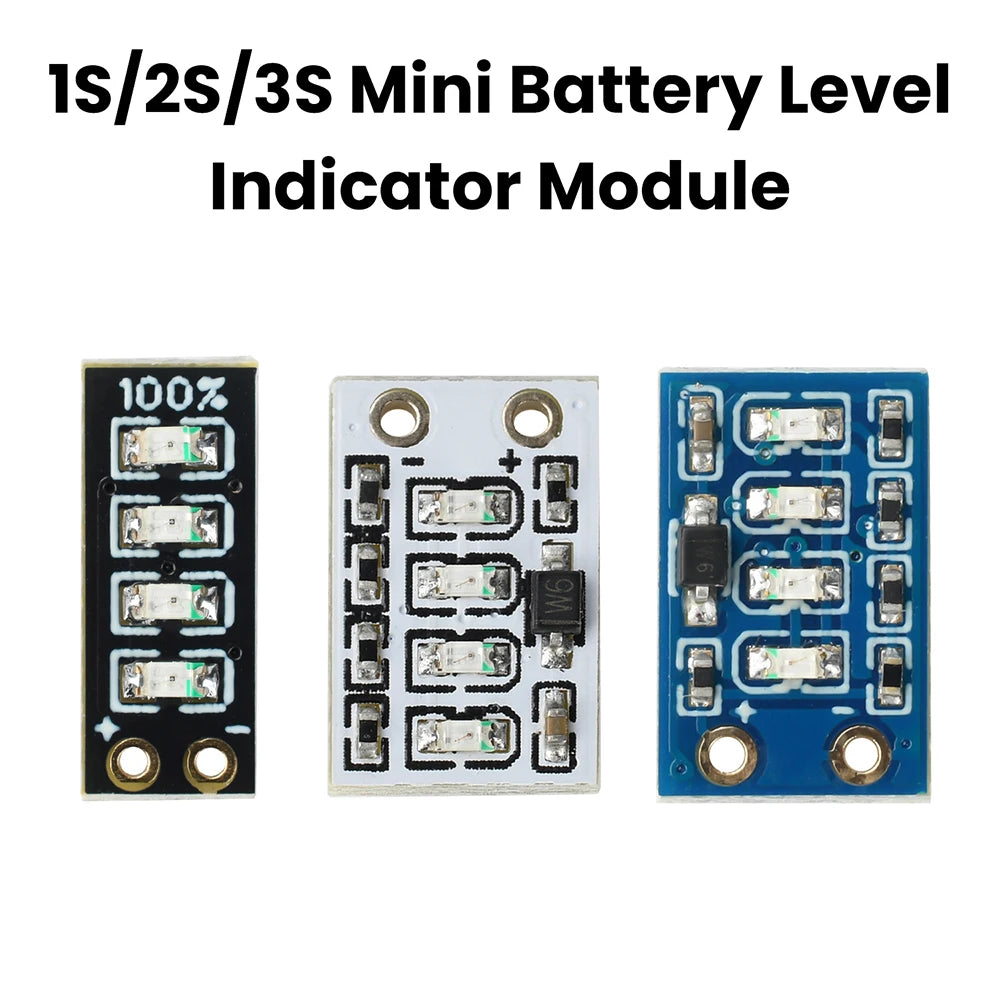

Product Name: Mini Battery Indicator Module

LED Colors: 4 LEDs (1 red, 2/3/4 orange)

Voltage:

1S Single Cell: DC 3-4.2V

2S Dual Series: DC 5.8-8.4V

3S Triple Series: DC 8.8-12.6V

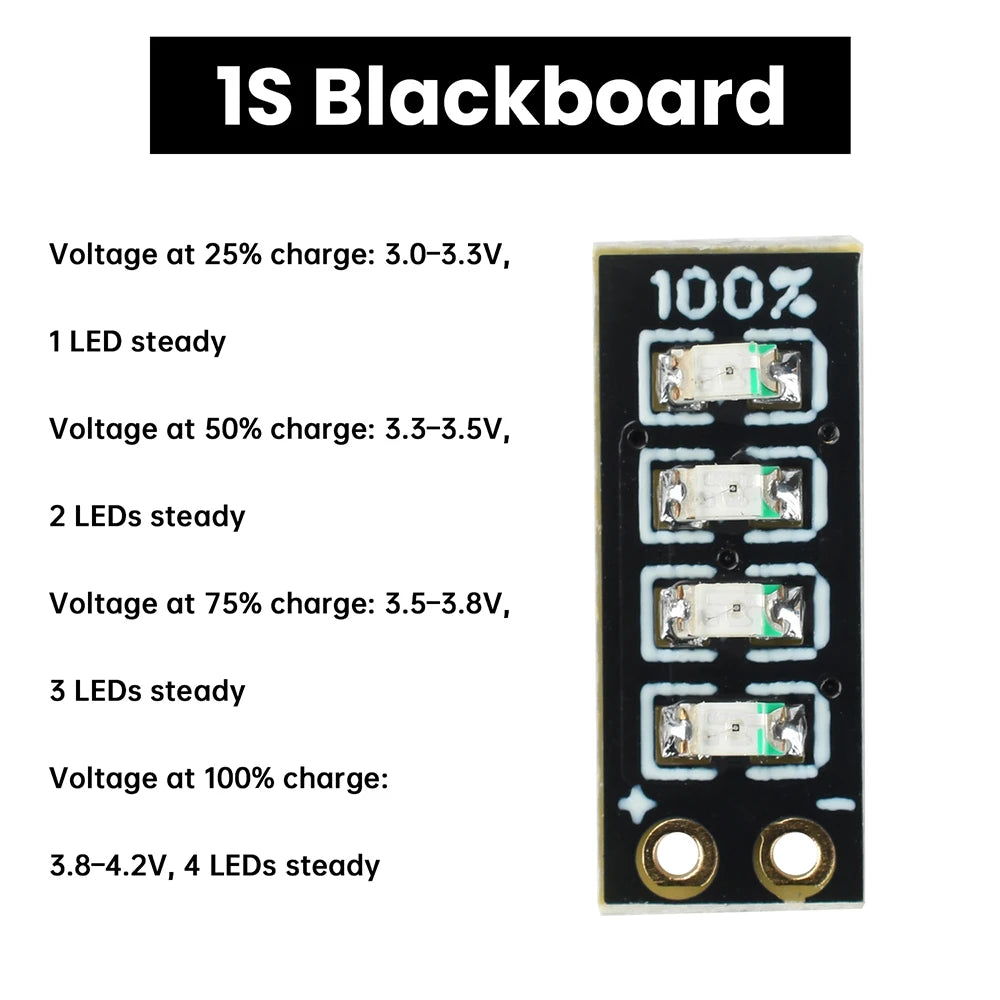

1S Black Board:

Voltage at 25% charge: 3.0-3.3V, 1 LED steady on

Voltage at 50% charge: 3.3-3.5V, 2 LEDs steady on

Voltage at 75% charge: 3.5-3.8V, 3 LEDs steady on

Voltage at 100% charge: 3.8-4.2V, 4 LEDs steady on

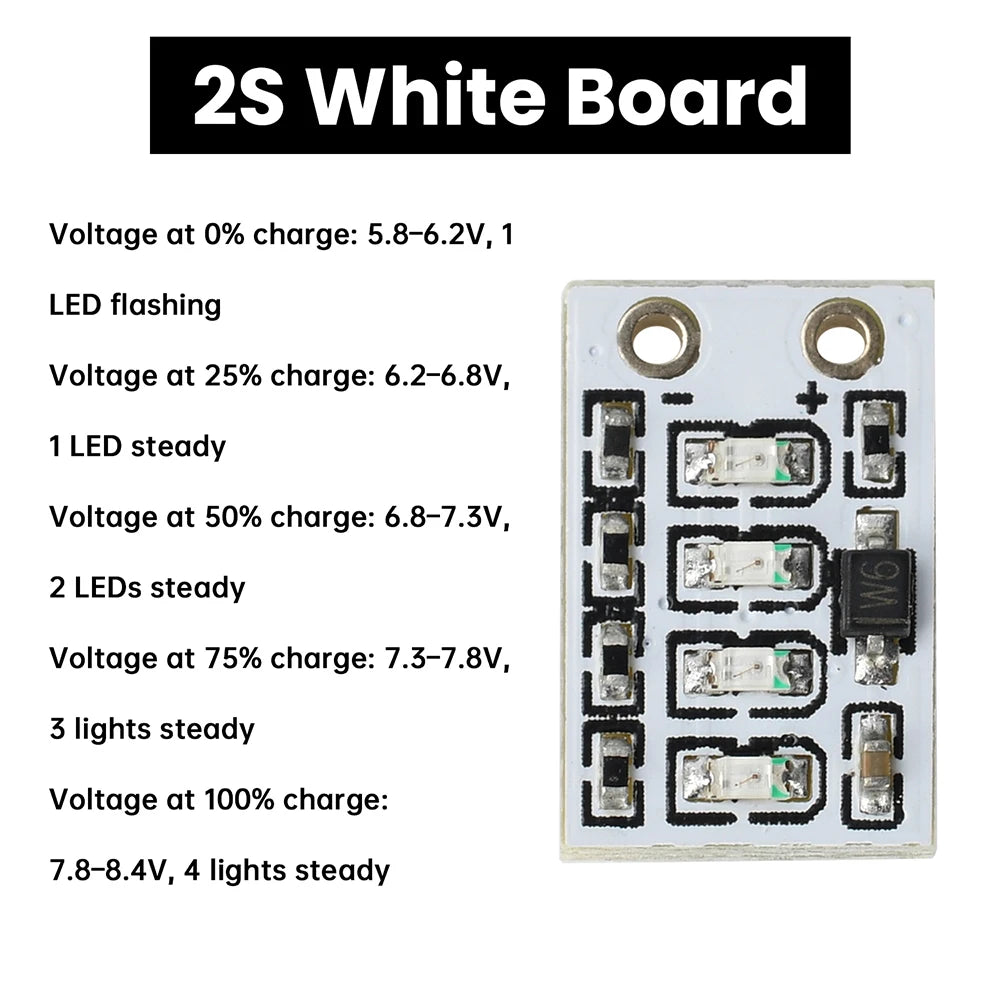

2S White Board:

0% charge voltage: 5.8-6.2V, 1 LED flashing

25% charge voltage: 6.2-6.8V, 1 LED steady

50% charge voltage: 6.8-7.3V, 2 LEDs steady

Voltage at 75% charge: 7.3-7.8V, 3 lights steady

Voltage at 100% charge: 7.8-8.4V, 4 lights steady

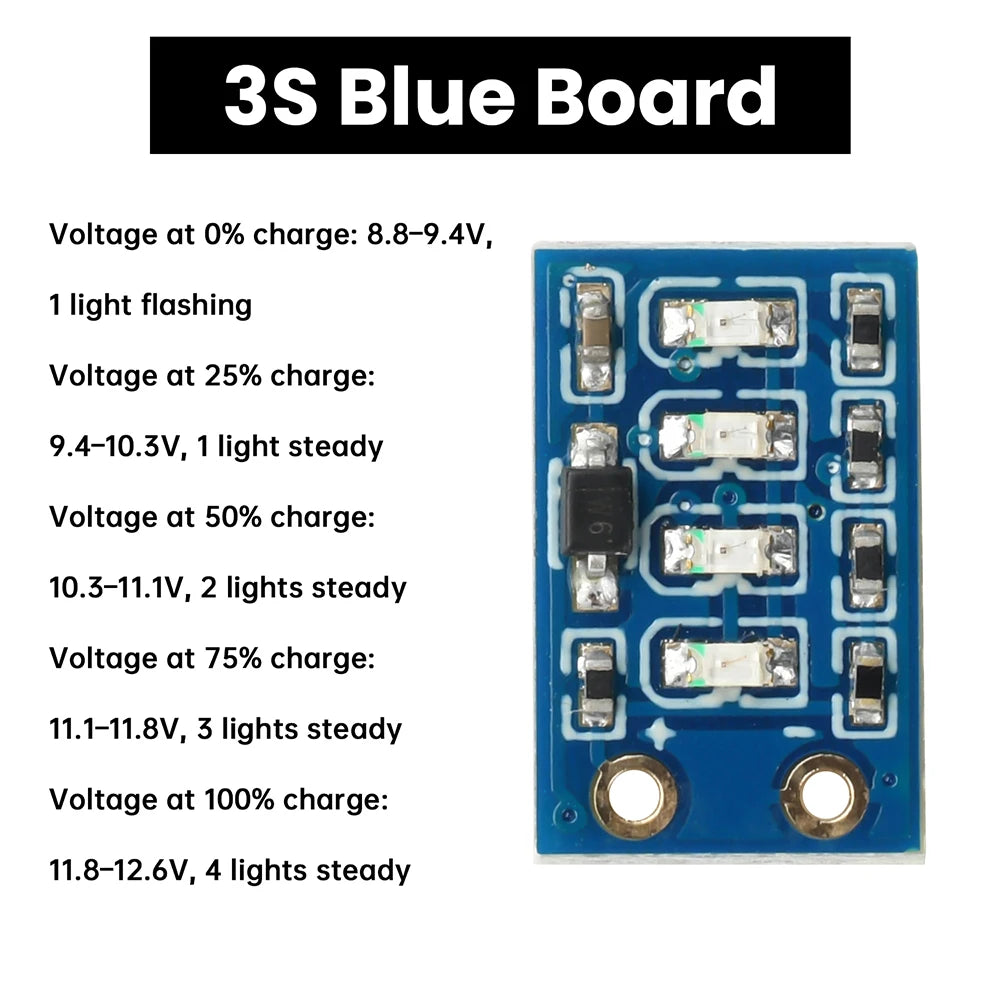

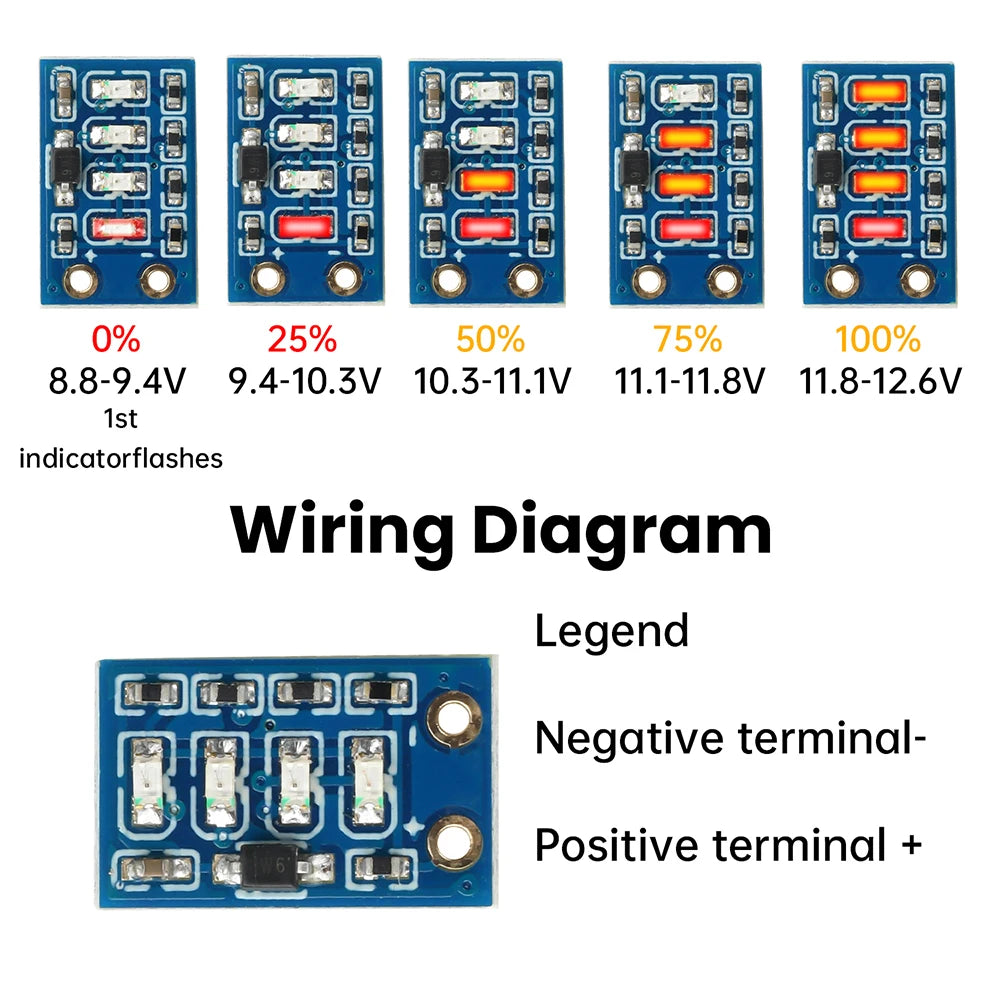

3S Blue Board:

Voltage at 0% charge: 8.8-9.4V, 1 light flashing

Voltage at 25% charge: 9.4-10.3V, 1 light steady

Voltage at 50% charge: 10.3-11.1V, 2 lights steady

Voltage at 75% charge: 11.1-11.8V, 3 lights steady

Voltage at 100% charge: 11.8-12.6V, 4 lights steady

Precautions:

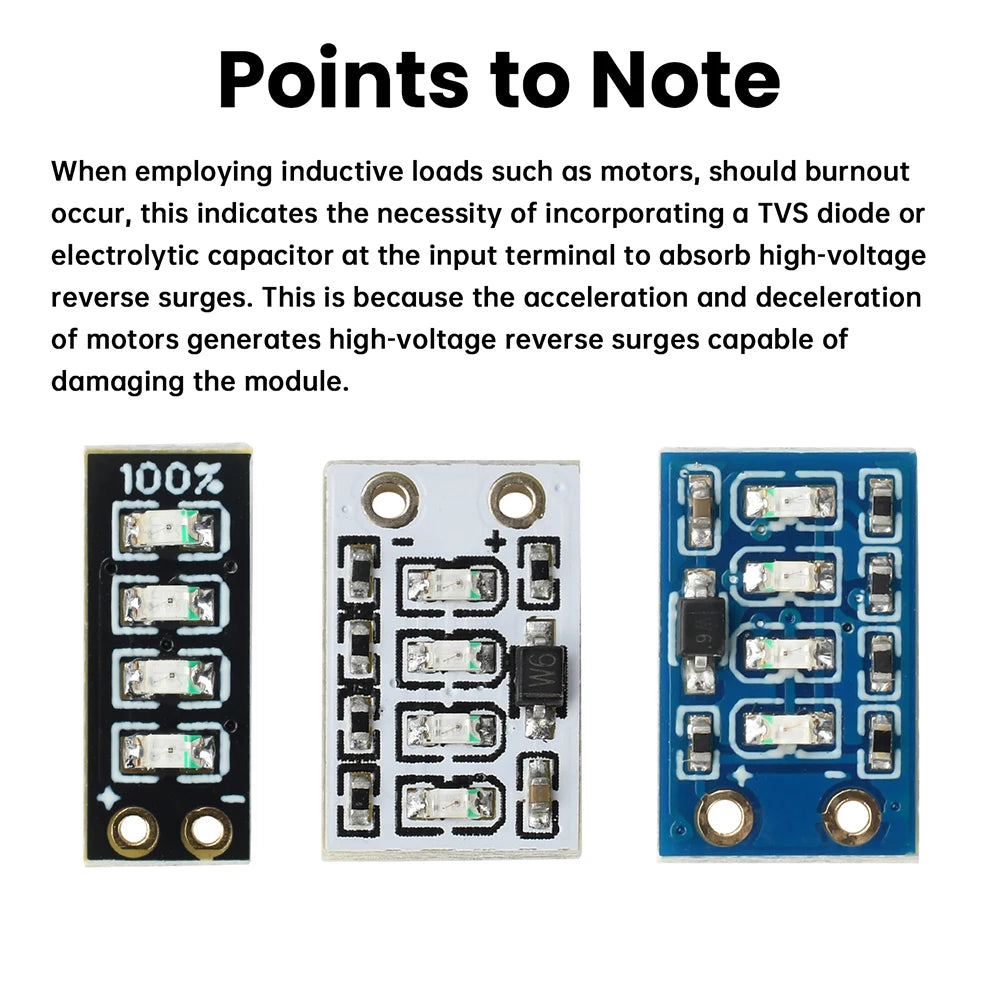

When using inductive loads such as motors, if burnout occurs, it indicates the need to add a TVS diode or electrolytic capacitor at the input to absorb high-voltage reverse surges. Motor acceleration/deceleration generates high-voltage surges that can damage the module.

Shipping List:

Module x1

Options

• Color: 1S, 2S, 3S
