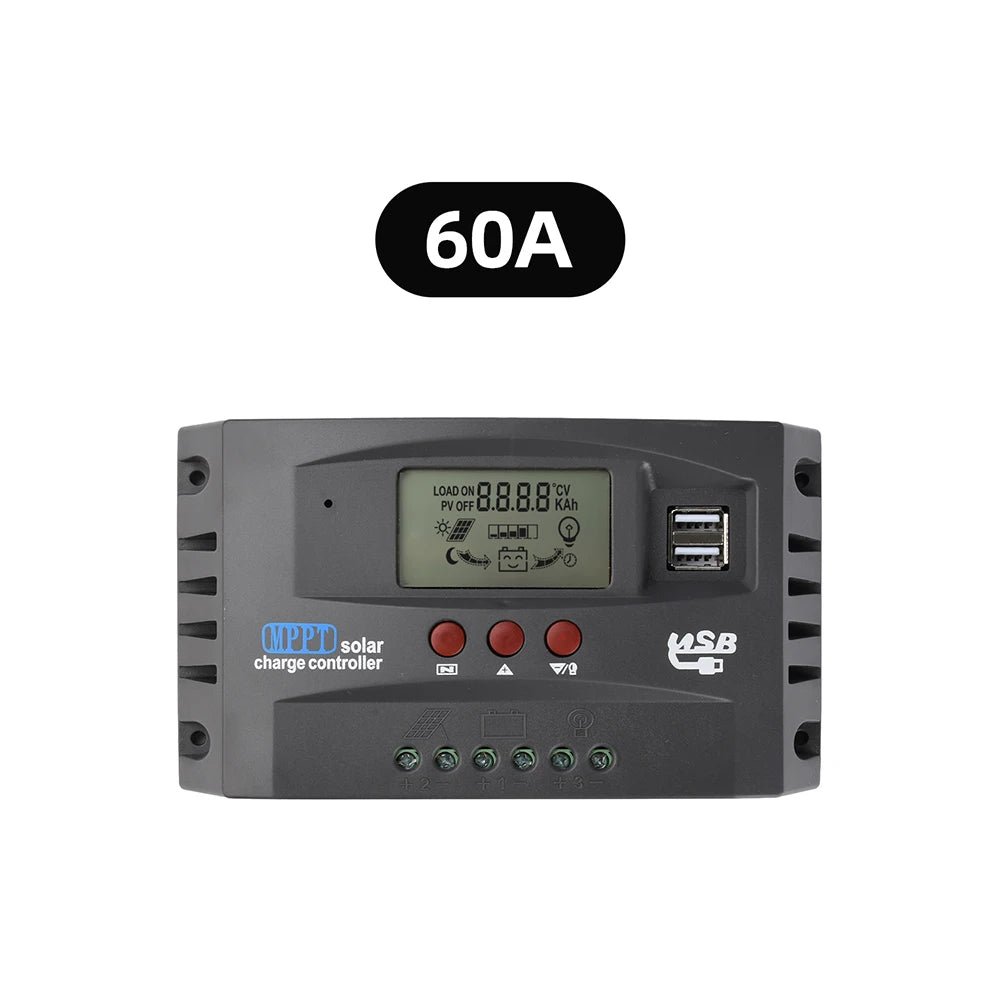

MPPT Solar Controller 12V 24V 30A 60A 100A Charge Supports Lead Acid

Discover the MPPT Solar Controller 12V 24V 30A 60A 100A Charge Supports Lead Acid, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Certification: NONE

Is Smart Device: no

Features:

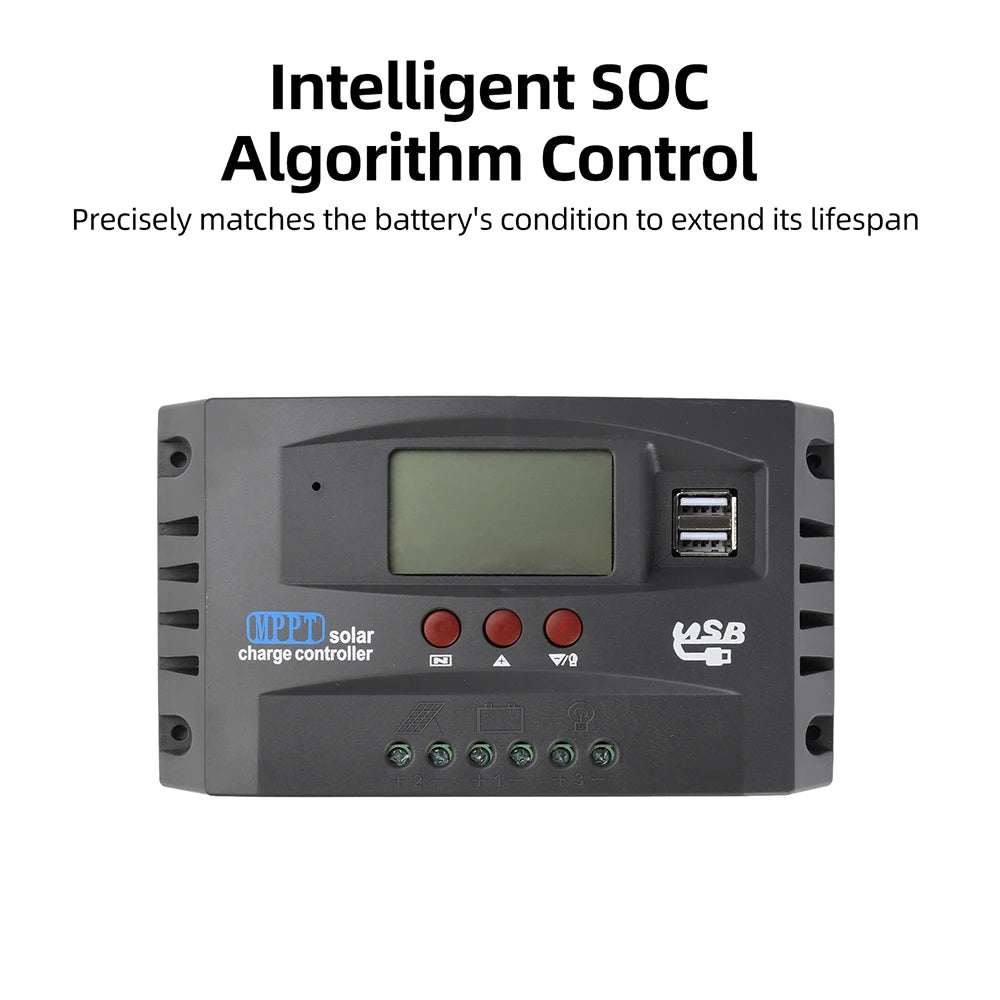

1. Intelligent SOC algorithm control precisely matches the battery’s state, extending battery life

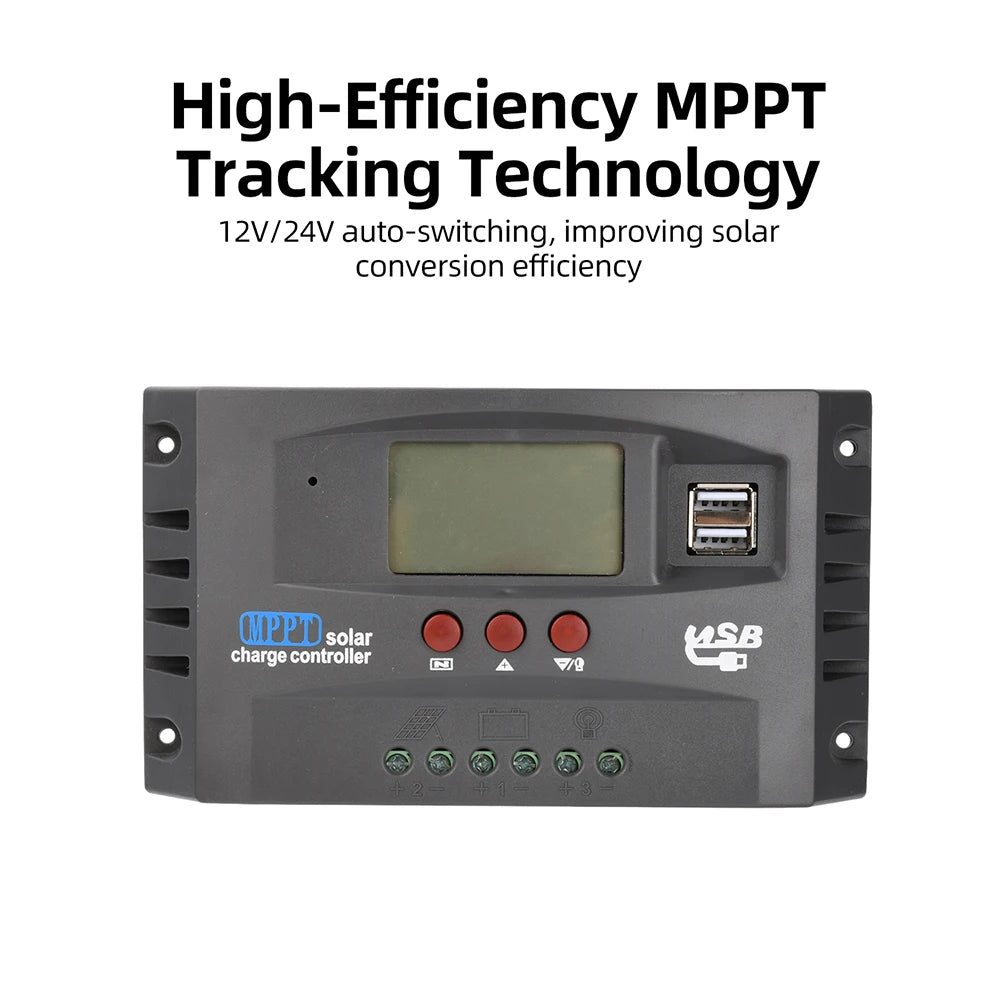

2. High-efficiency MPPT tracking technology with 12V/24V auto-adaptation enhances solar conversion efficiency

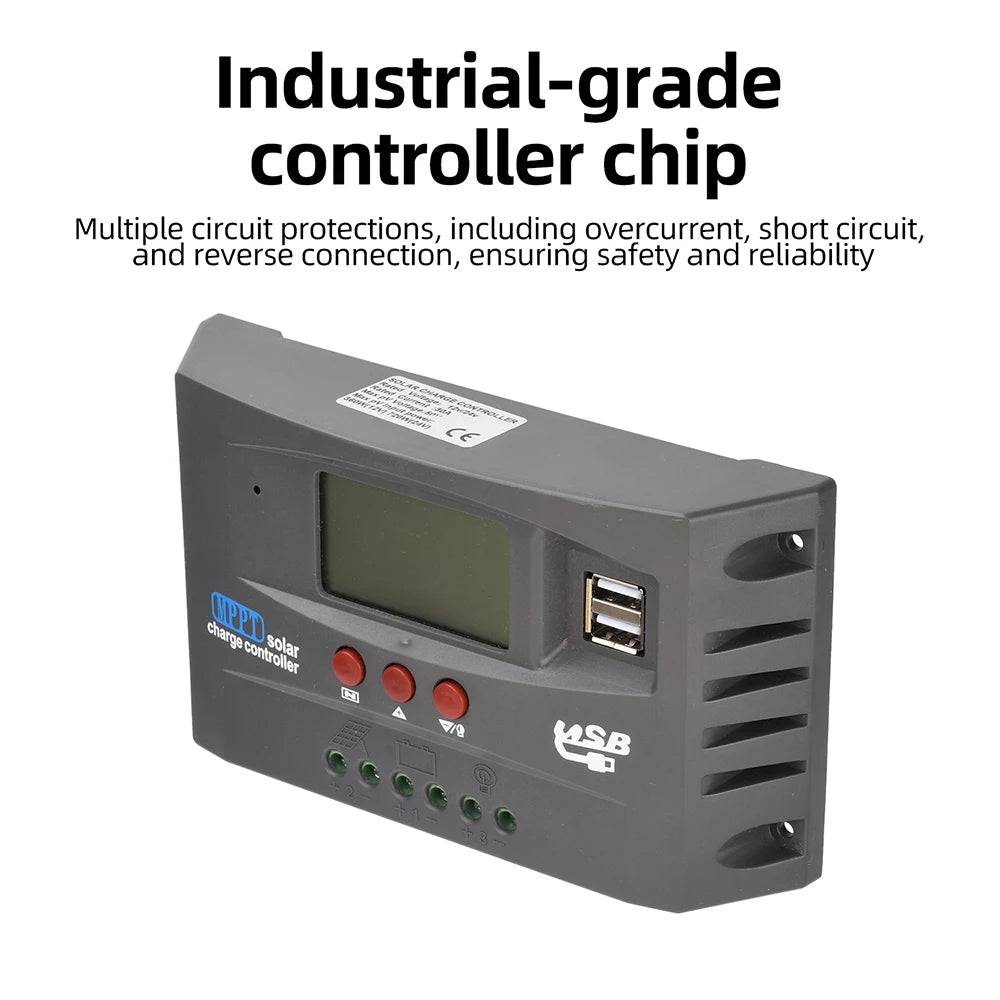

3. Industrial-grade main control chip with multiple circuit protections (overcurrent, short circuit, reverse connection, etc.) ensures safety and reliability

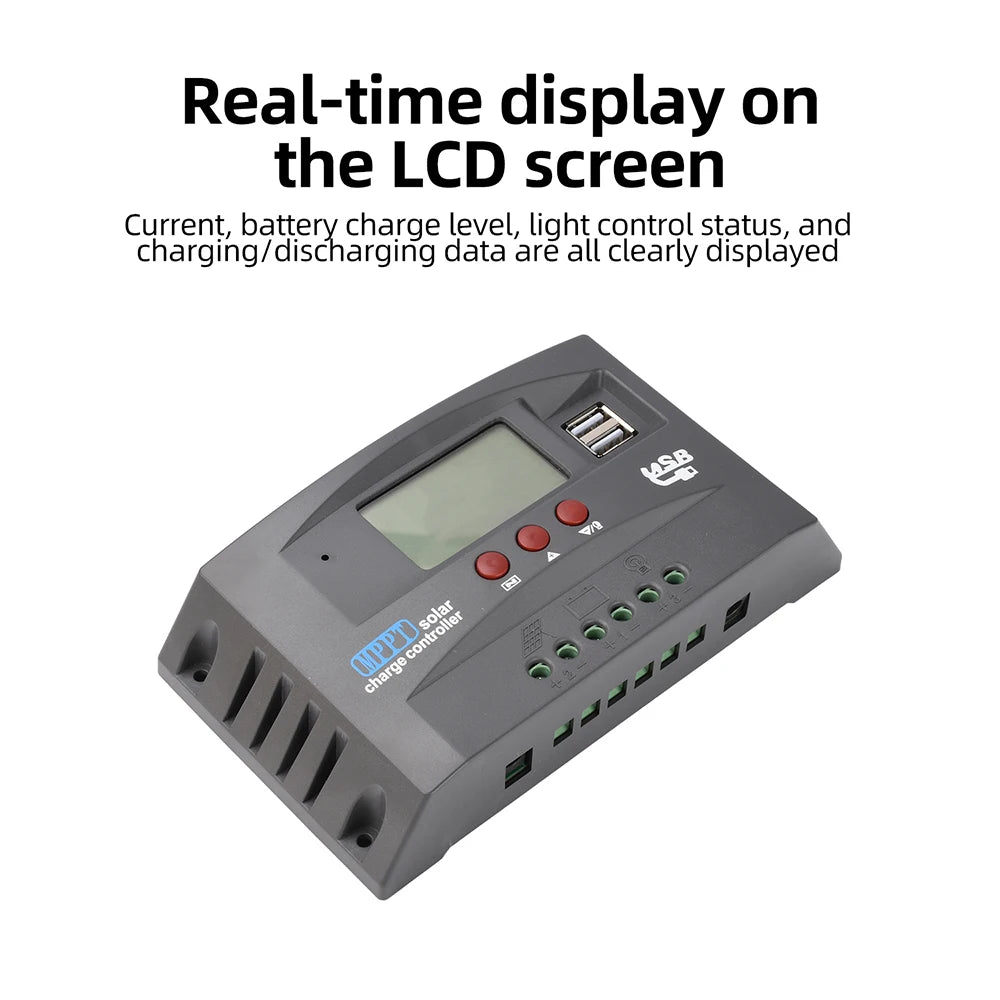

4. Real-time LCD display showing current, battery level, light-sensing status, and charging/discharging data at a glance

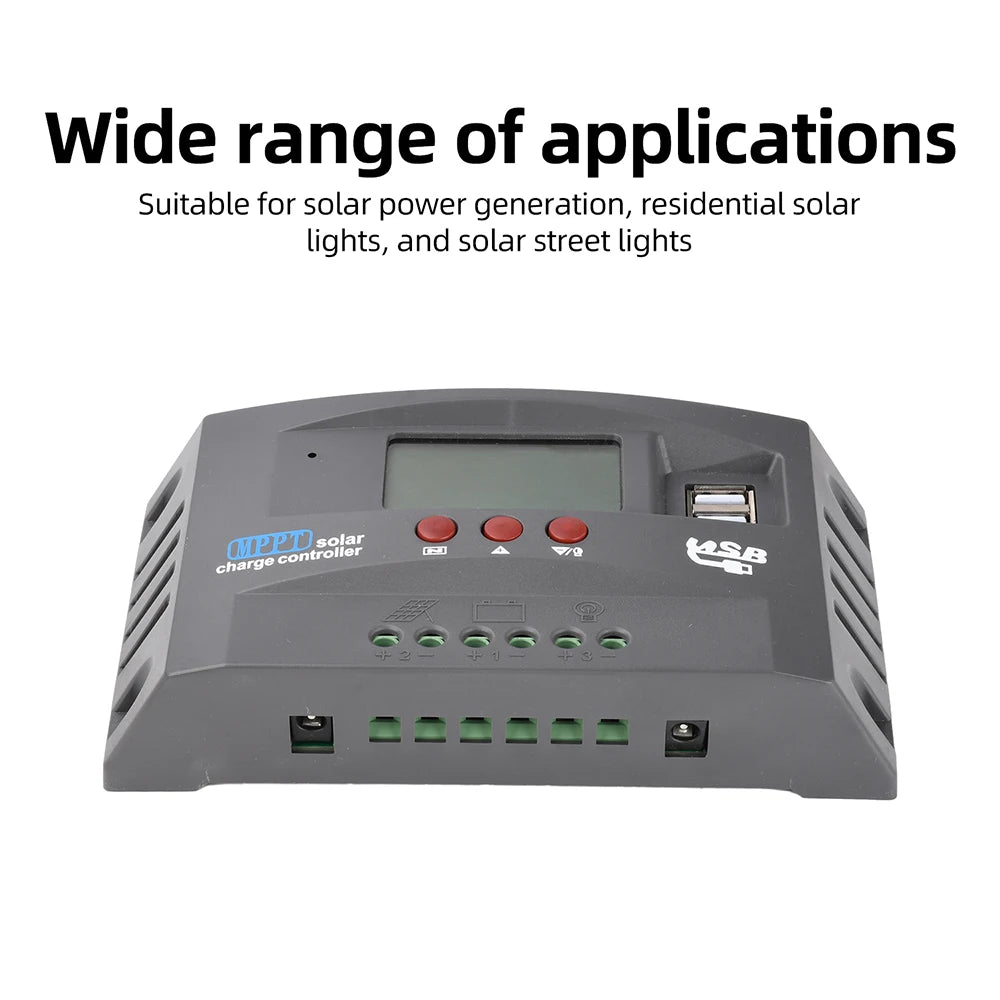

5. Wide range of applications, suitable for solar power generation, residential solar lights, and solar street lights

Product Specifications:

Product Name: MPPT Solar Controller

System Voltage: 12/24V adaptive

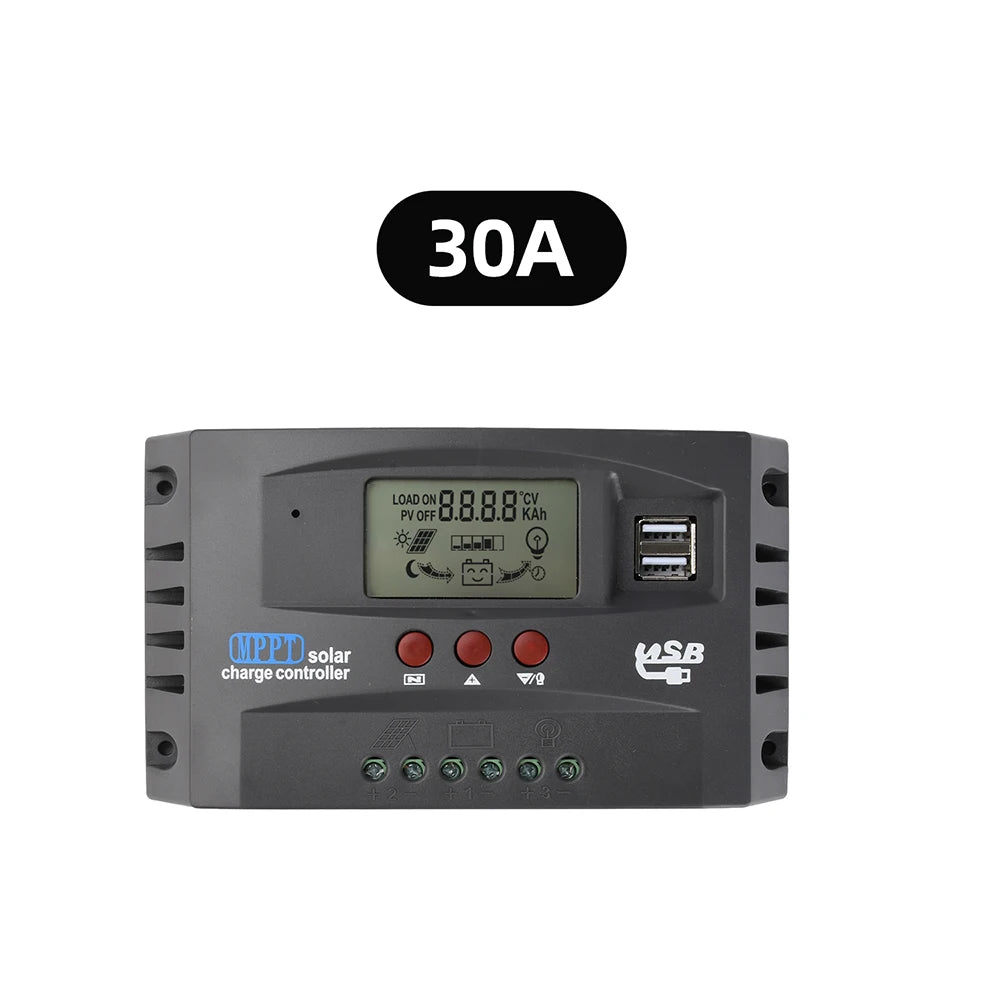

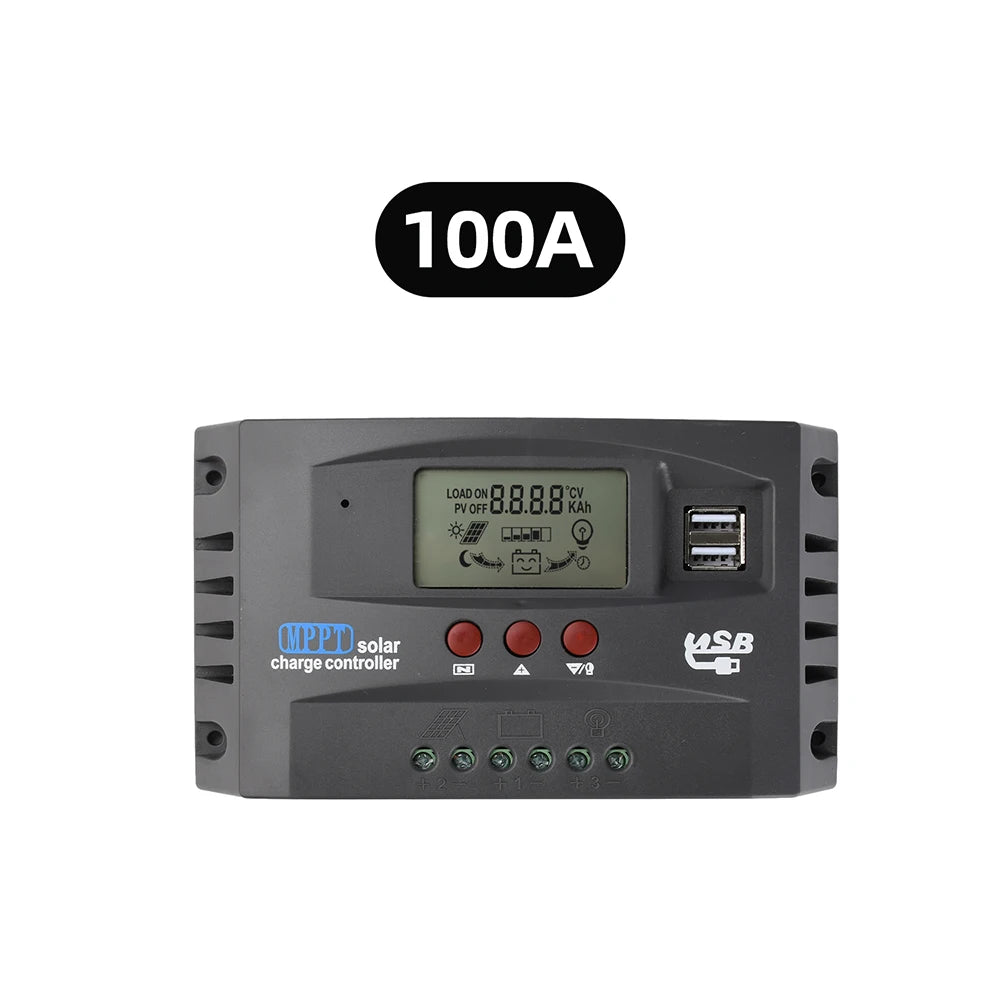

Rated Current: 30A/60A/100A (Optional)

PV Voltage Range: 15–23V solar panels for 12V batteries; 30–46V solar panels for 24V batteries

Light-Controlled On Threshold: 8V PV panel (light-controlled on has a delay)

Light-Controlled Off Threshold: 8V PV panel (light-controlled on has a delay)

USB Output: 2 USB outputs, 5V 2A (max)

Standby Current: <10mA

Operating Temperature: -35°C to 60°C

Protection Features: Built-in overcurrent, short-circuit, open-circuit, and reverse connection protection

Supported Battery Types: Lead-acid, lithium, and lithium iron phosphate batteries

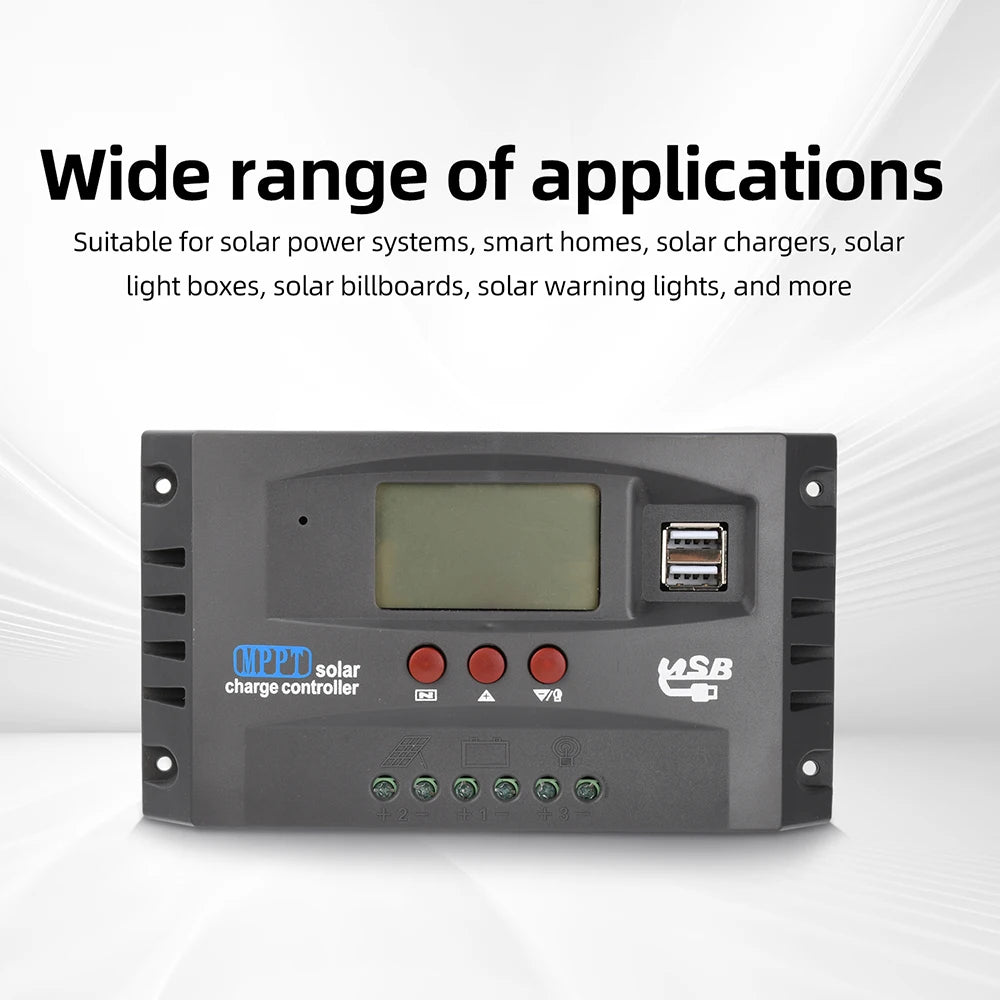

Applications: Supports a variety of batteries and operating environments, including solar power systems, smart home devices, solar chargers, solar light boxes, solar billboards, and solar warning lights, etc.

Safety Recommendations:

1. This controller is set to automatically detect 12V or 24V by default. During initial installation, be sure to connect the battery first and ensure it has sufficient voltage so that the controller can correctly identify the battery type.

2. Install the controller as close to the battery as possible to avoid voltage drops caused by excessively long wires, which could affect accurate voltage detection.

3. This controller is compatible with a variety of battery types [including open-vented, sealed, and lead-acid batteries]. If charging lithium-ion batteries, you must be thoroughly familiar with their characteristics; after connecting the power, you must configure the charging parameters correctly before use.

4. Battery Type Descriptions: b1 is for lead-acid batteries (12V/24V auto-detection); b2 is for lithium-ion batteries (3-cell 11.1V lithium-ion battery); b3 is a lithium iron phosphate battery (4-cell series, 12.8V). The factory default setting is b1.

5. This controller can only use solar panels as a charging power source. Do not use DC or other power sources for charging.

6. This controller generates heat during operation. Be sure to install it on a flat, well-ventilated surface.

Package Contents:

Solar Controller x1

Options

• Color: 60A, 100A, 30A
