PCA9546 4-Channel I2C Multiplexer Board Stemma QT Qwiic Interface
$41.02
Sale price
$41.02
Regular price
$50.82
Shipping calculated at checkout.
Discover the PCA9546 4-Channel I2C Multiplexer Board Stemma QT Qwiic Interface, a standout skin care pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

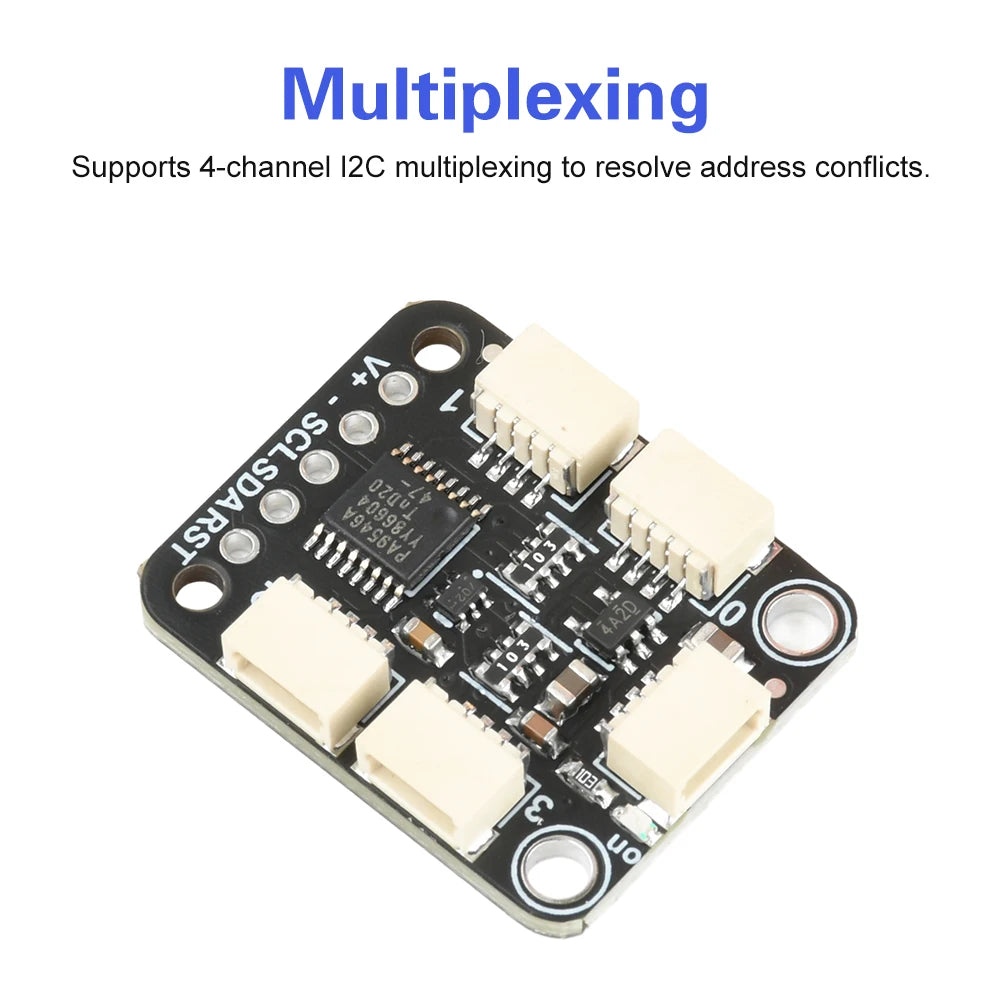

1. Supports 4-channel I2C multiplexing to resolve address conflicts.

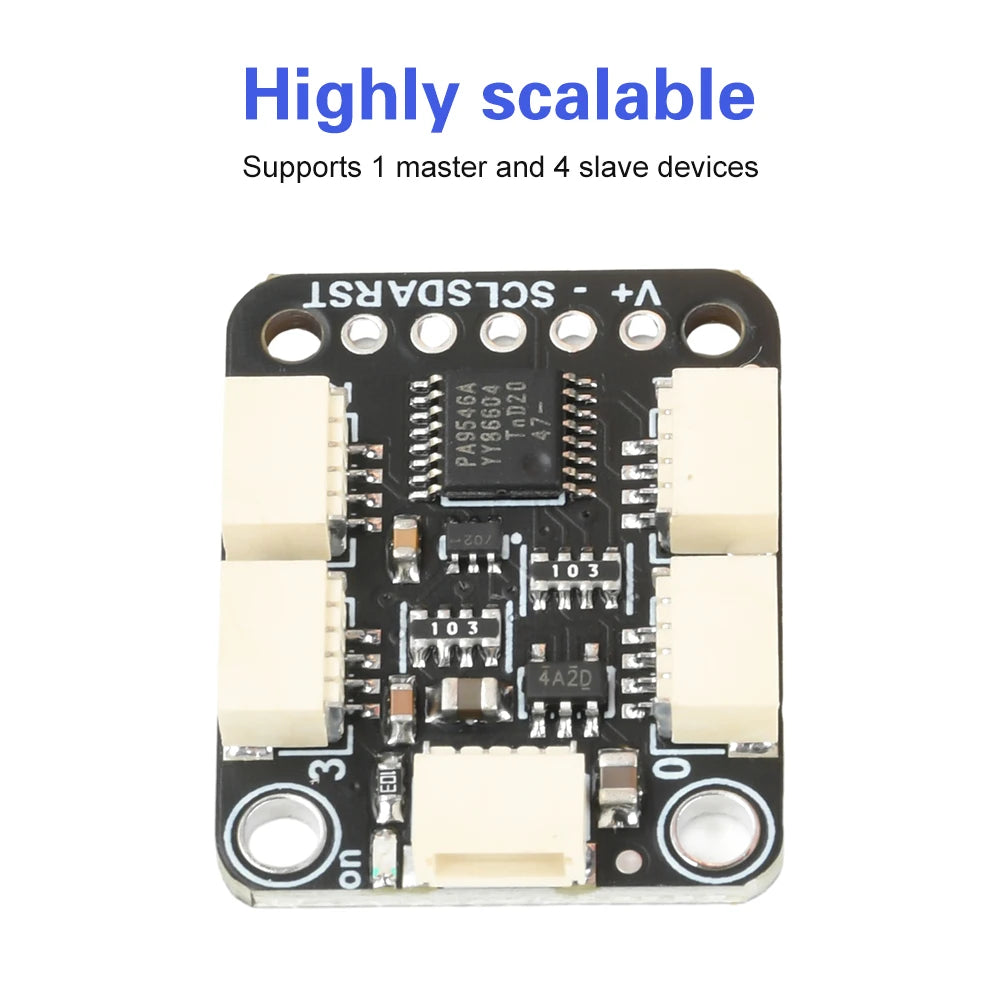

2. Supports 1 master and 4 slave devices for strong scalability.

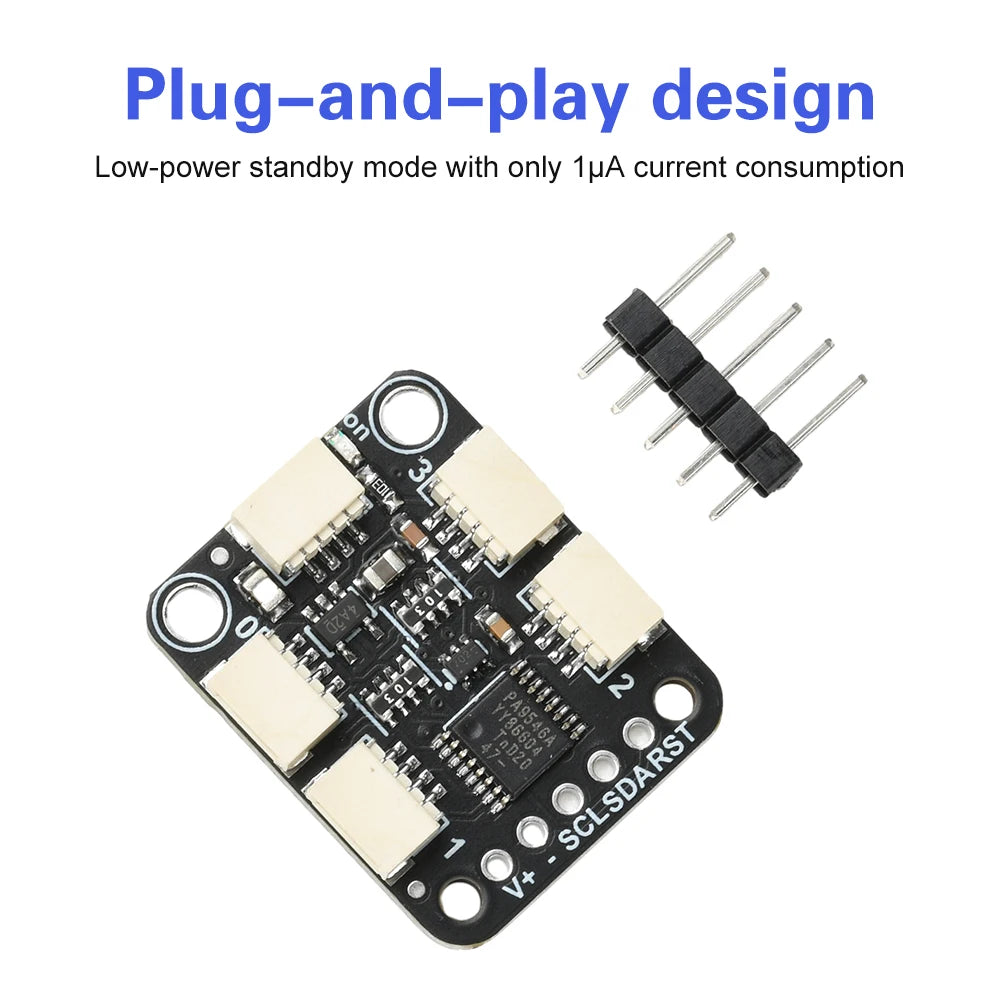

3. Plug-and-play design with low-power standby mode, consuming only 1μA.

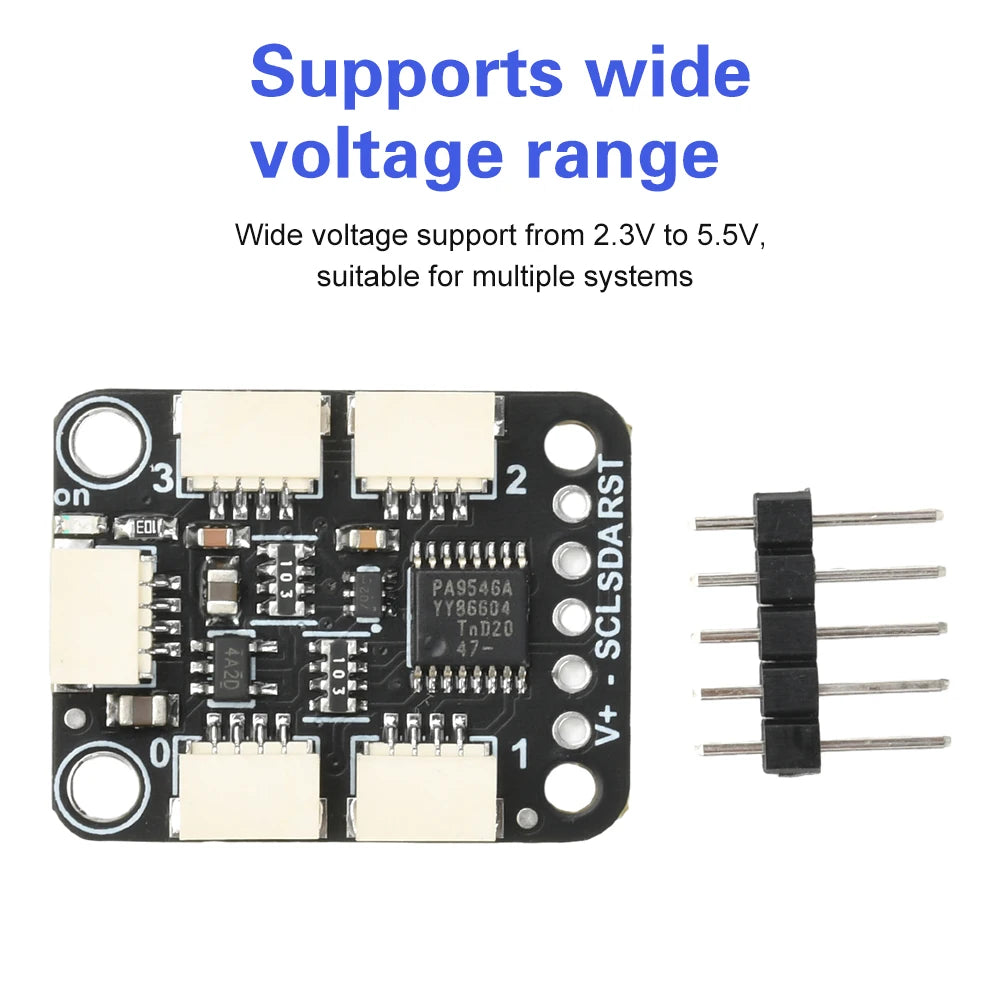

4. Wide voltage support from 2.3V to 5.5V, compatible with multiple systems.

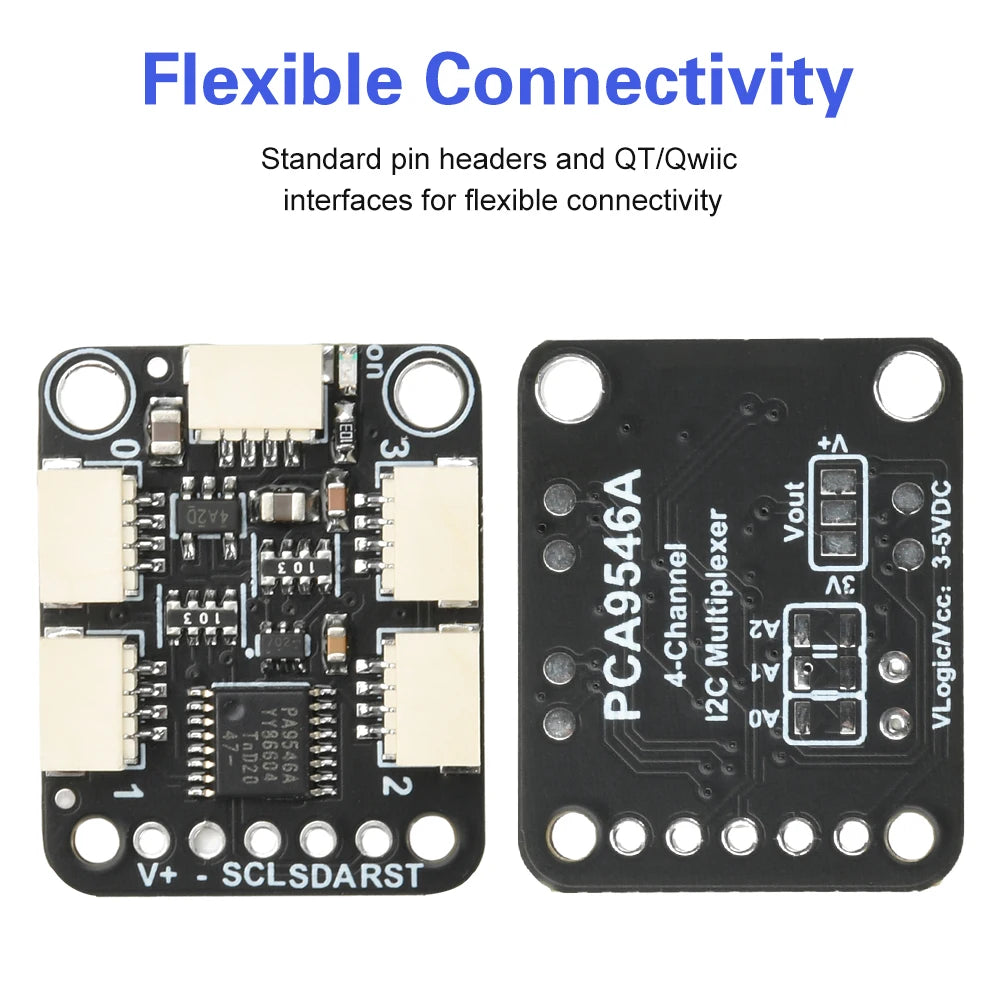

5. Standard header pins and QT/Qwiic interfaces for flexible connectivity.

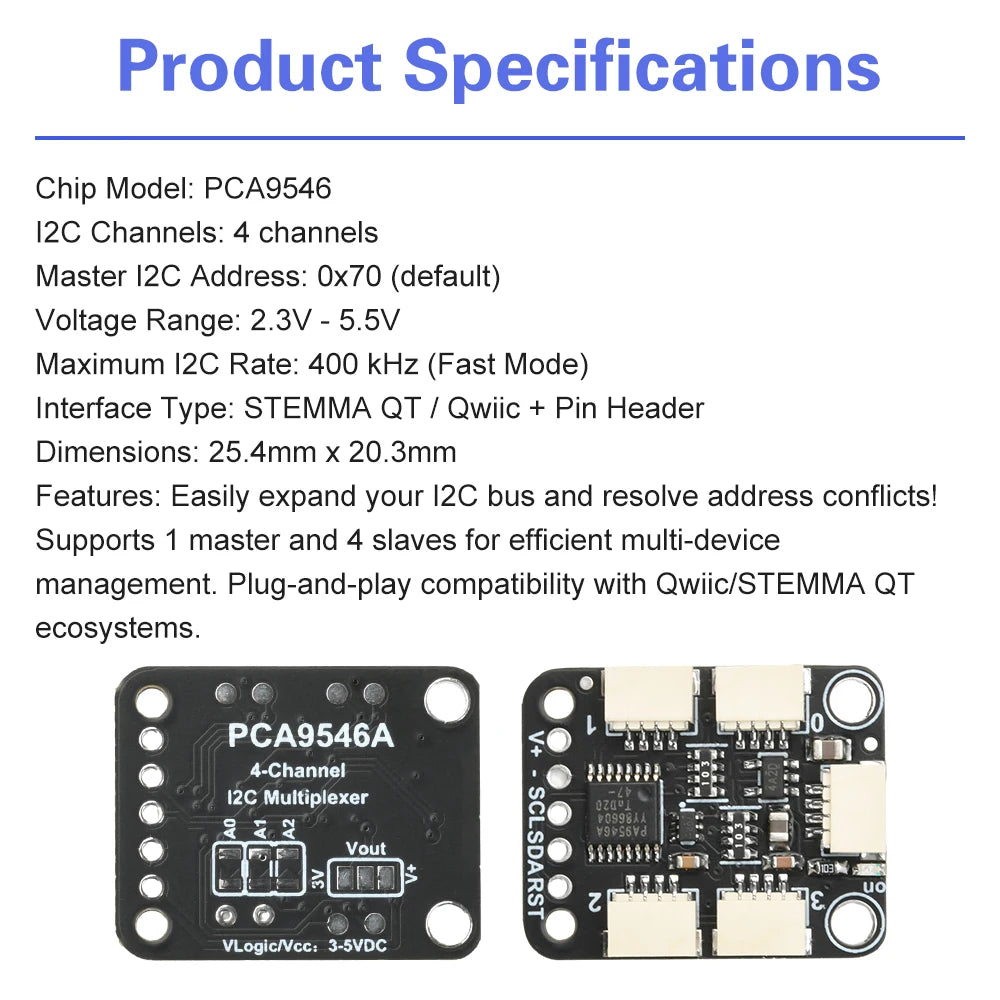

Technical Specifications
Chip Model: PCA9546
I2C Channels: 4 channels
Master I2C Address: 0x70 (default)
Voltage Range: 2.3V - 5.5V
Max I2C Rate: 400 kHz (Fast Mode)
Interface Type: STEMMA QT / Qwiic + Pin Header
Dimensions: 25.4mm x 20.3mm
Functionality: Easily expand I2C bus capacity and resolve address conflicts! Supports 1 master and 4 slaves for efficient multi-device management. Plug-and-play compatible with Qwiic/STEMMA QT ecosystems.
Core Features:
- 4 independently switchable channels
- 1 I2C master device → controls 4 independent I2C slave groups
Resolves I2C address conflicts (e.g., connecting multiple identical sensors).
Hot-swap support
Standby current only 1μA, energy-efficient.
Operating voltage: 2.3V-5.5V, supports 3.3V/5V systems.
STEMMA QT / Qwiic 4-pin interface: Solderless, quick connection to development boards
Standard 2.54mm header pins: Compatible with breadboards and PCBs.
Application Scenarios:
Simultaneously connect multiple identical I2C devices (e.g., OLED displays, temperature/humidity sensors).
Expand I2C interface capacity.
Build modular sensor networks (environmental monitoring, robotic perception systems).
Product List:
PCA9546 Multiplexer Board × 1
Single-row header × 1 (unpopulated)
