PCIe to M.2 NVMe SSD Adapter – M Key Riser Card for Desktop

Expand Your Desktop with an NVMe M.2 SSD Using Any PCIe Slot

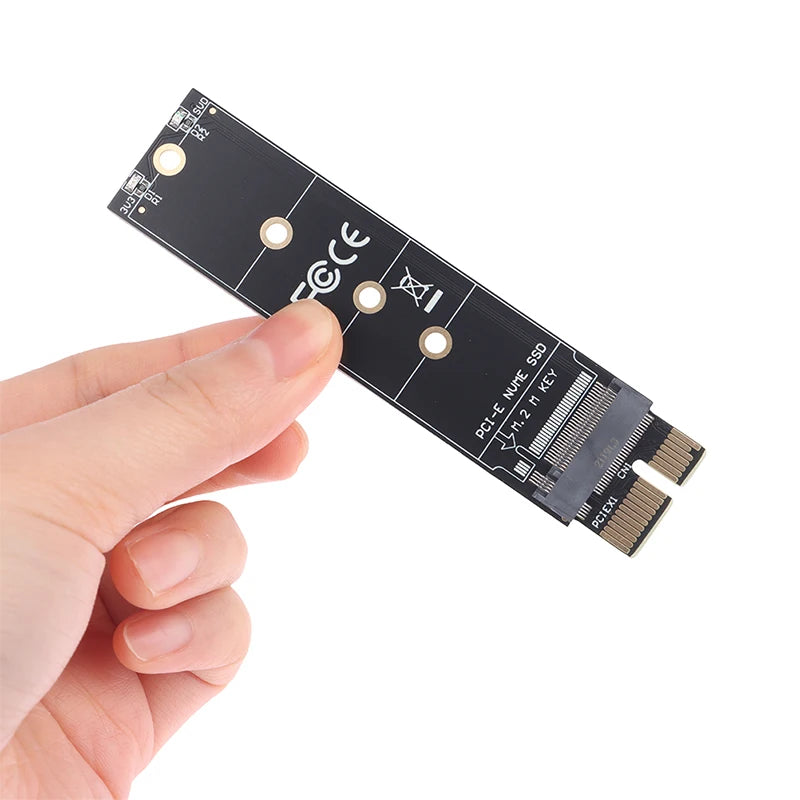

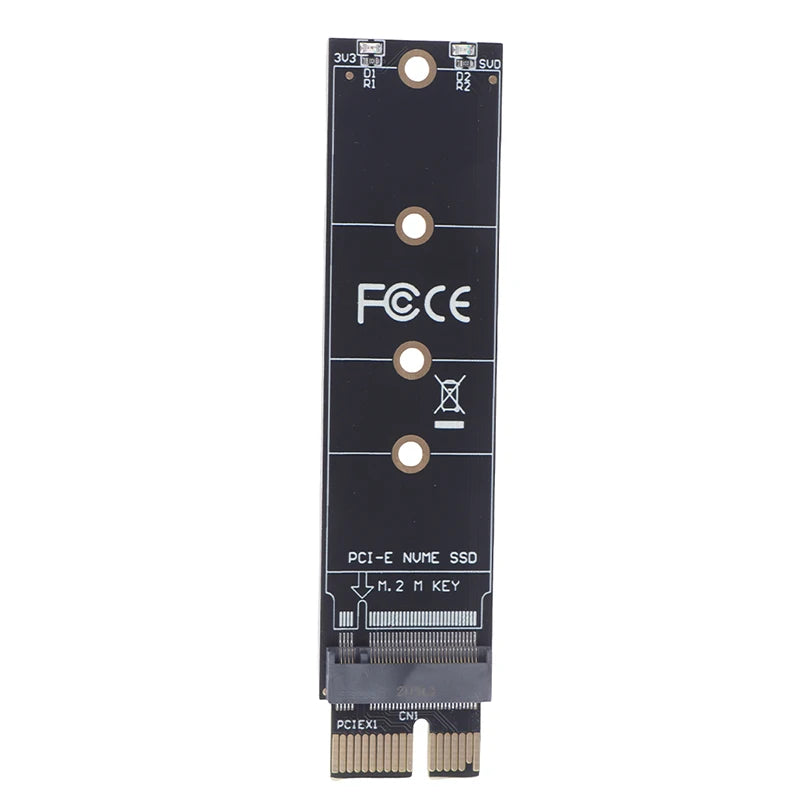

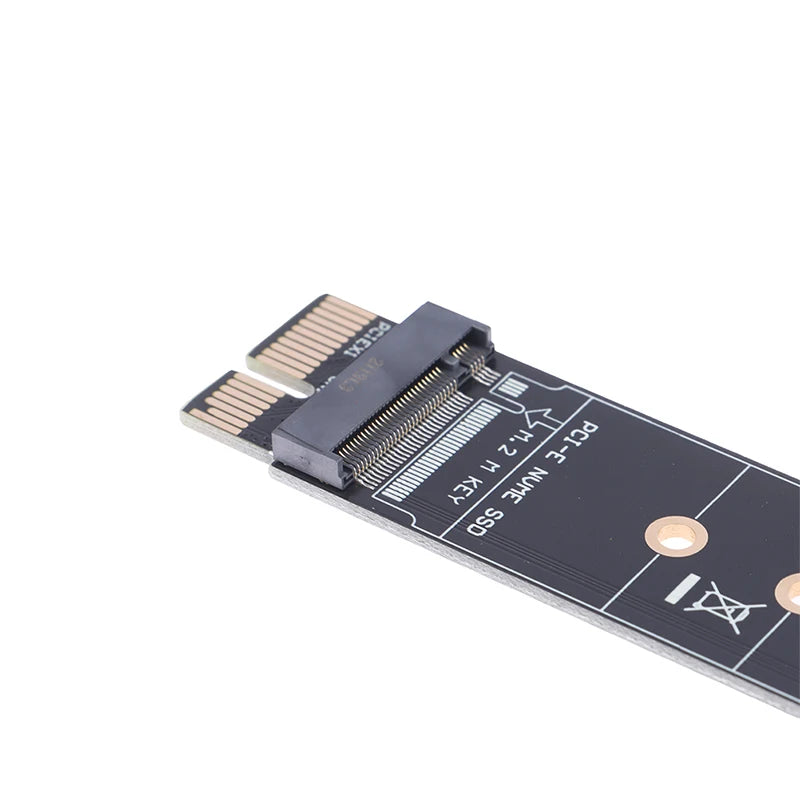

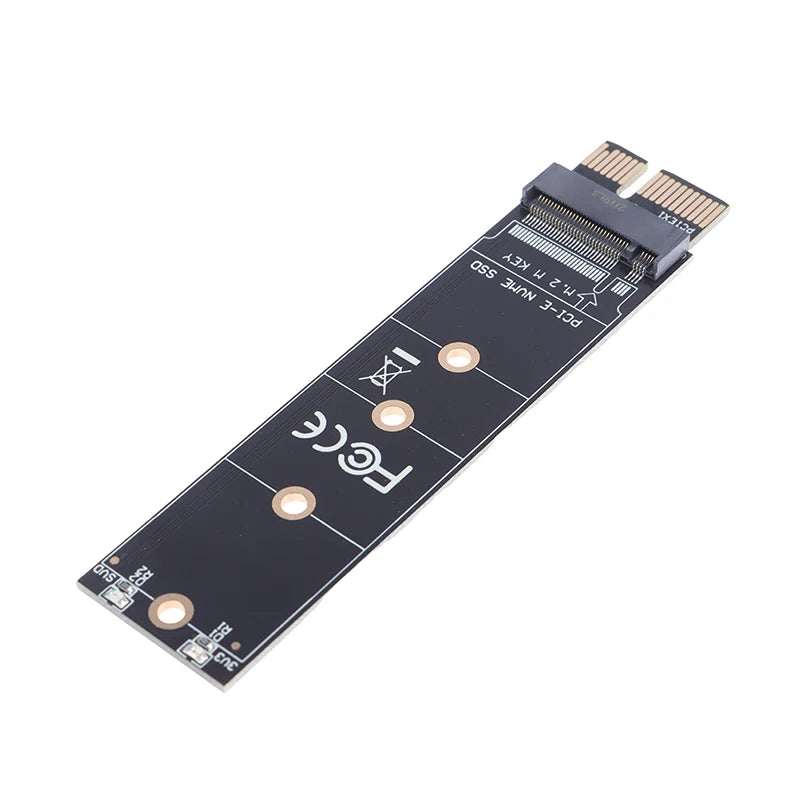

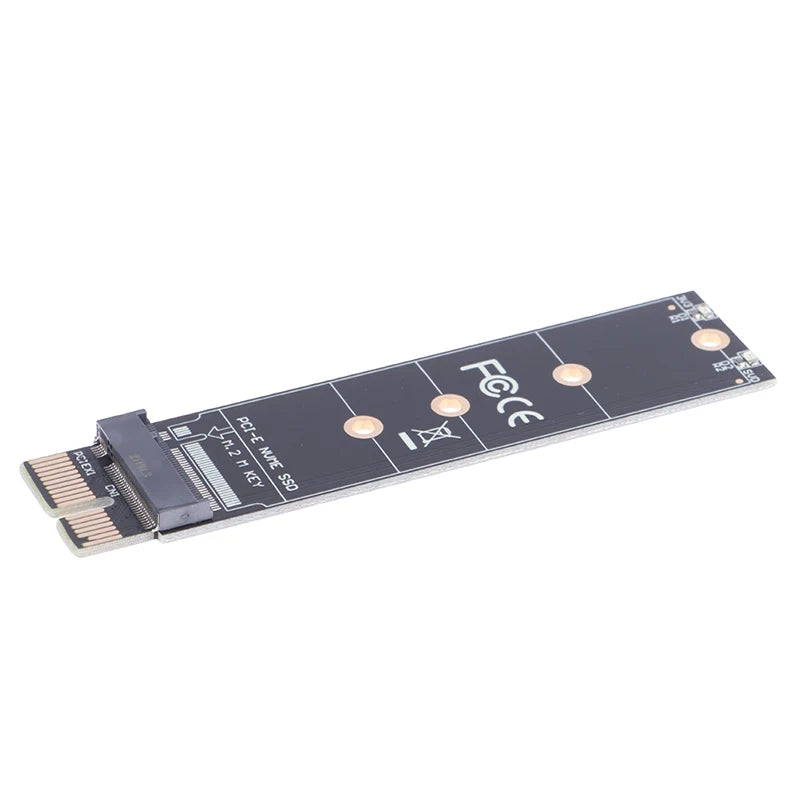

The PCIe to M.2 NVMe SSD Adapter lets you install a high-speed M.2 NVMe solid-state drive into any available PCIe x1, x4, x8, or x16 slot on your desktop motherboard — all running at PCIe x1 speed. Whether you're upgrading storage, testing multiple SSDs simultaneously, or simply adding an NVMe drive to a board without a built-in M.2 slot, this compact riser card makes it fast and easy.

Made in Mainland China. CE certified.

Key Features

• Universal M.2 NVMe Support: Compatible with 2230, 2242, 2260, and 2280 M.2 card sizes — the four most common NVMe SSD form factors.
• M Key Connector: Supports PCIe-based M Key NVMe SSDs only. Does not support SATA-based M.2 B Key SSDs.
• Fits Any PCIe Slot: Plugs into PCIe x1, x4, x8, or x16 slots, giving you maximum flexibility on virtually any desktop motherboard.
• Multi-SSD Testing: Use multiple PCIe slots on a single motherboard to test several NVMe SSDs at the same time — ideal for enthusiasts and professionals.

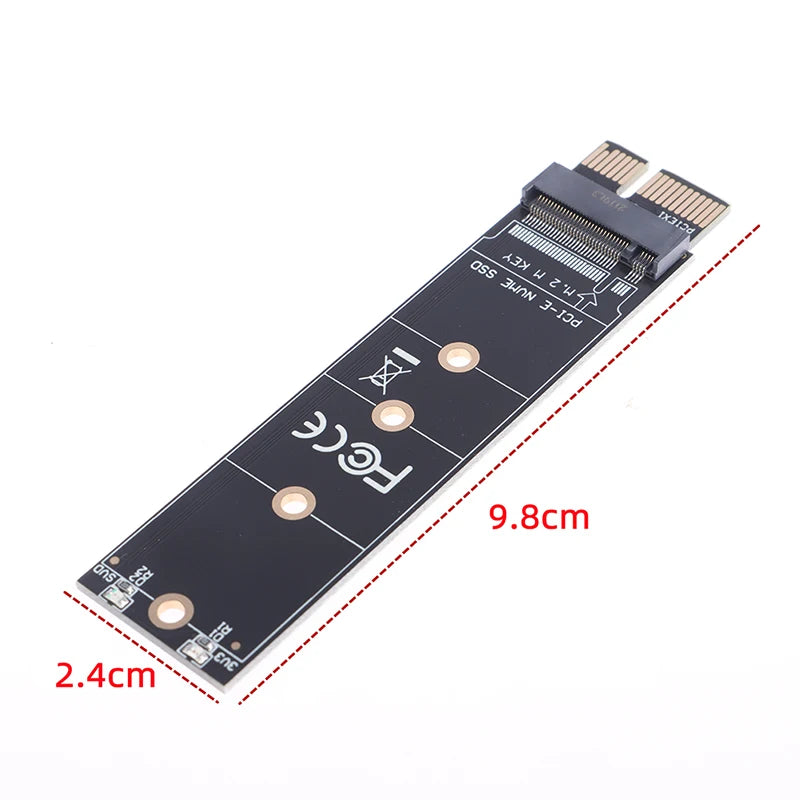

• Compact & Lightweight: Measures just 100 × 24 × 3 mm and weighs only 10 g — minimal footprint inside your case.
• Easy Installation: Plug-and-play design. Simply power down, seat the adapter, install your SSD, then restart. Includes all hardware needed.
• Broad OS Compatibility: Works with Windows 7, Windows 8, Windows 8.1, and Windows 10.

Specifications

What's in the Box

• 1 × M.2 NVMe PCIe Adapter Card
• 1 × Mounting Screw
• 1 × Mini Screwdriver

Installation Notes

Shut down your computer completely before installing the adapter. Seat the NVMe SSD into the M.2 slot on the adapter and secure it with the included screw. Insert the adapter into any available PCIe slot and restart your system — Windows will detect and configure the drive automatically.

Note: Due to variations in monitor calibration and lighting, the product colour may appear slightly different from images shown. Please allow ±1–2 cm measurement tolerance due to manual measurement.

Related Products You May Like

• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 1.54" ST7789 TFT LCD 240x240 SPI Color Display Module
• 1-Channel HDMI & AV to RF Modulator – PAL/NTSC CATV Hotel

For more information on storage interface standards and PC component compatibility, visit the National Institute of Standards and Technology (NIST).

Frequently Asked Questions

Q: Will this PCIe to M.2 NVMe adapter work with SATA M.2 SSDs?

A: No — this adapter supports PCIe-based NVMe M Key SSDs only. It does not support M.2 SATA bus B Key SSDs. Please confirm your SSD uses the NVMe (PCIe) interface before purchasing.

Q: Which PCIe slot sizes is this M.2 adapter compatible with?

A: The adapter will physically fit and function in PCIe x1, x4, x8, and x16 slots. It operates at PCIe x1 speeds regardless of the slot used.

Q: What M.2 SSD sizes does this adapter support?

A: The adapter supports all four common NVMe SSD form factors: 2230, 2242, 2260, and 2280. The included screw and standoff accommodate each size.

Q: Do I need to install any drivers for this NVMe PCIe adapter?

A: In most cases, no additional drivers are required. Windows 7, 8, 8.1, and 10 will detect the NVMe SSD automatically. Simply install the SSD, insert the adapter, and restart your computer.

Q: Can I use multiple adapters on the same motherboard at the same time?

A: Yes — if your motherboard has multiple available PCIe slots, you can install several adapters simultaneously, making it convenient to test or run multiple NVMe SSDs at once.
