PD 65W DIY Battery Box DC Port Fast Charging Transparent Power Bank

Discover the PD 65W DIY Battery Box DC Port Fast Charging Transparent Power Bank — a standout electronics accessories pick featuring adjustable, fast-charging design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Data Record: No

Electronic: No

Semi-finishedproduct: No

Features:

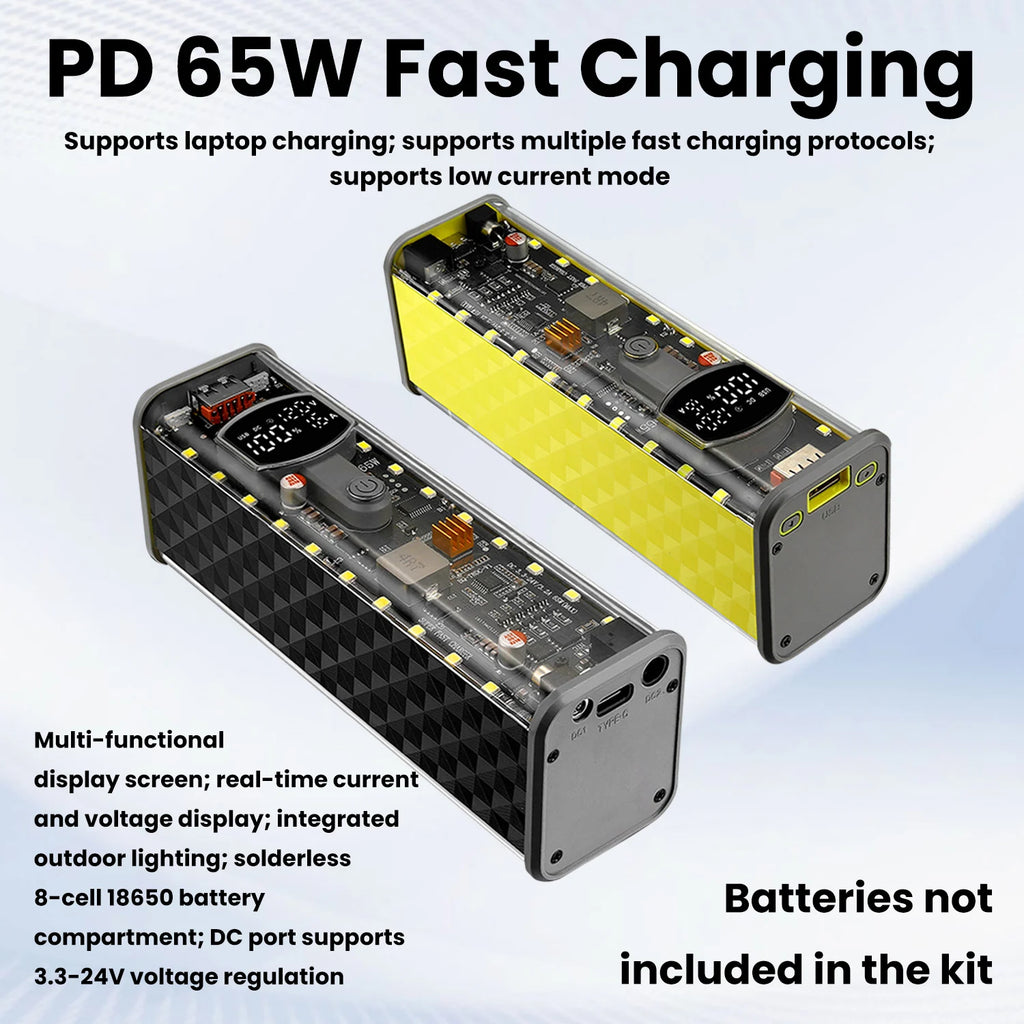

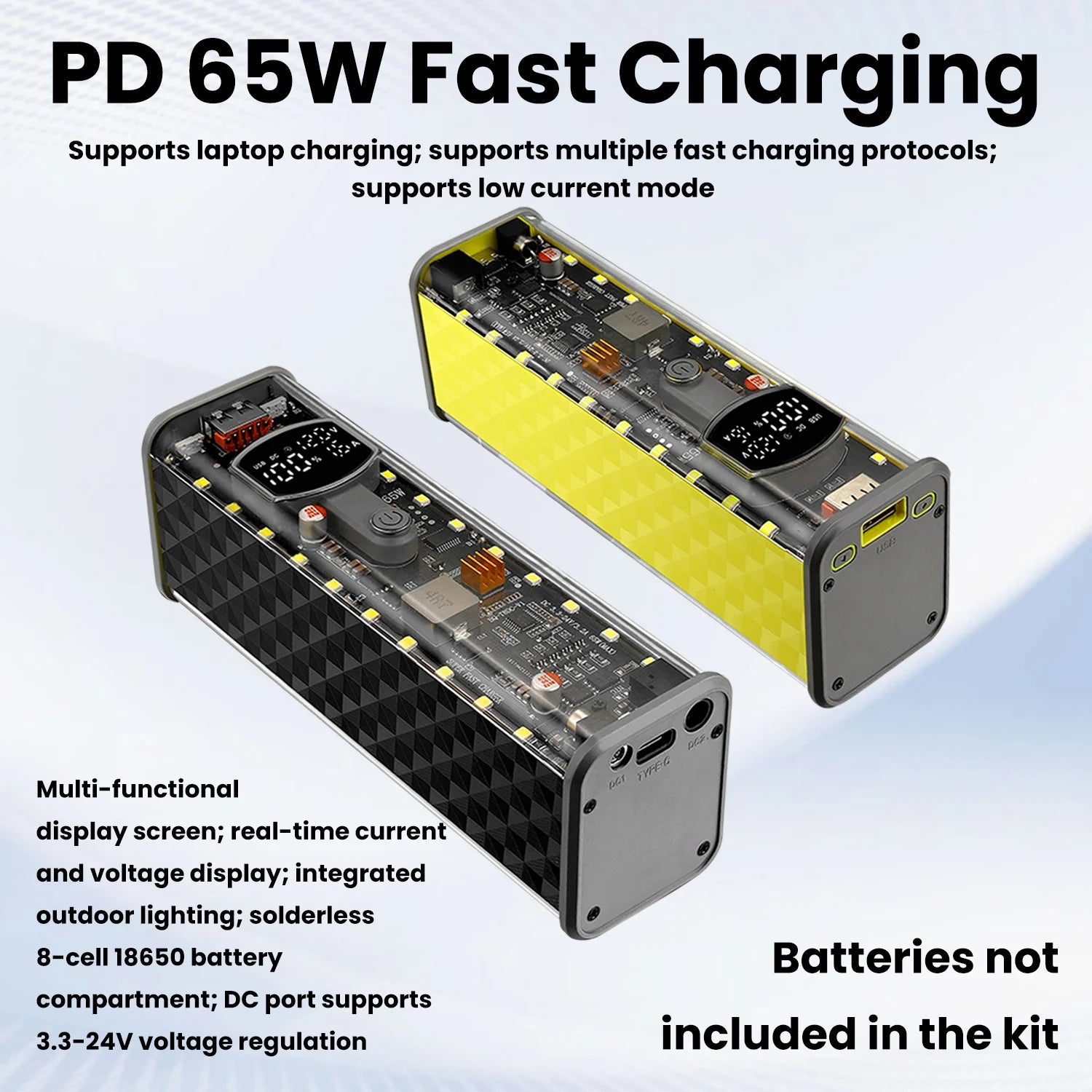

1. 65W PD high-power fast charging, compatible with a wide range of devices, delivering an efficient charging experience

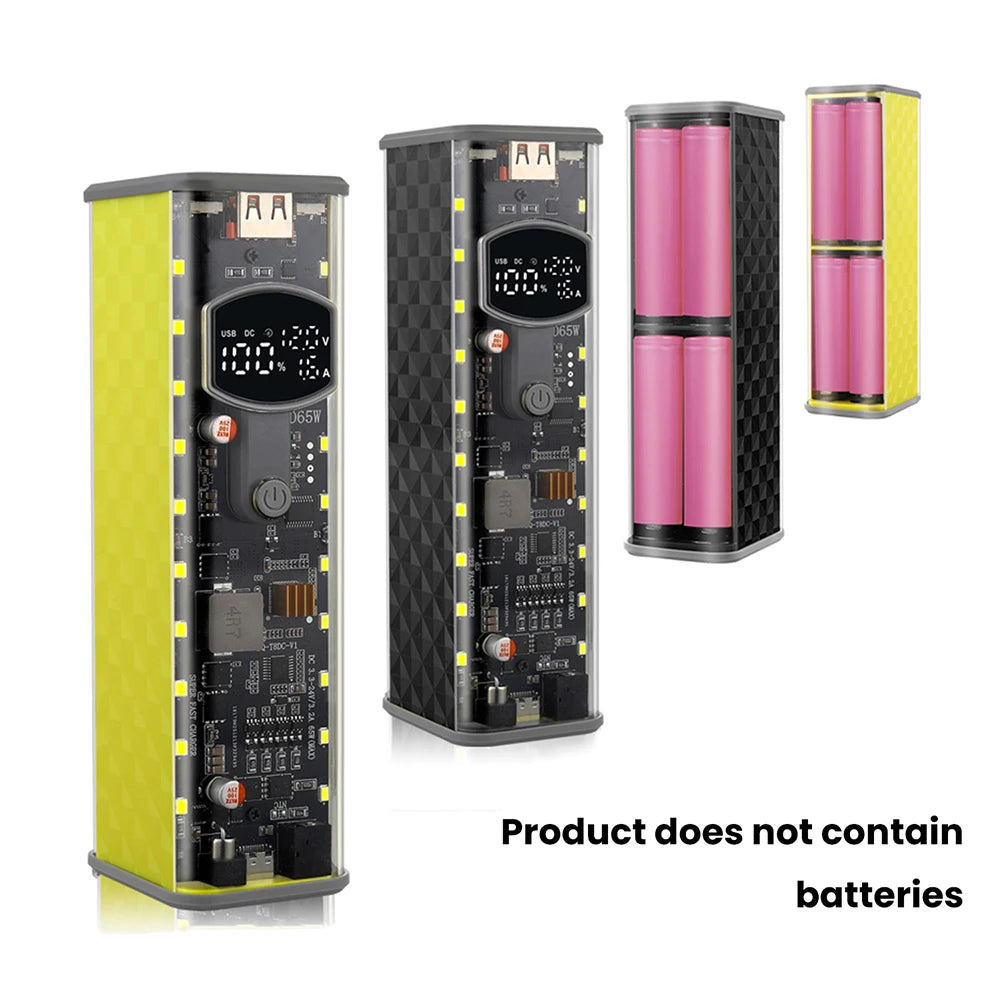

2. Solder-free 8-cell 18650 battery pack, offering high-capacity energy storage for safe and convenient DIY use

3. Adjustable DC input voltage (3.3–24V), compatible with laptops and other electronic devices

4. Multi-protocol fast charging recognition, providing an efficient and convenient charging experience

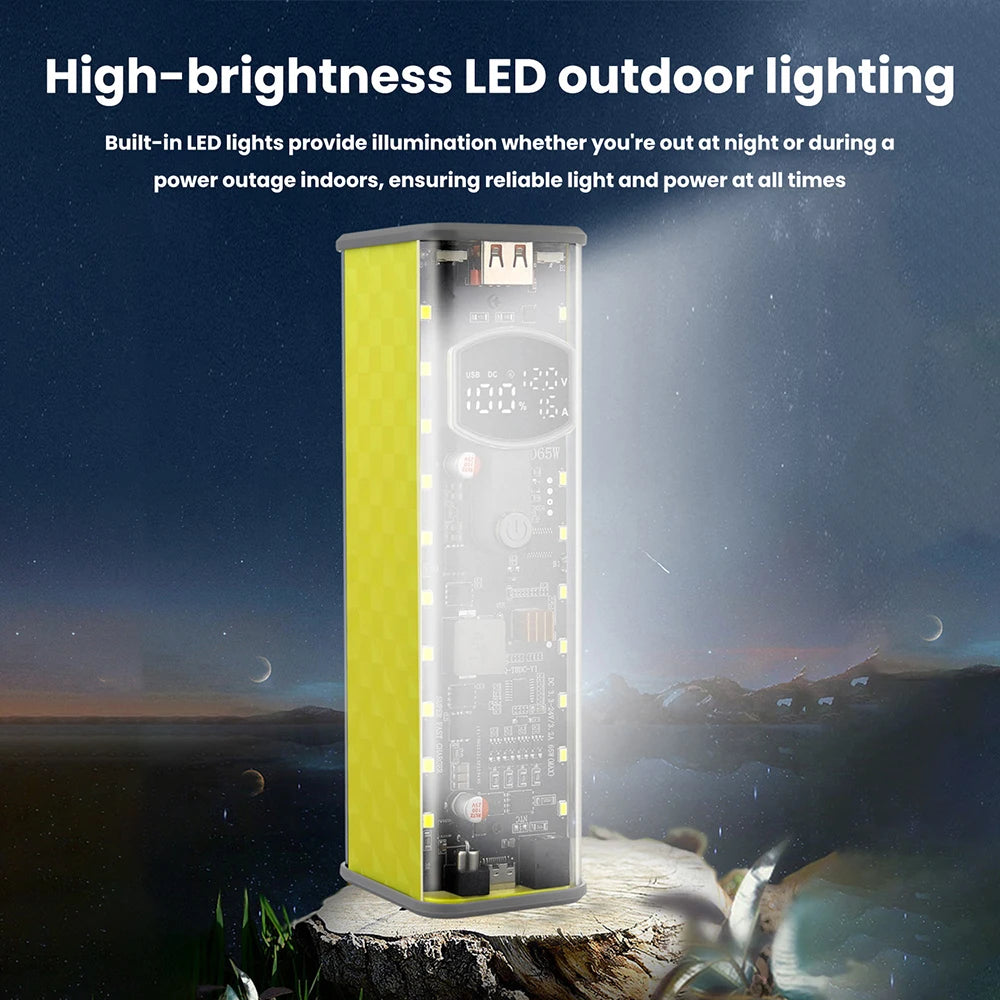

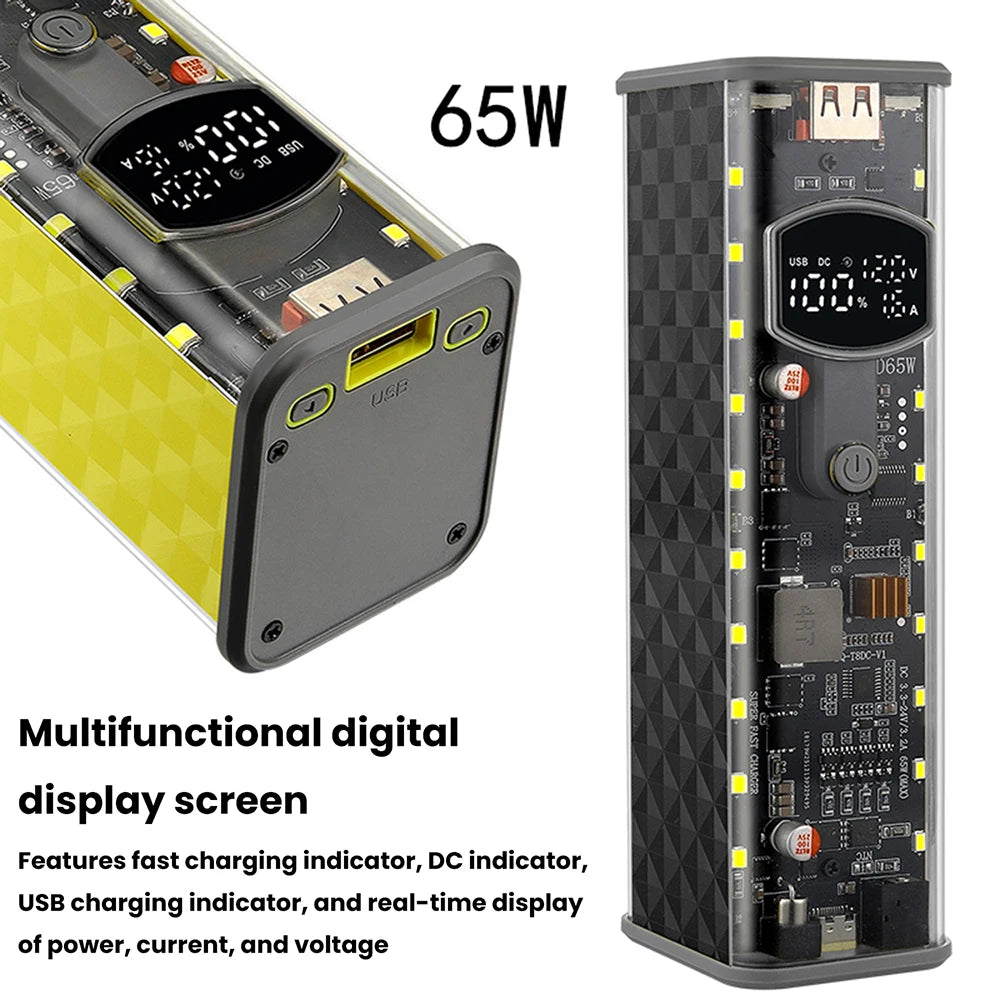

5. Multi-function display with real-time voltage and current readings, plus a high-brightness LED outdoor light

Product Specifications

Battery Pack Configuration: DC 65W + PD 65W + Super Flash Charge 60W + Super Fast Charge 40W + Flash Charge 30W + Fast Charge 25W + Standard Charge 15W (Most smartphone manufacturers limit non-original chargers to 33W or less)

Output Power: 65W

Peak: 68W/3.2A (MAX)/3.3V–24V

Input Power: 65W MAX

Note: Requires high-performance chargers and charging cables

DC Port Output Specifications:

DC1 Specifications: 3.8 × 1.35 mm (Suitable for most air-conditioned clothing fans)

DC2 Specifications: 5.5 x 2.1 mm (compatible with most DC-powered devices)

Output Voltage: 3.3–24V

Note: Only the DC port supports voltage adjustment; simultaneous output from multiple ports is limited to 5V

Output Power: 65W (MAX)

Output Current: 3.2A (MAX)

Button Controls: Long-press the power button to enter DC mode; press the left/right function buttons to adjust the voltage range; long-press the left/right function buttons for continuous voltage adjustment

USB Output and Supported Fast Charging Protocols:

5V/3.2A (Standard Output); SCP: 40W; UFCS: 60W

SVOOC: 65W (Requires high-performance fast-charging cable)

VOOC 4.0: 30W (Requires high-performance fast-charging cable)

VOOC 1.0: 20W (Requires fast-charging cable); PE 1.1: 7.5W

PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W

Most smartphones are limited to 33W; simultaneous multi-port output is limited to 5V standard charging

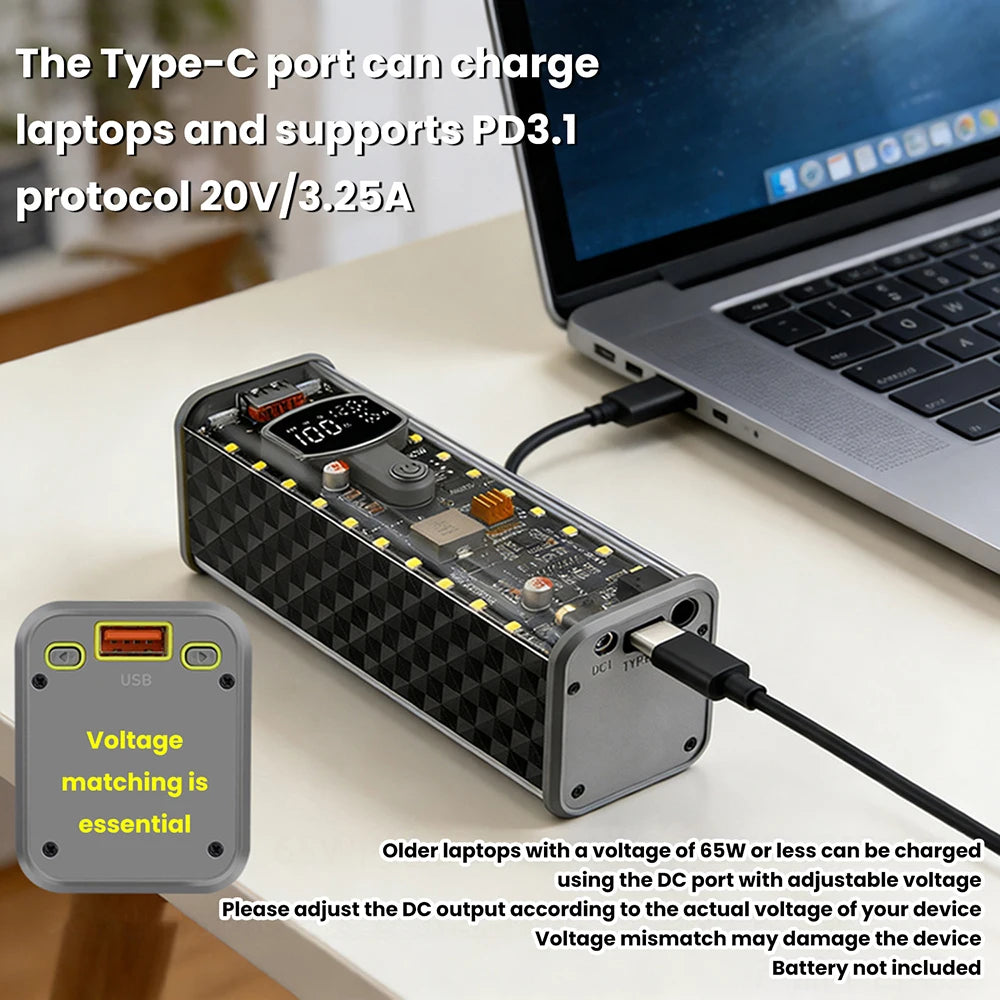

Type-C Output and Supported Fast Charging Protocols: (Supports laptop charging)

5V/3.2A (Standard output); PD 3.1: 65W; PPS: 60W;

SCP: 40W; UFCS: 60W;

SVOOC: 65W (Requires high-performance fast-charging cable)

VOOC 4.0: 30W (Requires high-performance fast-charging cable)

VOOC 1.0: 20W (Requires fast-charging cable); PE 1.1: 7.5W

PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Most smartphones are limited to 33W; multi-port output does not support fast charging

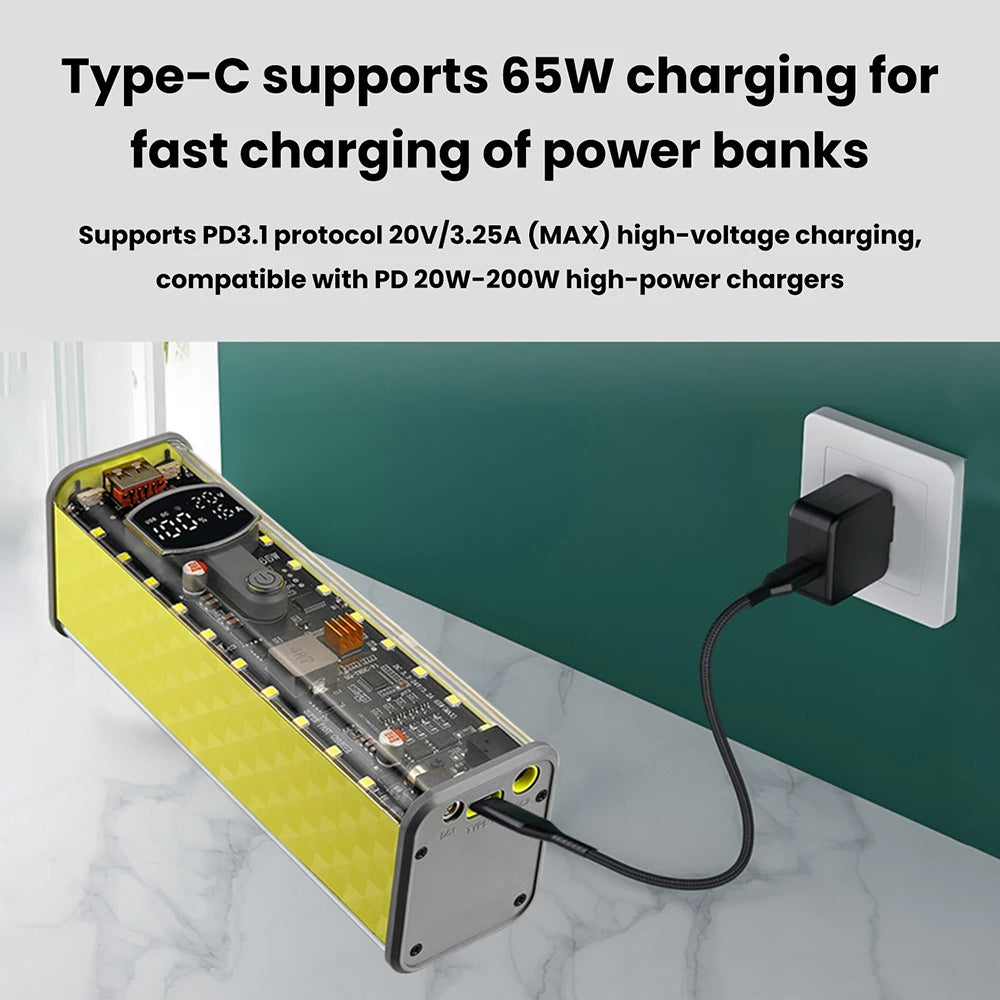

Type-C Input and Supported Fast Charging Protocols:

5V/3.2A (Standard Input); PD 3.1: 65W (MAX); SCP: 40W; UFCS: 60W; SVOOC: 65W (requires high-performance fast-charging cable);

VOOC 4.0: 30W (requires high-performance fast-charging cable);

VOOC 1.0: 20W (requires fast-charging cable); AFC: 18W; FCP: 18W;

Supports 5V charging while discharging;

Note: If your phone’s proprietary protocol is not supported (USB without fast charging), you can use PD charging (Type-C output). The PD public protocol provides more stable output and higher power.

Button Functions:

A single press of any button displays the battery level;

Power Button: Double-click to enter or exit LED light mode; single-click to adjust light mode; long-press to enter or exit DC mode;

Left Button: Double-click to power off; in non-DC mode, long-press to enter low-current mode; in DC mode, tap to step up by 0.1V, long-press for rapid stepping;

Right Button: In non-DC mode, long-press to view battery pack voltage; in DC mode, tap to step down by 0.1V, long-press for rapid stepping;

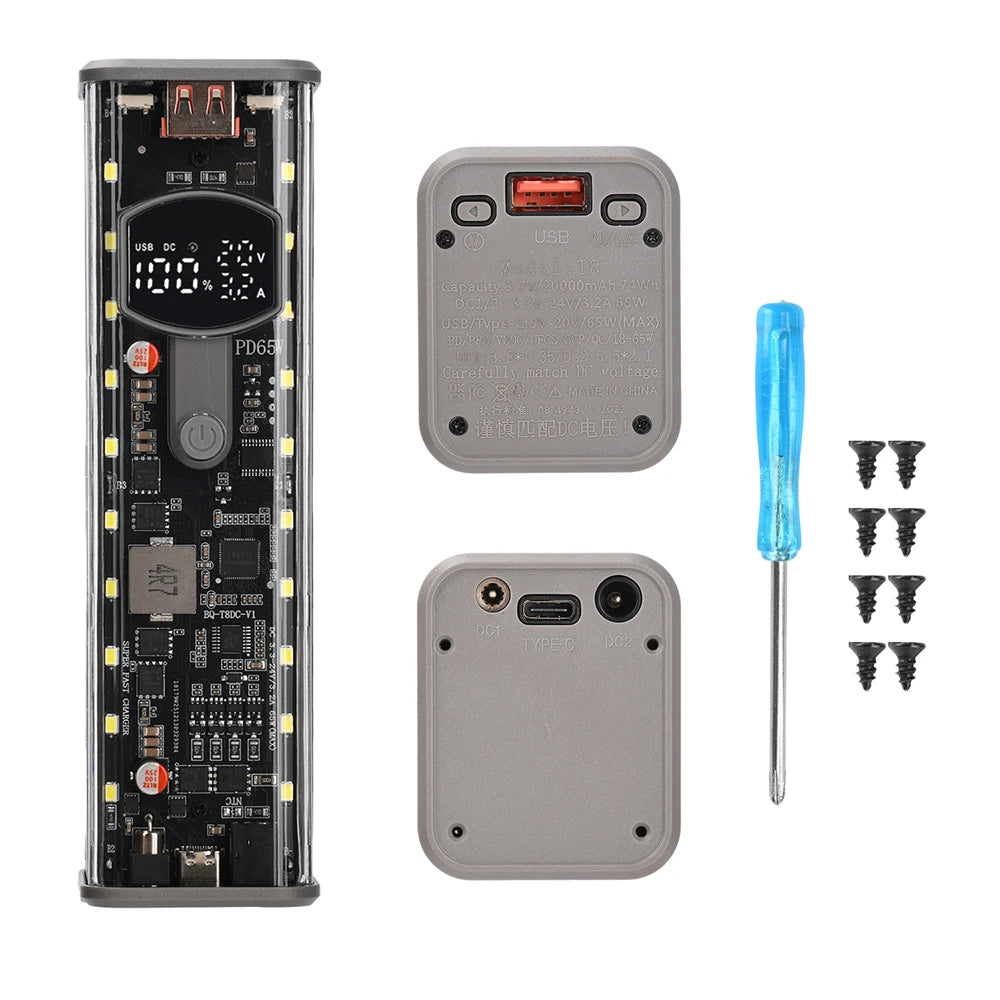

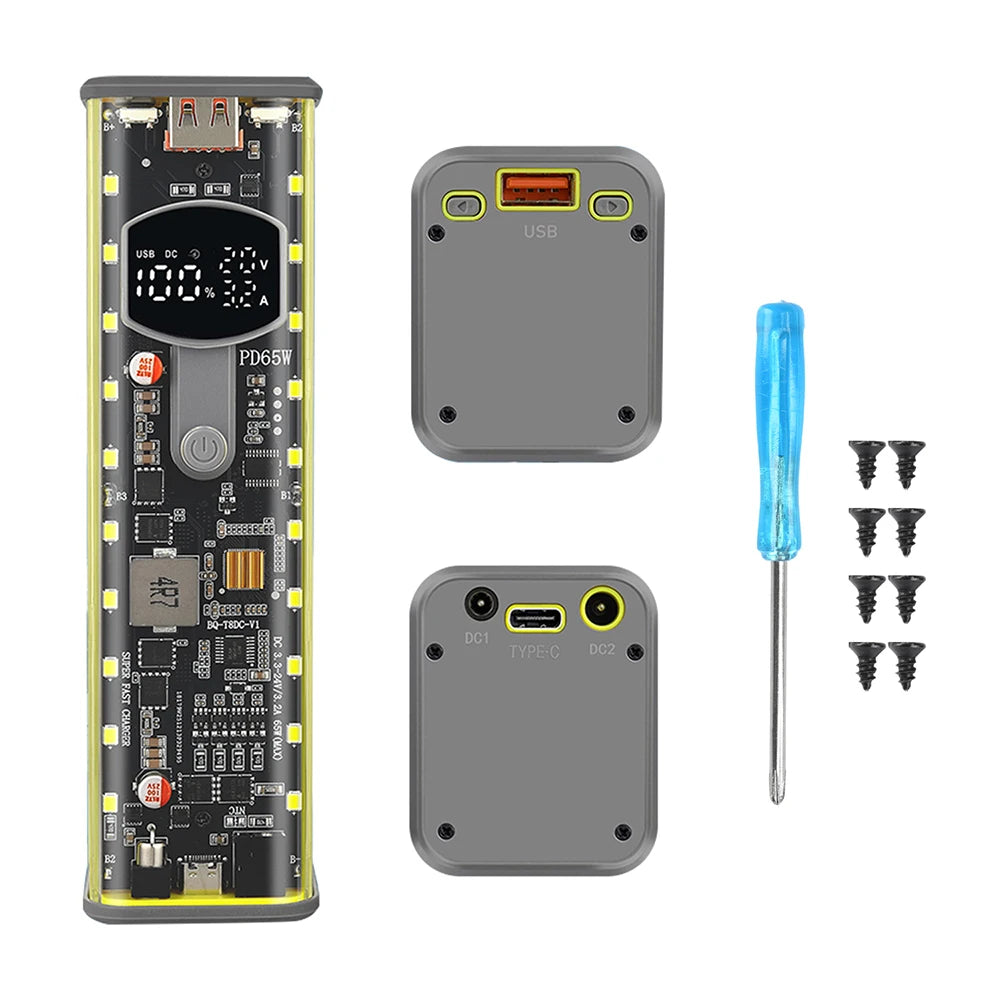

Package Contents:

Power Bank Case*1 (battery not included)

Accessory Kit*1

Options

• Color: Yellow, Black
