PD QC VOOC 2 5W Fast Charging Motherboard Power Bank DIY 3 7V Ternary

Discover the PD QC VOOC 2 5W Fast Charging Motherboard Power Bank DIY 3 7V Ternary — a standout electronics accessories pick featuring fast-charging design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

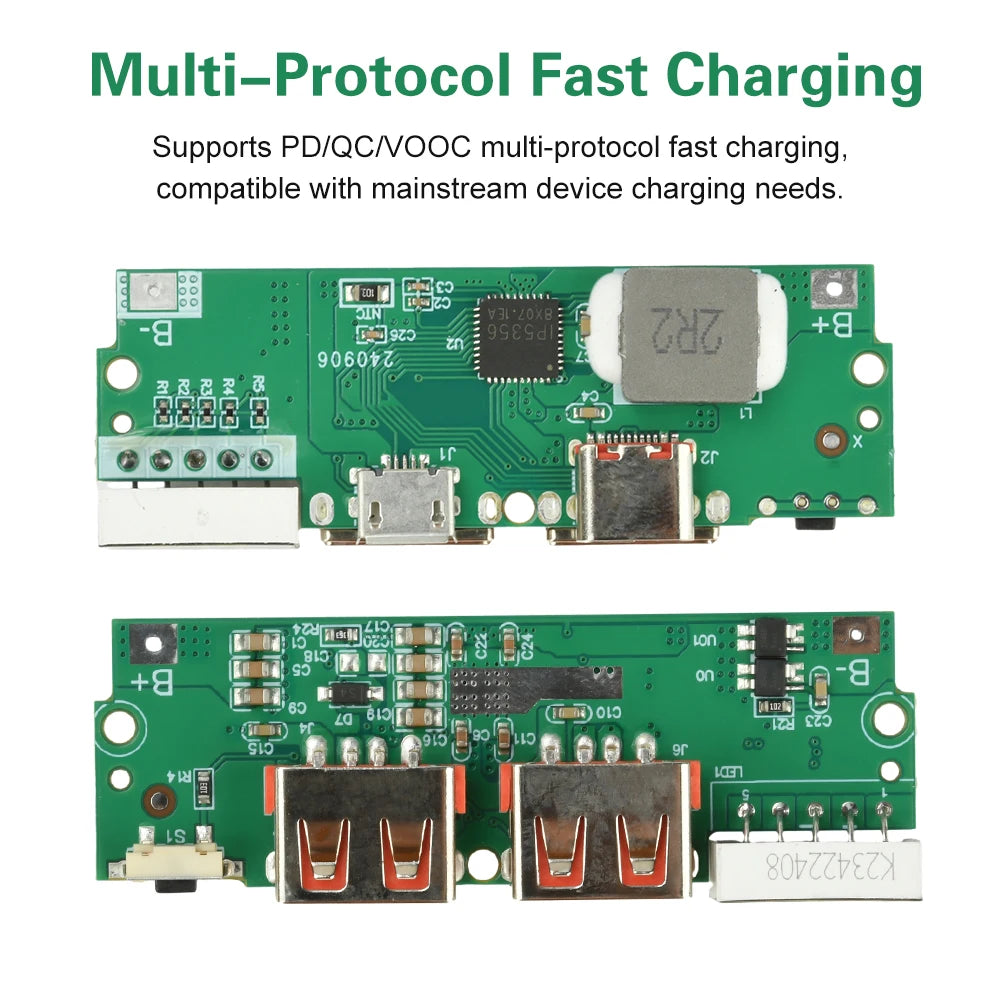

1. Supports PD/QC/VOOC multi-protocol fast charging, compatible with mainstream device charging needs

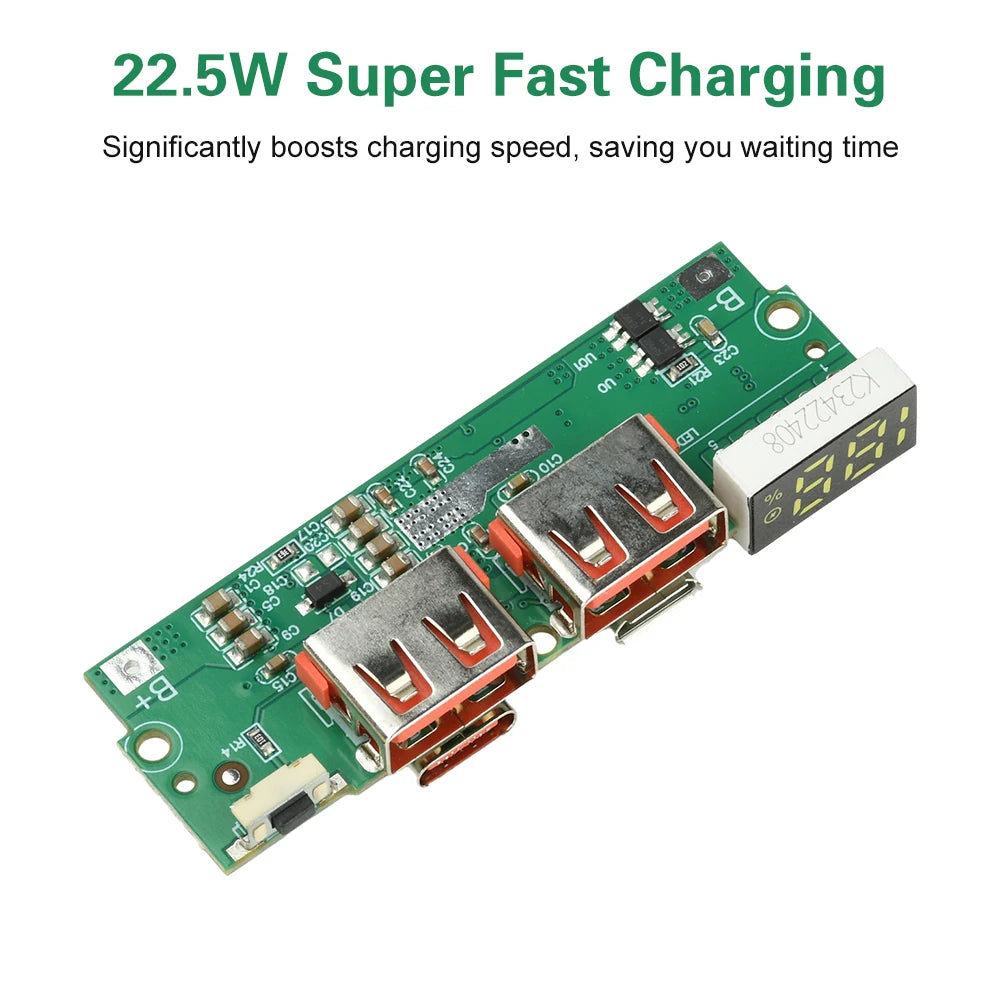

2. 22.5W super-fast charging output, efficiently boosts charging speed to save waiting time

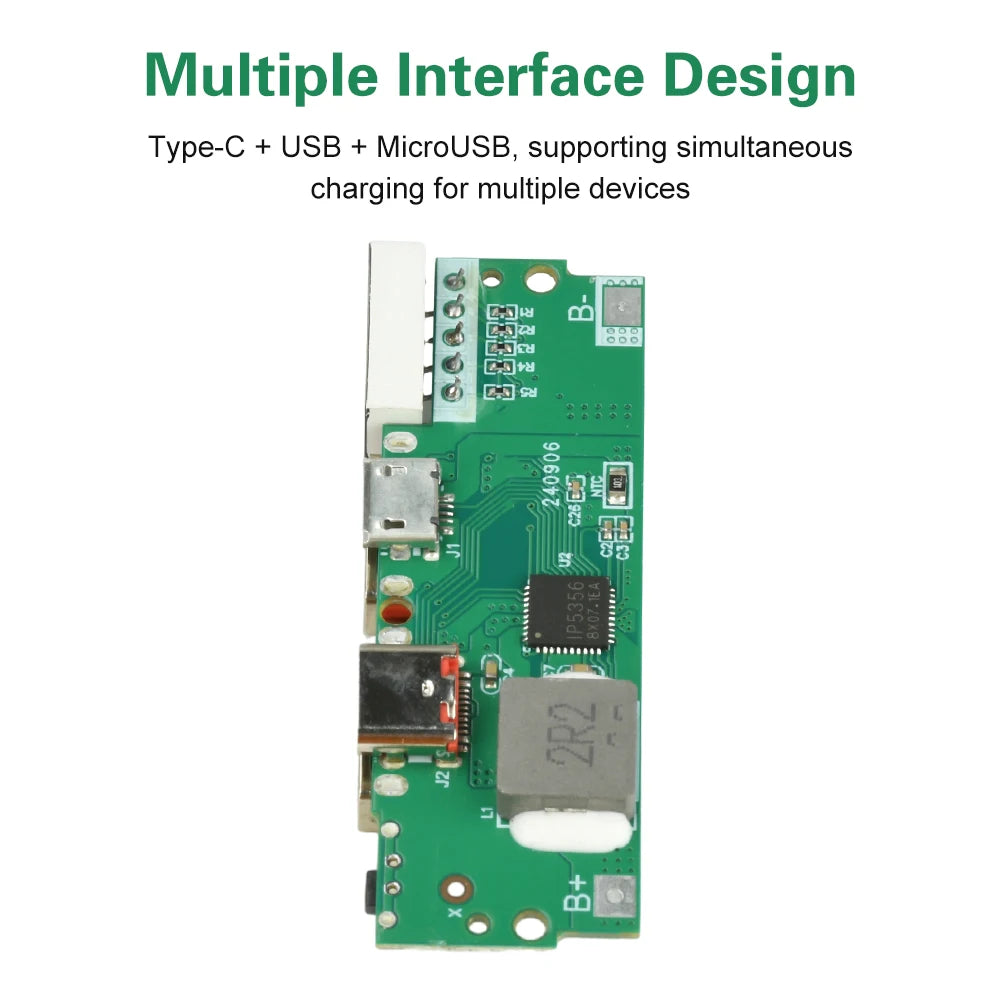

3. Multiple interface design: Type-C + USB + Micro USB, supports simultaneous charging of multiple devices

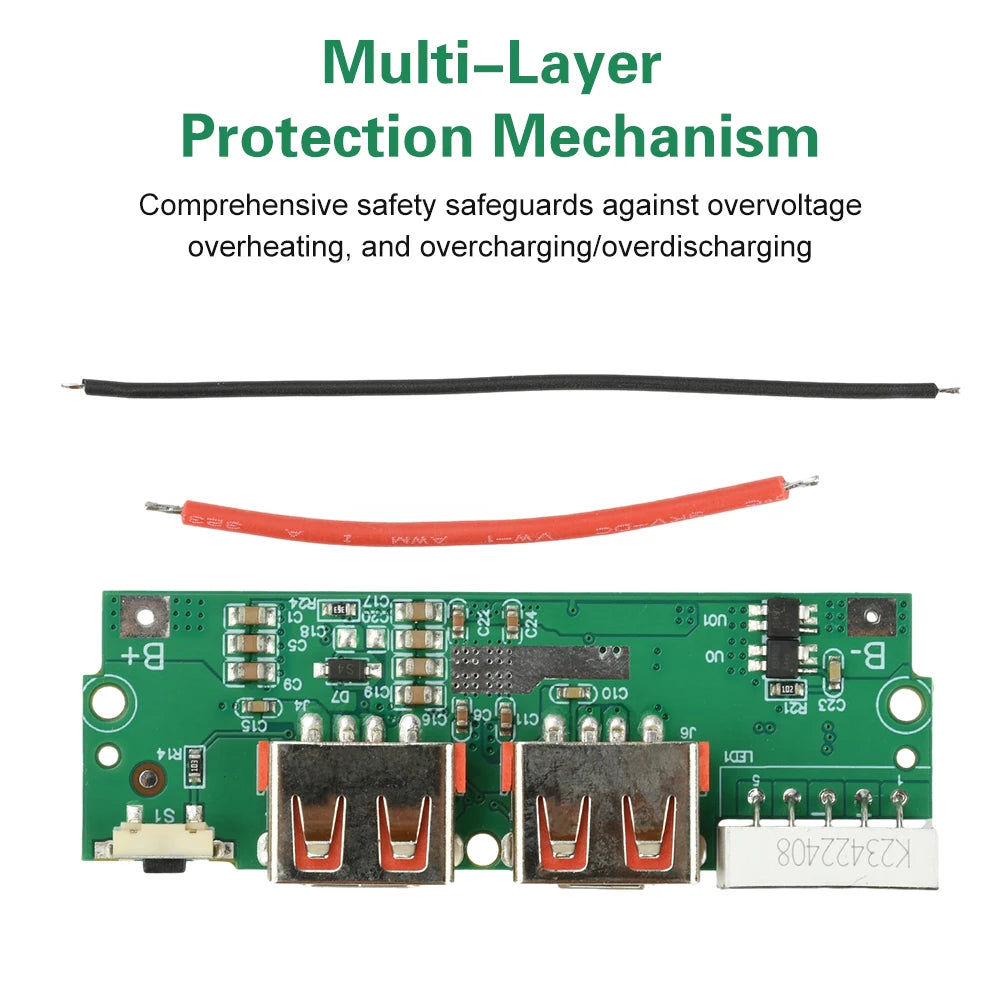

4. Built-in multi-protection mechanisms: comprehensive safety safeguards against overvoltage, overheating, and overcharging/discharging

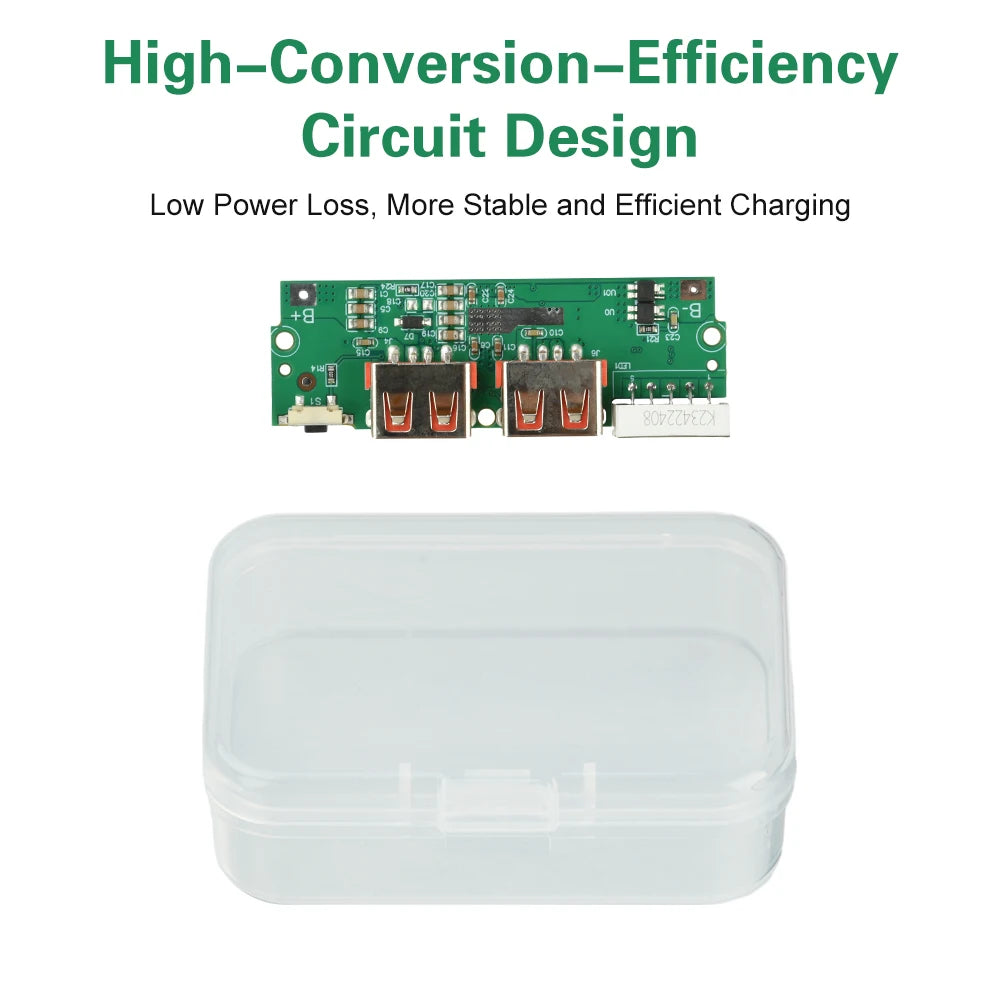

5. High conversion efficiency circuitry minimizes power loss for stable, efficient charging

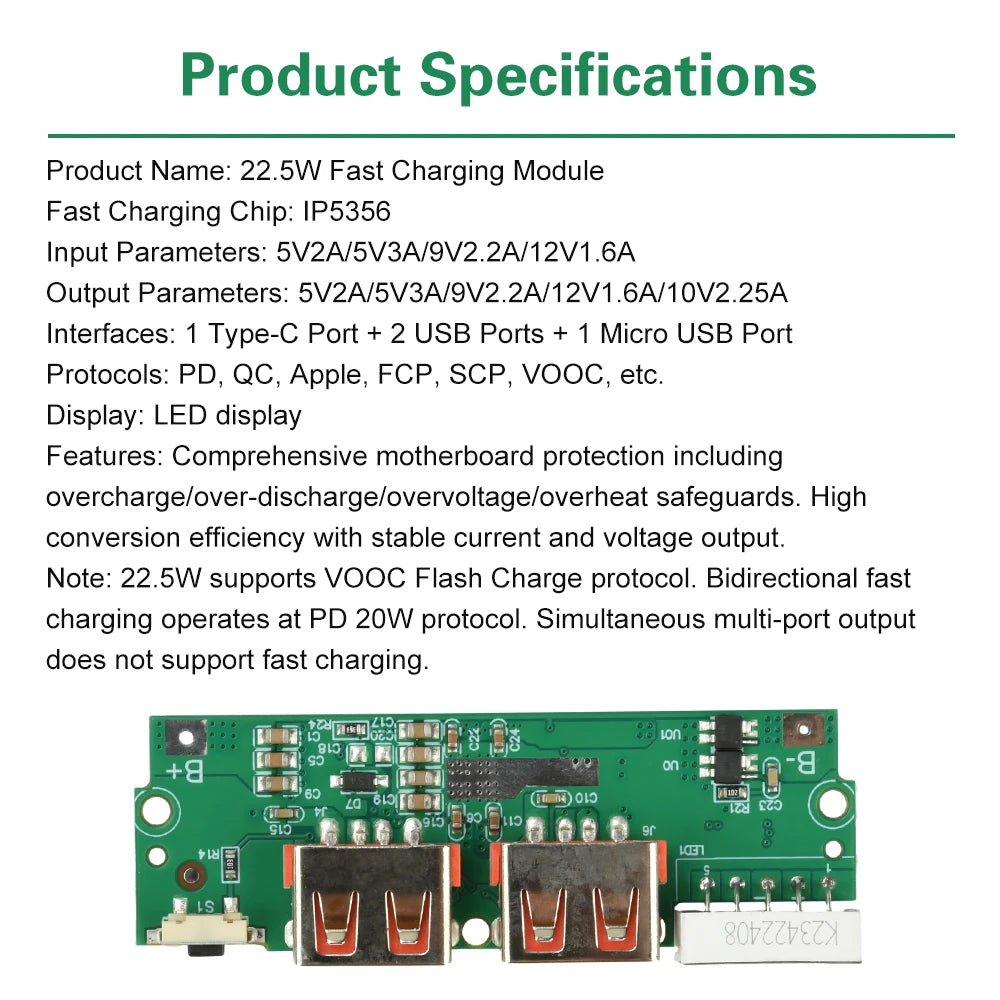

Product Specifications:

Product Name: 22.5W Fast Charging Module

Fast Charge Chip: IP5356

Input Parameters: 5V2A/5V3A/9V2.2A/12V1.6A

Output Parameters: 5V2A/5V3A/9V2.2A/12V1.6A/10V2.25A

Interfaces: 1 Type-C port + 2 USB ports + 1 Micro USB port

Protocols: PD, QC, Apple, FCP, SCP, VOOC, etc.

Display: LED display

Features: Comprehensive motherboard protection including overcharge/over-discharge/overvoltage/overheat safeguards. High conversion efficiency with stable current and voltage.

Note: 22.5W supports VOOC Flash Charge (super-fast protocol). Bidirectional fast charging operates at PD 20W protocol. Simultaneous multi-port output does not support fast charging.

Assembly Instructions:

1. Upon receiving the mainboard, first connect the charging cable for input testing. Observe the display status and confirm the screen illuminates before proceeding with soldering.

2. For normal operation, battery wires must be soldered directly. Connections via wire twists, alligator clips, or spring clips may cause insufficient power supply, affecting charging/discharging. Ensure proper insulation protection for battery terminals to prevent contact with the mainboard during use, which could cause damage.

3. Connect the battery positive terminal to the B+ pin and the negative terminal to the B- pin on the mainboard. Do not reverse polarity, as this will burn the mainboard. Burn marks on the IC indicate reverse connection or accidental contact.

4. Use 3.7V ternary lithium batteries only. Lithium iron phosphate batteries are incompatible. Connect batteries in parallel, not series. Series connection creates excessive voltage that will burn the mainboard.

5. The mainboard incorporates built-in protection. Soldered batteries require no additional protection board. Battery protection boards impose current limits; exceeding these limits will cause output disconnection.

Usage Instructions:

1. Regarding activating fast charging for phones: Phone fast charging protocols are categorized as public or proprietary. This motherboard employs an intelligent fast-charging chip compatible with mainstream public fast-charging protocols, supporting rapid charging for various phone brands. Before ordering, confirm your phone supports public protocols to ensure fast charging functionality.

2. Regarding motherboard heating during charging: When the power bank operates, current flows through the motherboard and chip, causing energy conversion losses. These losses dissipate as heat. During fast charging, higher power output results in more noticeable heating—this is a normal physical phenomenon.

3. Battery level display may be inaccurate immediately after connecting the battery. The battery meter supports self-learning for battery capacity and will display accurately after several charge/discharge cycles.

Shipping Contents:

Module x1

Wiring x2

Enclosure x1
