Pipe Saddle Cutting Layout Marking Guide Kit – 5 or 10 Pcs

Get perfectly aligned saddle cuts every time with this Pipe Saddle Cutting Layout & Marking Guide Kit. Whether you're a professional welder, plumber, HVAC technician, or a hands-on DIY enthusiast, this tool eliminates guesswork and delivers clean, accurate pipe markings in seconds. Made from durable artificial leather, it's engineered for daily field use and long-lasting reliability.

Made in Mainland China.

Key Features

• Precision Pipe Marking: Ensures accurate saddle-mouth layout every time — no more measuring errors or uneven cuts.
• Time-Saving Design: Mark multiple pipes in minutes, ideal for fast-paced plumbing, HVAC, and metal fabrication workflows.
• Wide Size Compatibility: Accommodates pipe diameters from 20mm to 200mm (¾" to 8"), covering a broad range of pipe sizes with a single kit.
• Beginner & Pro Friendly: The intuitive wrap-and-mark design makes it easy for first-time users and seasoned professionals alike.
• Rugged Artificial Leather Construction: Built tough to handle the demands of daily job-site use — flexible, wear-resistant, and long-lasting.
• Vivid Orange Color: High-visibility orange makes it easy to spot in a crowded toolbox or on a busy worksite.

Specifications

• Material: Artificial Leather
• Color: Orange
• Compatible Pipe Diameters: 20–200mm (20 / 25 / 32 / 40 / 50 / 65 / 80 / 100 / 150 / 200mm)

Package Options

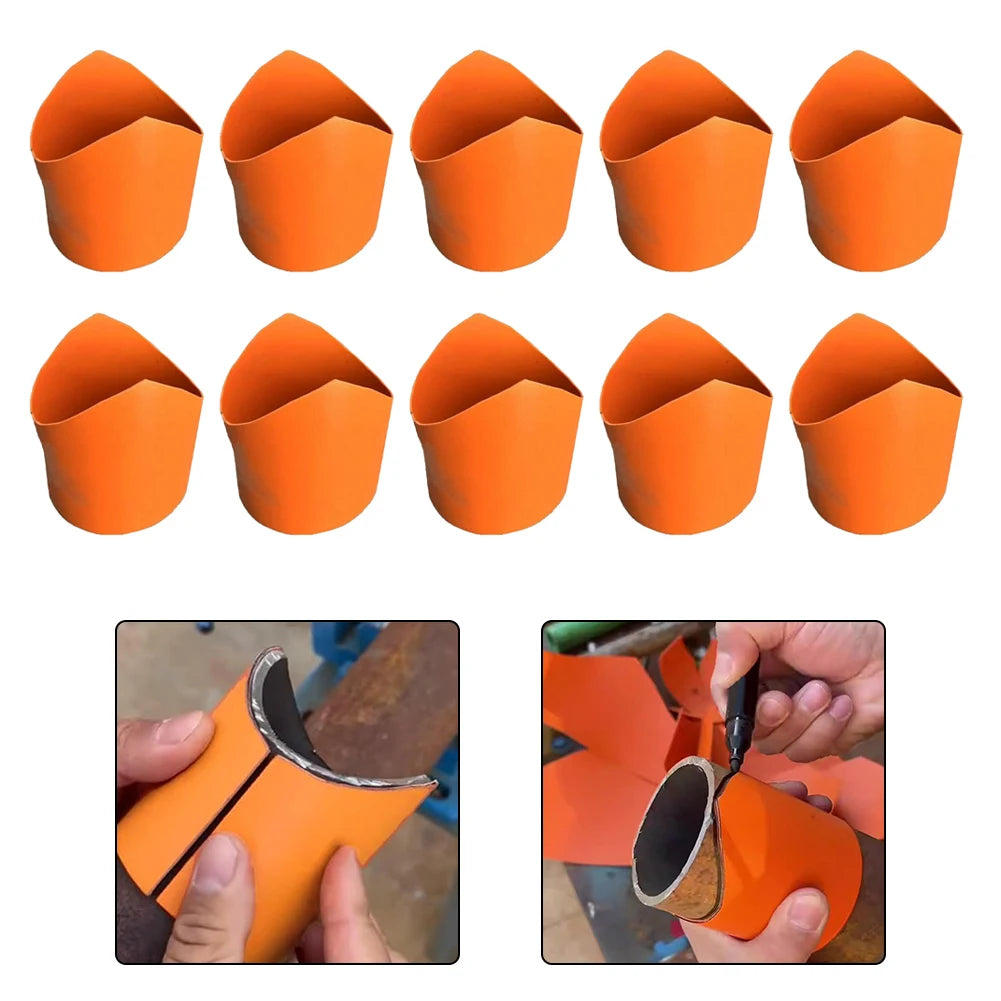

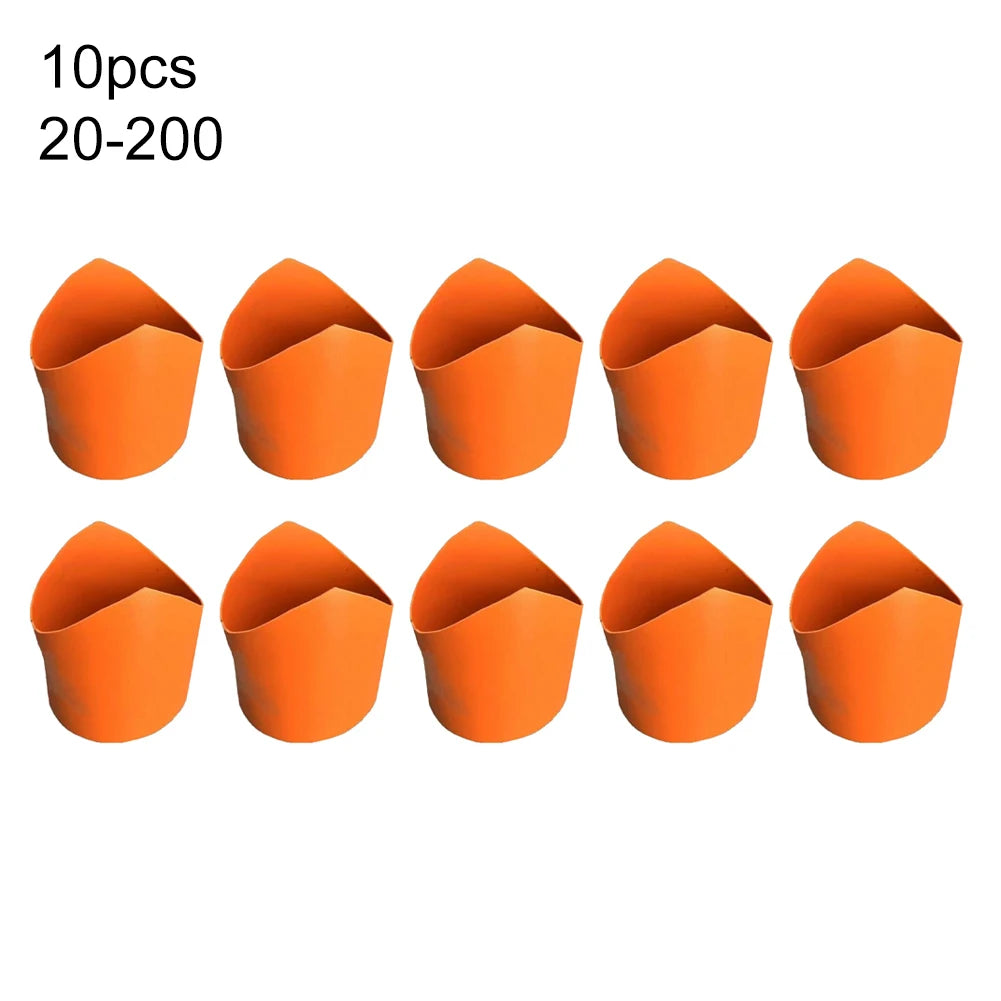

• Package 1 (10 Models): Full set covering 20mm–200mm pipe sizes

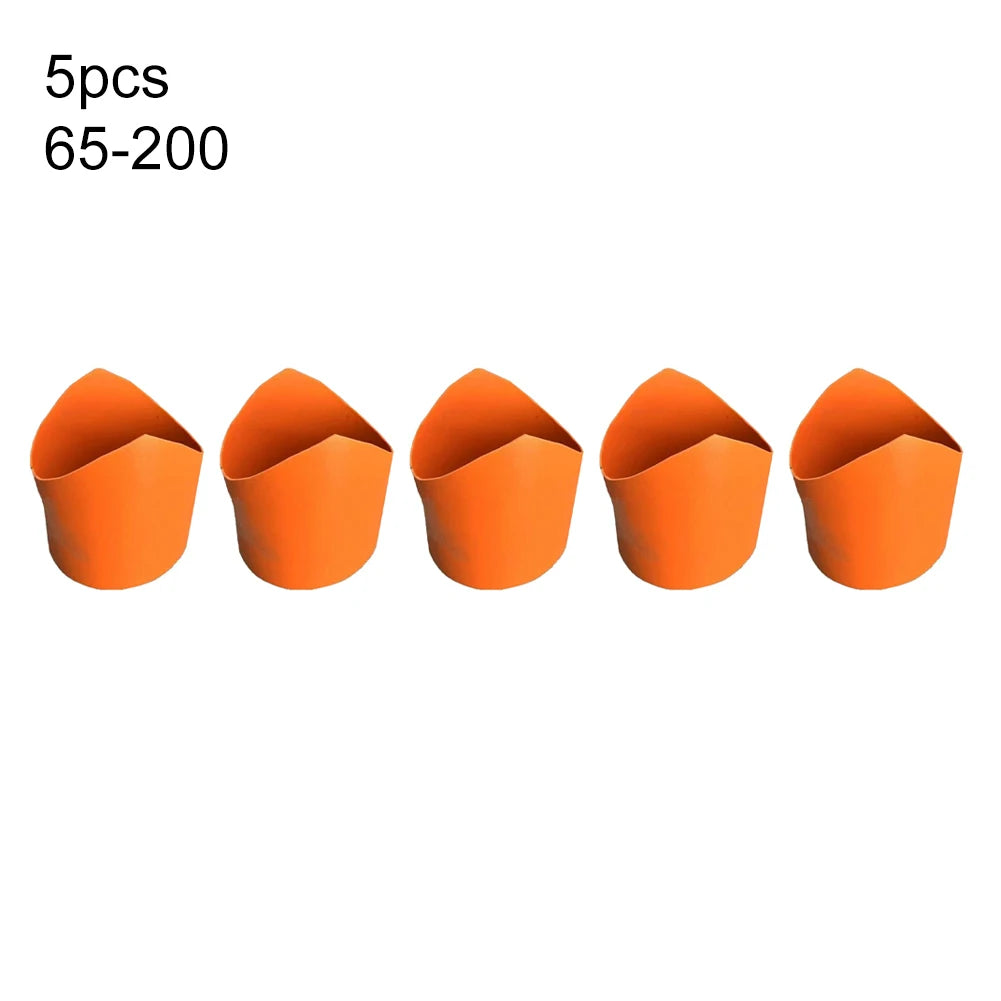

• Package 2 (5 Models): Covers 65mm–200mm pipe sizes
• Package 3 (5 Models): Covers 20mm–50mm pipe sizes

Who Is This For?

This kit is a must-have for pipe fitters, welders, plumbers, HVAC installers, metal fabricators, and serious DIY builders. If you regularly cut, join, or branch round pipes, this layout tool will save you significant time and dramatically improve cut accuracy.
