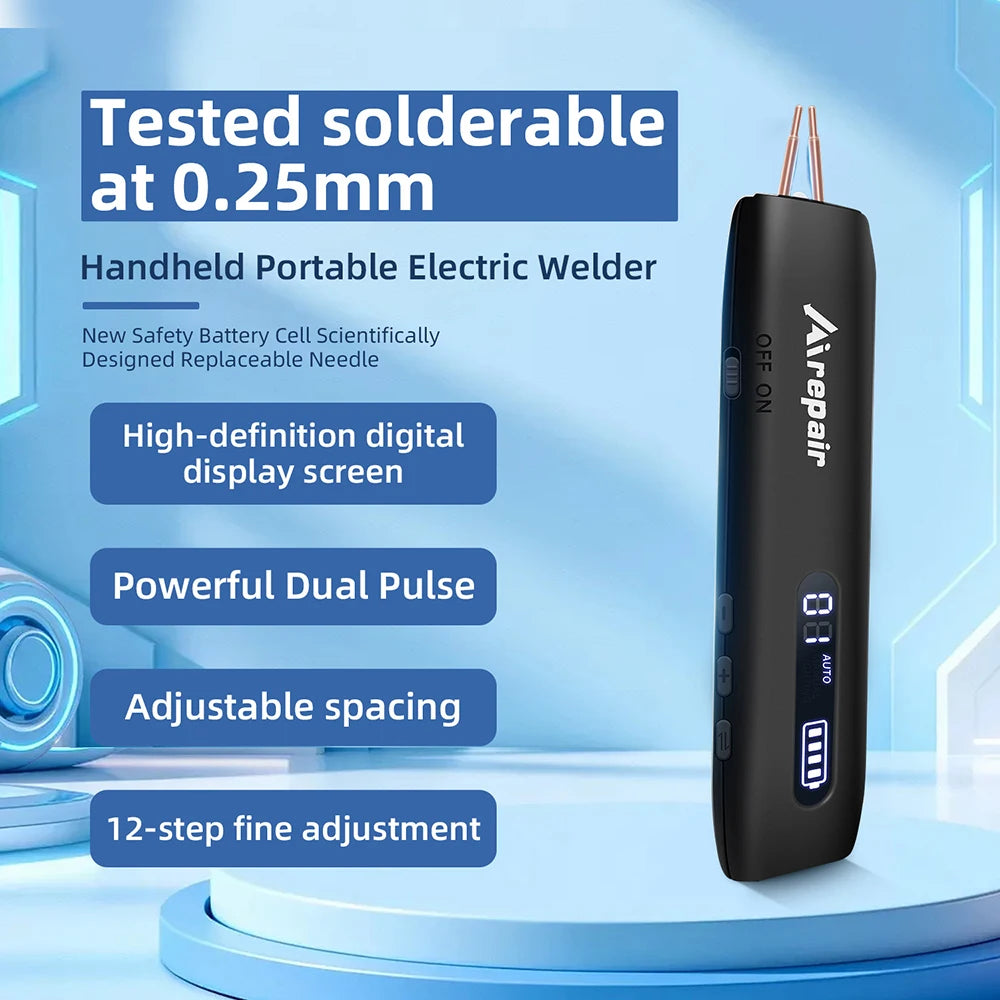

Portable Battery Spot Welder 12 Power Levels Adjustable LED Lighting

Discover the Portable Battery Spot Welder 12 Power Levels Adjustable LED Lighting — a standout kitchen & dining pick featuring portable, adjustable, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Data Record: No

Electronic: Yes

Semi-finishedproduct: No

Features:

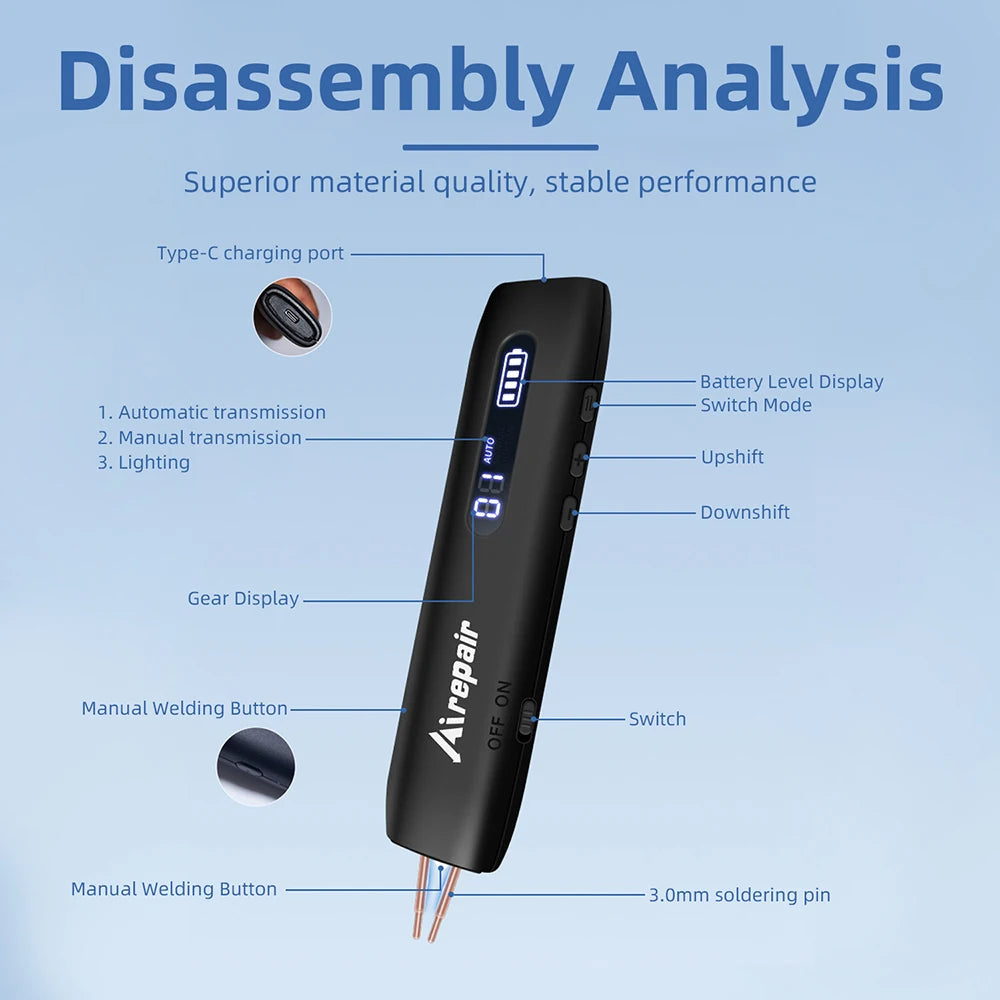

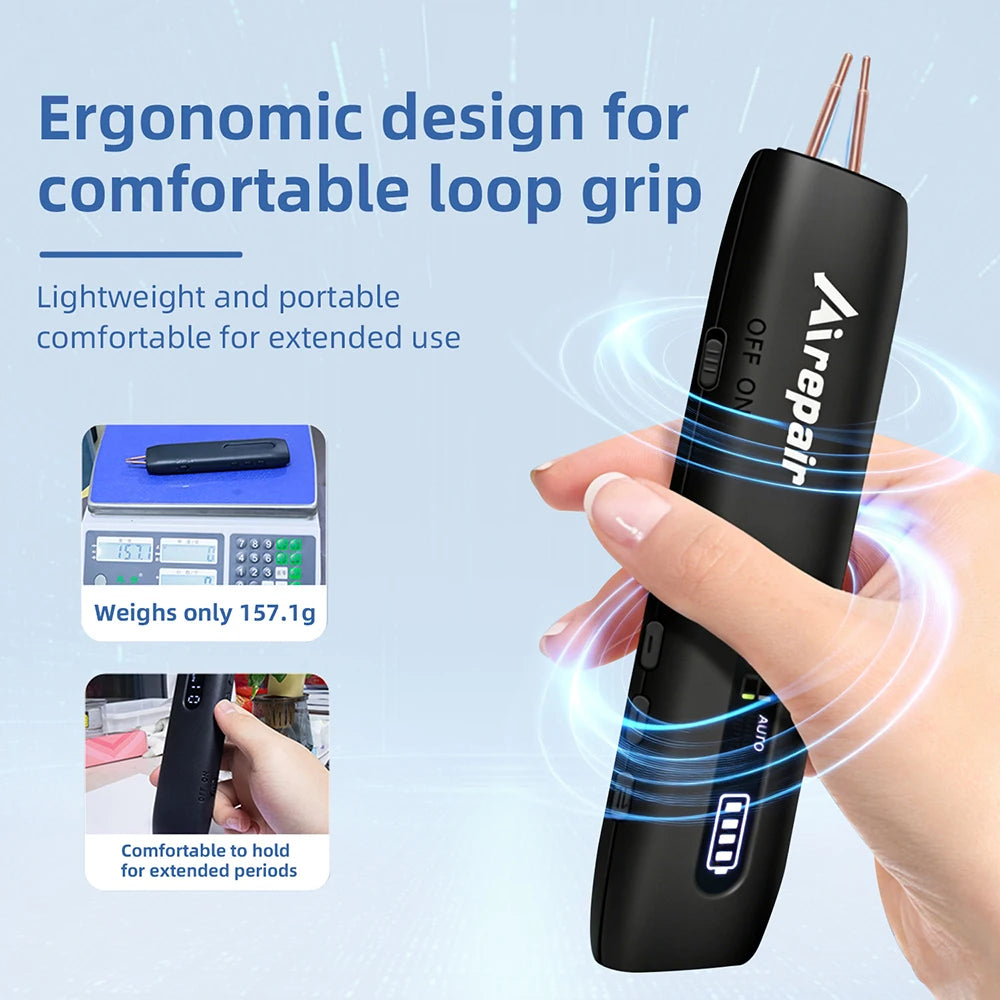

1. Portable: Fits comfortably in one hand for easy use, making it ideal for on-the-go smartphone repairs.

2. Manual and Automatic Modes: With 12 power settings, it meets various spot welding needs and can weld materials up to 0.25 mm thick.

3. Removable Welding Needles: Say goodbye to threaded needles—the embedded fixation technology ensures easy alignment.

4. LED Lighting: The spot welder features 0–9 brightness levels, allowing for easy operation even in dark environments.

5. Multiple Protections: The spot welder includes surge protection, voltage regulation protection, short-circuit protection, low-temperature protection, high-temperature protection, overcharge protection, and over-discharge protection.

6. Wide Range of Applications: Suitable for cell phone repair, DIY projects, lithium battery assembly, and more—an ideal tool for repair enthusiasts.

Product Specifications

Product Name: Compact Handheld Spot Welder

Display Type: LED

Housing Material: ABS

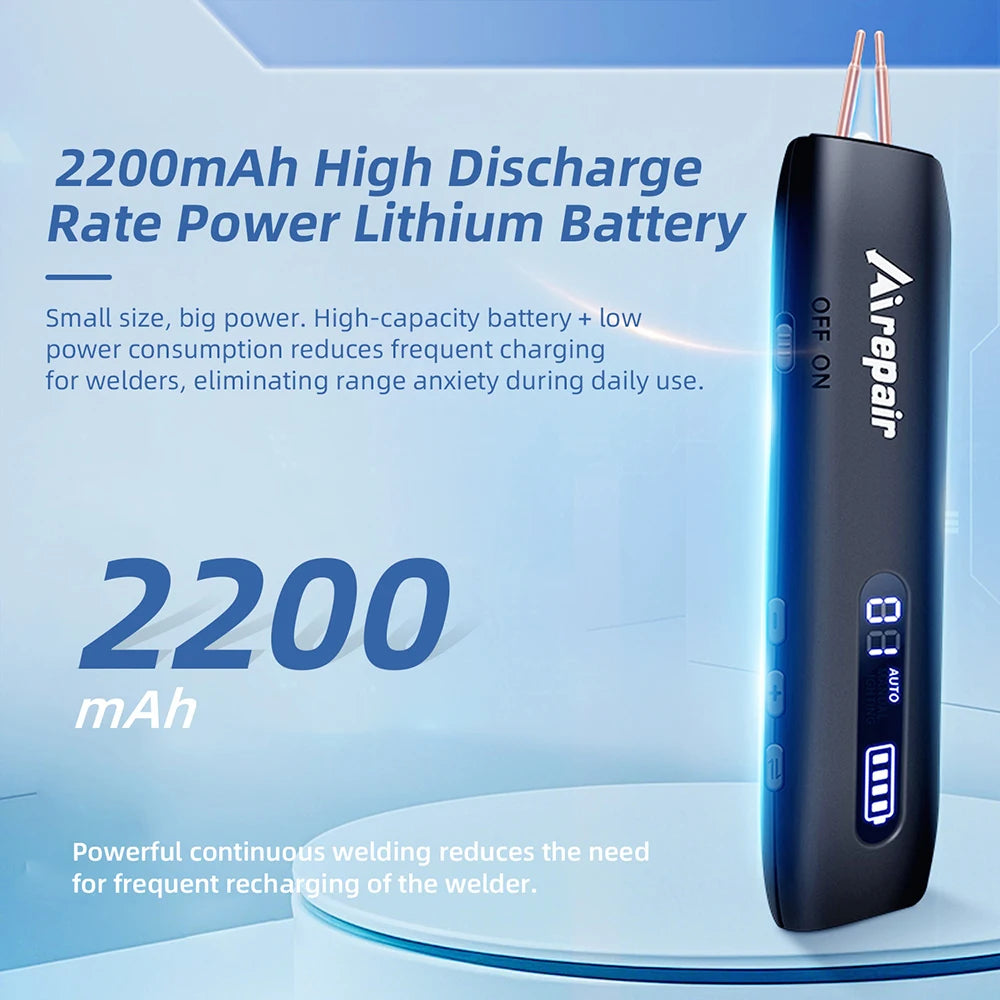

Battery Capacity: 2200mAh

Charging Input: DC 5V/2A

Output Voltage: 4.2V

Output Current: 800A

Battery Type: Lithium-polymer battery

Adjustable Settings: 12 adjustable levels

LED Lighting: 0–9 adjustable levels

Charging Port: Type-C

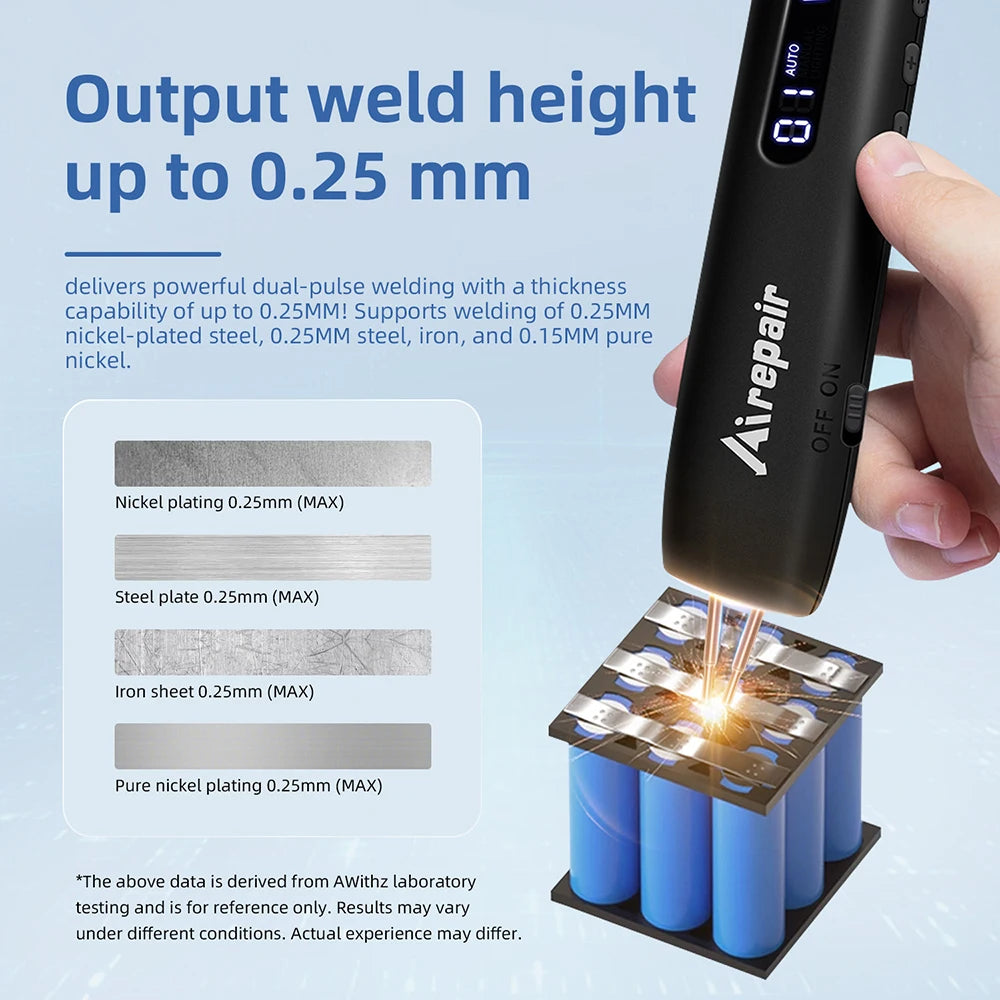

Welding Thickness: 0.1mm–0.25mm

Copper Pin Material: Pure Copper

Copper Pin Length: Approx. 3×50mm

Copper Pin Connection: Threaded, Removable

Troubleshooting

1. If the device won’t turn on, the battery may be low or the mainboard may be faulty. First, check if the charging cable and charger are connected correctly.

2. If the device powers on but does not function, check whether foreign objects are causing a short circuit between the two soldering pins, or if the device has not been switched to soldering mode. 3. If the light does not turn on, check whether the brightness level is set to level 0 (off).

4. If the device shuts down suddenly during operation, it may be due to prolonged use at high power, causing the internal temperature to rise excessively and triggering a safety shutdown. Allow the device to cool down for a while before restarting it.

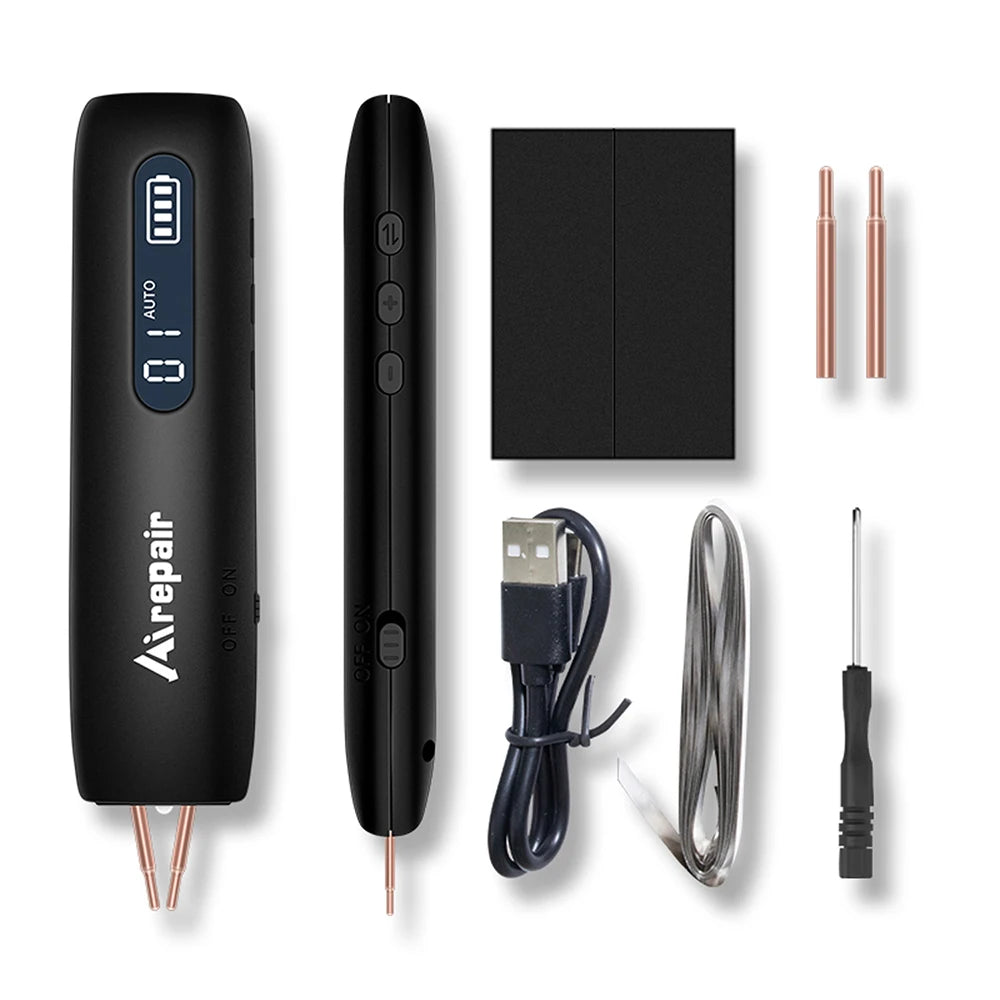

Package Contents

Main unit*1

Type-C charging cable*1

Sandpaper*1

Nickel coil*1

Welding pins*4

Screwdriver*1

Frequently Asked Questions

Q: What is the Portable Battery Spot Welder 12 Power Levels Adjustable LED?

A: The Portable Battery Spot Welder 12 Power Levels Adjustable LED is a quality kitchen & dining pick. Manual and Automatic Modes: With 12 power settings, it meets various spot welding needs and can weld materials up to 0.25 mm thick.

Q: What is the Portable Battery Spot Welder 12 Power Levels Adjustable LED made of?

A: The Portable Battery Spot Welder 12 Power Levels Adjustable LED is made from ABS Battery Capacity.

Q: Why choose the Portable Battery Spot Welder 12 Power Levels Adjustable LED?

A: The Portable Battery Spot Welder 12 Power Levels Adjustable LED stands out in our kitchen & dining range — Removable Welding Needles: Say goodbye to threaded needles—the embedded fixation technology ensures easy alignment.
