Portable Spot Welding Machine 18650 Battery 12 Power Levels 9 LED

Discover the Portable Spot Welding Machine 18650 Battery 12 Power Levels 9 LED — a standout kitchen & dining pick featuring portable, adjustable, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

Features:

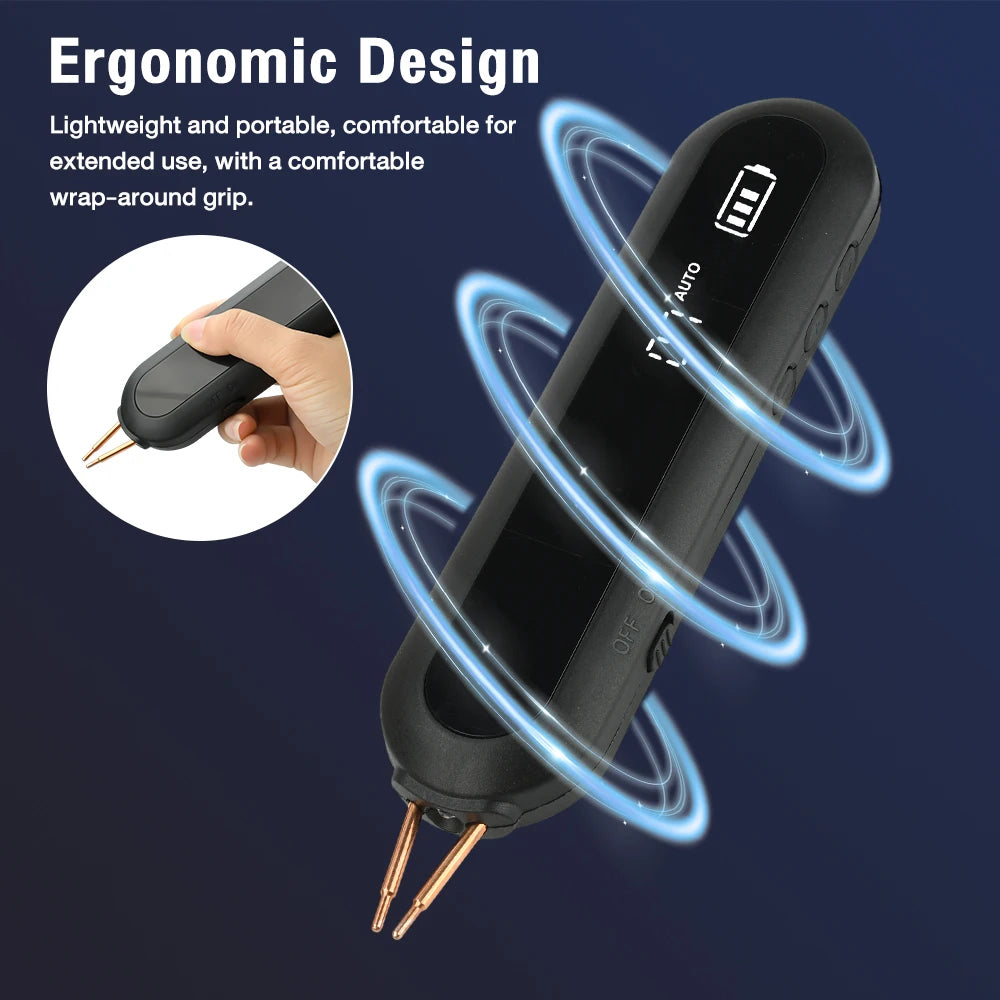

1. Portable Design: Fits comfortably in one hand for easy handling, making mobile phone repairs on the go more convenient.

2. Dual Manual/Auto Modes: 12-level power adjustment accommodates various spot welding needs, capable of welding materials up to 0.25mm thick.

3. Removable Welding Tip: Eliminates threaded tips with embedded fixation technology for effortless alignment.

4. LED Lighting: Features 0-9 brightness levels for easy operation in dark environments.

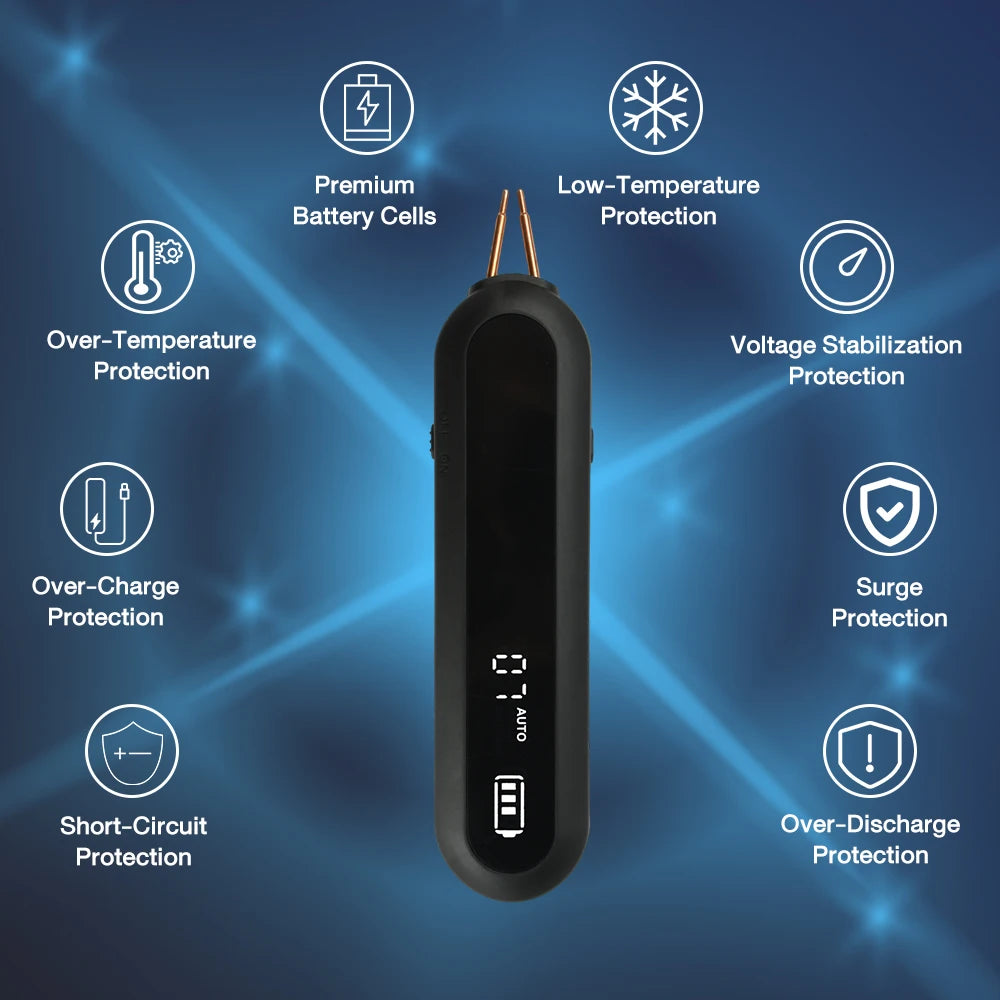

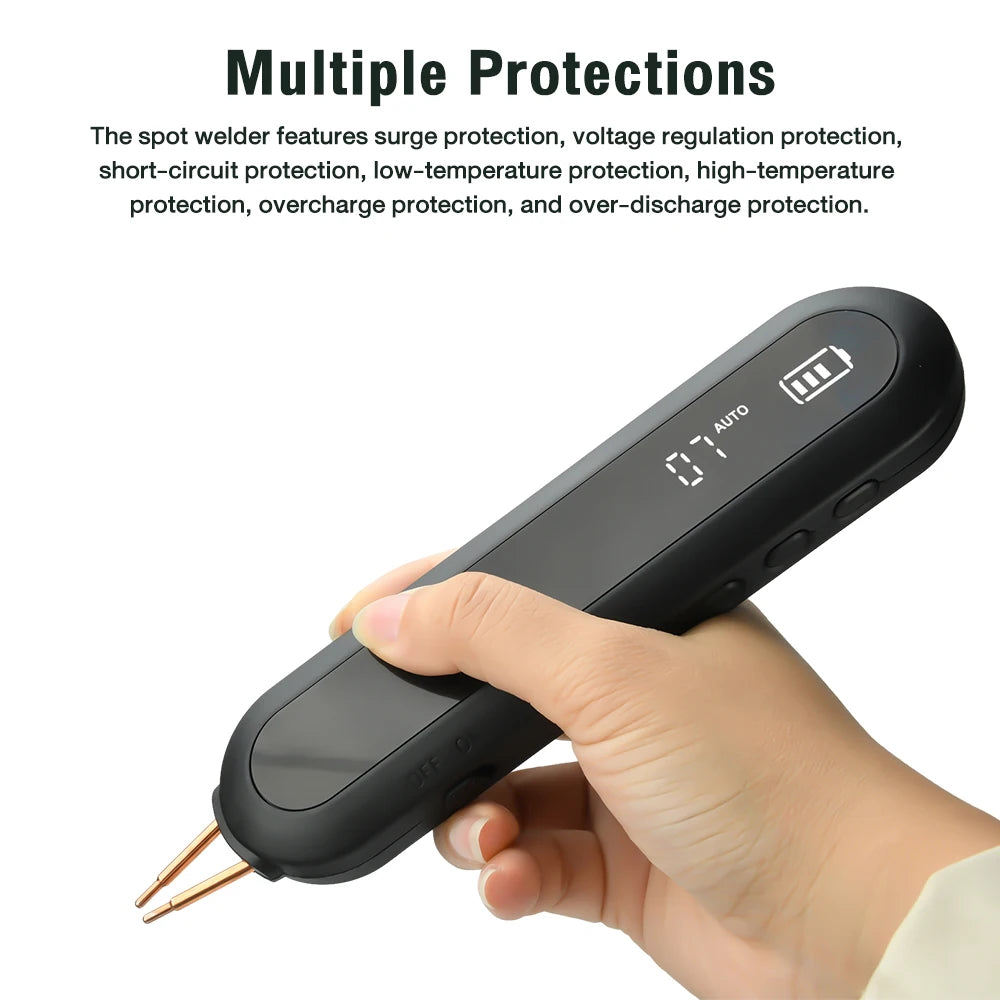

5. Multi-Protection: Includes surge protection, voltage regulation protection, short-circuit protection, low-temperature protection, high-temperature protection, overcharge protection, and over-discharge protection.

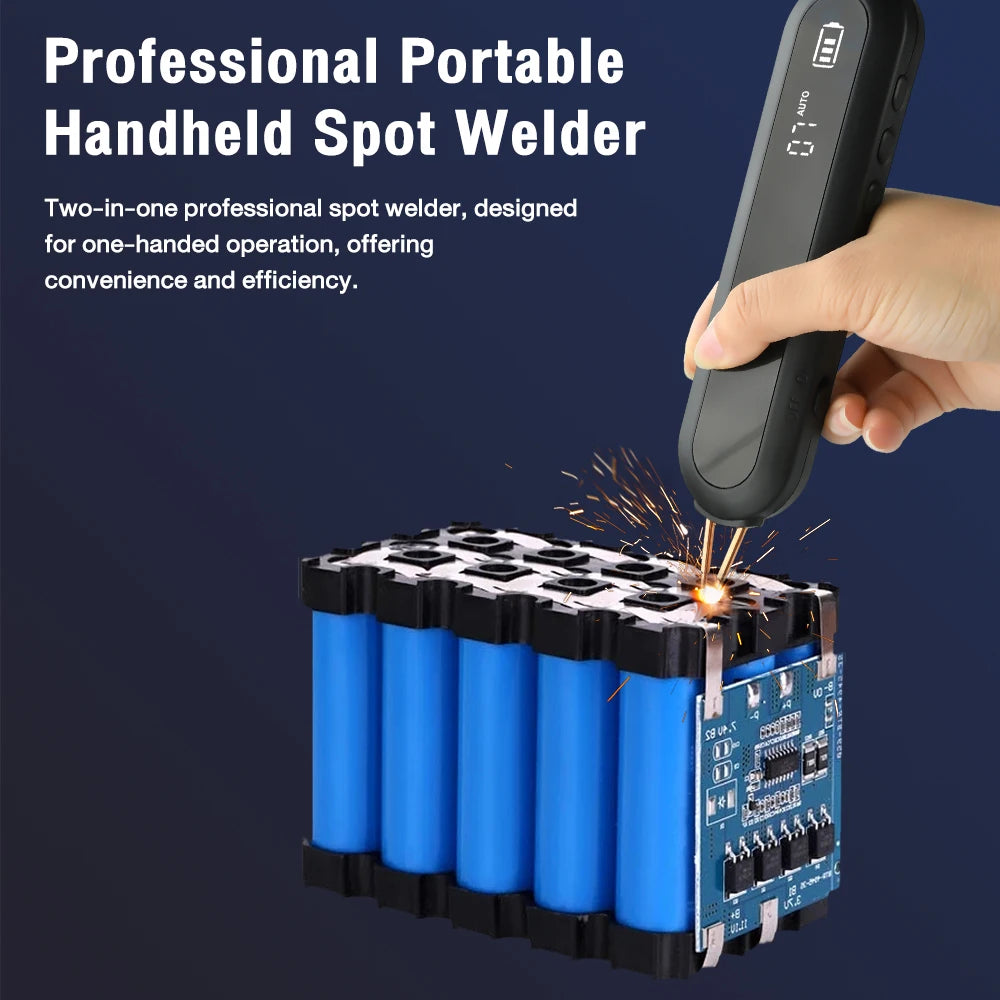

6. Versatile Applications: Ideal for phone repairs, DIY projects, lithium battery assembly, and more—the perfect tool for repair enthusiasts.

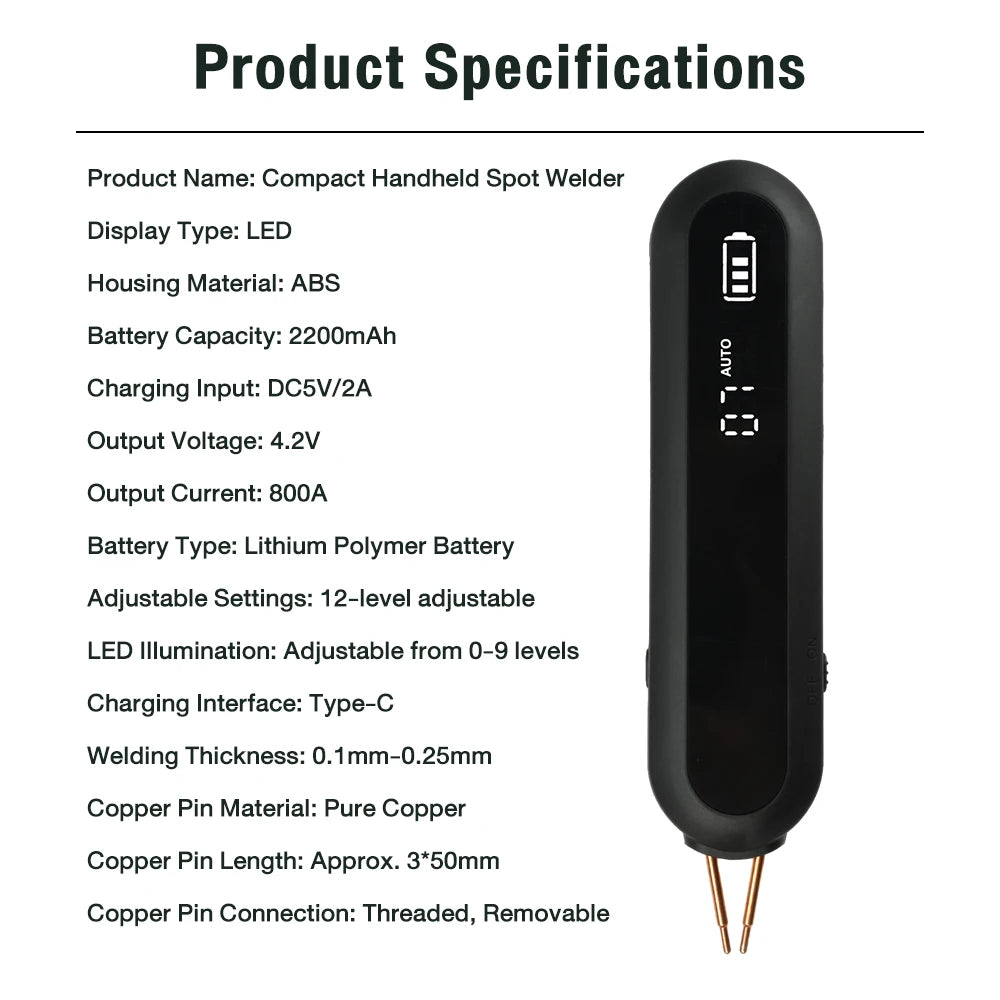

Product Specifications

Product Name: Compact Handheld Spot Welder

Display Type: LED

Housing Material: ABS

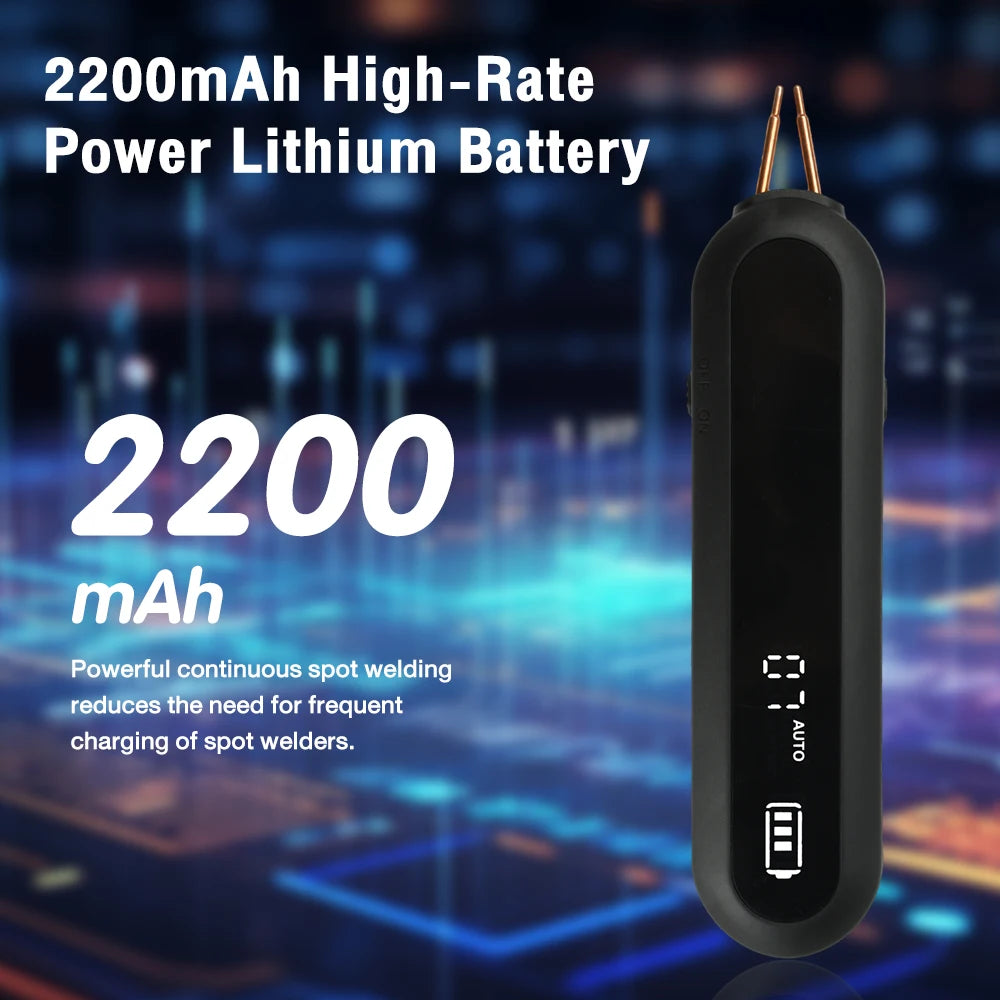

Battery Capacity: 2200mAh

Charging Input: DC5V/2A

Output Voltage: 4.2V

Output Current: 800A

Battery Type: Lithium Polymer Battery

Adjustable Settings: 12-level adjustable

LED Illumination: 0-9 level adjustable

Charging Port: Type-C

Welding Thickness: 0.1mm-0.25mm

Copper Pin Material: Pure Copper

Copper Pin Length: Approx. 3*50mm

Copper Pin Connection: Threaded, Removable

Common Troubleshooting Issues

1. If the device fails to power on, it may indicate low battery charge or a motherboard malfunction. First, verify that the charging cable and charger are properly connected and functioning.

2. If the device powers on but does not function, check if foreign objects are shorting the two soldering pins or if the device is not switched to soldering pin mode. 3. If the illumination light does not turn on, verify that the setting is not in the 0-level off state.

4. If the device shuts down unexpectedly during operation, it may have entered protection mode due to prolonged high-power usage causing internal overheating. Allow it to cool before restarting.

Shipping List

Spot Welder*1

Type-C Charging Cable*1

Sandpaper*1

2m Nickel Coil*1

Welding Pins*2

Screwdriver*1

Frequently Asked Questions

Q: What is the Portable Spot Welding Machine 18650 Battery 12 Power Levels?

A: The Portable Spot Welding Machine 18650 Battery 12 Power Levels is a quality kitchen & dining pick. Dual Manual/Auto Modes: 12-level power adjustment accommodates various spot welding needs, capable of welding materials up to 0.25mm thick.

Q: What is the Portable Spot Welding Machine 18650 Battery 12 Power Levels made of?

A: The Portable Spot Welding Machine 18650 Battery 12 Power Levels is made from ABS Battery Capacity.

Q: Why choose the Portable Spot Welding Machine 18650 Battery 12 Power Levels?

A: The Portable Spot Welding Machine 18650 Battery 12 Power Levels stands out in our kitchen & dining range — Removable Welding Tip: Eliminates threaded tips with embedded fixation technology for effortless alignment.
