Power Converter Regulator DC12V 24V DC6V 25A 150W Waterproof Voltage

Discover the Power Converter Regulator DC12V 24V DC6V 25A 150W Waterproof Voltage — a standout decor pick featuring waterproof, compact design for dependable, everyday performance.

Specifications

Brand Name: kangwobei

Certification: CE,RoHS

Model Number: WH-12-24 ,WH-30-57

Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.

Type: DC/DC Converters

Product Description

• Waterproof IP68 Voltage Converter Regulator DC 12V/24V to DC 6V 25A 150W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating; high transfer efficiency of 94% max..
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC 12V/24V to DC 6V converter, efficiency up to 94%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

Applications:
- Trucks
- Golf Carts
- Forklifts
- Buses
- Loaders
- Logging Vehicles
- Wind Power System
- Solar Power System
- Electromotor
- Telecommunications
- Boat and Yacht
- and so on..

Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 11-35V DC
* Output voltage: DC6V 25A
* Output Rated Power: 150W
* Efficiency: 94% (half load); 92% (full load)
* Output Peak Power: 190W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 0mV
* No Load Current: 25mA

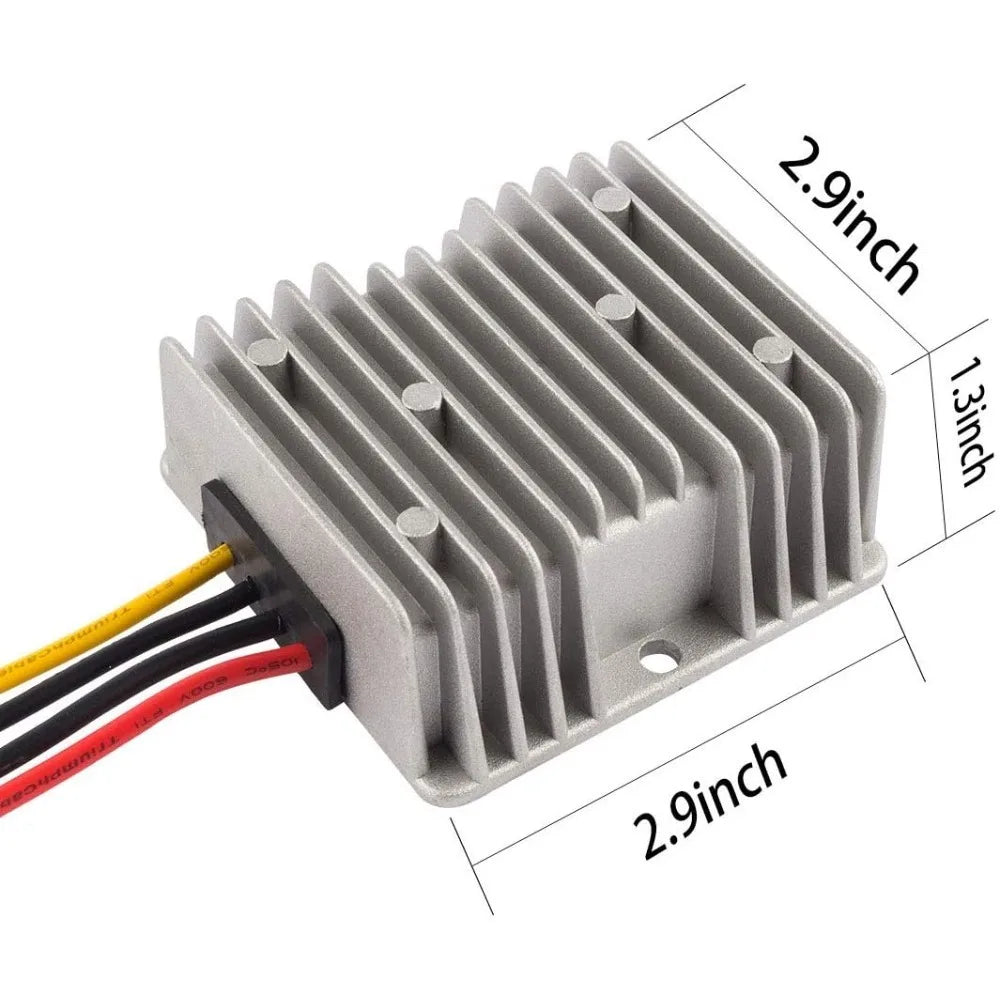

* Total Size: 74*74*32mm(L*W*H)
* Fixing Hole Diameter: 5mm(0.2 inch)
* Hole Center Diameter: 65mm
* Weight: 290g

Package included:
1 x DC 12V/24V to DC 6V 25A Voltage Converter Regulator

Note: Can not used long time Under the MAX. LISTED LOAD POWER.

Options

• Color: 12V 24V to 6V 25A

Frequently Asked Questions

Q: What is the Power Converter Regulator DC12V 24V DC6V 25A 150W?

A: The Power Converter Regulator DC12V 24V DC6V 25A 150W is a quality decor pick. Auto-recovery when device is back to normal operating; high transfer efficiency of 94% max..

Q: How do I use the Power Converter Regulator DC12V 24V DC6V 25A 150W?

A: The Power Converter Regulator DC12V 24V DC6V 25A 150W is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the Power Converter Regulator DC12V 24V DC6V 25A 150W?

A: The Power Converter Regulator DC12V 24V DC6V 25A 150W stands out in our decor range — Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
