Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof Convert
12V 24V to 6V 20A
$77.56
Sale price
$77.56
Regular price
$96.09
Skip to product information
Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof Convert
$77.56
Sale price
$77.56
Regular price
$96.09
Shipping calculated at checkout.
Discover the Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof Convert — a standout decor pick featuring waterproof, lightweight, compact design for dependable, everyday performance.
Specifications
Brand Name: kangwobei
Certification: CE,RoHS
Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
Type: DC/DC Converters
Product description
- Waterproof IP68 Voltage Converter DC 12V/24V to DC 6V 20A 120W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Recovery when the device is back to normal operating; high transfer efficiency of 94% max.
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
Features:
- 100% full power and stable current output, non-isolated module.
- Waterproof level IP68 and anti-shock protection, Ultra-compact size, lightweight.
- Industry grade DC 12V/24V to DC 6V converter, efficiency up to 95%.
- Die-cast aluminum shell, epoxy potting, cooling by free air convection.
- Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.
Applications:
- Golf Carts
- Trucks
- Forklifts
- Buses
- Loaders
- Wind Power System
- Solar Power System
- Electromotor
- Telecommunications
- Boat and Yacht
Specifications:
| Input Rated Voltage: | DC 12V/24V |
| Input Voltage Range | DC 10V ~ DC 35V |
| Output Voltage | DC 6V 20A |
| Output Rated Power | 120W |
| Efficiency | 94% (half load); 92% (full load) |
| Output Peak Power | 150W |
| Voltage Regulation | Less Than 1% |
| Load Regulation | Less Than 2% |
| Ripple(full load test) | Less Than 100mV |
| No Load Current | Less Than 20mA |

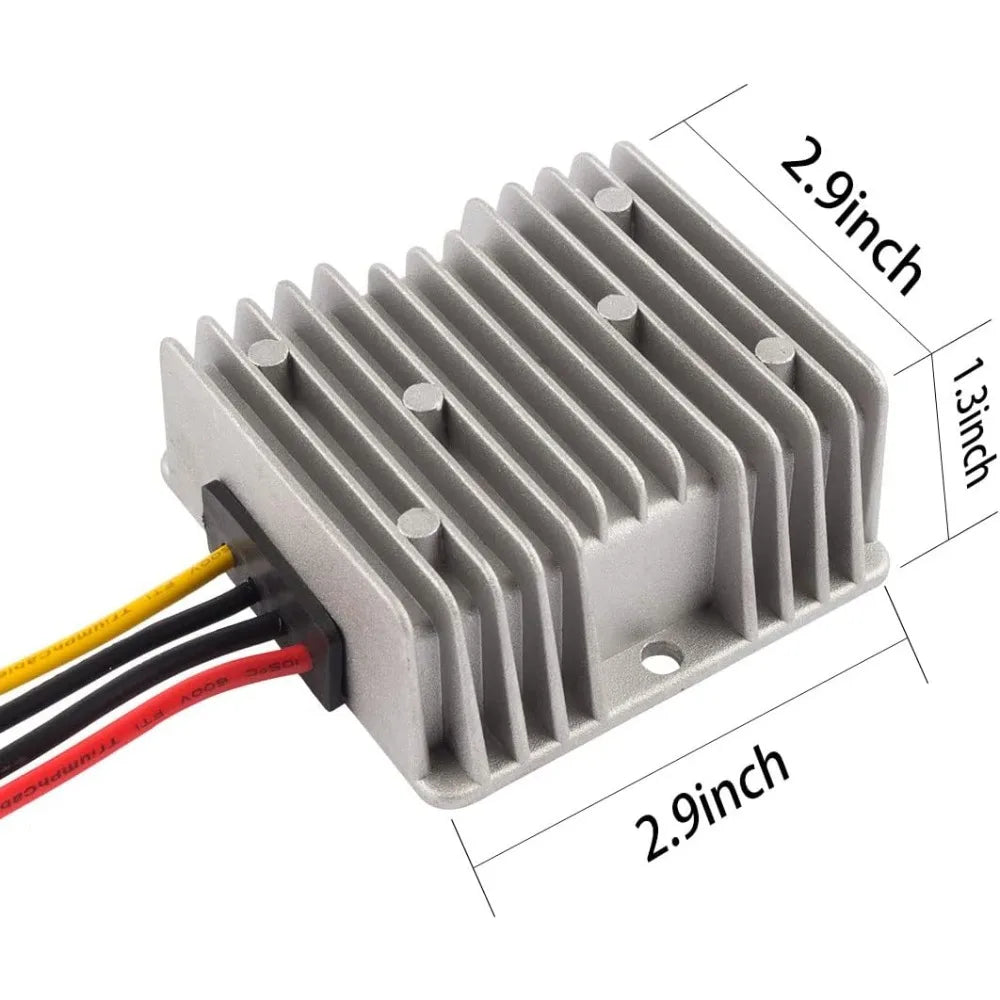

| Dimension | 74mm*74mm*32mm(L*W*H) |
| Fixing Hole Diameter | 5mm(0.2 inch) |
| Hole Center Distance | 65mm(2.55 inch) |
| Package Included | 1 x DC 12V/24V to DC 6V 20A Voltage Converter |
Options
- Color: 12V 24V to 6V 20A
Frequently Asked Questions
Q: What is the Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof?
A: The Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof is a quality decor pick. Recovery when the device is back to normal operating; high transfer efficiency of 94% max.
Q: How do I use the Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof?
A: The Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof is ready to use right out of the box and makes an easy addition to your decor lineup.
Q: Why choose the Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof?
A: The Power Voltage Converter DC12V 24V DC 6V 20A 120W Waterproof stands out in our decor range — Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
