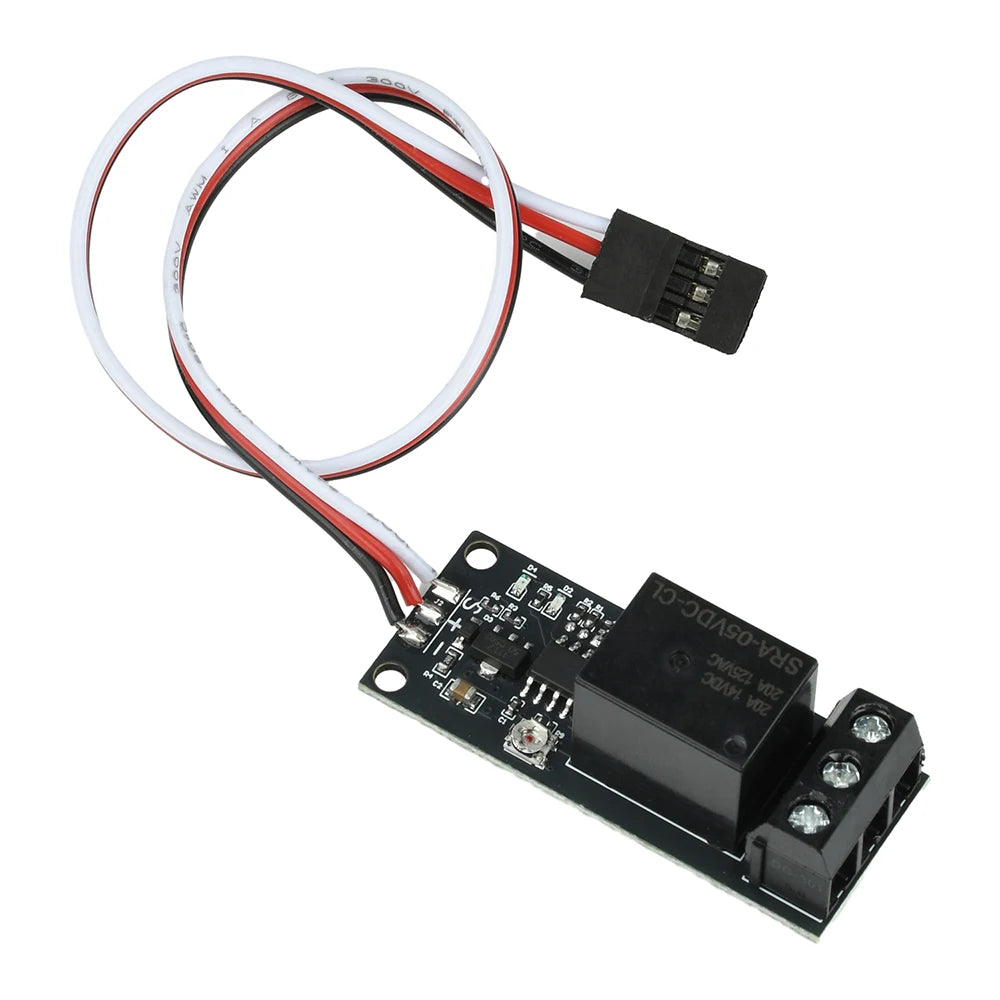

PWM Electronic Switch Relay 5-18V Model Airplane Car Boat Remote

Discover the PWM Electronic Switch Relay 5-18V Model Airplane Car Boat Remote — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Switch

Description:

1. Supports 5-18V input, accommodating diverse model equipment requirements

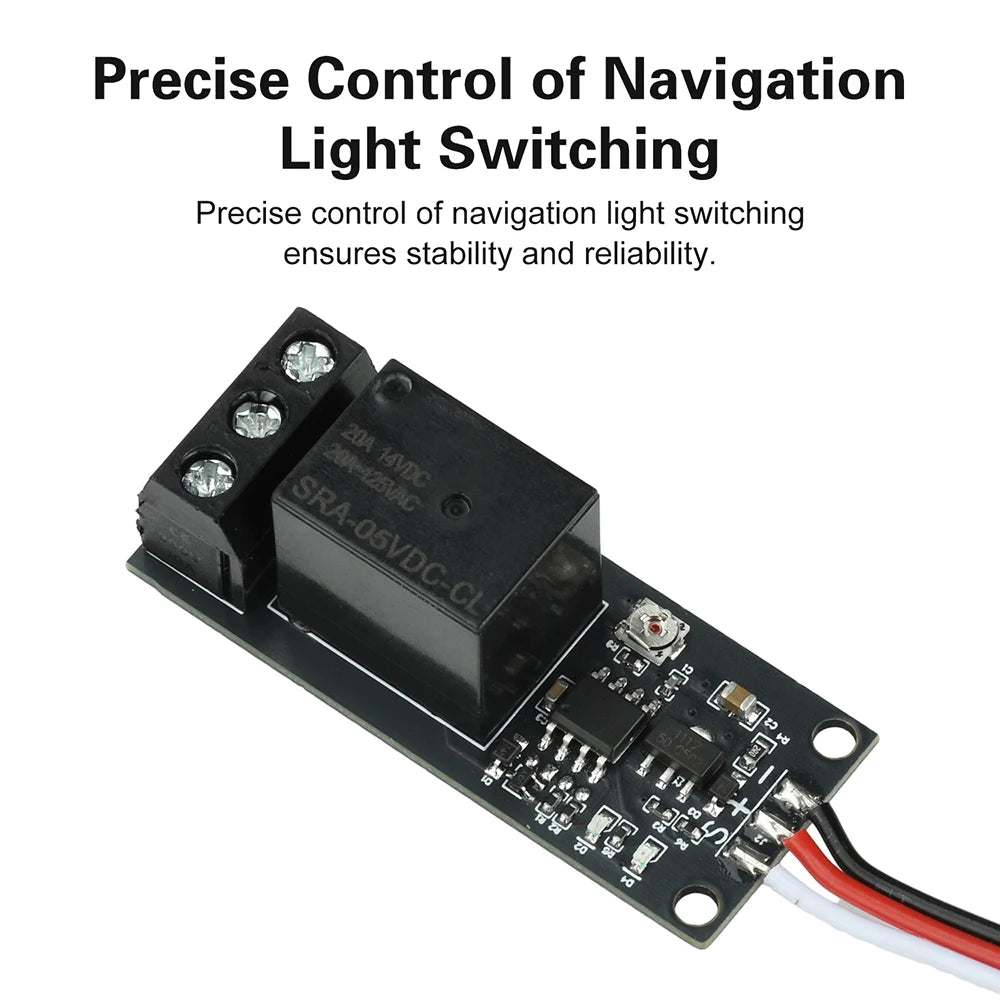

2. Precisely controls navigation light switching for stability and reliability

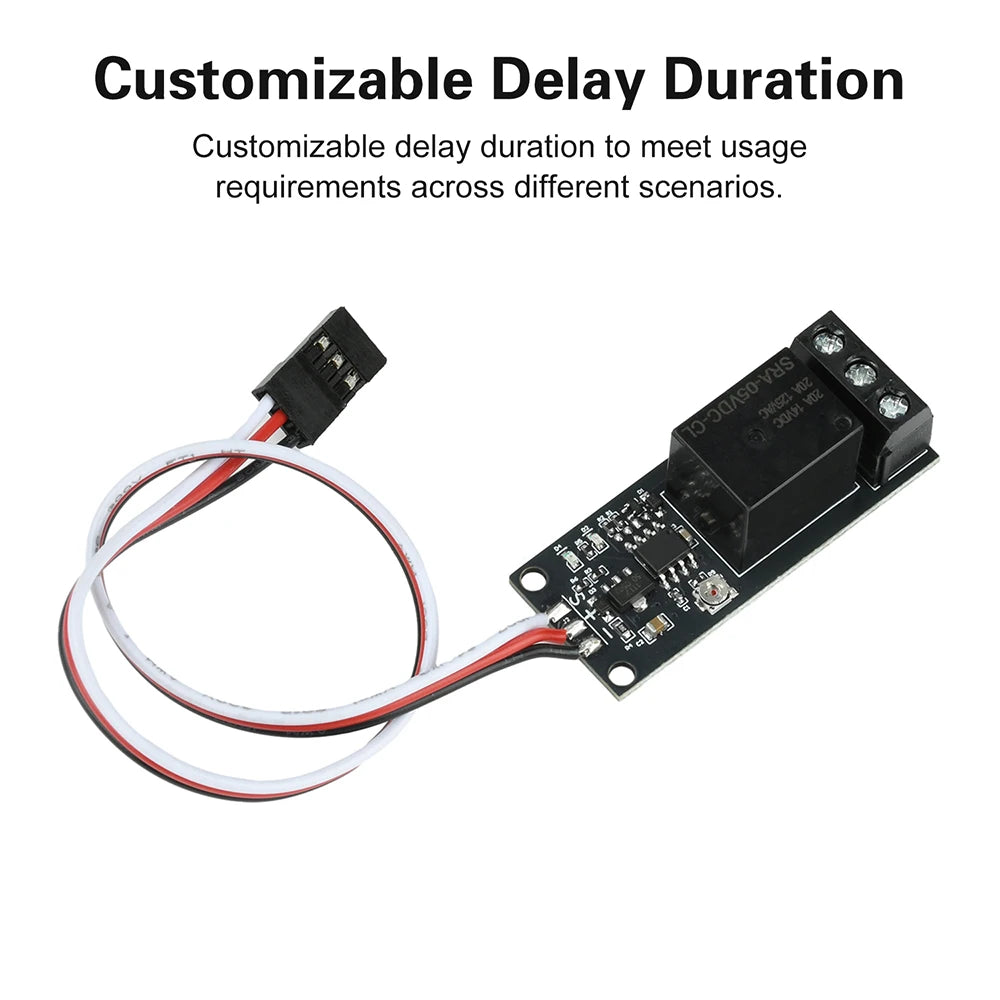

3. Customizable delay duration to meet varying application scenarios

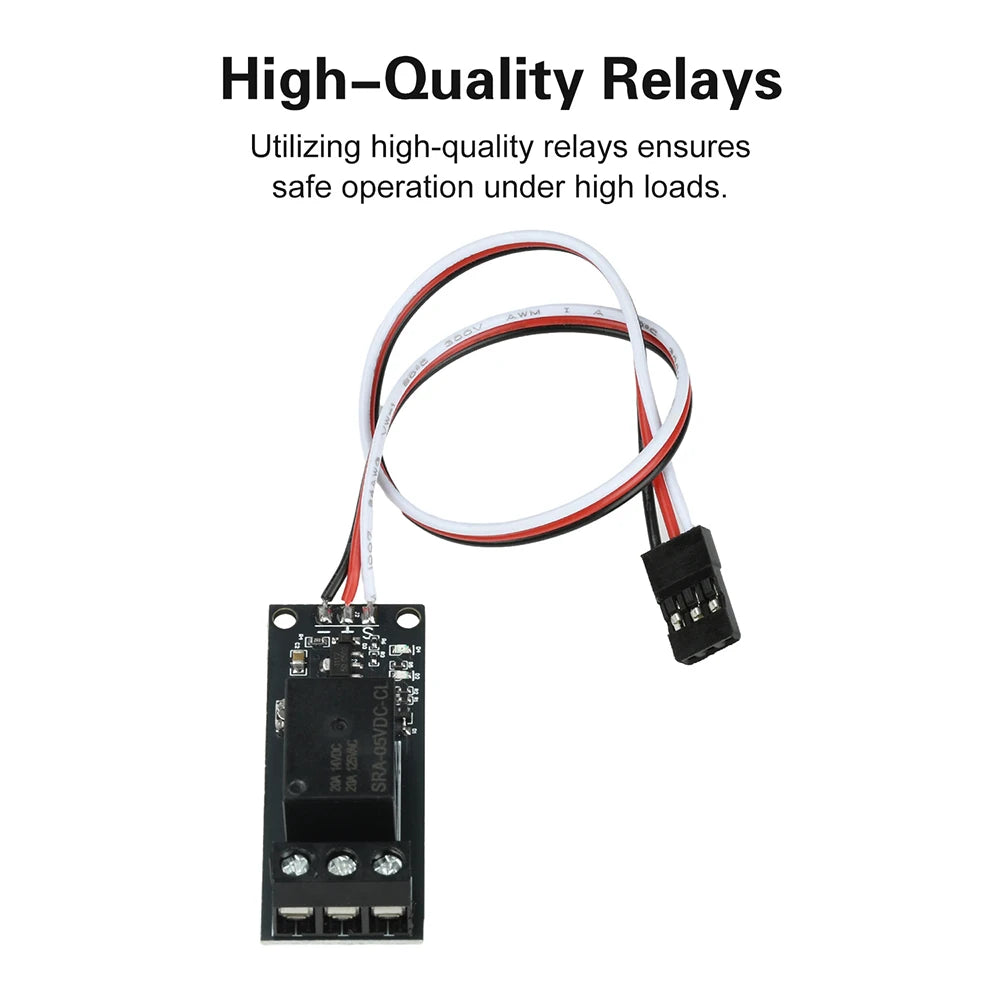

4. Utilizes high-quality relays to ensure safe operation under heavy loads

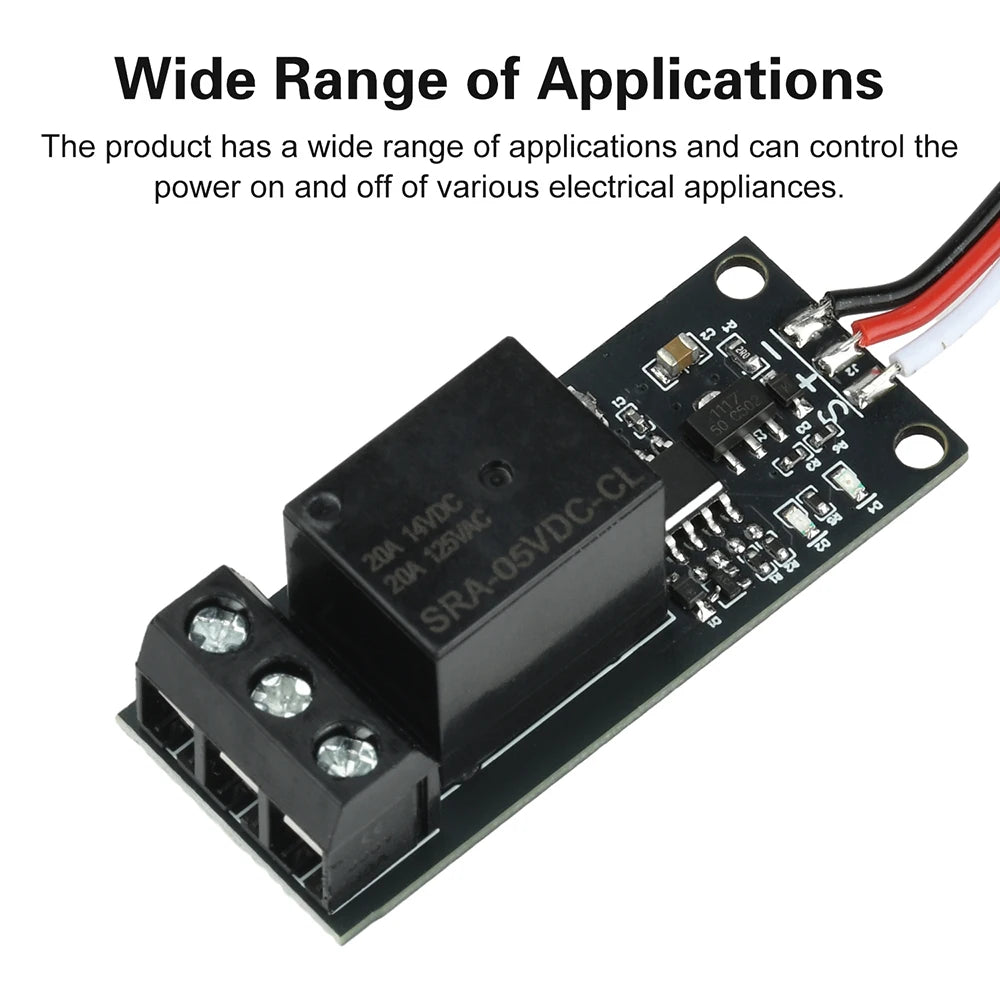

5. Widely applicable for controlling power on/off of various electrical appliances

Product Specifications:

Operating Voltage: 5-18V

PWM Recognition Range: 800μs-2200μs

Adjustable Delay-on-Close Duration: 200ms-30000ms

Relay Specifications: DC14V/20A; AC125V/20A

Interface Description:

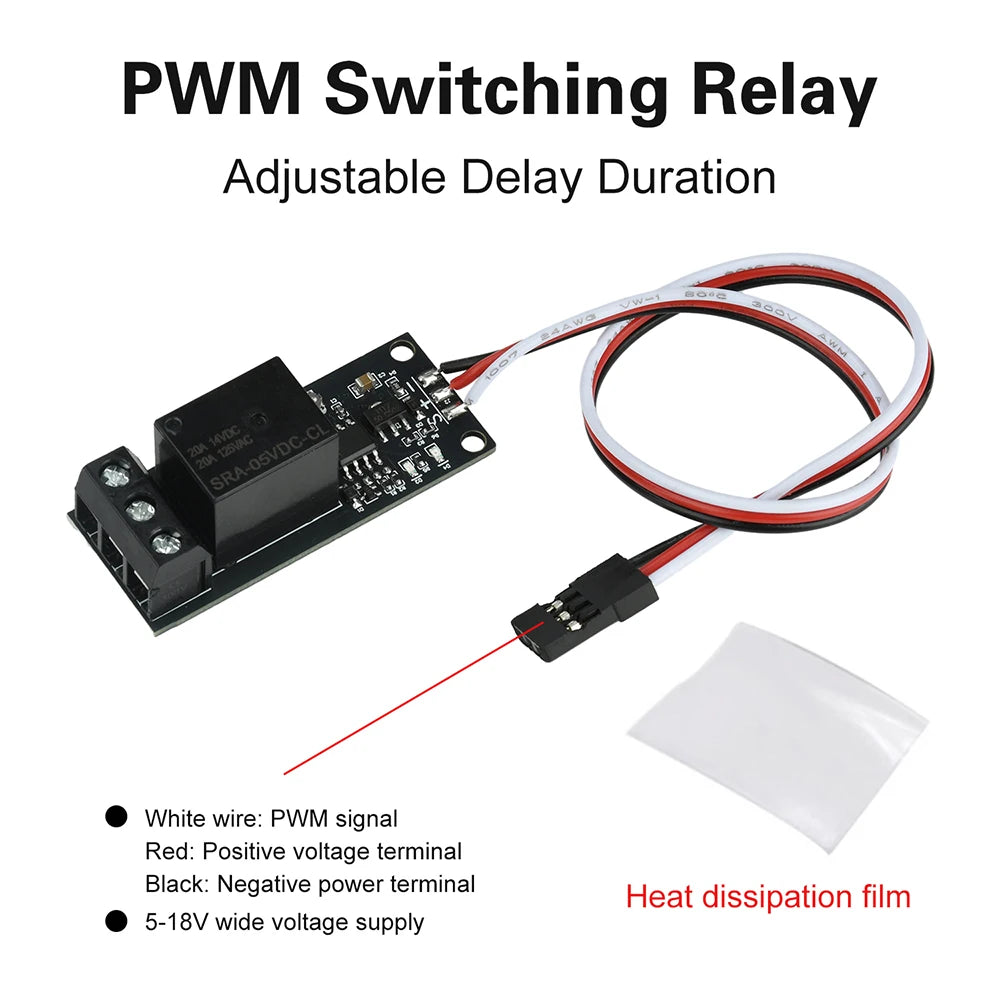

3P Servo Cable:

White: PWM signal line, recognizes pulse widths 800μs-2200μs. Relay engages when PWM pulse width changes from <1300μs to >1700μs; disengages otherwise

Red: Module power supply +, voltage range 5-18V

Black: Ground (negative terminal)

Relay Interface Terminals:

COM: Common terminal, typically connected to control signal input

NO: Normally Open output; opens from COM terminal when relay energized

NC: Normally Closed output; closes to COM terminal when relay energized

Frequently Asked Questions:

1: Does the switch have an output?

Answer: No output. It is a simple Toggle Switch. The device is powered separately; the output voltage equals the supply voltage.

A: Both are switches. Relays support higher currents (up to 20A max). Relays handle AC/DC, while electronic switches only support DC.

3: Is the switch controlled by PWM duty cycle?

A: Yes, PWM is duty cycle. Uses RC model PWM control: 20ms cycle, 1-2ms high level.

4: What is the startup signal? What is the frame rate?

Answer: RC PWM signal: 1ms to 1.3ms is state A, 1.7ms to 2ms is state B. Switching from A to B turns it on, switching from B to A turns it off. Normally open and normally closed. When the receiver sends a signal, the normally open contact breaks, and the normally closed contact closes.

5: Why is the red light on constantly, but the blue light is off? Answer: PWM signal input issue. Verify PWM output (test with servo tester) and check travel range adequacy (adjust travel to maximum before retesting).

6: Can it control motor direction (forward/reverse)?

Answer: No, only on/off control.

7: Can it control multiple channels?

Answer: Currently single-channel only. One port controls one relay's activation/deactivation.

8: I only need to switch signal lines, not power lines. Is that possible?

Answer: The relay functions as a switch and can control signal lines.

9: Is the relay momentary or latching?

Answer: This depends on the remote control settings, not the relay itself. The relay only requires the RC PWM signal to switch the channel.

Package Contents:

RC Switch*1

Heat Dissipation Film*1

Frequently Asked Questions

Q: What is the PWM Electronic Switch Relay 5-18V Model Airplane Car Boat?

A: The PWM Electronic Switch Relay 5-18V Model Airplane Car Boat is a quality decor pick. Supports 5-18V input, accommodating diverse model equipment requirements 2.

Q: How do I use the PWM Electronic Switch Relay 5-18V Model Airplane Car Boat?

A: The PWM Electronic Switch Relay 5-18V Model Airplane Car Boat is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the PWM Electronic Switch Relay 5-18V Model Airplane Car Boat?

A: The PWM Electronic Switch Relay 5-18V Model Airplane Car Boat stands out in our decor range — Precisely controls navigation light switching for stability and reliability 3.
