RX7500 6000-7500MHz Wireless Video Receiving Module 7 2GHz VRX RSSI
$236.36
Sale price
$236.36
Regular price
$292.83
Shipping calculated at checkout.
Discover the RX7500 6000-7500MHz Wireless Video Receiving Module 7 2GHz VRX RSSI — a standout decor pick featuring wireless design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:
1. Supports 6-7.5GHz wideband reception, adapting to diverse wireless video transmission scenarios

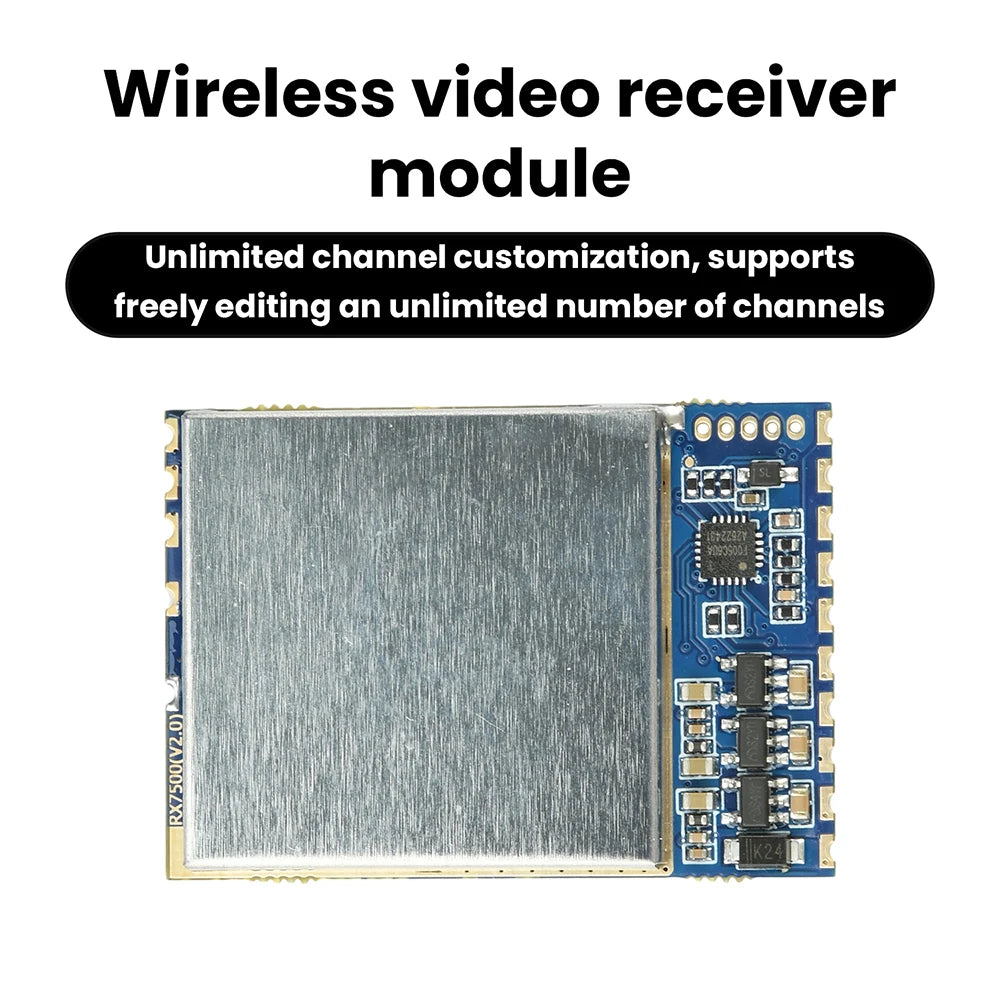

2. Unlimited channel customization, enabling free editing of an unlimited number of channels

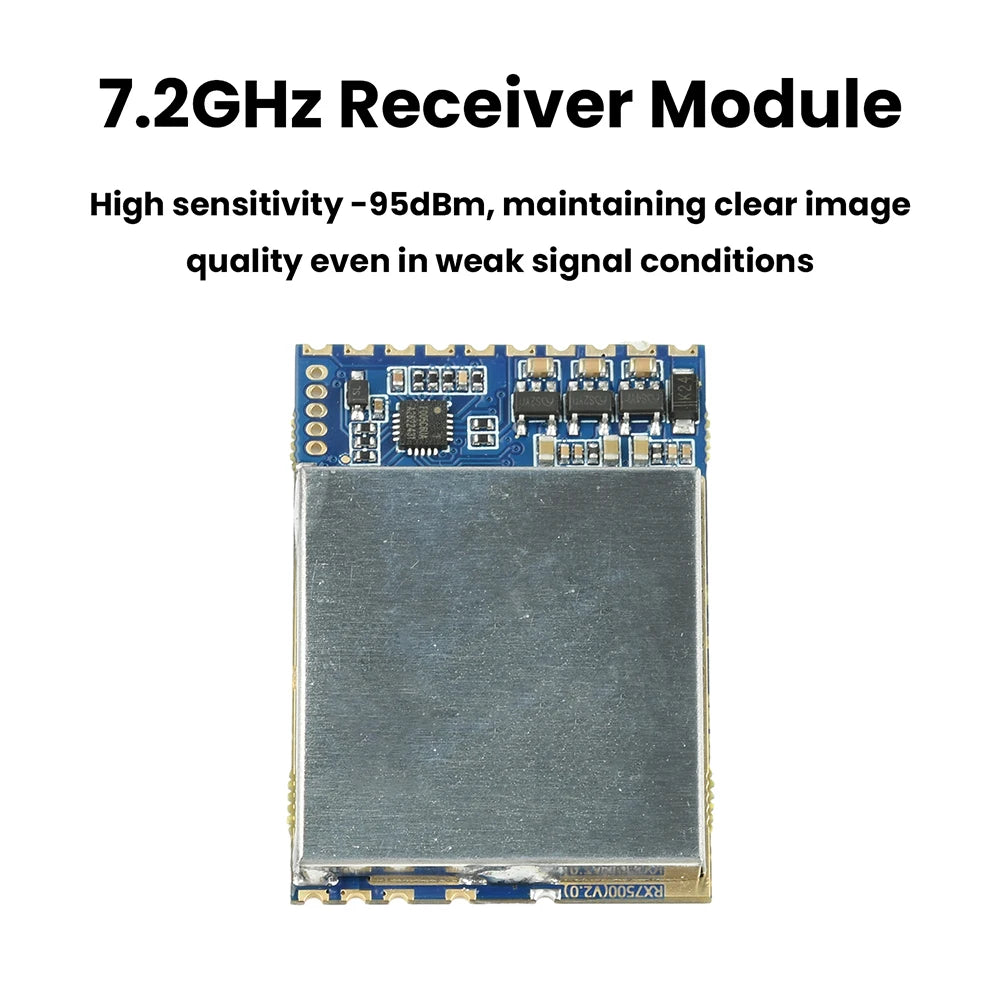

3. High sensitivity at -95dBm, maintaining clear image quality even under weak signals

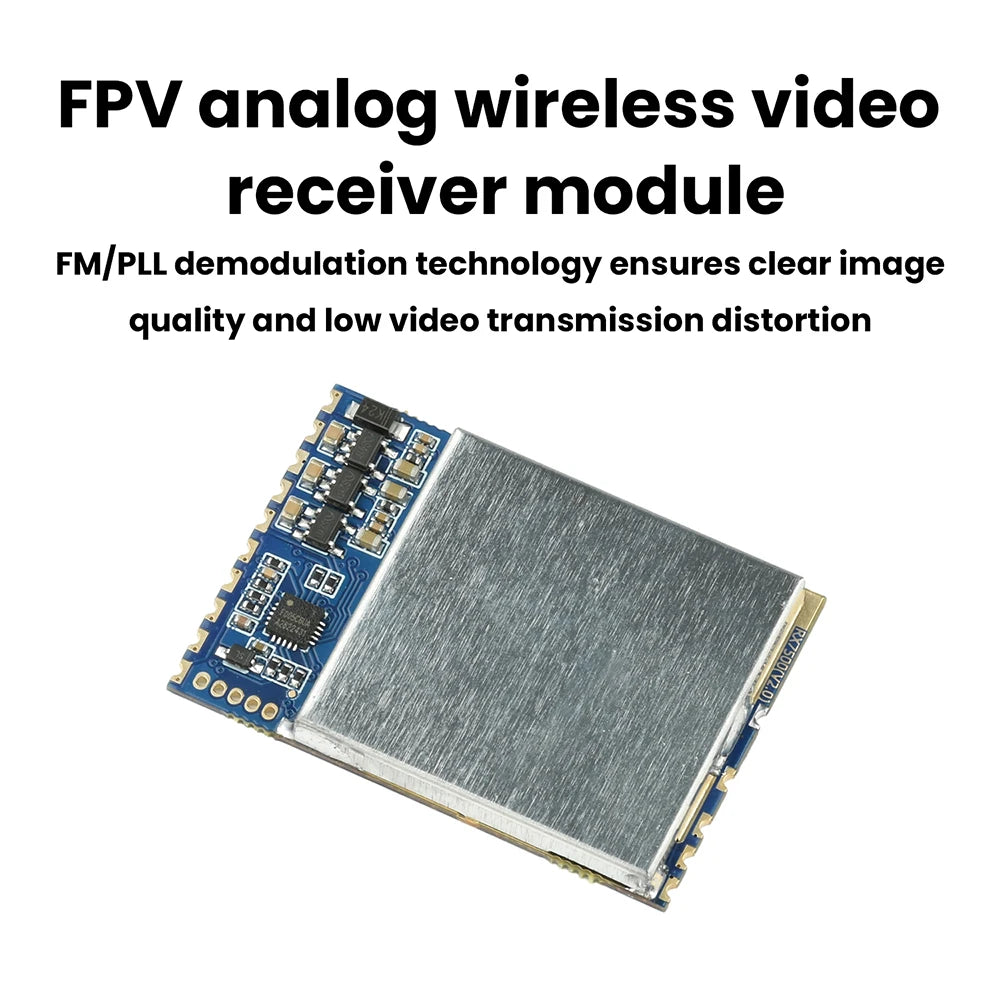

4. FM/PLL demodulation technology ensures crisp visuals and low-distortion video transmission

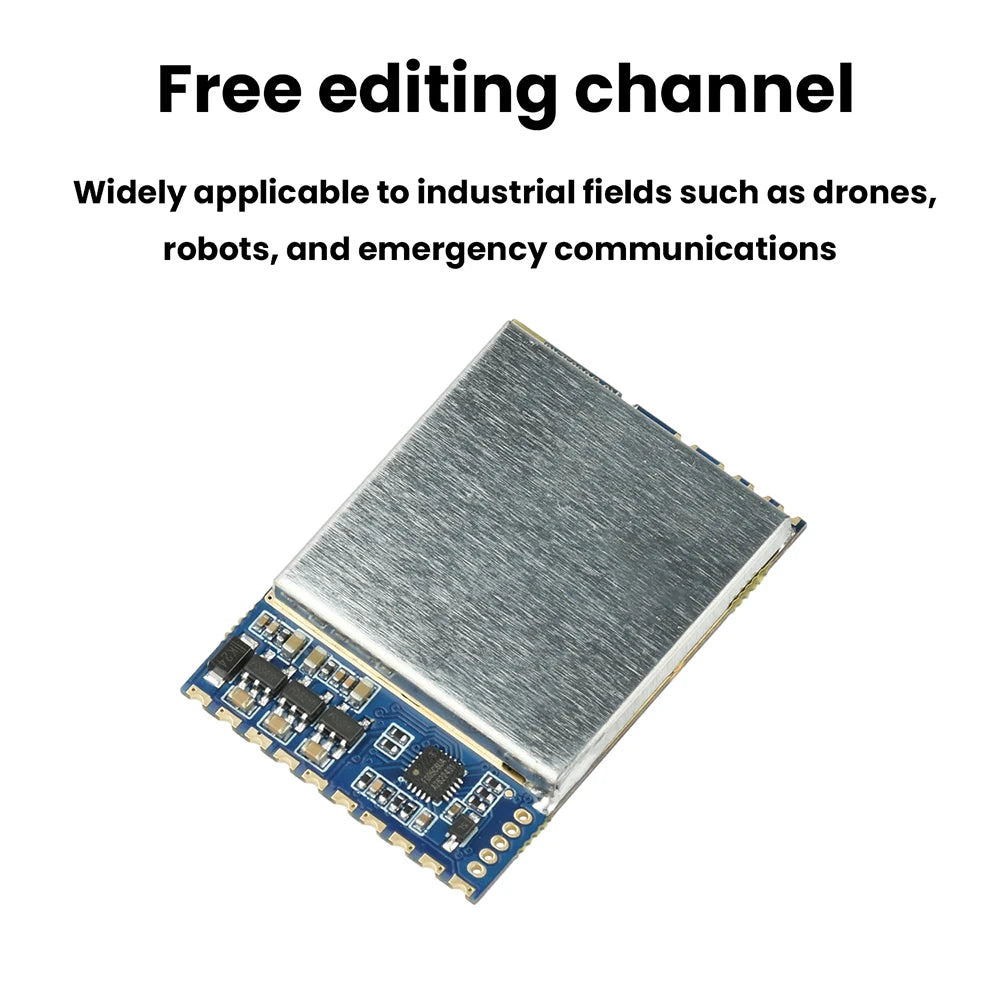

5. Widely applicable in industrial fields such as drones, robotics, and emergency communications

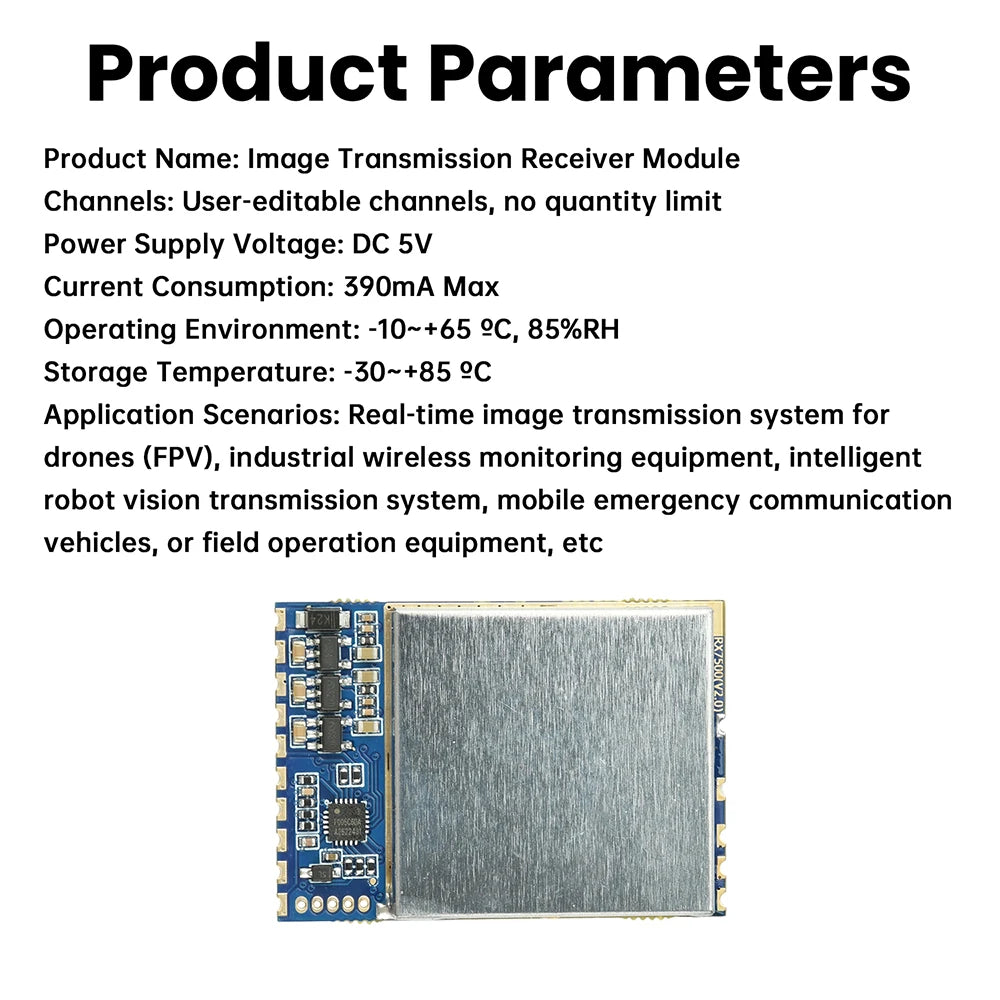

Product Parameters:
Product Name: Video Transmission Receiver Module
Channels: User-editable channels with no quantity limit
Supply Voltage: DC 5V
Current Consumption: 390mA Max
Operating Environment: -10~+65 ºC, 85%RH
Storage Temperature: -30~+85 ºC
Application Scenarios: Drone FPV real-time video transmission systems, industrial wireless monitoring equipment, intelligent robot vision transmission systems, mobile emergency communication vehicles, or field operation equipment

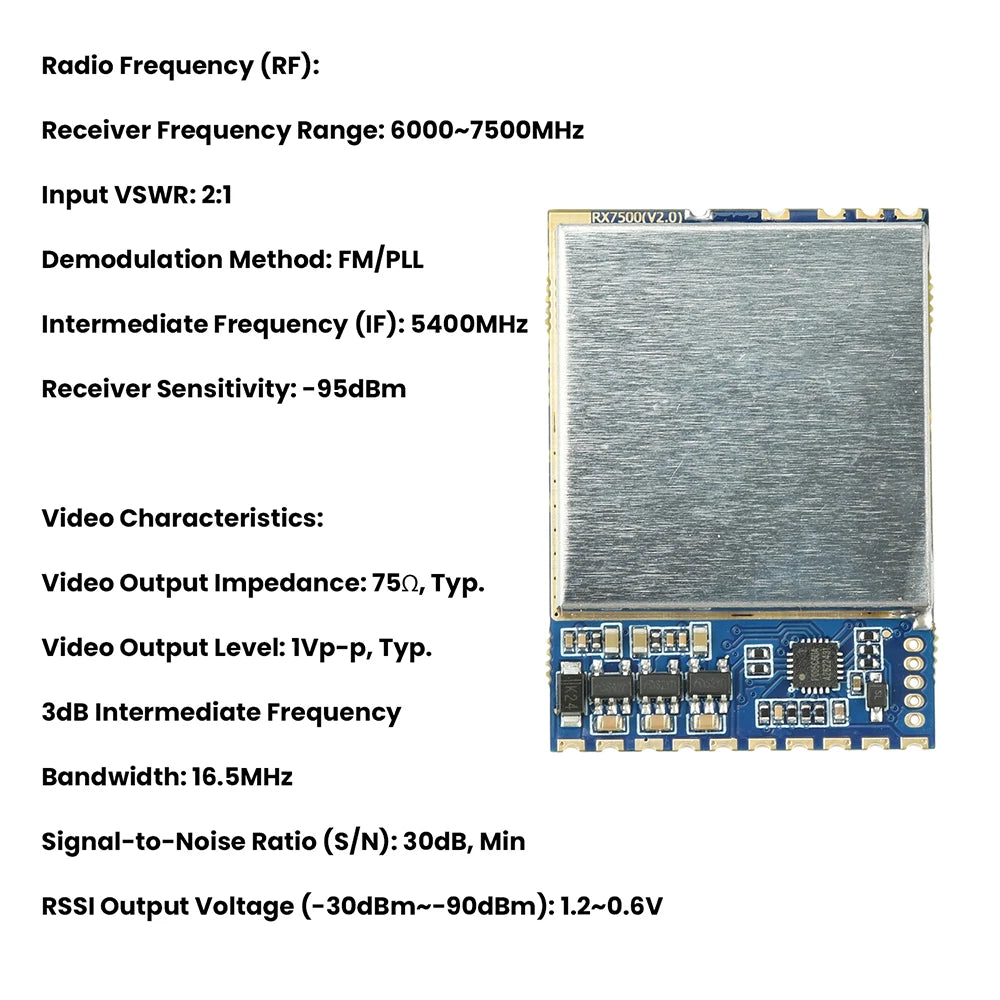

RF (Radio Frequency):
Receive Frequency Range: 6000~7500MHz
Input VSWR: 2:1
Demodulation Method: FM/PLL
Intermediate Frequency (IF): 5400MHz
Receive Sensitivity: -95dBm
Video Characteristics:
Video Output Impedance: 75Ω, Typ.
Video Output Level: 1Vp-p, Typ.
3dB IF Bandwidth: 16.5MHz
Signal-to-Noise Ratio (S/N): 30dB, Min
RSSI Output Voltage (-30dBm to -90dBm): 1.2V to 0.6V
Description:
When SPI/EN is high, the module receives SPI signals to control frequency. If no frequency setting or an invalid setting is received, it defaults to 6150MHz. The configurable frequency range is 6G to 7.5G, with 1MHz steps. SPI signal level is 3.3V, maximum 100K baud rate.
Note: The RX7500's SPI mode is controlled by an external microcontroller, allowing free channel editing with no quantity restrictions.
Shipping List:
Module x1
