SBB5089 Chip RF Amplifier 5MHz-6GHz Broadband 20dB Gain 5V Radio

Discover the SBB5089 Chip RF Amplifier 5MHz-6GHz Broadband 20dB Gain 5V Radio — a standout decor pick featuring wireless, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Semi-finishedproduct: No

Features:

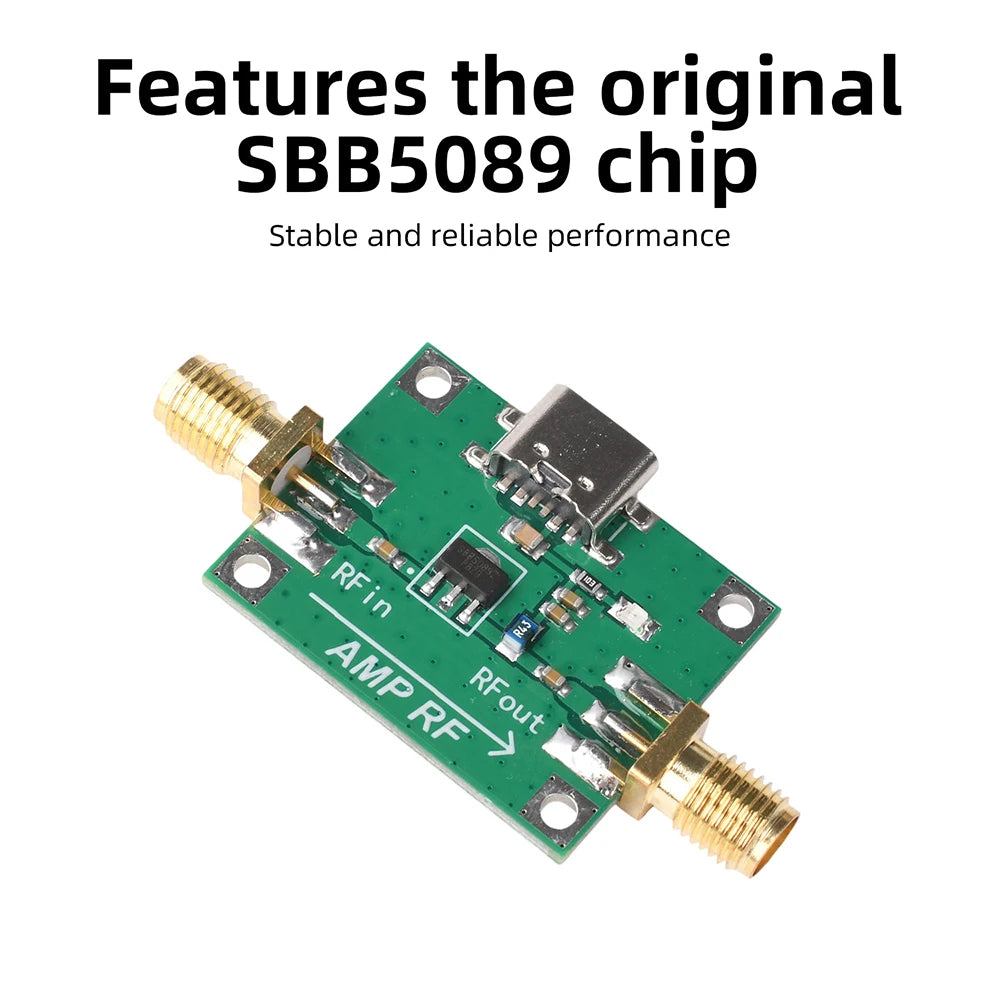

1. Uses genuine SBB5089 chips for stable and reliable performance

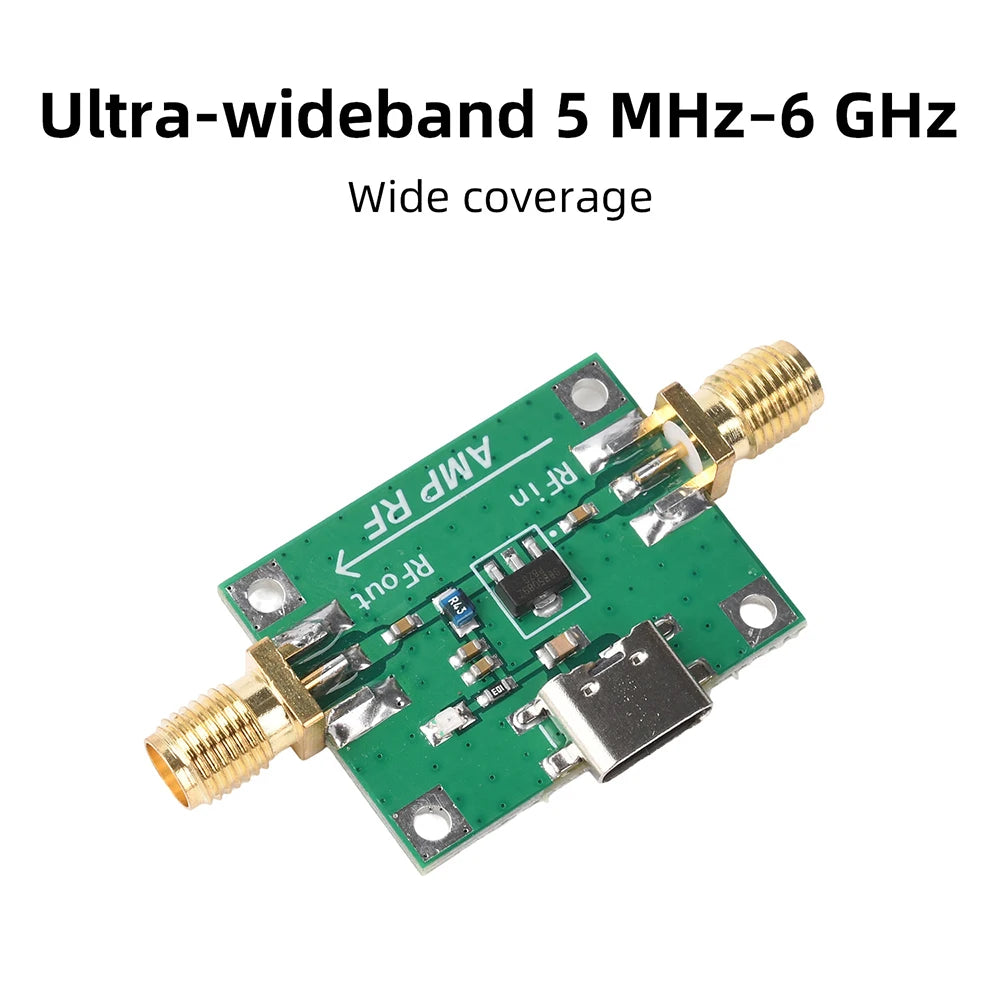

2. Ultra-wide frequency range of 5 MHz–6 GHz for broad coverage

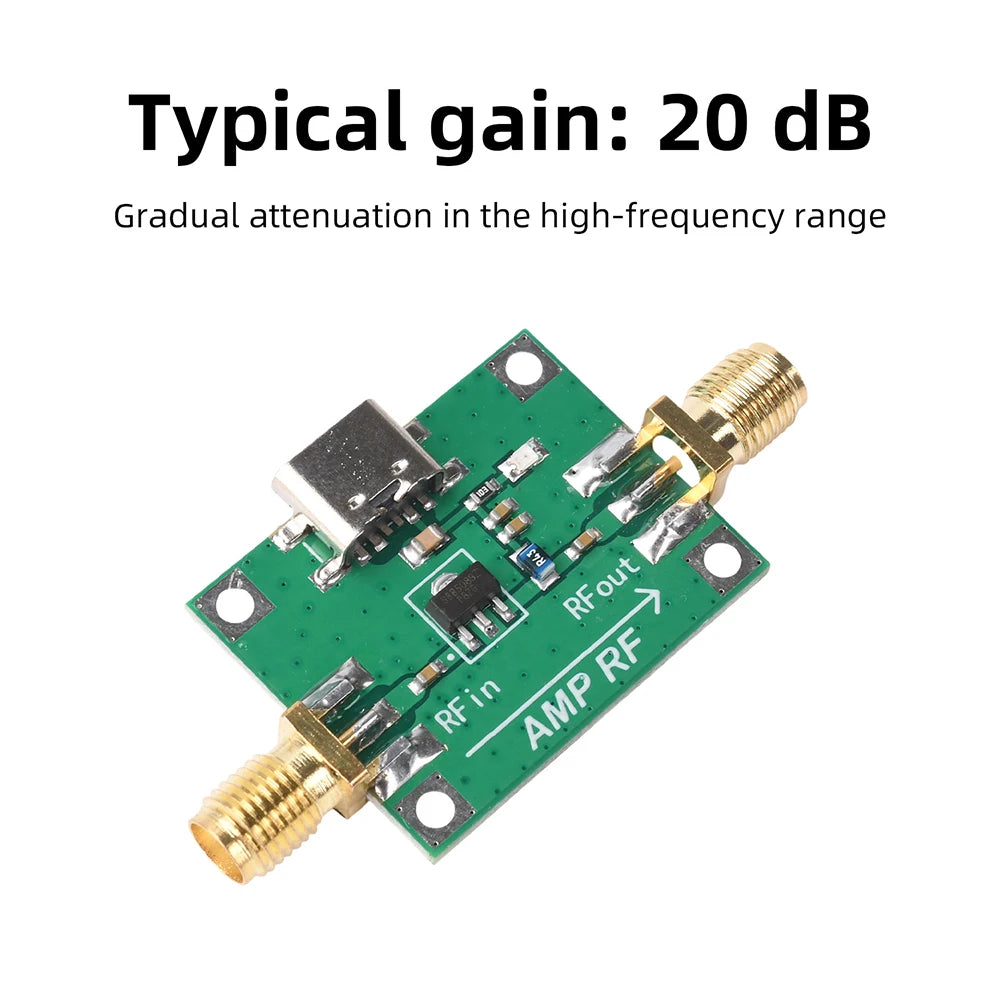

3. Typical gain of 20 dB with gentle attenuation in the high-frequency band

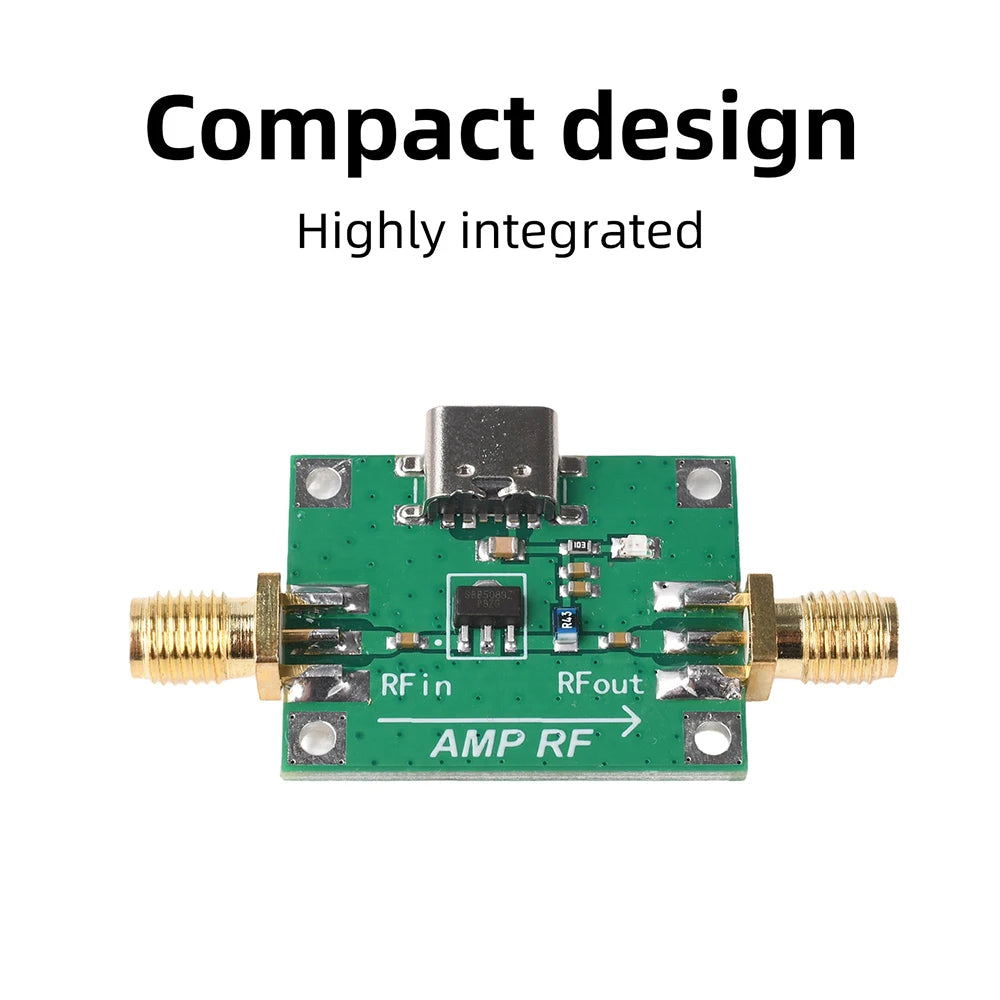

4. Compact design with high integration

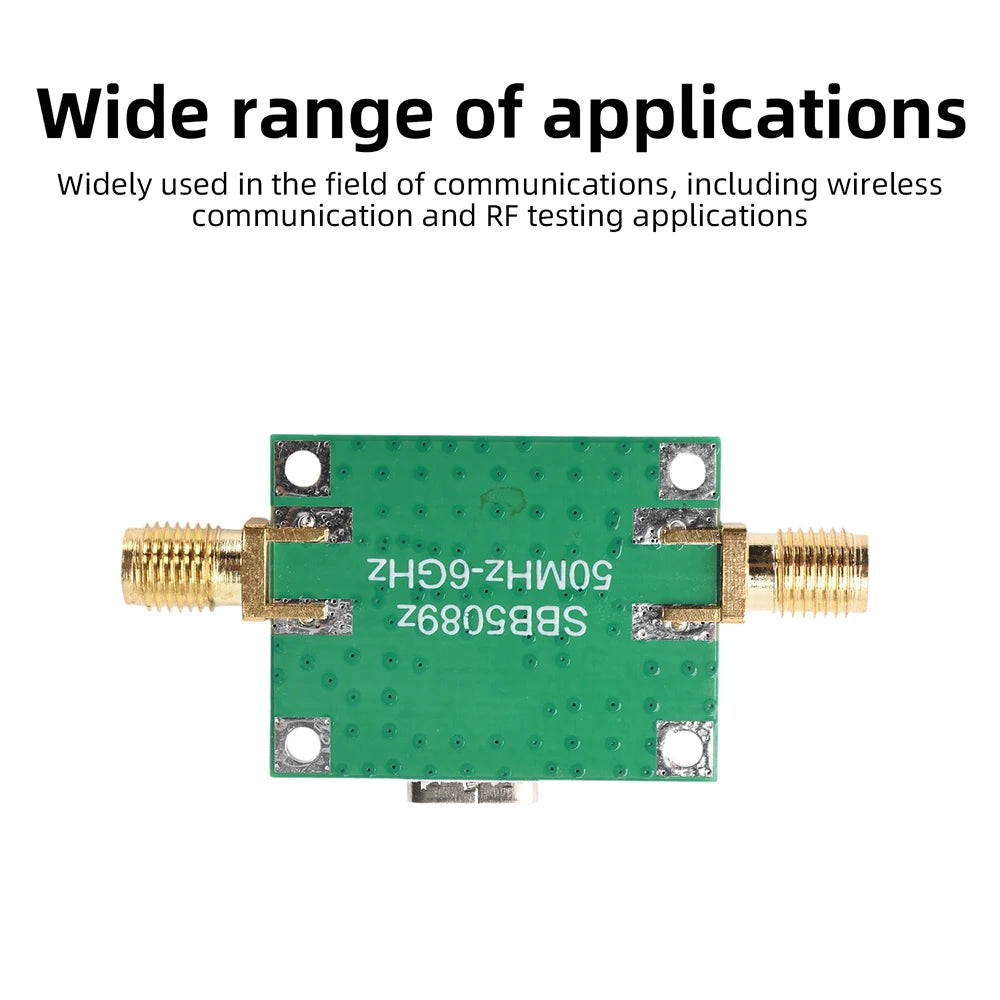

5. Wide range of applications, widely used in wireless communications, RF testing, and other communication fields

Product Description:

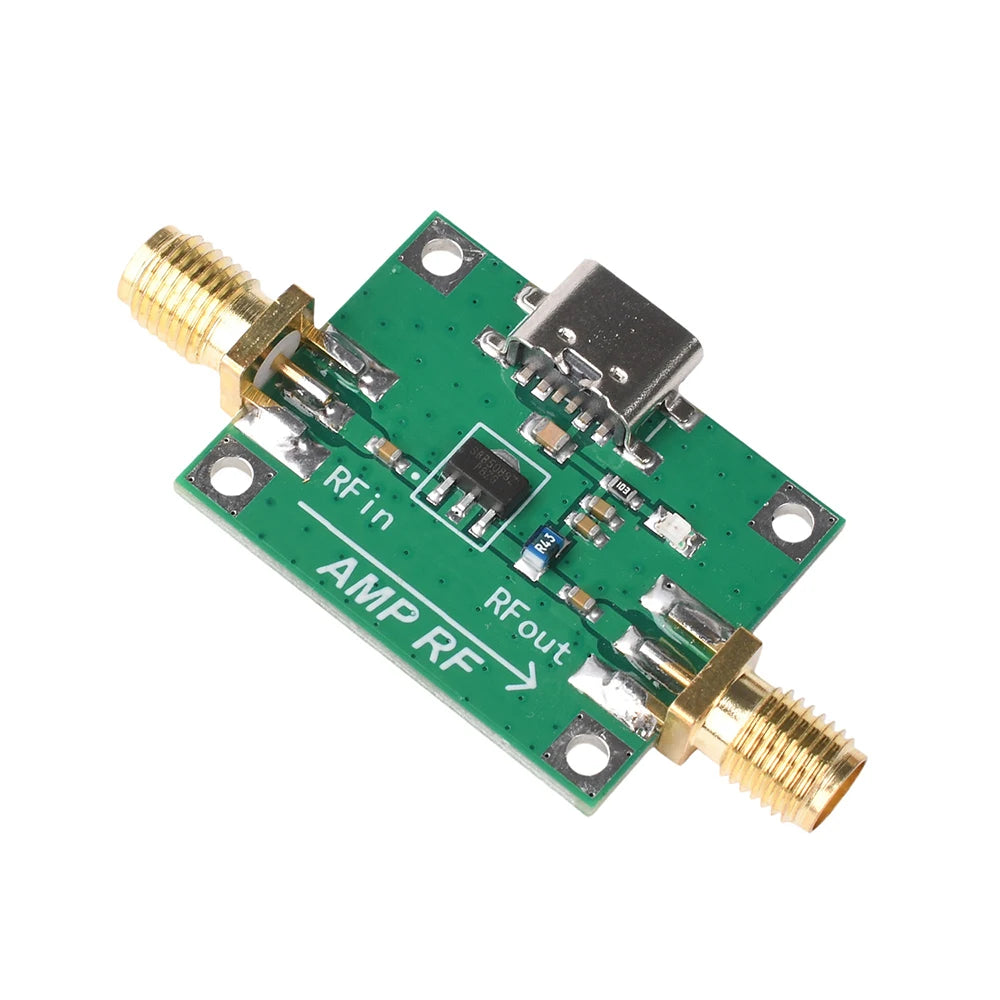

The module utilizes the genuine SBB5089 chip, which is widely used both domestically and internationally. Due to its wide frequency bandwidth, high P1dB output power, and minimal NF variation across the frequency range, this module is extensively applied in the communications sector.

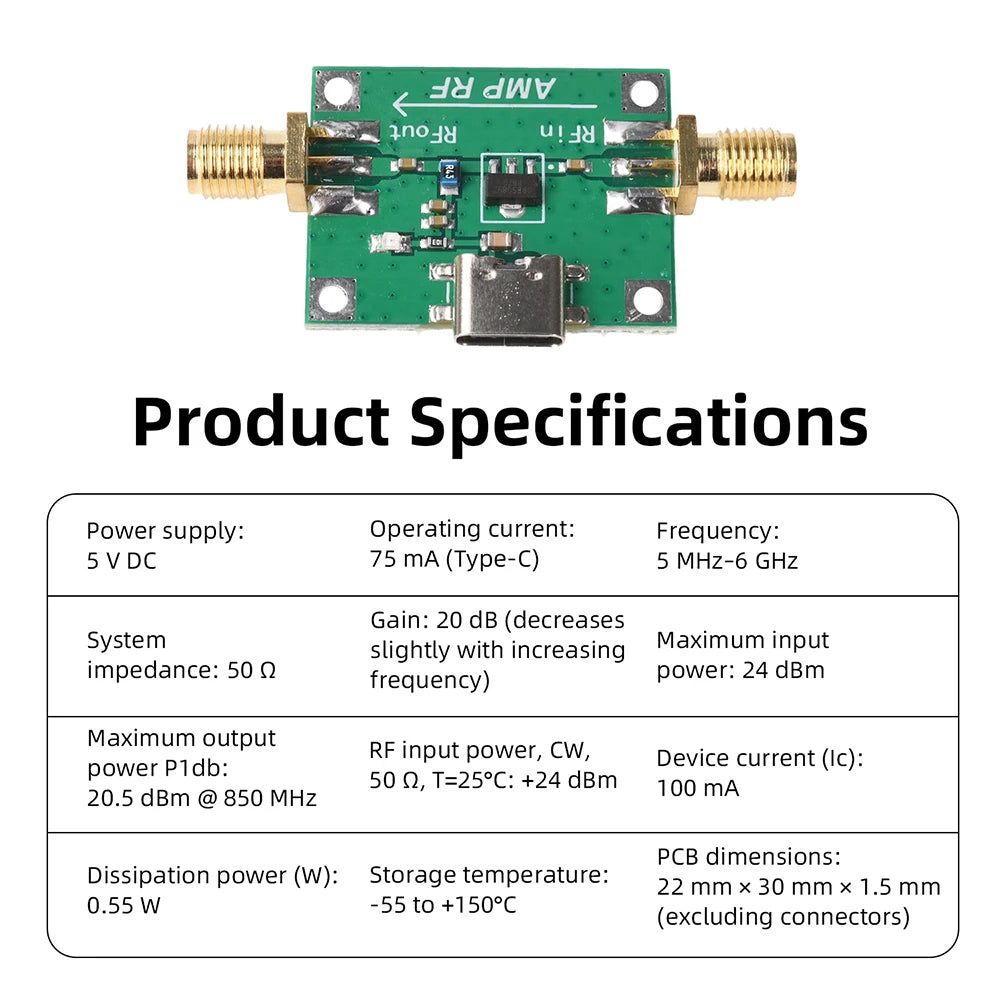

Product Specifications:

Power Supply: DC 5V

Operating Current: 75mA (TYPE-C)

Frequency: 5MHz–6GHz

System Impedance: 50Ω

Gain: 20dB (decreases slightly with increasing frequency)

Maximum Input Power: 24dBm

Maximum P1dB Output Power: 20.5dBm @ 850MHz

RF Input Power, CW, 50 Ω, T=25°C: +24 dBm

Device Current (Ic): 100mA

Dissipation Power (W): 0.55 W

Storage Temperature: -55 to +150°C

PCB Dimensions: 22mm x 30mm x 1.6mm (excluding connectors)

Product List:

1x Module

Precautions for Using the RF Module:

(1) Connect the output load or the next stage first before applying power; do not leave the output open-circuited during operation

(2) The bandwidth and gain of the RF amplifier are not constant; please be aware of this! The bandwidth specified for an RF amplifier generally refers to the range within which gain can be achieved; specific values for gain or flatness are typically not provided. During operation, gain will decrease as the bandwidth frequency increases;

(3) The in-band flatness of the RF amplifier requires the buyer to provide specifications in order to select and tune the amplifier;

(4) The gain and bandwidth of the RF amplifier are closely related to the bias inductance and input/output coupling capacitance. A single parameter value cannot be compatible with the nominal frequency band; please be aware of this!
