SDI to IP Encoder H.265/H.264 – IPTV & SRT Live Streaming

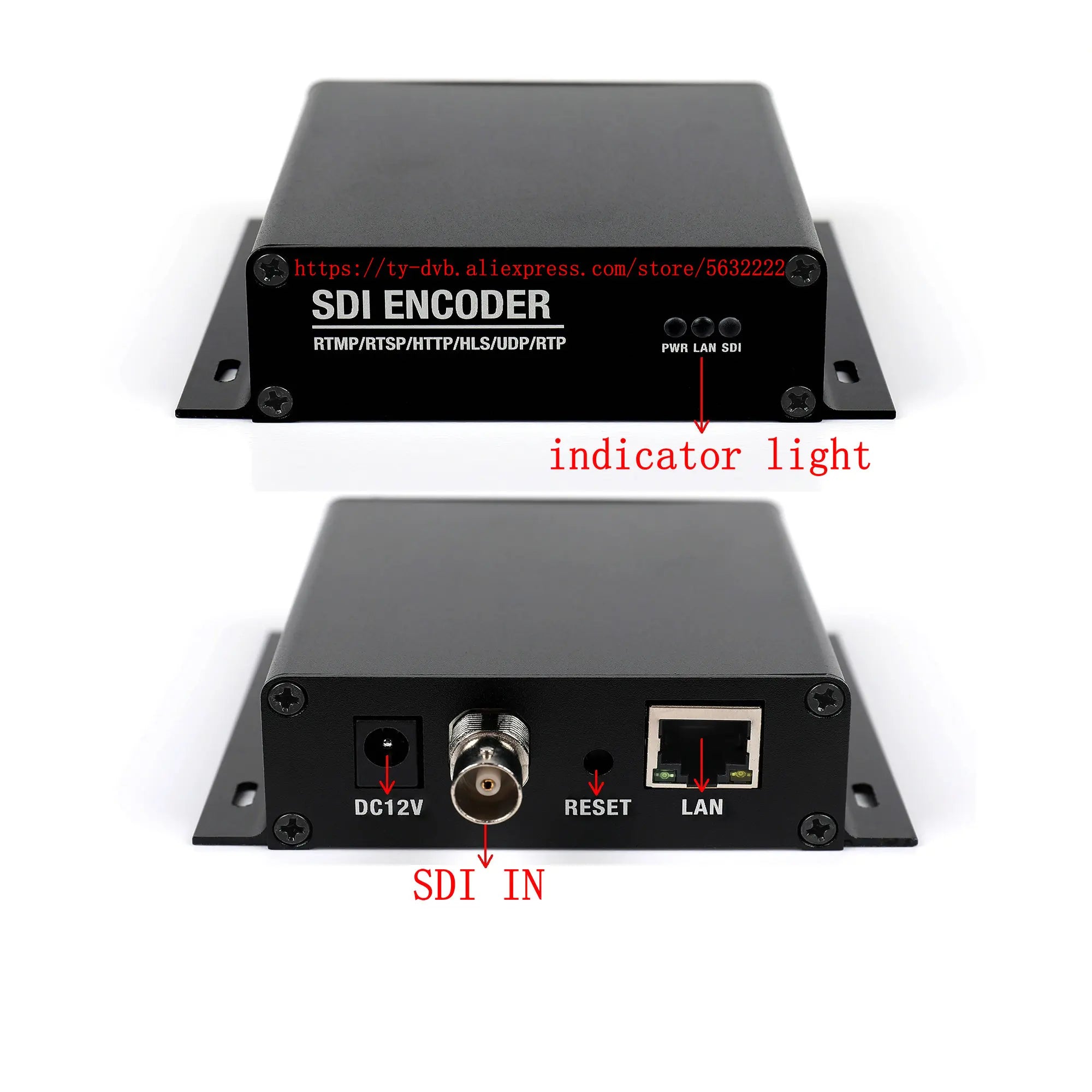

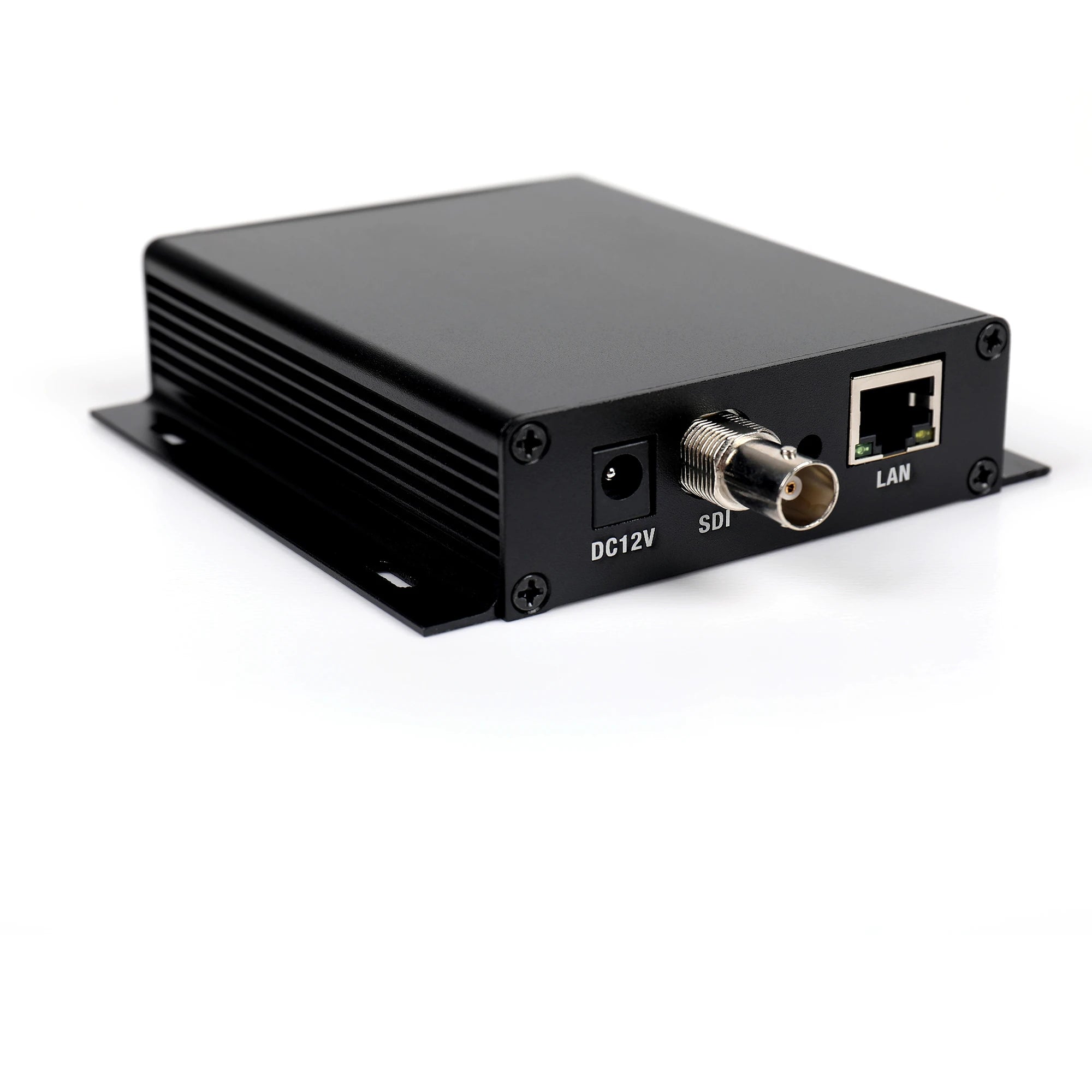

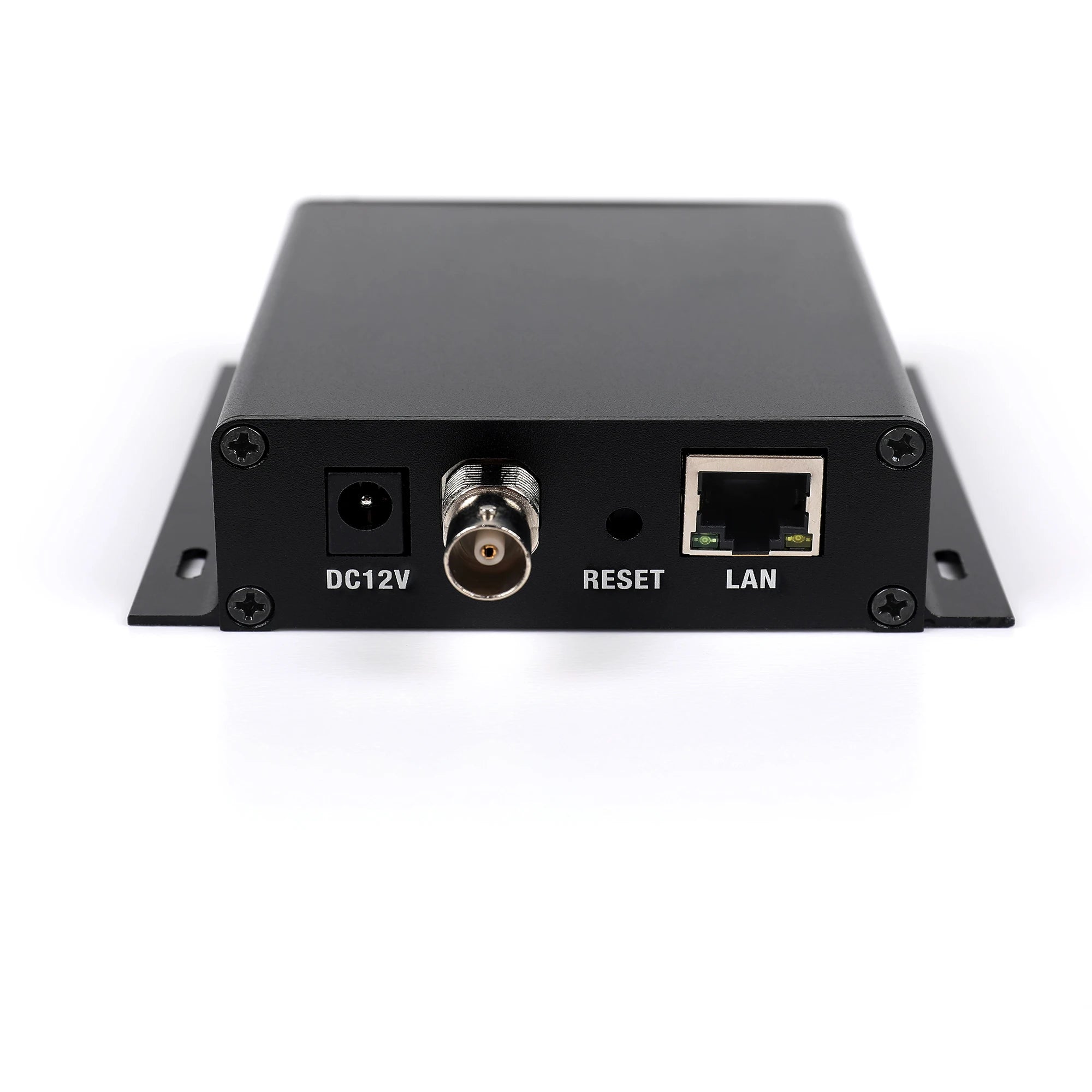

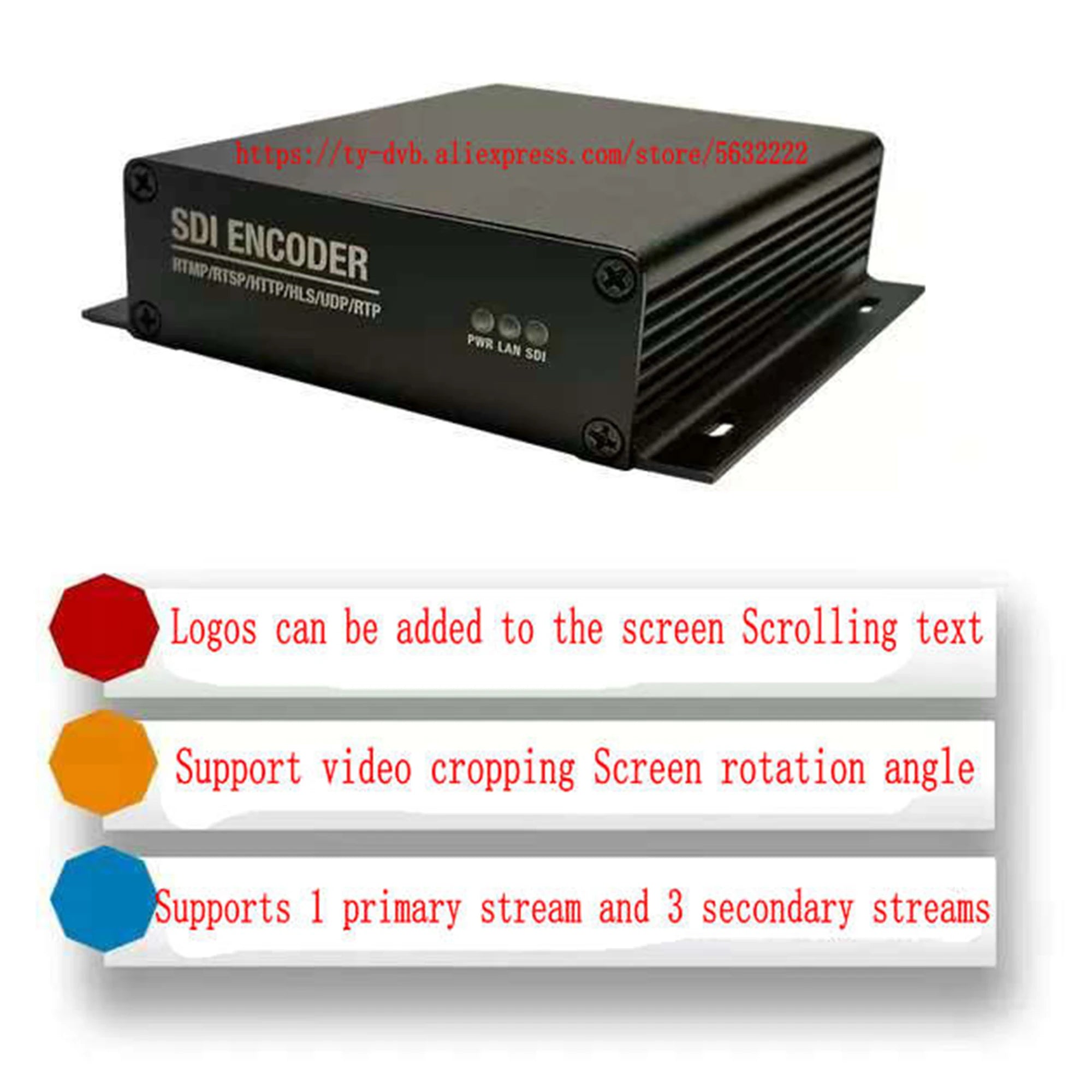

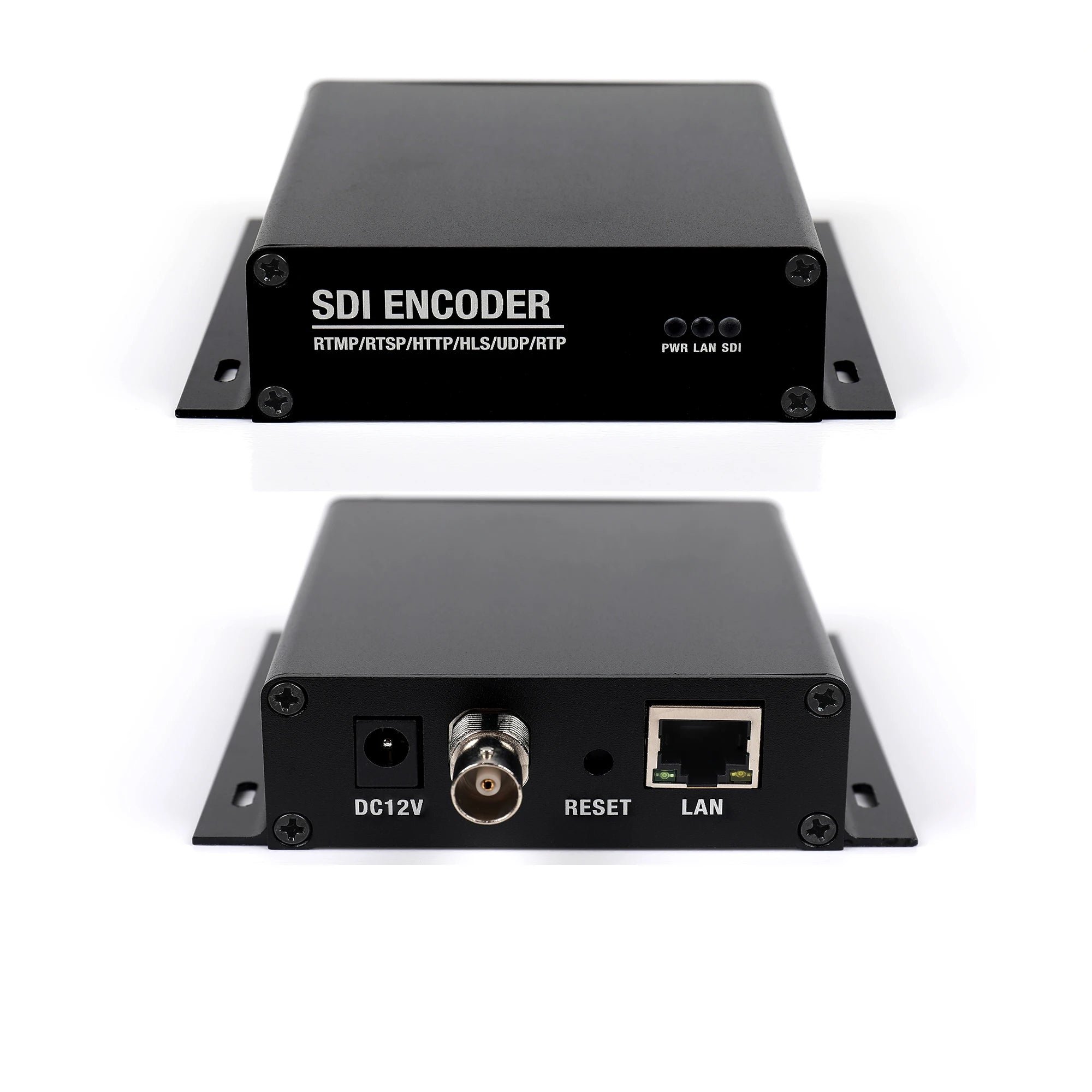

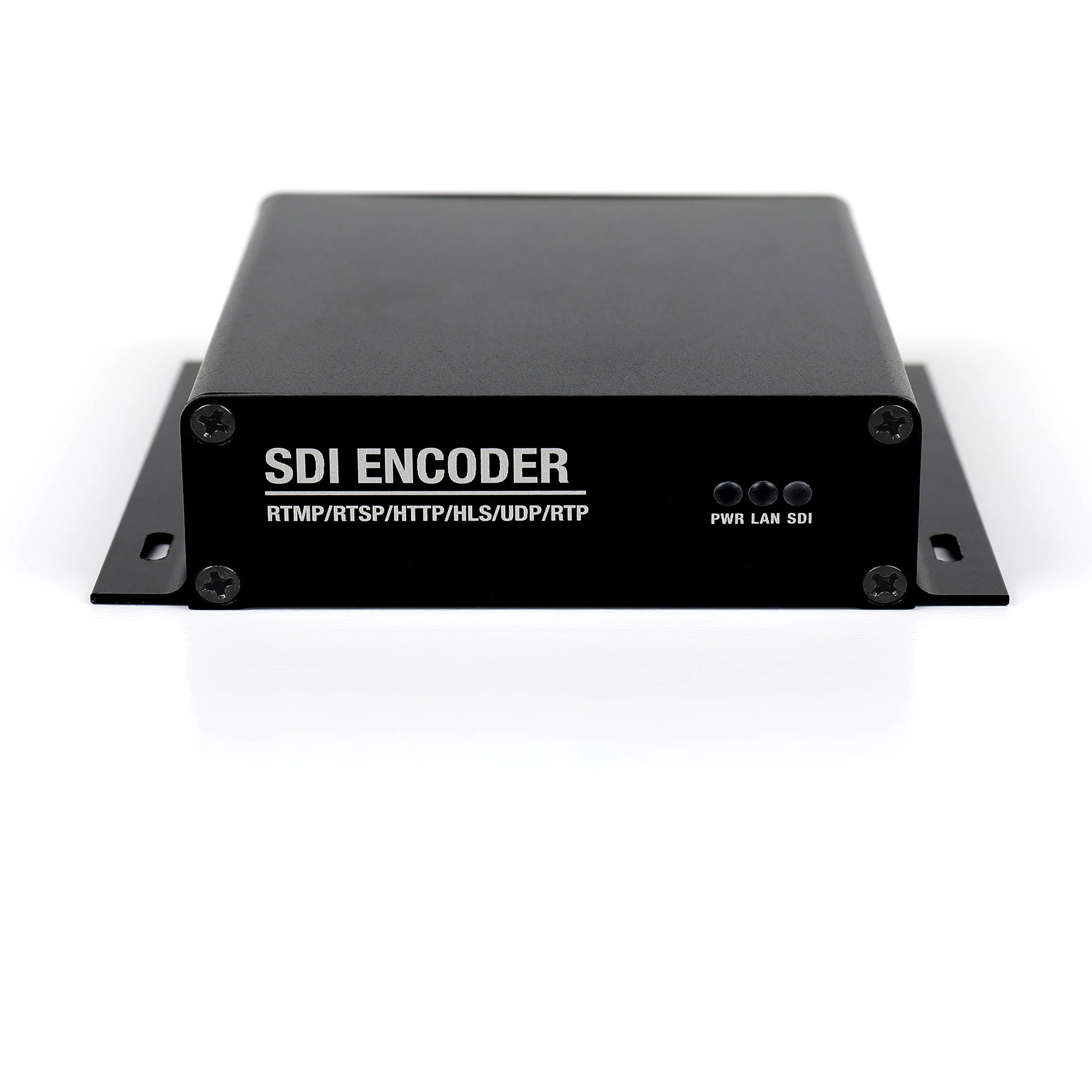

Tuoying SDI to IP Encoder – Professional H.265/H.264 Live Streaming Device

Take your broadcast workflow to the next level with the Tuoying SDI Encoder. Designed for professional broadcasters, AV integrators, and live streaming studios, this compact yet powerful encoder converts 3G/HD/SD-SDI video signals into IP streams with exceptional efficiency. Supporting both H.265 and H.264 compression, it delivers crystal-clear video over your network with a minimal footprint and low power consumption.

Whether you're streaming to IPTV platforms, pushing to YouTube, Facebook, or custom streaming servers via RTMP/SRT, or distributing video across a corporate LAN, this encoder handles it all with ease. CE certified and made in China.

Key Features

• Dual Codec Support: H.265, H.264, and MJPEG encoding — choose the best balance of quality and bandwidth for your use case
• Versatile Streaming Protocols: RTMP, RTSP, HTTP TS, HTTP FLV, HLS, SRT, UDP Multicast, and RTP Multicast — compatible with virtually any streaming platform or server
• SDI Input: Accepts 3G/HD/SD-SDI with built-in embedded audio via a single SDI channel
• Wide Resolution Range: Supports resolutions from 176×144 up to 1920×1200, including 1080p and 720p — outputs match your source or a custom target resolution
• Flexible Frame Rate & Bitrate: Adjustable frame rate 5–60 fps; bitrate range 32–32,000 kbps; supports CBR and VBR stream control
• Rich Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3 with sample rates of 44.1kHz or 48kHz; digital volume control ±50
• OSD Overlay: Add text, images, scrolling text, or time/date overlays across up to 4 configurable zones; upload up to 4 custom logos
• ONVIF Compatible: Easily discovered and viewed by ONVIF-compatible NVRs and VMS software
• Gigabit Network Interface: Reliable, low-latency IP delivery over standard Ethernet infrastructure
• Web-Based Management: Full configuration and monitoring via any browser — no dedicated software required
• Compact & Efficient: Only 197g and 10.4 × 10.3 × 2.8 cm; draws just 4W from a 12V/2A DC supply
• Wide Operating Range: Operates from −20°C to +60°C; humidity up to 90% (non-condensing)

Technical Specifications

Ideal For

• Live sports, concert, and event broadcasting over IP networks
• IPTV headend systems and OTT delivery
• Corporate AV distribution via LAN/WAN
• House of worship live streaming
• Broadcast studios integrating SDI cameras with IP workflows
• Remote monitoring and contribution encoding

Related Products

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler

For guidance on broadcast video standards and signal formats, visit the National Institute of Standards and Technology (NIST) for authoritative technical references on digital video and network protocols.

Frequently Asked Questions

Q: What SDI signal formats does this encoder support?

A: The Tuoying SDI Encoder supports all three major SDI signal types: 3G-SDI (up to 1080p60), HD-SDI (720p/1080i), and SD-SDI — making it compatible with a wide range of professional cameras and broadcast equipment.

Q: Which streaming platforms can I push to with this encoder?

A: This encoder supports RTMP, RTSP, HTTP TS, HTTP FLV, HLS, SRT, UDP Multicast, and RTP Multicast. You can stream directly to platforms such as YouTube Live, Facebook Live, Twitch, Wowza, and any RTMP- or SRT-compatible server or CDN.

Q: How do I configure and manage the encoder?

A: Configuration is done entirely through a web browser via the built-in web management interface — simply connect the encoder to your network, enter its IP address in a browser, and configure all settings including codec, bitrate, frame rate, OSD overlays, and streaming destinations. No dedicated software is required.

Q: Does this encoder support low-latency streaming with SRT?

A: Yes. The encoder includes full SRT (Secure Reliable Transport) protocol support, which is specifically designed for low-latency, reliable streaming over unpredictable networks such as the public internet, making it ideal for contribution and remote production workflows.

Q: What audio formats are supported for encoding?

A: The encoder supports AAC, AAC+, AAC++, MP3, MP2, and AC3 audio encoding at sample rates of 44,100 Hz or 48,000 Hz, with fully adjustable bitrates per codec. You can also enable G.711A encoding for RTSP streams and adjust the digital volume level from −50 to +50.
