SHINEKNOT LED Recessed Emergency Downlight AC 200–240V

SHINEKNOT LED Recessed Emergency Downlight — Always On When It Matters Most

The SHINEKNOT Emergency LED Downlight is a high-brightness, recessed ceiling lamp that doubles as a standard downlight and an automatic emergency light. When mains power is cut, the built-in rechargeable battery kicks in instantly — keeping corridors, stairwells, offices, and living spaces safely illuminated without any manual intervention.

Certified to UL, CE, and CCC standards, this unit is engineered for reliability in homes, commercial spaces, and public buildings alike. Made in Mainland China.

Key Features

• Dual-Mode Operation — Use as a regular ceiling downlight or as a standalone emergency light that activates automatically on power failure
• High-Brightness LED — Luminous flux up to 2,000 lm for wide, clear illumination
• Recessed / Flush-Mount Design — 147 × 65 mm body; 125 mm cutout for a clean, integrated ceiling finish
• AC 200–240 V Compatible — Suitable for standard mains voltage across the UK, Europe, Australia, and most of Asia
• ABS Body — Durable, lightweight housing that resists heat and impact
• Batteries & Bulb Included — Ready to install right out of the box
• 3-Year Warranty — Long-term peace of mind backed by the manufacturer
• Certifications: UL · CE · CCC

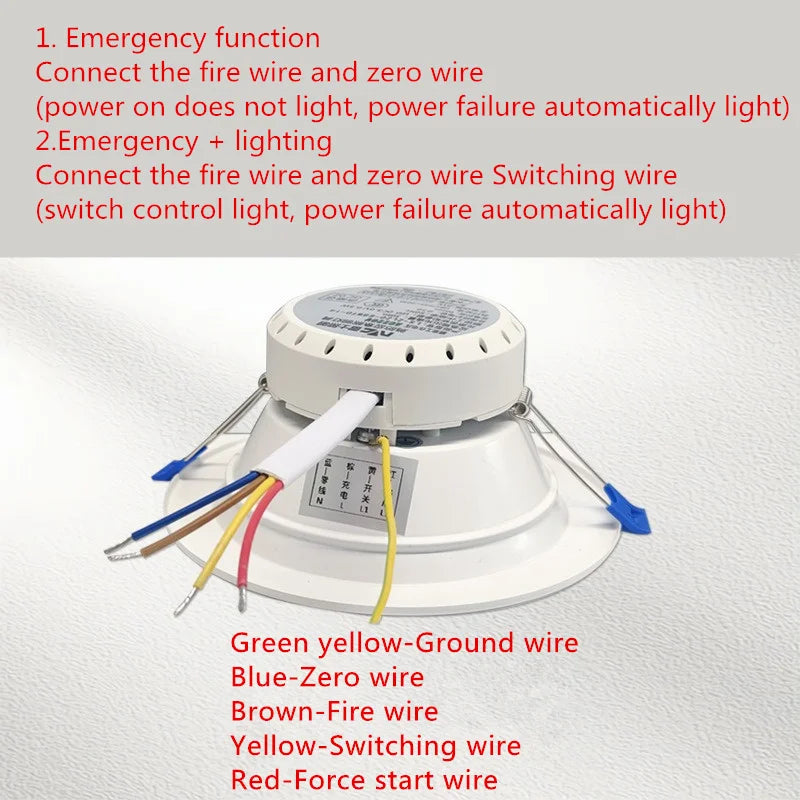

Wiring Guide

Two Installation Modes

1. Emergency Only — Connect live and neutral wires. Light stays off during normal power; activates automatically on power failure.
2. Emergency + Standard Lighting — Connect live, neutral, and switching wire. Switch controls the light normally; activates automatically on power failure.

Specifications

• Model: Emergency Lamp 119
• Voltage: AC 200–240 V
• Light Source: LED
• Luminous Flux: 249–2,000 lm
• Mounting: Recessed (ceiling cutout 125 mm)
• Overall Size: 147 × 65 mm
• Body Material: ABS
• Dimmable: No
• Batteries Included: Yes
• Warranty: 3 Years
• Country of Origin: Made in Mainland China

Why Choose an Emergency Downlight?

Integrated emergency lighting is an important component of any building's fire and evacuation safety plan. For guidance on emergency lighting standards and safe egress planning, refer to the U.S. Consumer Product Safety Commission – Home Safety Resource.

Explore More Lighting & Electronics

You may also be interested in these related products from our store:

• 1.32″ AMOLED Smart Watch – Bluetooth Call, Fitness & Health Tracker
• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino

Frequently Asked Questions

Q: Will this LED emergency downlight work with standard UK and Australian mains voltage?

A: Yes. The SHINEKNOT Emergency Downlight is designed for AC 200–240 V, making it fully compatible with UK (230 V), European (220–230 V), and Australian (230 V) mains supplies.

Q: How long does the battery last during a power outage?

A: The built-in rechargeable battery provides automatic emergency illumination upon mains failure. For specific runtime duration, refer to the product's included instruction sheet, as runtime can vary depending on the selected luminous flux setting (249–2,000 lm).

Q: What size ceiling cutout is needed to install this recessed downlight?

A: You will need a ceiling cutout (hole) of 125 mm in diameter. The overall fixture body measures 147 × 65 mm.

Q: Can I use this as a regular ceiling light and still have emergency backup?

A: Absolutely. By connecting the live, neutral, and switching wires (Mode 2), you can control the light with a standard wall switch for everyday use. If the mains power fails, the lamp automatically switches to battery-powered emergency mode — no additional action required.

Q: Is any wiring or electrical qualification needed for installation?

A: This fixture requires connection to your mains wiring. We strongly recommend installation by a qualified electrician to ensure compliance with local electrical codes and safe operation.
